Vacuum Argon GRMF II S laboratory metal Induction fusion Melting Furnace
- Category: >>>
- Supplier: Shanghai Lirun Electromechanical Equipment Co. Ltd.
Share on (1600739637822):
Product Overview
Description
Product Description
Overview
Essential details
Model | GRMF-II-S | Brand Name: | Lirun |
Usage: | Melting Furnace | Usage: | Lab sample preparation |
Place of Origin: | Shanghai, China | Application: | Ferroalloys and Metal Materials |
Key Selling Points: | Main components from Japan ,German and England | Applicable Industries: | Manufacturing Plant, Lab Use, Precision |
Video outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Showroom Location: | None | Type: | Induction Furnace |
Core Components: | Induction heater,PLC | Warranty: | 1 years |
Rated Current： | 32A | Power (kW): | 25KW |
Voltage: | 380V | Working Time: | 24 hours continuously |
Melting Chamber Atmosphere | Vacuum ＋Argon | Crucible | 2Corundum |
Type of Sample Prepared | Alloy block | Shaping mode | Automatic pouring |
Swinging Angle of Crucible | 0-40℃(Adjustable) | Rotation Speed of Crucible | 0-50 r /min |
Max temperature: | 1700 Degree | Temp Accuracy | ±5℃ |
Melting Time: | 8-10 min | Metal Capacity: | 8-12 g |
Vacuum Degree | -100 | Argon Pressure | 0.1MPa |
Cooling Water Pressure | 0.15～0.2MPa | Cooling Water Flow | 10-80L/min |
Dimension(L*W*H): | 105*55*145cm | Weight (T): | 0.18 T |
Product Details
Melting material
GRMF-II can melt Ferroalloys and metal materials.
Melting material
GRMF-II can melt Ferroalloys and metal materials.
Real Time Monitoring
Parameters
You may Adjust the parameters of the melting furnace according to the type of sample.

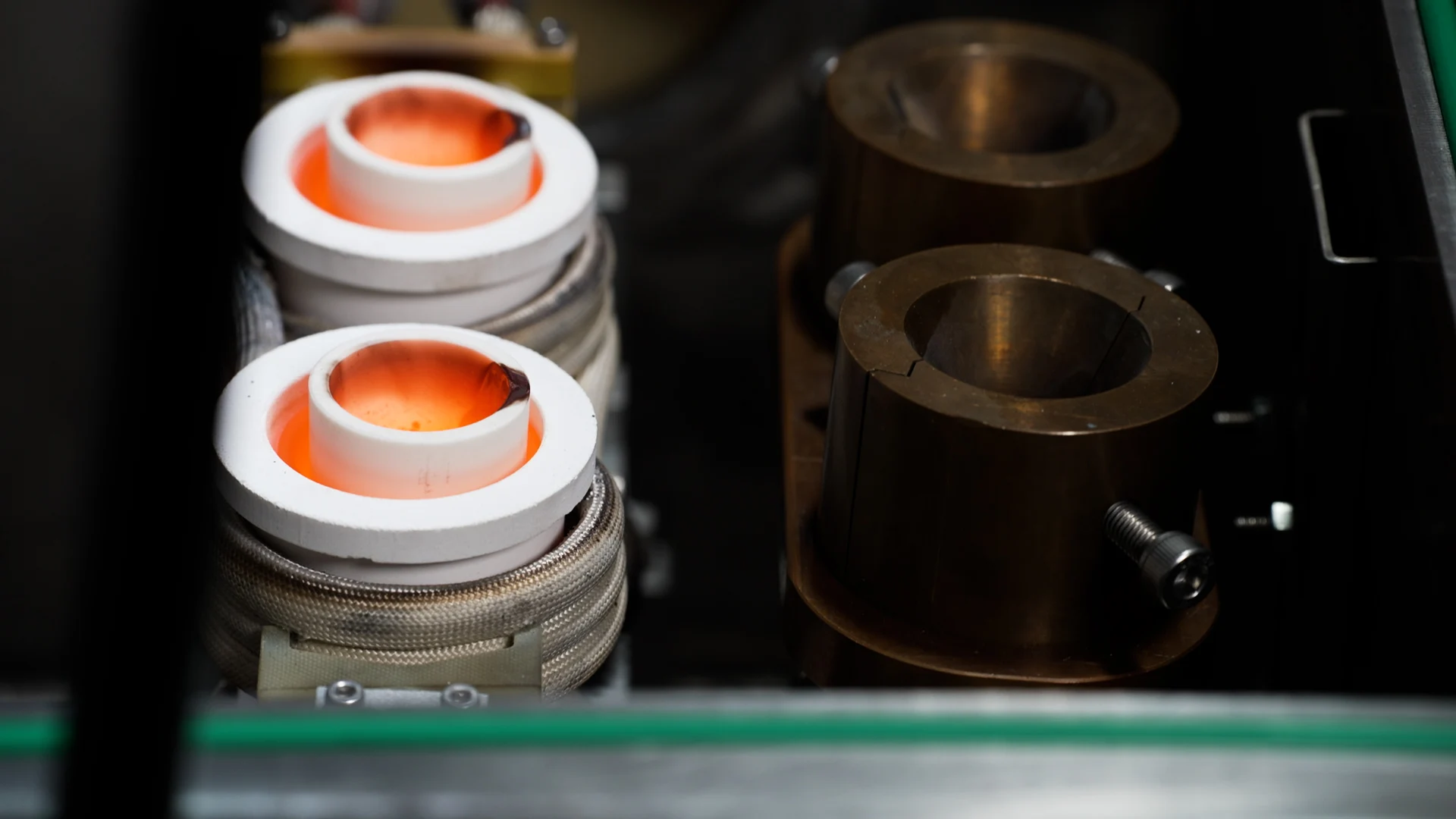

Crucible
There are two alumina crucibles for melting metal materials.
Sample Forming Method
The aluminum oxide crucible is used as the molten metal material, and the sample forming method is automatic pouring+mold lifting device.Company Profile
Our Advantages
1.High Cost-effective
Multiple functions,Cost saving ,Corundum crucible for melting ferroalloy & metal materials
2. Fast and Homogeneity
Melting in 10-15 minutes，Rotatability and rocking of the crucible can ensure homogeneity of the molten sample，suitable for steel mill, laboratories .
3. Simple operation
PLC touch screen，Intelligent control,Programmed step heating，Water cooling protection around the vacuum chamber，Operational safety.
4. According to samples, choose melting environment condition
Vacuum +Argon environment condition for Ferroalloys and Metal materials
Multiple functions,Cost saving ,Corundum crucible for melting ferroalloy & metal materials
2. Fast and Homogeneity
Melting in 10-15 minutes，Rotatability and rocking of the crucible can ensure homogeneity of the molten sample，suitable for steel mill, laboratories .
3. Simple operation
PLC touch screen，Intelligent control,Programmed step heating，Water cooling protection around the vacuum chamber，Operational safety.
4. According to samples, choose melting environment condition
Vacuum +Argon environment condition for Ferroalloys and Metal materials
The Price Remarks:
1.The above equipment prices do not include platinum crucibles, which are calculated according to the international platinum gold price of the month of purchase. The buyer can Self purchase platinum crucible according to the drawing.
2.The above equipment prices do not include the travel, board and lodging expenses of Chinese engineers for on-site installation and commissioning, which are calculated on an actual basis.
3.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.
4.Free providing with training and guidance on remote video installation, commissioning and operation .
3.The whole machine warranty is guaranteed from 12 months after installation and acceptance or 18 months after delivery, whichever comes first.
4.Free providing with training and guidance on remote video installation, commissioning and operation .
Our Factory
Certifications
Packing & Delivery
FAQ
Q1:Are you manufacture?
A1:Yes,we are the original manufacturer of melting furnaces,which are used to prepare the laboratory sample . With our melting furnaces, people can prepare high-precision uniform samples for X-ray fluorescence spectrometry and Spark atomic emission spectrometry to ensure the analysis accuracy.
Q2:How long does your machine warranty last?
A2:One year warranty.
Q3:How is your machine quality?
A3:The main components of our machines are using domestic and world first-class brands. The quality is reliable and stable.
Q4:Where are your factory located?
A4:We are located in Shanghai China.
A5: Usually customers can use for more than 6 years without any problems if it's under normal condition using and maintenance. If you have any troubles, you may provide us a video to describe what the problem is so that our engineer can judge and give you a solusion.Within the warranty period, we'll send you the parts free of charge for replacement. After the warranty ,we'll provide you the parts at a reasonable costs. Everlasting technical support is offered freely.
