hot sale Temperature SWITCH for fuel oil water steam Yuanwang
- Category: >>>
- Supplier: Jiangsu Yuanwang Instrument Group Co. Ltd.
Share on (1600739655284):
Product Overview
Description
Product Description

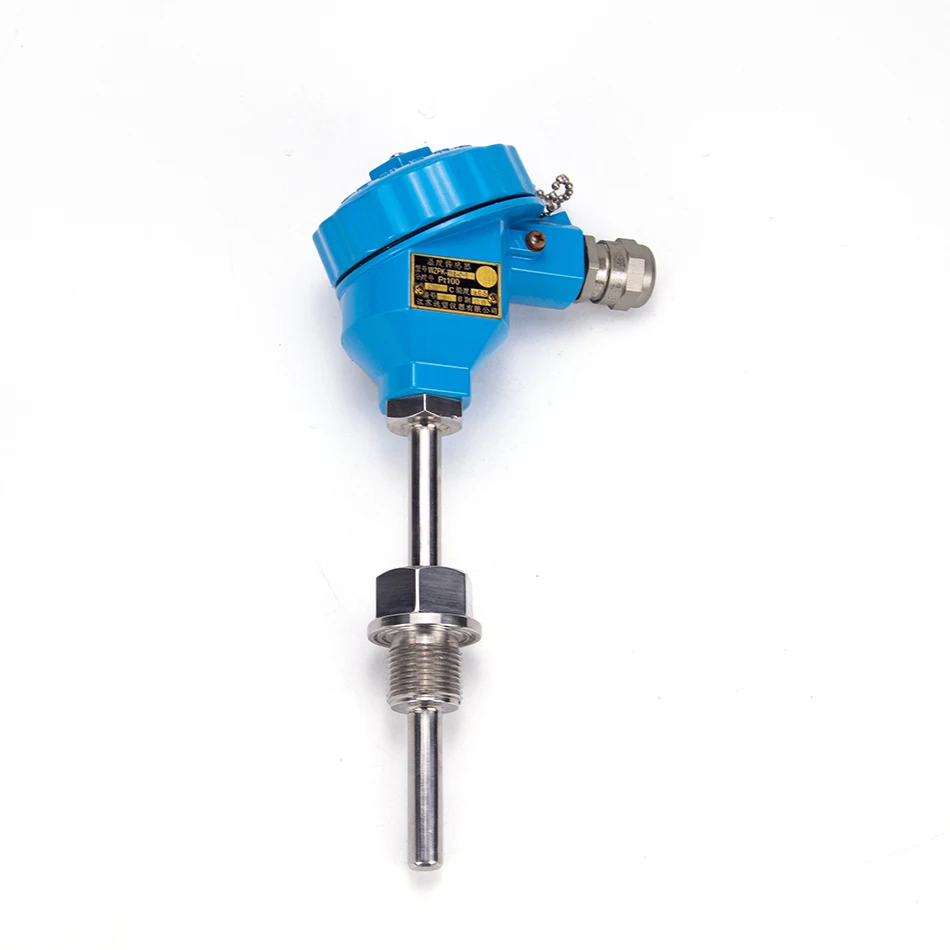

WTZK-50-C type temperature controller is an electrical switch that can make circuit close or open following change of controlled medium temperature. It can be used to support performance structure in ship, freeze instrument or other industrial equipment by controlling temperature of gas, liquid or stem through two-position type.
Main Technical Specification
Temperature regulating range (℃) | -25~0, -15~+15, 10~40, 40~80, 60~100, 80~120, 110~150, 130~170 |
Switching error (℃) | 3~5 |
Accuracy (℃) | ±2 |
Repeatability error | ≤2 |
Contact capacity | AC380V 3A, DC220V 2.5A |
Protection class | IP44 |

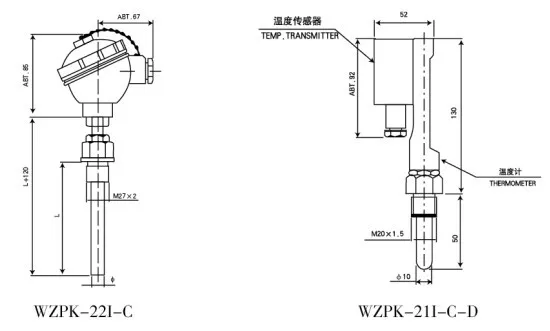

Sketches
Contact form
Packaging & Shipping
Packing: carton or wooden case
Shipping: by air, sea, or courier as Fedex, DHL, UPS, EMS
