PLA foamed sheet production line CO2 Supercritical foaming board machinery for disposable food trays
- Category: >>>
- Supplier: Nanjing Gs-Mach Extrusion Equipment Co. Ltd.
Share on (1600739656141):
Product Overview
Description

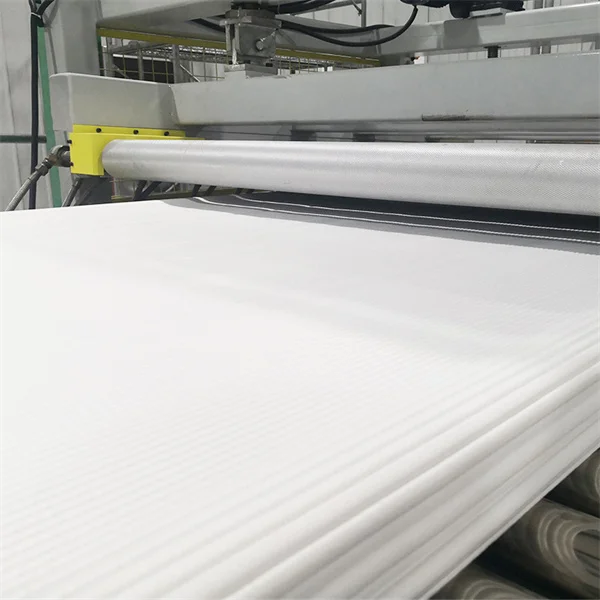

PLA foamed sheet production line CO2 Supercritical foaming board machinery for disposable food trays
Video Presentation
Overview:
● Research on the process of focusing on the PLA foam complete set of equipment,
● Professional PLA CO2 production process, and provide a number of users at home and abroad with the entire factory project and solution
● Fully automatic production control to achieve stable and efficient production
● Research on the process of focusing on the PLA foam complete set of equipment,
● Professional PLA CO2 production process, and provide a number of users at home and abroad with the entire factory project and solution
● Fully automatic production control to achieve stable and efficient production

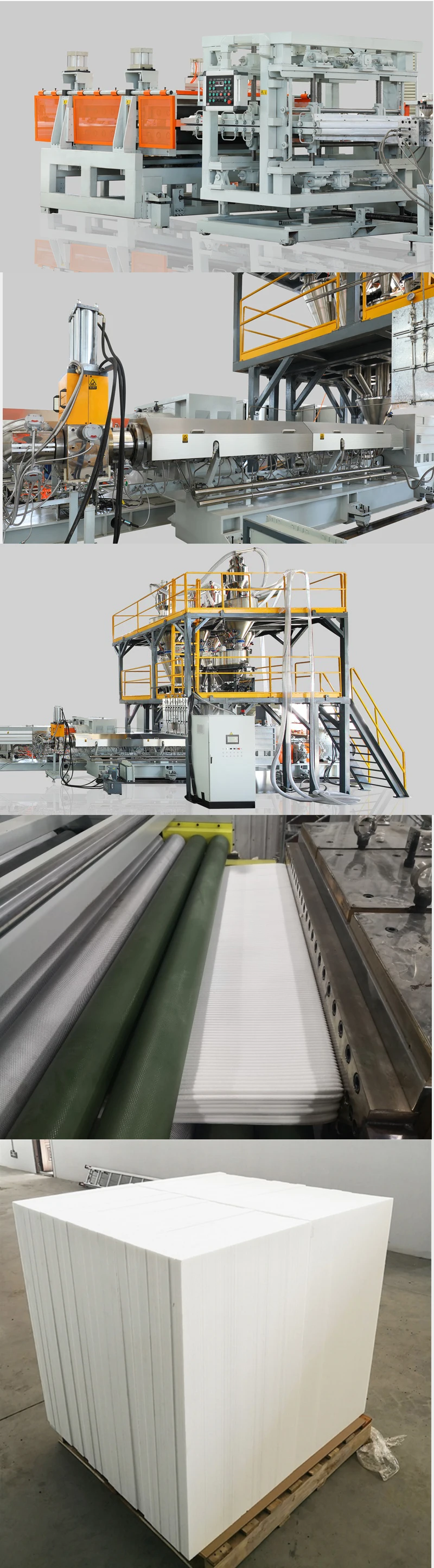

Process Flow
The entire PLA production line is composed of the feeding system, extrusion system, foam injection system, molding system and auxiliary system, and electrical control system.
● The customer can choose according to the production requirements. At present, the first -order extruder adopts a double screw structure, the output is more stable, the production capacity is larger, and the second -order extruder is a segmented single screw structure.

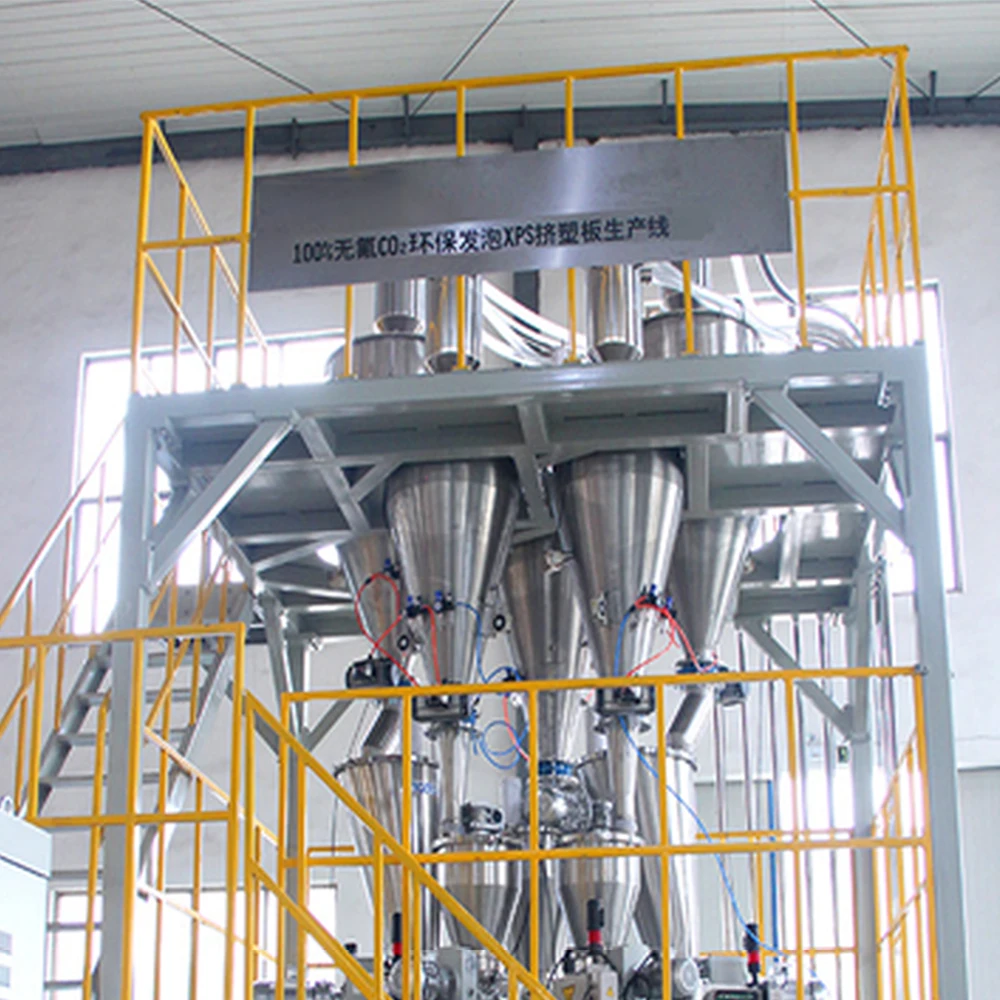

● The feeding system is divided into vacuum suction machines and feeders. The form of a feeder adopts multiple groups of loss of weight feeding. There are also weight gain for users to choose.
● Foam injection system, including CO2 injection unit, alcohol injection unit and third group (Flion, DME, etc.) injection unit.

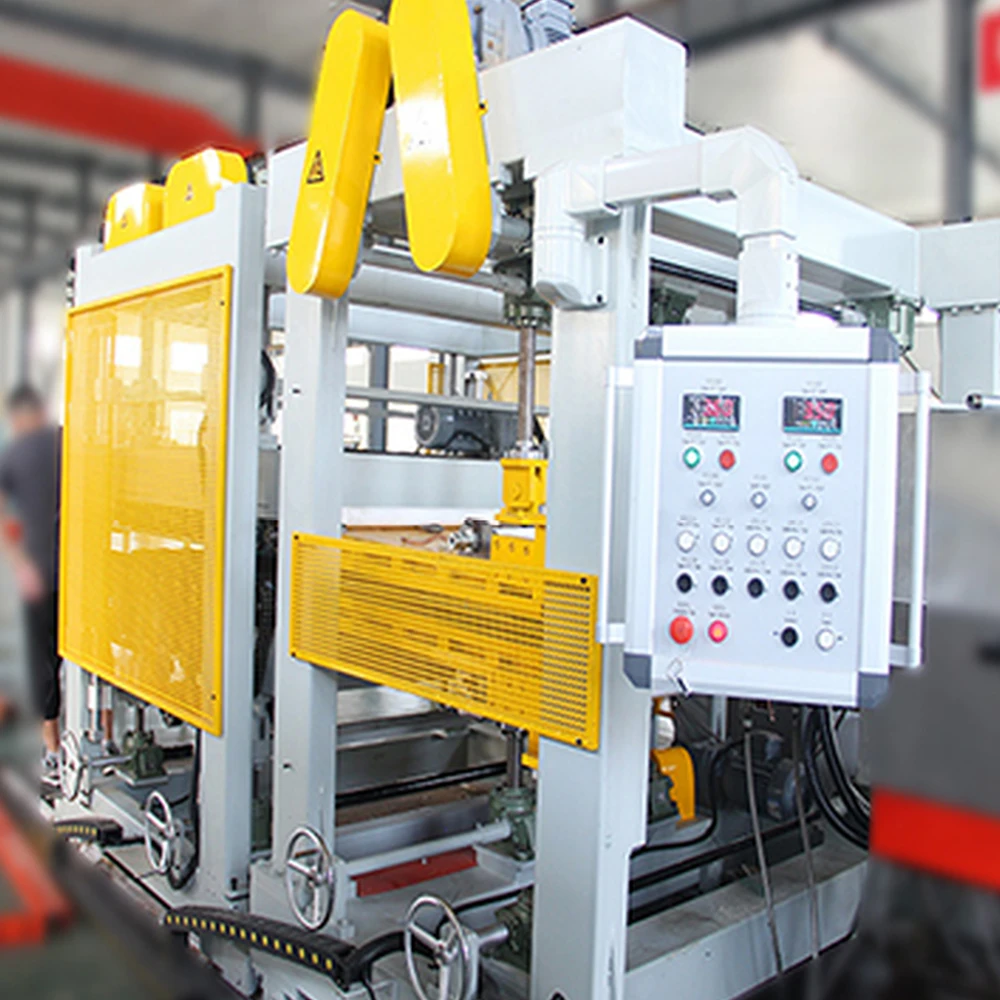

● The auxiliary machine system contains a flattener, traction machine, cooling roller, cutting edge machine, pressing flower device, bubble slotting machine, vertical refinement and opening interface device, horizontal refinement and opening interface device, cooling and flipping flip The frame, the palletizer and the packaging machine, the user can choose according to the needs.
Product Advantages
Multi-component weight reduction compound system
Fully automatic computer-controlled feeding system for various raw material ratios, with vacuum feeding to ensure stable conveying
of raw materials.
of raw materials.
A permanent magnet synchronous servo drive motor is used to combine the screw building block structure according to the processing process of the material.
Precise proportional control of the cooling system to ensure good cooling effect.
Precise proportional control of the cooling system to ensure good cooling effect.
Energy-Saving Served Extrusion System
Using permanent magnet synchronous servo drive motor, screw building block structure, combined use according to the processing technology of materials

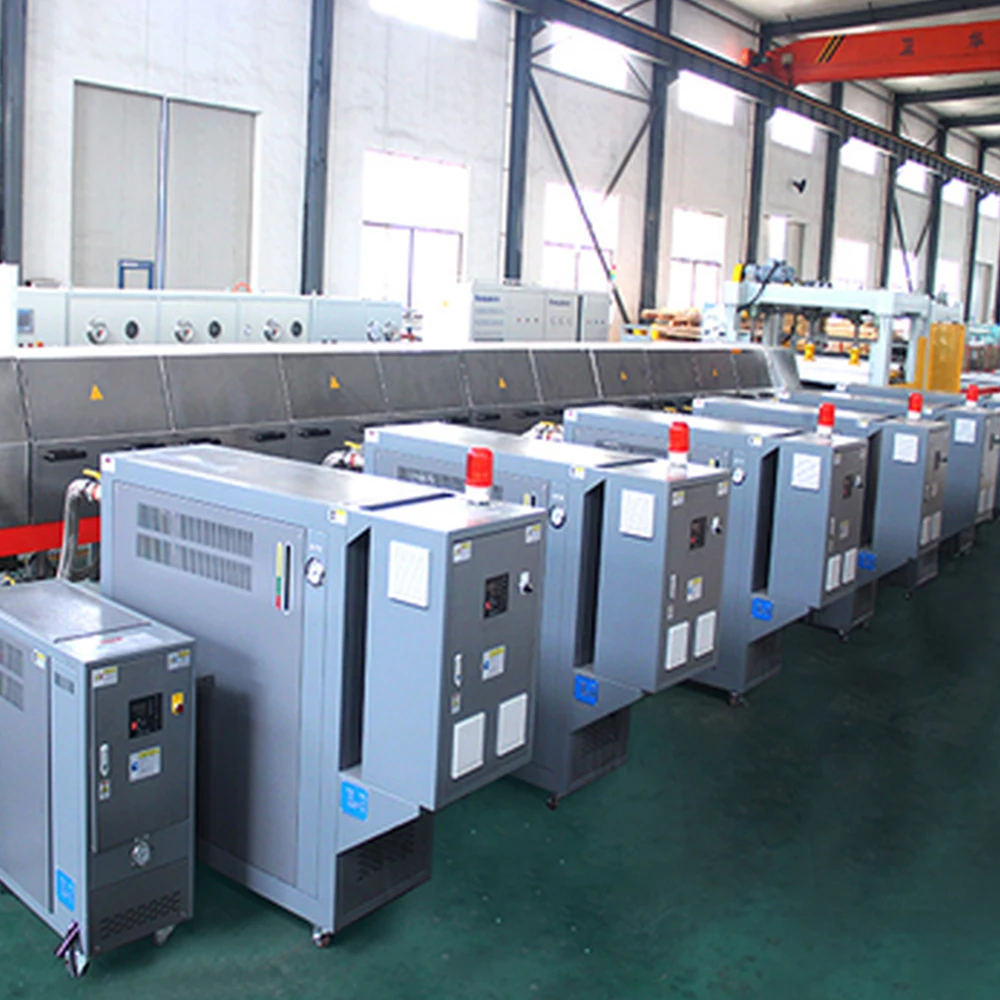

Cooling and Constant Temperature System
Precise Proportional control of the cooling system to ensure good cooling

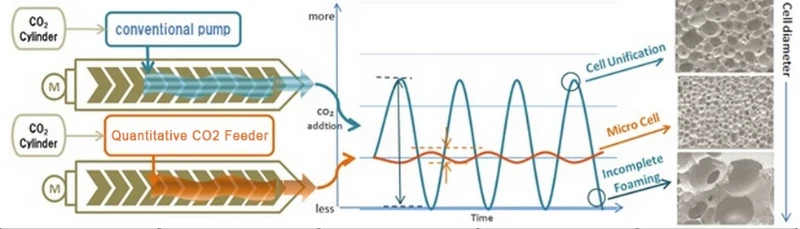

Supercritical CO2 blowing agent inhalation system
Adopt fully imported flow control system and unique three-stage booster injection system to maintain the stability of the foaming
agent flow.
agent flow.
Extrusion Die & Sizing System
Adopt large diverter, long fan area head to build pressure extrusion, bi-directional electric adjustable device, low resistance
system material proportional control, double-sided shaping.
system material proportional control, double-sided shaping.

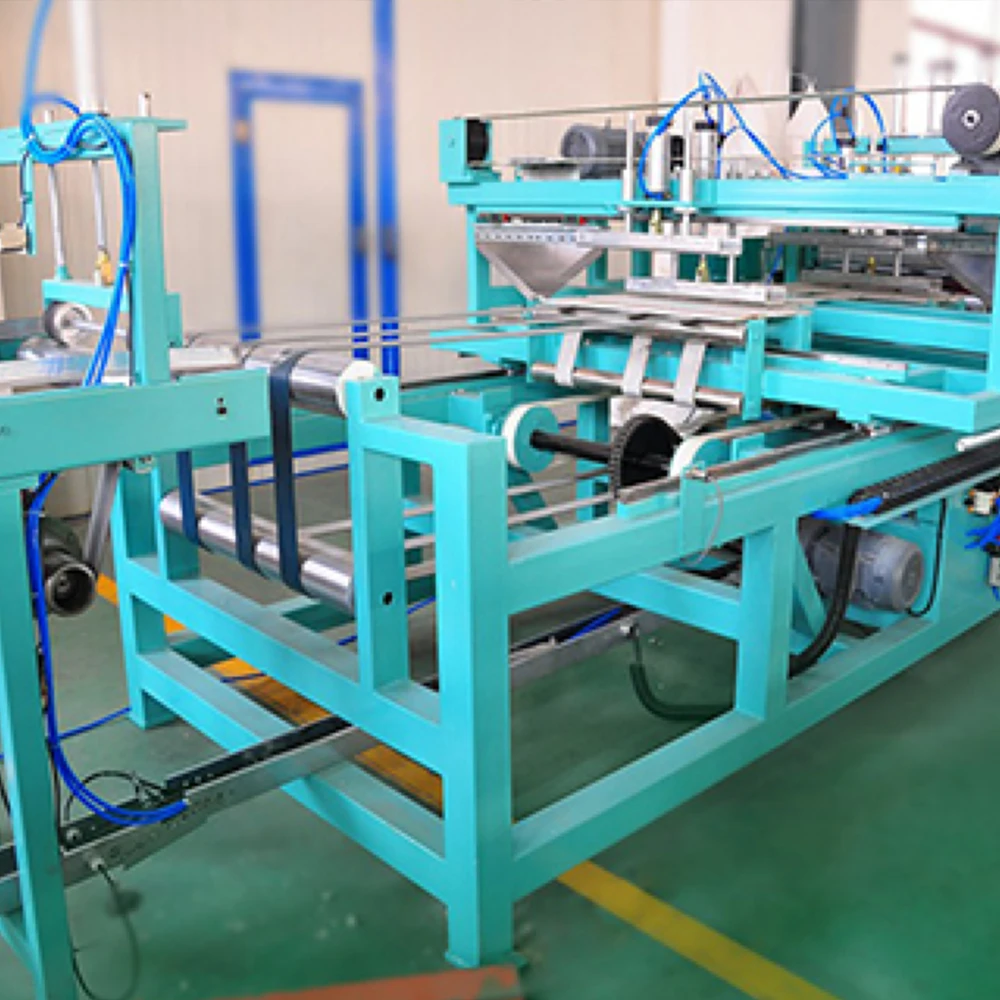

Conveying and Cutting System
Automatic fixed-length cutting, vertical and horizontal edge forming, automatic stacking, multi-point monitoring, automatic alarm,
automatic packaging system, dust-free.
automatic packaging system, dust-free.
Product Feature
Finer Vesicular Structure / Higher Pressure Range
Unparalleled Quality / Thermal insulation
Energy Saving In Building / High Compressive Strength

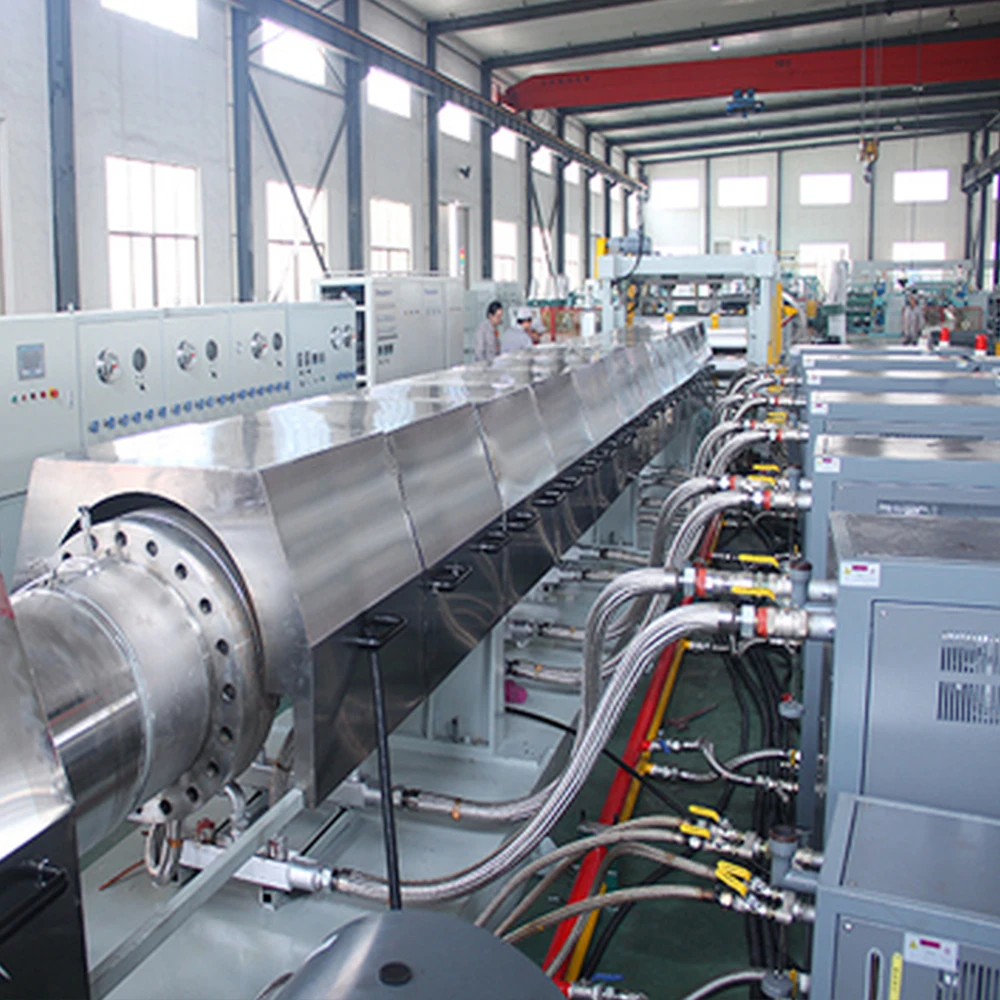

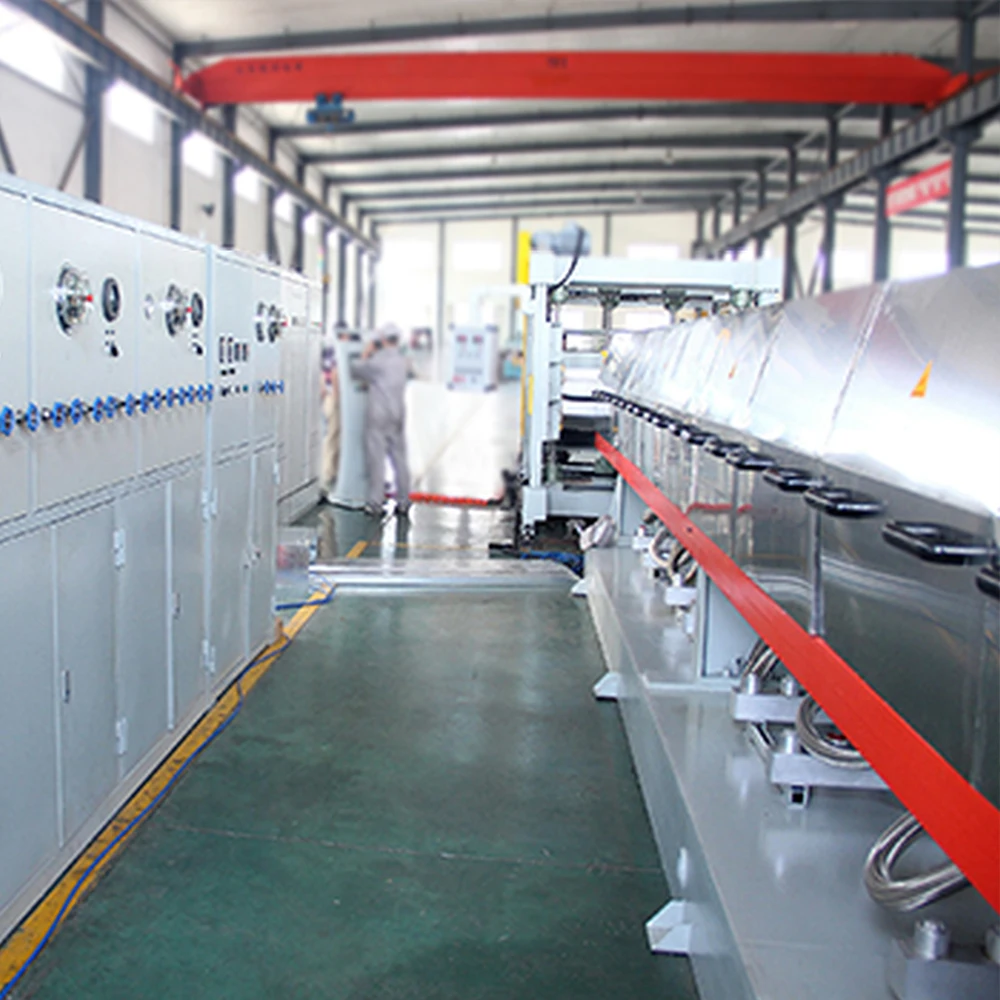

Real Factory Shot
Gas type | co2 | ||||||
Insert gas supplypressure | 15(maximum 25MPa) | ||||||
Max. Amount ofinert gas added | 10% | ||||||
Extrusion amount(when using PS) | 20kg/h | 20kg/h | 20kg/h | 20kg/h | |||
Extruder type | tandem | ||||||
First stage extruder(mixing) | 25 twin-screw | 40twin-screw | 52twin-screw | 65twin-screw | |||
Second stageextruder (cooling) | 60 single-screw | 90 single-screw | 120 single-screw | 150 single-screw | |||
Die system | circular die/Tdie | ||||||
Haul-off machine(cooling machine) | manufactured to production specifcations | ||||||
Winding machine.sizing | manufactured to production specifications | ||||||

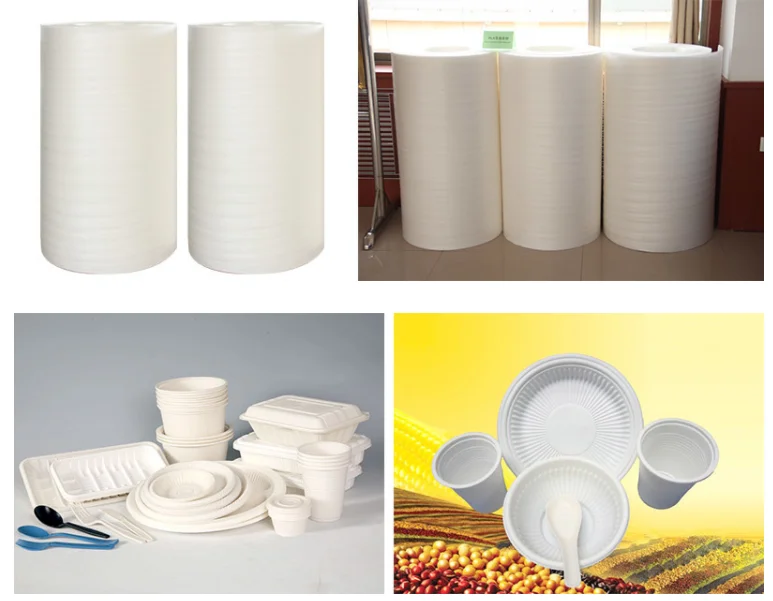

Wide Application
