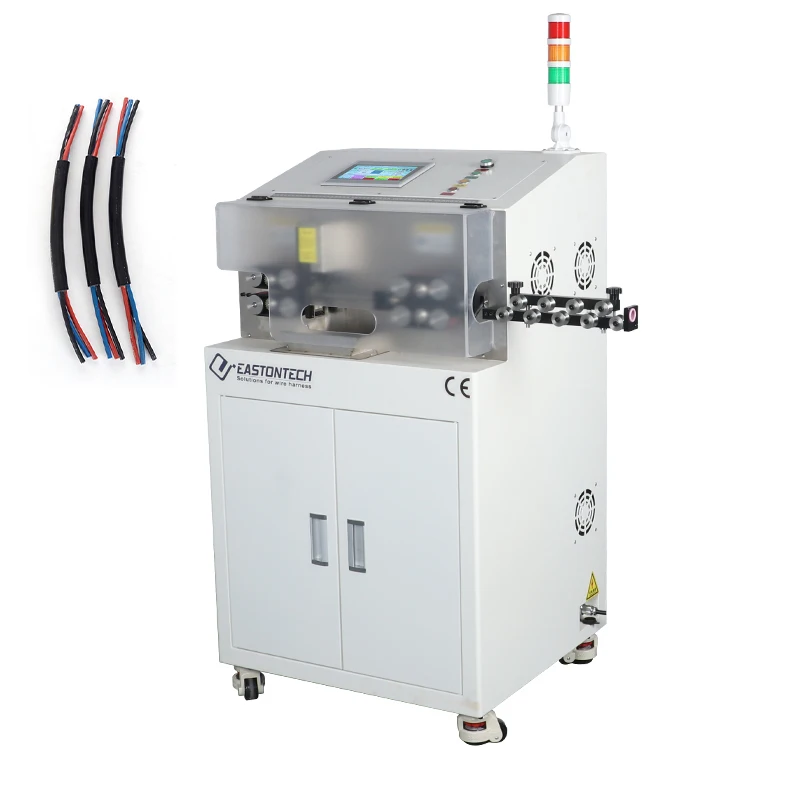

EW 05G Fully automatic 50sqmm outer sheath wire flat cable peeling cutting machine computer wire stripping machine
- Category: >>>
- Supplier: Wenzhou East World Automation Equipment Co. Ltd.
Share on (1600739717865):
Product Overview
Description

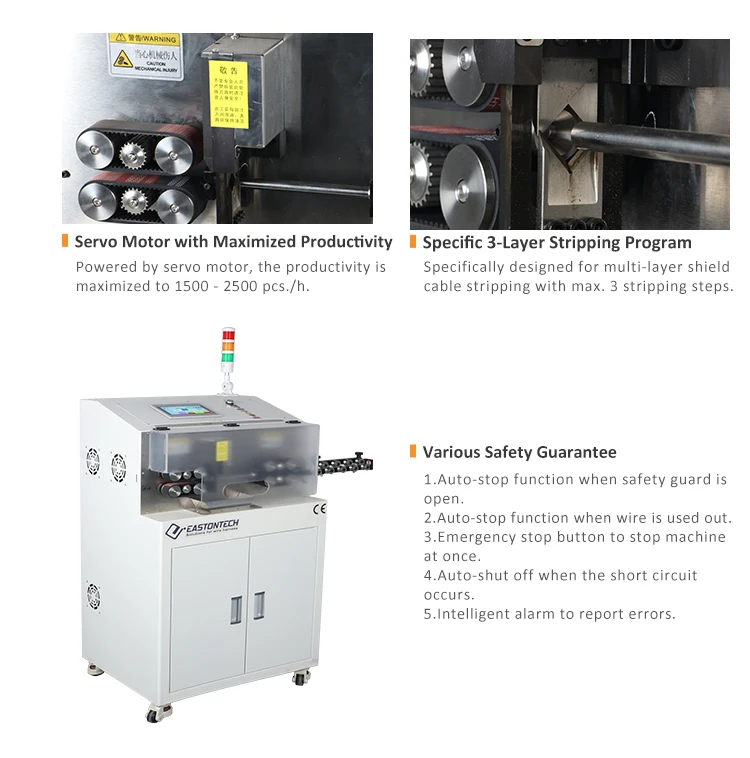

The EW-05G is a servo motor driving machine for high production performance (up to 2500 pcs./h!) for 1.5 - 50 mm² wires.

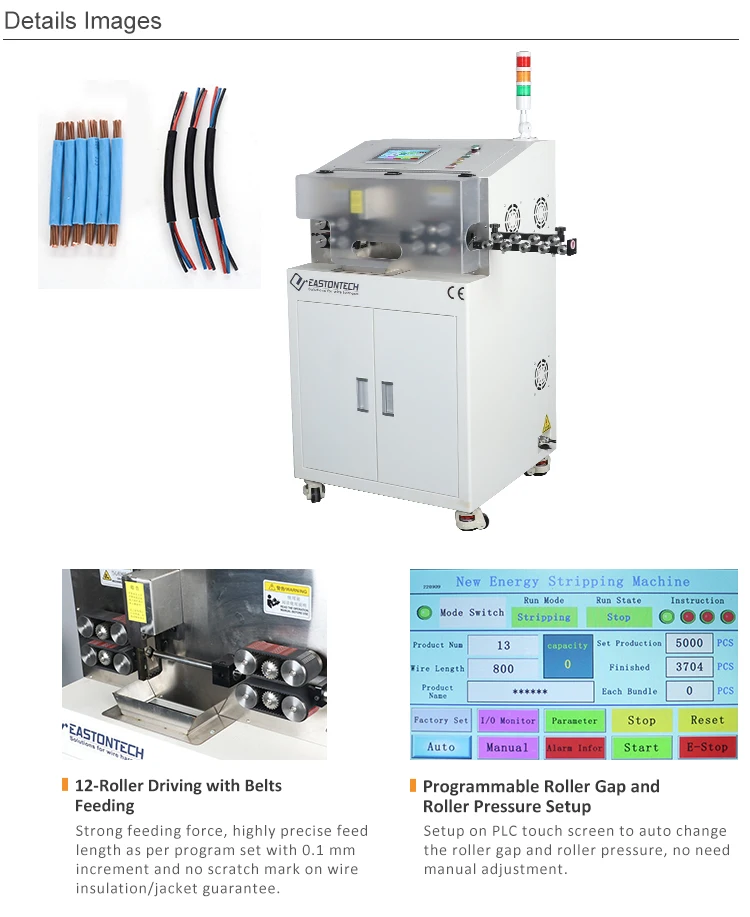

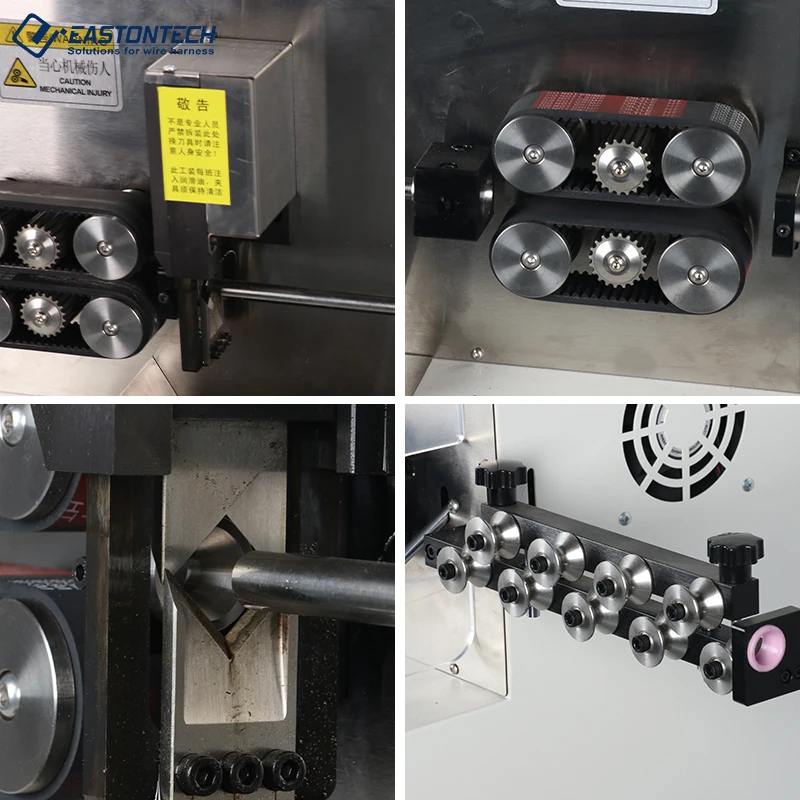

1. 12-roller servo motor driving with belts feeding. Strong feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
2. Programmable and intuitive roller gap and roller pressure setup on PLC touch screen, no need manual adjustment.
3. Memory capacity of 200 programs with specific 3-layer stripping program for shield cable.
4. Optional middle strip module, slit module.
5. Optional pre-feeder, stacker and coiler.
Model | EW-05G |
Stripping capability | 3-layer stripping for shield cable |
Wire material | Wide range of industrial wires |
Conductor cross-section | 1.5 - 50 mm² |
Cutting length | 1 - 100,000 mm |
Cutting length tolerance | < 0.002 * L |
Stripping length (side I) | Full strip: 0 - 250 mm Half strip: no limit |
Stripping length (side II) | Full strip: 0 - 150 mm Half strip: no limit |
Slitting function | Optional |
Maximum guide tube diameter | 17 mm |
Driving mode | 12-roller servo motor driving with belts feeding |
Display mode | 7-inch touch screen |
Memory capacity | 200 programs |
Blade material | High speed steel |
Productivity | 1500 - 2500 pcs./h |
Power supply | 110, 220 V (50 - 60 Hz) |
Power | 800 W |
Weight | 105 kg |

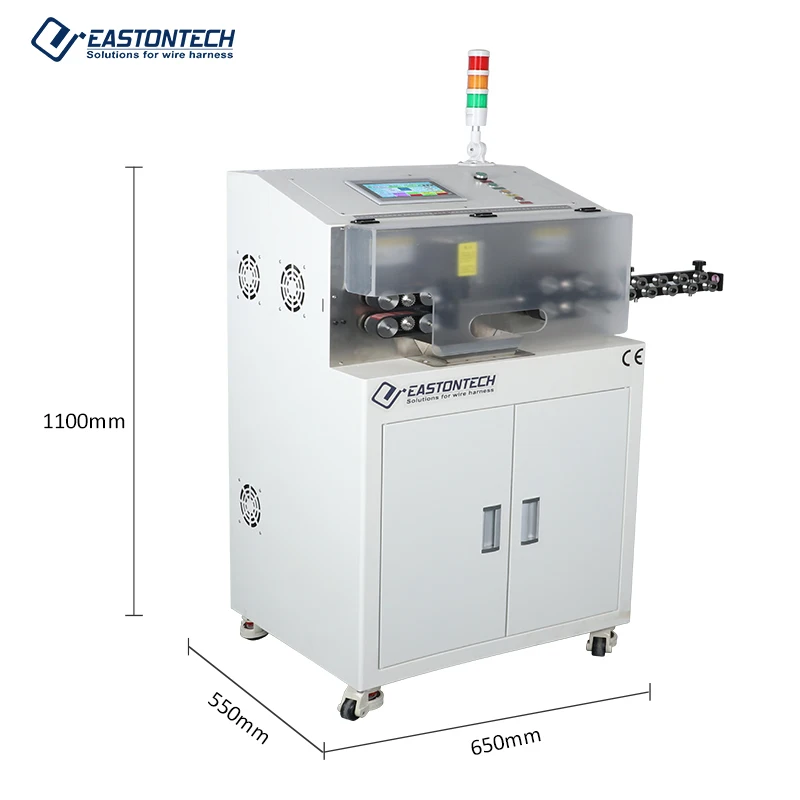

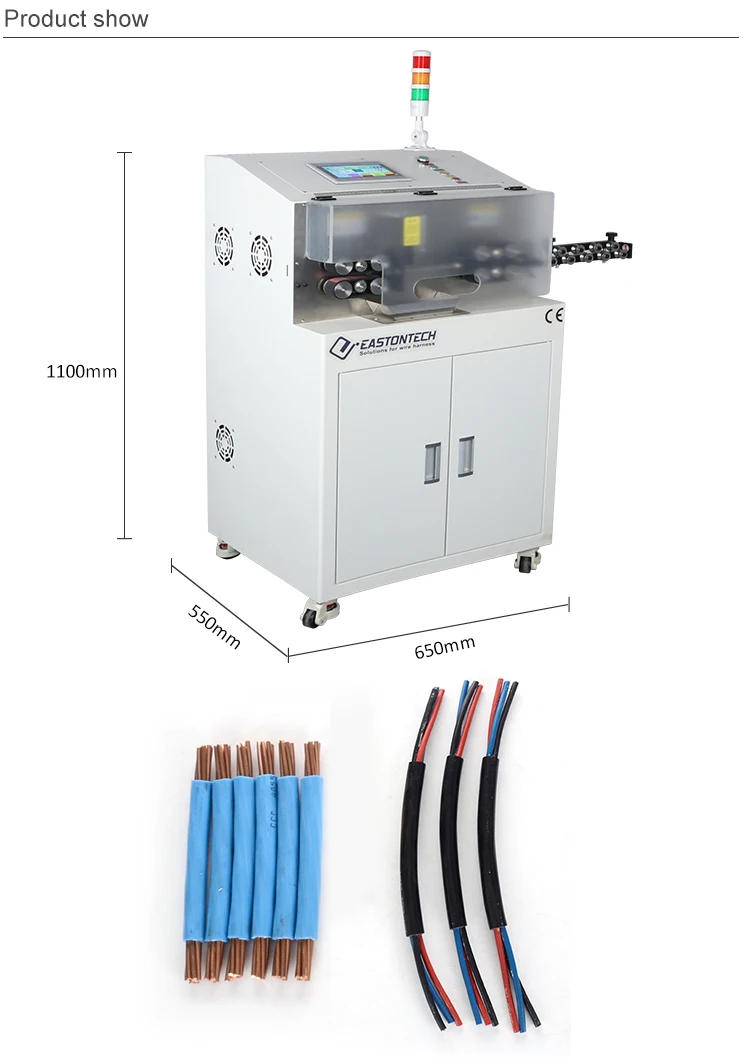

Dimension | 650 * 550 * 1100 mm |
