Low Backlash High Precision Noise Helical Planetary Speed Gear Reduction Reducer Gearbox For Motor
- Category: >>>
- Supplier: Dongguan Guanghong Automation Equipment Co. Ltd.
Share on (1600739766890):
Product Overview
Description
PRODUCT DESCRIPTION
Product Name | High Torque Helical Gearbox Planetary Reduction Gear Motor Speed Reducer Gear Box | ||||||
Single-stage | 4/5/7/10 | ||||||
Bipolar | 15/20/25/30/35/40/50/70 | ||||||
Rated output torque/ Nm | TN | ||||||
Fault stop torque/ Nm | 2TN | ||||||
Rated input speed/ min | 3000MIN-1 | ||||||
Input speed/ min | 3000MIN-1 | ||||||
Installation method | Any | ||||||
Average life/ H | 2000h | ||||||
Maximum output radial force/ N | Fr=300N | ||||||
Maximum output axial force/ N | Fa=100N | ||||||
Full load efficiency | 90%---94% | ||||||
Lubrication method | Long term effectiveness | ||||||
Long term effectiveness/ IP | 65IP | ||||||
Backlash/ arcmin | ≥10 | ||||||
Operating temperature/ ℃ | -10℃~~80℃ | ||||||

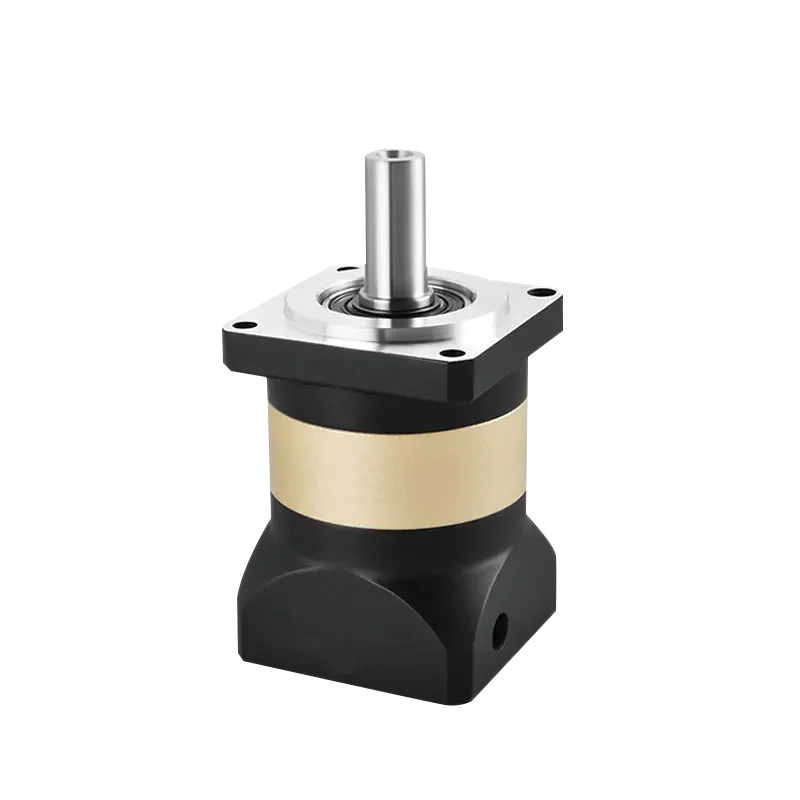

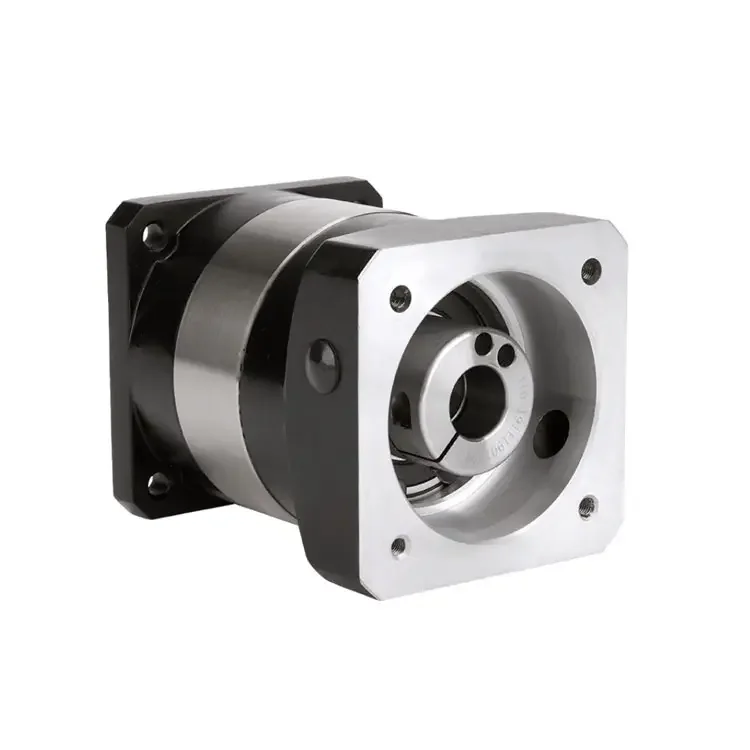

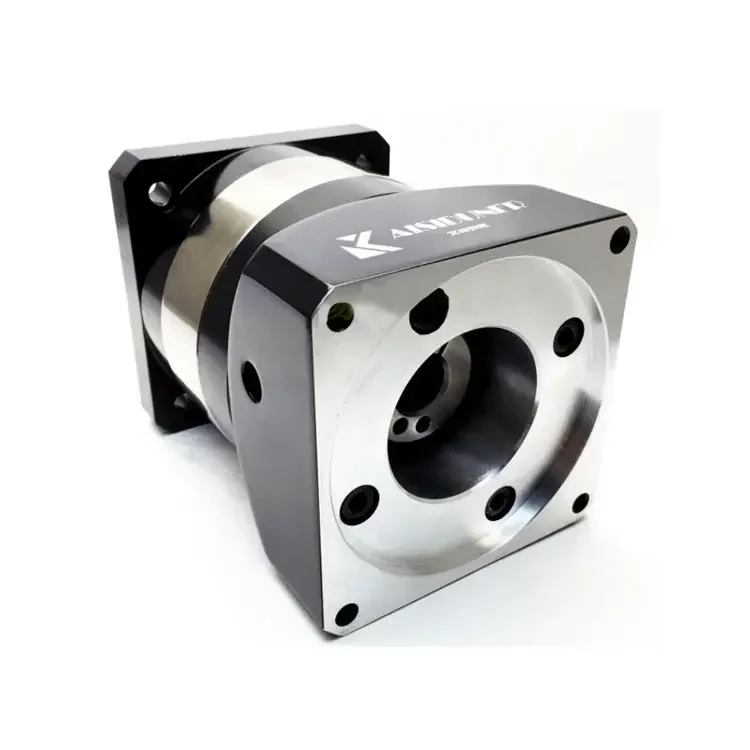

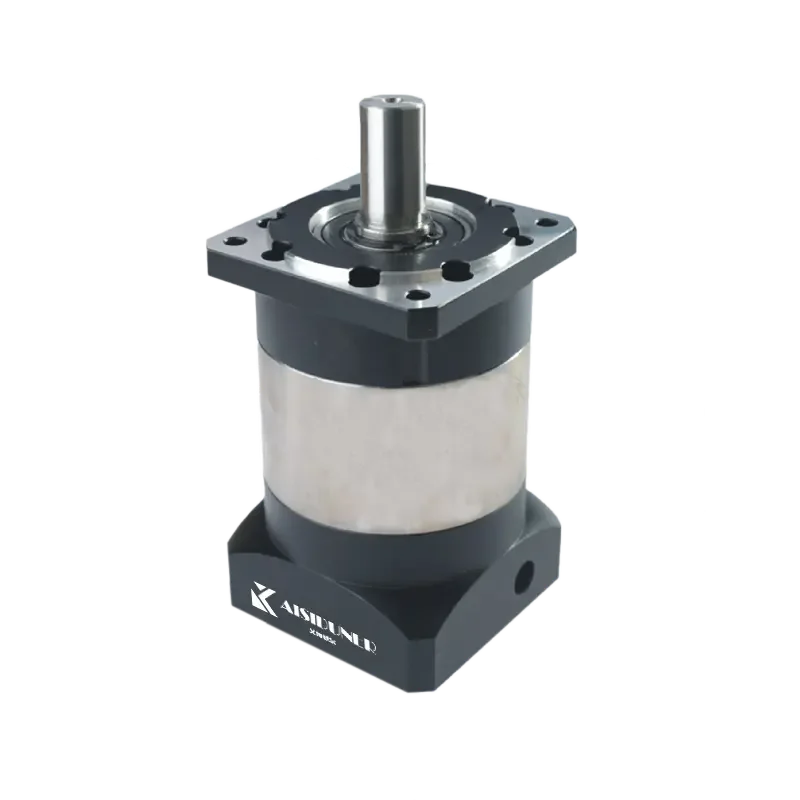

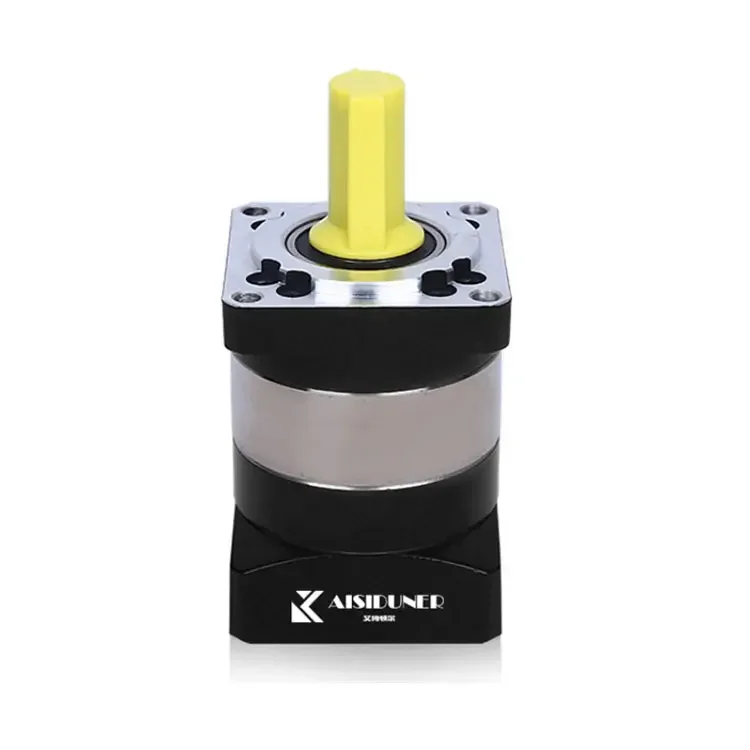

PRODUCT PICTURES

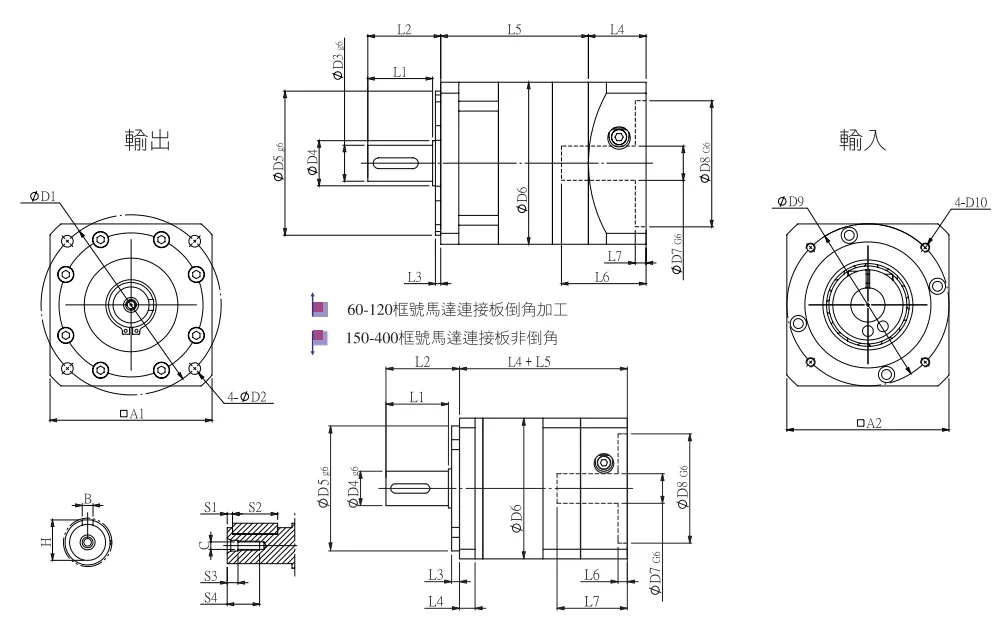

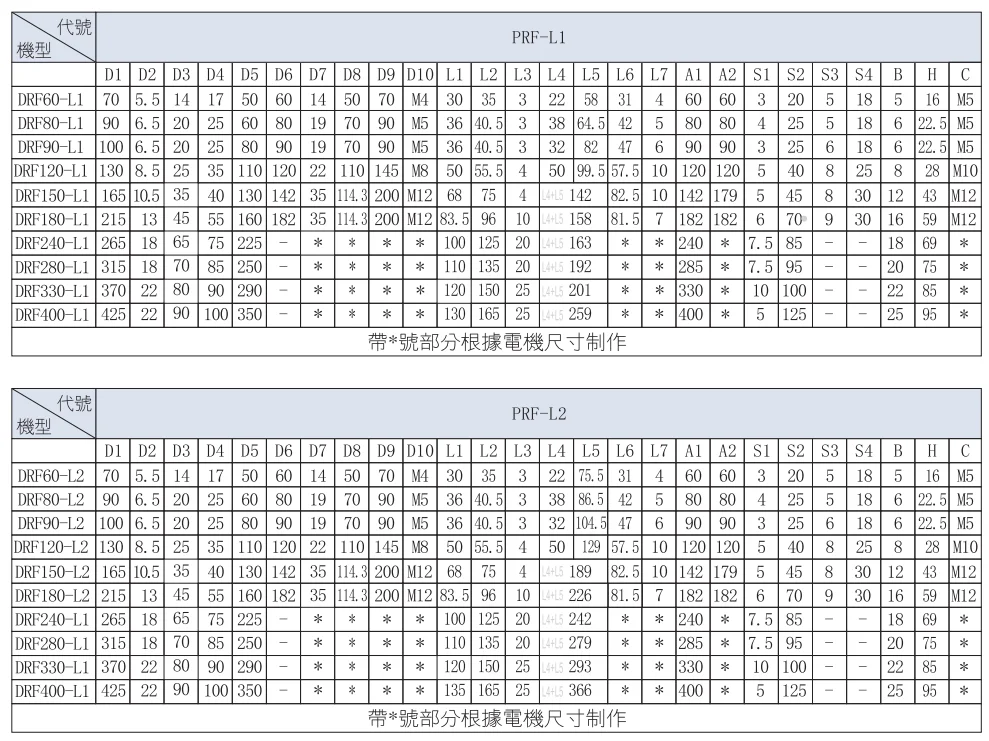

PRODUCT DIMENSIONS
COMPANY INTRODUCTION
Dongguan Guanghong Automation Equipment Co., Ltd. is a collection of R & D, design, manufacturing, sales and service as one of the professional servo electric cylinder, servo press equipment, etc. development and production of modern enterprises.
The company has a professional design team, processing team, assembly team, sales and after-sales service team.The company mainly develops and produces servo cylinder, servo pressing machine, electric push rod, electric sliding platform,
multi-degree-of-freedom platform and other servo pressing equipment.
multi-degree-of-freedom platform and other servo pressing equipment.
