Industrial PC with TPM 2.0 Hardware Security Encryptions GT1300 Mini Computer I5 10200H I7 10750H With 2LAN 6COM Barebone GPIO
- Category: >>>
- Supplier: Shenzhen Yiyun Electronic Limited Company
Share on (1600739775911):

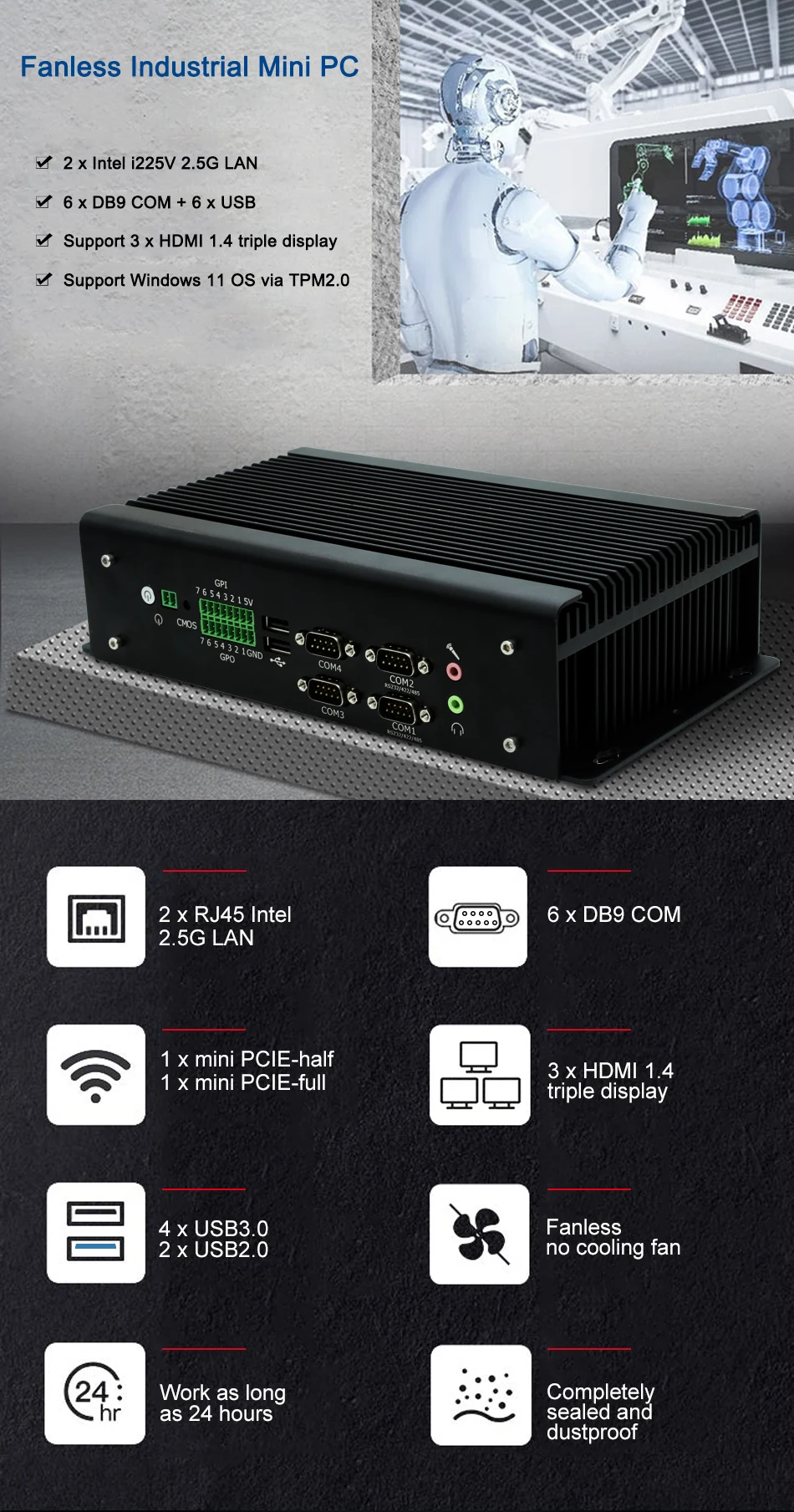

Product Overview
Description
Products features
- Optional Intel 8th/9th/10th generation H-series core i5/i7 CPU.
- 2 x Intel i225V 2.5G LAN and 6 x RS232 COM(2 x COM can change to RS232/485/422 from BIOS)
- Support 3 x HDMI 1.4 three display output synchronously.
- Support 2 x DDR4 RAM slot, max 64GB DDR4 RAM.

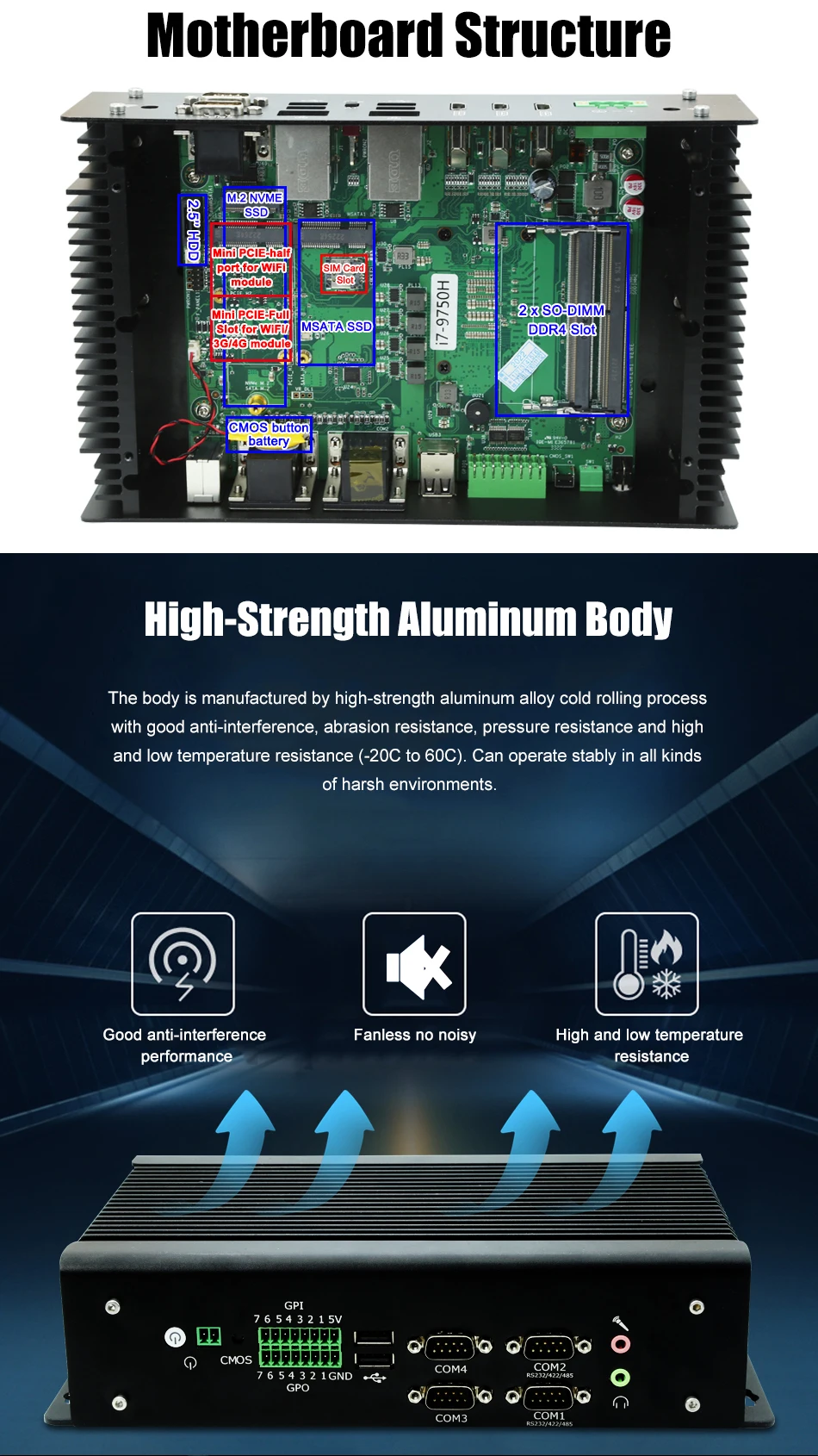

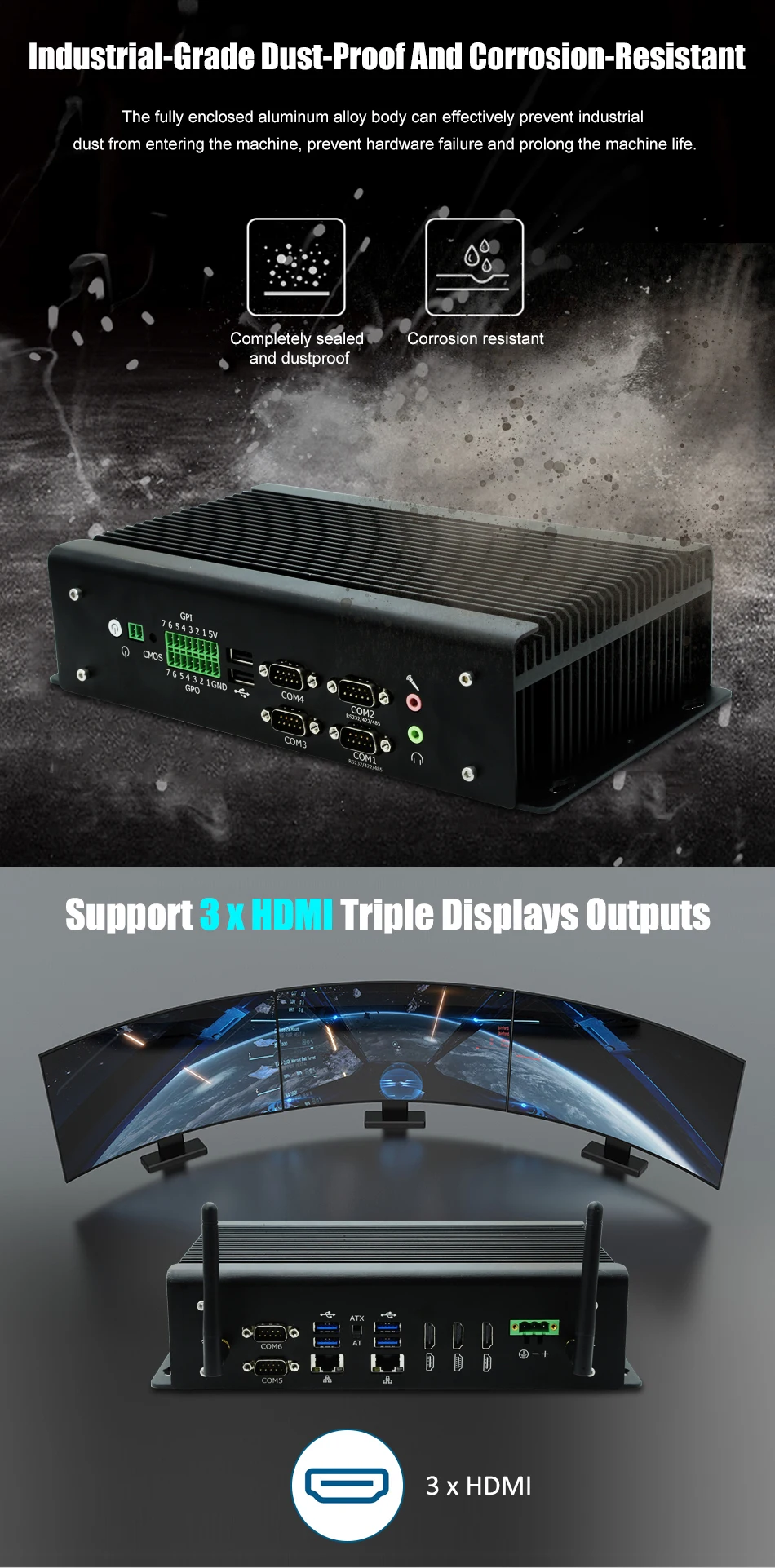

- Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production crati on
outside design.
- Fanless system without cooling fan, fifit for industrial grade fifield, work as long as 24 hours.
- Installation: support desktop and wall-mounted.

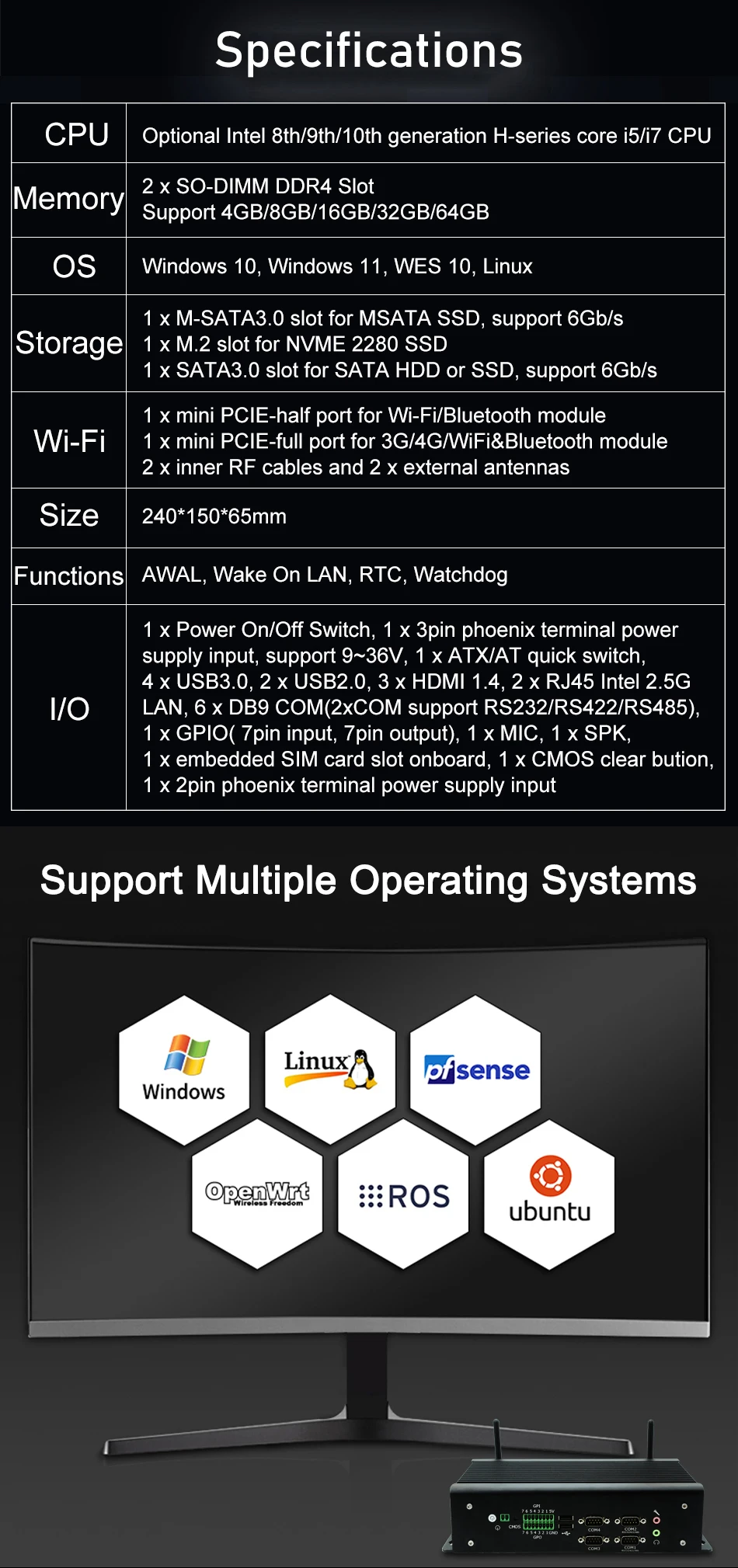

| Basic Information: | |||
| CPU | 1.Onboard Intel Coffee Lake 14nm CPU Intel Core i5-8400H 2.5GHz Max 4.2GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 45W Intel® UHD Graphics 630. | ||
| 2. Onboard Intel Coffee Lake 14nm CPU Intel Core i7-8750H 2.2GHz Max 4.1GHz (Turbo boost Technology) Six Cores Twelve Threads 9MB cache TDP 45W Intel® UHD Graphics 630. | |||
| 3.Onboard Intel Coffee Lake 14nm CPU Intel Core i5-9400H 2.5GHz Max 4.3GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 45W Intel® UHD Graphics 630. | |||
| 4.Onboard Intel Coffee Lake 14nm CPU Intel Core i7-9750H 2.6GHz Max 4.5GHz (Turbo boost Technology) Six Cores Twelve Threads 12MB cache TDP 45W Intel® UHD Graphics 630 | |||
| 5.Onboard Intel Comet Lake 14nm CPU Intel Core i5-10200H 2.4GHz Max 4.1GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 45W Intel® UHD Graphics. | |||
| 6.Onboard Intel Comet Lake 14nm CPU Intel Core i7-10750H 4.8GHz Max 5.0GHz (Turbo boost Technology) Six Cores Twelve Threads 12MB cache TDP 45W Intel® UHD Graphics | |||
| TDP | Refer to the above CPU | ||
| Chipset | SOC | ||
| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB | ||
| OS | Windows 10, Windows 11, WES 10, Linux | ||
| Audio | Intel high definition audio controller | ||
| Network | 2 x Intel(R) i225V Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN | ||
| Video | Refer to the above CPU | ||
| Storage: | |||
| Msata | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s | ||
| SSD | 1 x M.2 slot for NVME 2280 SSD | ||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | ||
| Wi-Fi: | |||

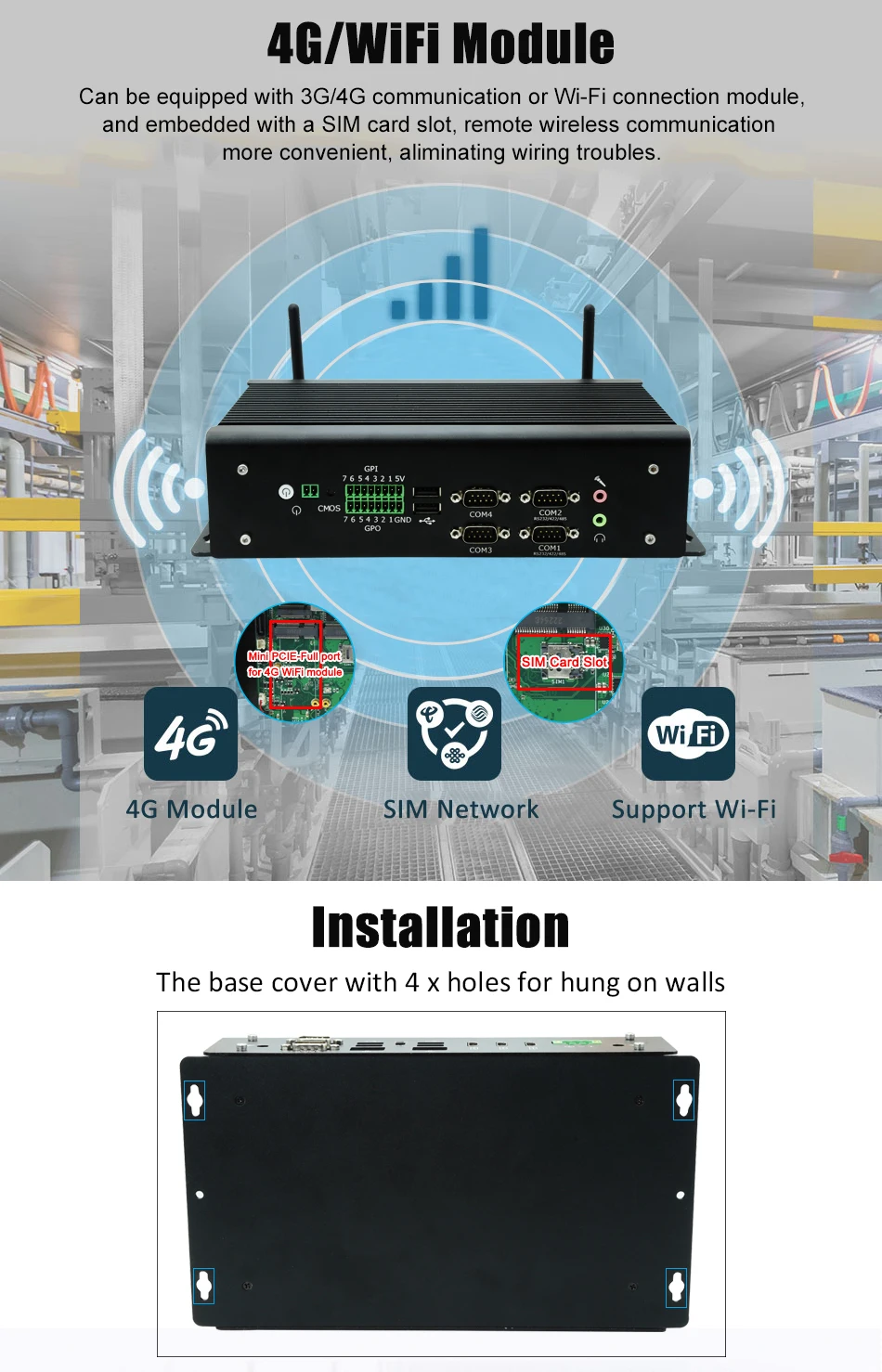

| Module | 1 x mini PCIE-full/mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-half/full port for 3G/4G module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

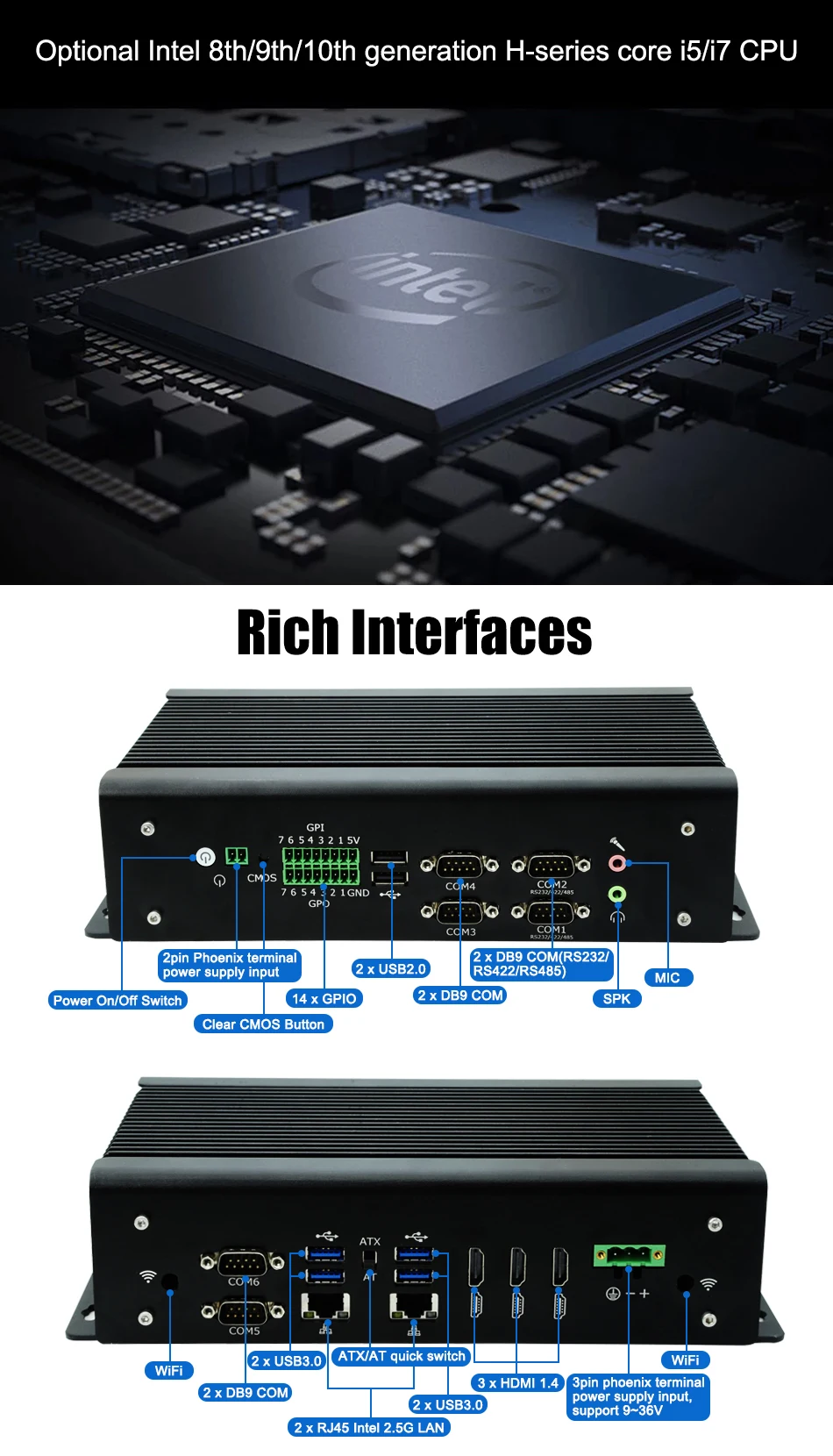

| Input/output port: | |||
| Switch | 1 x Power On/Of f Switch | ||
| Power | 1 x 3pin phoenix terminal power supply input, support 9~36V | ||
| Buttom | 1 x ATX/AT quick switch | ||
| COM | 6 x DB9 COM(2xCOM support RS232/RS422/RS485) | ||
| USB | 4 x USB2.0, 2 x USB3.0 | ||
| GPIO | 1 x GPIO( 7pin input, 7pin output) | ||
| Display | 3 x HDMI 1.4 | ||
| LAN | 2 x RJ45 Intel 2.5G LAN | ||
| 4G Module | 1 x mini PCIE-full port for 3G/4G module | ||
| SIM | 1 x embedded SIM card slot onboard | ||
| Audio | 1 x MIC, 1 x SPK | ||
| Others | 1 x CMOS clear button, 1 x 2pin phoenix terminal power supply input | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | 9V~36V | ||
| Operating Temperature | -20°C/+60°C Centigrade | ||
| Storage Temperature | -30/+70 Centigrade | ||
| Relative Humidity | 10%~90%@30°C(non-condensing) | ||
| Product Dimension & Details: | |||

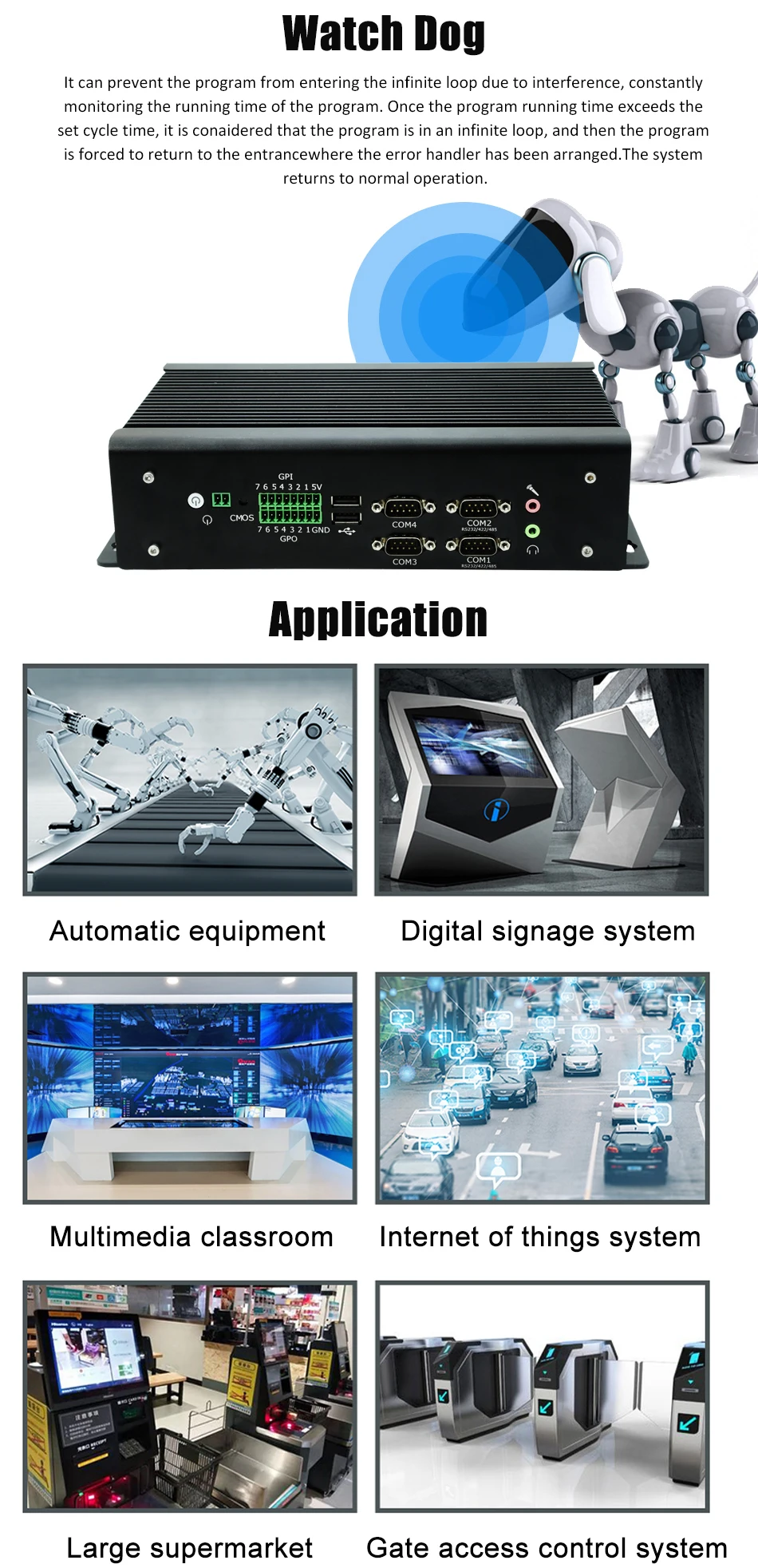

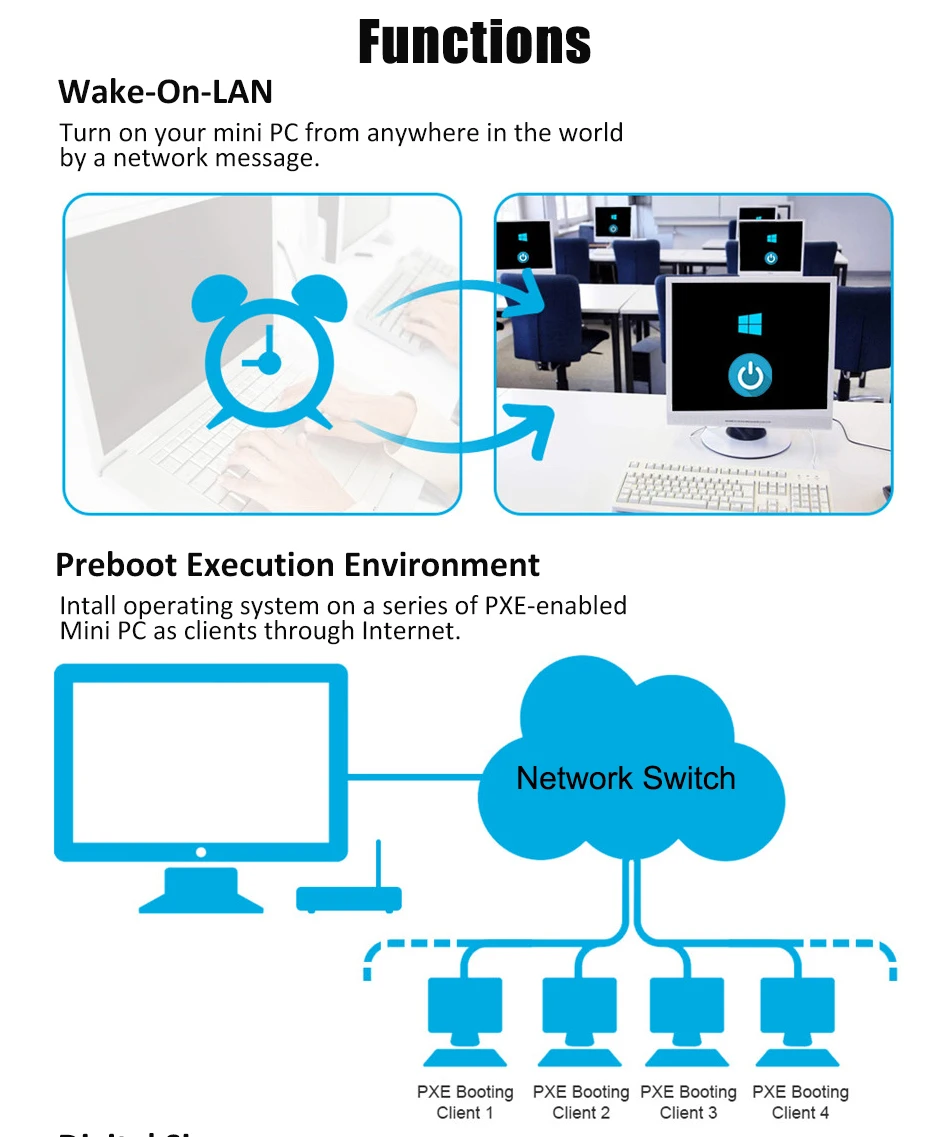

| Functions | AWAL, Wake On LAN, RTC, Watchdog | ||

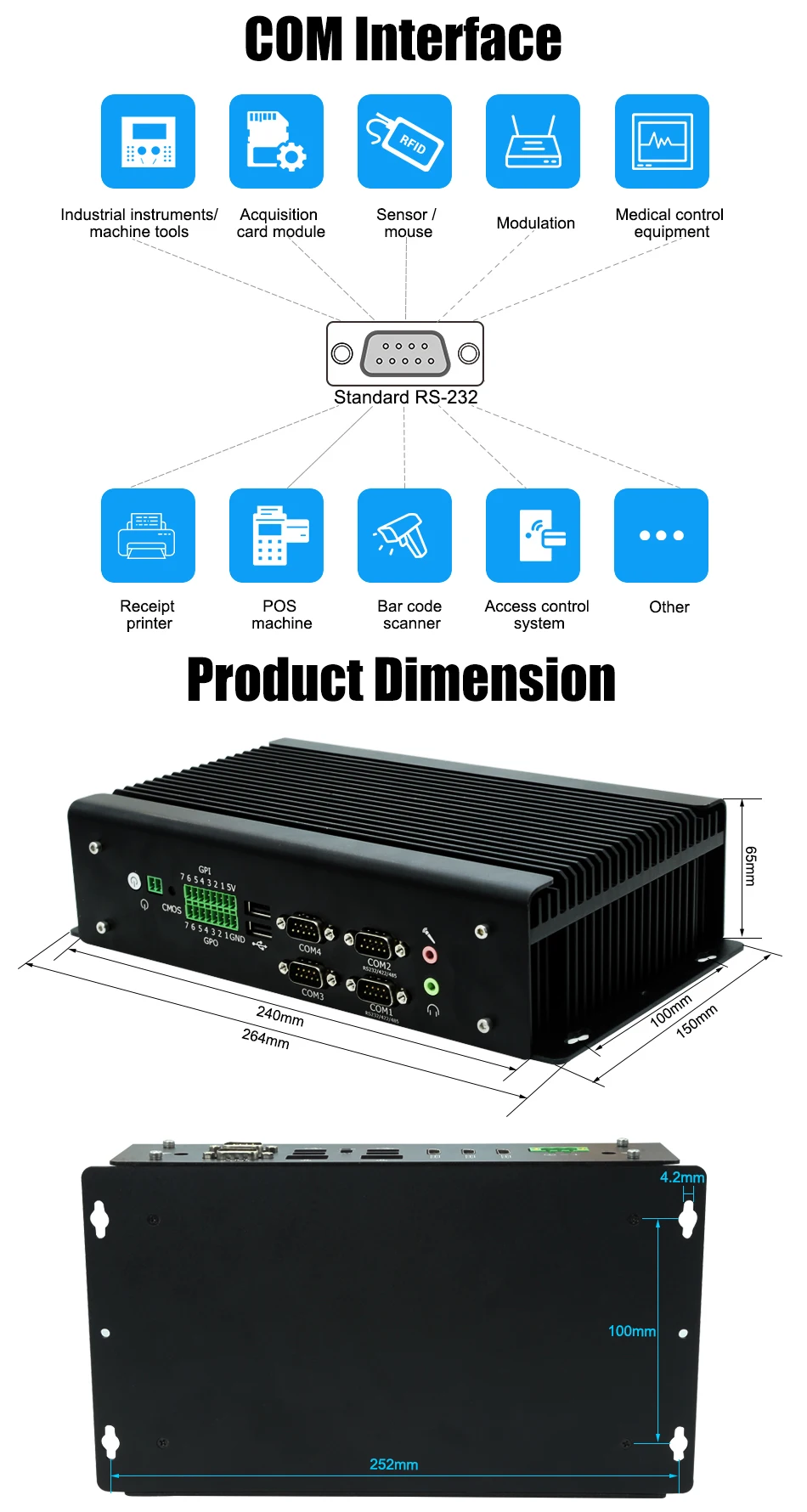

| Size | 240*150*65mm | ||
| Weight | Net 2kg, Gross 2.5kg | ||
| Shell | Black color aluminum alloy(any customized color for bulk order) | ||
| Mounting | 4 Mounting holes on case | ||
| Cooling Mode | Fanless, without a cooling fan | ||
| Package Content: | |||

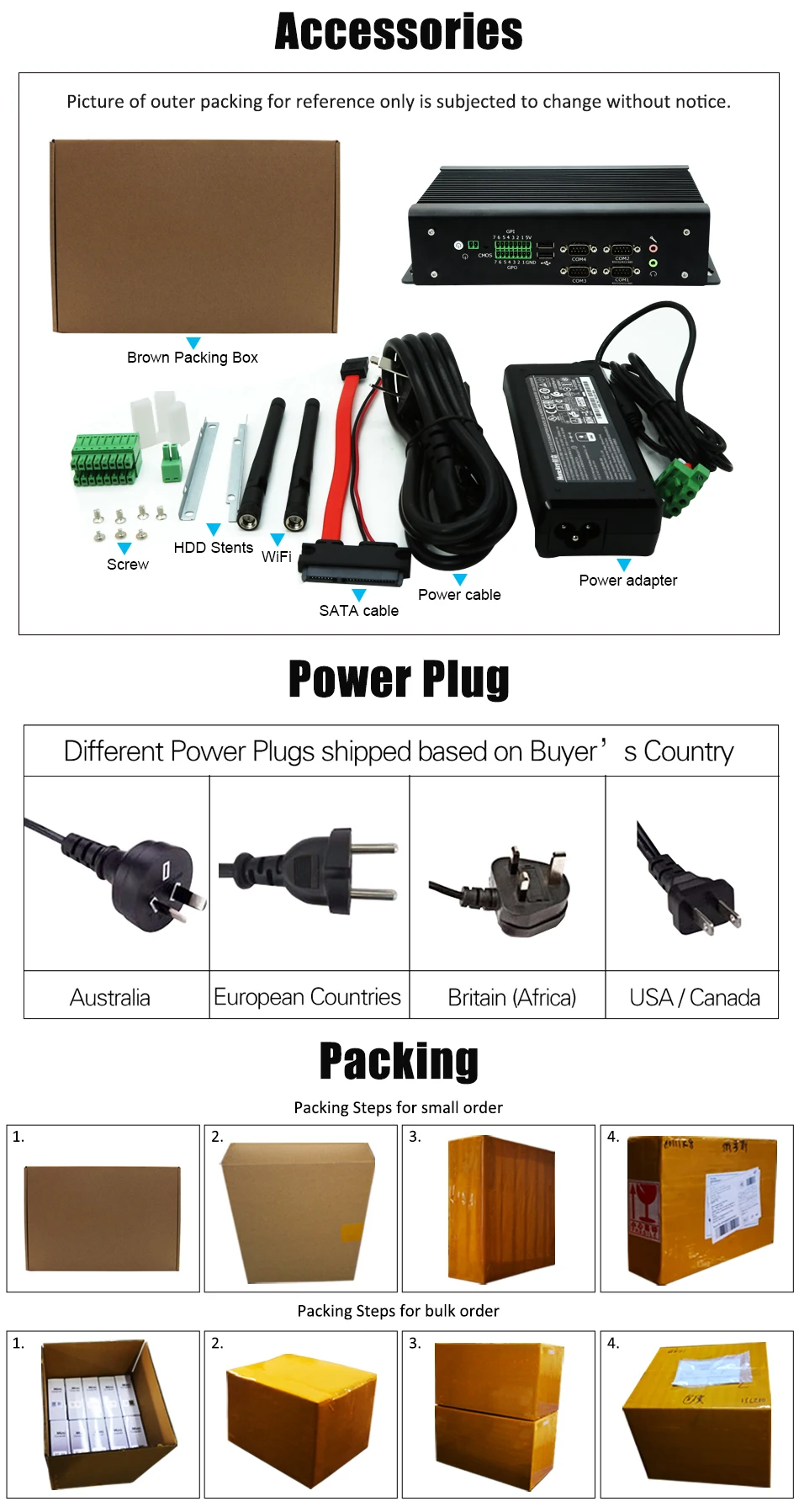

| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
