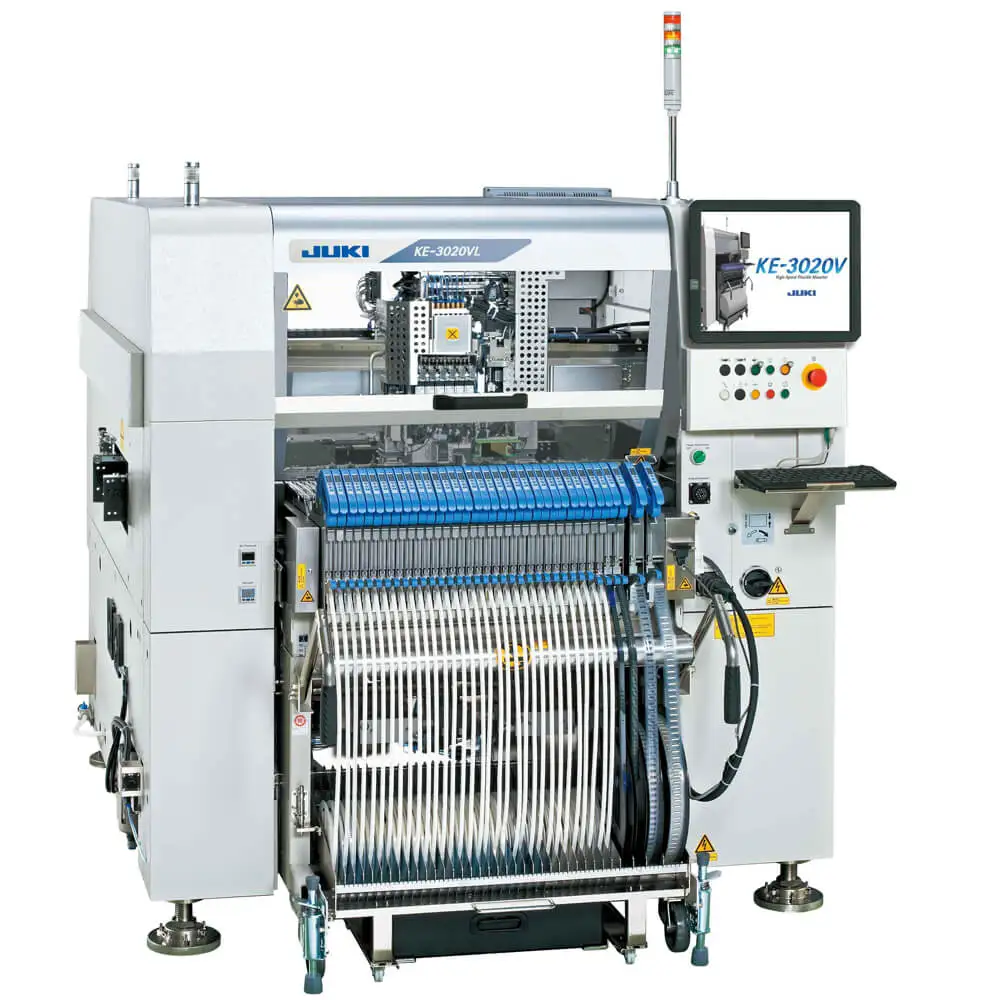

High Speed SMT Pick and Place Machine: Essential for Electronics Production in SMT Line
- Category: >>>
- Supplier: Shenzhen Chengyuan Industrial Automation Equipment Co. Ltd.
Share on (1600739794584):
Product Overview
Description

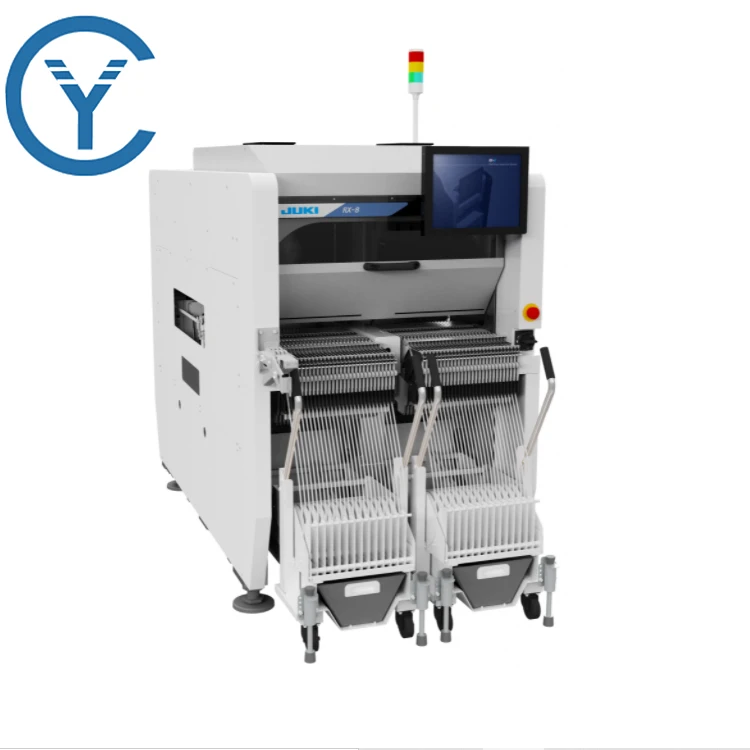

High -Speed Compact Modular Mounter RX-8

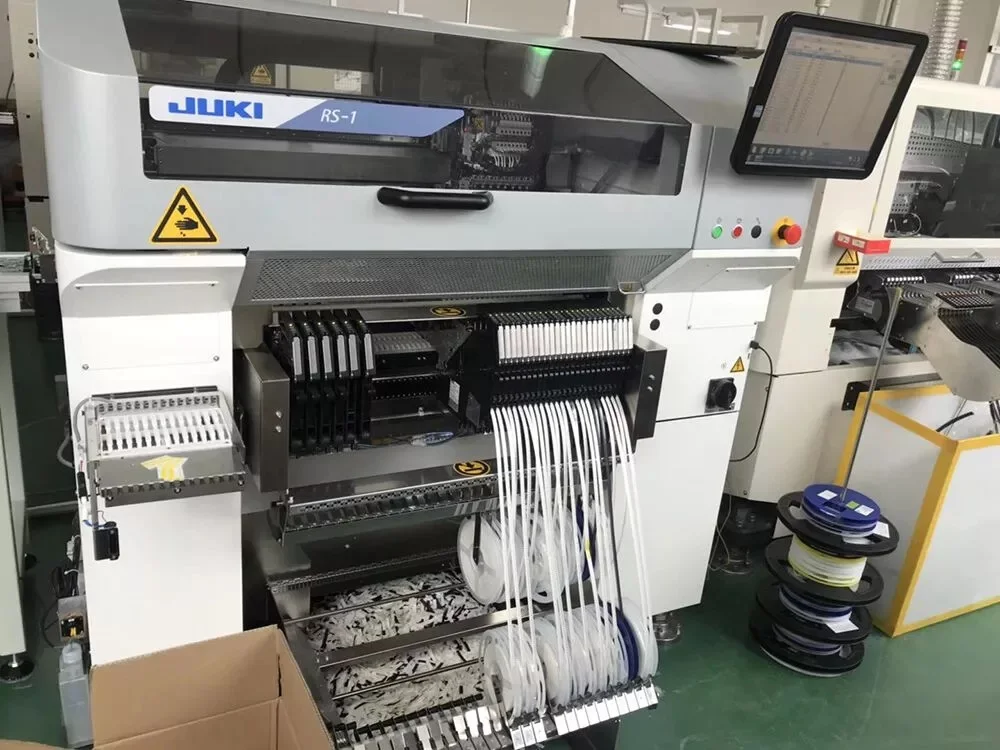

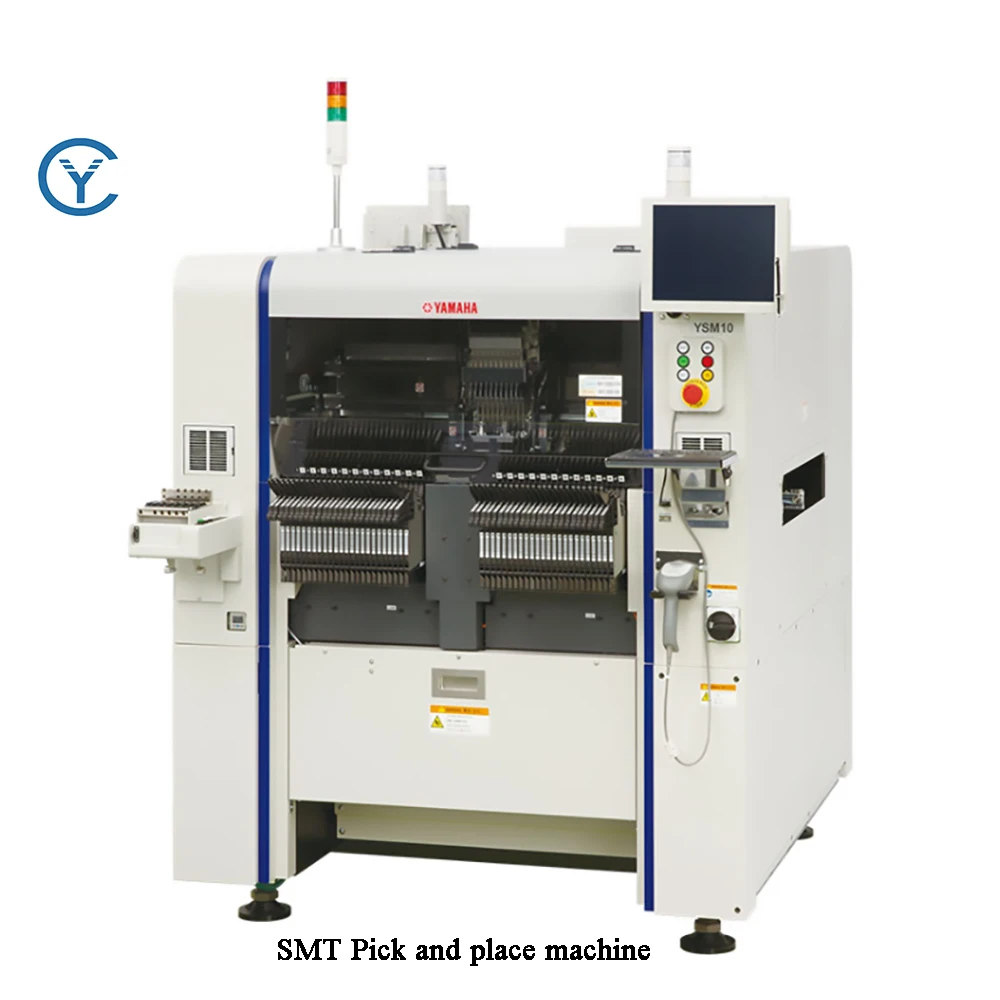

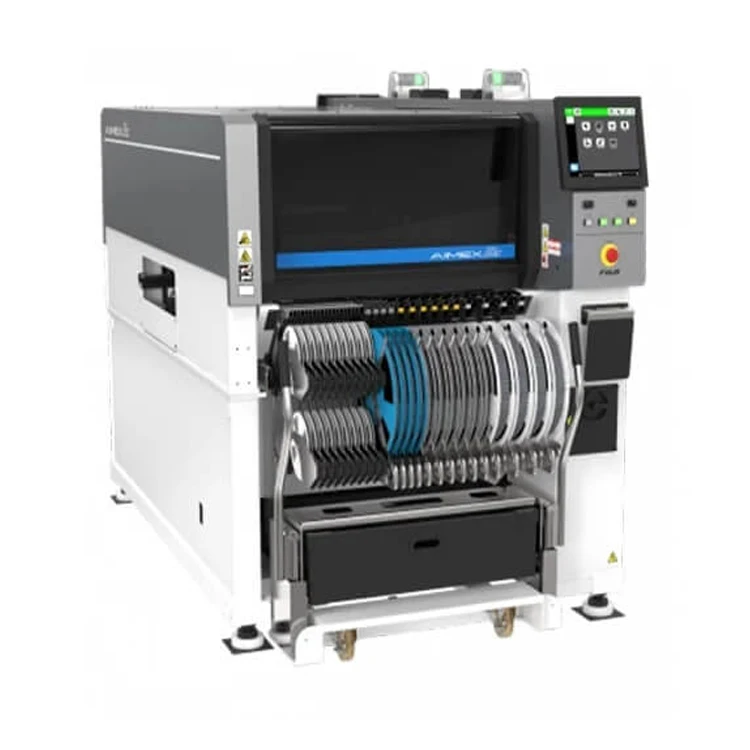

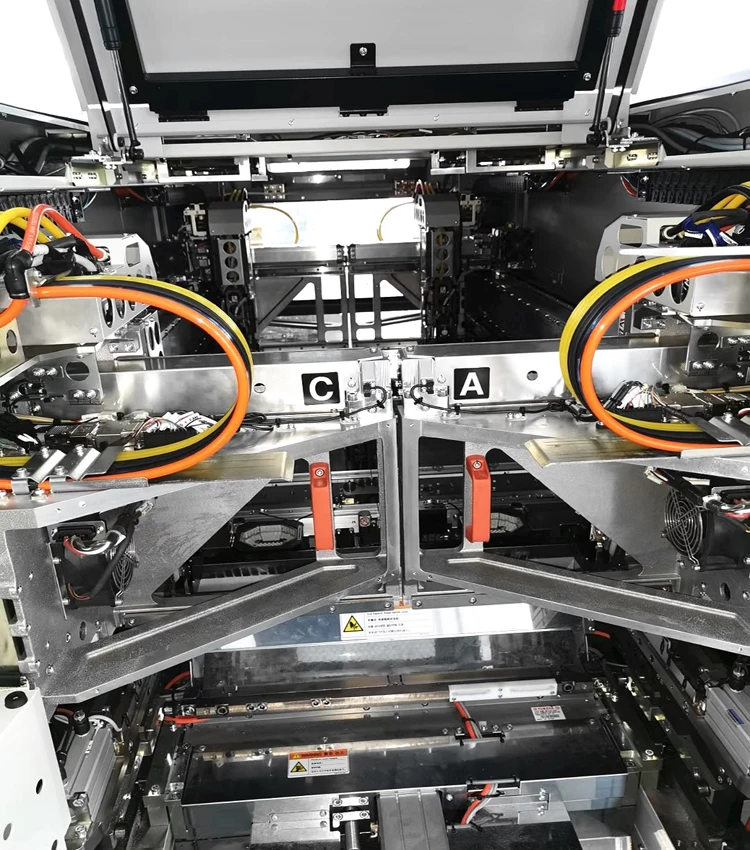

Details Images
Features

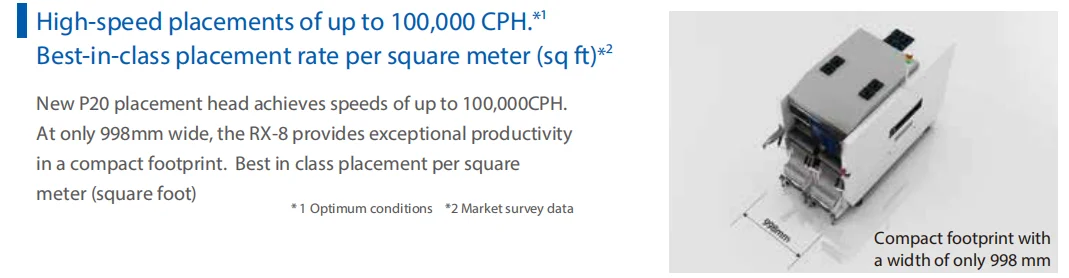

* High-speed placements of up to 100,000 CPH.
* Best-in-class placement rate per square meter(sq ft).

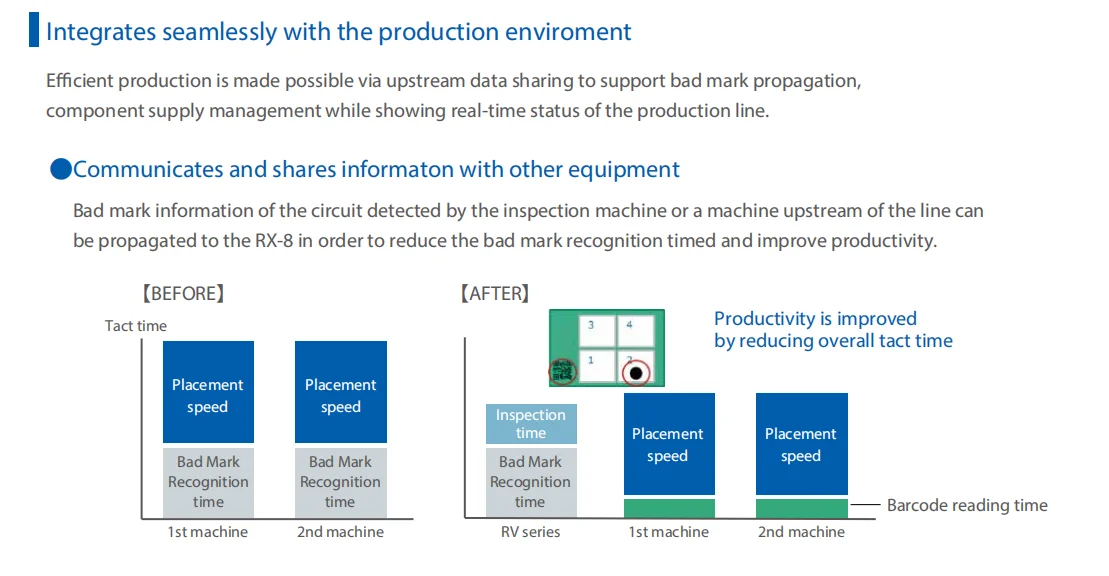

* Integrates seamlessly with the production enviroment

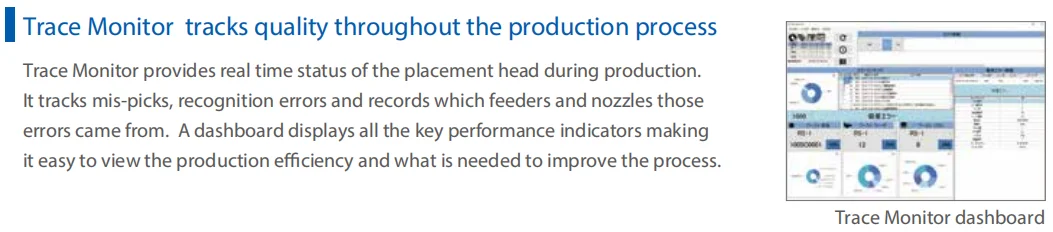

* Trace Monitor tracks quality throughout production process

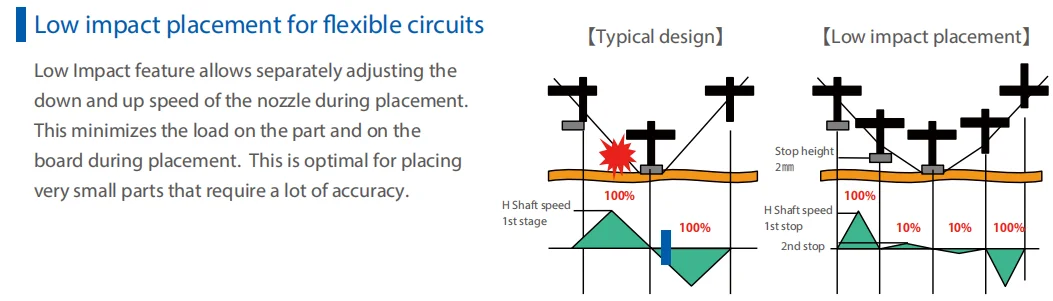

* Low impact placement for flexible circuits

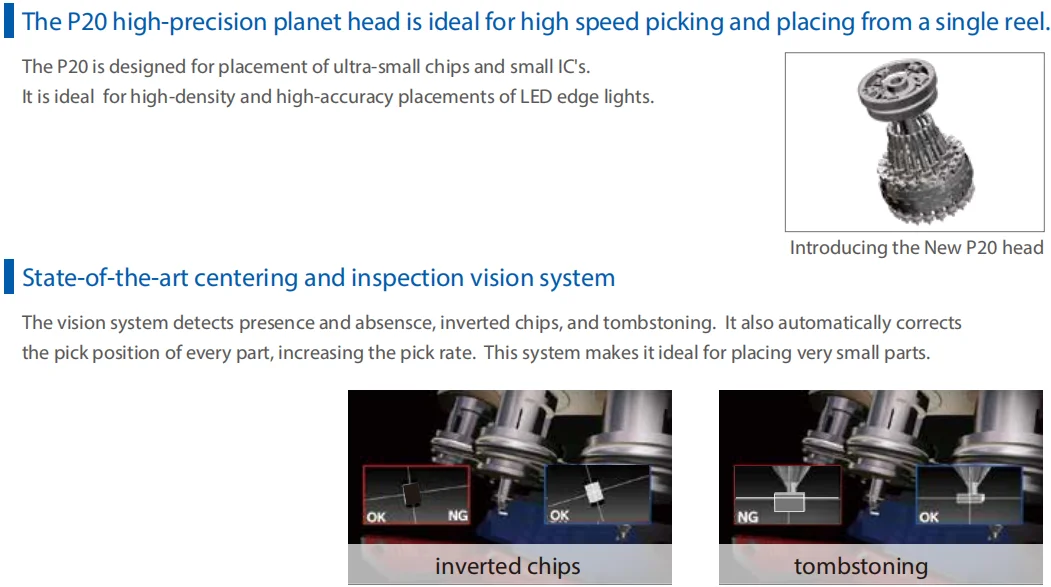

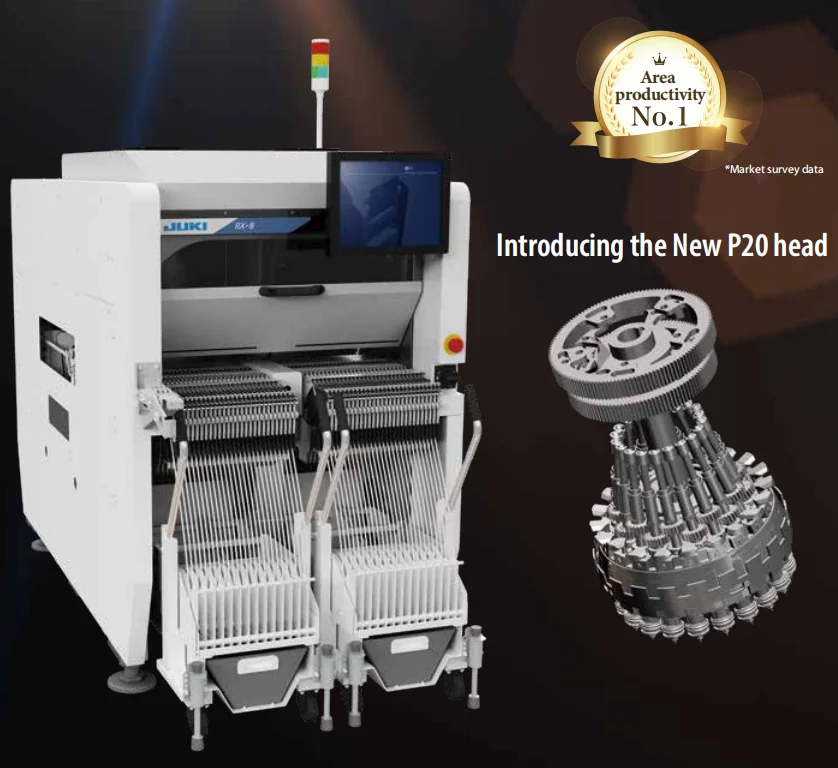

* The P20 high-precision planet head is ideal for high speed pocking and placing from a single reel.
* State-of-the-art centering and inspection vision system

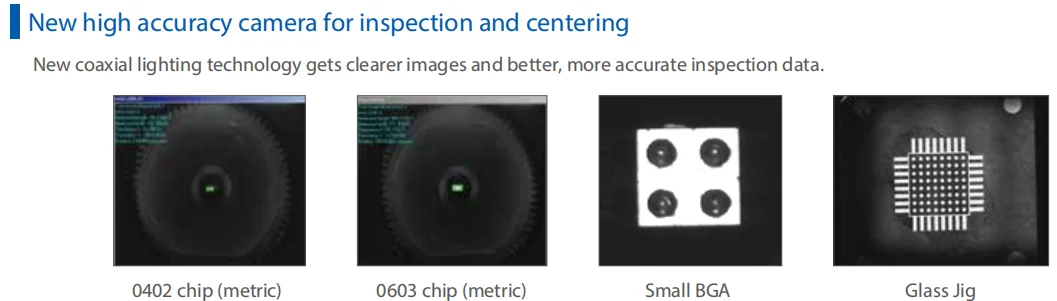

* New high accuracy camera for inspection and centering
* Best-in-class placement rate per square meter(sq ft).
* Integrates seamlessly with the production enviroment
* Trace Monitor tracks quality throughout production process
* Low impact placement for flexible circuits
* The P20 high-precision planet head is ideal for high speed pocking and placing from a single reel.
* State-of-the-art centering and inspection vision system
* New high accuracy camera for inspection and centering
Specifications
Board size | 50×50～510mm×450mm | ||||||
Component height | 3mm | ||||||
Component size | 0201～□5mm | ||||||
Placement speed(Optimum） | 100,000CPH | ||||||
Placement Accuracy | ±0.04mm (Cpk ≧1) | ||||||
Feeder capacity | Upto 56 | ||||||
Power supply | 3-phase AC200V, 220V 430V | ||||||
Apparent power | 2.1kVA | ||||||
Operating air pressure | 0.5±0.05MPa | ||||||
Air consumption (standard) | 20L/ min ANR (during normal operation) | ||||||
Machine dimensions (W x D x H) | 998mm×1,895mm×1,530mm | ||||||
Mass (approximately) | 1,810 kg (with fixed bank)/ 1,760 kg (with bank changing) | ||||||
Certifications
Product packaging
Company Profile
Chengyuan Industrial Automation Equipment Co.,Ltd
Chengyuan(CY) is the leading SMT factory solution provider in China,offering professional SMT factory building advice and service.We have 10 year experience about SMT factories,offering full solutions for global clients with our great advantaged sources.Our core technology team members are well experienced in SMT filed, learning experience from top international chip mounters meanwhile increasing independent research and development Currently CY SMT equipment is representative of high quality , has maintained absolute leading technology in the industry.
Exhibition
Client list
FAQ
Q: What we can do for you?A: One-stop SMT Solution Supplier; Reliable SMT Partner
Q: Are you a trade company or manufacturer?
A: Full SMT machines maufacturer for smt line in China; OEM & ODM service are available.
Q: What is your delivery date?
A: About 35 days after receipt of payment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What your main customers?
A: Huawei, Foxconn, Vtech, Sumida, Kemet, Vishay, Bosch, Canon, Jabil etc.
Q: Why choose you?
A: Leading SMT Supplier in China; Professional Supplier on Alibaba;
Trade assurance to USD 560,000+; Professional after-sales service team.
