Product Overview
Description

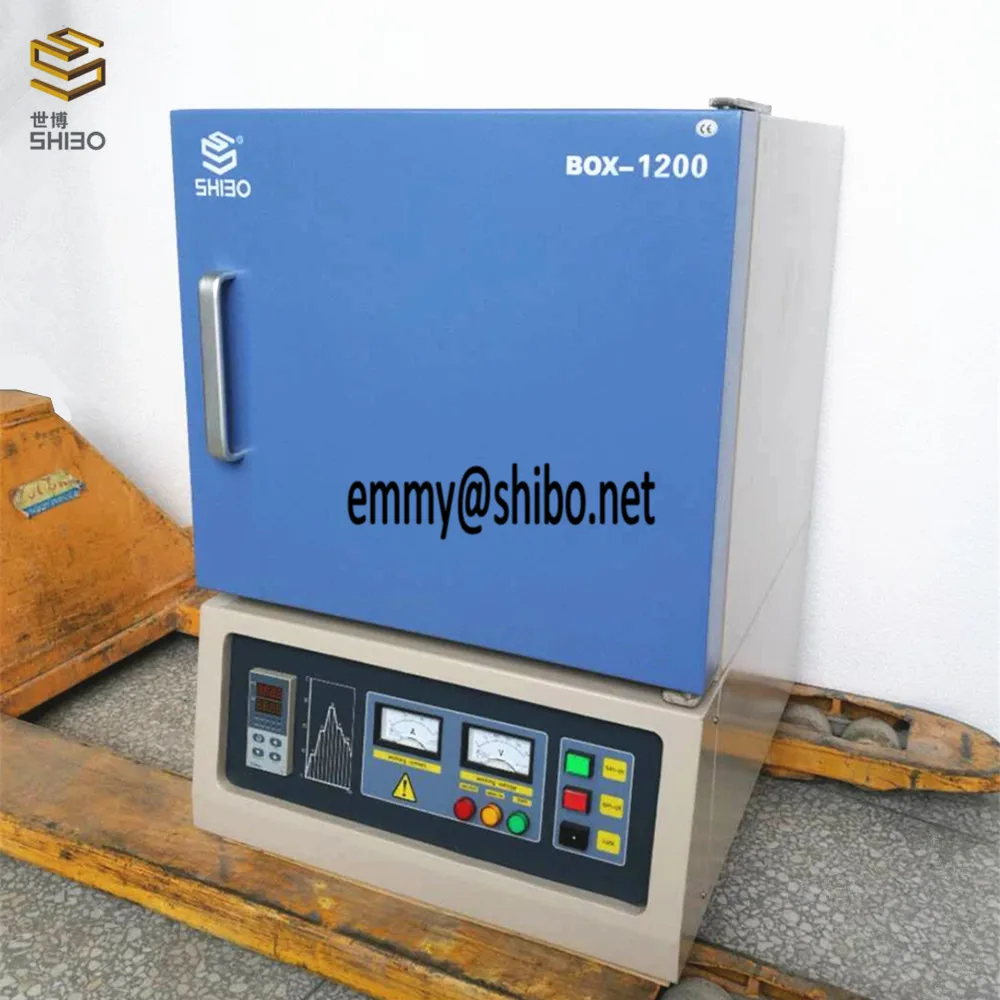

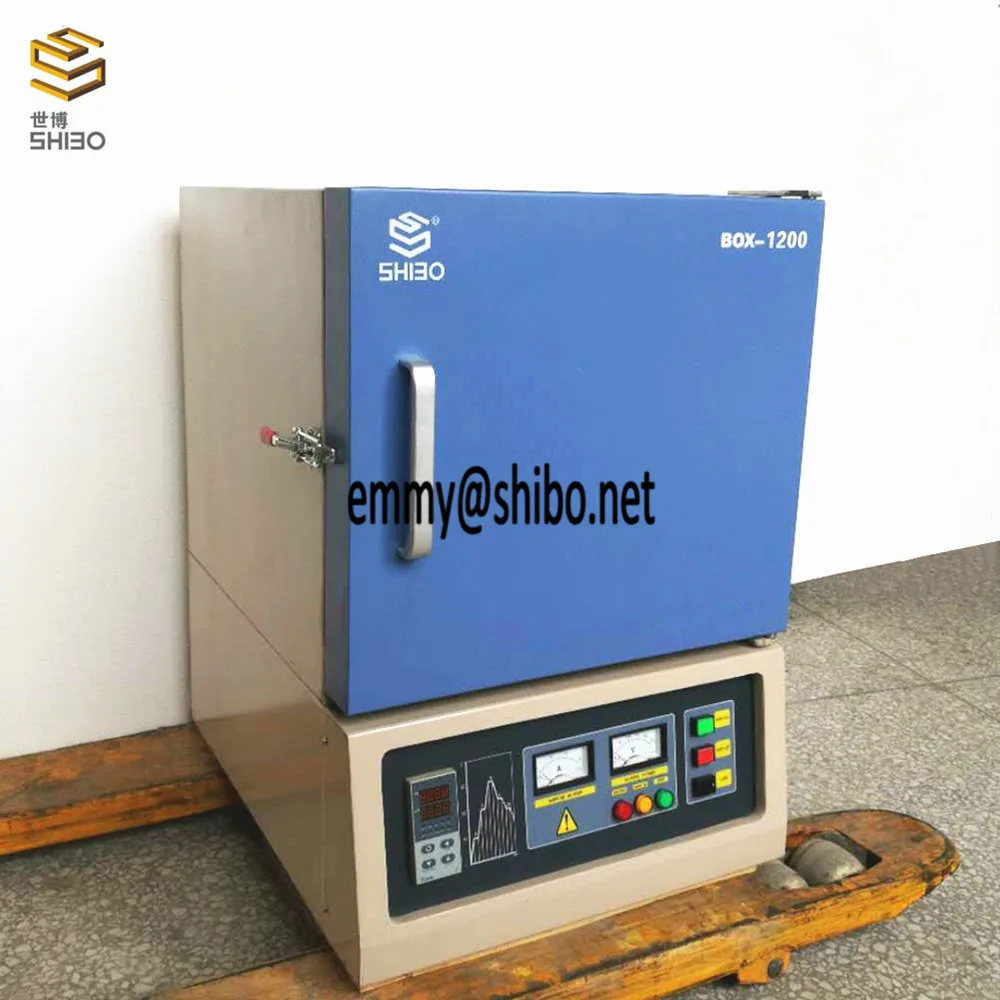

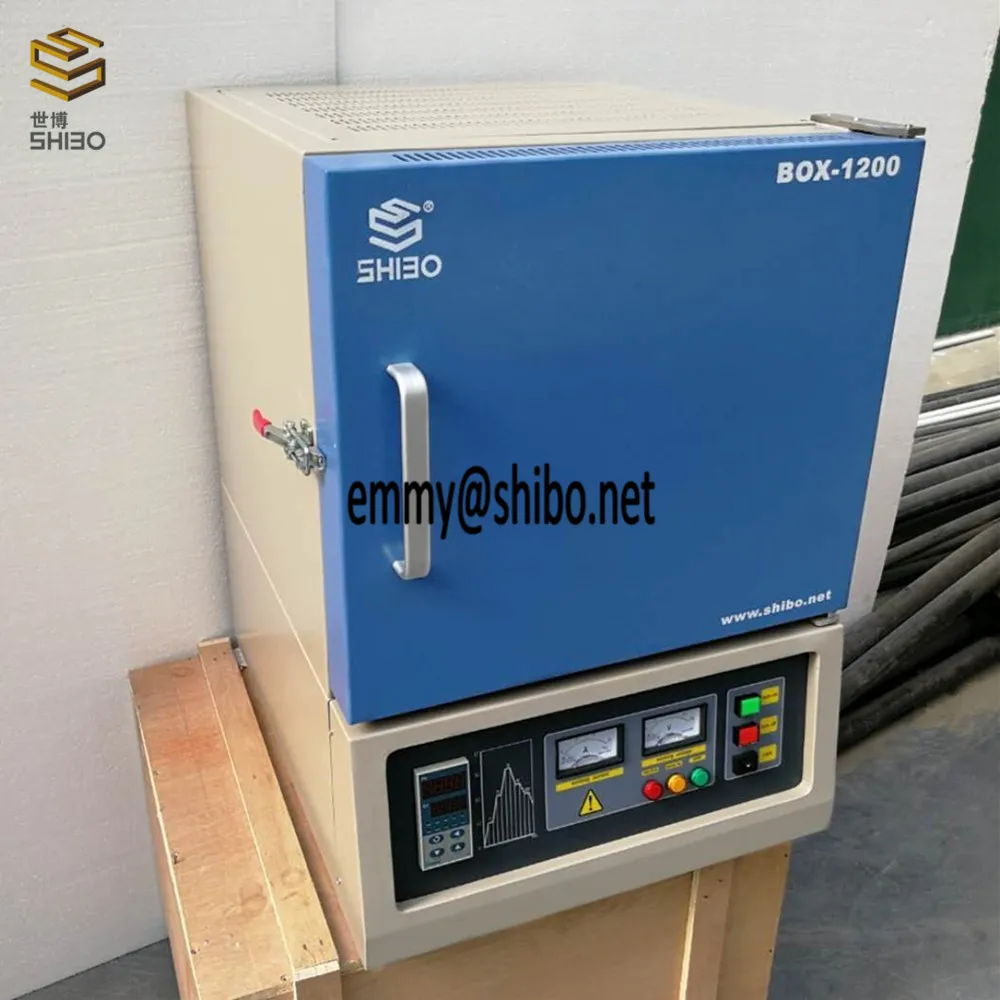

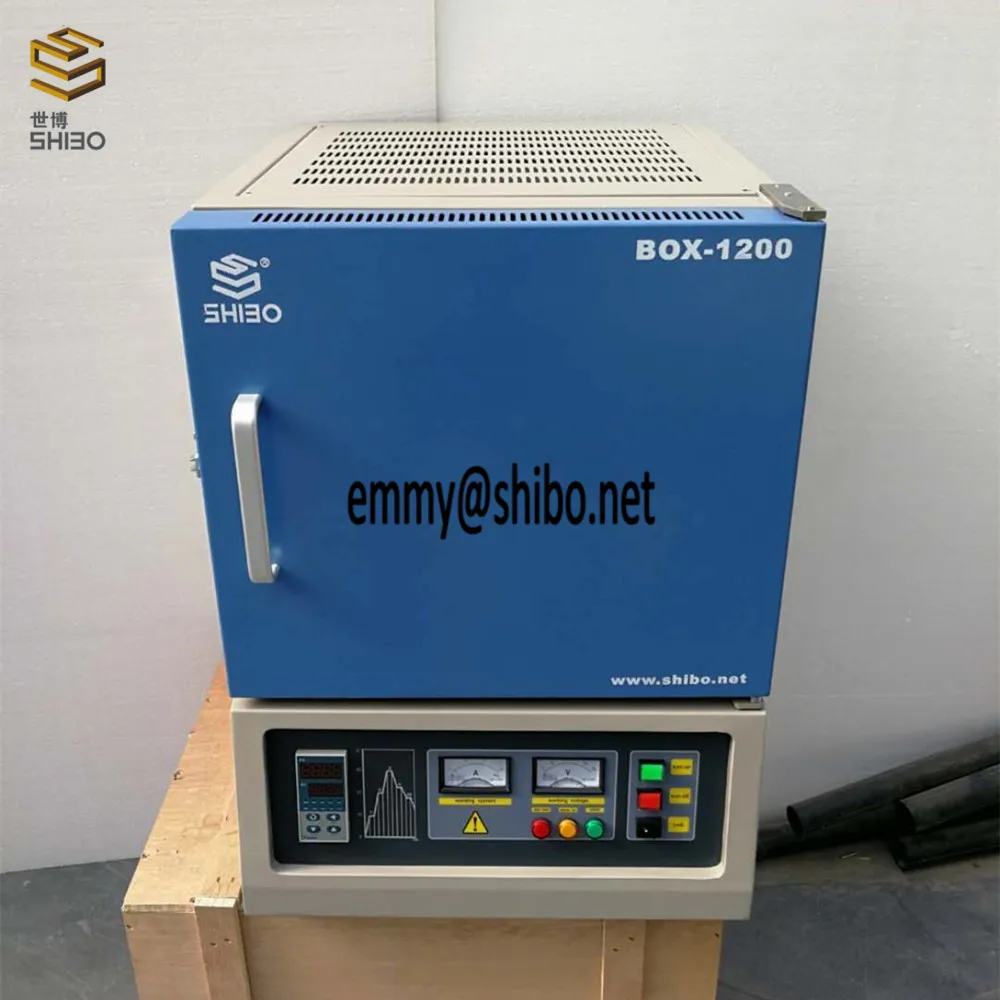

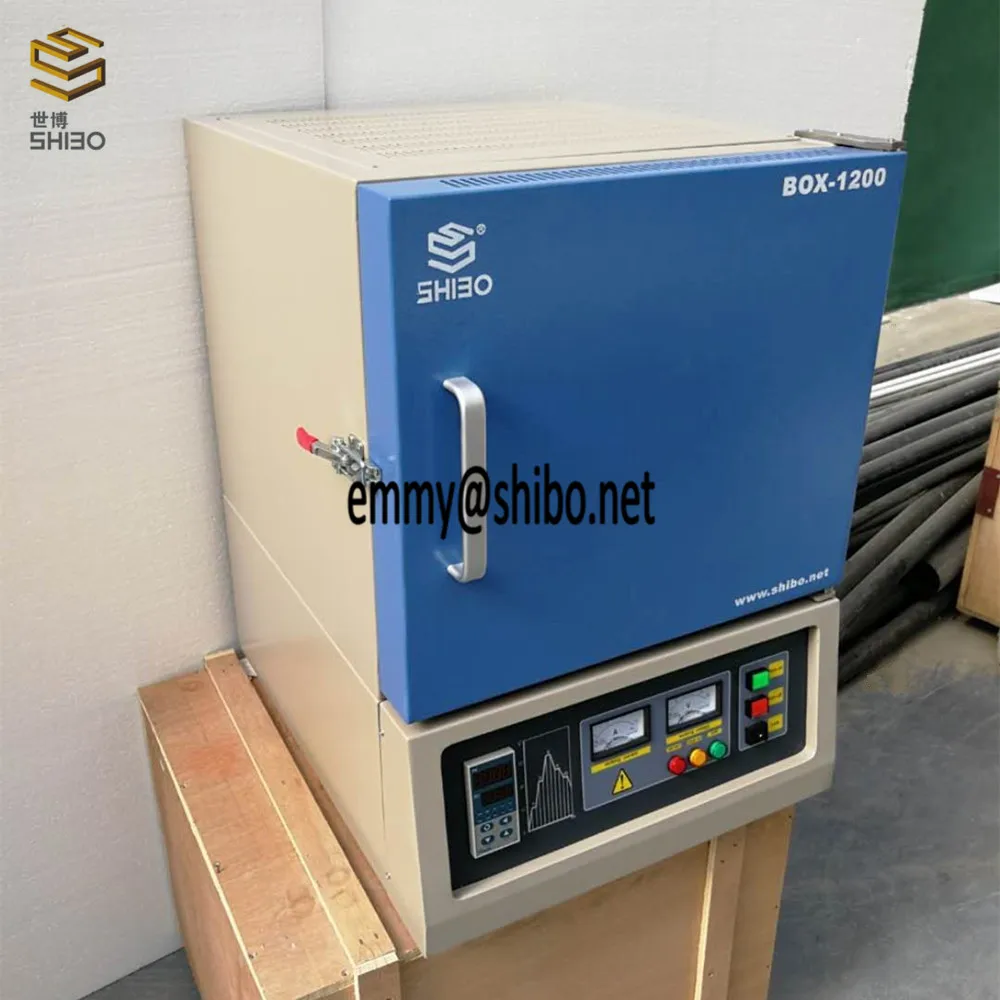

sintering furnace most popular 1200C high temperature muffle furnace
Detailed Parameters
Name | BOX-1200 Muffle Furnace | ||||||||
Heating element | Resistance wire | ||||||||
Max. heating rate | 20℃/min | ||||||||
Temperature control precision | ±1℃ | ||||||||
Thermocouple index number | K type | ||||||||
Material of furnace chamber | top quality ceramic fiber | ||||||||
| |||||||||
Spec | Regular-model | Furnace chamber size | Power (kw) | Rated Working Temp (℃) | Max. Usage Temp (℃) | ||||
Depth (mm) | Width (mm) | Height (mm) | |||||||
BOX-1200-I | 200 | 120 | 80 | 3 | 1100 | 1200 | |||
BOX-1200-II | 160 | 150 | 150 | 3 | 1100 | 1200 | |||
BOX-1200-III | 200 | 200 | 200 | 3 | 1100 | 1200 | |||
BOX-1200-IV | 300 | 200 | 200 | 4 | 1100 | 1200 | |||
BOX-1200-V | 300 | 250 | 250 | 5 | 1100 | 1200 | |||
BOX-1200-VI | 300 | 300 | 300 | 6 | 1100 | 1200 | |||
BOX-1200-VII | 400 | 300 | 300 | 7 | 1100 | 1200 | |||
Power: 110V/220V/380V AC, 50/60Hz | |||||||||
Other specifications can be customized according to your request. | |||||||||
| |||||||||
Feature | 1) high temperature BOX series muffle furnace, the control system is an international leading, with safe and reliable, simple operation, convenient maintenance. 2) Use 708P type temperature controller (Professional PID programmable control) for automatic temperature control with high temperature control precision (±1℃). the temperature range is wide, and high uniformity of furnace temperature. 3) Furnace chamber adopts the vacuum suction molding alumina fiber, has the characteristics of energy saving, light volume, high cooling speed, the temperature field balancing, good thermal shock resistance ability. 4) Furnace body have the internal and external double-layer structure, heat insulation effect is good, the outer furnace wall temperature is low. Fast heating and heat preservation performance is good, the energy saving effect is obvious. 5) Equipped with rapid air cooling system. Oven door and oven door frame to cool the air cooling design, guarantee the oven door use for a long time not out of shape. 6) The stove top can install vent, furnace and control system integration design, compact and beautiful. | ||||||||
Application | 1) Widely used in universities, research institutes, pharmaceutical industries, industrial and mining enterprises; 2) Used in heat treatment, smelting, chemical analysis, and various kinds of production. | ||||||||
Furnace & Heating Element & Accessories
 |  |  |
 |  |  |
 |  |  |  |
Our Main Products
1) Molybdenum products: plates, rods/electrode, crucible, tube, boat,wire, fasteners, various molybdenum workpieces, etc.
2) Lab furnace: Box type muffle furnaces, tube vacuum furnace, atmosphere furnace, vacuum furnace and relevant accessories.
3) MoSi2 heating elements and SiC heating elements.
4) Tungsten products: plate, rod, crucible, tube, wire, fasteners, etc.
5) Titanium products: plate, bars, tube
6) Basalt fiber products: roving, chopped yarn, reinforced coposite (BFRP).
7) Alumina tubes, alumina crucible and ceramic fibre board
8) Other related products.
