multi touch screen led smart digital board interactive whiteboard classroom

Share on:


Price:$2,175.00 - $2,450.00
Price in USD:Details

Quantity:


Product Overview

Description




Computer,projector,curtain,set-top box,stereo,TV,whiteboard.One machine has multiple functions,eliminating redundant equipment.




Support 20 people to write at the same time,support two or three slit screen.


gn6.jpg Various commonl used documents can be annotated and saved as screenshots at will,which can be annotated and saved directly in the content data.




Support smart phone/ipad/laptop to share/mirror the screen in Android system.It's two-way interaction about laptop connection.You can click anywhere in the panel from laptop,also can open the files in your laptop from panel.




  There is button for fast switch the system.Easily change windows(android) system to android(windows) system. Can open with WPS like word,excel,ppt and take annotations at any time and anywhere.Creating a better,more collaborative experience.

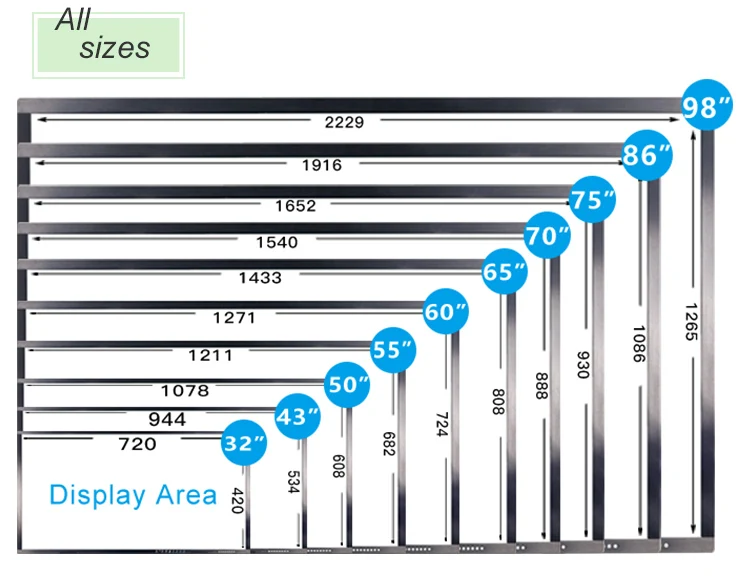

We have many size with different specification,the options as below:


  (feel free to contact us for details)


























































size  32"43"50"55"65"75"85"86"  55"65"75"85"86"98"110"  55"65"75"85"86"98"110"
Anti-glarewithout/with anti-glare
operating systemwindowsandroidwindows+android

ops CPU4th/6th/7th/8th/9/10/11/12 th Gen intel core i3/i5/i7
RAM4/8/16GB
SSD128/256/512GB/1TB
Android versionandroid 8.0android 9.0android 11.0
RAM3GB3/4GB4/8GB
ROM32GB32GB32/64GB
installationwall mounted/moving stand

gn11


All in one interactive flat panel widely use in school education,company meeting,institutional training, exhibition demonstration, etc.




There are some front ports and rear ports,Different configuration with different ports,about details,please contact us.


YCHD_13


_20201231102512


























































































 Model



 YC980B


 Screen Size

98 inch



 Frame material



 Aluminum alloy frame


 Sensing Type

20 Points Infrared Touch



 OS



 win10 i3/i5/i7   +   Android 11.0


 Surface material

3mm tempered glass+anti-glare



 RAM



       4GB                     4GB


 Best viewing angle

178°



SSD/ ROM



      128GB                      32GB


 Resolution

UHD 4K 3840*2160



 Hardness


7H Colors 10bit,1.07B

 Life time



50000H


Display Ratio

16:09



 Speaker



2*15W


working voltage50-60Hz 100-250V

Power



620W


Power of display540W

Installation



wall mounted/moving bracket


Touch output standard32768(W)*32768(D)

Front port



HDMI*1,Android USB*1,PC USB*4



Rear Android port



Touch USB*1, RJ45*1, AV in*1, AV out*1, Earphone*1, USB 2.0*1, USB 3.0*1, RS232 UART*1, HDMI in*2, SPDIF out*1


Rear Ops port

Audio out*1, MIC in*1,HDMI OUT*1, USB2.0*4, LAN*1, USB3.0*2, VGA out*1


 (Exact ports info. depends on the model of OPS PC)

Display dimension



2229*1265mm


Machine dimension2230*1290*120mm
 N.W. 113kgs G.W. 135KGS

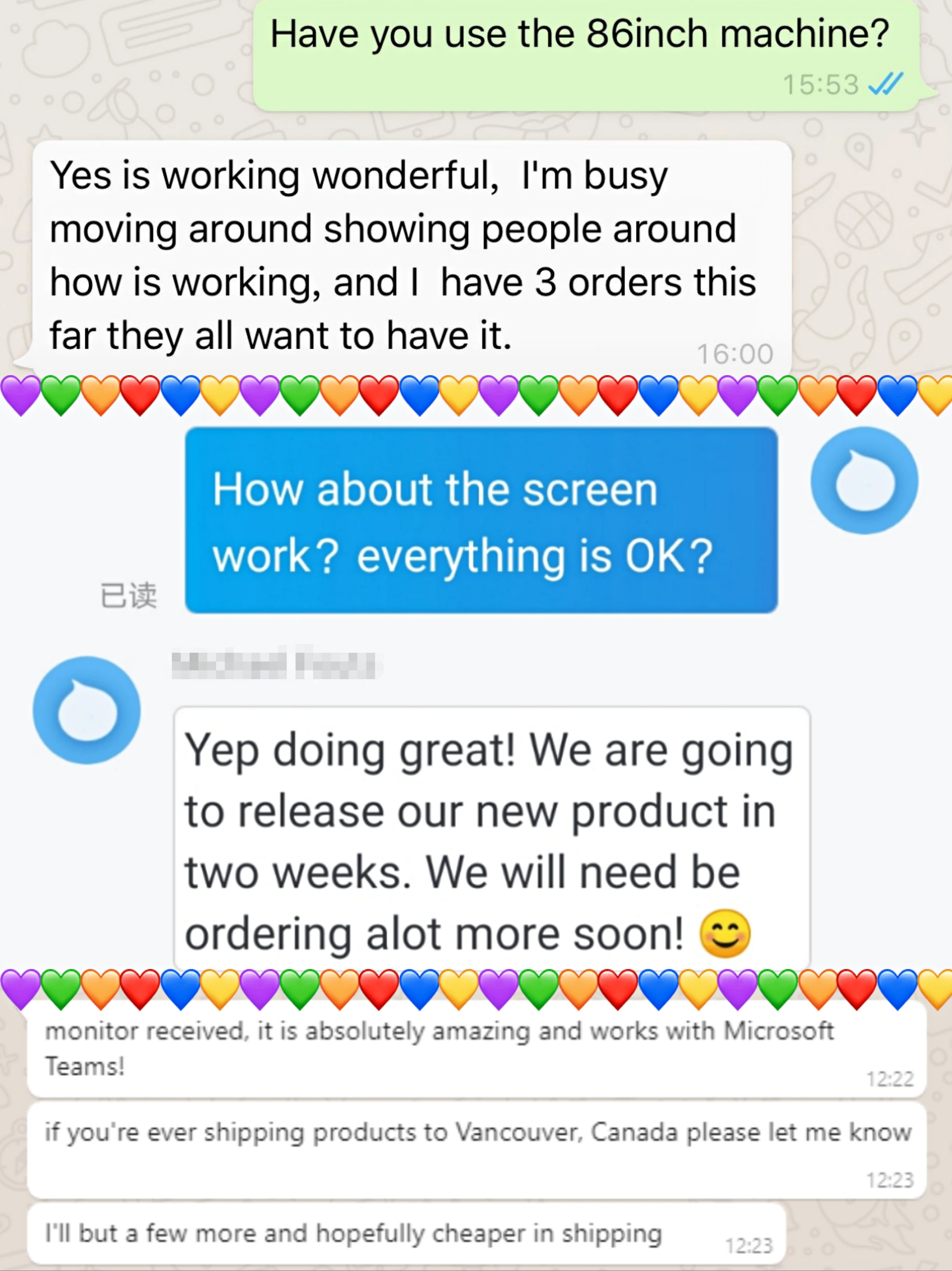

Customers Reviews


review(1)


 _09


 Guangdong Hua Shen Intelligent Electronic Technology Co, Ltd,is the brother company of Guangzhou Yichuang Electronic Technology Co.,Ltd,located 6th/F, NO 6 Building, Hua Chuang Animation Industry Park(B Area), Jin Shan village, ShiJi Town, PanYu district, Guangzhou city. Specialized in producing 32 inch -110 inch all in one interactive whiteboard for education, conference,training and etc. We set up our own brand "YCZX" and "YCHD", which selling in domestic China market and such countries and regions as Europe, America, Southeast Asia, Africa. We also welcome OEM and ODM orders. 12


_12






  Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition we have obtained FCC, Iso9001,ROSH, C E certificates.







  Our standard package:1set/carton. Honeycomb Box+EPE pearl cotton(inside) +Packing belt,for free.Usually we advise wooden pallet/box for outer packaging to prevent the product from being damaged during transportation.


   Shipping way:by sea to seaport,by sea to door,by air to airport,by express...provide the address,we can help you check the freight.


FAQ banner


Q: Are you a factory or trading company?
A: We are factory in beautiful Guangzhou City, China. Welcome to visit.





Q: What's your product quality control?
A: Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products pass strict QC inspection in the production process. In particular, export products need to complete 72-hour aging test to ensure no problems before shipment.





Q: What's your MOQ? Can you offer sample?
A: MOQ: 1 set. Yes,you can buy 1 set for test first.





Q: Could you offer the customized service?
A: Yes,our factory provide the service of OEM/ODM in software and hardware.
1) Simple customization: Logo printing, booth logo , MOQ:1 piece;
2) Android System custmization : MOQ:100pcs





Q: How long is the warranty for your products?
A: standard warranty :1 year, can be extended.





Q: What payment method your company accept?
A: We accept most of payment methods,but mainly accept T/T,credit card
