Bagasse Bamboo Wood Rice Straw Pulp Small Manufacturing Fiber Separator Making Pulp Line
Product introduction

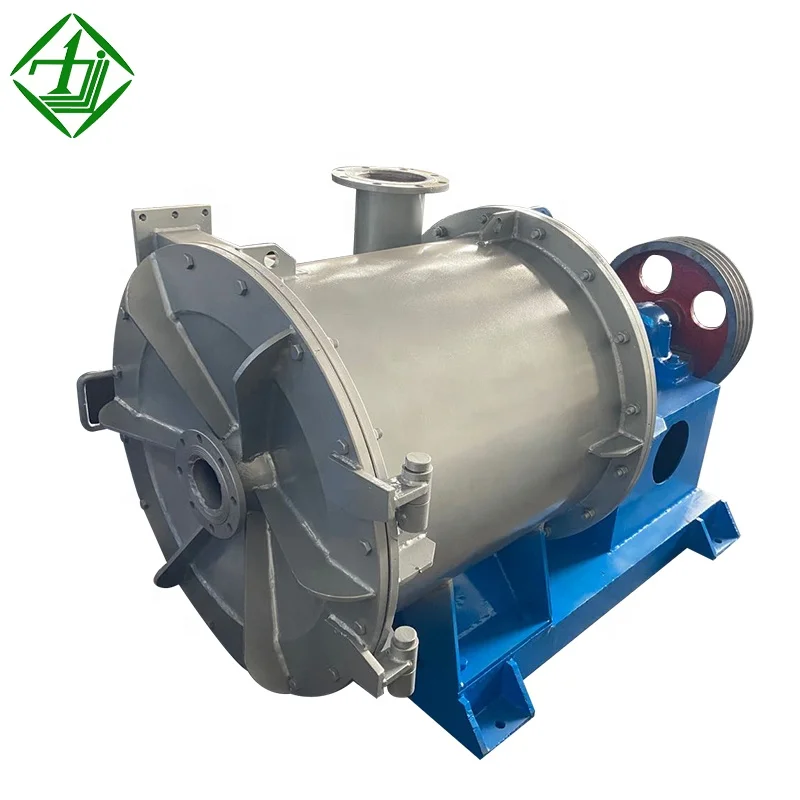

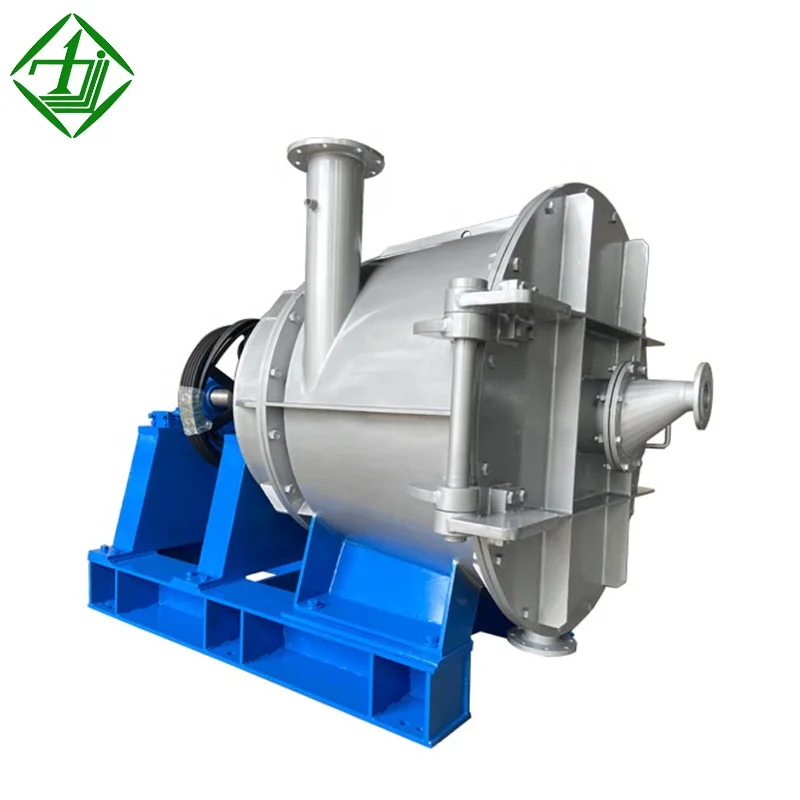

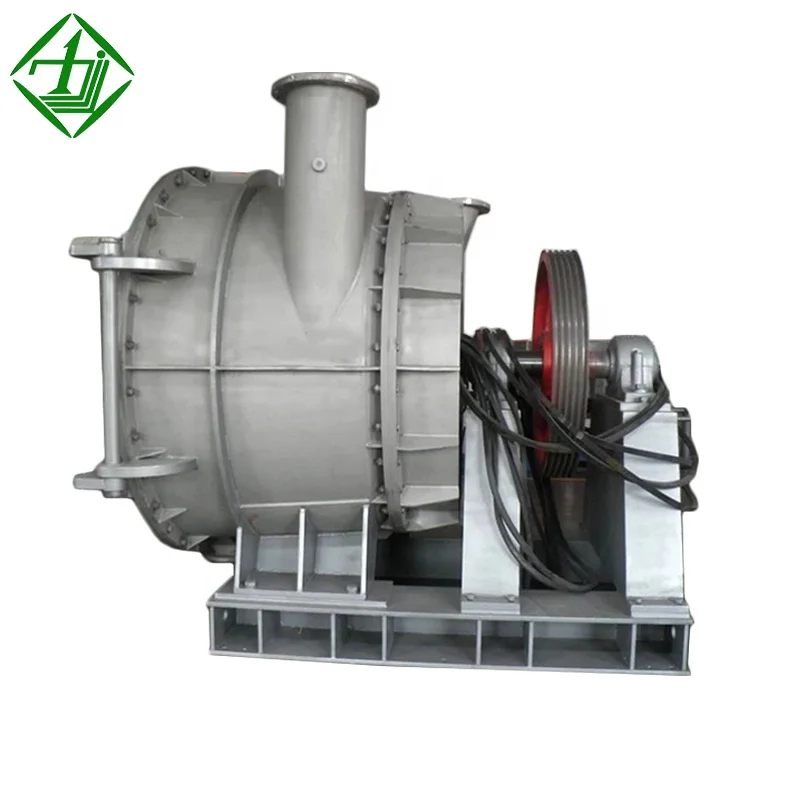

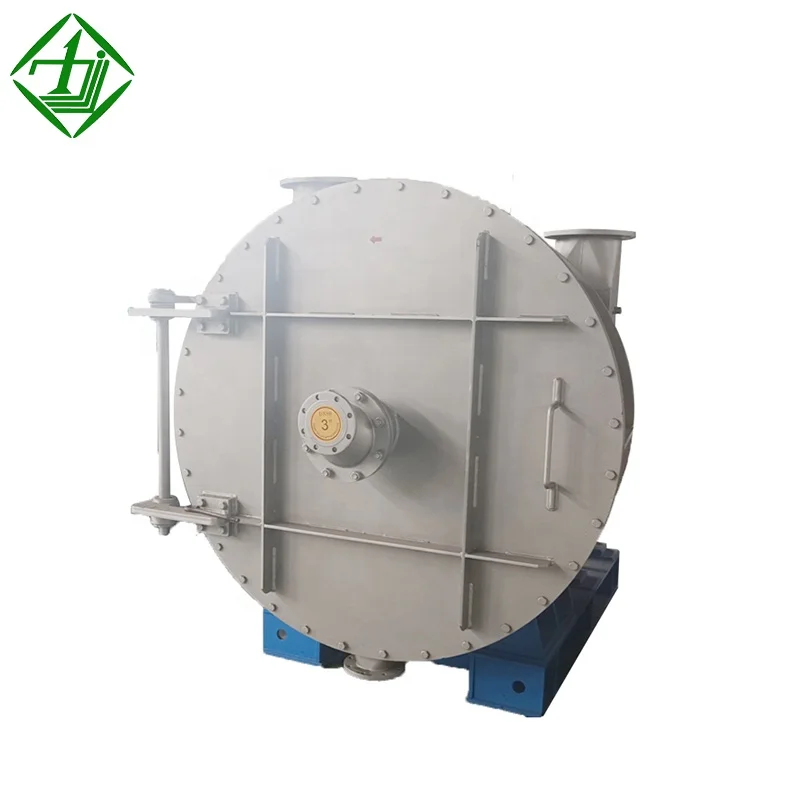

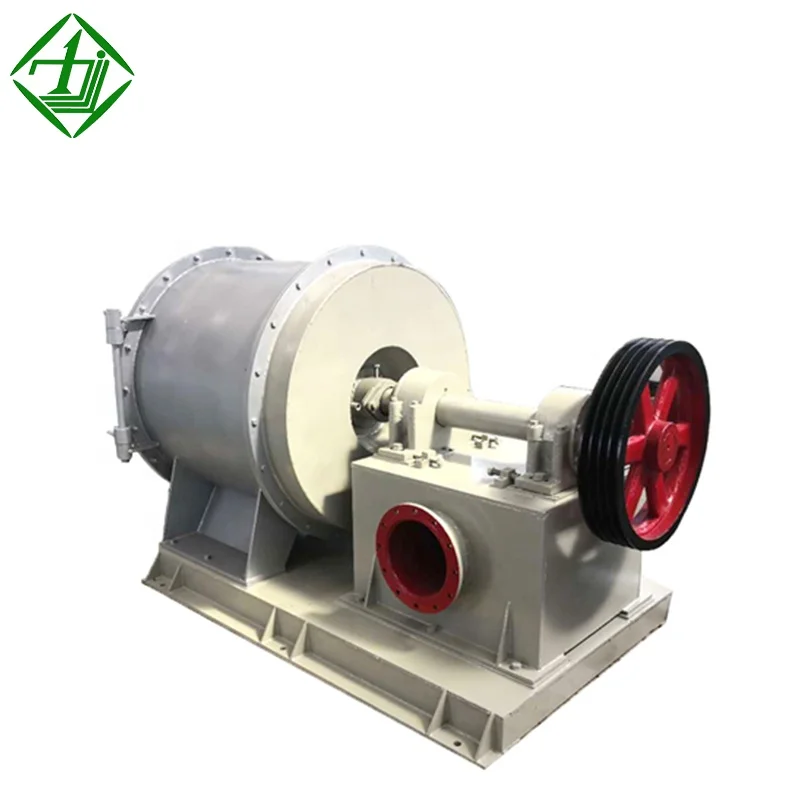

Fiber separator is a pulping equipment used in the papermaking industry. It is mainly used to separate the light and heavy impurities in the pulp and to carry out secondary crushing of the pulp from the hydraulic pulper. It is mainly composed of base, shell, impeller, bearing frame, cutter plate and sieve plate.
Product technical parameter
Name | Fiber separator | ||||||
Model | AT-45 | AT-55 | AT-75 | AT-88 | |||
Capacity(T/D) | 20-40 | 50-70 | 80-100 | 110-150 | |||
Inlet consistency | ≤4% | ||||||
Inlet pressure (kg/cm²) | 1.5-2.0 | ||||||
Screen plate | Φ3/Φ4·····Φ6/Φ7 tiered difference 0.5 tiered hole series | ||||||
Diameter of inlet pipe(mm) | Dg150 | Dg200 | Dg200 | Dg200 | |||
Diameter of good pulp pipe(mm) | Dg150 | Dg200 | Dg200 | Dg200 | |||
Pressure difference(kg/cm²) | 0.3-0.5 | ||||||
Motor Power(KW) | Y200L2-6/22 | Y280S-6/45 | Y280M-6/55 | Y315S-6/75 | |||
