TESmart 5 Ports HDMI Switch Support 4K@60Hz Auto Manual Mode input Source Automatic Detection Video HDMI Selector
- Category: >>>
- Supplier: Shenzhen Zhichuang Liangyi Information Technology Co Ltd.
Share on (1600739934276):
Product Overview
Description
Products Description

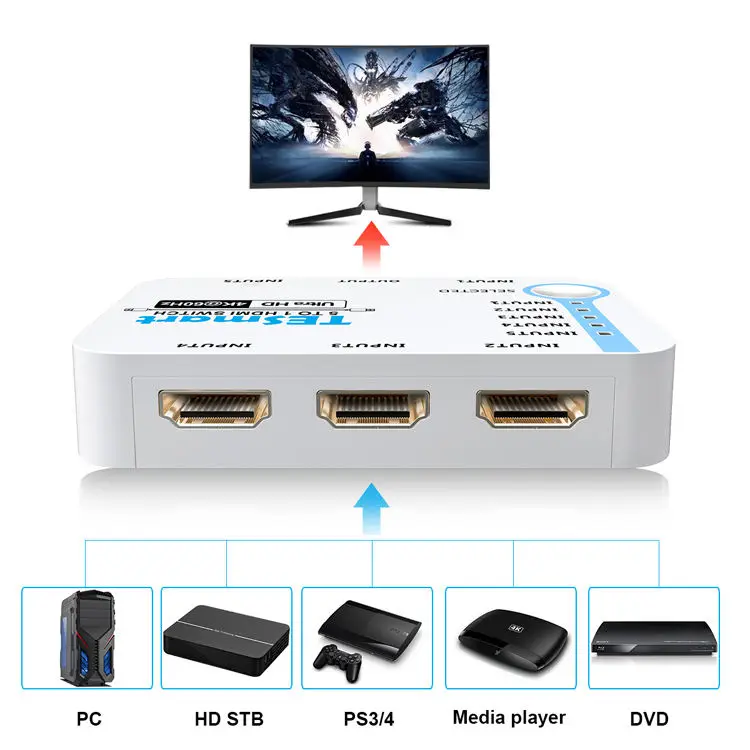

The 5 ports HDMI switch HSW0501A1U, allows up to 5 Ultra HD sources to be routed to one Ultra HD display. Support resolutions up to 4K@60Hz 4:4:4. Two switching modes are available for you to choose, auto mode and manual mode. Support automatic input source detection, when attach new input device to the switch, the switch will switch to last plugged in source automatically.
With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.
With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.
Features:
●With 5HDMI inputs and 1 HDMI output
●Support two switching mode: auto mode and manual mode
●Compliant with HDCP 2.2
●Auto input detect and switch

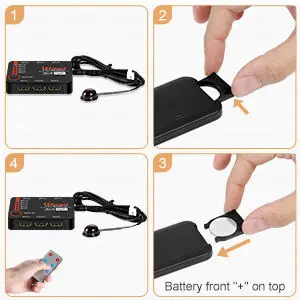

●Easy to switch input source with infrared remote control
●Support HDR 10 and Dolby Vision
Specification
HSW0501A1U | 5x1 HDMI Switch 4K@60Hz 4:4:4 | |||
Technical | ||||
HDCP compliance | 2.2 | |||
Data rate | 18 Gbps | |||
Max. resolution | 3840x2160@60Hz 4:4:4 | |||
Audio support | Surround sound(up to 7.1ch) or stereo digital audio | |||
ESD protection | Human body model - ±8KV (Air-gap discharge) | |||

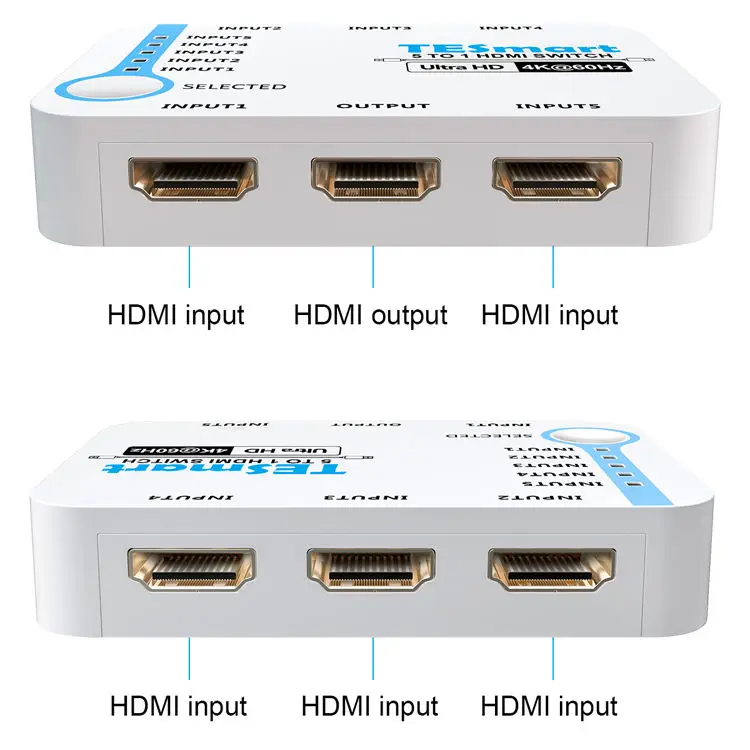

Input | 5* HDMI Type A | |||
Output | 1* HDMI Type A, 1* AUX(for L/R audio out), 1*S/PDIF audio out | |||
Mechanical | ||||
Chasing material | Aluminum alloy | |||
Power supply | DC 5V 1A | |||
Operating/storage temperature | 0 to 70 degree/-40 to 85 degree | |||
Operating humidity | 10 to 90% RH | |||
Product | Dimension | 196(L) x 80 (W) x 24 (H) mm | ||
Weight | 252g | |||
Item | Dimension | 245 (L) x 135 (W) x 90 (H) mm | ||
Weight | 557g | |||
Carton | Dimension | 515 (L) x 285 (W) x 470 (H) mm | ||
Quantity | 20pcs | |||
Total Weight | 11.99kg | |||
