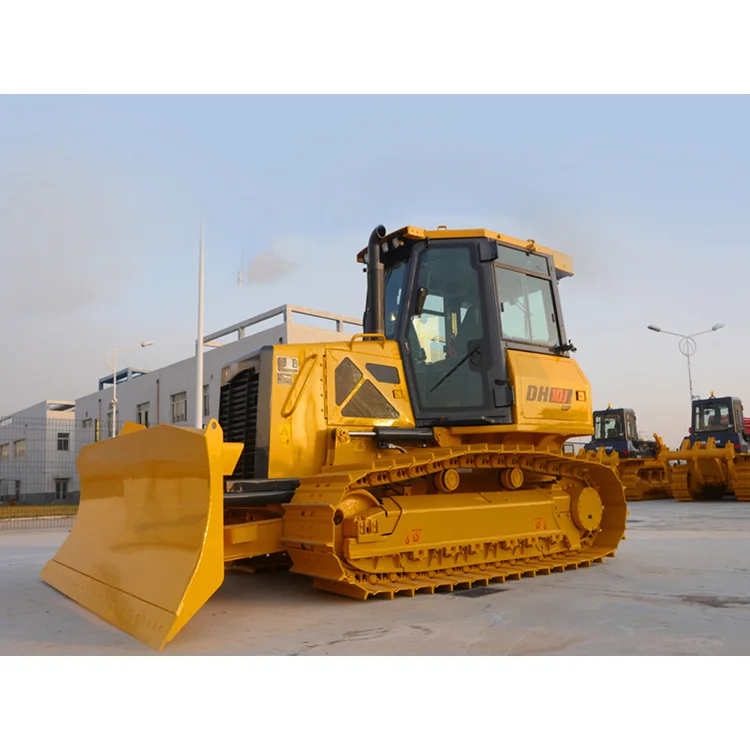

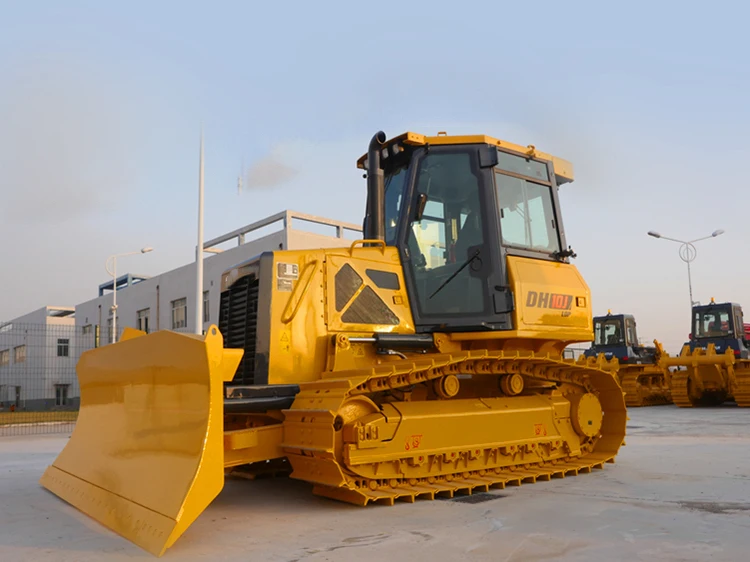

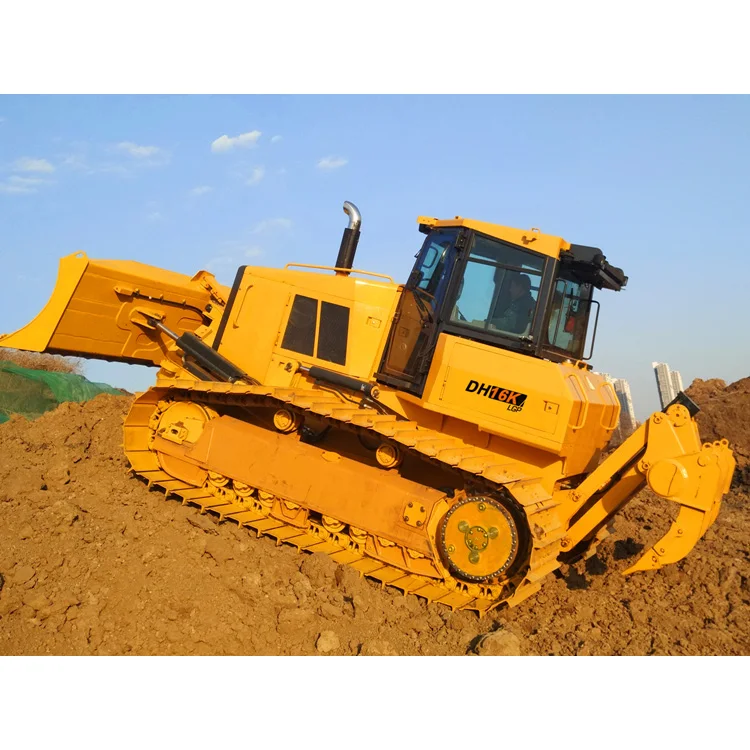

SHANTUI 18 Tons Crawler Bulldozer DH16-K2
Products Description
Working adaptability
● The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability,
loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding
construction performance in narrow sites.
● The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. Depending
on the specific working condition, the environmental sanitation blade, ripper, and winch can be installed to achieve high
operating capability. The standard LED working lamps of higher illumination intensity improve the illumination capability during
nighttime operations to achieve higher safety and reliability.
● The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability,
loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding
construction performance in narrow sites.
● The chassis system features long ground length, high ground clearance, stable driving, and excellent trafficability. Depending
on the specific working condition, the environmental sanitation blade, ripper, and winch can be installed to achieve high
operating capability. The standard LED working lamps of higher illumination intensity improve the illumination capability during
nighttime operations to achieve higher safety and reliability.
Product Paramenters
Parameter name | DH16-K2 XL (Extended version) | DH16-K2 LGP(Low ground pressure version) |
Performance parameters | ||
Operating weight (Kg) | 17635kg/38879lb (With drawbar) | 18800kg/41447lb (With drawbar) |
Ground pressure (kPa) | 50 (With 560mm track shoes)/45.9 (With 610mm track shoes) | 36.9 |
Engine | ||
Engine model | N67 | N67 |
Rated power/rated speed (kW/rpm) | 142/2100 | 142/2100 |
Overall dimensions | ||
Overall dimensions of machine (mm) | 5800*3400*3180 | 5800*4011*3180 |
Driving performance | ||
Forward speed (km/h) | 0-10 | 0-10 |
Reversing speed (km/h) | 0-10 | 0-10 |
Chassis System | ||
Center distance of track (mm) | 2040 | 2350 |
Width of track shoes (mm) | 560/610 | 810 |
Ground length（mm） | 3075 | 3075 |
Tank capacity | ||
Fuel tank (L) | 389 | 389 |
Working device | ||
Blade type | PAT(Power Angle Tilt) | PAT(Power Angle Tilt) |
Digging depth (mm) | 675 | 675 |
Ripper type | Three-shank ripper | Three-shank ripper |
Ripping depth (mm) | 492 | 492 |
