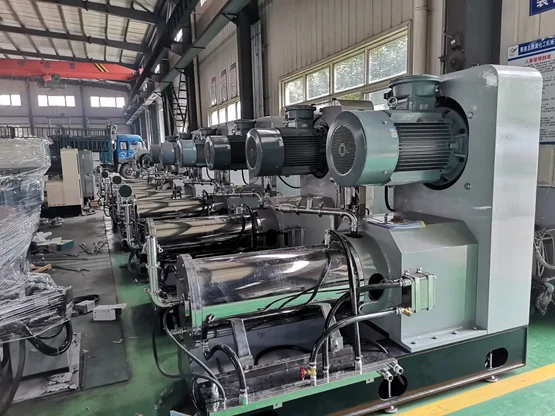

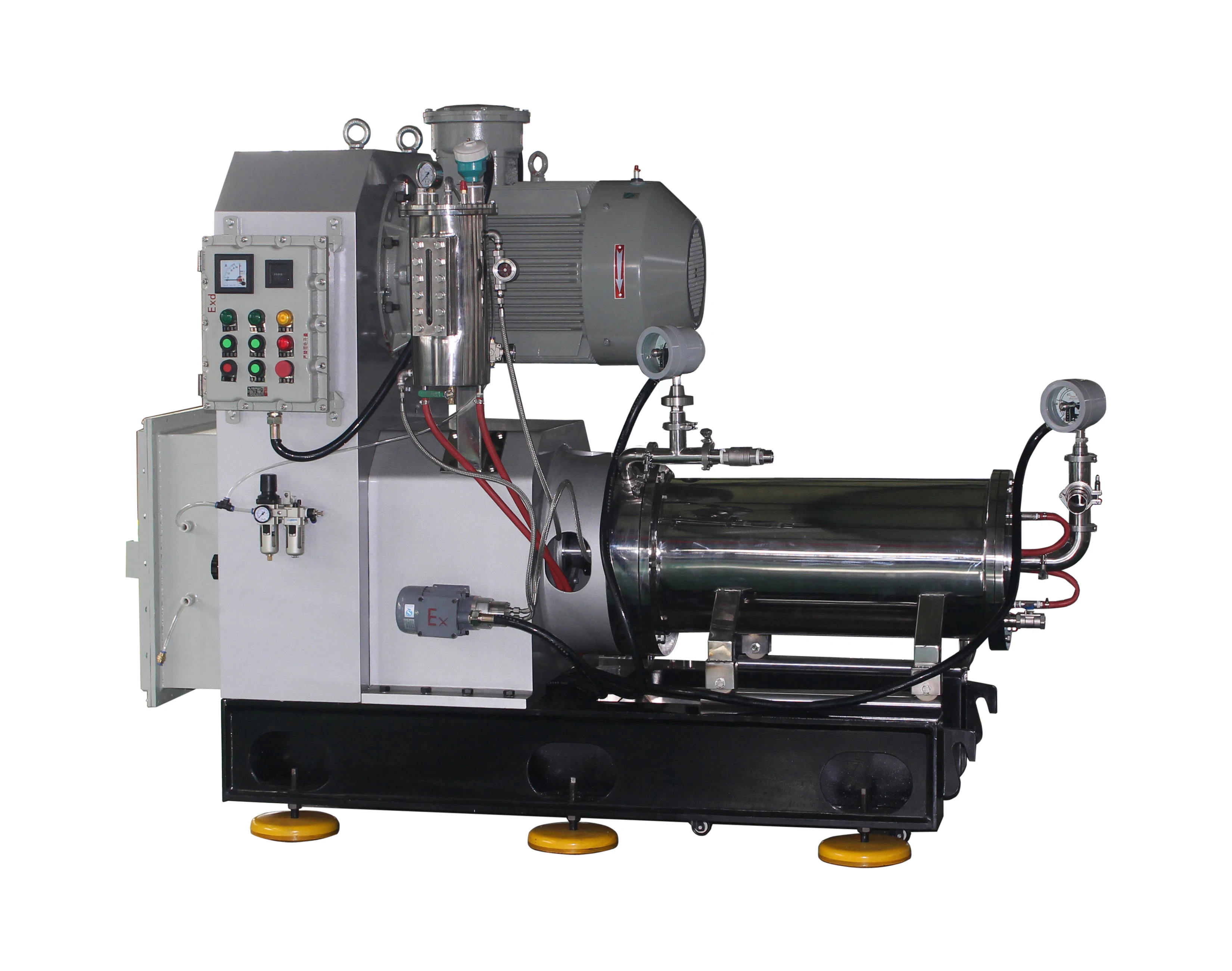

Large Flow Ink Production Sand Mill Pigment Grinding Equipment
- Category: Grinding Equipment >>>
- Supplier: Qinhuangdao,Yushun,Intelligent,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
YOU SHOULD KNOW:

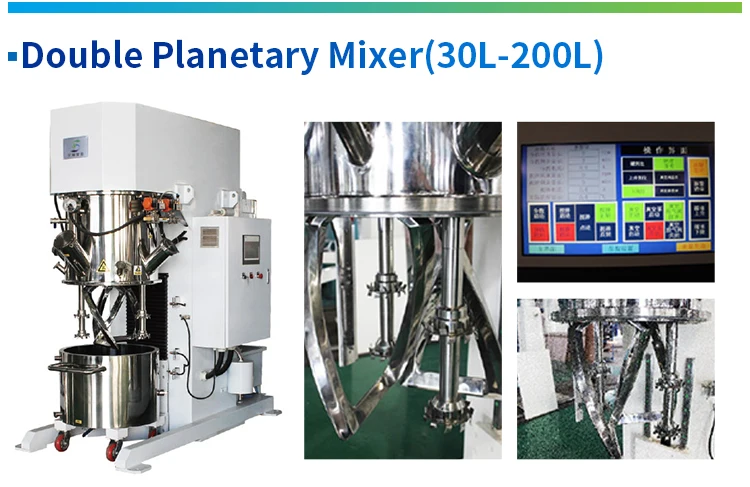

Yushun double planetary mixer machine is equipped with a separate set of scrapers to scrape the sides and bottom of the barrel with no residue. Th equipment is suitable for high temperature, high solids, high viscosity, and other difficult working conditions. The closed design can be used with a vacuum system to realize vacuum mixing, mixing barrel can be designed with a heating jacket, matching mold temperature controller, to realize thermostatic mixing function, It's the first choice of mixing equipment for the high-viscosity materials.
Product Features
High line speed
The line speed can reach to 25m/s, shorten the dispersing time (Each 5m/s increasing of line speed, the mixing time will reduce 20-30 minutes); The particle size of battery slurry is small and high uniformity, solve the problem of polymerization.
The line speed can reach to 25m/s, shorten the dispersing time (Each 5m/s increasing of line speed, the mixing time will reduce 20-30 minutes); The particle size of battery slurry is small and high uniformity, solve the problem of polymerization.
Adopt SKF Sweden import angular contact ball bearing
The vertical and horizontal loading is bigger than the deep groove ball bearing, The carry capacity is much higher, and bear higher rotating speed, large increase the mixing speed and using life( The using life is more than 3 years under 21m/s and continuous 24hr working ; The using life of bearing from other supplier is lower than 1.5 years).
The vertical and horizontal loading is bigger than the deep groove ball bearing, The carry capacity is much higher, and bear higher rotating speed, large increase the mixing speed and using life( The using life is more than 3 years under 21m/s and continuous 24hr working ; The using life of bearing from other supplier is lower than 1.5 years).
0 - 0 assembling: precision assemble
The process tolerance of core parts is less than 30um (mixing shafts, dispersing shafts, and each hole), Thus ensure the concentricity and flatness, archive the 0-0 assembling of core parts. The running is more stable , the noisy outside 1 m rang is lower than 60 db(A).
High tightness, No air leakiness and oil leakiness
2 sets of mechanical seal plus soft,hard seals etc, The planetary transmission box adopts complete seal structure, New design of bearing position, reasonable distribution of the bearing limit, reduce the wearing of bearing; The non load vacuum keeps above-0.095 in 24hours, ensure that no air leakiness and oil leakiness during the mixing ;
The gap between tank and paddles
paddles to paddles (2-7mm),paddles to tank wall (2-7mm),paddles to tank bottom (2-6mm) , the gap is small, scraper design under the mixing paddles, High roundness inner the tank, The deviation is less than 0.2mm;
Large torsion output
precision casting mixing paddles SS316 stainless steel (adopts special steel for machines bigger than 650L, The material can restore itself if there is micro deformation, The mixing paddles won’t deform under long time big torque running), The torque output is Simulation calculated by computer, High strength, suitable for high viscosity, high solid content Positive and negative pole slurry of Lithium battery (Lithium iron phosphate, ternary, ternary high nickel, Potassium manganate, Lithium Cobaltate etc) suitable for different process technology (dry mix, wet mix).
Product Paramenters
Model Item | 300L | 500L | 650L | 1000L | 1500L | 2000L | 3000L |
Tank working Capacity(L) | 300L | 500L | 650L | 1000L | 1500L | 2000L | 3000L |
Tank Design Size(L) | 368L | 670L | 807L | 1327L | 1846L | 2300L | 3400L |
Tank Size(mm) | 850x650 | 1000x850 | 1100x850 | 1300x1000 | 1400x1200 | 1500x1300 | 1700x1500 |
Revolution Motor(KW) | 22 | 37 | 45 | 55 | 75 | 90 | 110 |
Revolution Speed(rpm) | 0-26 | 0-22 | 0-22 | 0-20 | 0-15 | 0-13 | 0-9 |
Mix Speed(rpm) | 0-39 | 0-35 | 0-35 | 0-36 | 0-35 | 0-35 | 0-24 |
Disperse Motor(KW) | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
Disperse Speed(rpm) | 0-2200 | 0-2000 | 0-2000 | 0-1800 | 0-1500 | 0-1500 | 0-1000 |
Disperse plate linear Velocity(m/s) | 0-23 | 0-23 | 0-23 | 0-23 | 0-23 | 0-23 | 0-23 |
Suttle(KG) | 7700 | 10300 | 11000 | 13500 | 16800 | 19500 | 23500 |
Measurement(L*W*H mm) | 3200x1600x3200 | 3600x1950x3900 | 3800x1700x4200 | 4300x1950x5000 | 4320x2100x4530 | 4430x2050x4950 | 4660x2280x5200 |
Company Profile
Qinhuangdao Yushun Intelligent Technology Co., Ltd was register in June, 2011, our facory established in 1995, it has about 23 years experinece, Yushun is a new branch of our group. It is a reaserch and development, production and sales private enterprise that with abounding production experie. We ensure provide the best quality products.We are the manufacture of lithium batteries automation equipmentsuch as double planetary mixer,dual-channel battery slurry magnetic filter, high speed homogenizer, slurry transfer tank, lithium-ion battery automatic feeding system and mills. Our machine are serviced for clients from USA, Russia, Italy, India, Asutralia, Egypt, Sri Lanka, Ukraine, Thailand, Braliz, Malaysia, Vietnam and so on. Our excellent quality and service has gained the approval by both internal and international and international clients.
Application
Package&Shipping
1. Packing with wooden box, inner with Anti-collision material to protect the machine or as customers' requirement.
2. Shipping by express, by air, by sea according to customers' requirement.
3. One year free warranty.
2. Shipping by express, by air, by sea according to customers' requirement.
3. One year free warranty.
Exhibition
FAQ
Q1:Payment terms?
A: T/T,Cash,L/C.
Q2: Trade terms?
A: In according with Incoterms 2010, normally with EXW, FOB Tianjin, CFR, CIF ;
Q3: Validity of quotation?
A: Within 15 days;
Q4: Modes of shipment?
A: By sea, by railway, by air and by express;
Q5: Warranty?
A: One year and lifelong service provided at cost;
Q6: Installation and training?
A: Tel or online guidance for installation, for production line, paid overseas engineering service provided.
Q2: Trade terms?
A: In according with Incoterms 2010, normally with EXW, FOB Tianjin, CFR, CIF ;
Q3: Validity of quotation?
A: Within 15 days;
Q4: Modes of shipment?
A: By sea, by railway, by air and by express;
Q5: Warranty?
A: One year and lifelong service provided at cost;
Q6: Installation and training?
A: Tel or online guidance for installation, for production line, paid overseas engineering service provided.
