Product Overview
Description
Dual Fiber To rj45 port 10/100/1000m Media Converter transmit 20km
Product Description
SST-MCT-1X9DF20 10/100/1000M adaptive fast Ethernet optical media converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100/1000 Base-TX and 1000 Base-Fx network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 120km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.
Product Features
In accordance with Ethernet standards IEEE802.3 10Base-T, IEEE802.3u 100Base-T and 100Base-FX.
Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port
External and built-in DC power supplies provided 128 K's data buffer RAM
Support for low-delay time pure data transmission and full/half-duplex flow control.
Built-in watch-dog timer to monitor any error in internal data exchange.
Supported Ports: SC for optical fiber; RJ45 for twisted pair
Auto-adaptation rate and full/half-duplex mode supported at twisted pair port
Auto MDI/MDIX supported without need of cable selection
Up to 6 LEDs for status indication of optical power port and UTP port
External and built-in DC power supplies provided 128 K's data buffer RAM
Support for low-delay time pure data transmission and full/half-duplex flow control.
Built-in watch-dog timer to monitor any error in internal data exchange.
Product Application
Extend your Ethernet connection up to 0~120km away using fiber optics;
Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones;
Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus);
Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network.
Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones;
Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus);
Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network.
Specification
Model | SST-MCT-1X9DF20 | ||
Optical Interface | Connector | Dual Fiber SC port | |
Data Rate | 1.25Gbps | ||
Duplex Mode | Full duplex | ||
Fiber | SM 9/125um | ||
Distance | 850m~120km | ||
Wavelength | 850/1310/1490/1550nm | ||
UTP Interface | Connector | RJ45 | |
Data Rate | 10/100/1000Mbps | ||
Duplex Mode | Half/full duplex | ||
Cable | Cat5, Cat6 | ||
Power Input | Adapter Type | DC5V 1A | |
Power Built-in Type | AC100~240V | ||
Weight | Adapter Type | 0.39kg | |
Power Built-in Type | 0.67kg | ||
Dimensions | Adapter Type | 94*70.5*26.5cm | |
Power Built-in Type | 140.5*111*30cm | ||
Power Consumption | ＜3W | ||
Temperature | 0~70℃ Operating; -40~70℃ Storage | ||
Humidity | 5~95% (no condensing) | ||
MTBF | ≥10.0000h | ||
Certification | CE,FCC,RoHS | ||
Warranty | 3 years warranty | ||

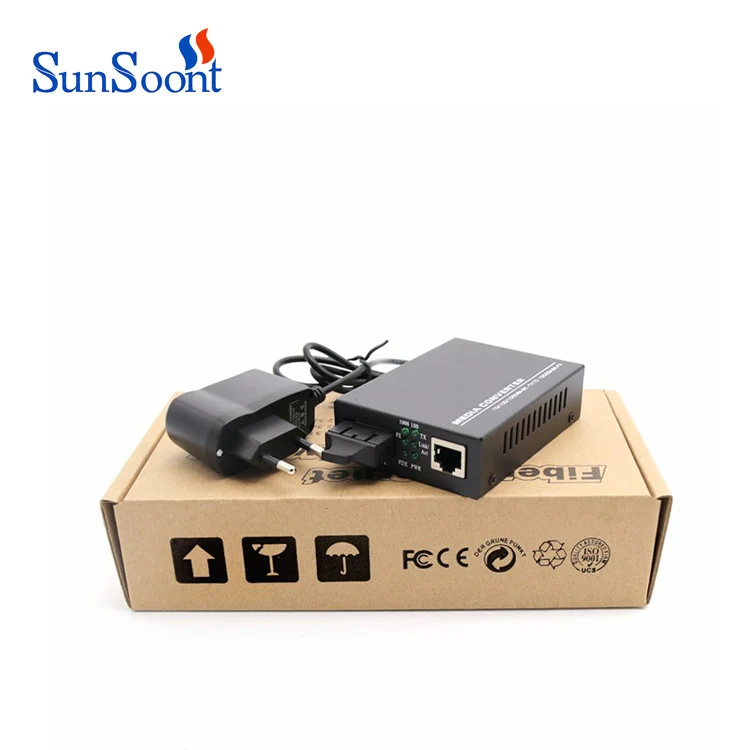

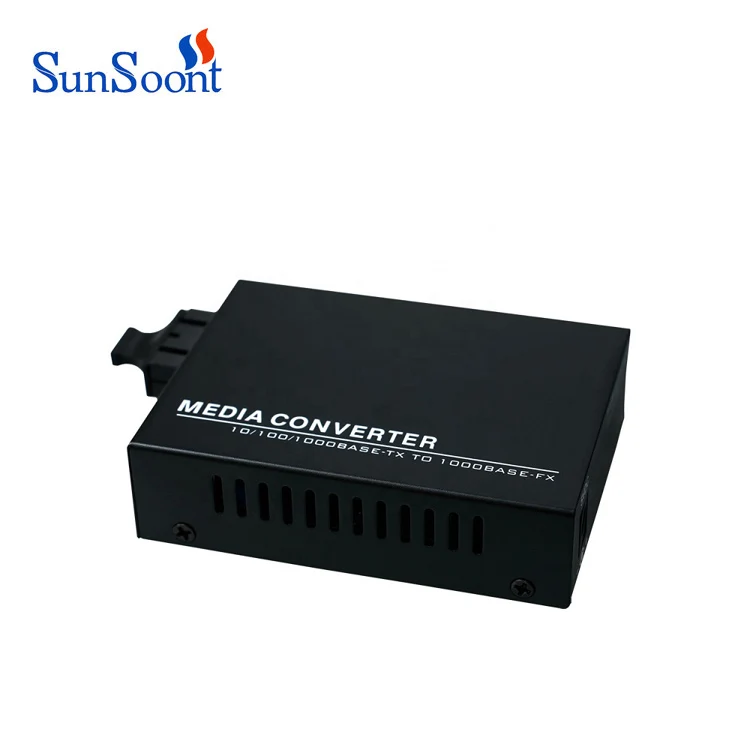

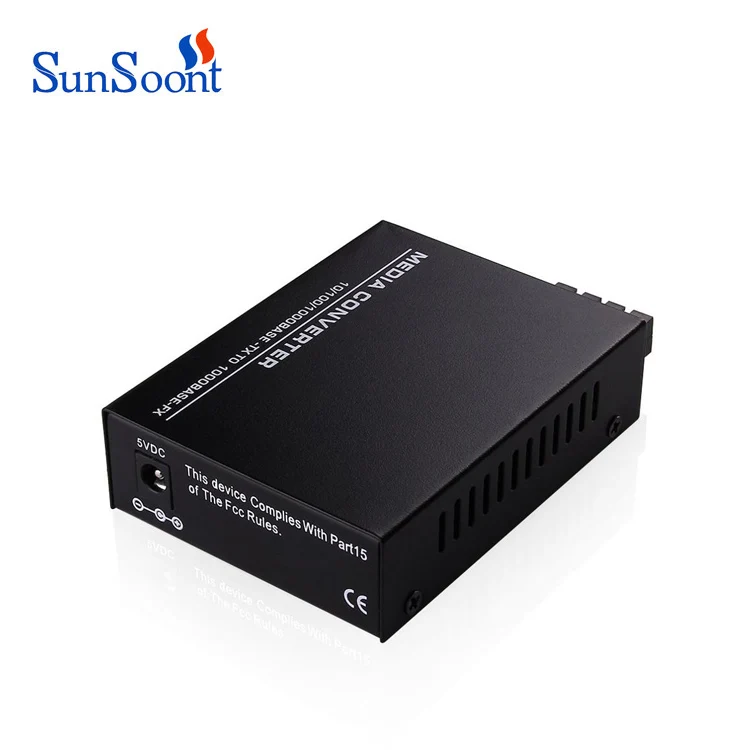

Details Images
