Zetron FG 10 High Concentration Curtain Water Cleanroom Fogger
- Category: >>>
- Supplier: Beijing Zetron Technology Co. Ltd.
Share on (1600740056088):
Product Overview
Description
overview

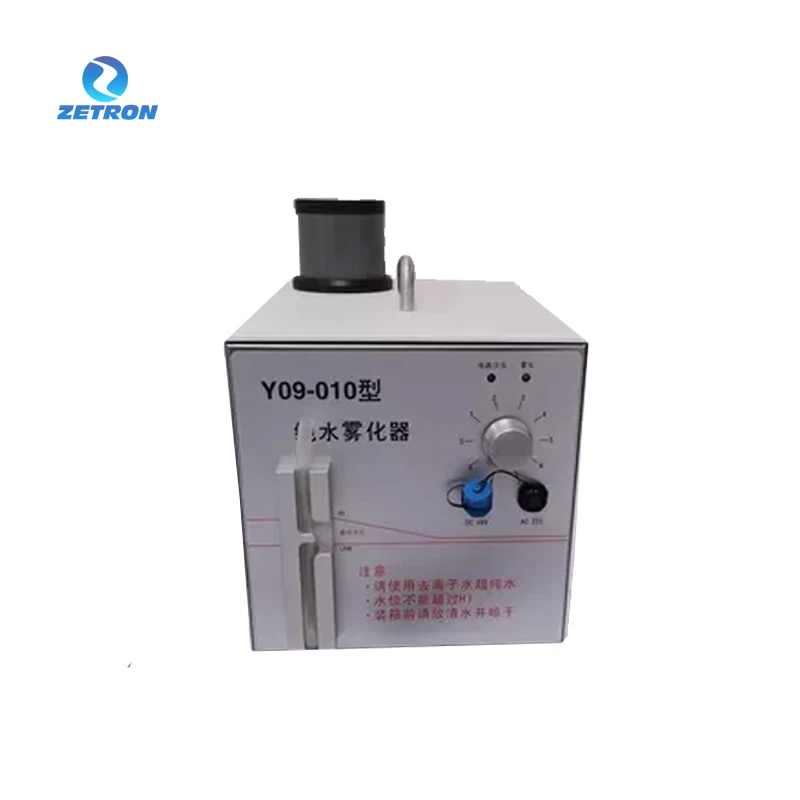

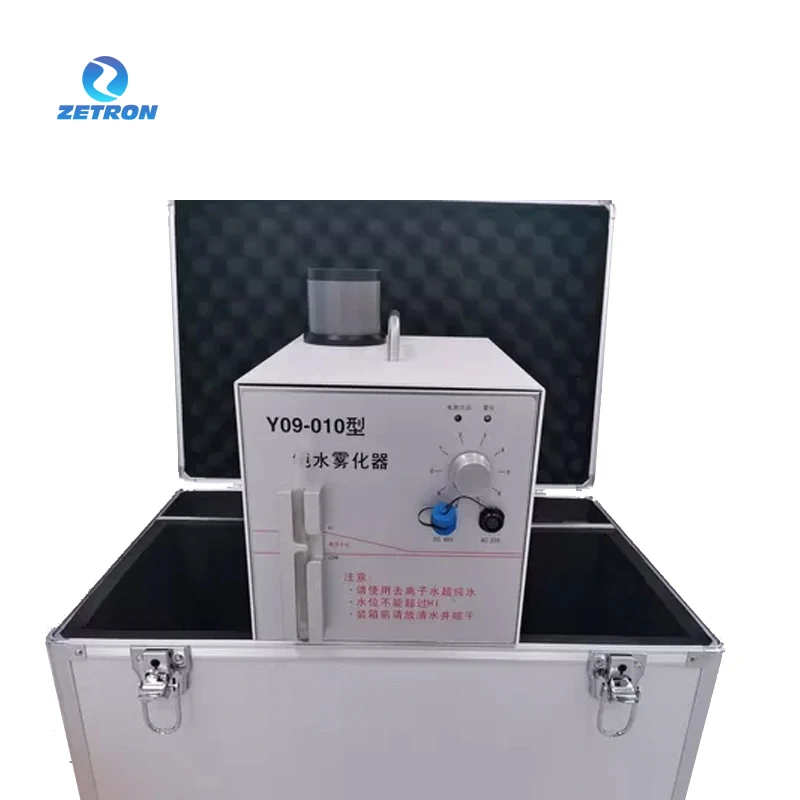

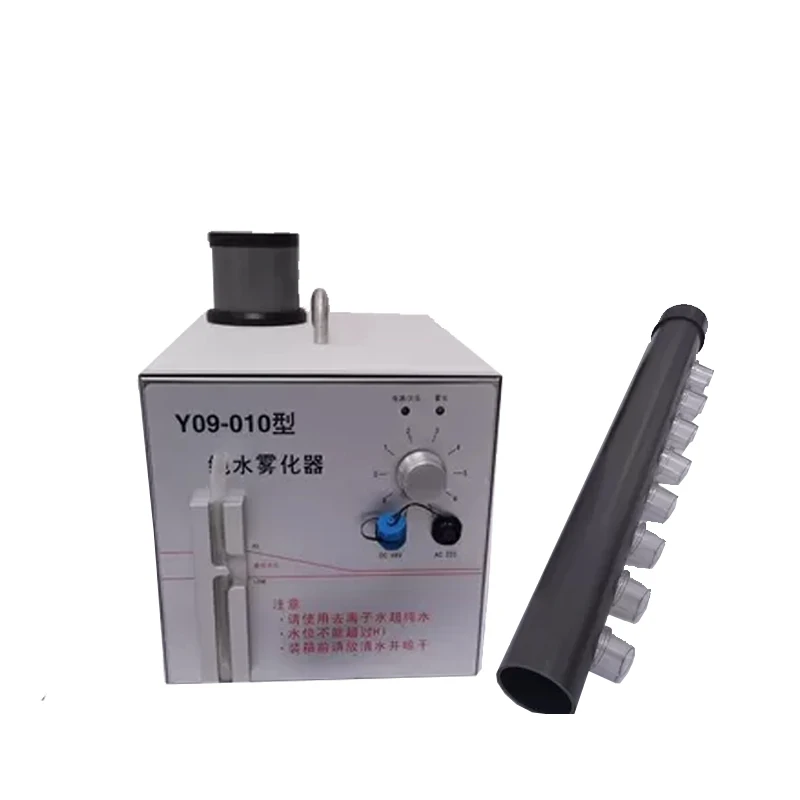

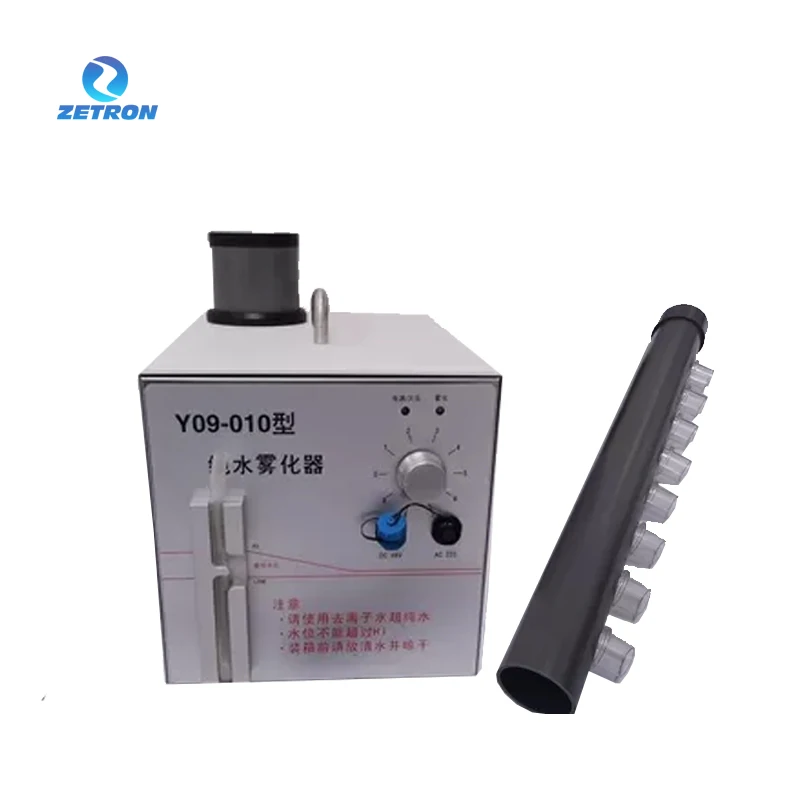

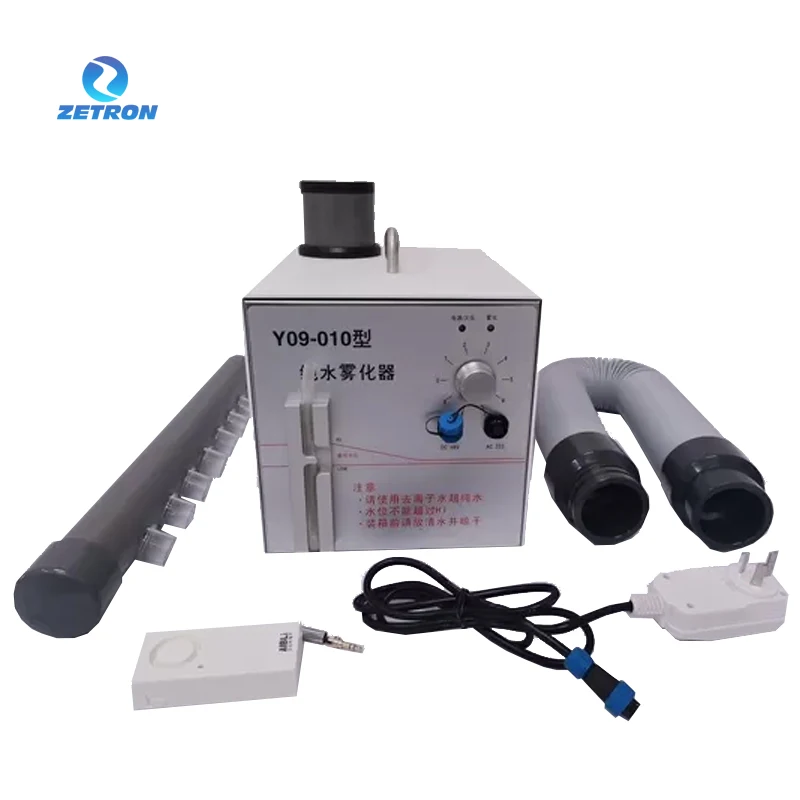

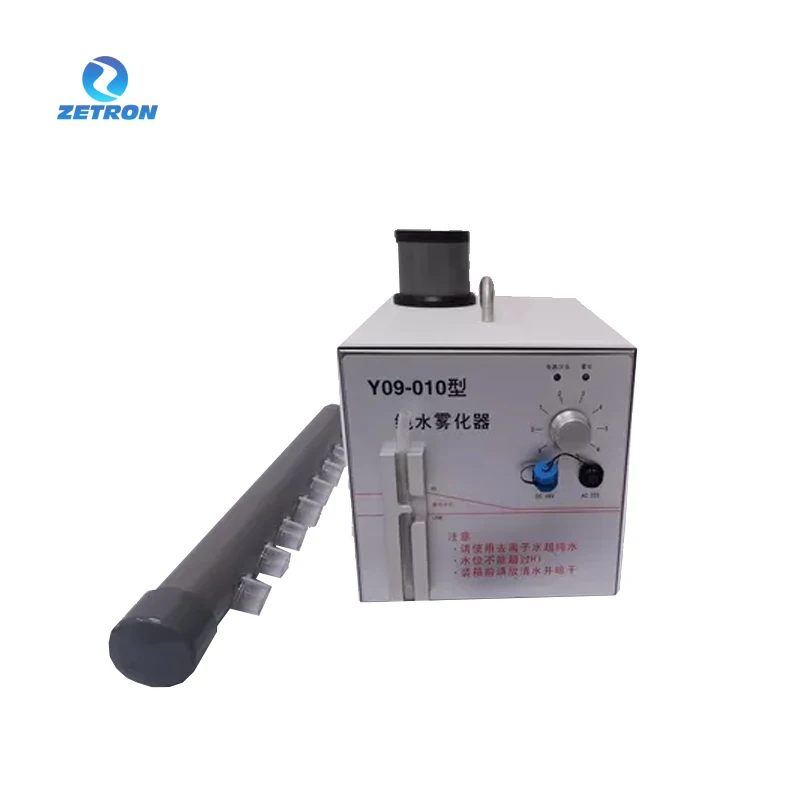

Y09-010 Pure Water Fogger
Y09-010 is economical and practical type pure water fogger. It uses ultrasonic atomization principle, atomizing pure water into a lot of mist around 10 microns. Under external pressure, it is piped out through smoke exhaust pipe, it can exhibit thick smoke, it is very intuitive to visualize the airflow state in a number of industries, especially in the clean room industry.
Operation
➢ Keep the water tank clean.
➢ Please ensure that the added liquid is purified water.
Otherwise, it will affect the useful life of the product. It is strictly forbidden to add oily media.
➢ Make sure the power supply is at the correct rated voltage before use.
➢ The chassis should be placed horizontally and should not be tilted or flipped.
➢ After use, turn off the power or unplug the plug and drain the remaining pure water.
➢ The amount of water should be added to the red line.
Too much or too little water will affect the concentration of fog.
➢ The control circuit board should not be in contact with water to prevent short circuit
➢ Pay attention that the fan can not touch the water to prevent short circuit
➢ The water temperature in the water tank should not be higher than 50 °C.
➢ Avoid placing the fogger beside the electronic equipment to prevent the electrical equipment be damaged by the water mist. ➢ Please leave it in a dry place after use.
Instruction:
➢ Place the funnel in the hole,
➢ Add purified water to a 2L cup. When adding water, please pay attention to the water level. The HI red line is the best (about 2 cups of water).
➢ When the warning water level is exceeded, the water level alarm light lights up and an alarm sound is emitted.
At this time, please discharge excess water and the alarm can be eliminated.
Note: There is a test button behind the alarm. If the test does not sound, please replace two batteries.
➢ Connect the fuming bellows to the fog hole of the chassis.
➢ Insert the power adapter into the power socket first.
➢ The power-on indicator lights up.
➢ The fog knob adjusts the amount of fog generated. If it is used in a small range, it is recommended to adjust it within the range of “1”.
➢ Please drain the water in the tank after use. In case of long-term storage, it will cause dirt and affect the service life of the fogger.
➢ Please ensure that the added liquid is purified water.
Otherwise, it will affect the useful life of the product. It is strictly forbidden to add oily media.
➢ Make sure the power supply is at the correct rated voltage before use.
➢ The chassis should be placed horizontally and should not be tilted or flipped.
➢ After use, turn off the power or unplug the plug and drain the remaining pure water.
➢ The amount of water should be added to the red line.
Too much or too little water will affect the concentration of fog.
➢ The control circuit board should not be in contact with water to prevent short circuit
➢ Pay attention that the fan can not touch the water to prevent short circuit
➢ The water temperature in the water tank should not be higher than 50 °C.
➢ Avoid placing the fogger beside the electronic equipment to prevent the electrical equipment be damaged by the water mist. ➢ Please leave it in a dry place after use.
Instruction:
➢ Place the funnel in the hole,
➢ Add purified water to a 2L cup. When adding water, please pay attention to the water level. The HI red line is the best (about 2 cups of water).
➢ When the warning water level is exceeded, the water level alarm light lights up and an alarm sound is emitted.
At this time, please discharge excess water and the alarm can be eliminated.
Note: There is a test button behind the alarm. If the test does not sound, please replace two batteries.
➢ Connect the fuming bellows to the fog hole of the chassis.
➢ Insert the power adapter into the power socket first.
➢ The power-on indicator lights up.
➢ The fog knob adjusts the amount of fog generated. If it is used in a small range, it is recommended to adjust it within the range of “1”.
➢ Please drain the water in the tank after use. In case of long-term storage, it will cause dirt and affect the service life of the fogger.
Product Parameter
Voltage | AC 220V or DC48V |
Power | 250W |
Best capacity of inner water tank | 3.6 liters |
Main unit size | 310 × 209 × 210 mm |
Net weight | 8 Kg |
Amount of fog | ≥1700ml/h |
Atomized particle size | 1-10 microns |
