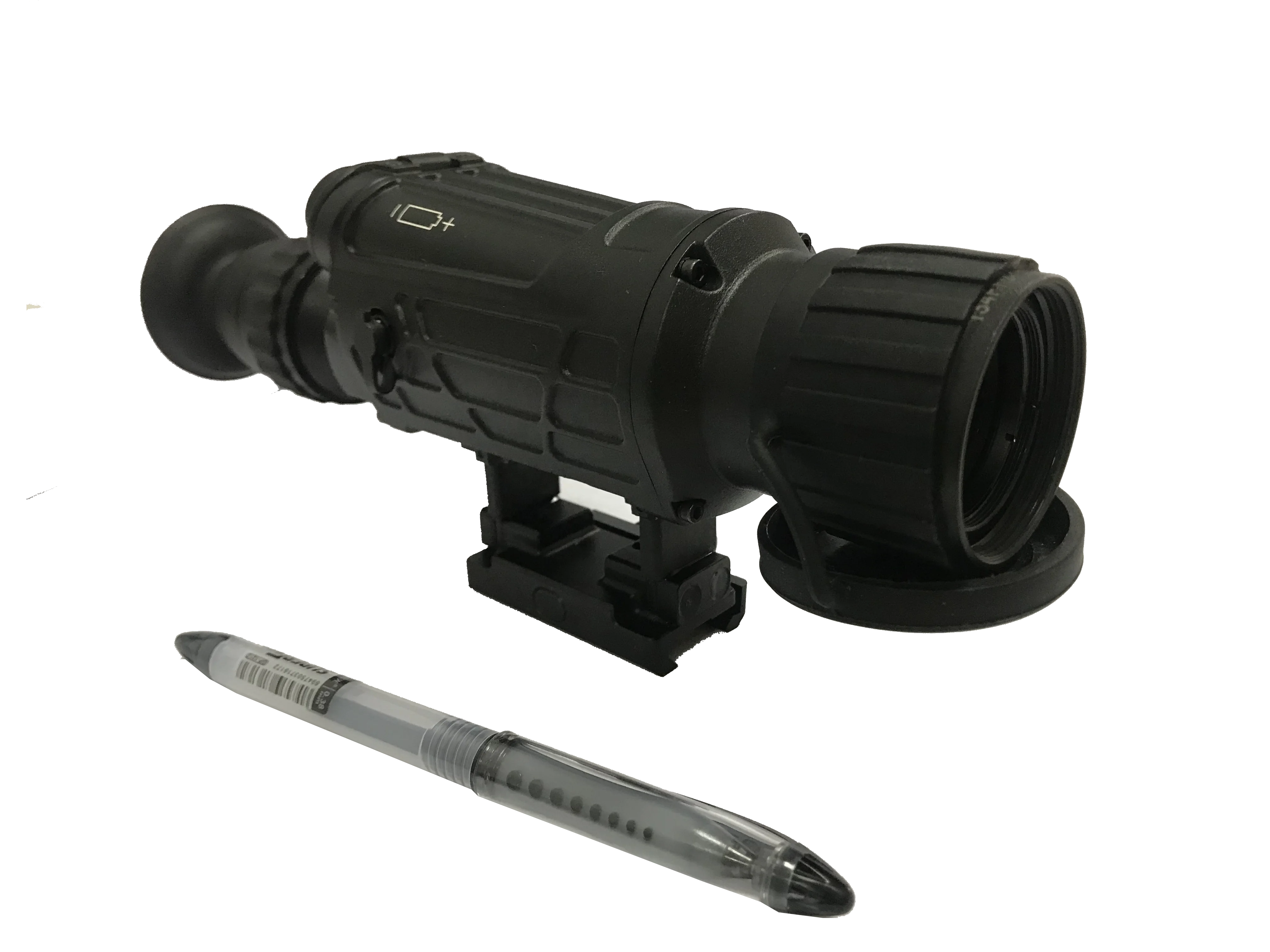

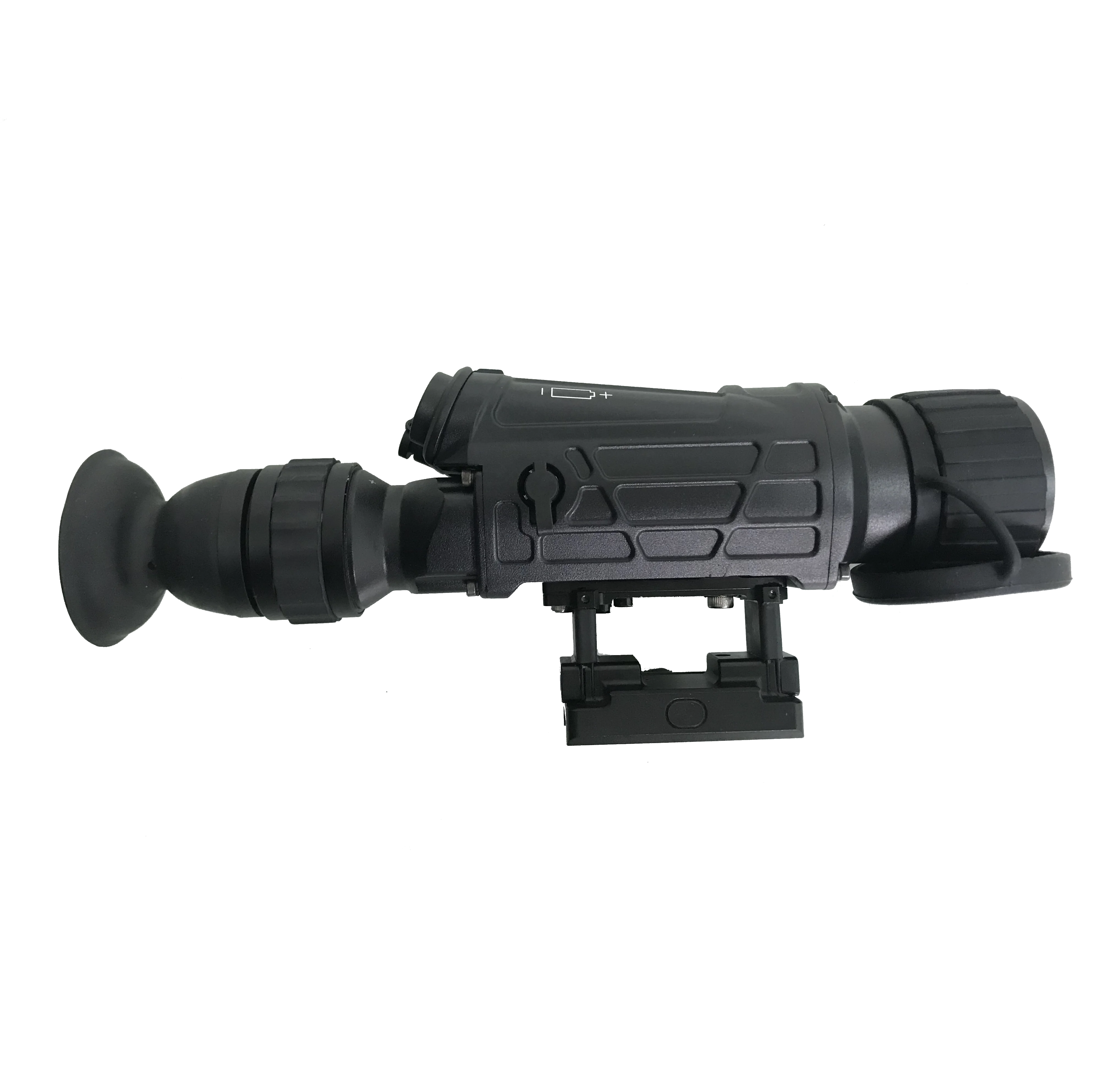

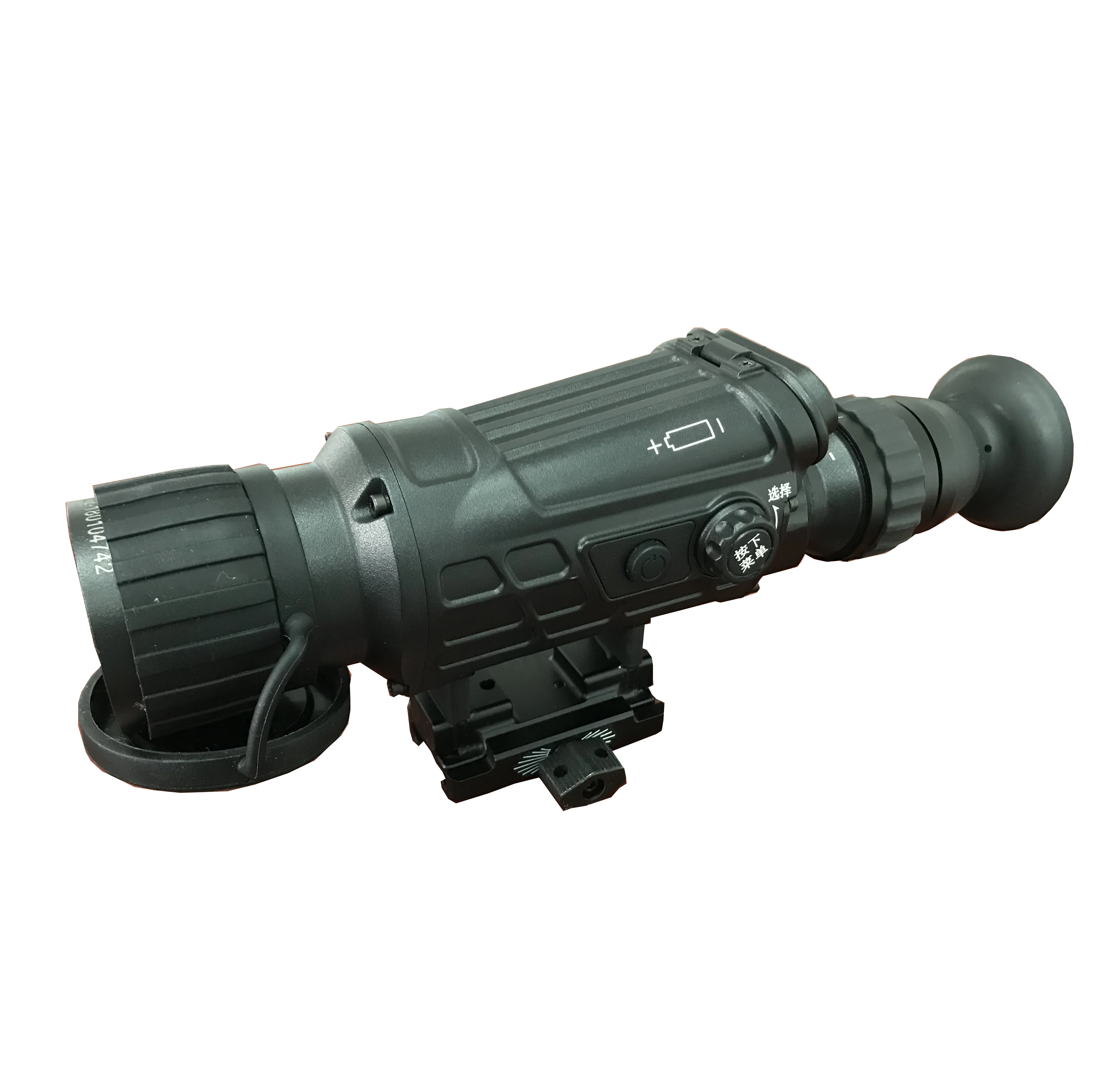

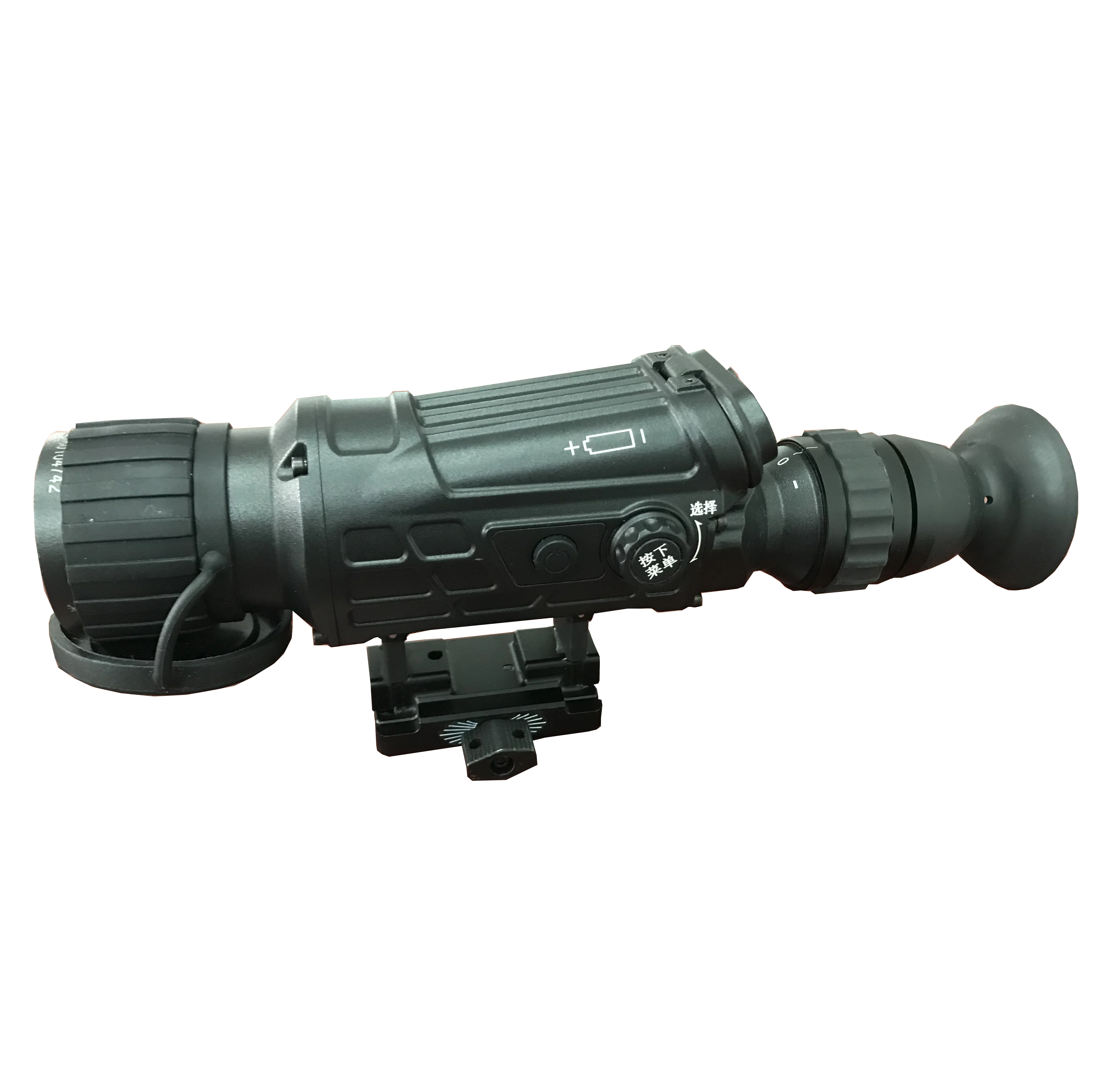

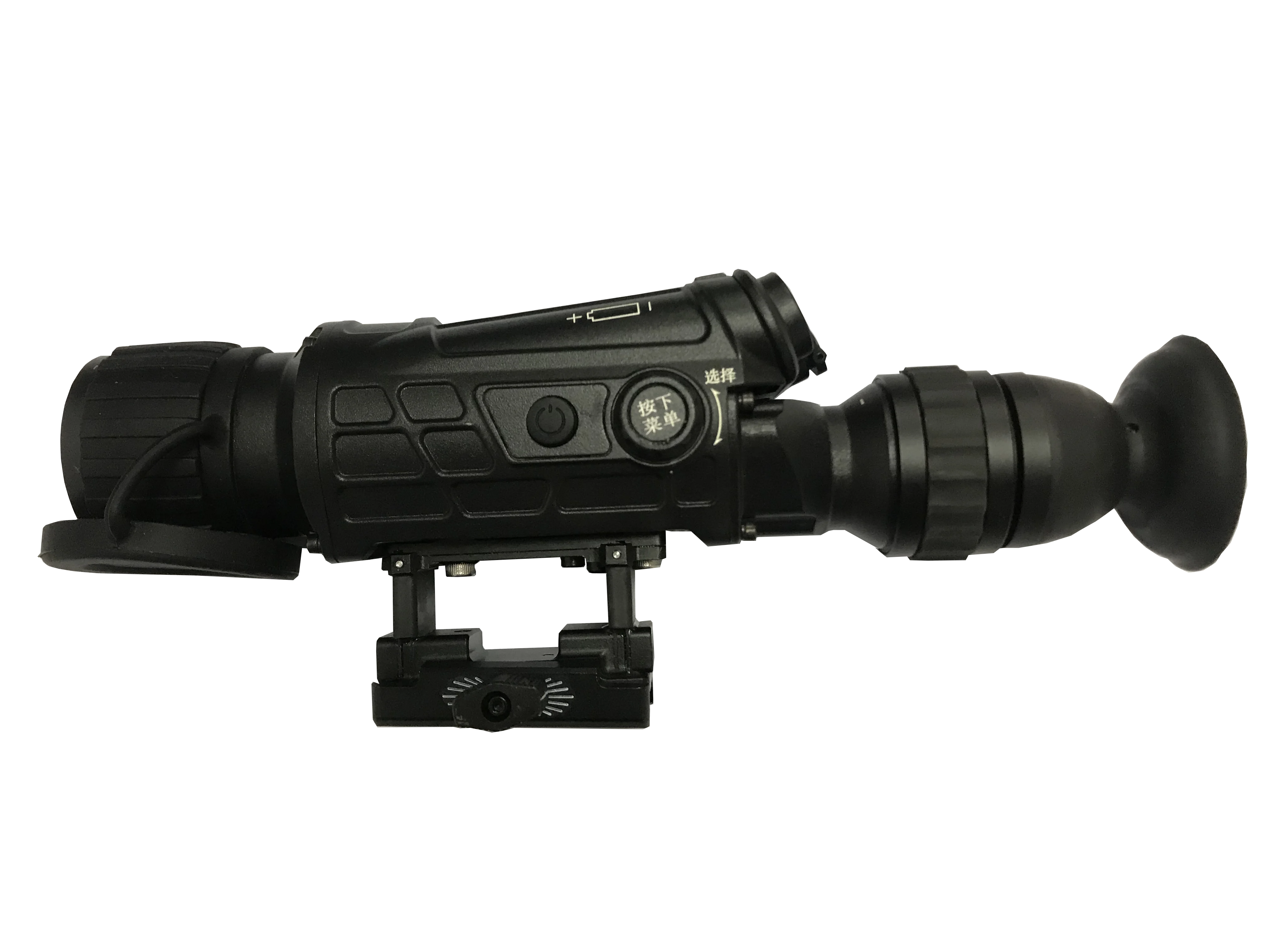

Good quality 640x512 vox sensor 35mm lens handheld infrared thermal imaging night vision scope
- Category: >>>
- Supplier: Shandong Gloryvision Intelligence Equipment Co. Ltd.
Share on (1600740266965):
Product Overview
Description
Products Description
Overview
Infrared Thermal Scope adopts uncooled VOx (vanadium oxide) detector. It’s portable and easy to operate. It’s widely used in night scout, tracking and aiming, which helps to see at night or under other harsh environment. which can collect and form images by penetrating smoke, rain, snow, and dust etc, can be used both Day & Night as well, suitable for searching, identification and surveillance at long distance.
Features
* Small size
* excellent performance
* Harsh environmental adaptability
* Powerful ability to penetrate smoke and smog
* excellent performance
* Harsh environmental adaptability
* Powerful ability to penetrate smoke and smog
Sensor | 640x512 px |
Type | Uncooled FPA detector (Vox) |
Frame rate | 50Hz |
Thermal Sensitivity | <50 mK |
Spectrum | 8~14 μm |
Lens System | 35 mm, F1.1 |
Field of View | ≥17°×14° |
Eye relief | 25 mm |
Dioptor | -5~+3 |
NETD | ＜ 50mk |
Brightness control | Manual/Auto |
Contrast | Manual/Auto |
Polarity | Black/White Hot |
Pseudo color | Red, green, red/green mixed |
3types | |
Calibration | |
Setting range ≥±100mil | |
Precision ≤0.25mil | |
D-ZOOM | 1×,2×, Narrow FOV |
Picture in Picture | Yes |
NUC | |
Digital filtering and Noise reduction | |
DDE | |
Battery indicator | Yes |
ENG/CHINESE/ARABIC/RUSSIAN | |
Parameters Save | |
Restore defaults setting | |

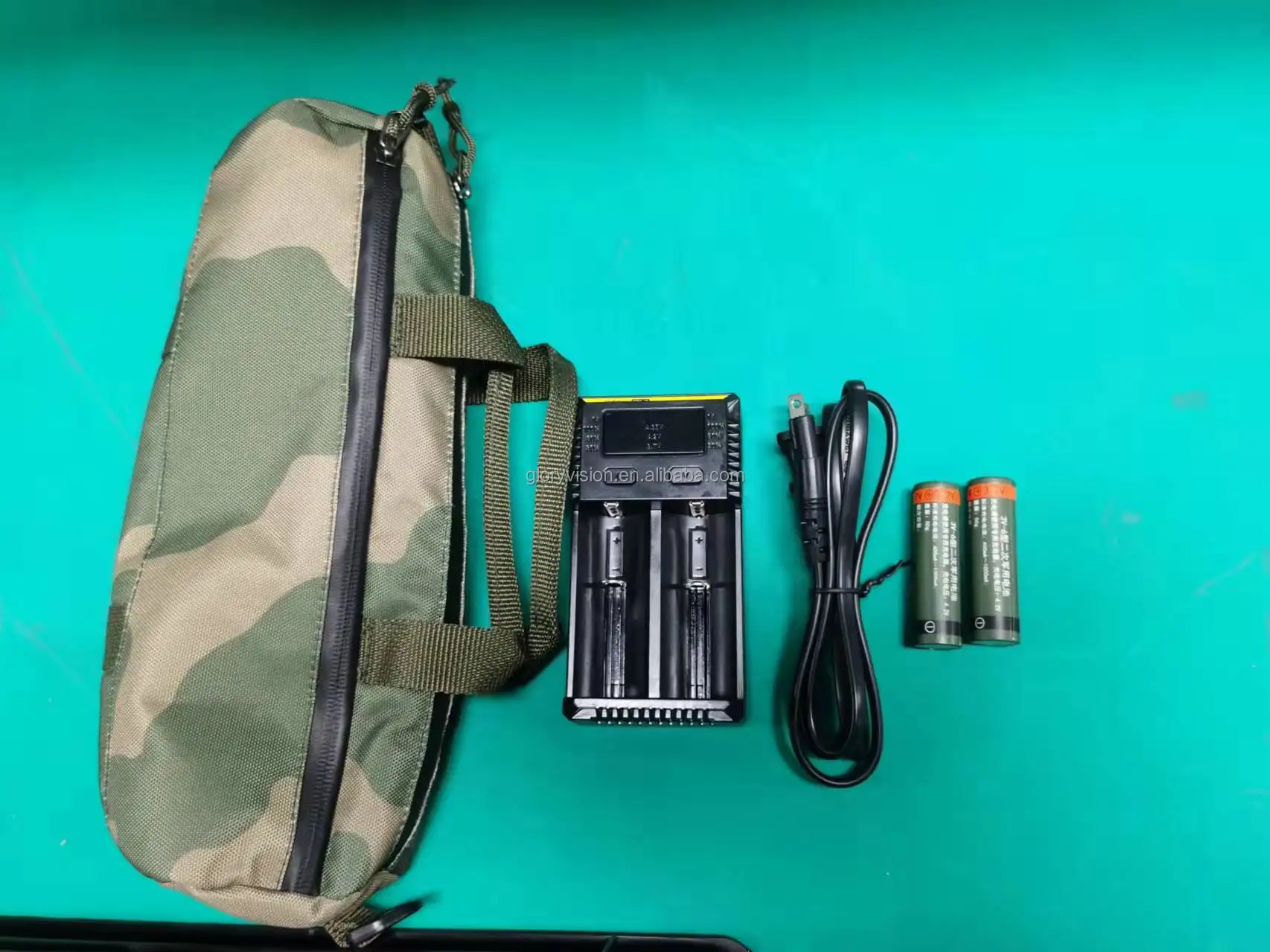

Battery | 2Pcs 18650 Lithium |
Consumption | ≤2.5W |
Duration | ≥7hrs |
Video output: Pal | |
RS-232 | |
Operation Temp | -40℃～+50℃ |
Storage Temp | -50℃～+60℃ |
Product packaging

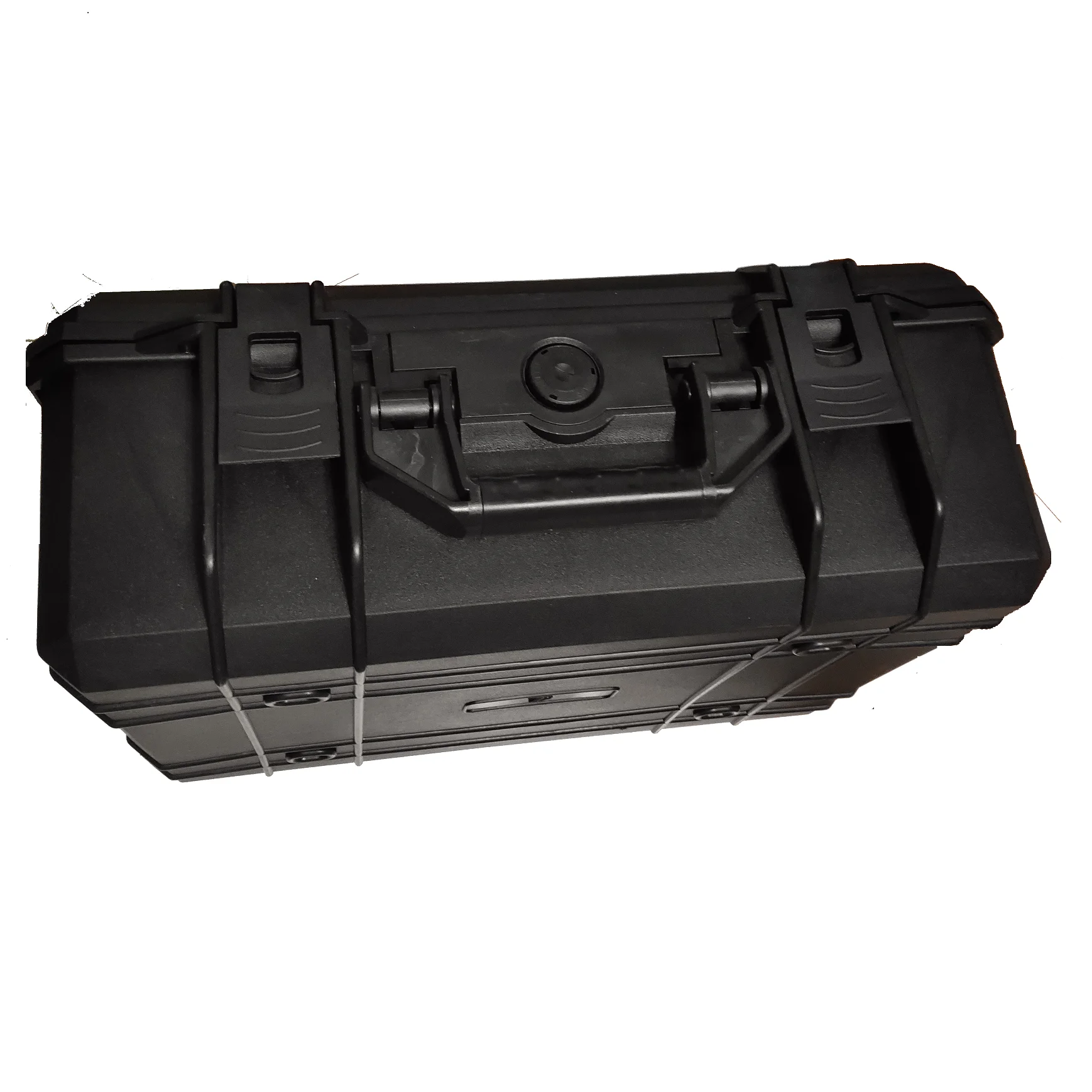

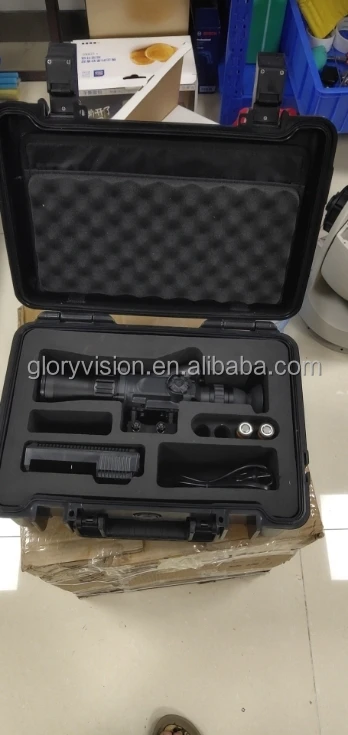

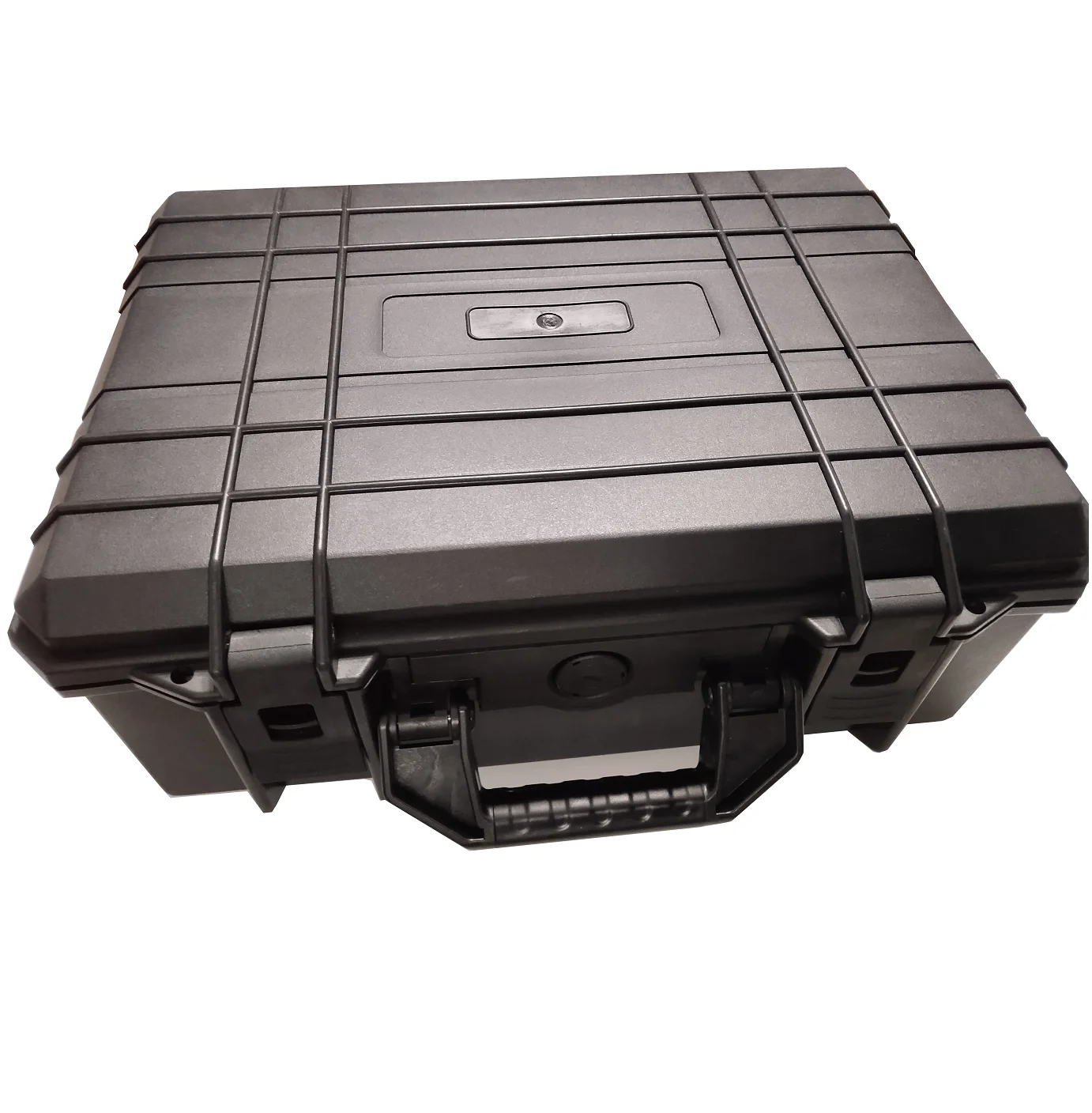

The thermal scope is packaged with safety case.
