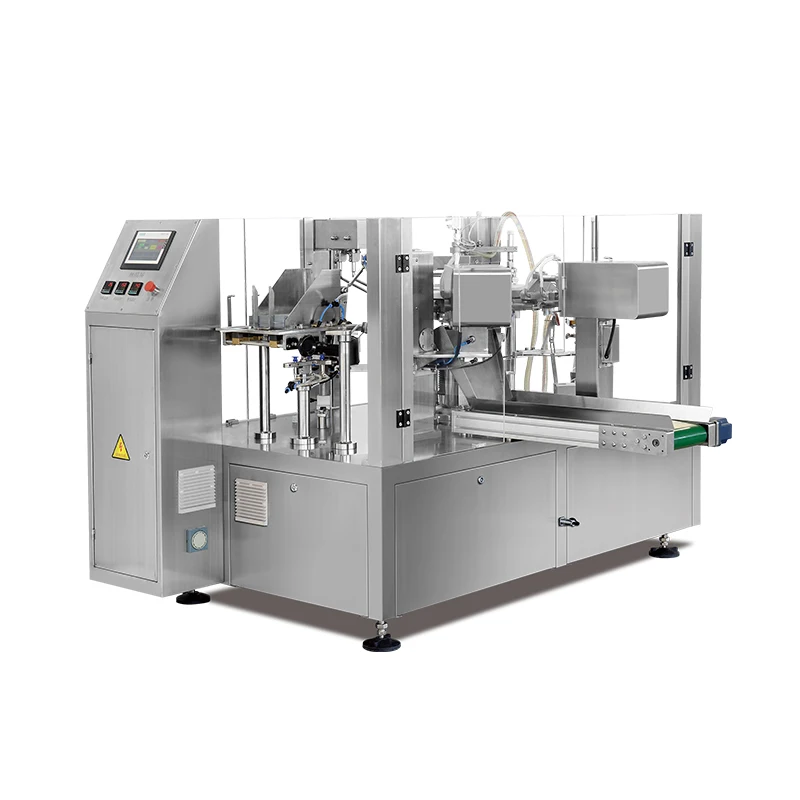

Linpack pouch vegetable kimchi pickle fill seal packing machine
- Category: >>>
- Supplier: Hangzhou Merry Sino Technology Co. Ltd.
Share on (1600740318975):
Product Overview
Description
VR
Products Description
Main Features
1. Suitable for large specification bags, and automatic metering, filling and sealing.
2. The advanced bag giving device ensures a very high rate of giving bag.
3. The advanced design concept ensures the stability of equipment operation, reduces the defective rate and prolongs the service life of equipment.
4. High quality accessories are used to ensure the lasting stability of the machine.
5. The machine uses prefabricated bags with perfect packaging pictures, high vacuum and good sealing quality, thus, the product quality and grade are greatly improved.
6. Advanced PLC plus POD electrical control system with friendly man-machine interface and convenient operation.
2. The advanced bag giving device ensures a very high rate of giving bag.
3. The advanced design concept ensures the stability of equipment operation, reduces the defective rate and prolongs the service life of equipment.
4. High quality accessories are used to ensure the lasting stability of the machine.
5. The machine uses prefabricated bags with perfect packaging pictures, high vacuum and good sealing quality, thus, the product quality and grade are greatly improved.
6. Advanced PLC plus POD electrical control system with friendly man-machine interface and convenient operation.
We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.
Just Tell us : Weight or Bag Size required.
The Main Technical Parameters | ||||||||||
Model | MR8-200R | MR8-200RH | MR8-200RW | MR8-300R | MR8-400R | |||||
width of Bag Size | 100-200mm | 100-200mm | 100-200mm | 160-300mm | 300-400mm | |||||
Length of Bag Size | 100-400mm | 100-400mm | 100-400mm | 180-450mm | 180-580mm | |||||
Filling Volume | 10-2500g (Depending on type of products) | |||||||||
Capacity | 30-60bags/min (The speed depends on type of products and packaging material used) 25-45bags/min (For zipper bag) | 30-40 bags/min | 20-30 bags/min | |||||||
Demension (length×width×height) | 1460×2500×1400mm | 2200*1550*1410mm | 1710x1505x1640mm | 2460×1830×1460mm | 2520×1750×1600mm | |||||
Weight | 1480KGS | |||||||||
We can customize the suitable one for you according to your requiredment. Just Tell us : Weight or Bag Size required. | ||||||||||
Main Standard Accessories | 1. Bag giving system 2. PLC control system 3. Bag opening device 4. Filling system 5. Cleaning system 6.Transfer system 7. Hot sealing control system 8. Output system | |||||||||
Main Optional Equipment | Material metering and filling machine, working platform, check weigher, material elevator, finished product conveyor, metal detector. | |||||||||
Application and Sample
Applicable Product
* Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.
* Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds,nut, pesticide, fertilizer,etc.
* Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar,pesticide, fertilizer, etc.
* Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam,
chili sauce, bean paste,etc.
* Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.
* Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds,nut, pesticide, fertilizer,etc.
* Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar,pesticide, fertilizer, etc.
* Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam,
chili sauce, bean paste,etc.
* Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.

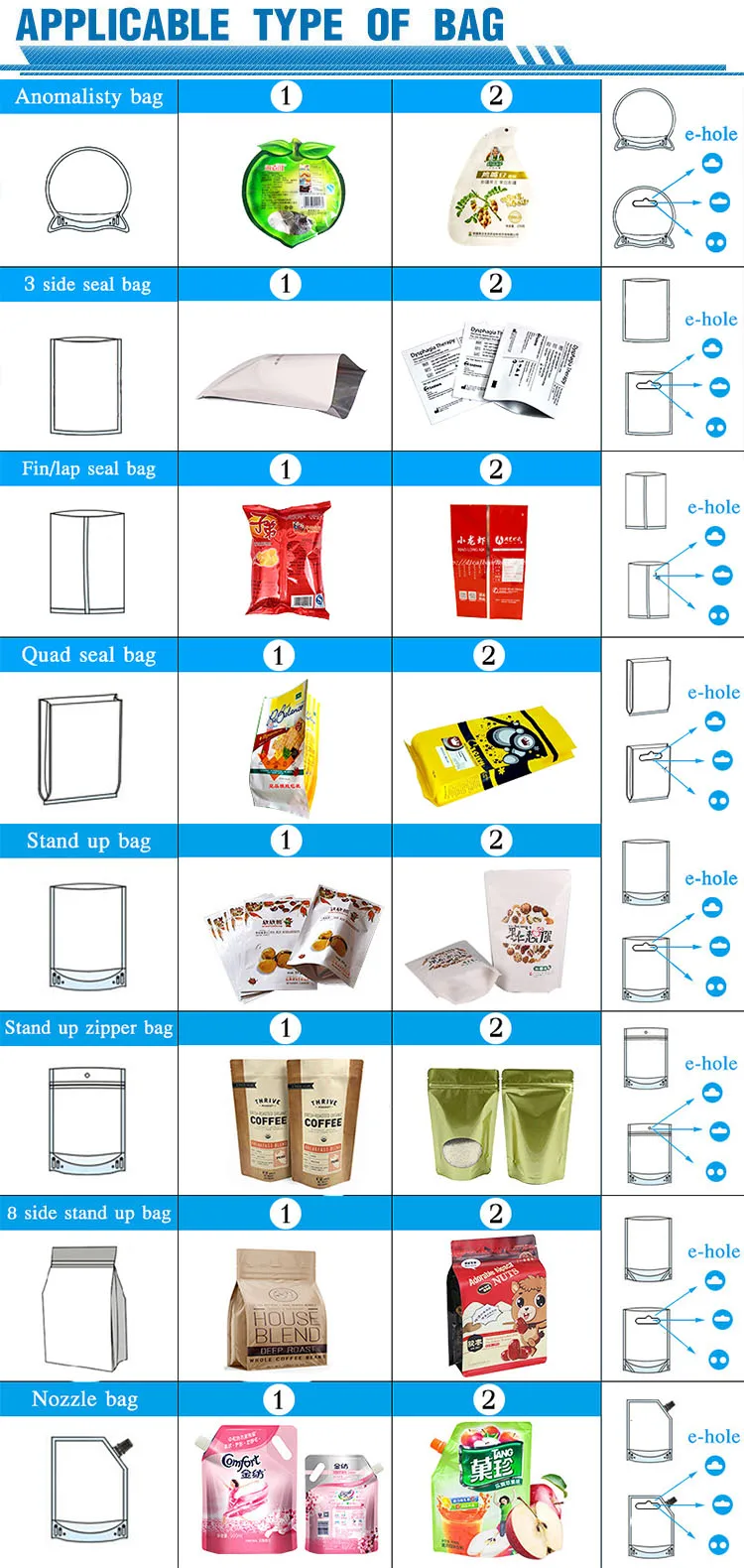

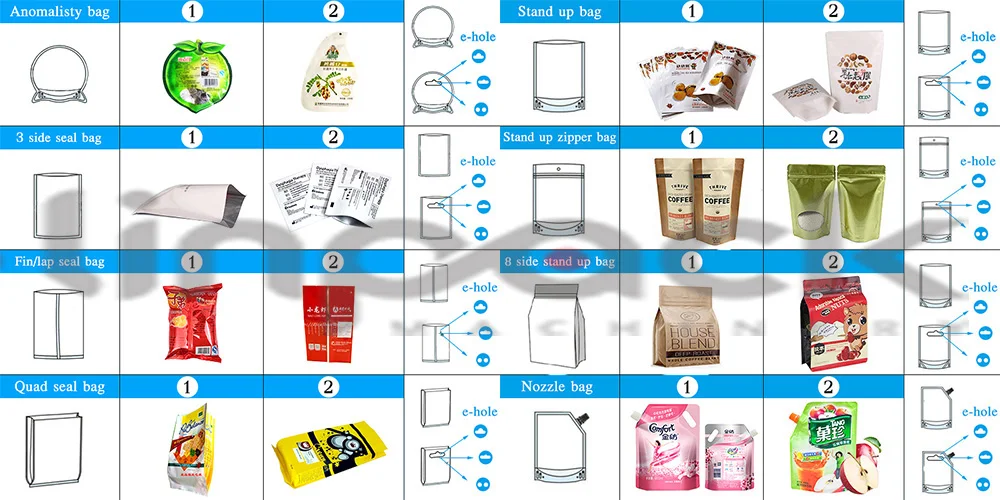

Applicable Type of Bag
Various bag types are available:All type of heat sealable performed side seal bags,block bottom bags,zip-lock recloseable bags,stand-up pouch with or without spout,paper bags,etc.

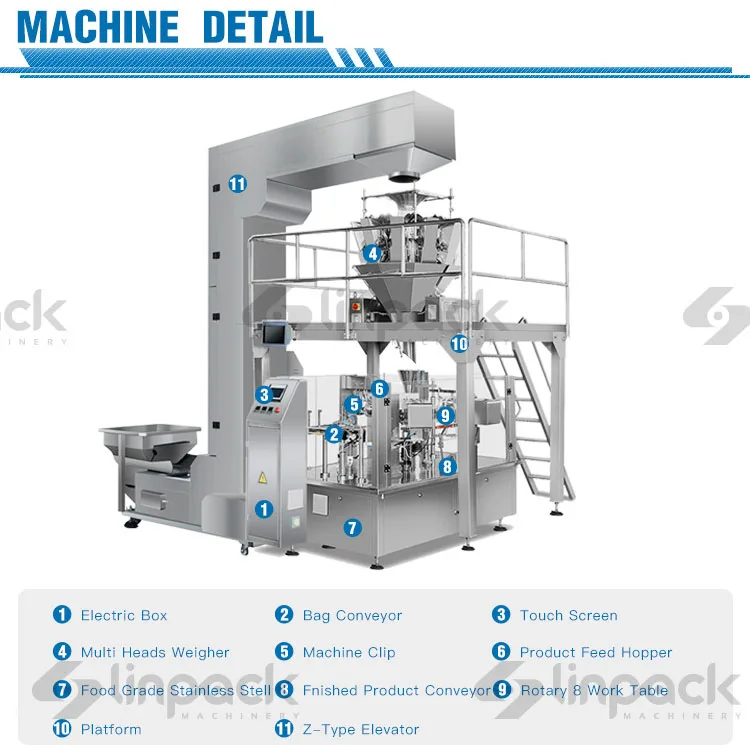

Details Images

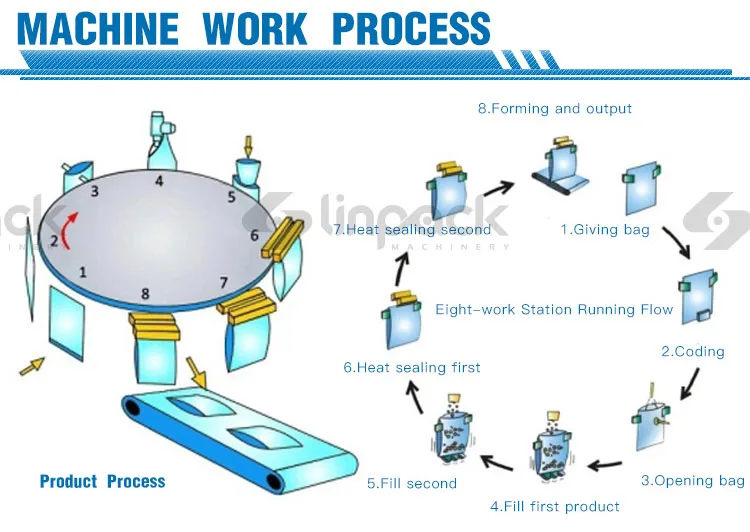

Machine Work Process | ||
Station 1 | Bag Feeding | |
Station 2 | Date Printing (option)and Open zipper bag | |
Station 3 | Open bag | |
Station 4 | Filling Materials | |
Station 5,6,7 | Vibration,Air Removal,Nitrogen Filling,Close Zipper,Hole Punching,Heat Sealing Remark:No.5.6.7.Stations are based on customer requirements for adjusting. | |
Station 8 | Heat Sealing and Product Output | |
Safety Measures | 1.no bag feeding, no filling and no sealing. 2.no bag opening/open error, no filling and no sealing 3.no filling, no sealing | |
Stations are based on customer requirements for adjusting. | ||

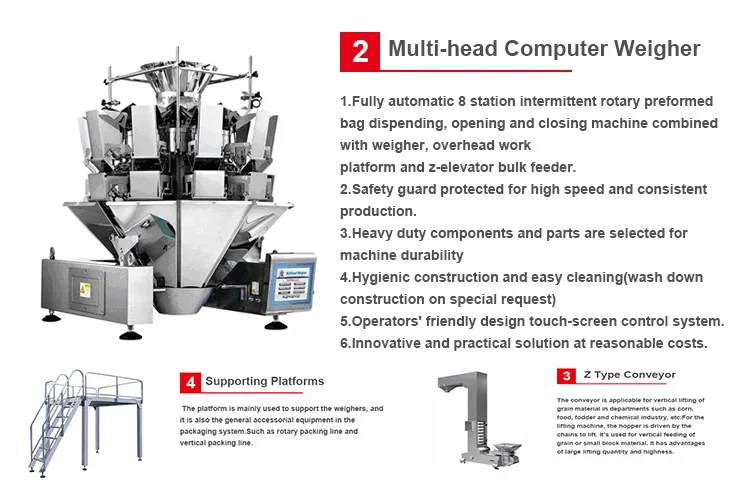

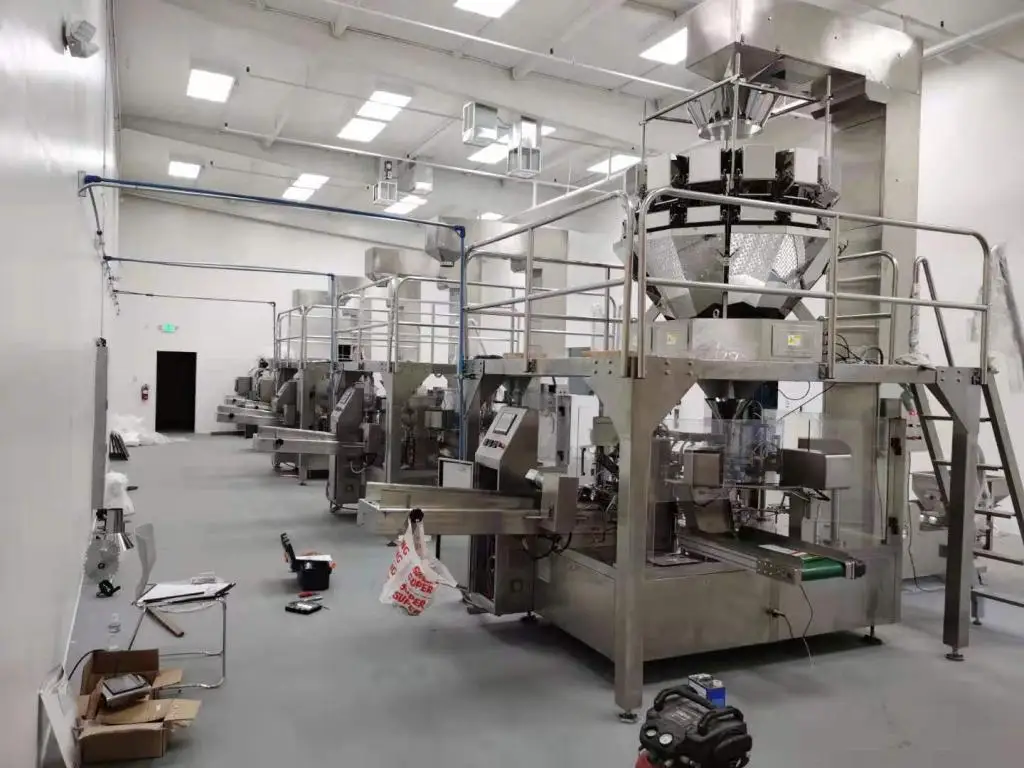

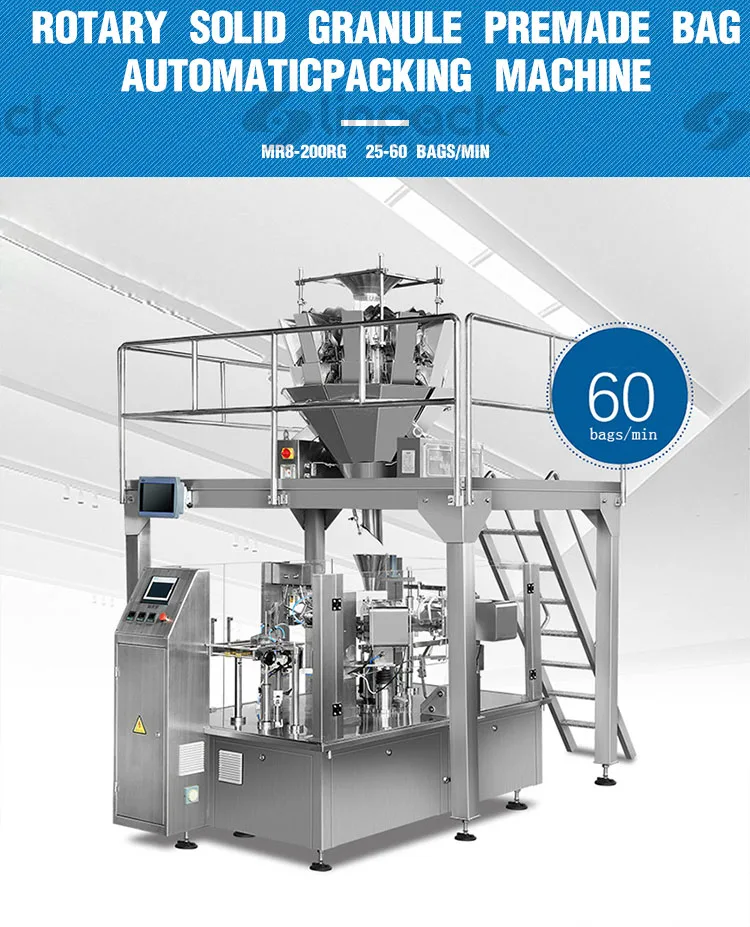

Multi Heads Weigher
Material Conveyor
PLC control System
Machine Work Turntable
Horizontal Bag Feeding System
Vertical Bag Feeding System
Date Printing Machine
Bag Opening Device
Open Zipper Bag
Material Feeding Device
Bag Bottom Vibration
Open Zipper Bag
Dust Removal
Nitrogen Filling
Close Zipper
Hole Punching
Hot Sealing Control System
Finished Product Conveyor

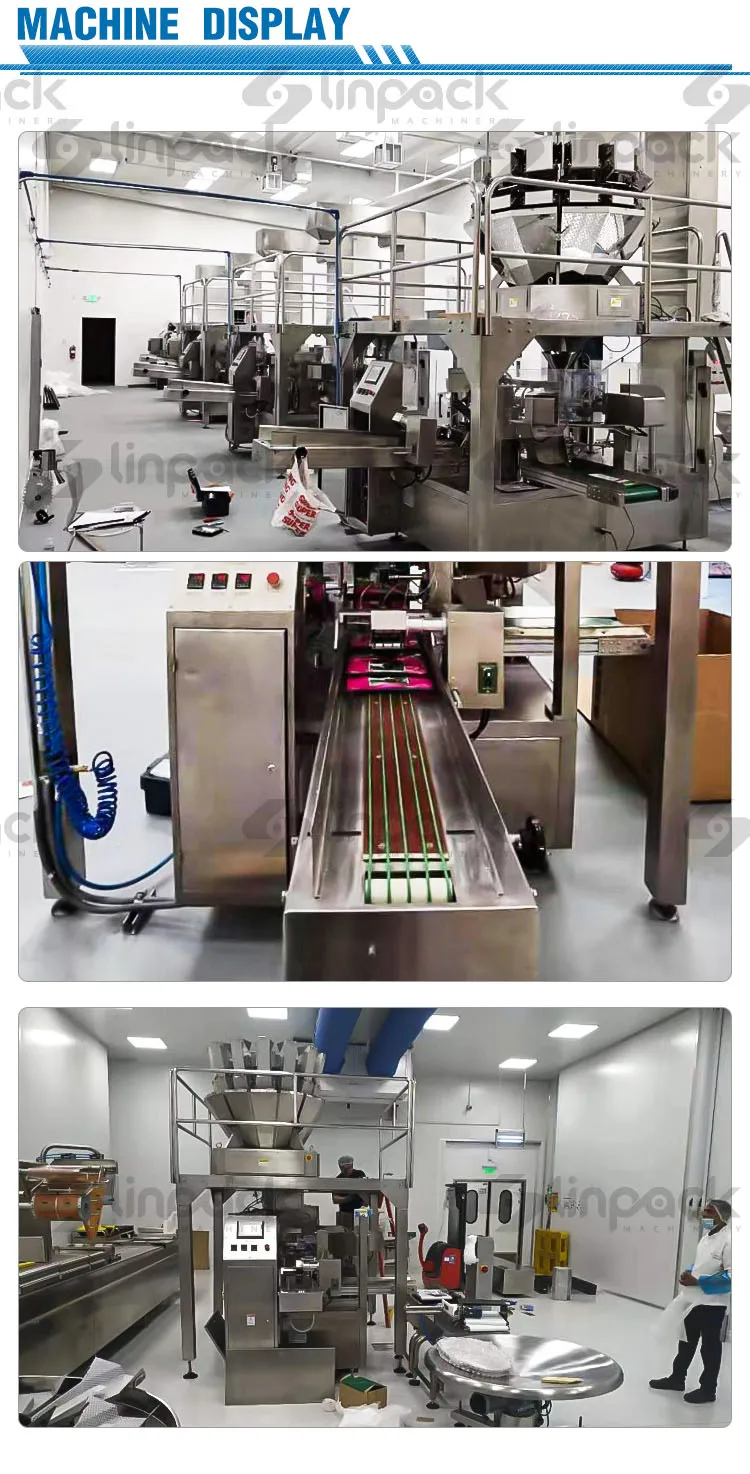

Machine Display

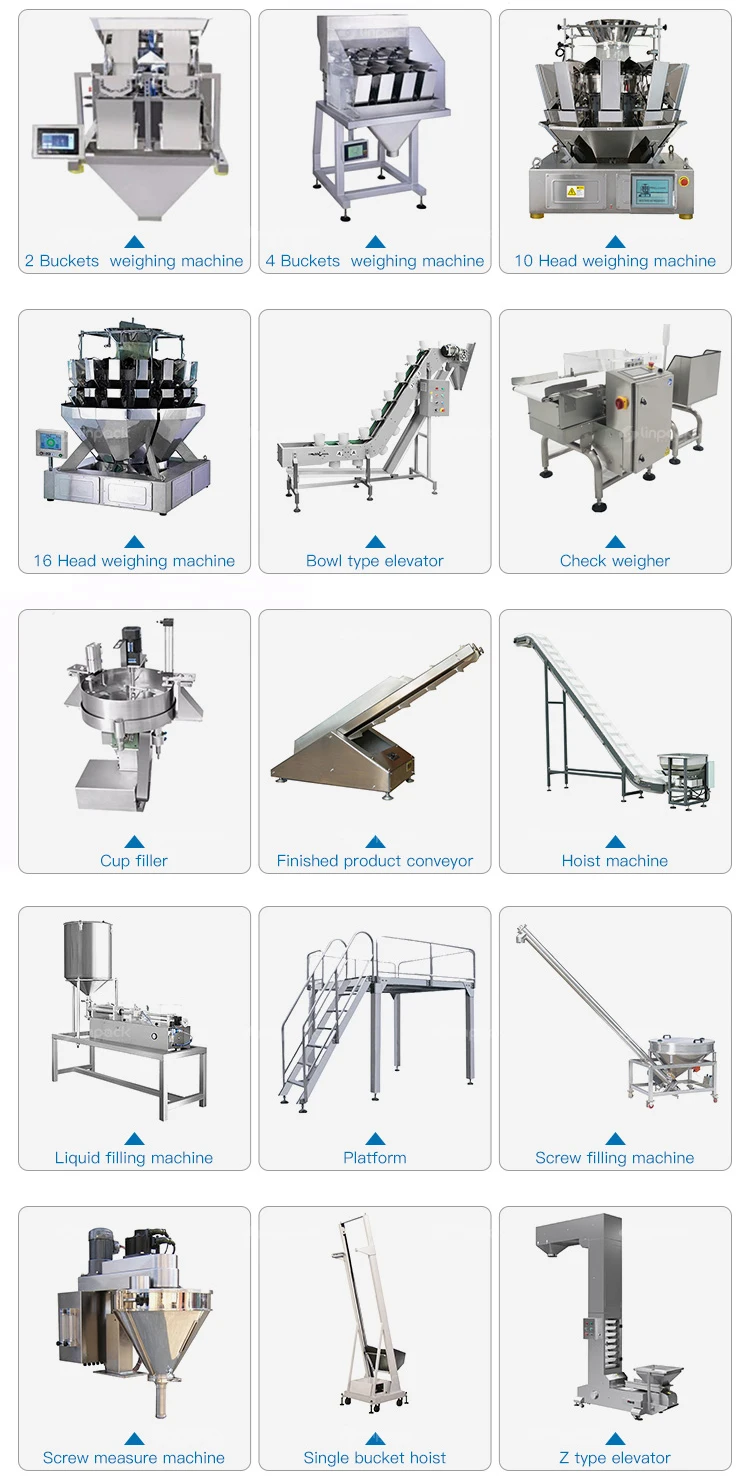

Optional Configuration
