4G AHD 1080p Support ADAS DMS 3 cams

Share on (1600740350591):


Price:$120.00 - $130.00

Quantity:


Product Overview

Description



DSM is not installed as standard. If you need this feature, please let me know and we will install it before shipment.




Specification


item
value
GPS
Support GPS&BD Dual mode positioning
Operating system
Android 8.1

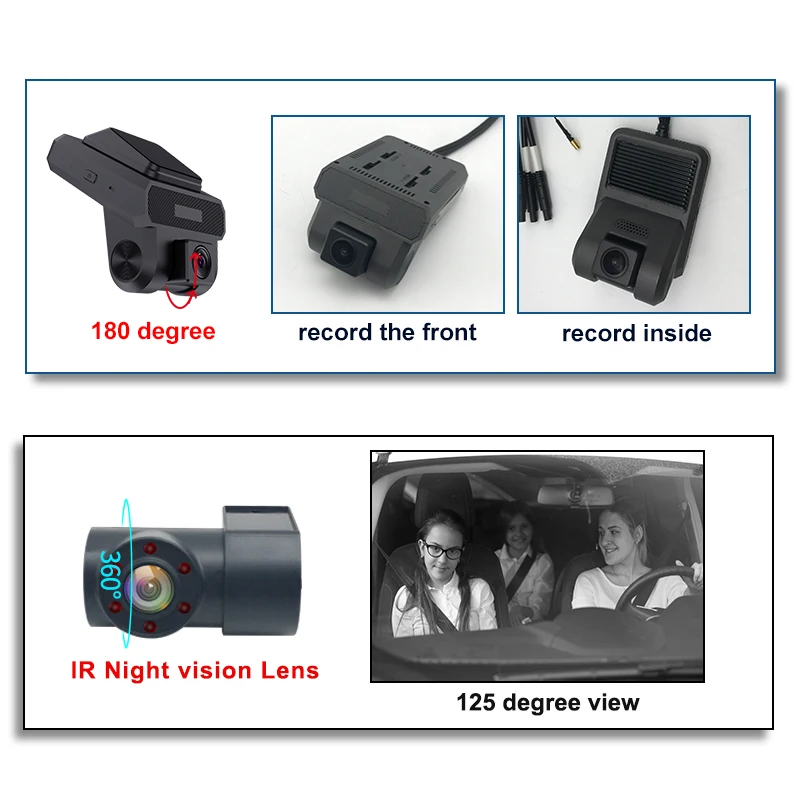

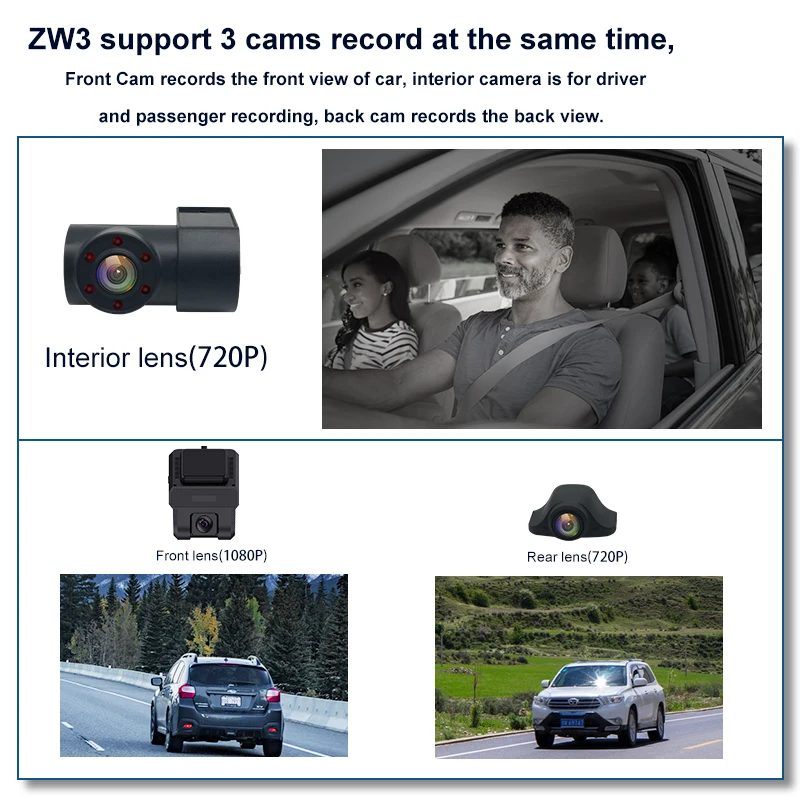

3 CHS AHD cameras
GC2053, wide angle view 140°, support 3CHS : Front (AHD 1080P), Back (AHD 720P), Inside IR Cam (AHD 720P )
Remote Monitor
Support Moblie APP
Computer video remotely monitor & live-view (for commercial vehicles version)
JTT808/JTT1078 procotol
Support

Communication frequency band
GSM:B5/B3/B8;
WCDMA:B1/B5/B8;
TDD-LTE:B38(2600)/B39(1900)/B40(2300)/B41(2500);
FDD-LTE:B1(2100)/B3(1800)/B5(850)/B8(900)
WIFI
802.11ac/b/g/n 2.4G&5G; Support WiFi hotspot
SOS
Support one-key alarm
DMS
Support
Video format
TS
Storage compression
H.264
Video resolution
Front camera :1920*1080 25fps; Back / Inside cam: 1280*720 25ps
G-Sensor
6-axis G-sensor sensor, support loop recording
Parking monitor
6-axis G-sensor sensor, support parking monitor
USB
Type-C USB
External Storage
Micro SD card, maximum 256GB (not include)
Microphone
Built-in high-sensitivity microphone
Speaker
Built-in high-fidelity mono 8Ω 2W speaker
Key button
Reset and power button
Serial communication
Support 1CH RS232
Reset
Support
Power supply
Fuse box to take power, support 9-16V voltage
working environment
-20°C~+70°C
storage temperature
-30°C~+80°C


Mobile APP "CarAssist" for Android/ iOS
Parking Monitor
Support capture front and rear camera video and image
Real-time preview
Support video live preview
Two way voice talk
Suppore press and two way voice talking
GPS track history
Support GPS logger path and video synchronous playback
Monitor and Alarm
Support Message / photo alarm if collision happened when car parking
Video download
Support Point-to-point video download to the phone, don't consume internet data
Share video to alburm
Support car life
Active Security Cloud Platform "CMSV6" for Android/ iOS/ Windows
CMSV6 license
If need work on CMSV6 platform, need buy the CMSV6 license
Cloud Server
Support to connect with your cloud server
Vehicle Fleet Management
Yes, support Multiple vehicle video monitor and management
Wisdom Board
Manage the vehicle status
Real-time preview & playback
Support multiple device video preview and playback , download
GPS log playback
Support Map mode playback


Product Description


Main features

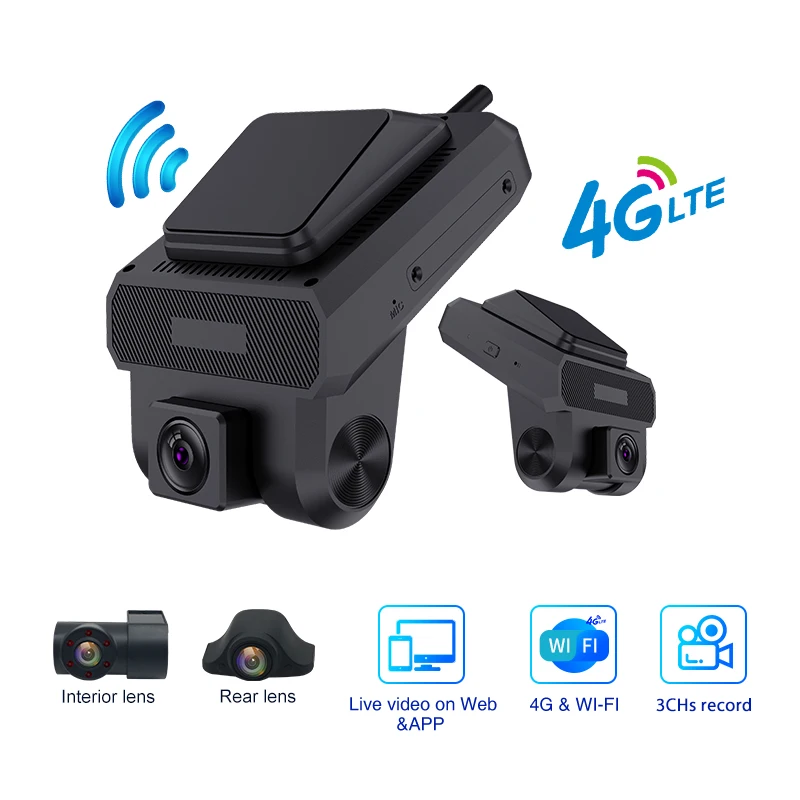

This product is a 4G / 3CHS Dash Camera, which is a multi-functional high-tech product with high-definition vehicle dvr camera, driving assistance system, GPS driving track, positioning, WIFI hotspot, 4G communication and external TF card storage. Meet the following technical procotol requirements:

1. JT/T1078 "Road Transport Vehicle Satellite Positioning System Video Communication Protocol"
2. JT/T808 "Technical Specifications for Road Transport Vehicle Satellite Positioning System Beidou Compatible Vehicle Terminal Communication Protocol"
3. JT/T794-2019 "Technical Requirements for Vehicle Terminals of Satellite Positioning Systems for Road Transport Vehicles"
4. JT/T1076-2016 "Technical Requirements for On-board Video Terminals of Satellite Positioning Systems for Road Transport Vehicles"




Packing & Delivery




Boxed


Company Profile






We focusing on various of electronic products such as health and care, home use electronic products, related accesorries for PC and smart phone. Strong ODM ability for PCBA designing, outlook exploring and final product assembling, all the clients can choose our services even at home.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(50.00%),Eastern Asia(30.00%),Western Europe(10.00%),Northern Europe(10.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Speakerphone, Web Camera, Microphone, Speakerphone; Web Camera; Microphone

4. why should you buy from us not from other suppliers?
We develop and produce audio and video products, such as conference speakers, microphones, dashcams, webcams, conference cameras, etc. We support OEM and ODM. And provide warranty and other services.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
