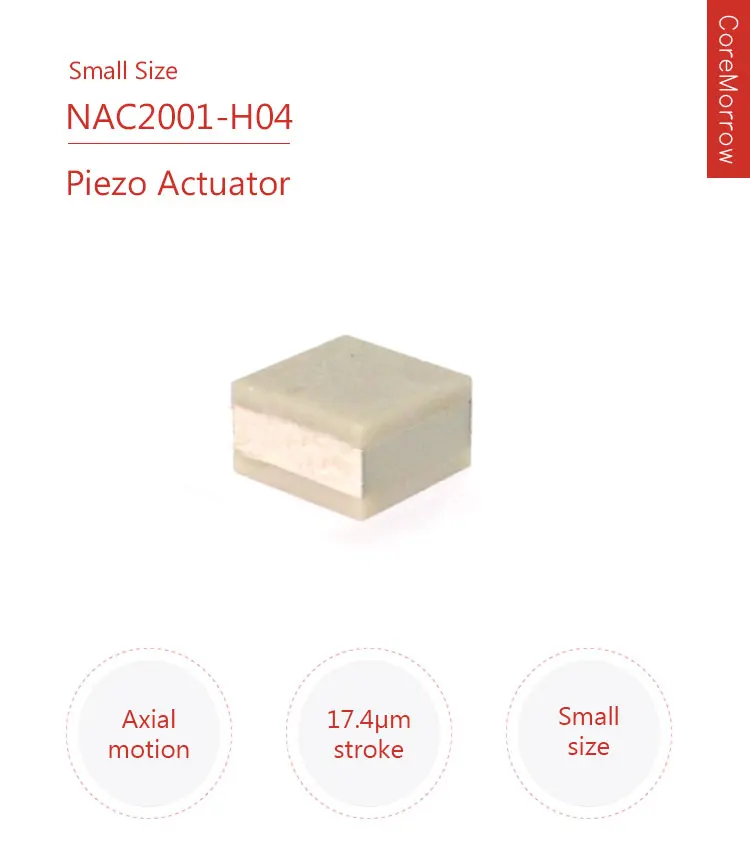

Ultra small size piezo ceramic stack for nanopositio nano stepper PZT actuator
Ultra small size piezo ceramic stack for nanopositio nano stepper PZT actuator

Ultra small size piezo ceramic stack for nanopositio nano stepper PZT actuator

Share on (1600740353535):


Price:$145.00

Quantity:


Product Overview

Description


01


2

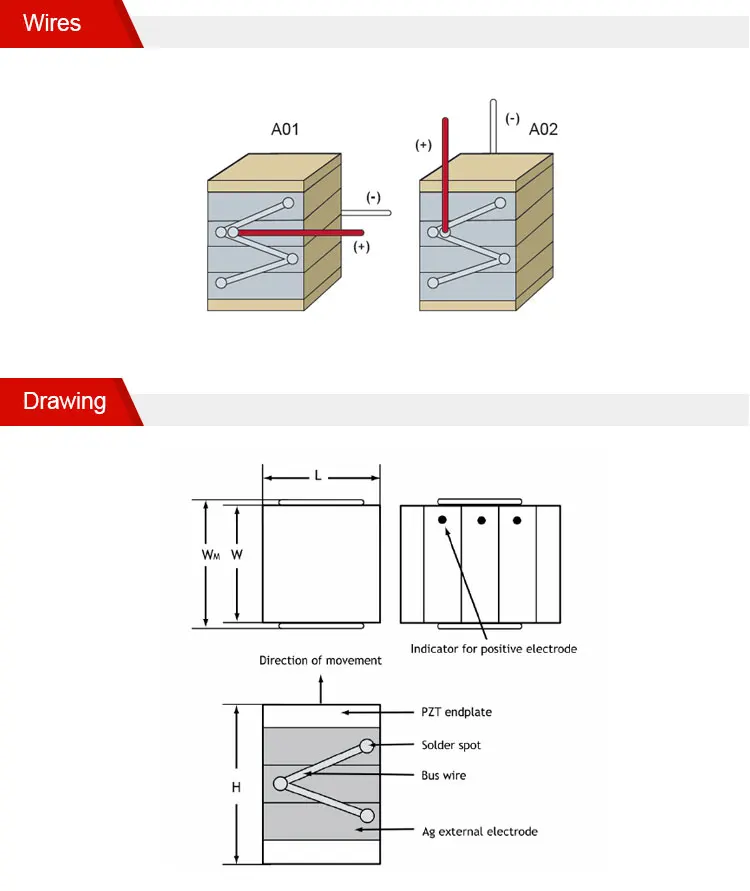

Model



NAC2001-H04



L*W[mm2]



2*2



H[mm]



4



Operating voltage[V]



60



Free stroke[um]



2.6



Capacitance[nF]



130



Stiffness[N/um]



66



Blocking force[N]



168



Unloaded resonance frequency**[kHz]



248



**estimated value








2




















1

5×5/18 Piezo Stack


28μm travel range


1600N blocking force


50kHz resonant frequency














7×7/18 Piezo Stack


28μm travel range


3500N blocking force


50kHz resonant frequency














10×10/20 Piezo Stack


28μm travel range


7000N blocking force


50kHz resonant frequency


























VS12 Piezo Actuator


Max to 152μm travel range


Blocking force 1200N


Resonant frequency 40kHz














VS10 Piezo Actuator


Max to 95um travel range


Blocking force 550N


Resonant frequency 40kHz














M14 Piezo Actuator


114μm travel range


4700N blocking force


40kHz resonant frequency
