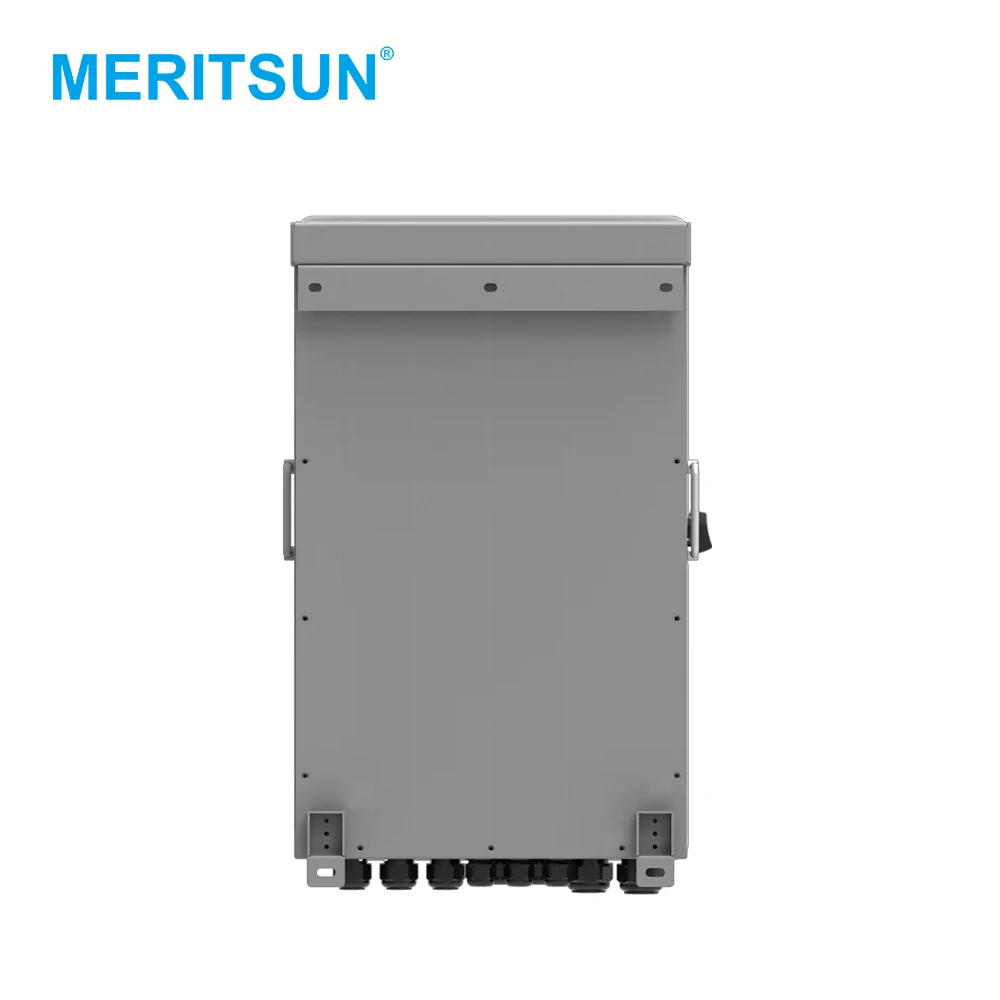

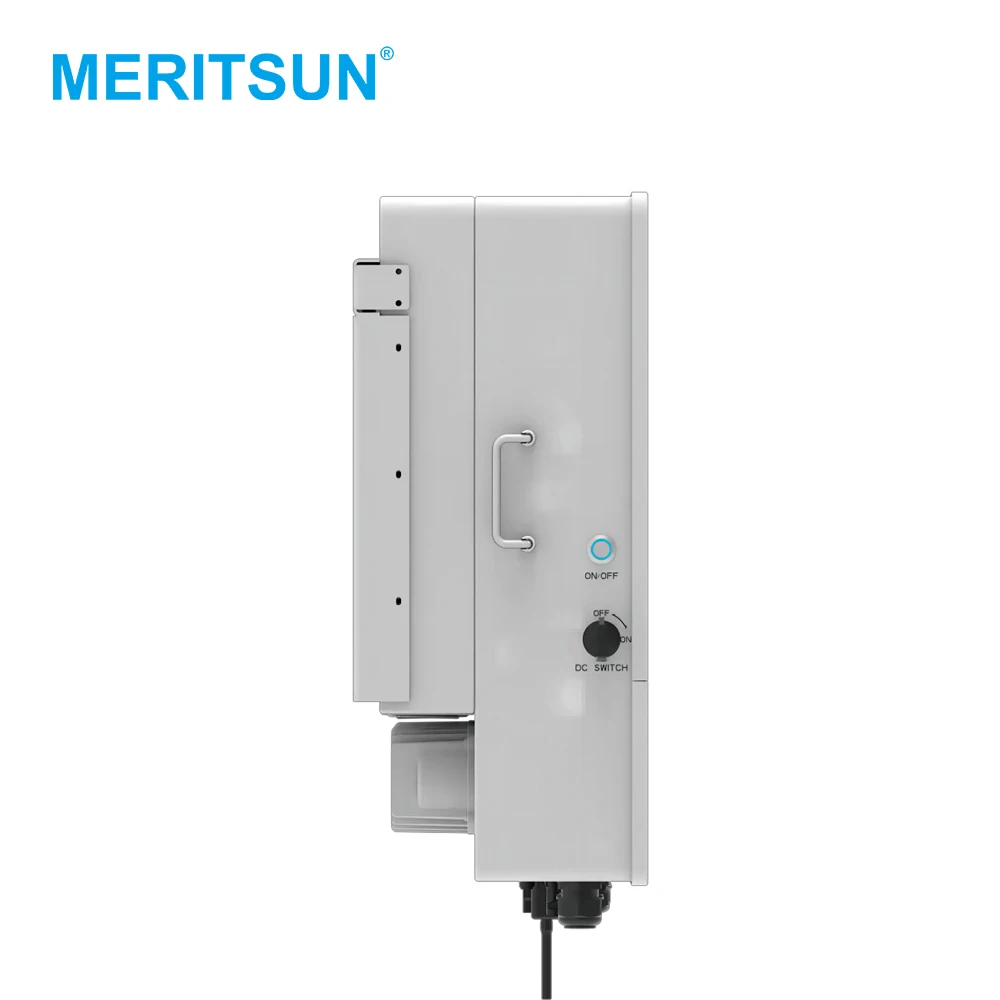

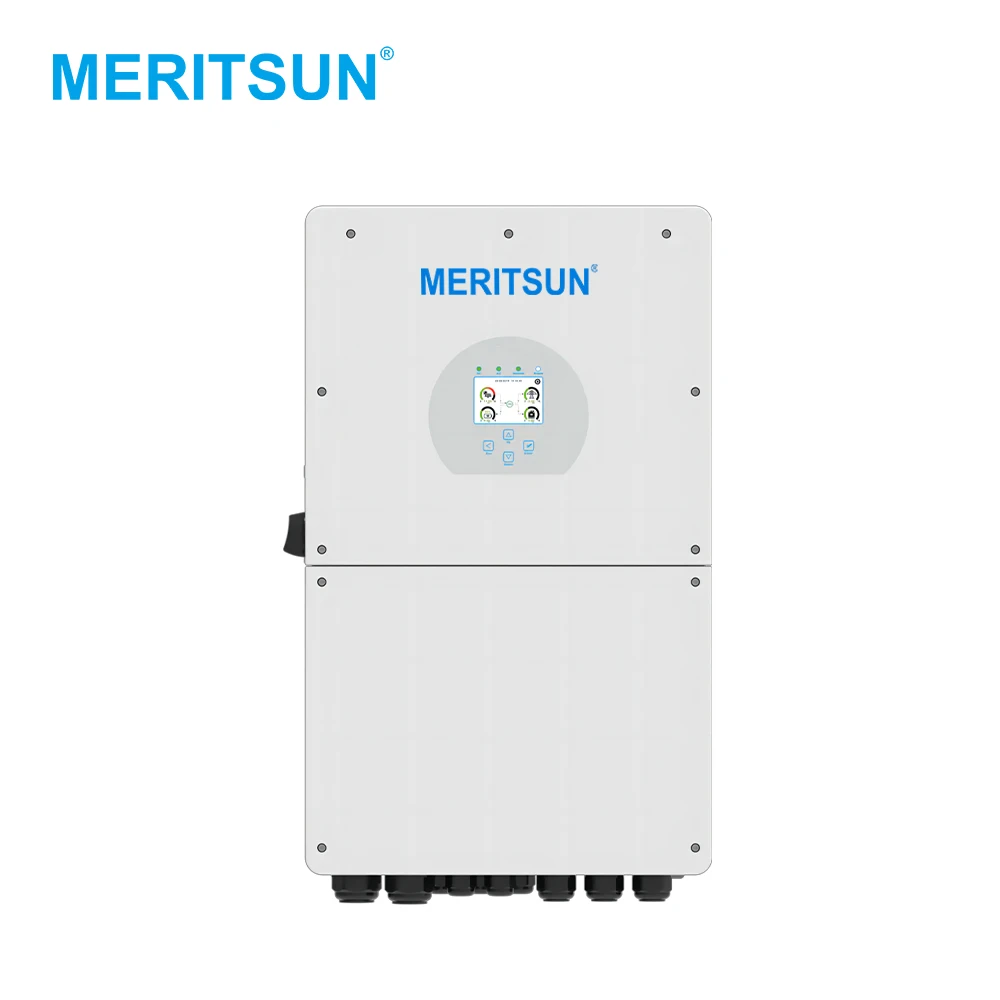

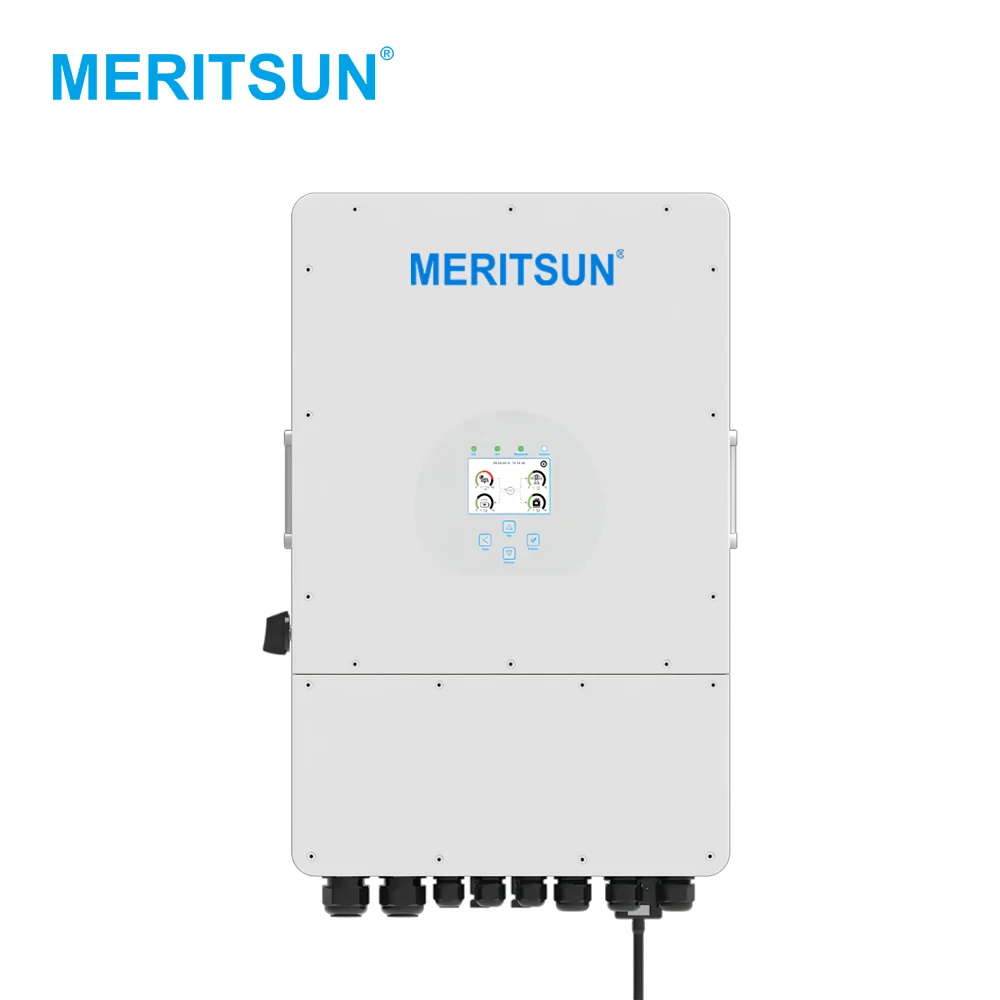

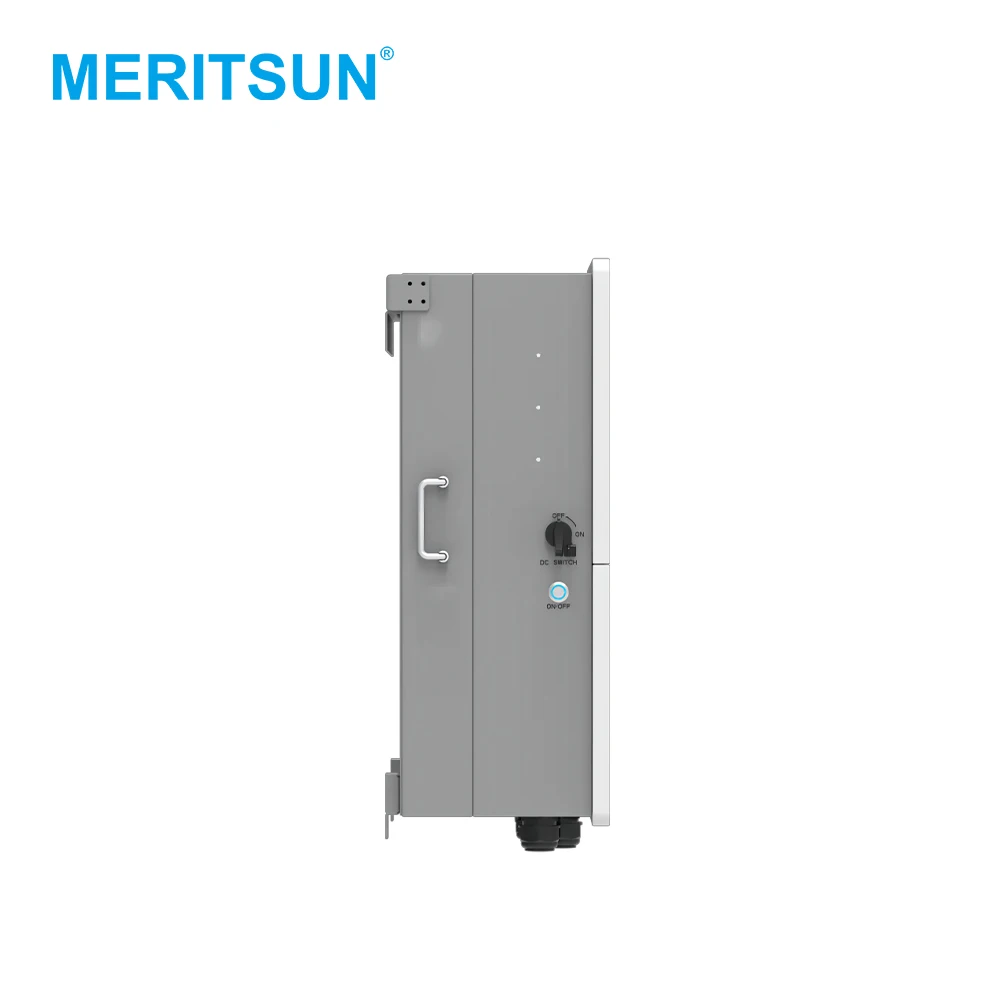

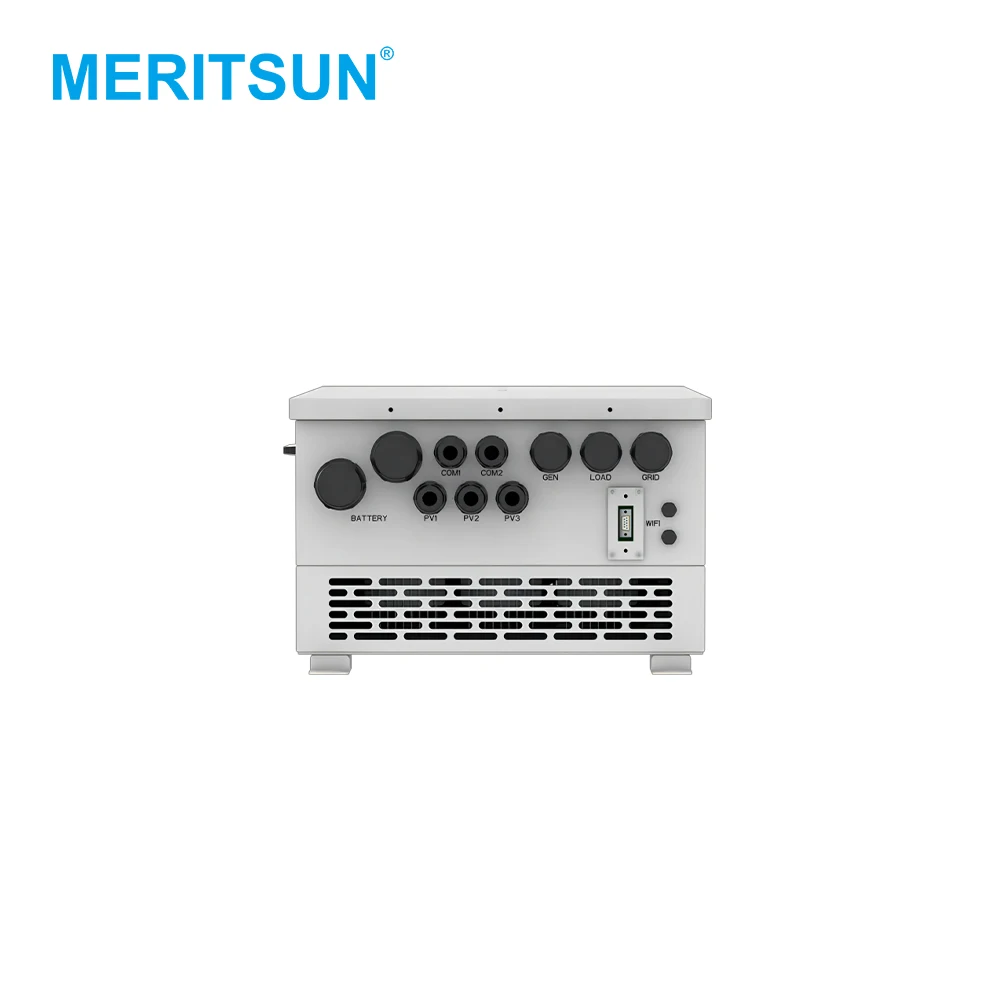

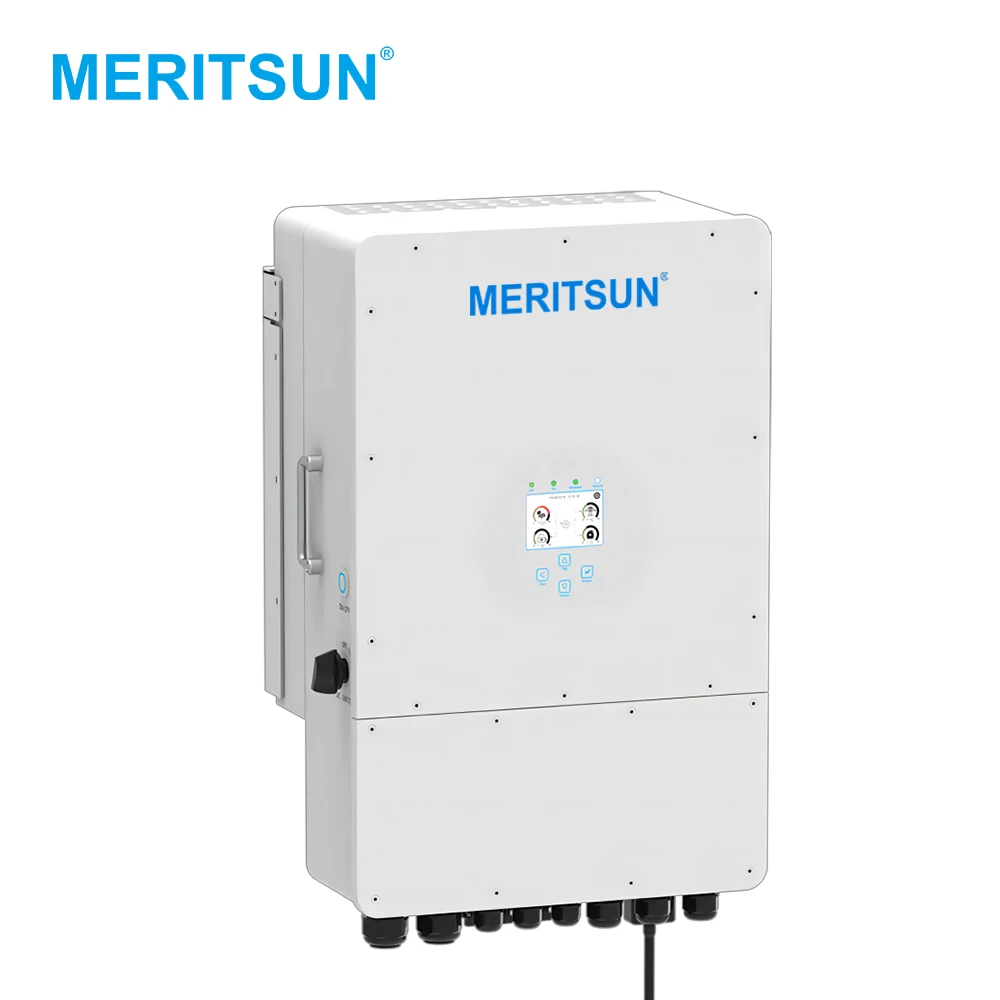

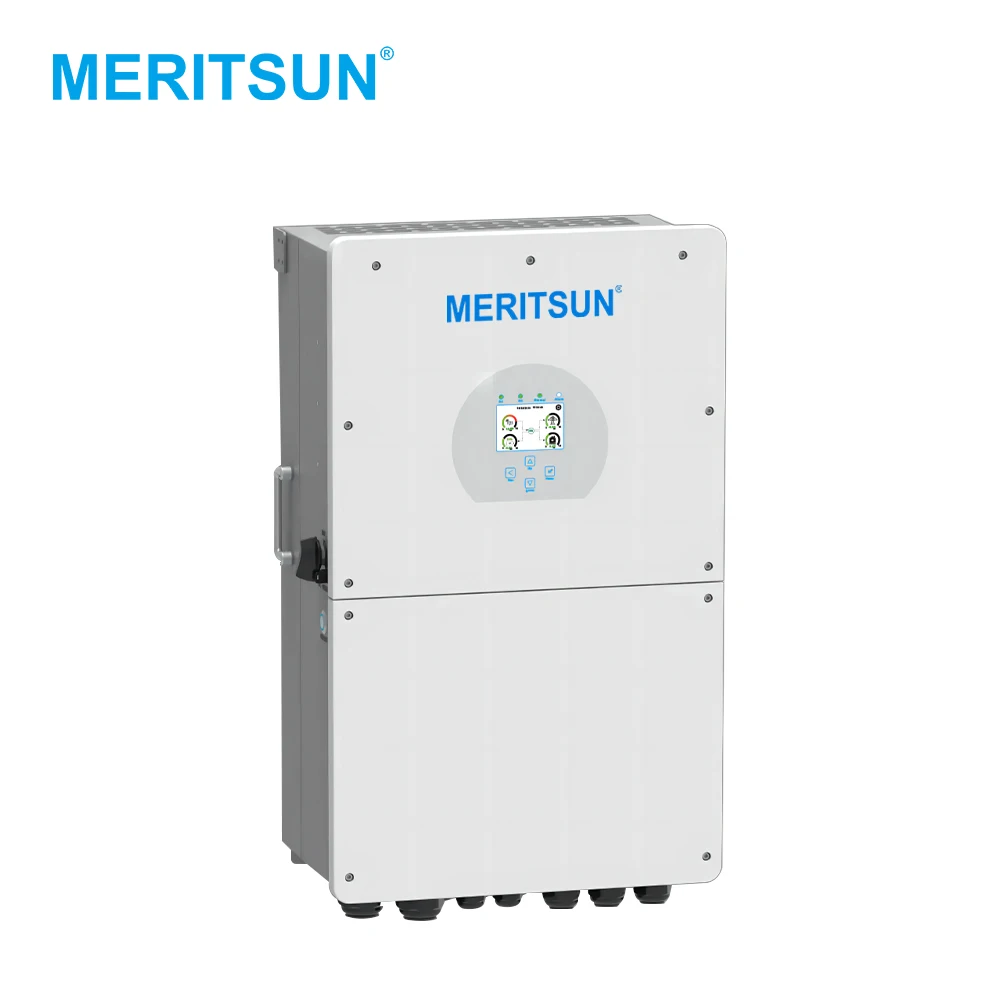

MeritSun Solar Hybrid Inverter 12kw 14kw 16kw Simplex Phase Hybrid Grid Low Voltage
MeritSun Solar Hybrid Inverter 12kw 14kw 16kw Simplex Phase Hybrid Grid Low Voltage
MeritSun Solar Hybrid Inverter 12kw 14kw 16kw Simplex Phase Hybrid Grid Low Voltage
MeritSun Solar Hybrid Inverter 12kw 14kw 16kw Simplex Phase Hybrid Grid Low Voltage
MeritSun Solar Hybrid Inverter 12kw 14kw 16kw Simplex Phase Hybrid Grid Low Voltage
MeritSun Solar Hybrid Inverter 12kw 14kw 16kw Simplex Phase Hybrid Grid Low Voltage
MeritSun Solar Hybrid Inverter 12kw 14kw 16kw Simplex Phase Hybrid Grid Low Voltage

MeritSun Solar Hybrid Inverter 12kw 14kw 16kw Simplex Phase Hybrid Grid Low Voltage

Share on (1600740410288):


Price:$3,166.00 - $3,566.00

Quantity:


Product Overview

Description



Product Detail




Products Description


Product Specification
12kw
14kw
16kw
DC Input



Max. Input Power
15600W
18200W
20800W
PV Voltage Range
150~425V


Max. Input Current
44+44+44


AC Output



Rated Power W/VA
12000W
14000W
16000W
Nominal Voltage/Range
230Vac


Frequency
50/60Hz


AC Output Topology
L+N+PE


Battery



Battery Voltage Range
40~60V


Battery Type
Lithium /Lead-acid





SUN 12/14/16K-SG，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence.

During the day, the PV system generates electricity which will be provided to the
loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released
when the loads require it.

The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.It equipped
with RS485/CAN port for battery communication










Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.





* 48V low voltage battery, transformer isolation design
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 240A
* Max.10pcs parallel
* DC couple and AC couple to retrofit existing solar system
* Support storing energy from diesel generator
* Supports three phase unbalanced output
* Unique Smart Load application and Grid peak shaving function
