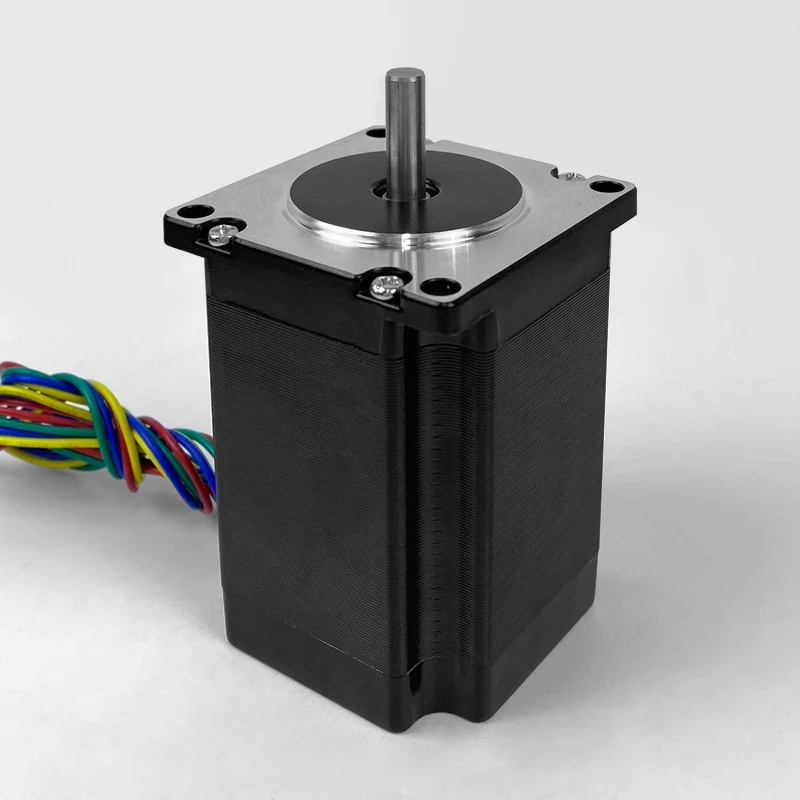

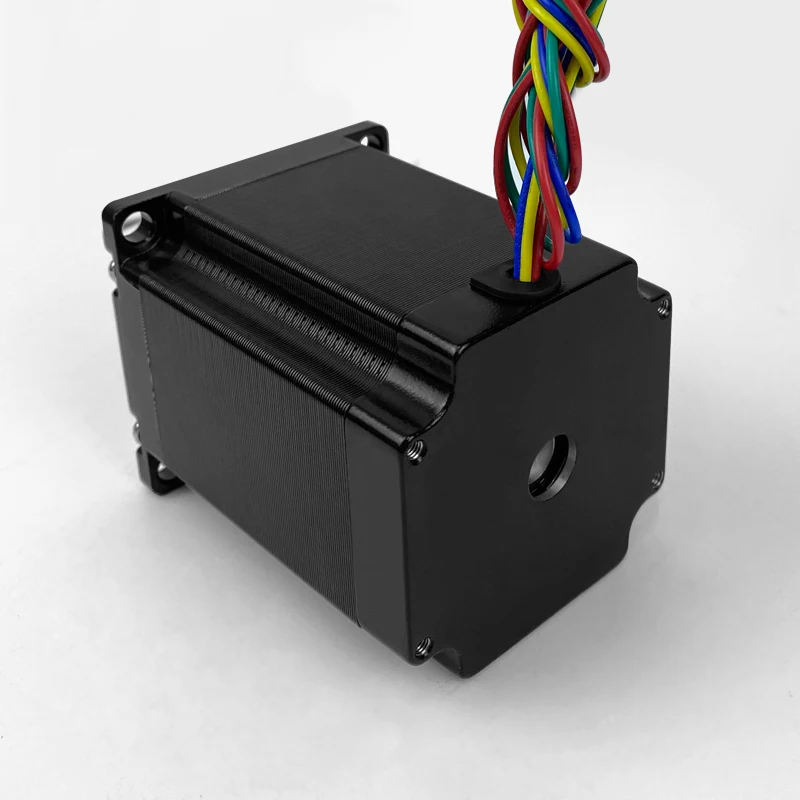

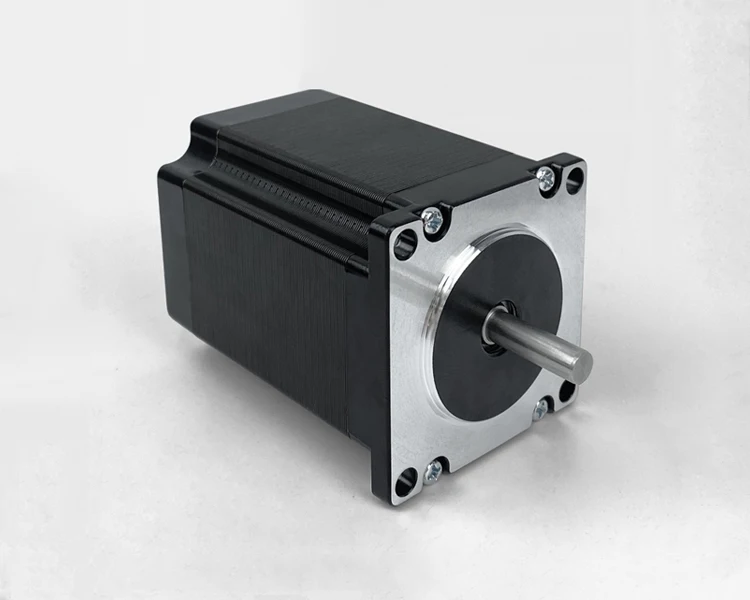

24v high torque step motor nema 23 stepper motor
Products Description
General Specifications
Step Angle | 1.8 degree |
Frame Size | 57*57mm |
Phase | 2 |
Temperature Rise | 80℃ Max |
Ambient Temperature | -20℃ Max~+50℃ |
Insulation Resistance | 100M ΩMin.,500VDC |
Dielectric Strength | 500VAC for 1 minute |
Shaft Radial Play | 0.02Max (450g-load) |
Shaft Axial Play | 0.08Max (450g-load) |
Max.Radial Force | 75N (20mm from the flange) |
Max.Axial Force | 15N |
OEM Service | Accept |
Warranty | 3 months - 1 year |
Electrical Specifications
Model No | Step Angle( °) | Rated Voltage(V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Motor Length (mm) | Leads No. | Motor Weight (Kg) |
57HS41-2004 | 1.8 | 2 | 2 | 1 | 1.2 | 3.2 | 41 | 4 | 0.45 |
57HS41-1004 | 1.8 | 5.4 | 1 | 5.4 | 9.5 | 5.5 | 41 | 4 | 0.45 |
57HS41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 41 | 4 | 0.45 |
57HS51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 51 | 4 | 0.65 |
57HS51-2004 | 1.8 | 2.4 | 2 | 1.2 | 3 | 9 | 51 | 4 | 0.65 |
57HS51-2006 | 1.8 | 2 | 2 | 1 | 1.6 | 7 | 51 | 6 | 0.65 |
57HS56-1504 | 1.8 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 56 | 4 | 0.7 |
57HS56-3004 | 1.8 | 2.85 | 3 | 0.95 | 2.8 | 12 | 56 | 4 | 0.7 |
57HS56-2006 | 1.8 | 3.6 | 2 | 1.8 | 2.8 | 9 | 56 | 6 | 0.7 |
57HS64-3004 | 1.8 | 3.9 | 3 | 1.3 | 2.2 | 15 | 64 | 4 | 0.8 |
57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 76 | 4 | 1 |
57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 76 | 4 | 1 |
57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 76 | 4 | 1 |
57HS82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 82 | 4 | 1.2 |
57HS82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 82 | 4 | 1.2 |
57HS100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 100 | 4 | 1.4 |
57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 112 | 4 | 1.7 |
57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 112 | 4 | 1.7 |
Above only for representative products, products of special request can be made according to the customer request.

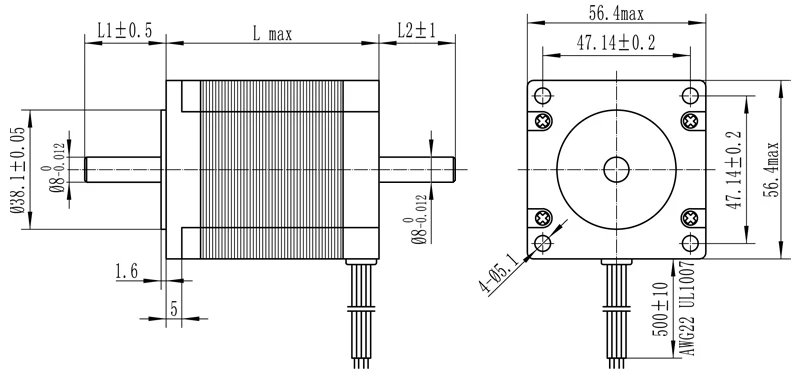

Dimensions (mm)
L1 and L2 can be customized according to customers' requirements.

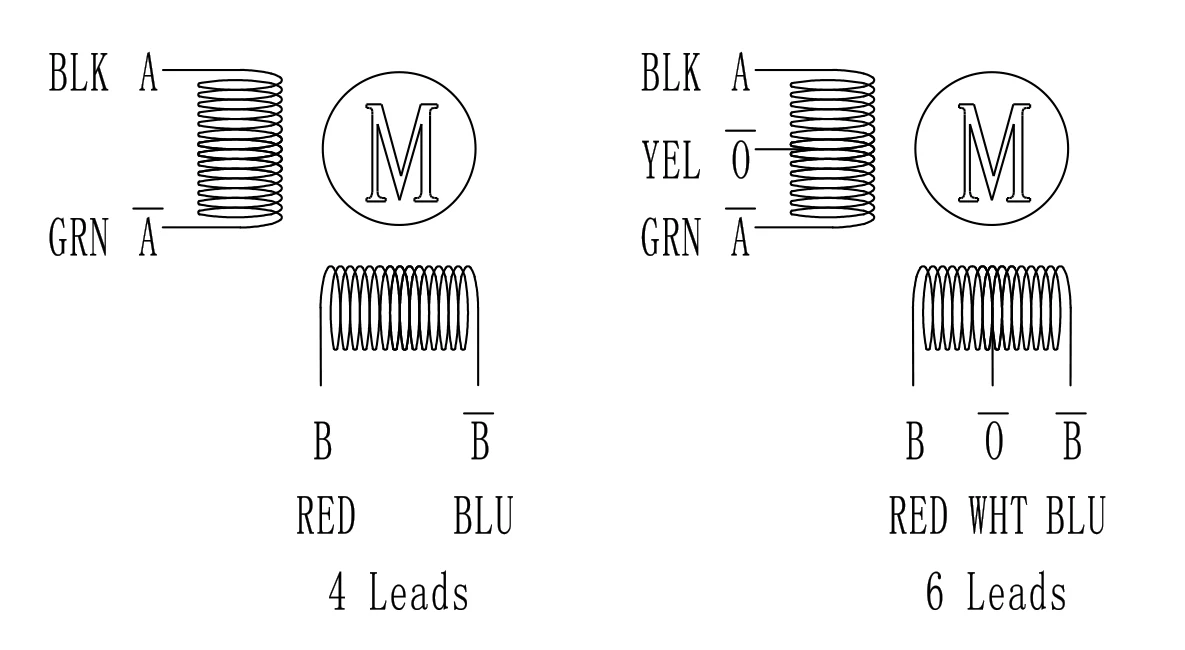

Wiring Diagram

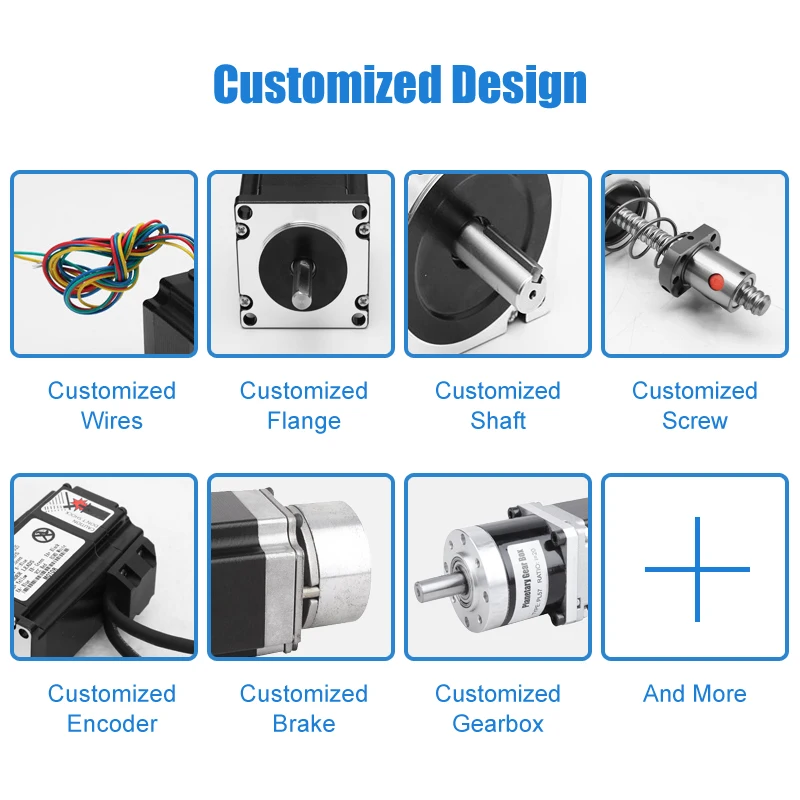

Customized Design
