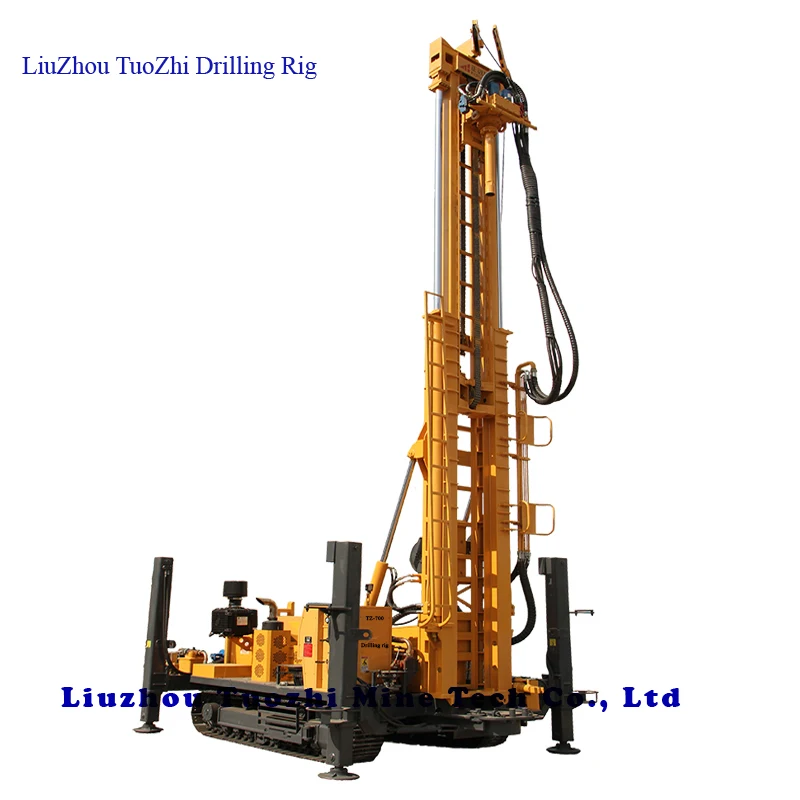

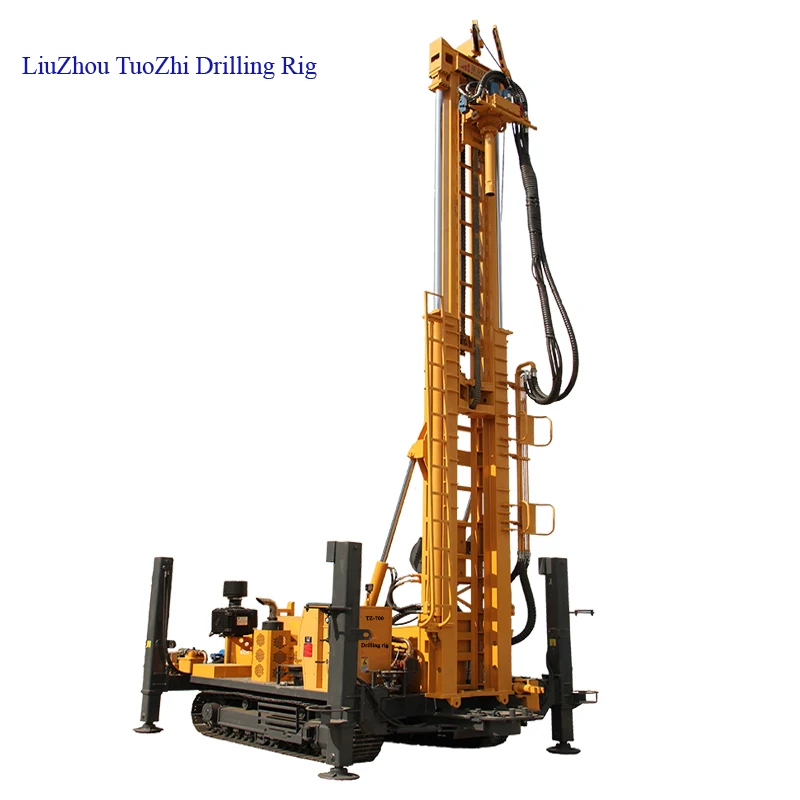

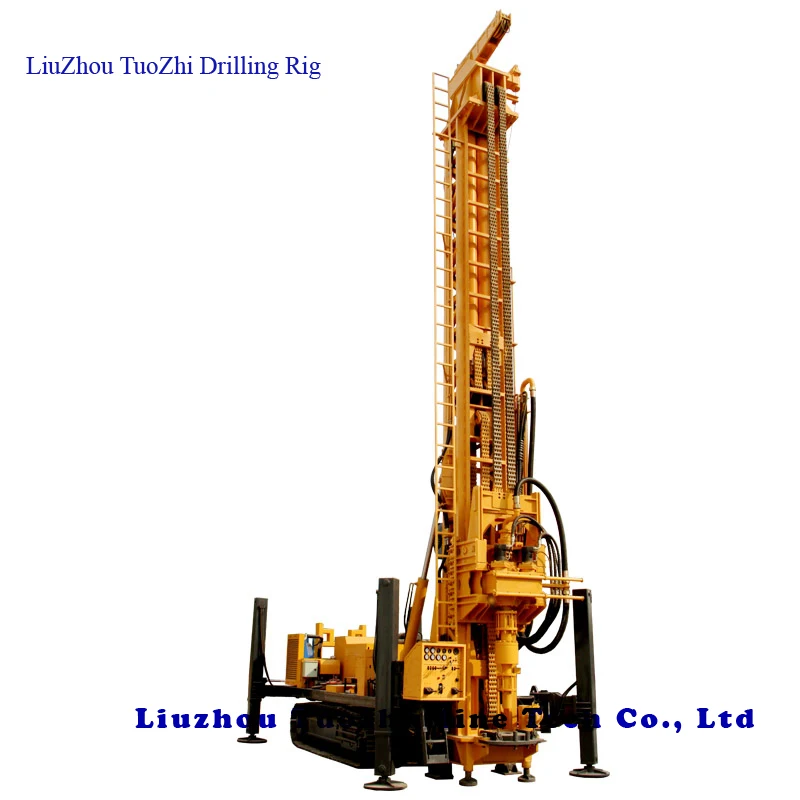

750m depth DTH and rotary track mounted Water Well Drilling Rig
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (1600740439187):
Product Overview
Description
Product Overview
Water Well Drilling Rigs
We Liuzhou Tuozhi Mine Tech Co., Ltd are specialized in producing and designing water well drilling rigs and down the hole drilling rigs for more than 20 years. We have very rich drilling experience, according to different geological conditions, we will provide customers with the best solutions, and if customers need, we will provide operation training. Or we send our staff to the customer's location for training.
Products Features
High Quality and High Efficiency
Big Torque and Strong Lifting ForceIndependent radiator,Ensure oil no overheat
Simple Opeartion
Easy Maintenance and Durable
Acceptable special customization
Front elevation
Right elevation
Left elevation
PRODUCT SPECIFICATIONS
Model | TZ-700 | TZ-750 | TZ-800 | TZ-1000 | |||
Max drilling depth | 700m | 700m | 800m | 1000m | |||
Drilling diameter | 105-450mm | 105-450mm | 105-450mm | 105-800mm | |||
Air pressure | 1.6-6Mpa | 1.6-6Mpa | 1.6-8Mpa | 1.6-8Mpa | |||
Air consumption | 16-75m3/min | 16-75m3/min | 16-96m3/min | 16-96m3/min | |||
Drill pipe length | 6m | 6m | 6m | 6m | |||
Drilling pipe diameter | 102mm | 102mm | 114mm | 114mm | |||
Axial pressure | 6T | 6T | 6T | 11T | |||
Lifting force | 40T | 40T | 38T | 51T | |||
Fast lifting speed | 31m/min | 31m/min | 31m/min | 29m/min | |||
Fast feeding speed | 65m/min | 65m/min | 65m/min | 42m/min | |||
Max rotary torque | 12000/6000 | 13000/6500 | 17000/8500 | 20000/10000 Nm | |||
Max rotary speed | 95/190 R/min | 95/190 R/min | 73/145 R/min | 70/140 R/min | |||
Big winch lifting force | 4T | ||||||
Little winch lifting force | 2.5T | 2.5T | 2.5T | 1.5T | |||
Drilling efficiency | 10-35m/h | 10-35m/h | 10-35m/h | 10-35m/h | |||
Weight | 14T | 14T | 17.5T | 26T | |||
Rig of Dimension | 6.3x2.25x2.65m | 6.3x2.25x2.65m | 7x2.25x2.9m | 7x2.25x2.65m | |||
Drilling method | To drive hydraulic rotary and pushing hammer or mud drilling | ||||||
