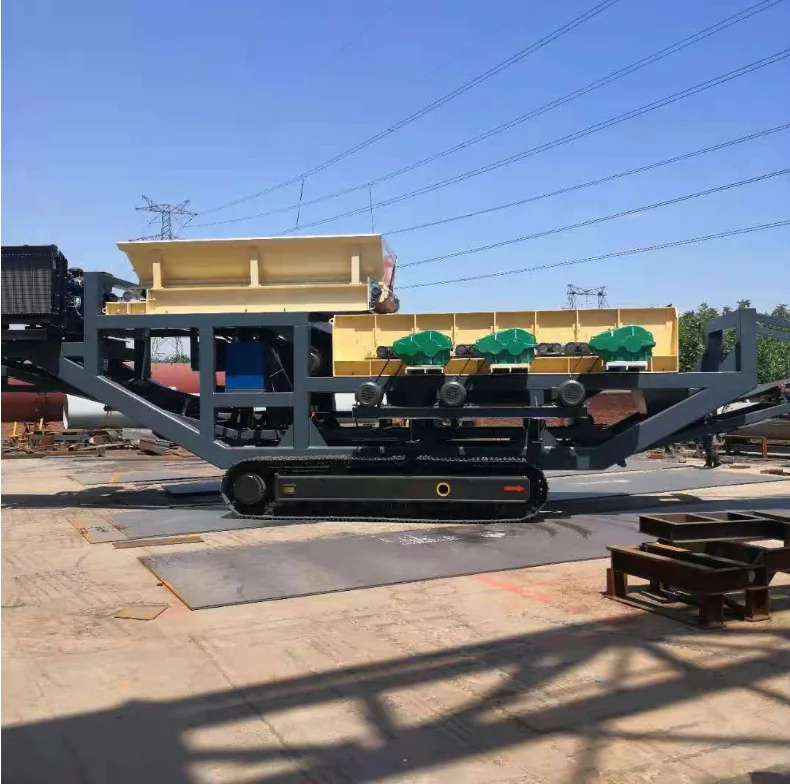

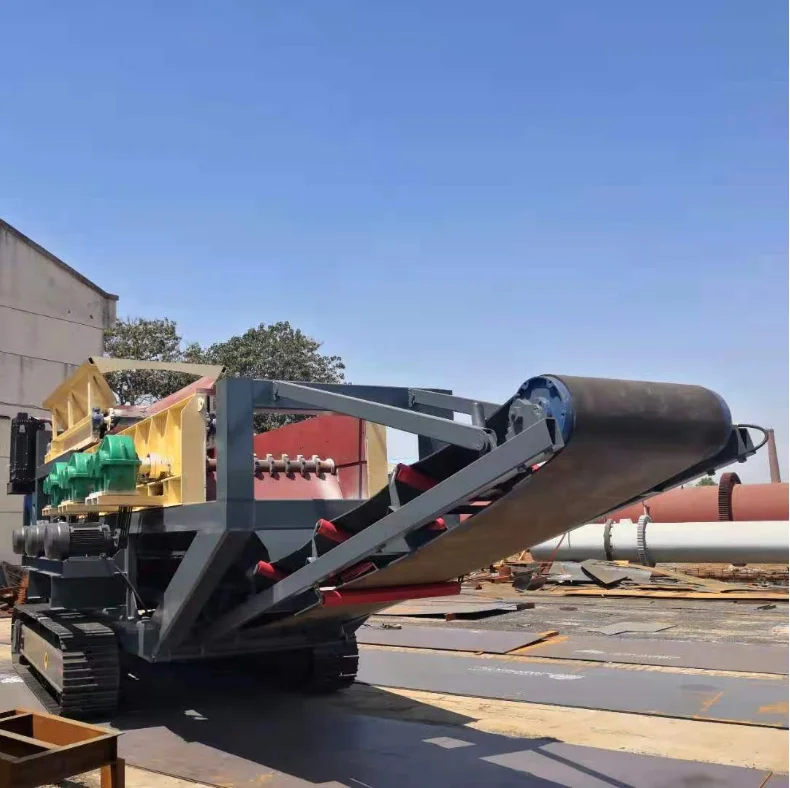

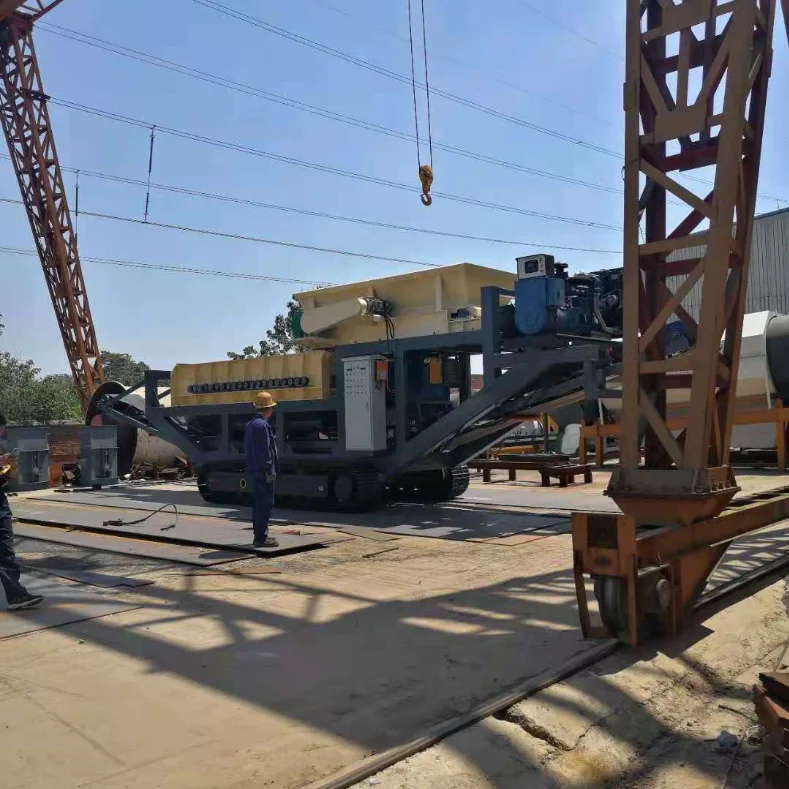

Crawler type Model 1860 earth rock separator,debris separator,roller screen window
- Category: >>>
- Supplier: Zhengzhou Huahong Machinery Equipment Co. Ltd.
Share on (1600740478080):
Product Overview
Description
Application Of Mud and Rock Stone Separator
=============
Coal, mining, building materials, metallurgy, electric powder,
water conservancy, light industry and chemical industry, etc.

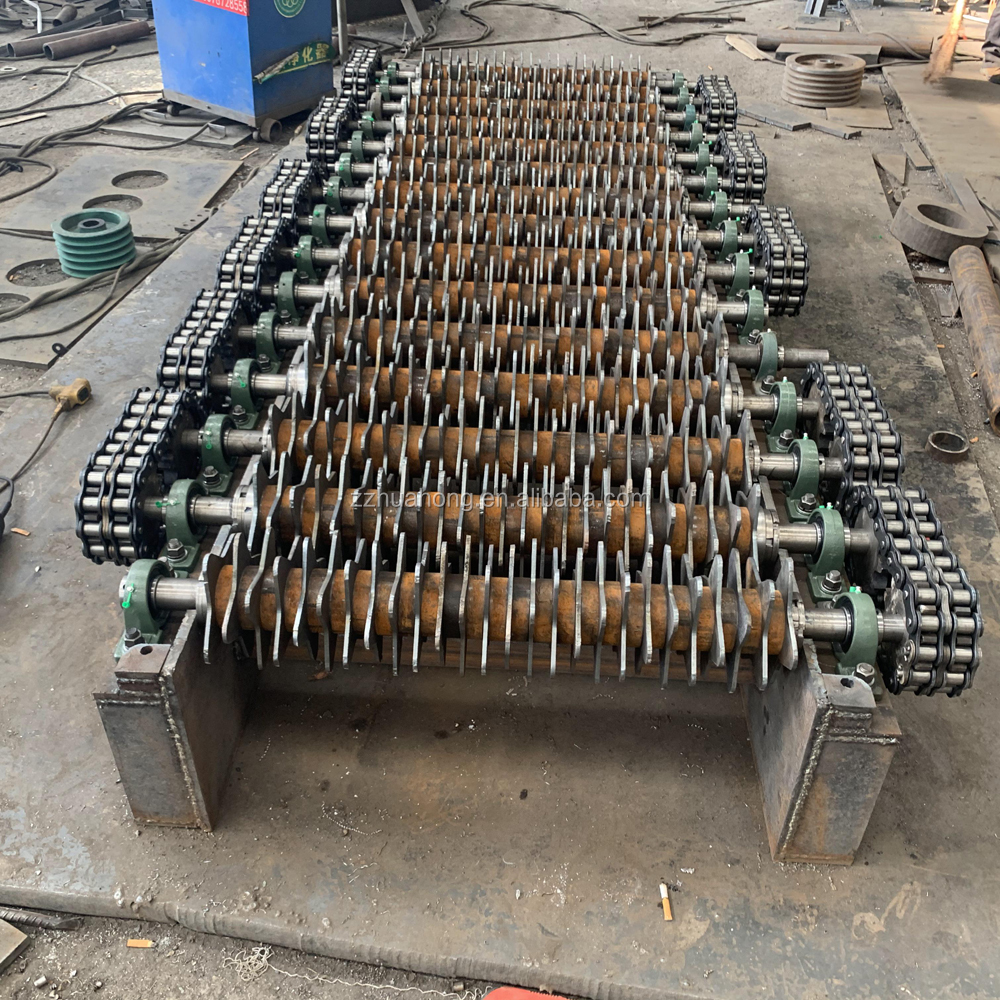

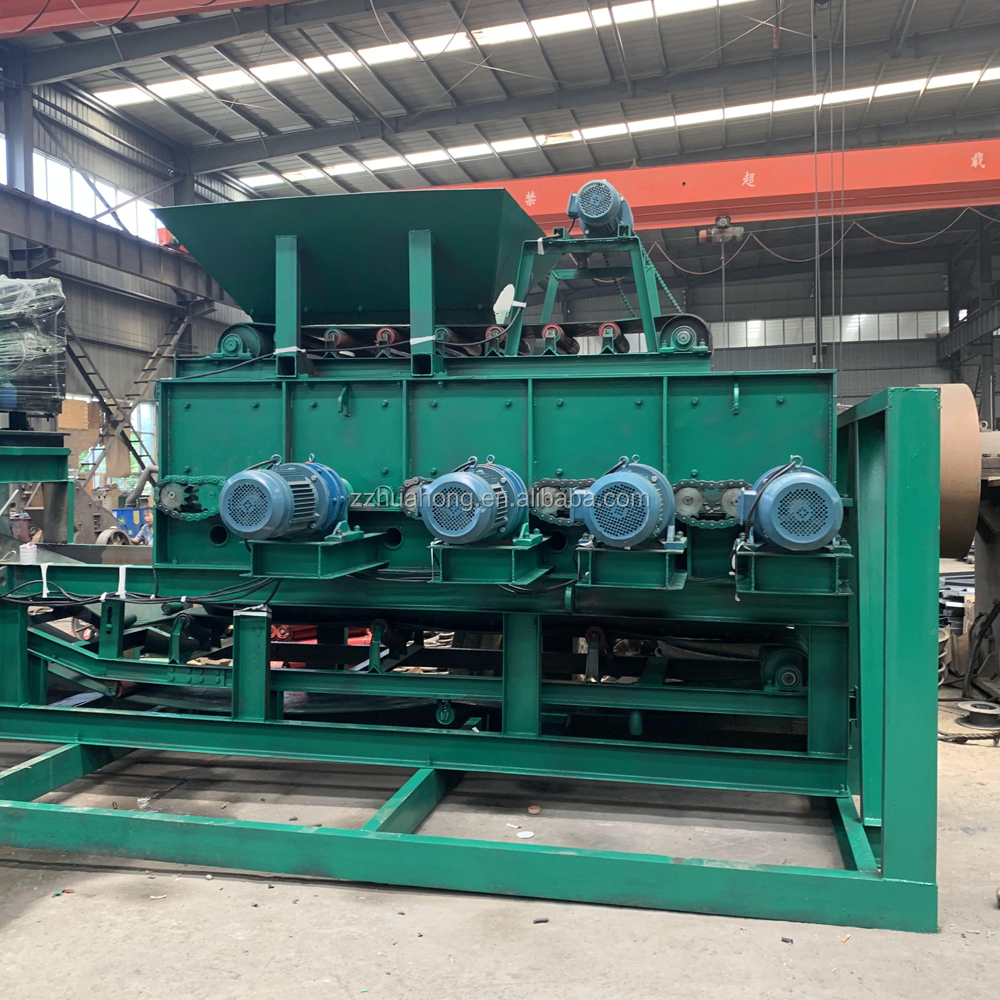

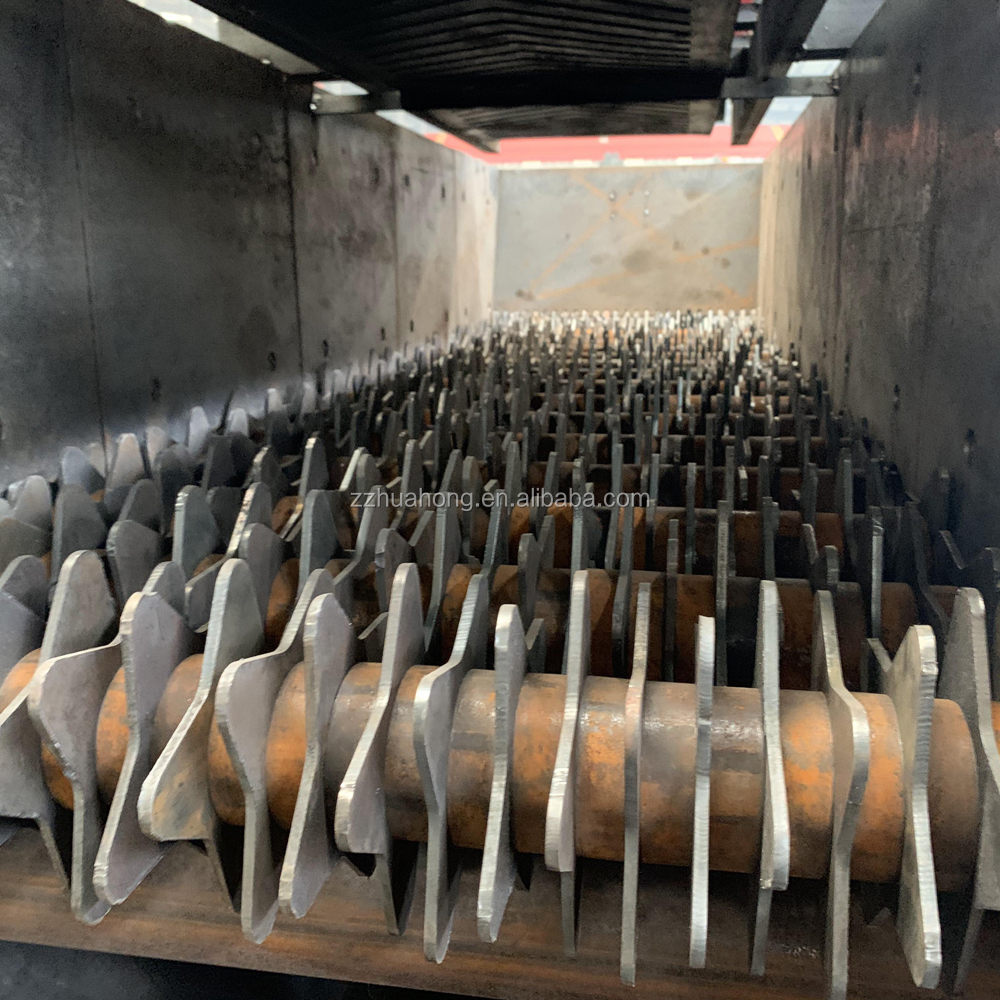

The soil and rock separator disc screen drives the rollers to move regularly through the motor. The discs arranged on the rollers move the materials forward. The gap between the rollers is adjusted according to the size of the separated materials. At the same time, the number of rollers can be increased or decreased according to the production demand of the user. The box can also be equipped with a fan to dry the wet materials. That is why the disc screen can separate the stones with soil, The use of this mud and rock stone separator can effectively solve some problems in mining, and can well replace the roller screen and vibrating screen, doubling the processing and production efficiency.
Data Sheet Of Mud and Rock Stone Separator | ||||||
Model | Power (kw) | Shaft clearance (mm) | Shaft number (pcs) | Feeding size (mm) | Capacity (ton/h) | G.Weight (ton) |
TT0816 | 7.5-11 | 10-50 | 6-8 | ≤20 | 30-100 | 4 |
TT1020 | 11-15 | 10-50 | 7-10 | ≤25 | 60-180 | 7 |
TT1230 | 18.5-30 | 15-70 | 8-11 | ≤30 | 100-300 | 12 |
TT1235 | 22-37 | 20-80 | 10-13 | ≤30 | 130-350 | 13 |
TT1340 | 37-45 | 20-90 | 11-14 | ≤33 | 150-500 | 16 |
TT1445 | 45-55 | 25-100 | 12-15 | ≤35 | 180-600 | 20 |
TT1550 | 55-75 | 25-100 | 13-17 | ≤38 | 200-800 | 23 |
TT1655 | 75-90 | 30-100 | 14-18 | ≤40 | 250-800 | 28 |
TT1860 | 75-100 | 30-100 | 15-20 | ≤45 | 350-1000 | 35 |

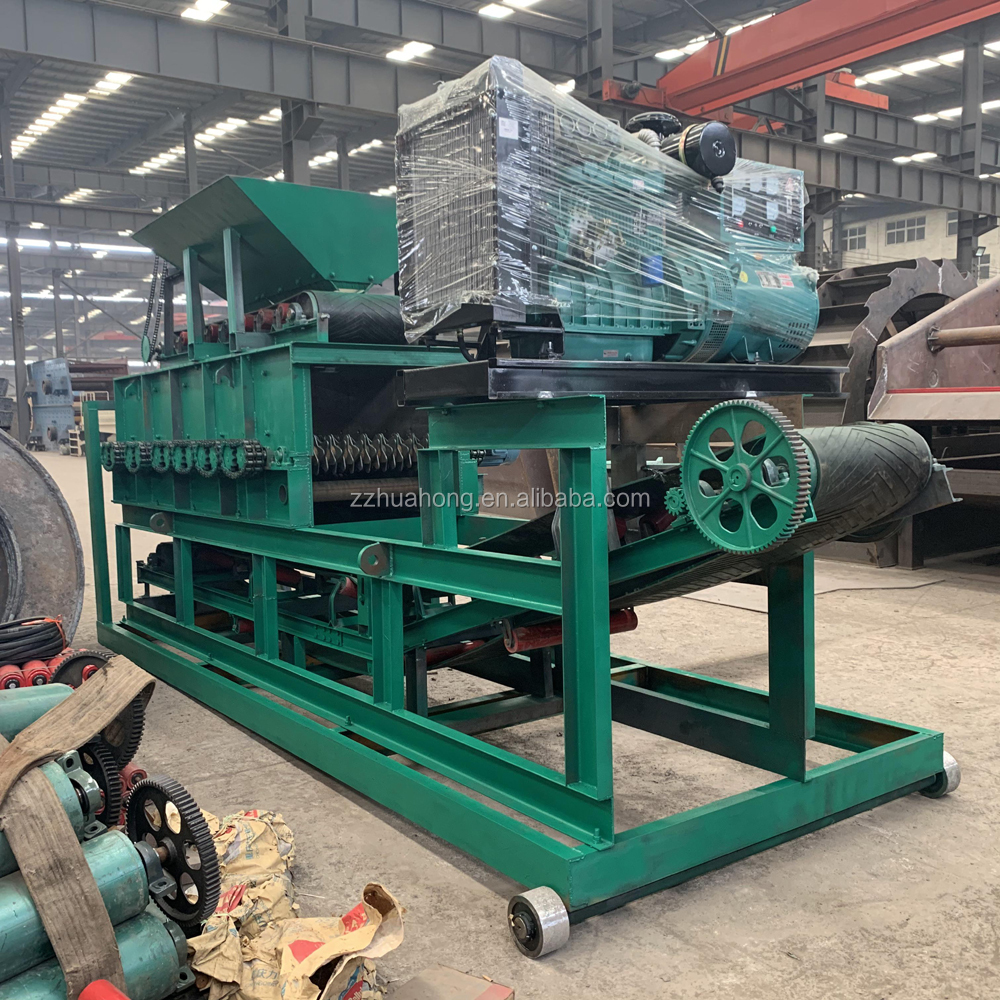

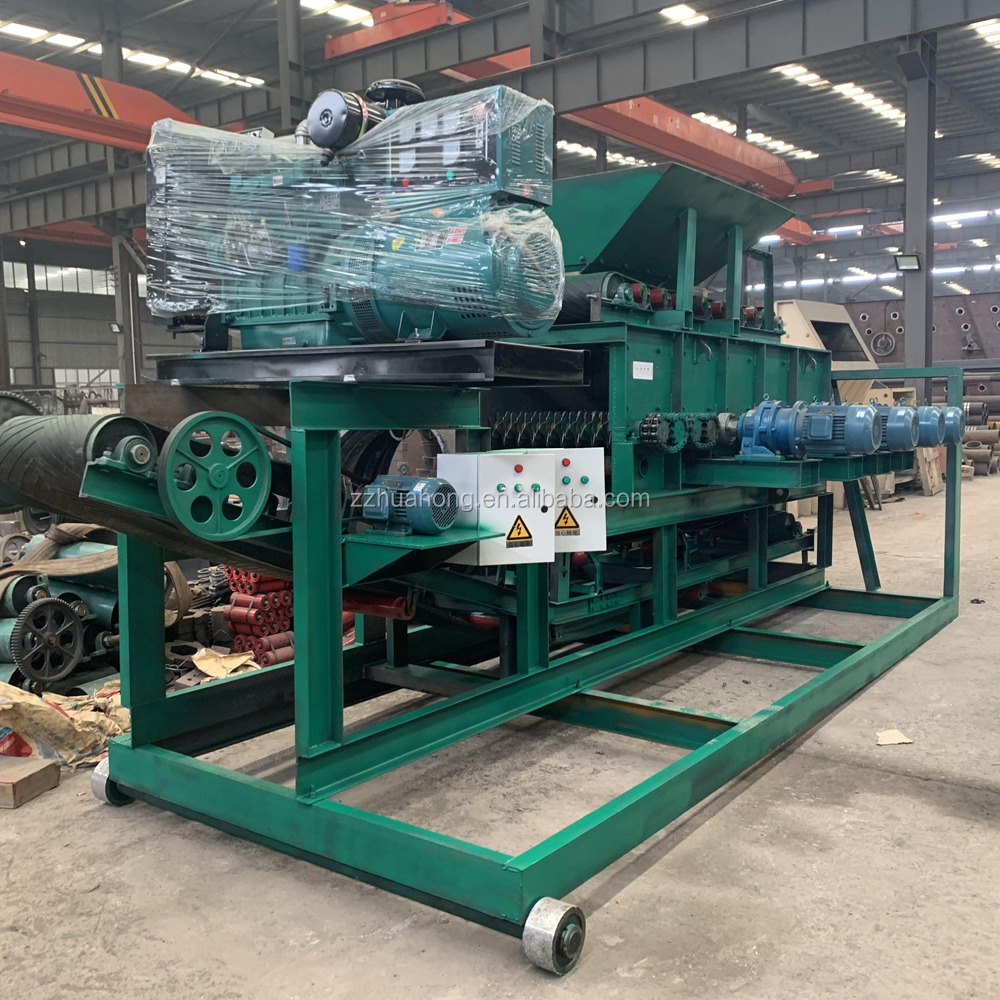

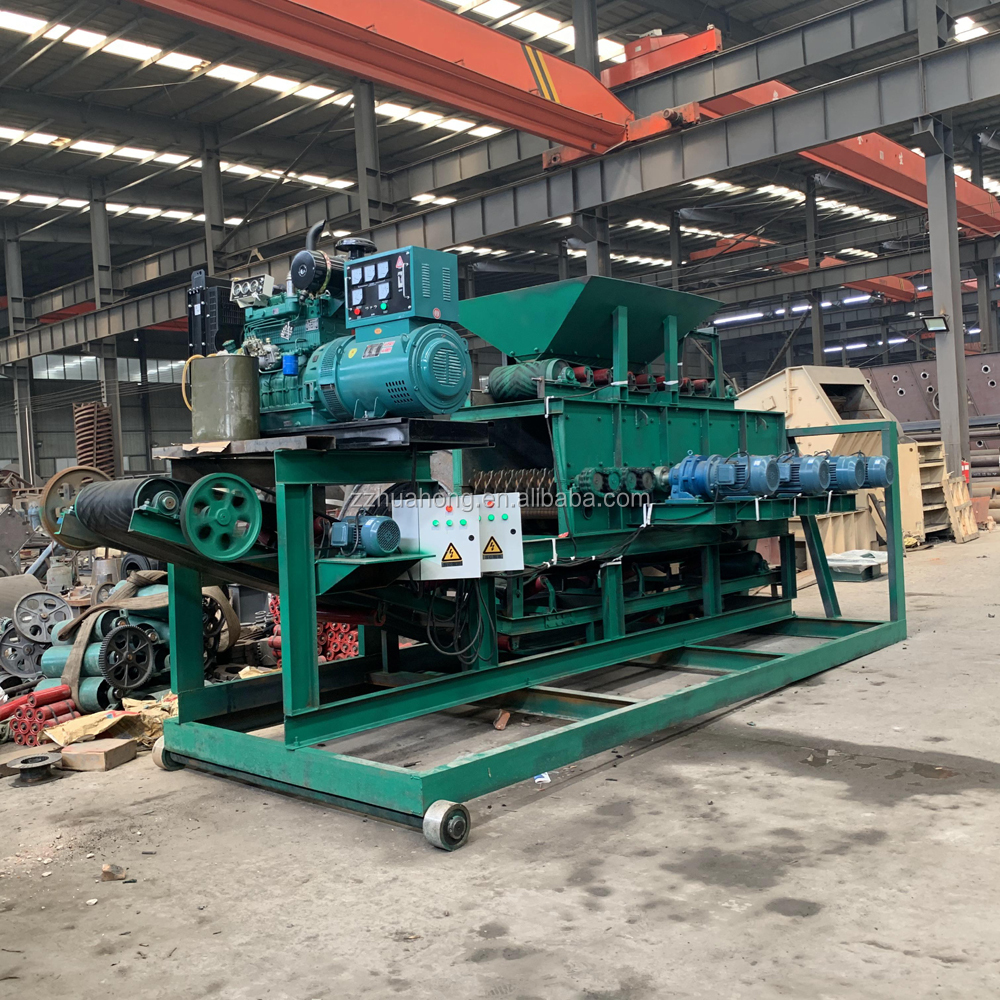

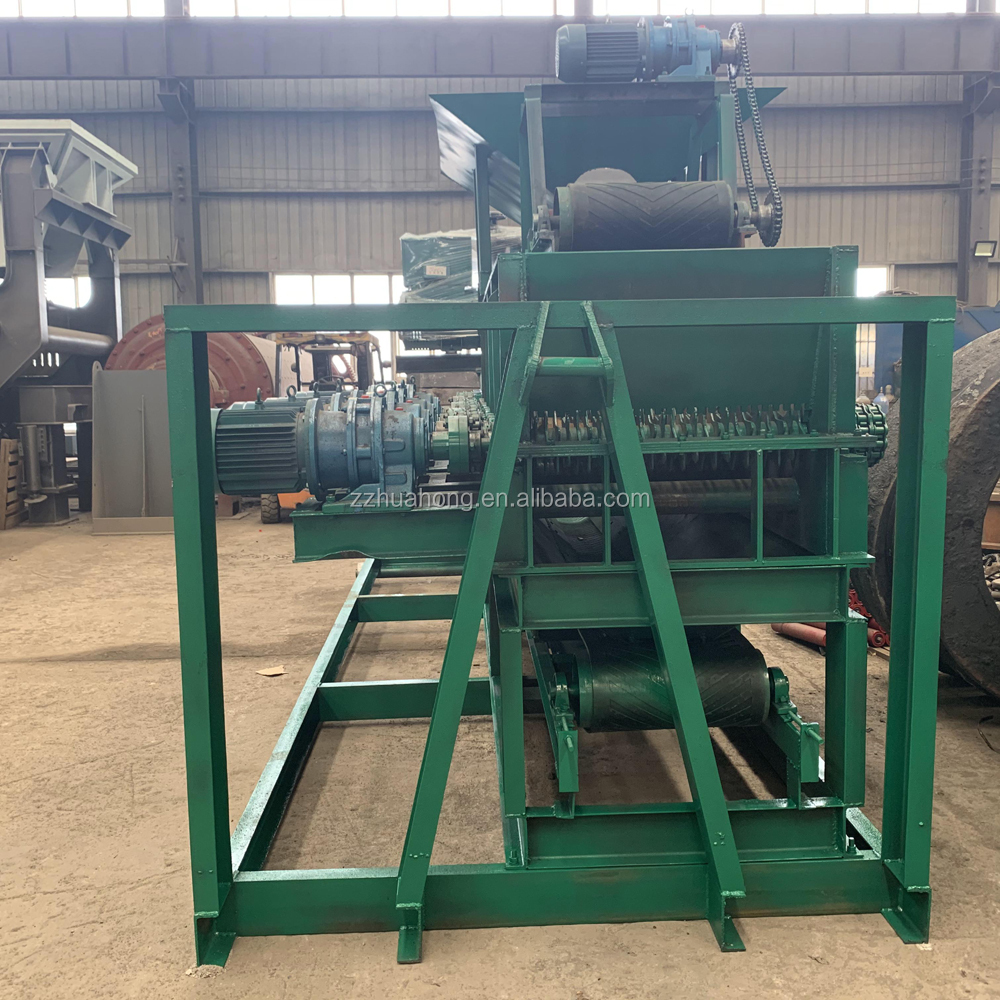

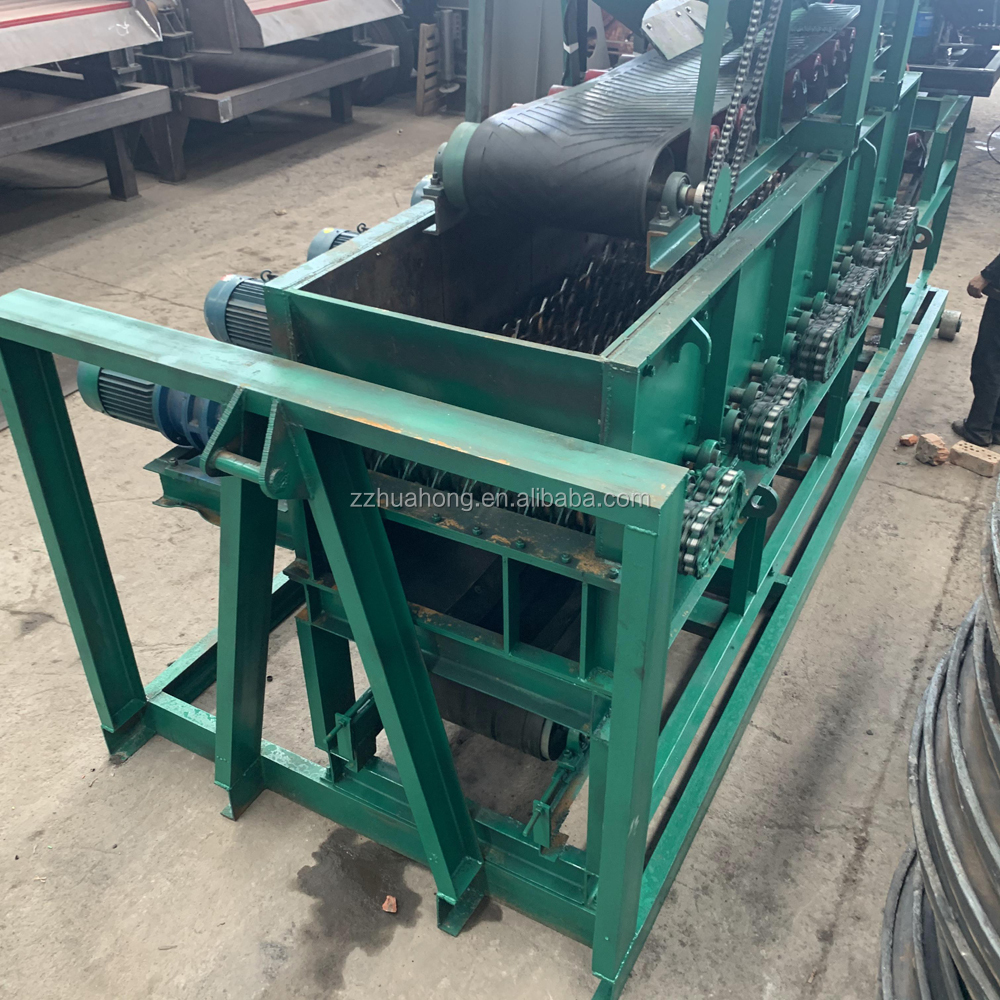

Soil and rock separator machine with hopper, and the electric control panel and conveyor belt
Advantages:
1,Copper core motor
Copper core motor is adopted, with sufficient power, low noise and strong overload resistance.
2,Screen design
Special screen design ensures that materials will not be blocked during screening.
3,Modular design
Modular assembly, can be lengthened or shortened according to the material conditions, convenient for maintenance and structural adjustment.
4,One machine for multiple use
Automatic material removal, continuous operation, can play the functions of transportation, separation and screening under different industrial and mining conditions, and realize multi-purpose of one machine.

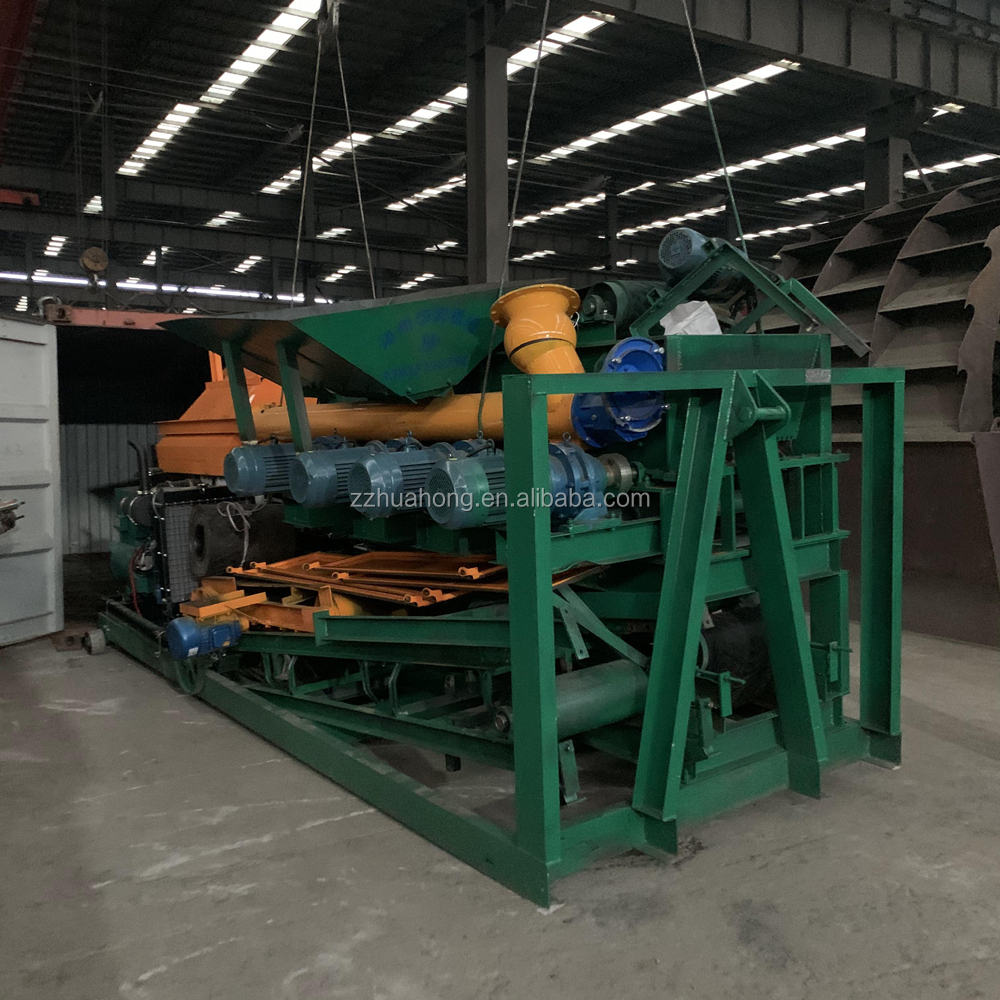

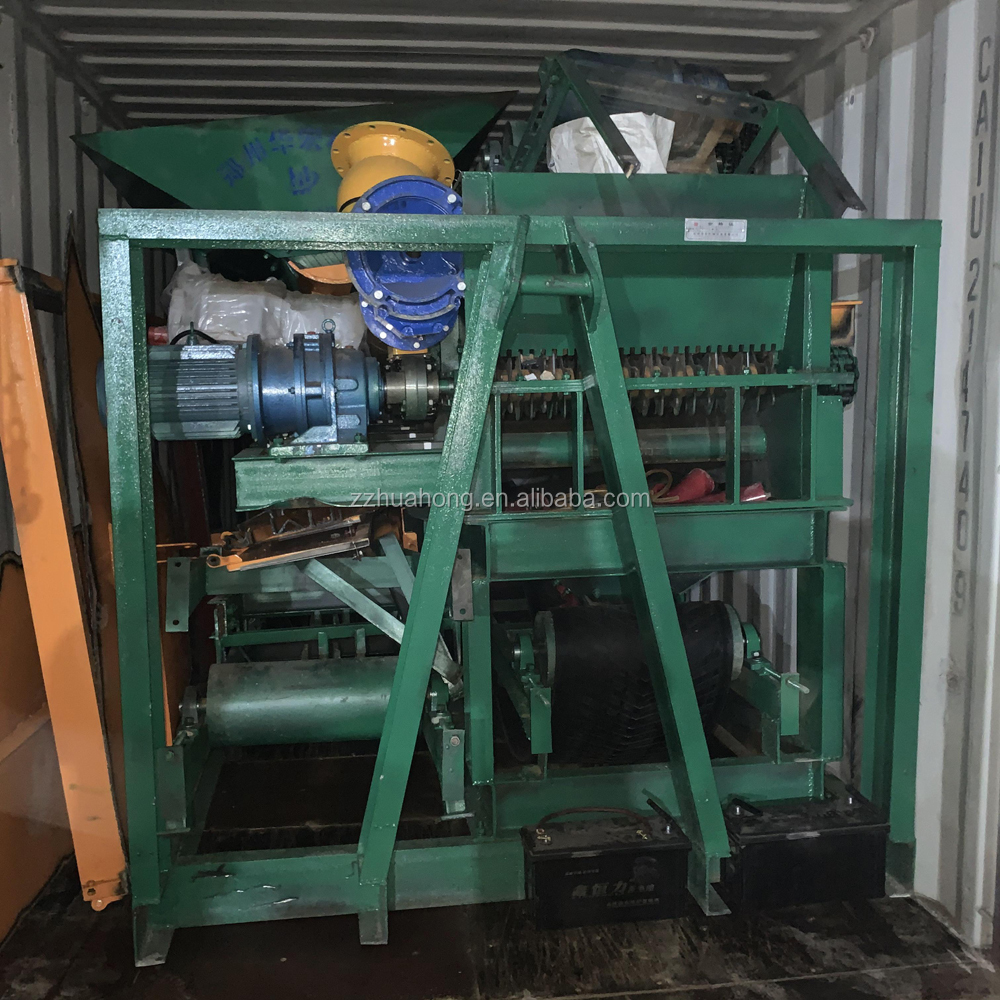

These machins delivery by the whole 20 FT container

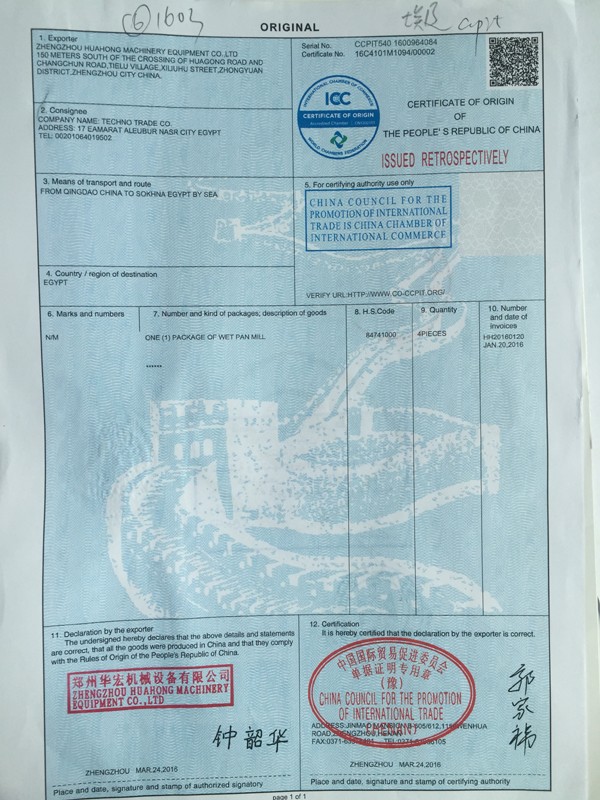

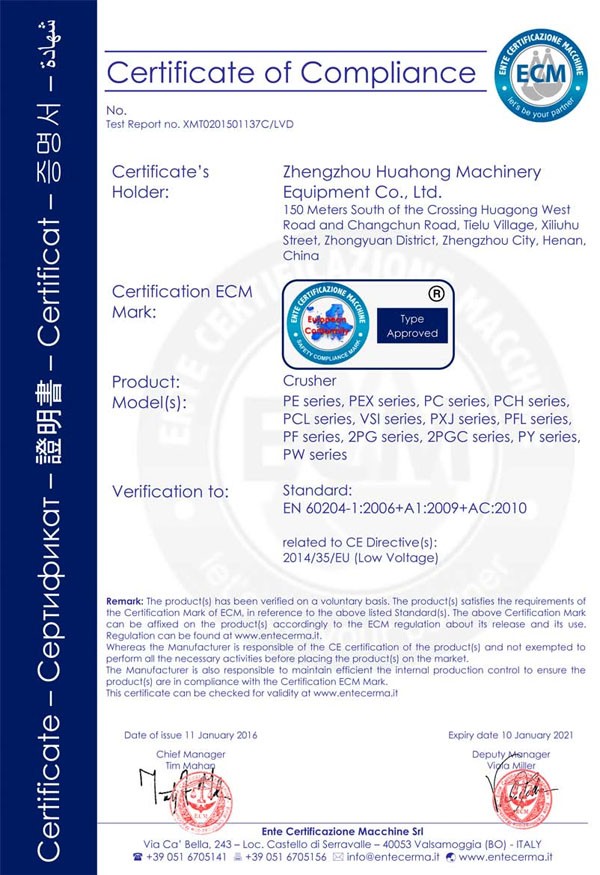

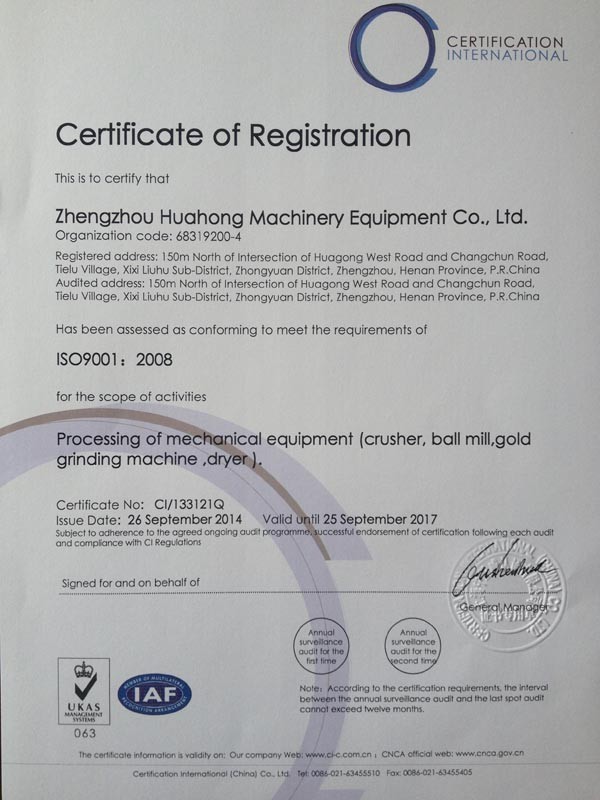

Certifications
