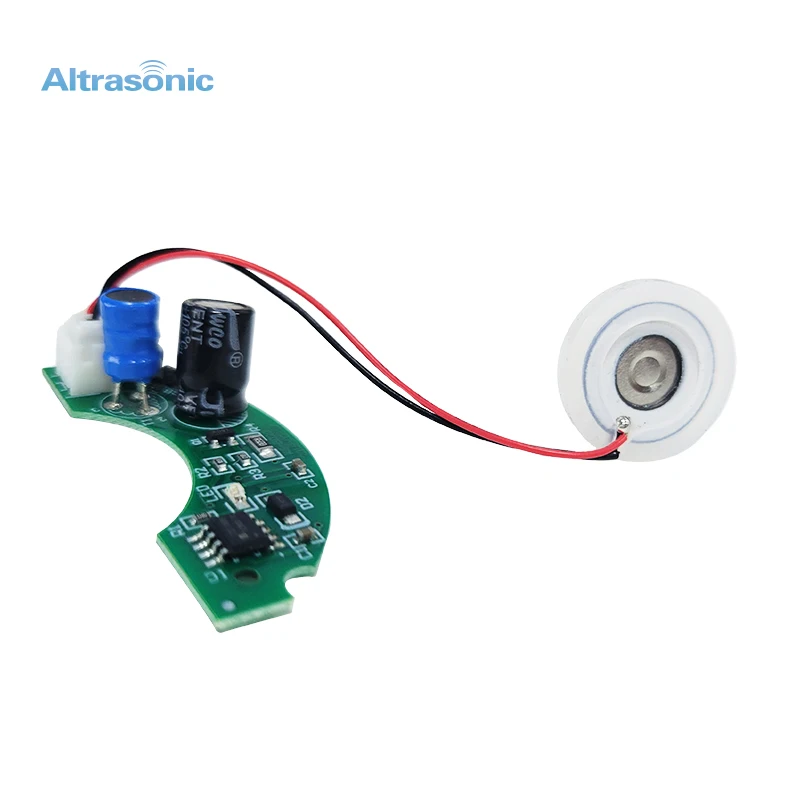

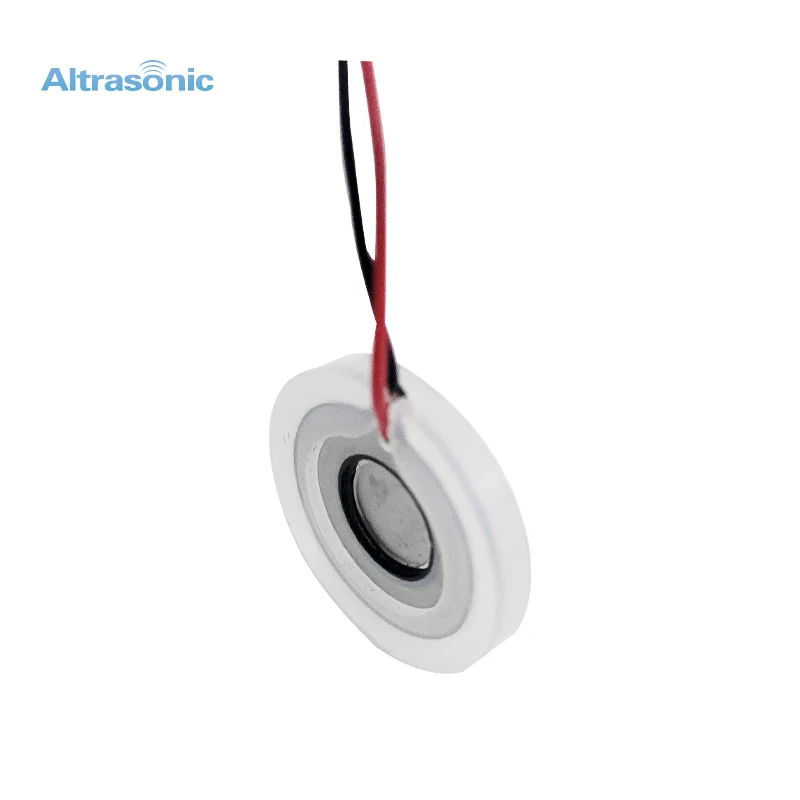

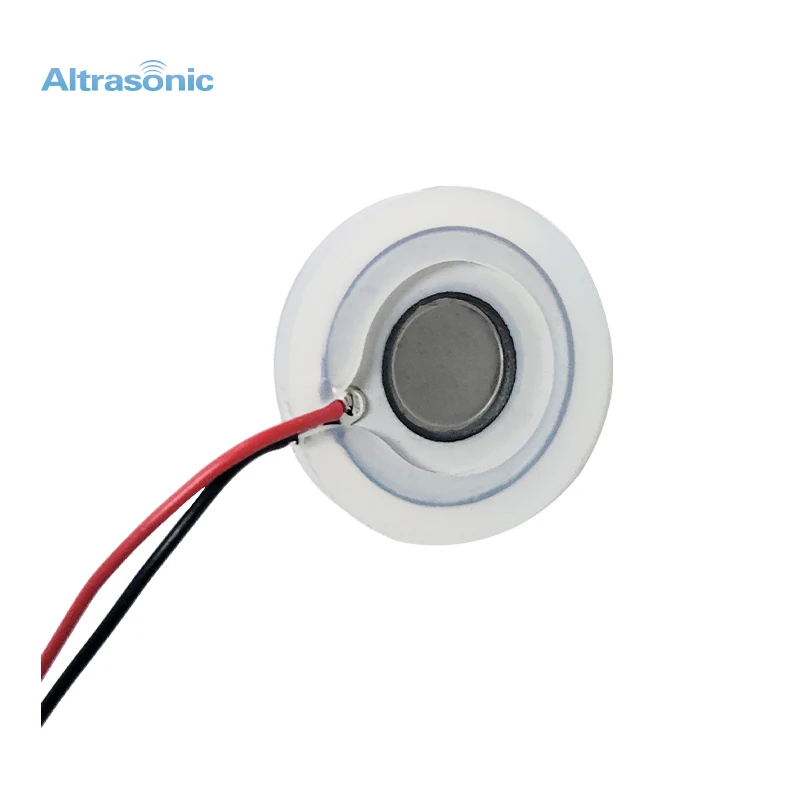

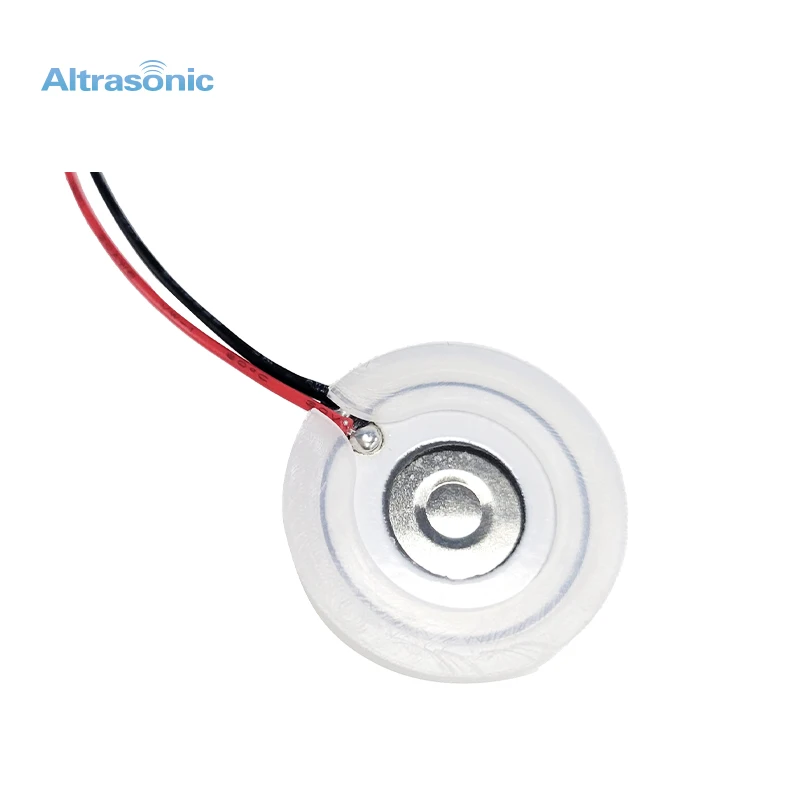

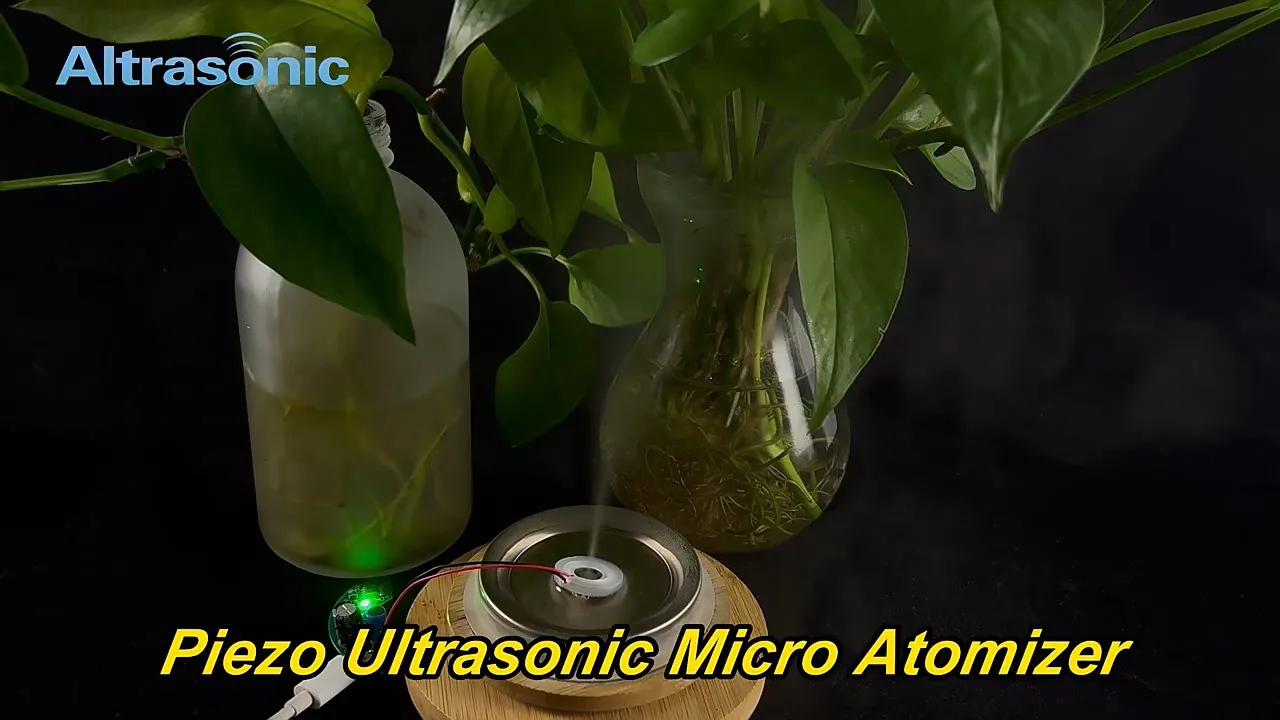

Microporous Piezoelectric Ceramic Plates Ultrasonic Piezo Ceramics Atomizing Disc Atomizer Piezoelectric Nebulizer Mesh
Microporous Piezoelectric Ceramic Plates Ultrasonic Piezo Ceramics Atomizing Disc Atomizer Piezoelectric Nebulizer Mesh
Microporous Piezoelectric Ceramic Plates Ultrasonic Piezo Ceramics Atomizing Disc Atomizer Piezoelectric Nebulizer Mesh
Microporous Piezoelectric Ceramic Plates Ultrasonic Piezo Ceramics Atomizing Disc Atomizer Piezoelectric Nebulizer Mesh
Microporous Piezoelectric Ceramic Plates Ultrasonic Piezo Ceramics Atomizing Disc Atomizer Piezoelectric Nebulizer Mesh
Microporous Piezoelectric Ceramic Plates Ultrasonic Piezo Ceramics Atomizing Disc Atomizer Piezoelectric Nebulizer Mesh
Microporous Piezoelectric Ceramic Plates Ultrasonic Piezo Ceramics Atomizing Disc Atomizer Piezoelectric Nebulizer Mesh

Microporous Piezoelectric Ceramic Plates Ultrasonic Piezo Ceramics Atomizing Disc Atomizer Piezoelectric Nebulizer Mesh

Share on (1600740513004):


Price:$0.30 - $0.60

Quantity:


Product Overview

Description









Size
Resonant Frequency(MHz)
Resonant Impedance (R)
Electrostatic capacity (pF)
HS-WHPC-10-175K
175±8KHz
≤350
1450±25%
HS-WHPC-16-108K
108±6KHz
≤350
3100±25%
HS-WHPC-16-115K
115±5KHz
≤350
3000±25%
HS-WHPC-16-140K
145±6KHz
≤350
2200±25%
HS-WHPC-20-112K
112±5KHz
≤350
3000±25%


Size
VDC
W
Max W
HS-WHPC-10-175K
3~12
1.5~2.1
2.2
HS-WHPC-16-108K
3~12
1.3~2.2
2
HS-WHPC-16-115K
3~12
1.3~1.8
2
HS-WHPC-16-140K
3~12
1.3~2.2
2
HS-WHPC-20-112K
3~12
1.2~1.8
2




































FAQ


Q: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.
Q: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q: . Do you have operating manual?
A: Of course, we will put it with the goods together. Also we will upload video in youtube and inform you the related link.
Q: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our
factory, our main markets is USA and European etc
Q: Could you do OEM?
A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just send us your requirements and design of drawing and sample
Q: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q: Terms of Payment
A: We have flexible and active payment if order huge.
Q: What custom requirements can you accept?
A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted,
etc.
