Factory Price High Flow Rate Foam / Water Adjustable Rotary Customize Water Cannon Fire Monitor
- Category: >>>
- Supplier: Quanzhou Sanxing Fire-Fighting Equipment Co. Ltd.
Share on (1600740540223):
Product Overview
Description
Specification
Model | PS50/PL50 | PS60/PL60 | PS70/PL70 | PS80/PL80 | PS100/PL100 |
Flow Rate (Liter/Second) | 50 | 60 | 70 | 80 | 100 |
Working Pressure(Mpa) | 0.8 | 0.9 | 0.9 | 0.9 | 1.0 |
Max Working Pressure(Mpa) | 1.0 | 1.2 | 1.2 | 1.2 | 1.2 |
Flange Connection(mm) | DN80 | DN100 | DN100 | DN100 | DN100 |
Water Jetting Range(m) | ≥65 | ≥70 | ≥75 | ≥80 | ≥90 |
Horizontal Angle (Degree) | 0-360 | 0-360 | 0-360 | 0-360 | ≥80 |
Max Angle Of Elevation (Degree) | 70 | 70 | 70 | 70 | 70 |
Max Angle Of Depression (Degree) | -70 | -70 | -70 | -70 | -70 |
Products Description

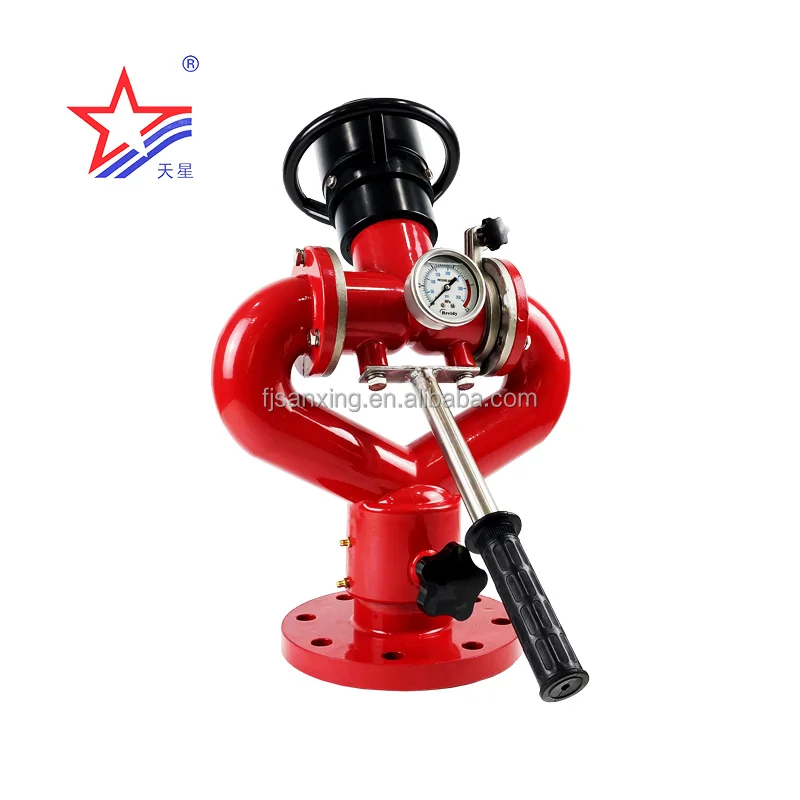

Manual Fire Monitor has characteristic with adjustable flow rate, distant range and wide discharging range and the discharge range is also adjustable-----have both straight stream and fog stream.
Manual fire monitor can be installed in the places of flammable or explosive chemical circumstance, airport, oil area, oil transport wharf, shipyard etc. It is an efficient equipment for putting out fire, and it is also can be fixed on fire vehicles.
Packing & Delivery
Package ways:
1). 1 PCS / Wooden Box, Then, use wooden pallets.
2). Client's requirement.
3). Export Standard.
2). Client's requirement.
3). Export Standard.
