Refrigeration Tools Single Stage Hand Vacuum Pump FY 1C N

Product Overview

Description

N Series Vacuum Pump

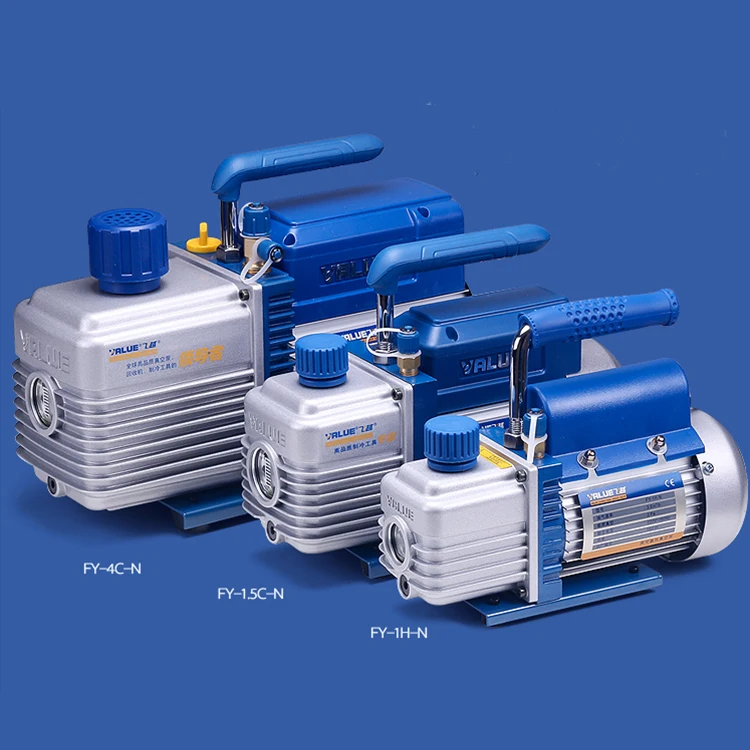

1.Single Stage

Model	FY-1C-N	FY-1.5C-N	FY-2C-N	FY-3C-N	FY-4C-N
220V/50HZ	3.6m³/h	5.4m³/h	7.2m³/h	10.8m³/h	14.4m³/h
	2Pa	2Pa	2Pa	2Pa	2Pa
Power	150W	180W	250W	370W	550W
Weight	6.6KG	7.1KG	8.1KG	10KG	14.7KG
Dimentsions	290*124*224mm		318*124*234mm		395*145*257mm



 2.Min Pump

Model	FY-1H-N	FY-1.5H-N
220V/50HZ	3.6m³/h	5.4m³/h
	2Pa	2Pa
Power	150W	180W
Weight	4KG	4.5KG
Dimentsions	255*105*202CM

3.Dual Stage

Model	2FY-2C-N	2FY-4C-N
220V/50HZ	7.2m³/h	14.4m³/h
	2*10-1Pa	2*10-1Pa
Power	370W	750W
Weight	10.5KG	16.5KG

English Version Model

Remarks:moq :50pcs

1.Single Stage

Model	VE115N	VE125N	VE135N	VE160N	VE180N
Flow Rate 220V/50HZ	1.8CFM	2.5CFM	3.5CFM	6.0CFM	8.0CFM
	51 L/min	70 L/min	100 L/min	170 L/min	226 L/min
Power	1/4HP	1/4HP	1/3HP	1/2HP	3/4HP
Weight	6.6KG	7.1KG	8.0KG	9.9KG	14.6KG
Dimentsions	290*124*224mm		318*124*234mm		395*145*257mm



2.Dual Stage

Model	VE215N	VE225N	VE245N	VE260N	VE280N	VE2100N
Flow Rate 220V/50HZ	1.5CFM	2.5CFM	3.5CFM	6.0CFM	8.0CFM	10.0CFM
	42 L/min	70 L/min	128 L/min	170 L/min	226 L/min	283 L/min
Power	1/4HP	1/3HP	1/2HP	3/4HP	1HP	1HP
Weight	7.5KG	8.5KG	10.4KG	15.8 KG	16.2 KG	16.7KG

AC Power Supply Plug



Item	Description
C01	Israel plug
C02	China plug
C03	Australia plug
C04	South Africa plug
C05	Europe plug
C06	America plug
C07	Britain plug
C08	Japan plug
C09	Italy plug
C10	Argenting plug
C11	Brazil plug
