5MP Cmos Sensor Video Door Phone &Video Phone Applications USB UVC OTG Camera Module Support Android Windows Linux Systems
- Category: Electronic Data Systems >>>
- Supplier: Shenzhen Brilliant Cmos Technology Co. Ltd.
Share on (1600740545447):
Product Overview
Description
Product Description
Product Name | Omnivision 1/4" CMOS Sensor Auto Focus Fixed Focus USB2.0 UVC Camera Module | Aptina AR0230 120dB 1080P USB2.0 UVC Camera Module | |
Sensor | 1/4” Omnivision CMOS Sensor | 1/2.7” CMOS Sensor | |
Resolution | 2592×1944@30FPS | 1920×1080@30FPS | |
Compression format | MJPEG / YUV2 (YUYV) | MJPEG / YUV2 (YUYV) | |
FOV（Diagonal） | FOVH73° (LENS can be optional) | 110° (LENS can be optional) | |
Focus type | Auto Focus/Fixed Focus | Fixed Focus | |
IR Fliter | 650mm | 850mm Night Vision, Black&White Imaging | |
Shutter Type | Electronic Rolling Shutter | Electronic Rolling Shutter | |
Max Dynamic Range | 65.5dB | 110dB | |
S/N ratio | 34dB | 39dB | |
Cable Length | 1 meter | 1 meter | |
Dimension | 32mm*32mm | 76mm*16mm | |
Objective Distance | 3CM-100M | ||
UVC compliant | USB Video Class（UVC | USB Video Class（UVC） | |
Support OS | WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later;Android 4.0 or above with UVC, raspberry pi | WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later;Android 4.0 or above with UVC, raspberry pi | |
Support SDK | YES | YES | |
Key Features:
1. High-definition 5MP
2. Most effective pixels is 2592(H) x 1944(V)@30FPS (MJPEG).
3. Auto focus, high sensitivity of the motor, select high-quality motor. The focusing speed is fast, which is different from the ordinary autofocus. The ordinary autofocus camera may be in focus most of the time, and the image is blurred. The camera produced by our company has extremely fast focusing speed and can be clear in one second
4. Fixed focus, you can replace the wide angle lens to meet the needs of various applications
5. 25mm * 25mm can be support, high sensitivity of the motor, selected high-quality motor, mainly used in PC Webcam or laptop, and capture document.
Details Images

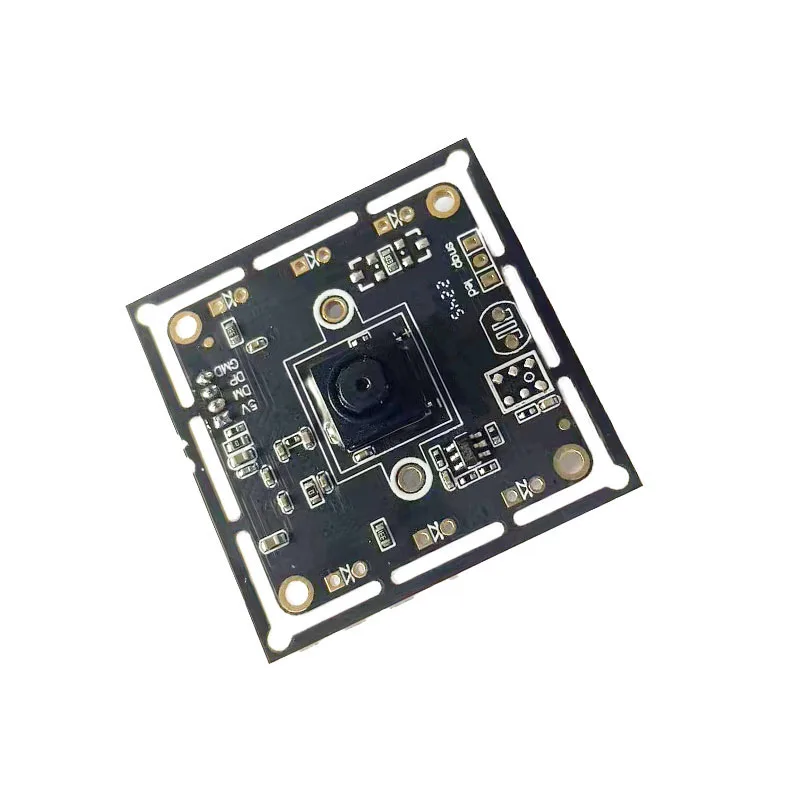

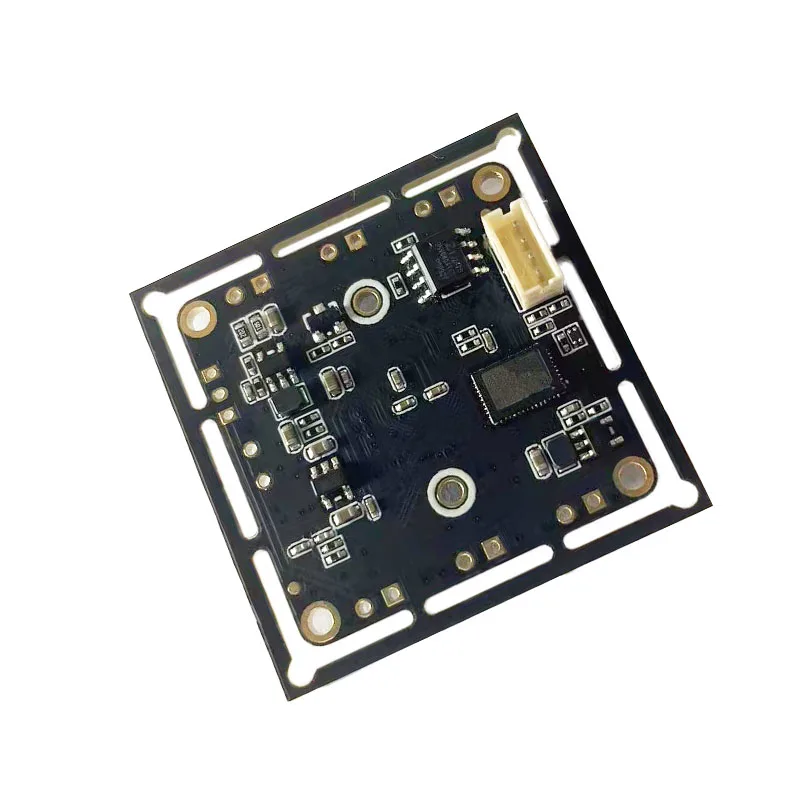

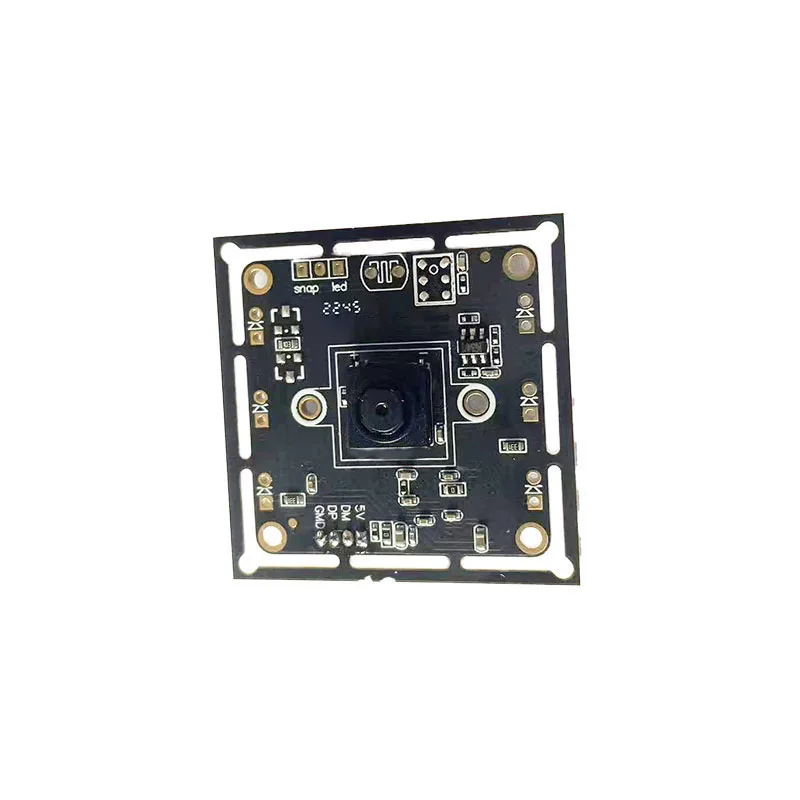

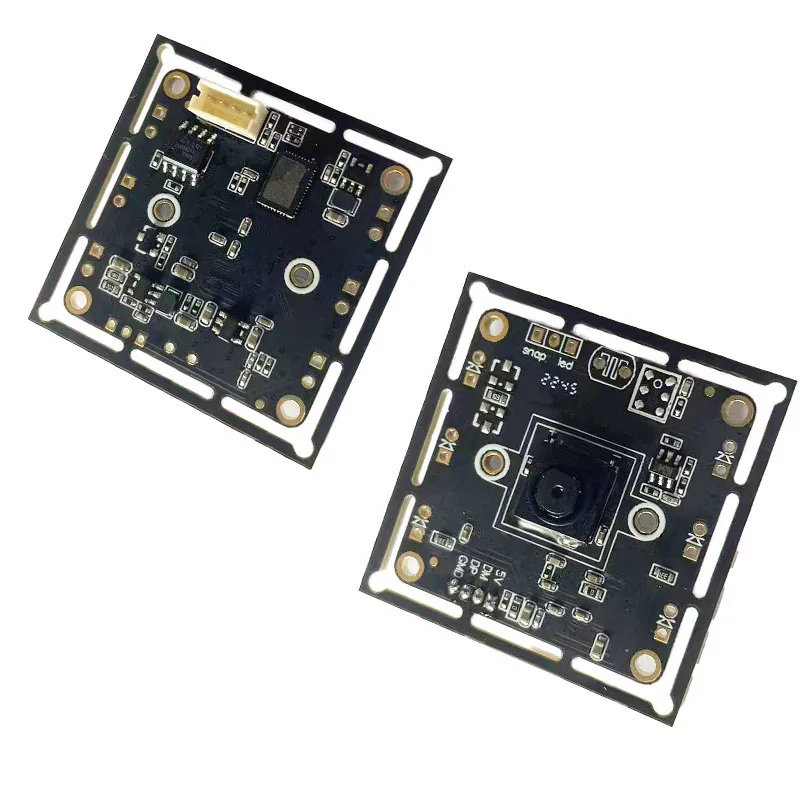

This is mainly uses Omnivision 1/4" CMOS SensorUSB2.0 5MP camera module, 32*32mm. Auto Focus & Fixed Focus are available. The lens can be change wide angle for fixed focus type. UVC standard protocol, spport WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later;Android 4.0 or above with UVC, raspberry pi. USB drive-free, plug and play. Large pixel size, the highest frame rate is 30FPS. Most effective pixels is 2592(H) x 1944(V)@30FPS (MJPEG).
It is develped for all kinds of all Facial Recognition Applications, Scanning code, Close range change, All-in-one machine, Robotics,Educational equipment, CCTV & Access control, Surveillance & Security, DV&DVD, Toys, Artificial, Intelligence, Imaging technology. This 5mp cmos sensor camera module can be support SDK.
It is develped for all kinds of all Facial Recognition Applications, Scanning code, Close range change, All-in-one machine, Robotics,Educational equipment, CCTV & Access control, Surveillance & Security, DV&DVD, Toys, Artificial, Intelligence, Imaging technology. This 5mp cmos sensor camera module can be support SDK.

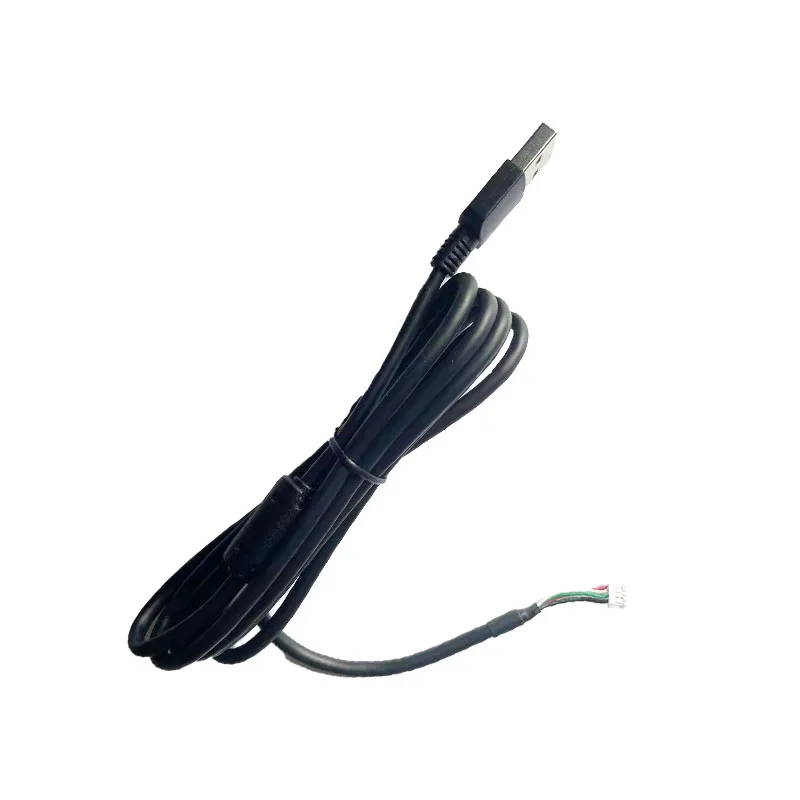

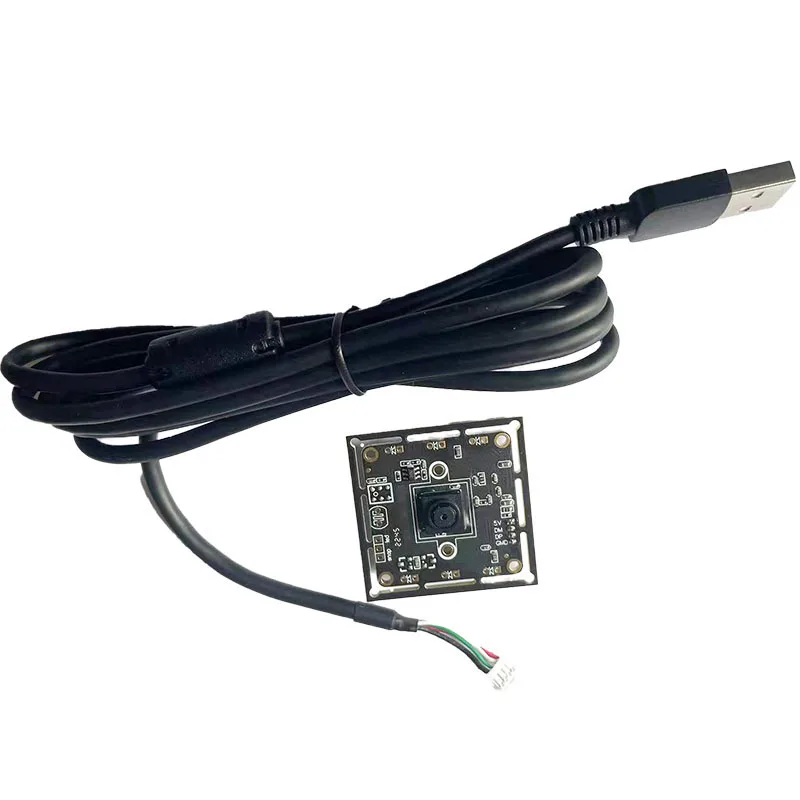

Standard USB Cable length is 1meter. If you want to longer or shorter, kindly tell us.
UVC standard,support WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later);Android 4.0 or above with UVC, raspberry pi
32mm*32mm. UVC standard. face recognition and capture document camera module,5mp cmos sensor camera module can be support SDK.

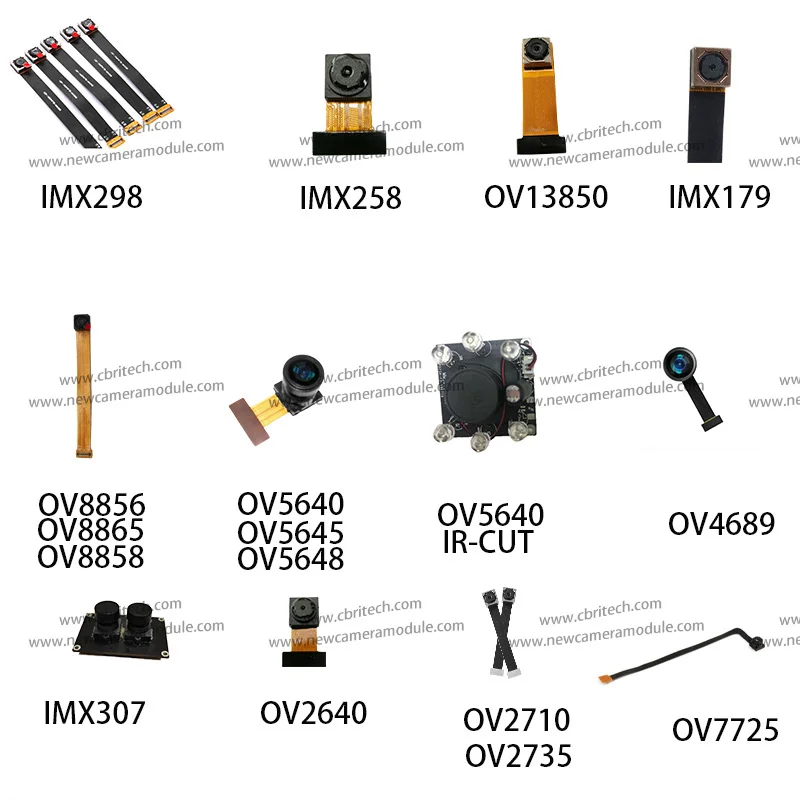

Recommend Products
Product Application
Packing&Shipping
1000pcs per carton
Company Introduction
Shenzhen Brilliant CMOS Technology Co., Ltd. is specialized in manufacturing camera module, mainly providing USB interface
cameramodule, MIPI / DVP interface camera module, miniature endoscope module. We can provide SDK for most USB camera modules,support OEM service.
cameramodule, MIPI / DVP interface camera module, miniature endoscope module. We can provide SDK for most USB camera modules,support OEM service.
Our Services & Strength
R&D Department: 5 people, we can support SDK for USB Camera module
Lable: Different styles lable for your choice
FAQ
1. How to buy our product?
You can buy the products from our company directly. Normally the procedure is, sign the contract, make
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
