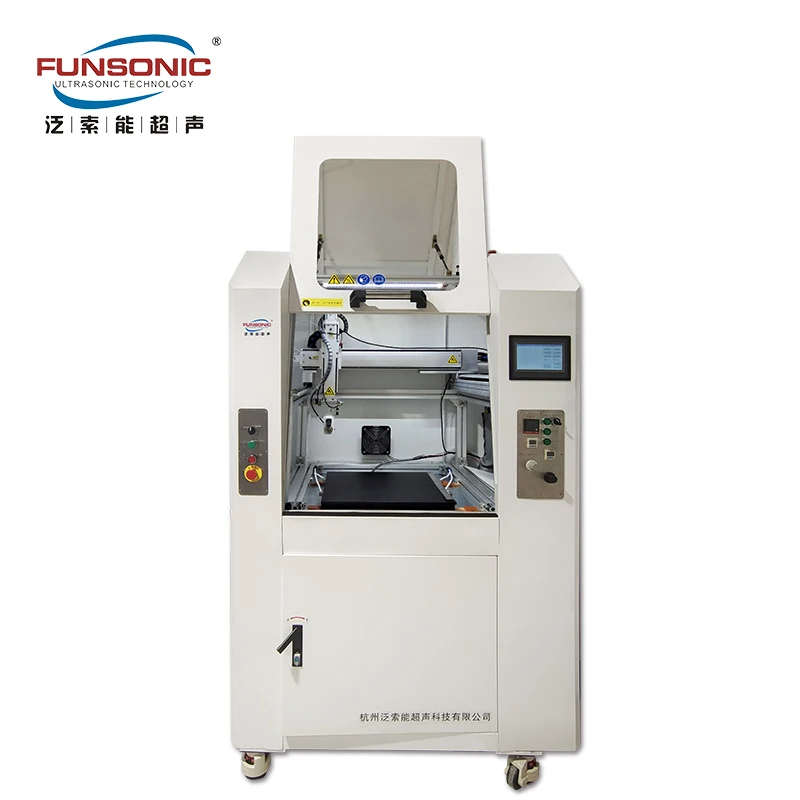

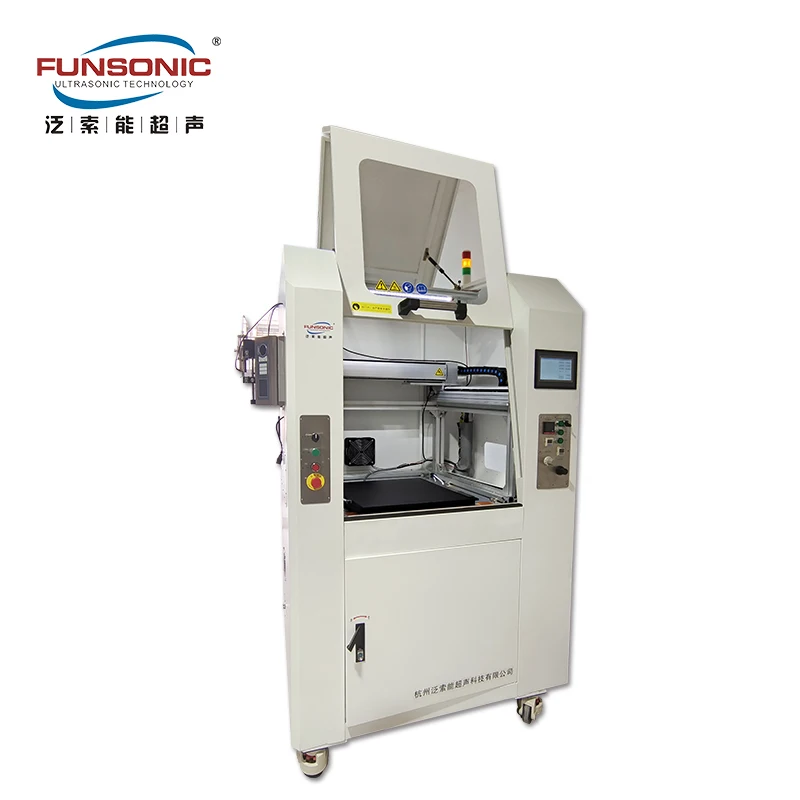

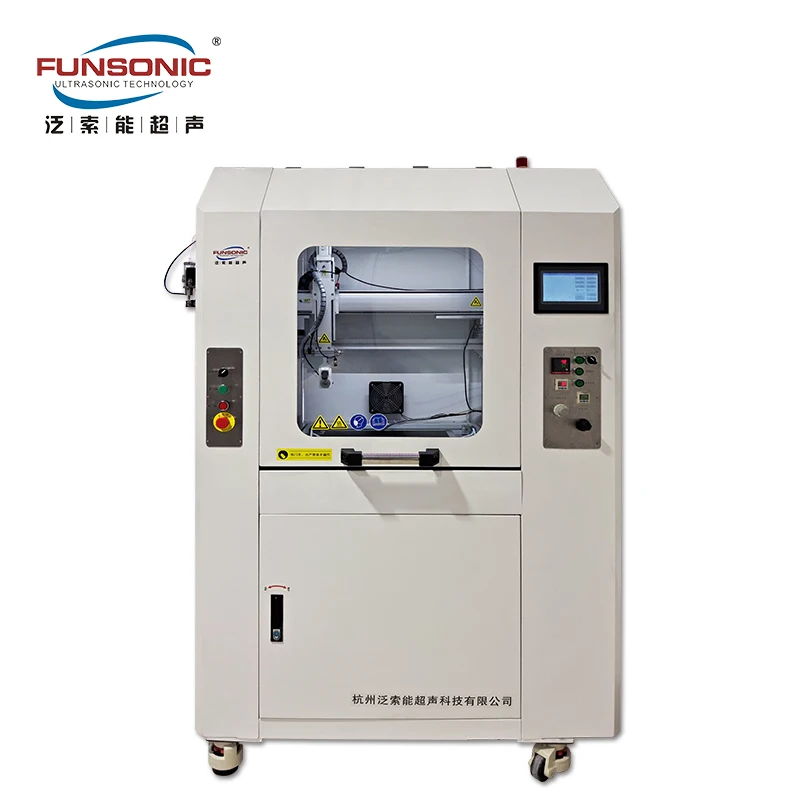

Ultrasonic Spraying nano coating machine Ultrasonic Sprayer for Fuel Cell Spraying
Ultrasonic Spraying nano coating machine Ultrasonic Sprayer for Fuel Cell Spraying
Ultrasonic Spraying nano coating machine Ultrasonic Sprayer for Fuel Cell Spraying
Ultrasonic Spraying nano coating machine Ultrasonic Sprayer for Fuel Cell Spraying
Ultrasonic Spraying nano coating machine Ultrasonic Sprayer for Fuel Cell Spraying
Ultrasonic Spraying nano coating machine Ultrasonic Sprayer for Fuel Cell Spraying

Ultrasonic Spraying nano coating machine Ultrasonic Sprayer for Fuel Cell Spraying

Share on (1600740565877):


Price:

Quantity:


Product Overview

Description







Item Type
FS650
Nozzle working frequency
20-200KHz
Nozzle power
10-100W
Continuous spraying volume max
20-1200ml/h/pc, expandable
Effective spraying width
2-260mm/each, expandable
Spraying uniformity
<5%
Solution conversion rate
≥95%
Dry film thickness
20nm-100μm
Solution viscosity
≤50cps
Temperature range
1-60°C
Atomization particles (median)
10-45μm (distilled water), determined by nozzle frequency
Inflow air pressure max
≤ 0.15MPA
Movement mode
XYZ three axes, can be independently programmed, 500 * 500 * 100mm
Ultrasonic dispersion system (optional)
50ml, 40K, biological grade liquid feeder
Heating and drying system (optional）
up to 200 degrees
Vacuum adsorption (optional)
multi-area vacuum adsorption, equipped with vacuum generator






















1)Are you a manufacturing or a trading company?
We are a factory, and we offer factory direct prices with excellent quality and worry-free service. Please come and see us here!

2)What is your guarantee or warranty if we buy your machine?
We offer an industry standard 12-month warranty on all of our products.

3)Do you provide customized service?
We can design ultrasonic equipment according to your application environment and usage scenarios. Also, based on our many years of experience in the industry, we will provide you with expert guidance.

4)What are your payment terms?
T/T, PayPal, L/C, etc.

5)What about the details of the packaging?
To ensure the integrity and safety of product packaging, main products are packed in plastic film or export plywood boxes, and auxiliary products are packed in thick cartons.

6)How long does it usually take for me to receive the equipment?
Depends on whether you want to do customization your ultrasonic machine or not, and also depends on the speed of customs clearance and logistics, but we can guarantee to ship regular ultrasonic machine in less than 30 business days.

7)How do i test the machine before shipment?
Machine test run over 72 hours and send test video.

8)What are the raw materials used?
The main materials used in our ultrasonic equipment are stainless steel, aircraft aluminum, titanium alloy, and world-renowned electrical components. We can also make any custom design for you according to your needs.

9)Do you have certificates?
We have been certified by reputable certification bodies.
