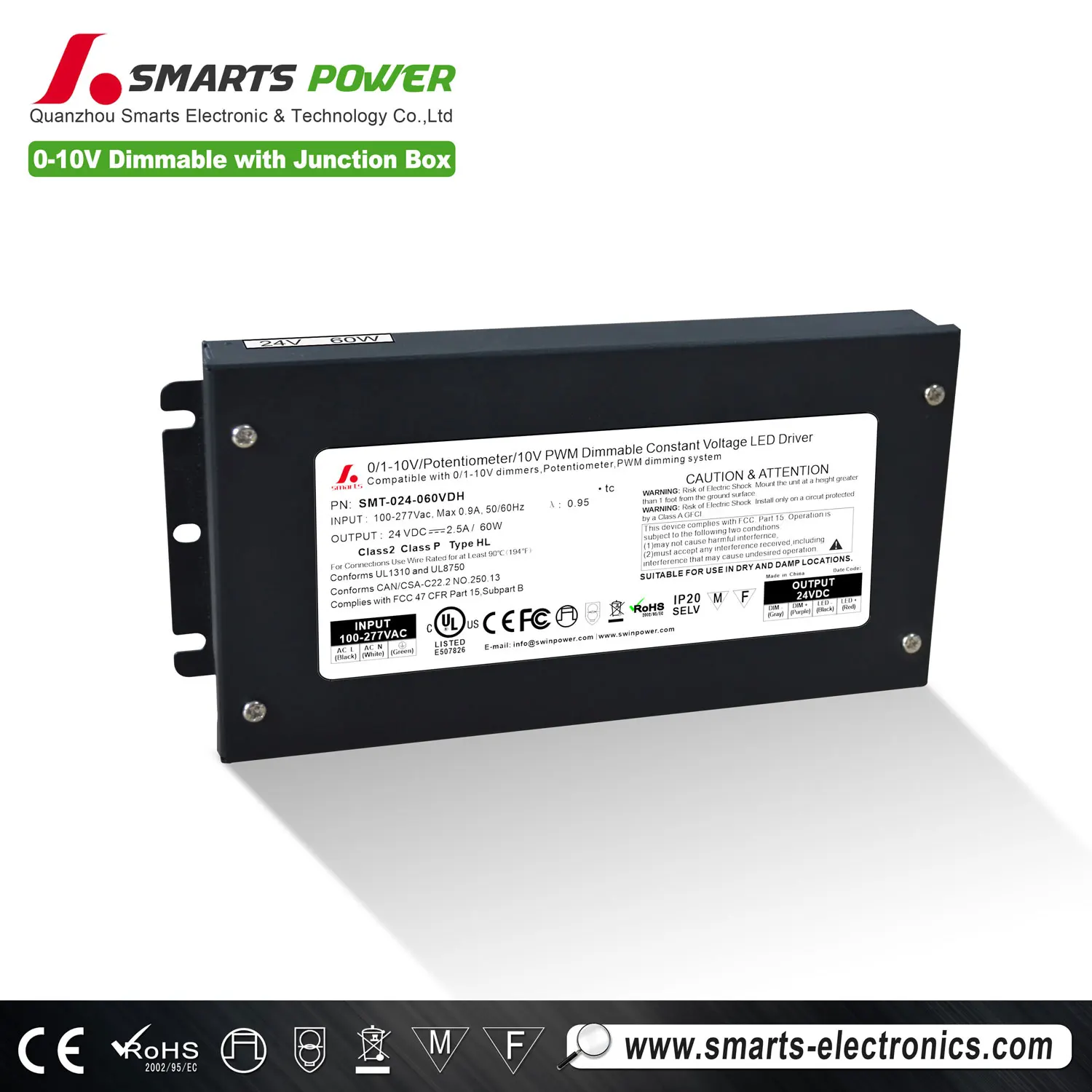

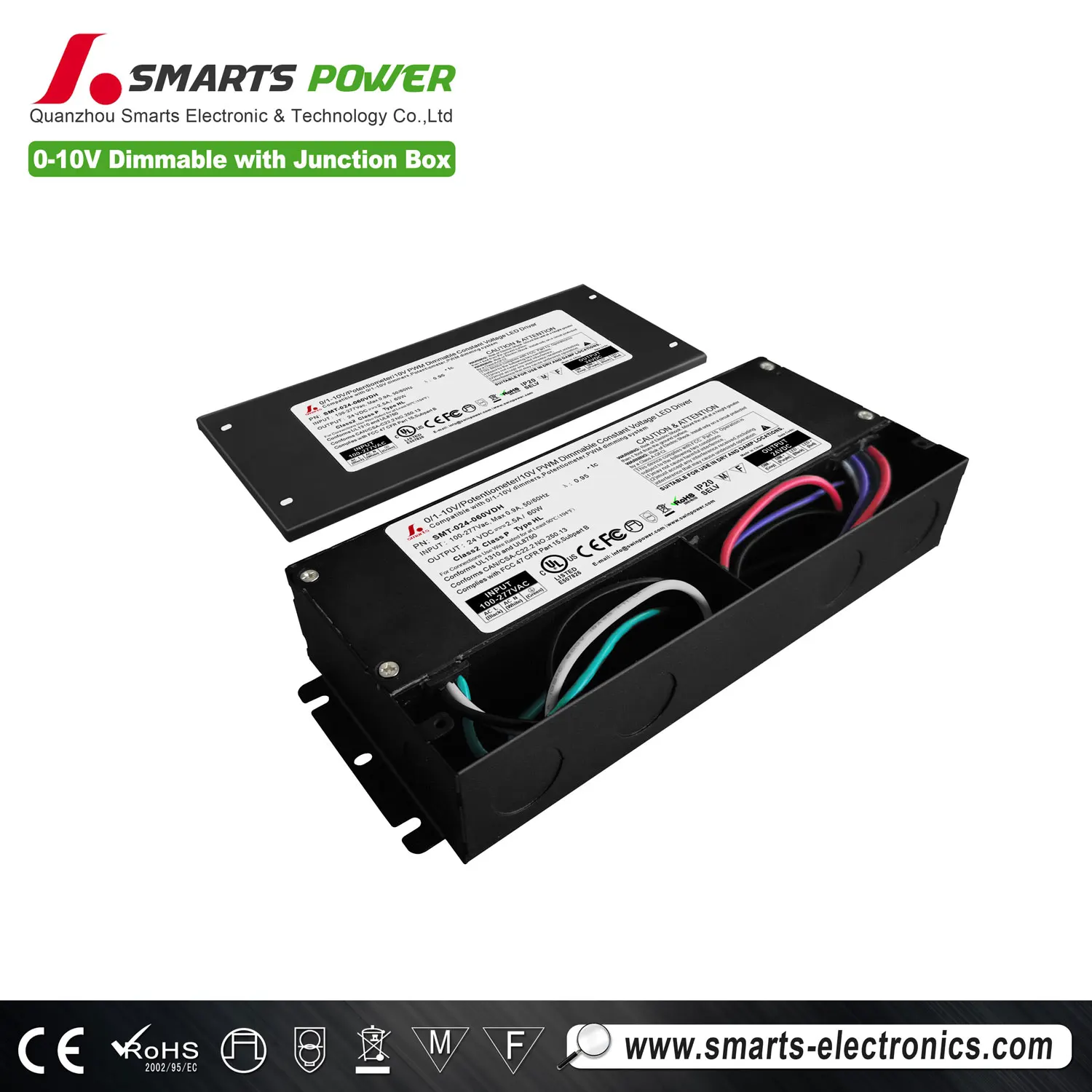

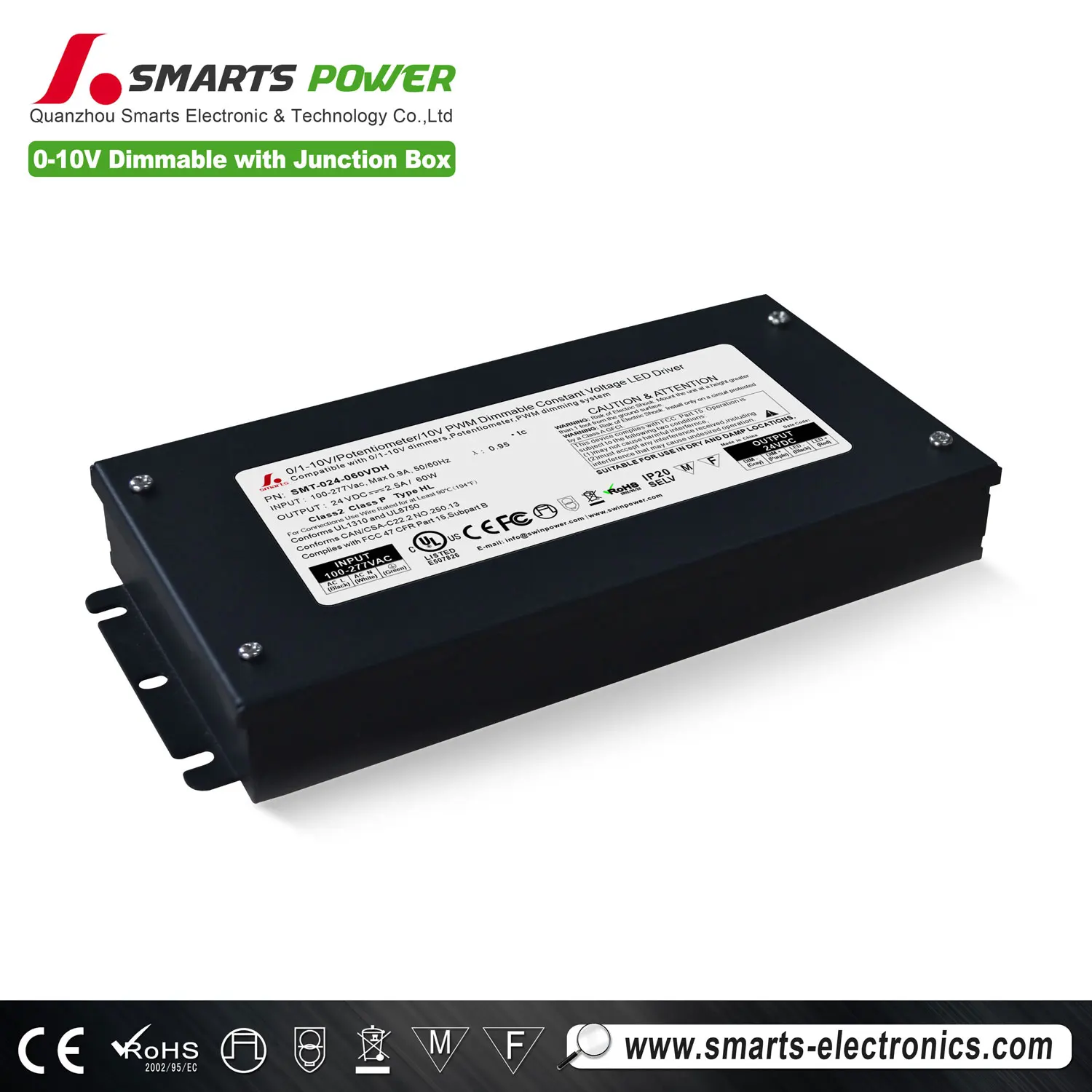

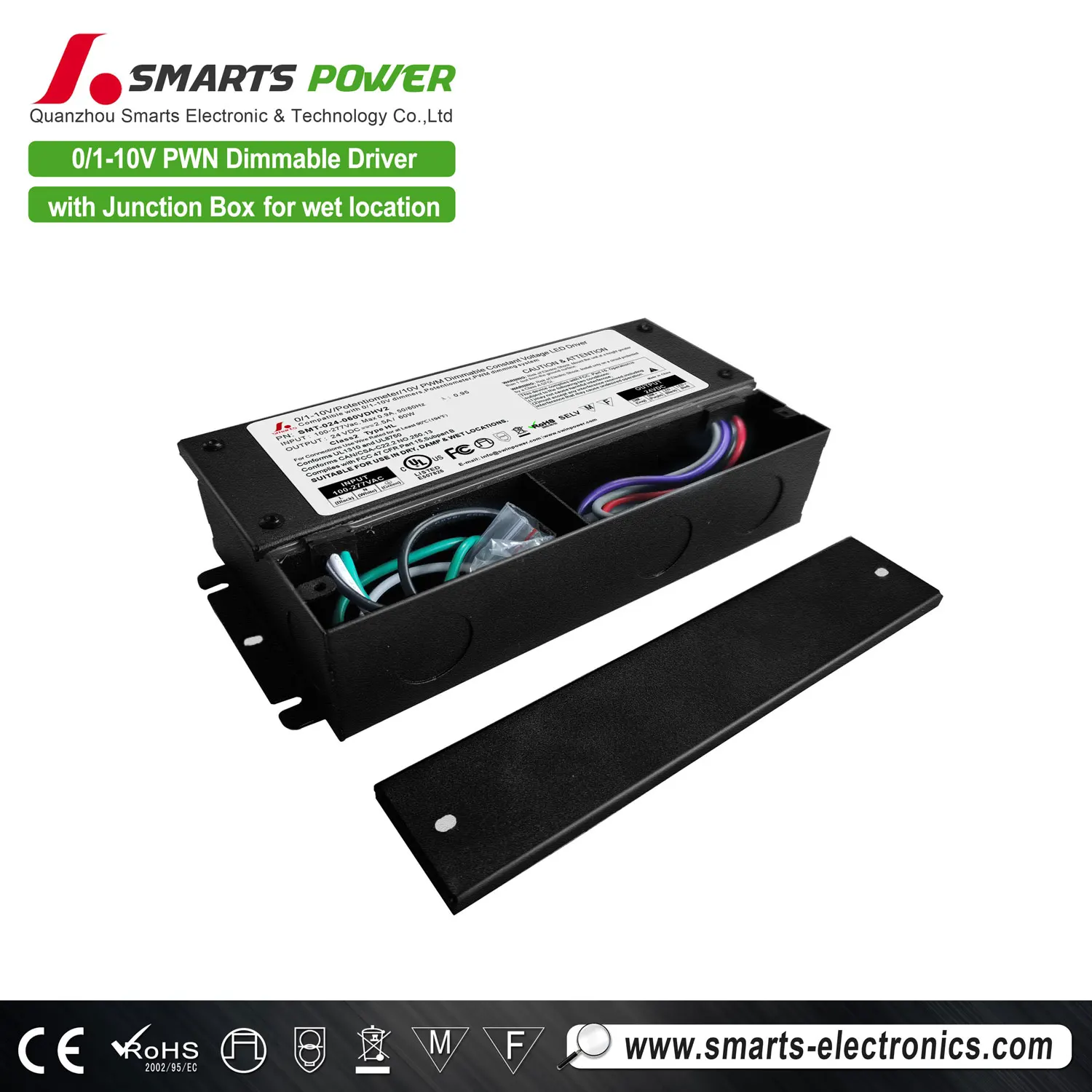

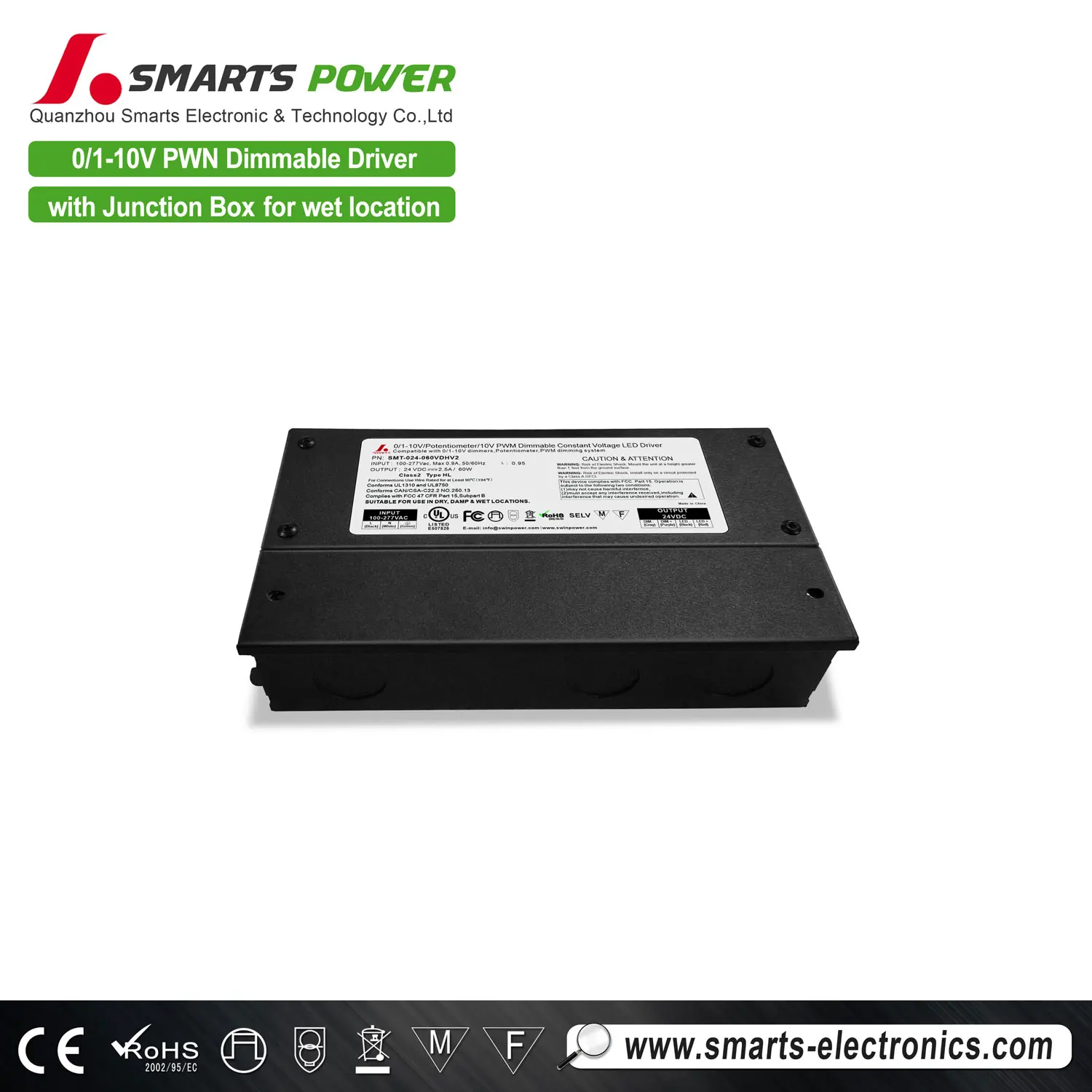

0 10v led transformer 60w 12V 24V constant voltage ac dc LED power supply with junction box

model

SMT-012-060VDH

SMT-024-060VDH

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Rated current

5.00A

2.50A

Load Regulation

±1%

Rated power

60W

60W

Input

Voltage Range

100-277V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.98@120VAC  0.95@277VAC

0.98@120VAC  0.95@277VAC

Full Load Efficiency(Typ.)

>88%

>89%

AC Current(Typ.)

0.9A/110VAC

Inrush Current (Typ.)

14A, 50%, 780us

Leakage current

<0.50mA

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over voltage

<140VAC(90~135V) , <285VAC(170~277V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level (surge4KV)

Others

Weight

About 1.1Kg

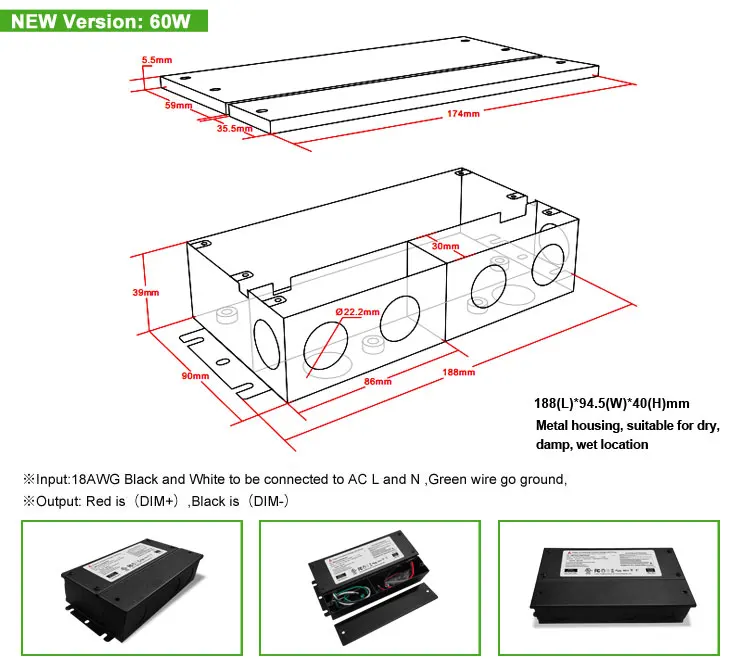

Size

188*92*26mm(L*W*H)

packing

10PCS/CTN

 (L*W*H)

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

IP20
100-277Vac
UL(E507826)
