GVS Factory KNX/EIB Smart Home Automation System KNX Tuya Zigbee Gateway Smart Home Automation System

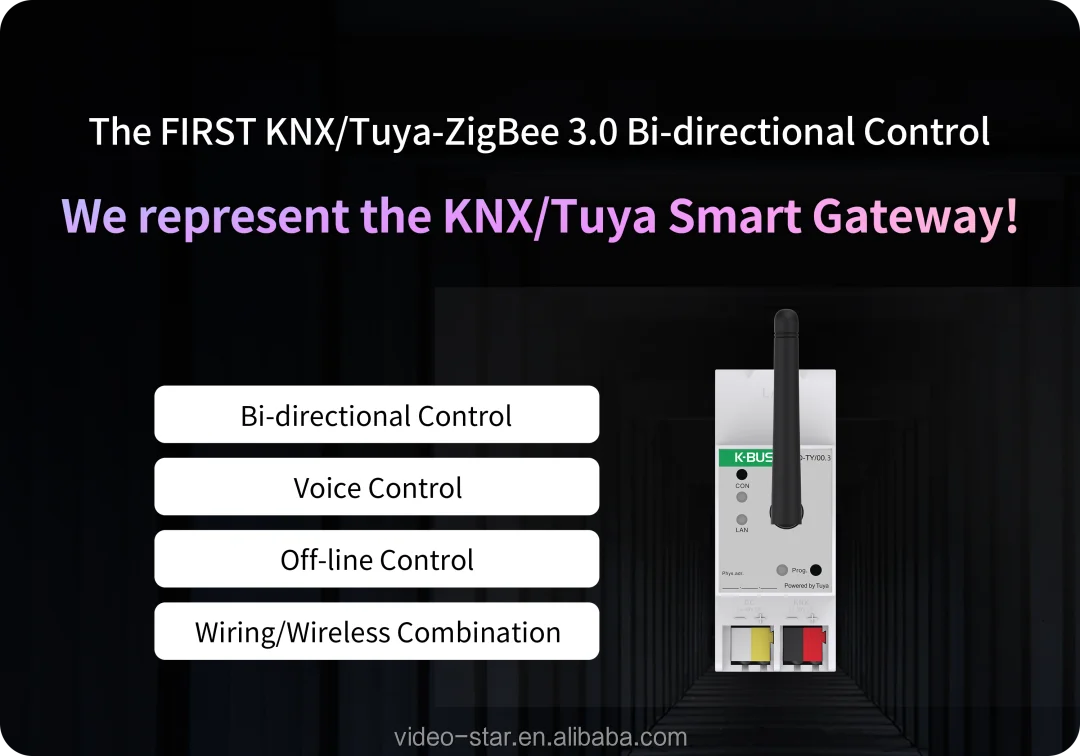

KNX Tuya Gateway for Zigbee 3.0

The functions are summarized as followed:

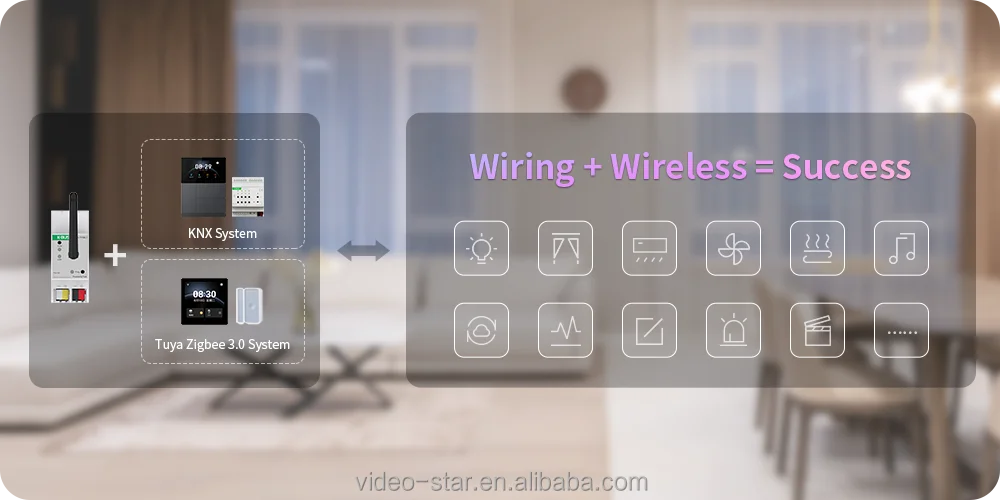

• As a ZigBee Gateway function, it can connect to Tuya Cloud, and add ZigBee device of Tuya ecosystem to the cloud

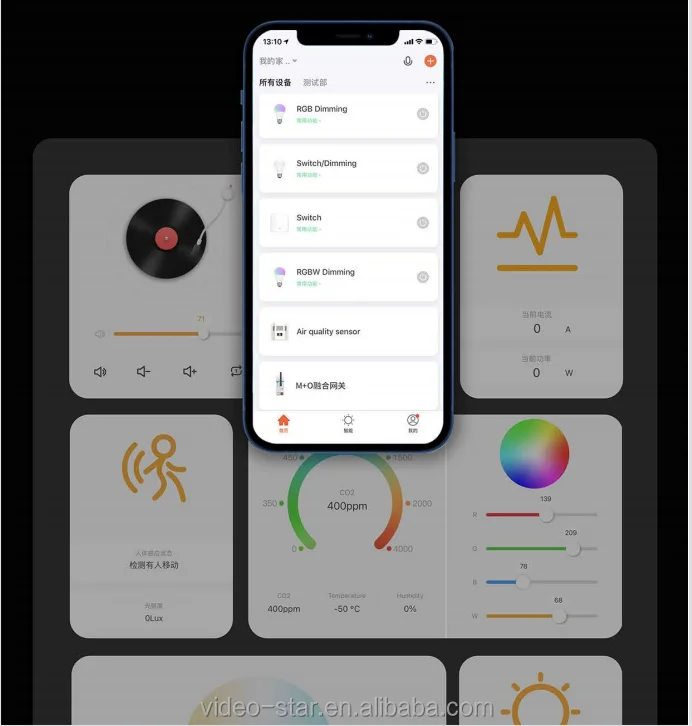

• Support uploading KNX devices to Tuya platform for management, to control KNX device and display status


• Support KNX devices functions, including Switch, Dimming, Curtains, Scenes, Color and Color temperature control, Audio control, HVAC control(Room temperature control, Air conditioner and Ventilation system), multiple sensors(Air Quality,Temperature and humidity, Brightness, Gas, I/O signal and etc.), and Current, Energy Metering display


• Logic functions

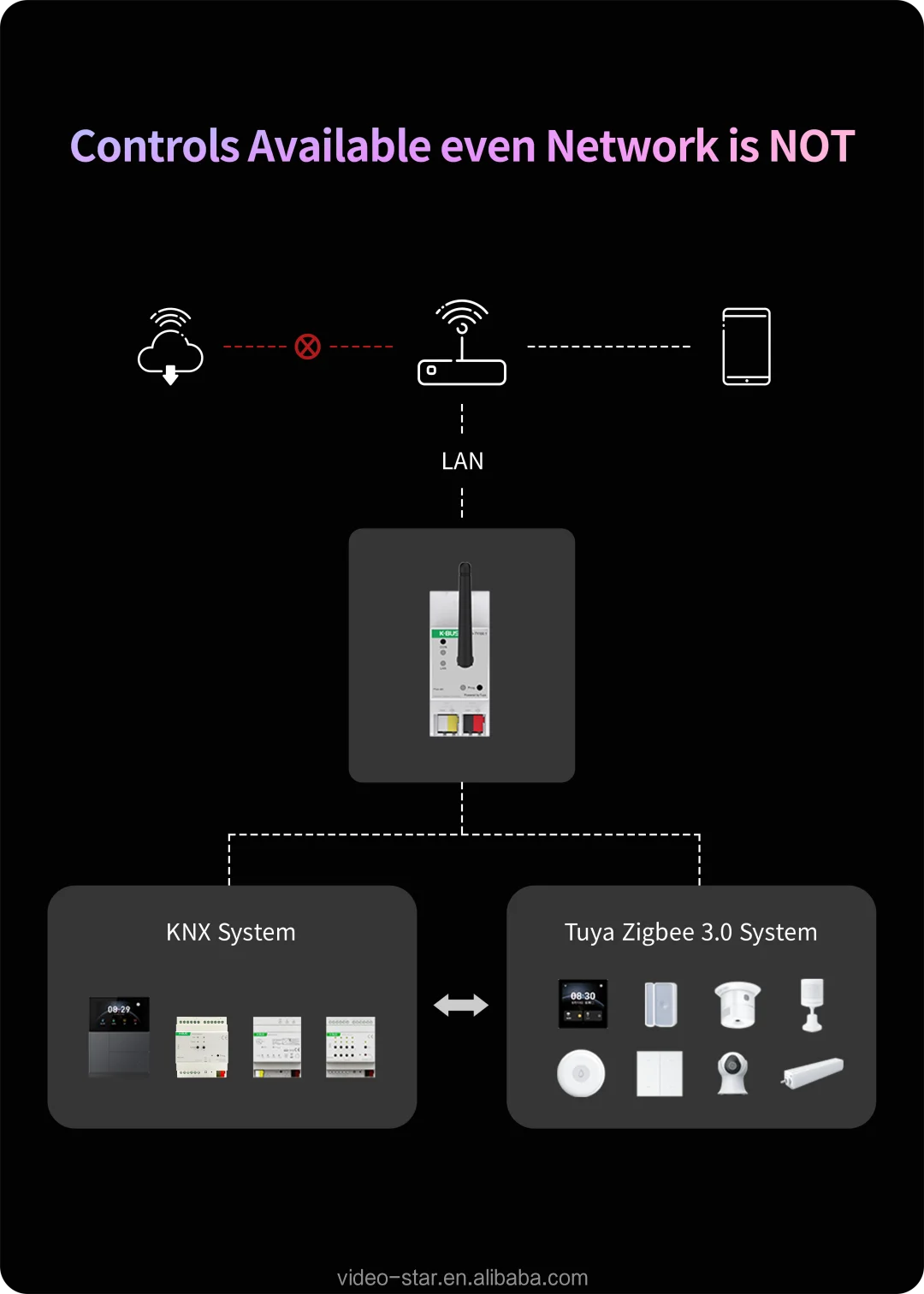

• Support bidirectional communication between ZigBee and KNX device(only for premium version BTMO-TY/00.3(4)



Application	Maximum of communication objects	Maximum number of group addresses	Maximum number of associations
KNX Gateway for Tuya ZigBee/1.0 KNX Gateway for Tuya ZigBee,Premium/1.0	3933	8000	8000



KNX channel function

Support to upload the KNX device to the Tuya platform for management, which to control the device and display status. Up to support 150 devices. Each device can be customized its name with the engineering design tools ETS, and has In operation setting to monitor whether the device is online and upload to APP. Top 100 device channels support the whole functions, including switch, dimming, curtain, scene switch, color and color temperature (RGB, RGBW and color temperature), audio control, HVAC control (Room temperature control, Air conditioner and Ventilation), multiple sensors (Air quality, humidity and temperature, brightness, gas, I/O signal and etc.), and current, energy display. The latter 50 device channels only support the functions, including switch, dimming, curtain, air quality sensor and energy display. Note: Request each device status when the gateway power on.



Zigbee channel function (only for premium version BTMO-TY/00.3(4))

Support bidirectional communication between ZigBee and KNX device, for integrating Zigbee devices into KNX system, up to 32 device data points, which can be set with name and MAC address information on the ETS. Use the website (Tuya Zigbee Gateway Management System) to configure and manger the linkage between Zigbee devices and KNX system. Support to control the following Zigbee devices with the KNX system:



Sensor: Air quality sensor, Temperature and humidity sensor, Brightness sensor, Gas sensor, and I/O signal (Switch, Boolean, Alarm, Occupancy sensor,Window/door sensor);
Zigbee lamp: lamp, dimmable lamp, RGB bulb/strip, color temperature light and RGBCW bulb;
Electric curtain.



Room temperature controller



Up to support 10 room temperature controllers. Mainly used to control the room temperature, Automatically and optimally cooling/heating control according to the room use or the occupants needs.



Support to manual switch to heating/cooling control, optionally three fan speeds and the auto fan speed, 4 operation modes: comfort, standby, economy and protection mode.



The temperature setpoint value supports the relative setting method, and is adjustable range setting. Support 2 points and PI control.



Ventilation controller



Support 1 ventilation controller, and fan speed can be linked to PM2.5/CO2/VOC, optionally output types of 1bit of 1byte.



Logic function



Up to support 8 channels of logic, each channel up to support 8 inputs and 1 logic result.

Logic function support functions, including AND, OR, XOR, Gate forwarding, Threshold comparator,

Format convert, Gate function, Delay function and Staircase lighting.

GVS, Professional manufacturer since 1999, specilizing in KNX/EIB Smart Home/Office/Hotel/Building Solution and KNX Products.

Why choose us?

KNX

    In order to transfer control data to all building management components, a system is required that does away with the problems of isolated devices by ensuring that all components communicate via one common language: in short, a system such as the manufacturer and application domains independent KNX Bus. This standard is based upon more than 20 years of experience in the market, amongst others with predecessor systems to KNX: EIB, EHS and BatiBUS. Via the KNX medium to which all bus devices are connected (twisted pair, radio frequency, power line or IP/Ethernet), they are able to exchange information.

Bus devices can either be sensors or actuators needed for the control of building management equipment such as: lighting, blinds / shutters, security systems, energy management, heating, ventilation and air-conditioning systems, signaling and monitoring systems, interfaces to service and building control systems, remote control, metering, audio / video control, white goods, etc.

All these functions can be controlled, monitored and signaled via a uniform system without the need for extra control centers.
