Skyline voip product Hot Sale SK32 128 gsm call voice gateway 32 channel goip VoIP gateway
- Category: >>>
- Supplier: Skyline (Shenzhen) Technology Co. Ltd.
Share on (1600740648965):
Product Overview
Description
Product Description

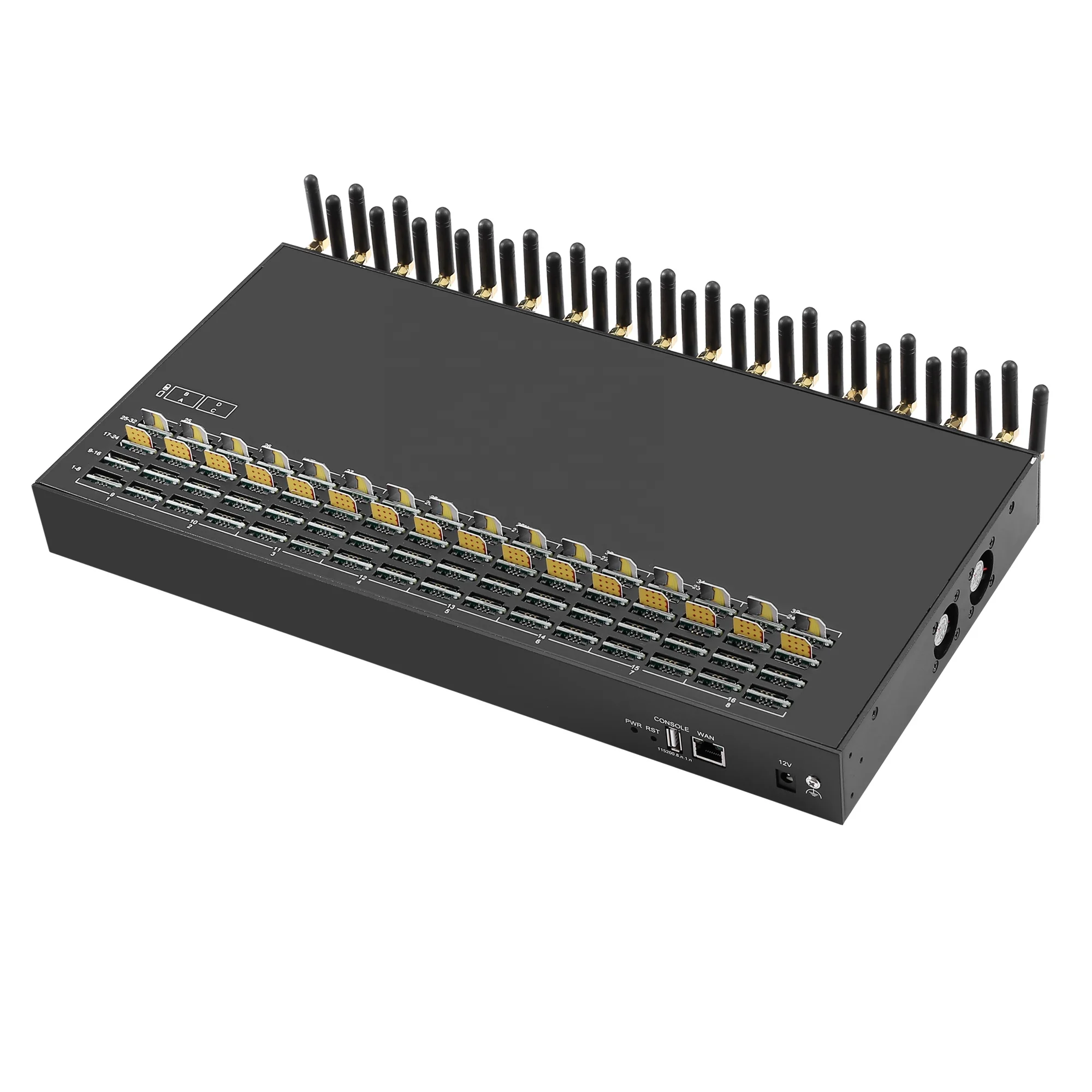

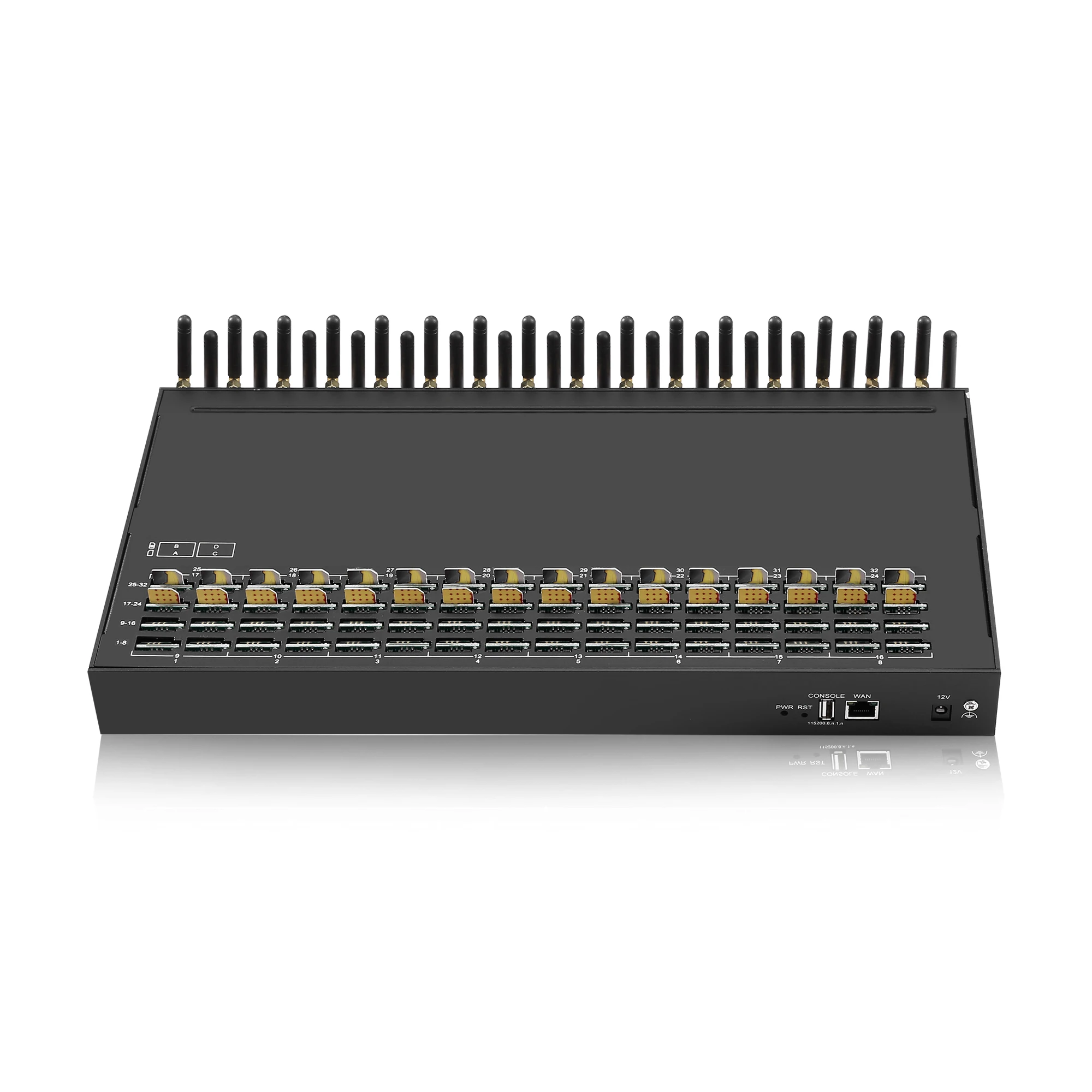

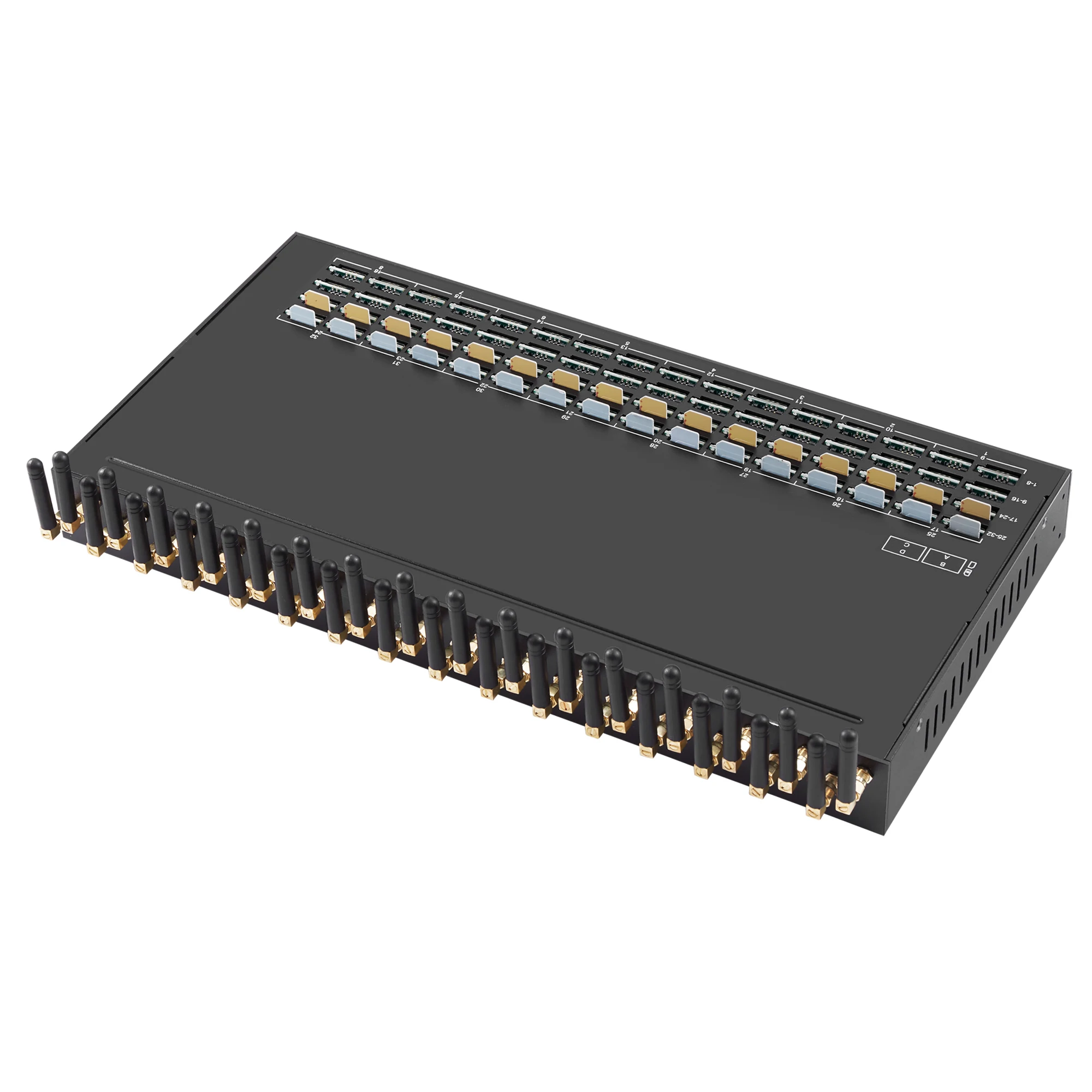

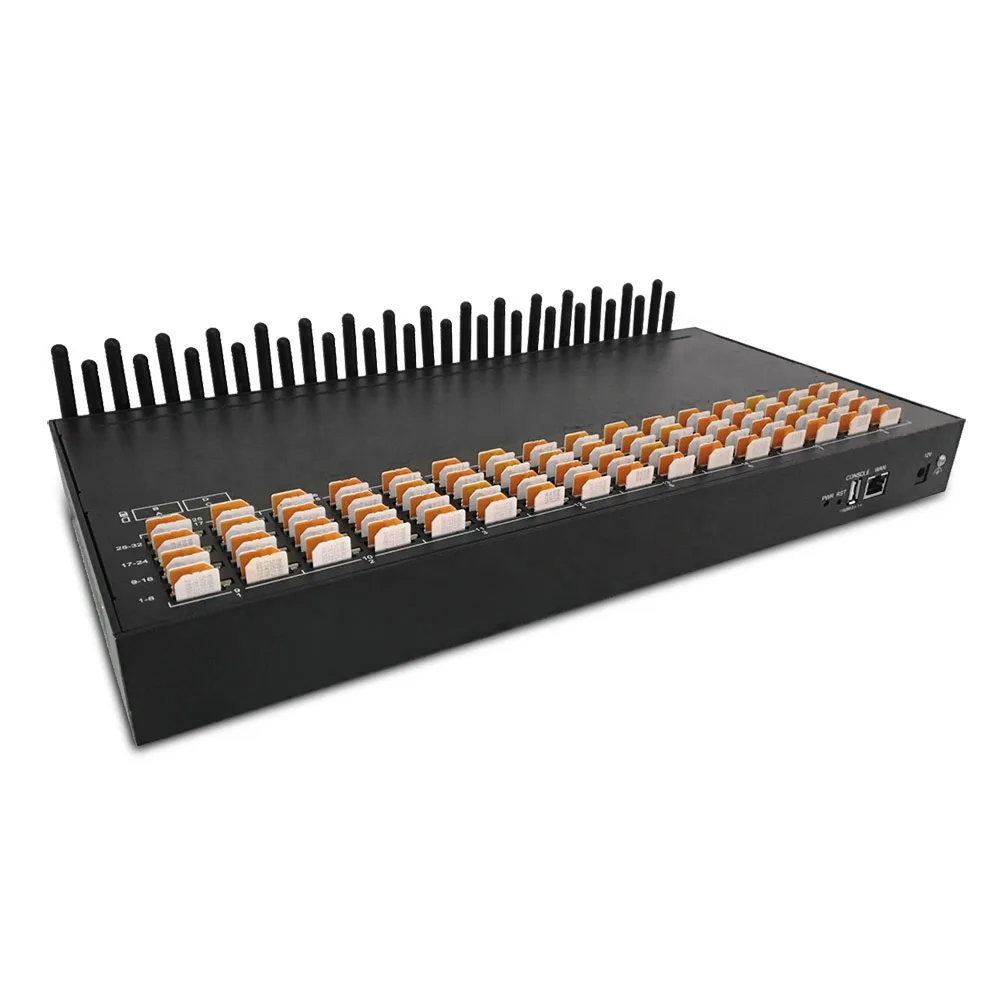

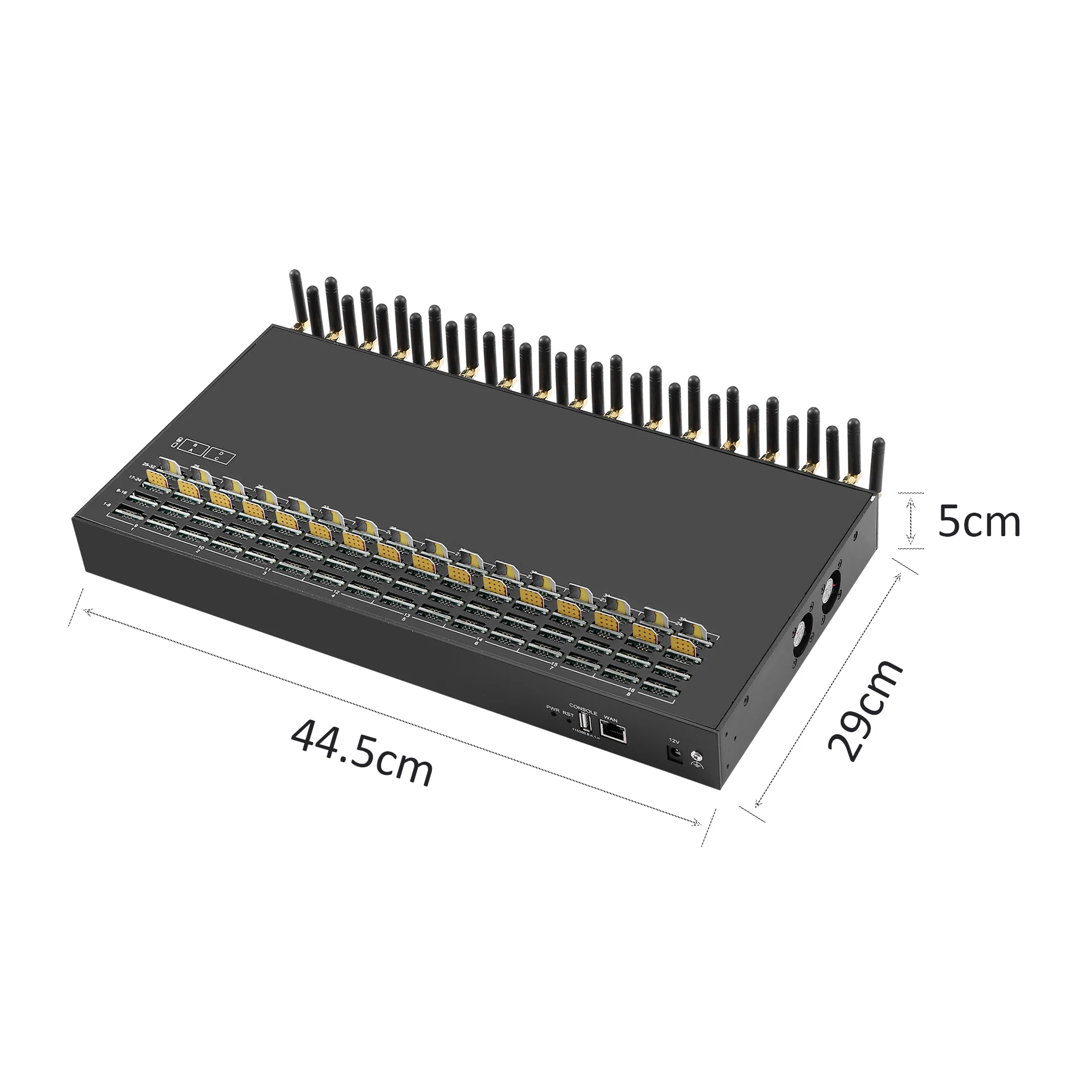

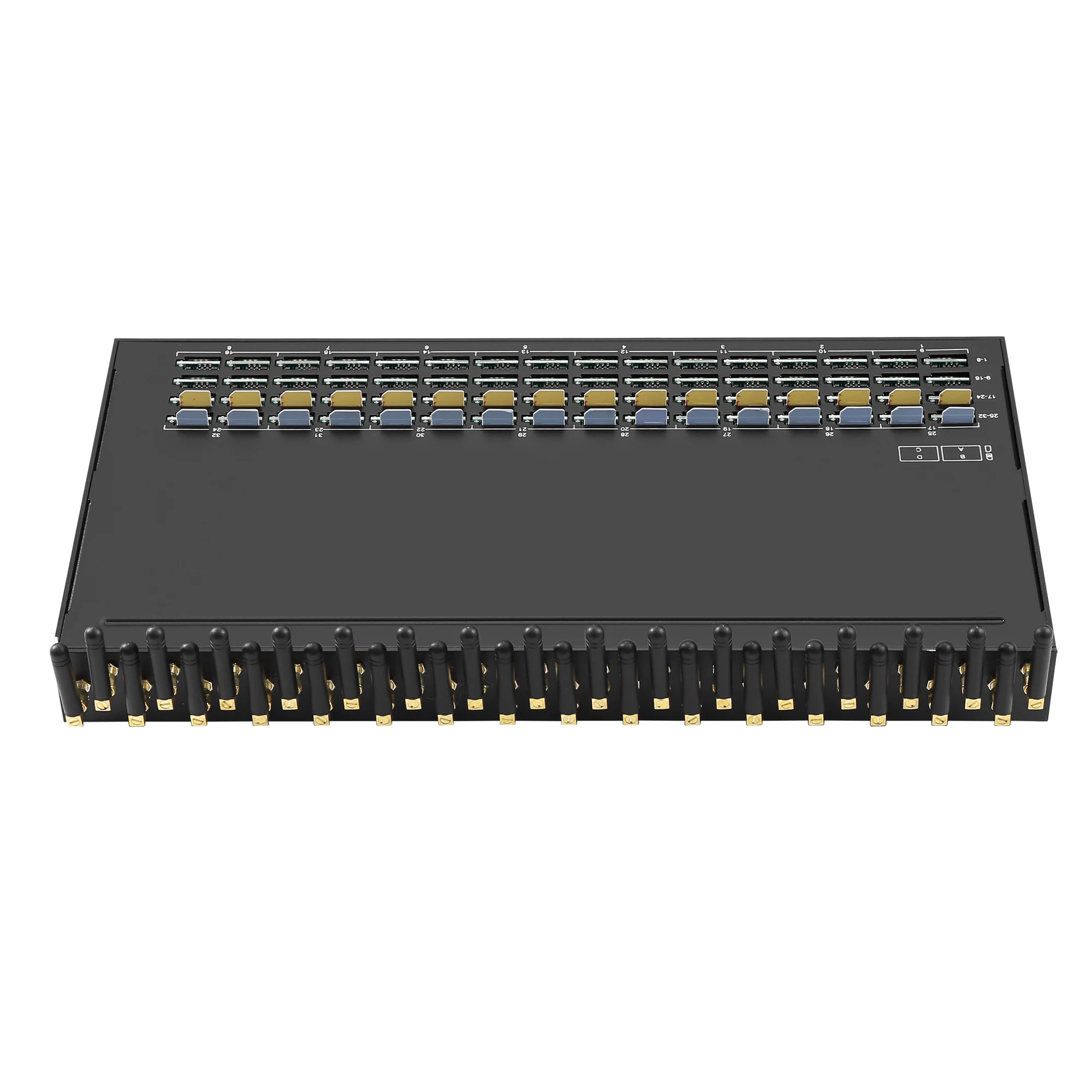

4G SK 32-128 VoIP Gateway
SK 32-128 VoIP Gateway is a multi-functional and high performance product, which is designed with advanced embedded technology. SK 32-128 is able to process traditional voice call service, sms service and internet data service and adopt new hardware and software structure, which supports up to 32 concurrent callsSK 32-128, 32 channels 128 sim cards
1) Base station Change
2) IMEI Change
3) AT command directly
4) Support connect with simpool
5) Support USSD balance enquiry, billing
6) Direct to monitor ASR and ACD in device
7) Support to do both sms route and voice route
8) Auto suffer the internet to use Internet traffic
9) Intercalling/ Intersending system for decreasing sim block
10) Automatically lock/switch SIM card according to its balance, balance alarm
11) Support SIMS hot-swap
12) Support SMPP server/client
13) Support HTTP/SIP SMS API
2) IMEI Change
3) AT command directly
4) Support connect with simpool
5) Support USSD balance enquiry, billing
6) Direct to monitor ASR and ACD in device
7) Support to do both sms route and voice route
8) Auto suffer the internet to use Internet traffic
9) Intercalling/ Intersending system for decreasing sim block
10) Automatically lock/switch SIM card according to its balance, balance alarm
11) Support SIMS hot-swap
12) Support SMPP server/client
13) Support HTTP/SIP SMS API
14) Direct to open gateway software page in Webpage
Specification:
Model | 4G SK32-128 VOIP Gateway |
Number of Channels | 32 channels |
Function | Both Voice and SMS business |
SMS Sening Speed | 4G 32 Port: 76800 SMS one hour 38400 MMS one hour 3G 32 Port: 57600 SMS one hour 28800 MMS one hour 2G 32 Port: 38400 SMS one hour 19200 MMS one hour |
Frequency | 2G GSM: 850/900/1800/1900MHz 3G WCDMA: 850/900/1800/1900/2100Mhz 4G LTE: TDD and FDD LTE |
Module Choice | 2G: Quectel M26 3G: Quectel UC20 4G: Quectel EC25 & EG91 |
SIP/2.0 RFC3261 | |
Session Timer RFC4028 | |
STUN | |
DHCP/PPPoE/VPN(pptp) | |
NTP | |
Telnet/HTTP/FTP/TFTP | |
Encryption:Skyline,VOS2000,RC4,XOP.Base64 | |
Telephony Features | Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list |
DTMF tone dectection/generation | |
DTMF relay: in-band, RFC 2833 and SIP info | |
Call forward: unconditional, no answer and busy | |
N-way conferencing | |
Caller ID display/generation, Mobile Number Portability | |
Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC | |
Echo cancellation | |
Silence suppression & detection(VAD, CNG) | |
Adaptive jitter buffer | |
Volume adjustable | |
IVR customized | |
Number of Ports | 1 WAN 10/100Base-T Ethernet(RJ-45 connector) |
1 Console(USB) | |
LEDs | 1 Power and 32 groups of card online and running status indicator |
Power Supply | 100-240VAC, 50 - 60 Hz IN, 12V/7.5A OUT |
Operating Environment | Operating temperature: 0 - 50ºC |
Operating humidity: 10 – 90%RH | |
Warranty | 12 Months |
- Special Features:
• Support G729a/b/e,G723.1,G.711 A/U law, iLBC auto-selecting)
• Proxy Encryption Solution for IP Block
• Support SIM Bank
• VPN(pptp)
• Web Browser: Firefox/Chrome /IE/Opera
• ERMS(Skyline Remote Management System)
• Proxy Encryption Solution for IP Block
• Support SIM Bank
• VPN(pptp)
• Web Browser: Firefox/Chrome /IE/Opera
• ERMS(Skyline Remote Management System)
- Solution to Reduce SIM Block
• Accumulated Call Duration
• Accumulated Connected Calls
• Accumulated Calls
• Consecutive Failed Calls
• Consecutive No-Alert Calls
• Consecutive No-Answer Calls
• Consecutive No Carrier Calls
• Consecutive Short-Duration Calls
• Station intelligent switching
• Port Inter-Calling
• Fake Ring-back
• Call Duration Limitation for SIM Card/ Single
• Dial Plan/Prefix Inward
• Accumulated Connected Calls
• Accumulated Calls
• Consecutive Failed Calls
• Consecutive No-Alert Calls
• Consecutive No-Answer Calls
• Consecutive No Carrier Calls
• Consecutive Short-Duration Calls
• Station intelligent switching
• Port Inter-Calling
• Fake Ring-back
• Call Duration Limitation for SIM Card/ Single
• Dial Plan/Prefix Inward
- Mobile Features:
• SMS Send, Receive and Forward (GSM/SIP/HTTP)
• SMS Inbox (Receive SMS)• AT Command , USSD
• SMS Format: PDU/TXT
• PIN Code Management
• CDMA Delay Answer
• GSM Polarity Reversal
• Carrier Selection
• Caller ID Hidden(need SIM Card support)
Maintenance and Management:
• Multi-language Interface
• USB Serial COM
• Configuration Backup and Restore
• Support HTTP/TFTP Upgrade
• Call statistics: ASR,ACD,PDD
• Skyline Remote Management System
• Configuration Backup and Restore
• Support HTTP/TFTP Upgrade
• Call statistics: ASR,ACD,PDD
• Skyline Remote Management System

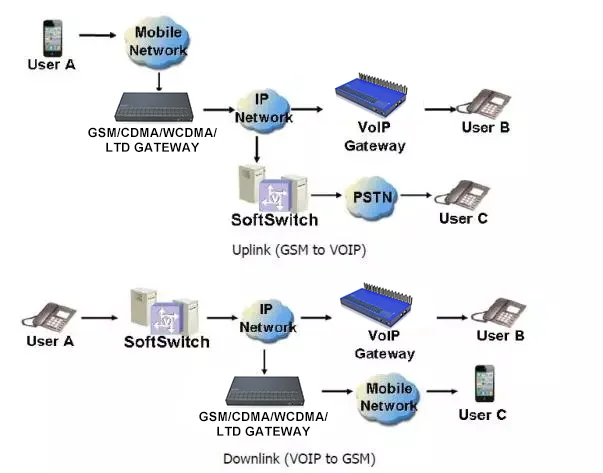

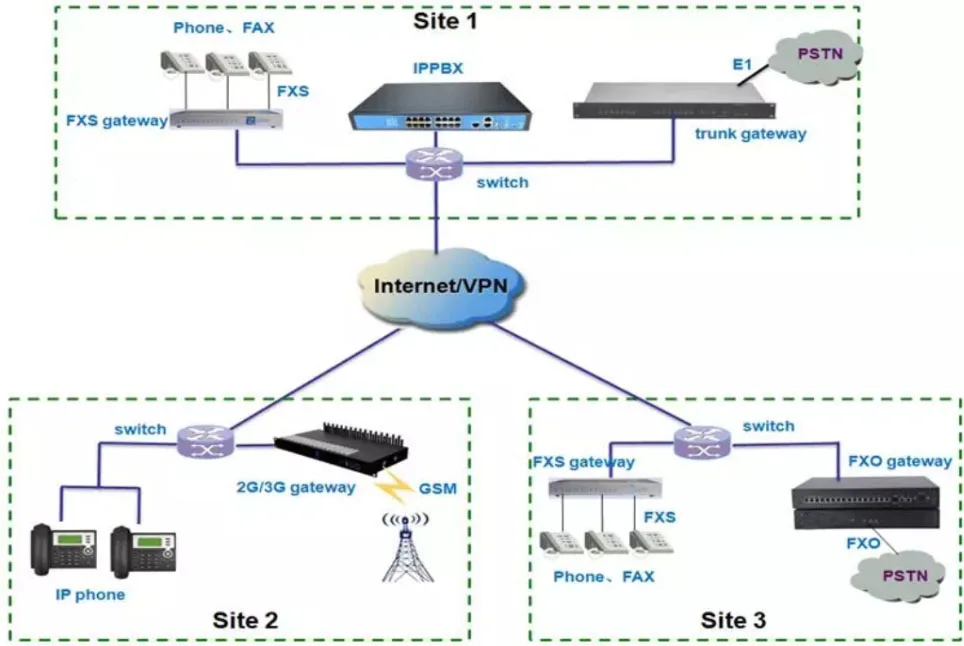

Application:
Call termination:

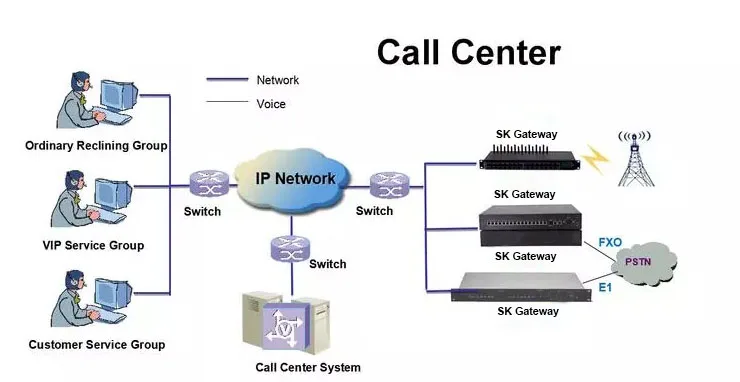

Call Centre:
Enterprise Application:
Frequency:
2G model: 850/900/1800/1900Mhz
3G model: 850/900/1800/1900/2100Mhz
4G model:
3G model: 850/900/1800/1900/2100Mhz
4G model:
Module | Frequency | Suitable for Countries or Regions |
EC25-E | LTE FDD:B1/B3/B5/B7/B8/B20 LTE TDD:B38/B40/B41 WCDMA:B1/B5/B8 GSM:B3/B8 | Europe, Middle East, Africa, Korea, Thailand, Pakistan, Southeast Asia |
EC25-EUX (EC25-EC) | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 | Europe, United Arab Emirates, Asia |
EG91 | LTE-FDD:B2/B4/B5/B12/B13 WCDMA:B2/B4/B5 | USA(Verizon/AT&T/T-Mobile /U.S.Cellular) |
EC25-A | LTE FDD:B2/B4/B12 WCDMA:B2/B4/B5 | USA(T-Mobile, AT&T), Canada |
EC25-AFX | LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5 | USA(Verizon/AT&T/T-Mobile/U.S.Cellular), Canada |
EC25-V | LTE FDD:B4/B13 | USA Verizon |
EC25-J | LTE FDD:B1/B3/B8/B18/B19/B26 LTE TDD:B41 WCDMA:B1/B6/B8/B19 | Japan |
EC25-AU | LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD:B40 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8 | Australia, New Zealand, Latin America |
Gateway Web Management
How to log in Web Management?
Open the web browser and type the IP address. If it is the first time you login the gateway, please
use the default settings below:
IP Address: 192.168.1.10
Account: root
Password: root
use the default settings below:
IP Address: 192.168.1.10
Account: root
Password: root

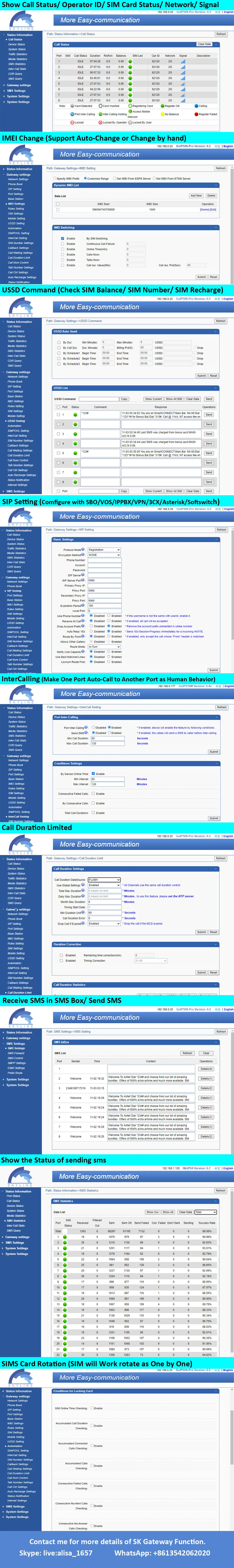

Following are the pages of gateway web management:

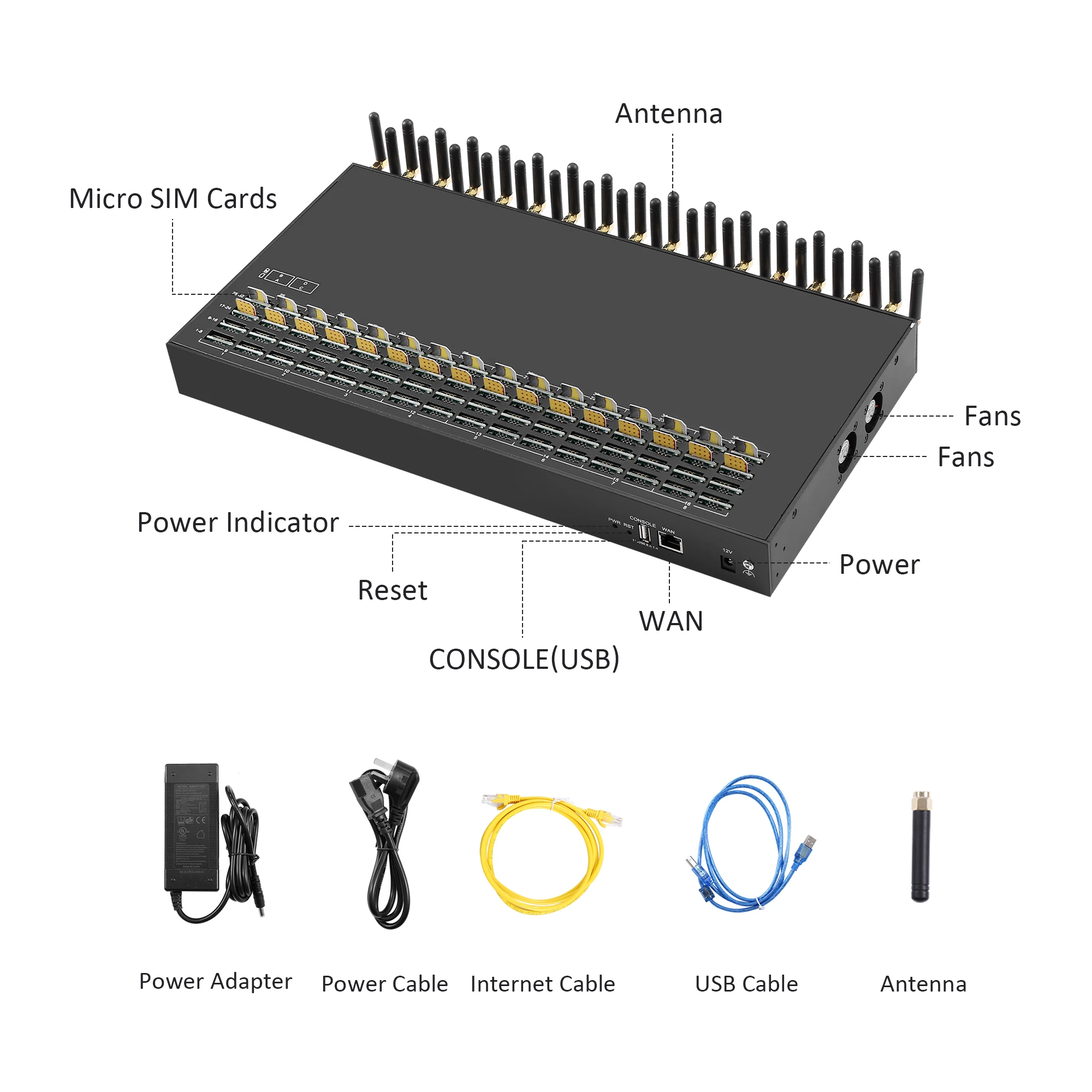

Packing&Shipping

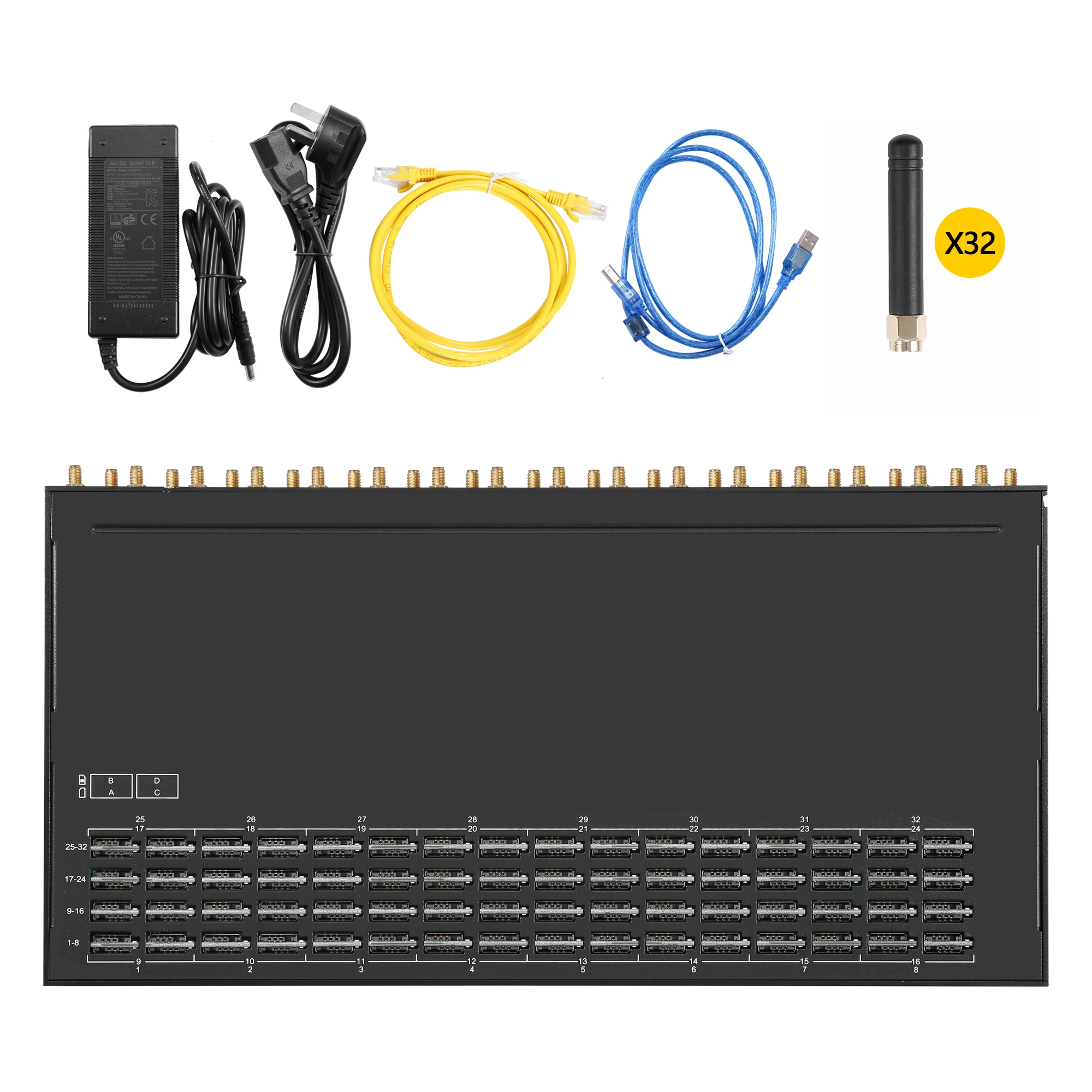

Packing List:
(1) SK Gateway x 1
(2) USB Cable x 1
(1) SK Gateway x 1
(2) USB Cable x 1
(3) Network Cable x 1
(4) Power Supply Adapter x 1
(5) Antennas x 32
(5) Antennas x 32
Trade Terms | FOB, CFR, EXW, DAP |
Payment Terms | Alibaba via Credit Card, Payonner, Payonner link via Credit Card, T/T, Webmoney, Skrill, Western Union, Cash |
Payment Condition | 100% deposit in adavance |
Delivery Time | 1-3 days after full payment |
Packing | Strong Carton Box with Water Proof |
Shipping | DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require |
FAQ
Q: 1 . How can I start voip business?
A: For voip business, you need devices , server , softwitch , sim cards and internet. our company can provide devices ,server and softswitch, like vos3000. Our tech team will help to set up your system to get calls.
A: For voip business, you need devices , server , softwitch , sim cards and internet. our company can provide devices ,server and softswitch, like vos3000. Our tech team will help to set up your system to get calls.
A: For sms business, you need devices , server , sms platform, sim cards and internet. our company can provide devices, sms platform, like EIMSII server. Our tech team will help to set up your system to get test with your sms routes.
And we have Live SMS Traffic to Vietnam, India, USA, Indonesia, Nigeria, Spain, Germany, France, Phillipines, Australia, New Zealand, Canada, UK, UAE, Bangladesh, Thailand, and European regions. If you have sim cards and interested in sms business for huge profit, please contact me!!
Skype: live:demi_1045 WhatsApp/Wechat: 008613686892147 Telegram: @skylinedemi
Q : 3. If I face some issues about the devices , how can i solve it ?
A: All device has one year warrantly and we will provide you with tech support all time to fix your problems.
Q :4. If i use it for sms terminal , but how can i find the traffic provider?
A: We have sms traffic department to push traffic for you.
Q: 5.If my routes face the issue for quality not good , any solution ?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q:6.I need more ports , any device ?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 8-8, 8-32, 16-16, 16-64, 16-128, 32-32, 32-128, 32-256, 32-512, 64-64, 64-256, 64-512 for you to expand your business.
Company Introduction

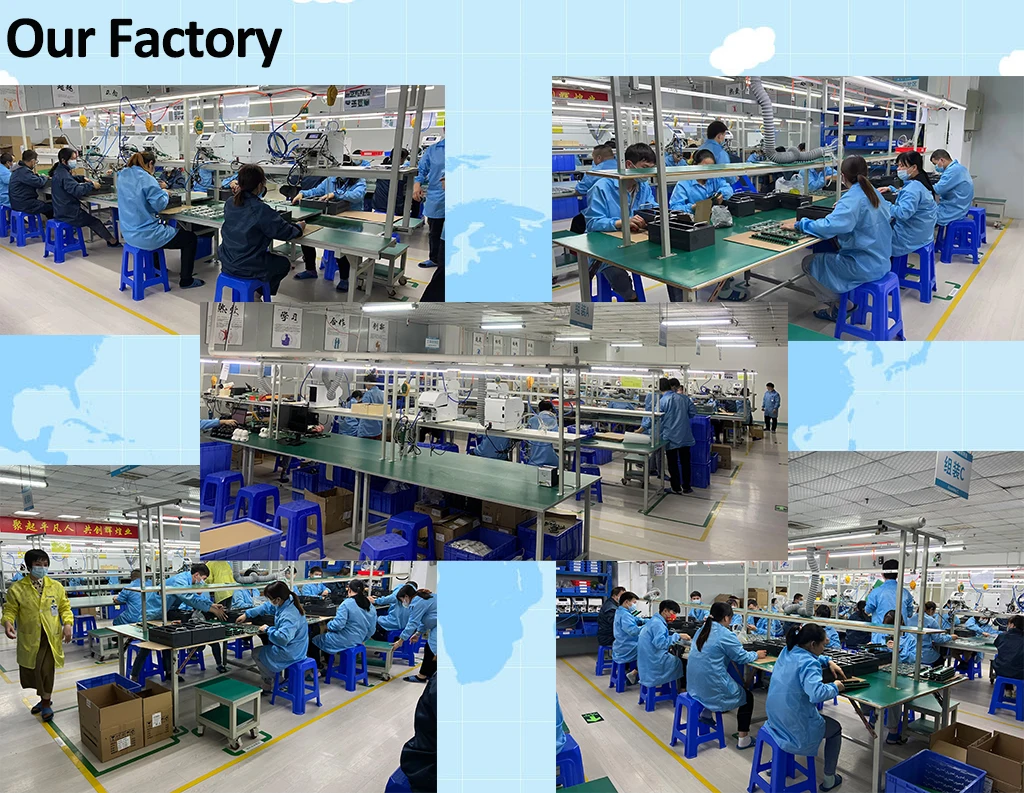

CHINA SKYLINE TELECOM CO.,LIMITED was founded in 2002.We have over 200 employees ,20 departments and more than 10 production
