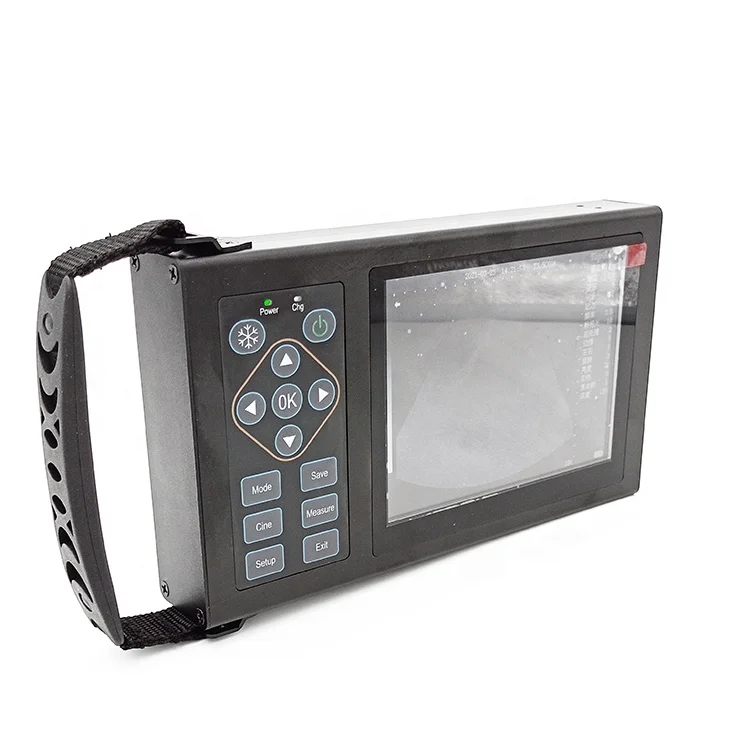

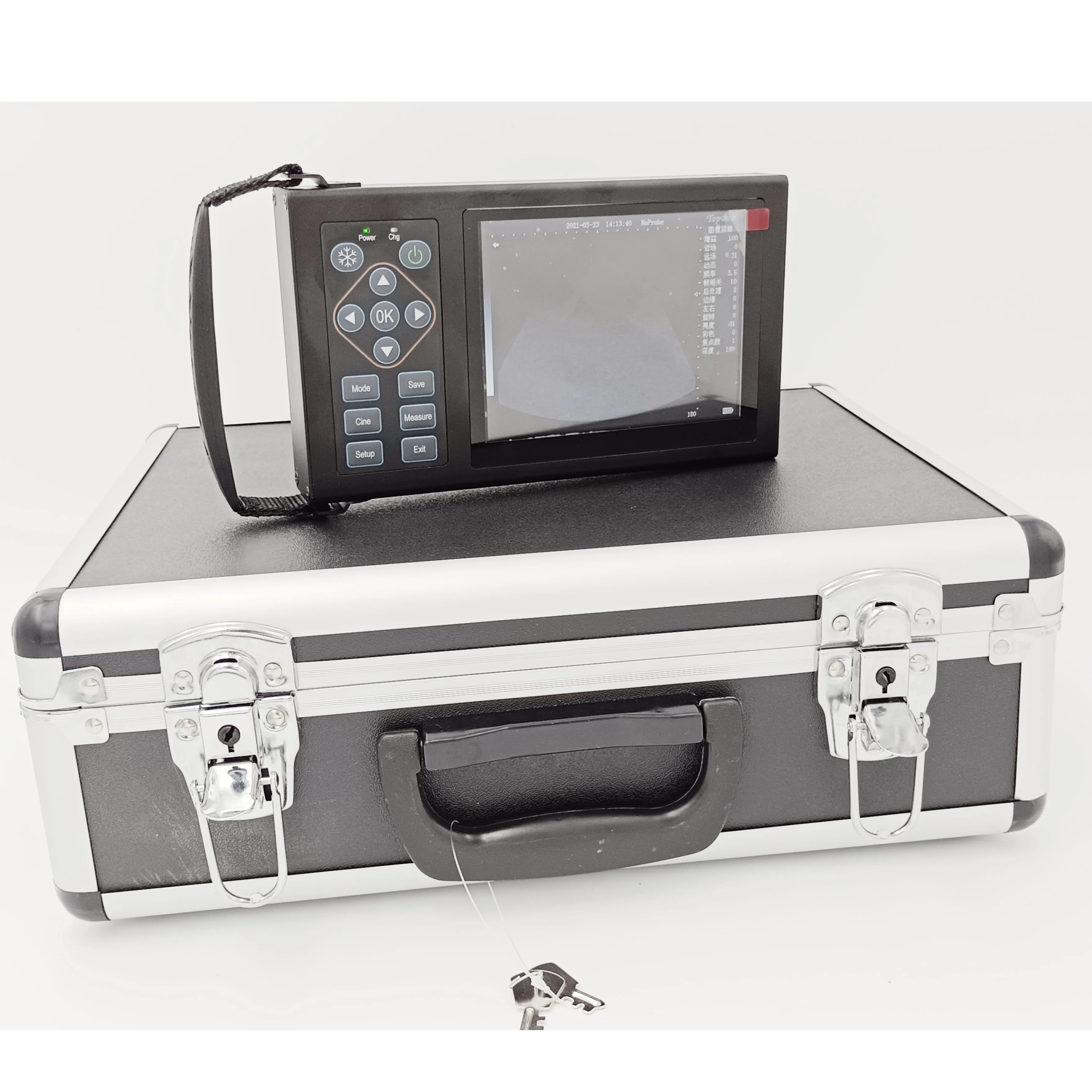

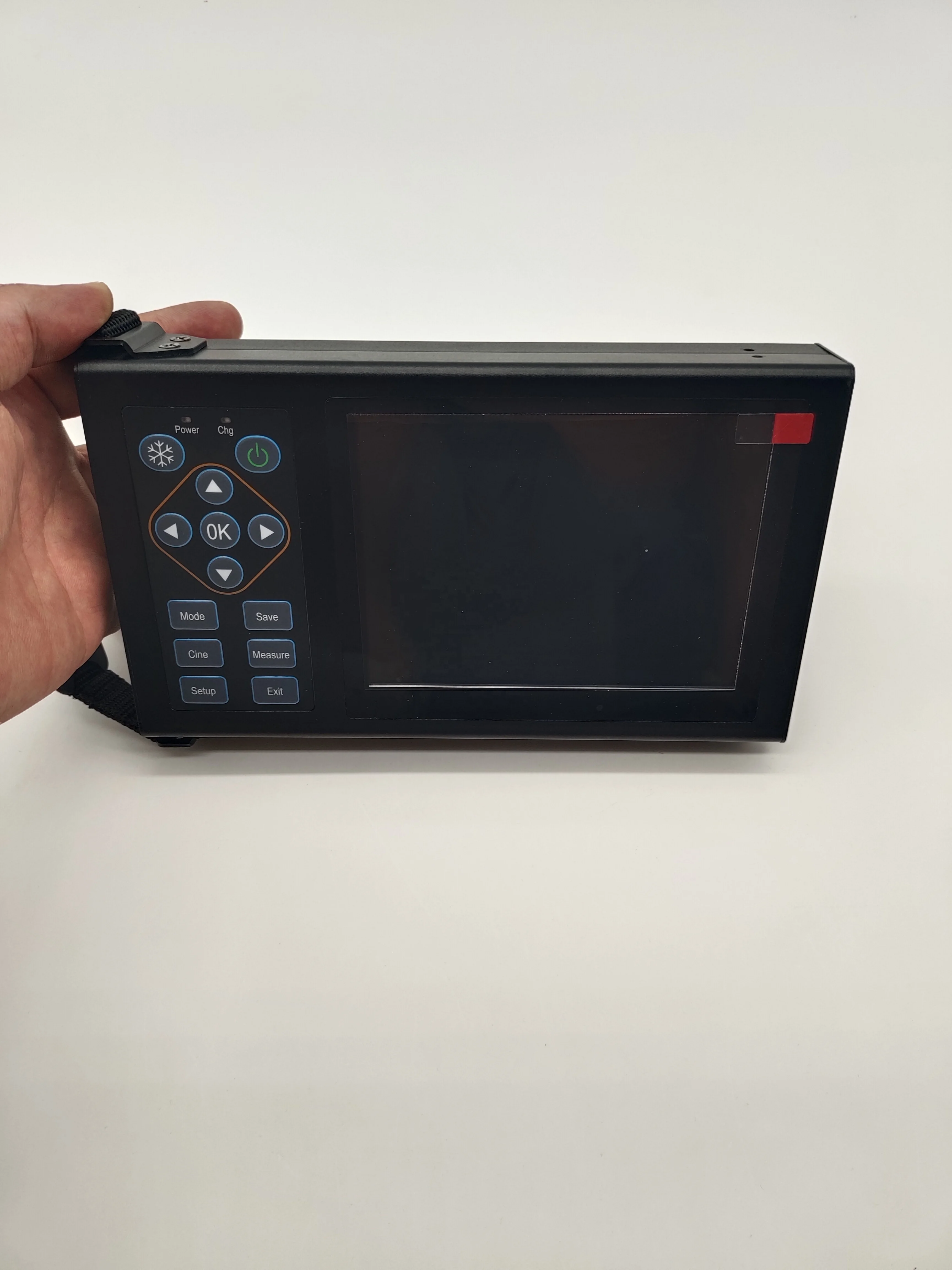

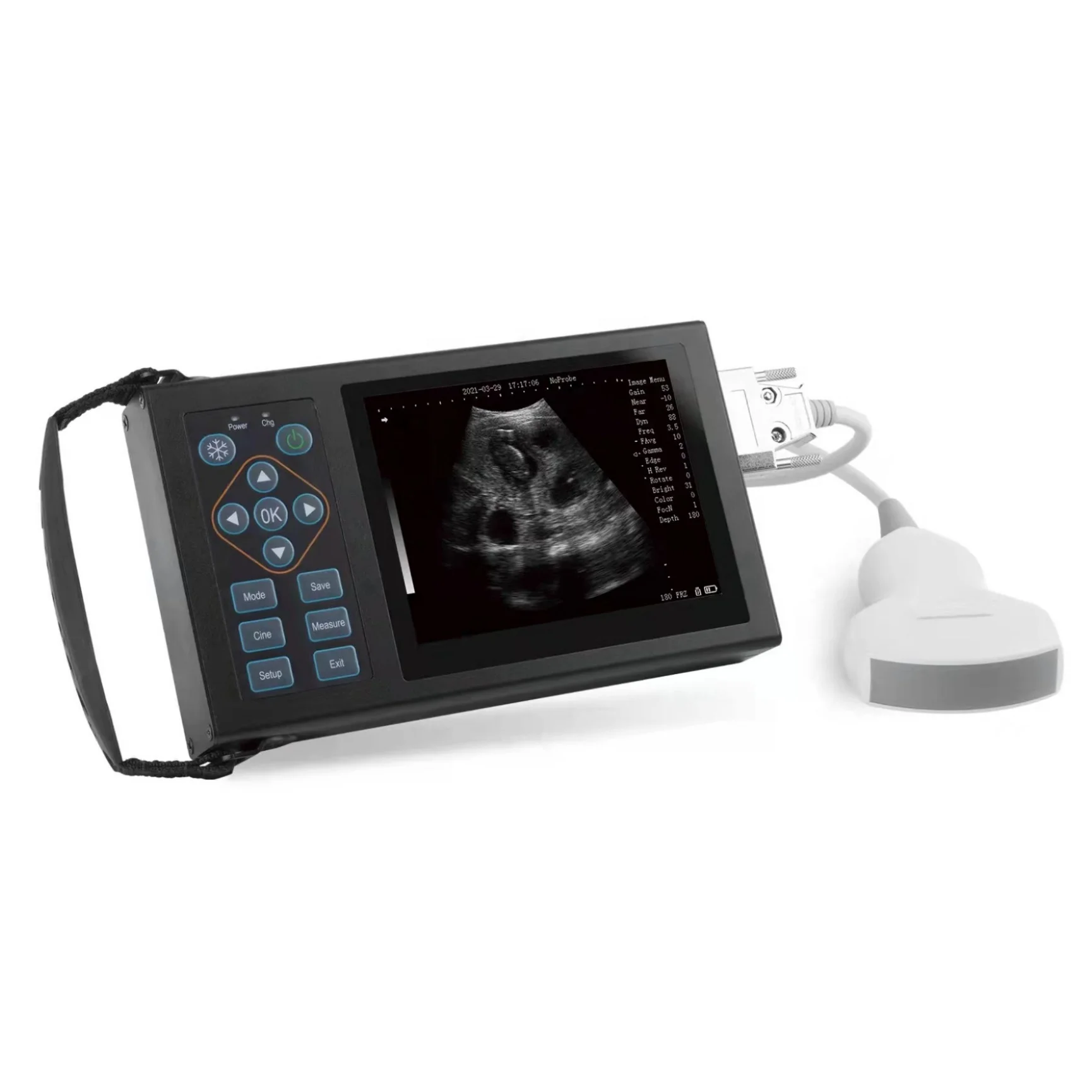

5.6 Inch LED Monitor Color Screen Probe Preheating Animal Pregnancy Vet Test Handheld Veterinary Ultrasound Machine
- Category: >>>
- Supplier: Ningbo E-Fitness Import & Export Co. Ltd.
Share on (1600740663825):
Product Overview
Description
Specification
Properties | Ultrasound Machine For Veterinary |
Product name | Veterinary Ultrasound |
Display | 5.6-inch LED display |
Scanning mode | convex array scanning |
Display mode | B, B + B, 4b, B + m, m |
Electron focusing | four stage electron focusing |
Dynamic range | 0-135db |
Blind area | ≤ 4 |
Geometric accuracy | transverse ≤ 5%, longitudinal ≤ 5% |
Resolution | lateral ≤ 2mm, axial ≤ 1mm |
Gain range | 0-100db |
Product Description
A10 digital B ultrasound parameters
1.Display: 5.6-inch LED display;
2.Scanning mode: convex array scanning
3.Metal wire drawing fuselage, 35mm thick, metal texture, cool fuselage, high heat dissipation;
4.It has automatic backfat function (intelligent one key measurement), fast backfat function (mobile reading ruler) and manual backfat measurement function;
5.Display mode: B, B + B, 4b, B + m, m;
6.Electron focusing: four stage electron focusing;
7.There were more than 18 body position markers;
8.Frequency conversion: five section frequency conversion
9.Image image: rotate the image up, down, left and right, and flip the interface in black and white;
10.With image rotation function, the image can be flipped up, down, left and right;
11.In addition, it has annotation function, which is convenient for text and body mark annotation;
12.Routine measurement: distance, perimeter, area, volume and angle;
13.Specialty measurement, heart measurement and lean meat rate measurement;Obstetric measurement of 8 kinds of animals
14.It has the functions of grid ruler and point ruler, which can read the size of the detected object quickly
15.Character display: gain, frequency, dynamic, date, time;
16.It has 256 frame movie playback function, which can be played back frame by frame and video playback, and can select any image measurement annotation to save frame by frame playback;
17.Storage: can be connected to memory card and U disk storage, can browse pictures on this machine;
18.Dynamic range: 0-135db;
2.Scanning mode: convex array scanning
3.Metal wire drawing fuselage, 35mm thick, metal texture, cool fuselage, high heat dissipation;
4.It has automatic backfat function (intelligent one key measurement), fast backfat function (mobile reading ruler) and manual backfat measurement function;
5.Display mode: B, B + B, 4b, B + m, m;
6.Electron focusing: four stage electron focusing;
7.There were more than 18 body position markers;
8.Frequency conversion: five section frequency conversion
9.Image image: rotate the image up, down, left and right, and flip the interface in black and white;
10.With image rotation function, the image can be flipped up, down, left and right;
11.In addition, it has annotation function, which is convenient for text and body mark annotation;
12.Routine measurement: distance, perimeter, area, volume and angle;
13.Specialty measurement, heart measurement and lean meat rate measurement;Obstetric measurement of 8 kinds of animals
14.It has the functions of grid ruler and point ruler, which can read the size of the detected object quickly
15.Character display: gain, frequency, dynamic, date, time;
16.It has 256 frame movie playback function, which can be played back frame by frame and video playback, and can select any image measurement annotation to save frame by frame playback;
17.Storage: can be connected to memory card and U disk storage, can browse pictures on this machine;
18.Dynamic range: 0-135db;
19.Image processing: gamma correction (0-7), frame correlation (0-3), line correlation (0-5), edge enhancement (0-3), left and right flip (0-1), sixteen kinds of pseudo color processing;
20.Blind area: ≤ 4
21.The maximum display depth is 270mm:
22.organization harmonic, histogram function

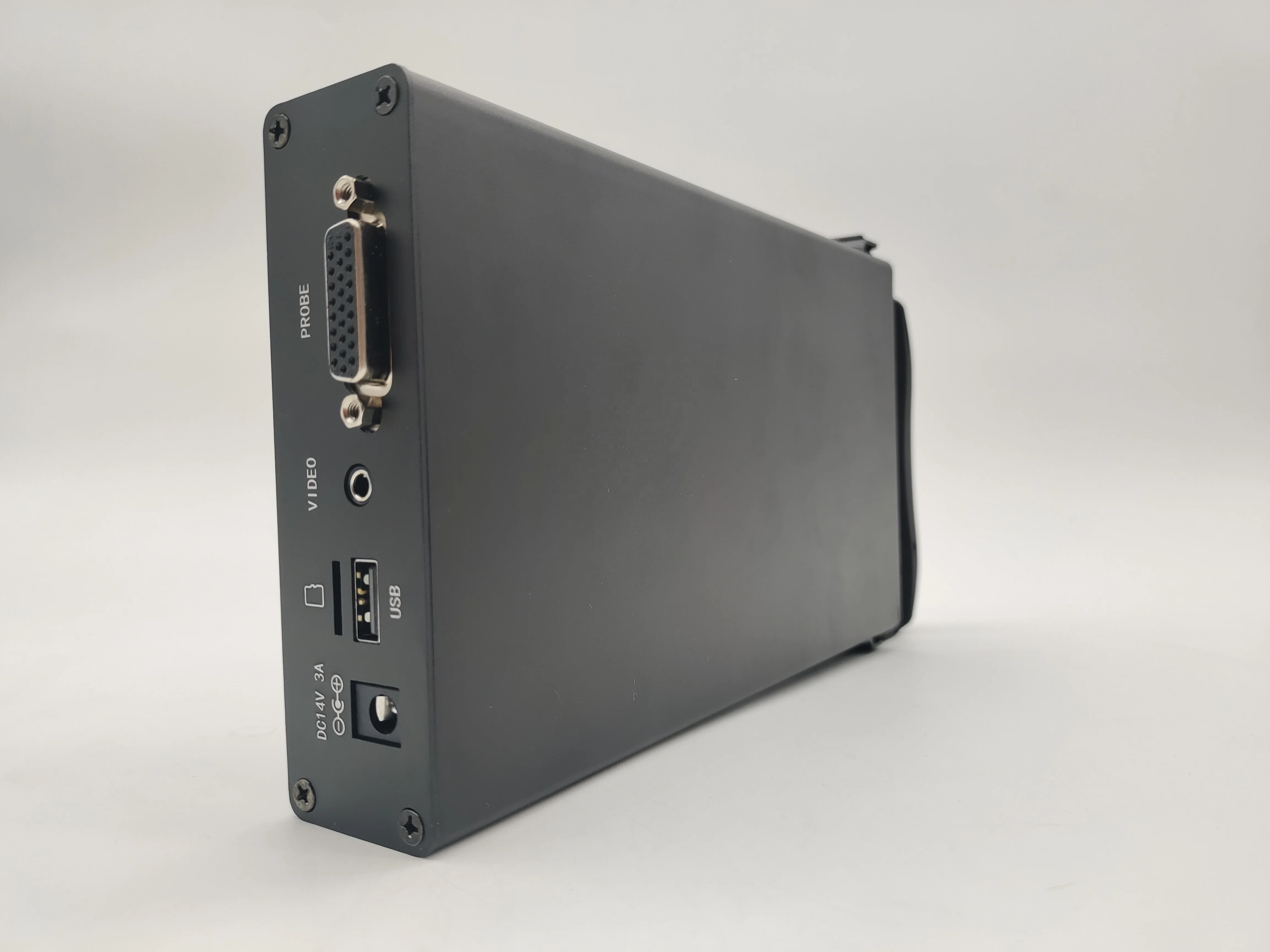

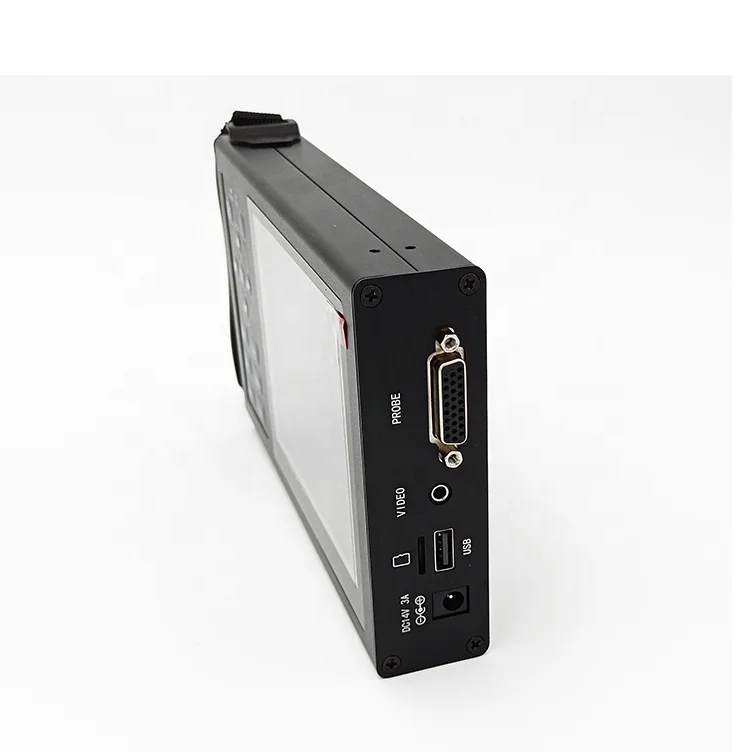

23.Interface: USB interface, PAL-D / NTSC video, VGA;
24.Geometric accuracy: transverse ≤ 5%, longitudinal ≤ 5%
25.Resolution: lateral ≤ 2mm, axial ≤ 1mm
26.Display magnification: 16 display modes;
27.Gain range: 0-100db;
28.Near field adjustment range: - 31 ~ 0;
29.Far field adjustment range: 0 ~ 31;
30.It has time and date, video output, TV mode, key tone switch, parameter mode, standby protection, custom gestational age and other settings;
31.Battery power indication, U disk indication, prompt information display;
32.Large capacity lithium battery, imported 18650 standard cell, can work for about 4 hours;
33.Host size: 206x120x35mm (length x width x height);
34.Main engine weight: 950g;
35.No noise, high strength aluminum alloy metal shell natural heat dissipation design
20.Blind area: ≤ 4
21.The maximum display depth is 270mm:
22.organization harmonic, histogram function
23.Interface: USB interface, PAL-D / NTSC video, VGA;
24.Geometric accuracy: transverse ≤ 5%, longitudinal ≤ 5%
25.Resolution: lateral ≤ 2mm, axial ≤ 1mm
26.Display magnification: 16 display modes;
27.Gain range: 0-100db;
28.Near field adjustment range: - 31 ~ 0;
29.Far field adjustment range: 0 ~ 31;
30.It has time and date, video output, TV mode, key tone switch, parameter mode, standby protection, custom gestational age and other settings;
31.Battery power indication, U disk indication, prompt information display;
32.Large capacity lithium battery, imported 18650 standard cell, can work for about 4 hours;
33.Host size: 206x120x35mm (length x width x height);
34.Main engine weight: 950g;
35.No noise, high strength aluminum alloy metal shell natural heat dissipation design
Packing & Delivery
Company Profile
Efitness is professional medical and beauty equipment company, with high focus on customers requirement and the global market, we earned the trust and long term cooperation with our customers.
The introduction and application of the world's advanced high-tech sterile workshop, Cong raw materials audit to the
production,assembly, packaging production lines, the whole process of sterile isolation, so that products 100 percent of the safety and health, so that customers more at ease with the use!
The introduction and application of the world's advanced high-tech sterile workshop, Cong raw materials audit to the
production,assembly, packaging production lines, the whole process of sterile isolation, so that products 100 percent of the safety and health, so that customers more at ease with the use!
FAQ
Q: How to buy your products?
A: For some products we have on stock , you can take away the products after you arrange the payment ; If we don't have stock ,we will start the production once getting the payment .
Q: What's the warranty for the products?
A: The free warranty is two year from the date of exportation date.
Q: Can we visit your factory?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What's the production date after we confirm the order?
A: This depends on the quantity. Normally, it is about 3-7 working days at sight of your payment. Please contact us for more detail information.
A: For some products we have on stock , you can take away the products after you arrange the payment ; If we don't have stock ,we will start the production once getting the payment .
Q: What's the warranty for the products?
A: The free warranty is two year from the date of exportation date.
Q: Can we visit your factory?
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the
price fluctuation of raw material in the market.
Q: What's the production date after we confirm the order?
A: This depends on the quantity. Normally, it is about 3-7 working days at sight of your payment. Please contact us for more detail information.
