1.25G 1gb SMF SC 1310nm TX/1550nm RX low cost SC/LC SFP Module

Product Overview

Description

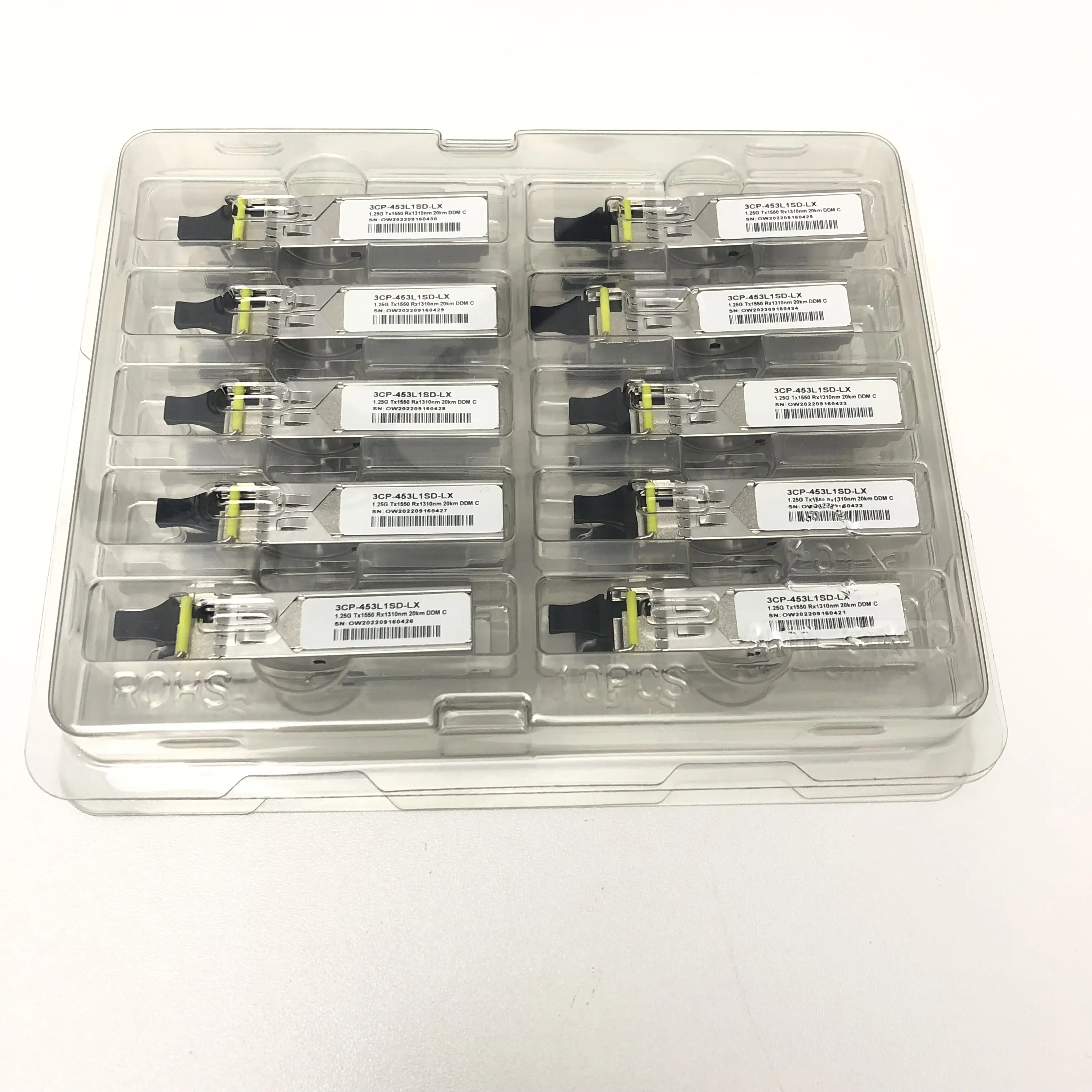

1.25G 1gb SMF SC 1310nm TX/1550nm RX low cost SC/LC SFP Module

3CP-453S1SD-LX&3CP-435S1SD-LX





The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.





• Dual data-rate of 1.25Gbps/1.063Gbps operation


• 1310nm FP laser and PIN photodetector for 20km transmission


• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle


• Digital Diagnostic Monitoring:


• Internal Calibration or External Calibration


• Compatible with SONET OC-24-LR-1


• Compatible with RoHS


• +3.3V single power supply


• Operating case temperature:


• Standard : 0 to +70°C



• Gigabit Ethernet


• Fiber Channel


• Switch to Switch interface


• Switched backplane applications


• Router/Server interface Other optical transmission systems



                                                     Common Module Connector Introduction

Perfectly compatible with 99% brand equipment of current market. we are focused on the optical fiber communication industry,committed to provide solutions for the customers and reduce the users’ cost . Now, we can make it compatible with 99% of the telecommunication equipment on the market.

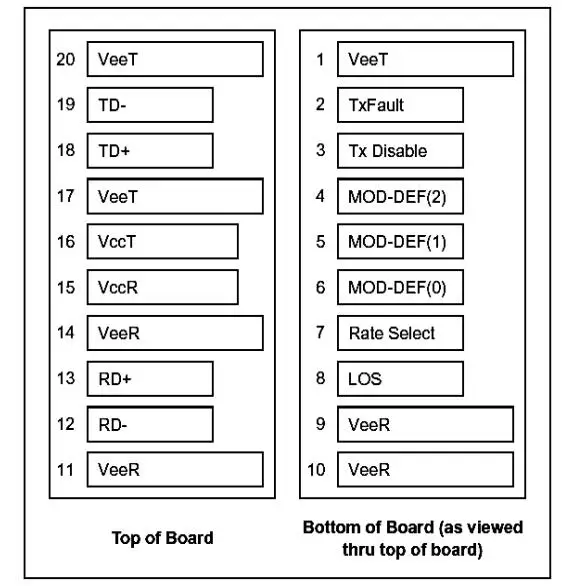

SFP Module Pin Diagram

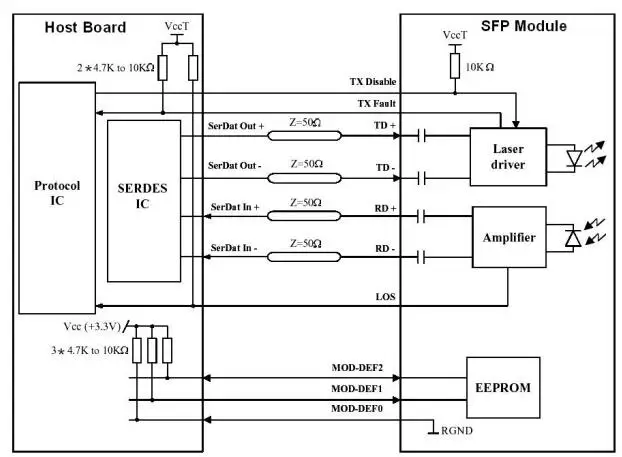

Recommended Interface Circuit







































































1.25G  BI-DI SFP Transceiver
Model	Description
3CP-435L1SD-SX	1.25G,  1310T/1550R, 3km. LC/SC, SFP Transceiver
3CP-453L1SD-SX	1.25G,  1550T/1310R, 3km. LC/SC, SFP Transceiver
3CP-435L1SD-LX	1.25G,  1310T/1550R, 20km. LC/SC, SFP Transceiver
3CP-453L1SD-LX	1.25G,  1550T/1310R, 20km. LC/SC, SFP Transceiver
3CP-435L1SD-XD	1.25G,  1310T/1550R, 40km. LC/SC, SFP Transceiver
3CP-453L1SD-XD	1.25G,  1550T/1310R, 40Km. LC/SC, SFP Transceiver
3CP-445L1SD-ZX	1.25G, 1490T/1550R, 80km. LC/SC, SFP Transceiver
3CP-454L1SD-ZX	1.25G,  1550T/1490R, 80km. LC/SC, SFP Transceiver
3CP-445L1SD-EZX	1.25G,  1490T/1550R, 120km. LC/SC, SFP Transceiver
3CP-454L1SD-EZX	1.25G,  1550T/1490R, 120km. LC/SC, SFP Transceiver





155M BI-DI SFP Transceiver
Model	Description
3CP-135L1SD-LX	155M,  1310T/1550R, 20km. LC/SC SFP Transceiver.
3CP-153L1SD-LX	155M,  1550T/1310R, 20km. LC/SC, SFP Transceiver.
3CP-135L1SD-XD	155M,  1310T/1550R, 40km. LC/SC SFP Transceiver.
3CP-153L1SD-XD	155M, 1550T/1310R, 40km. LC/SC, SFP Transceiver.
3CP-135L1SD-ZX	155M,  1490T/1550R, 80km. LC/SC SFP Transceiver.
3CP-153L1SD-ZX	155M, 1550T/1490R, 80km. LC/SC, SFP Transceiver.
3CP-135L1SD-ZX	155M,  1490T/1550R, 120km. LC/SC SFP Transceiver.
3CP-153L1SD-ZX	155M, 1550T/1490R, 120km. LC/SC, SFP Transceiver.
2,5G BI-DI SFP Transceiver
Model	Description
3CP-635L1SD-LX	2.5G,  1310T/1550R, 20km. LC/SC, SFP Transceiver.
3CP-653L1SD-LX	2.5G,  1550T/1310R, 20km. LC/SC, SFP Transceiver.
3CP-645L1SD-XD	2.5G,  1490T/1550R, 40km. LC/SC, SFP Transceiver.
3CP-654L1SD-XD	2.5G,  1550T/1490R, 40Km. LC/SC, SFP Transceiver.
3CP-645L1SD-ZX	2.5G,  1490T/1550R, 80km. LC/SC, SFP Transceiver.
3CP-654L1SD-ZX	2.5G,  1550T/1490R, 80km. LC/SC, SFP Transceiver.
