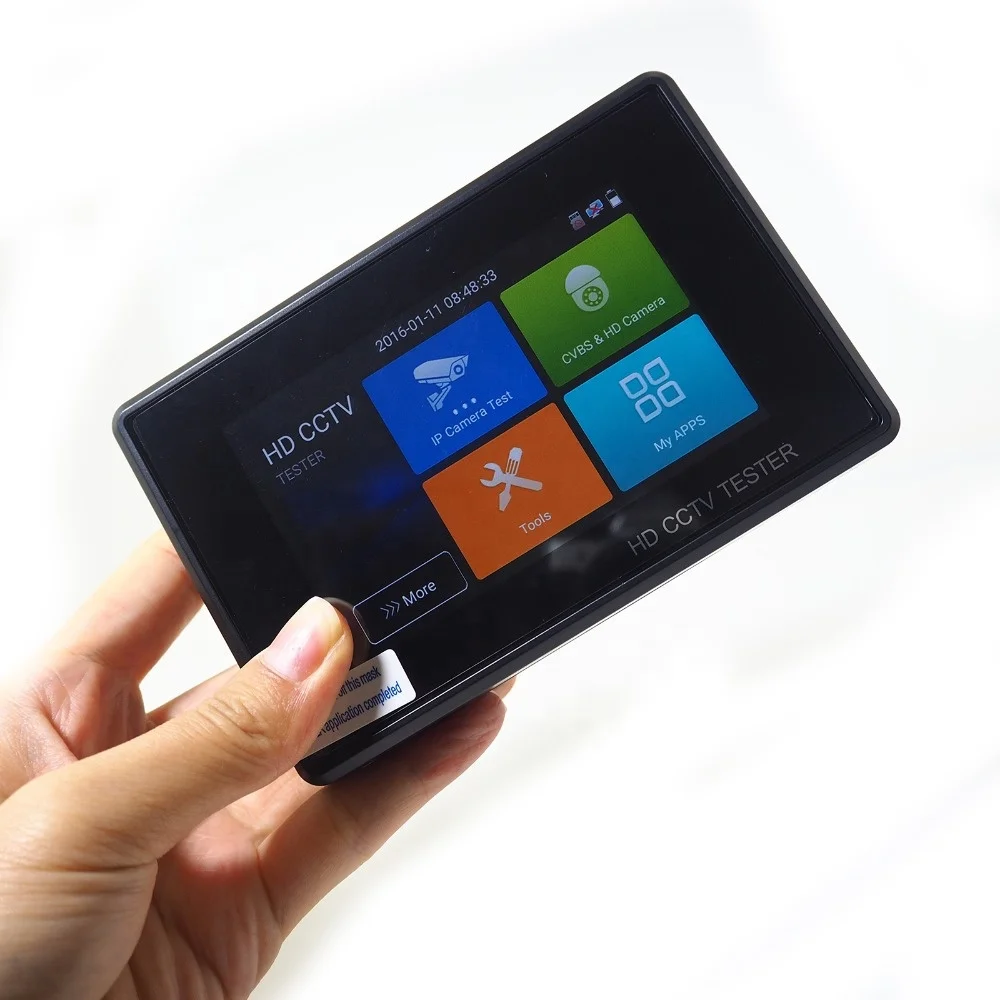

1080P 5 IN 1 TVI AHD CVI Analog IP CCTV Camera Tester Build in Battery Security Tester Monitor Video Audio Test PTZ 4K

Product Overview

Description

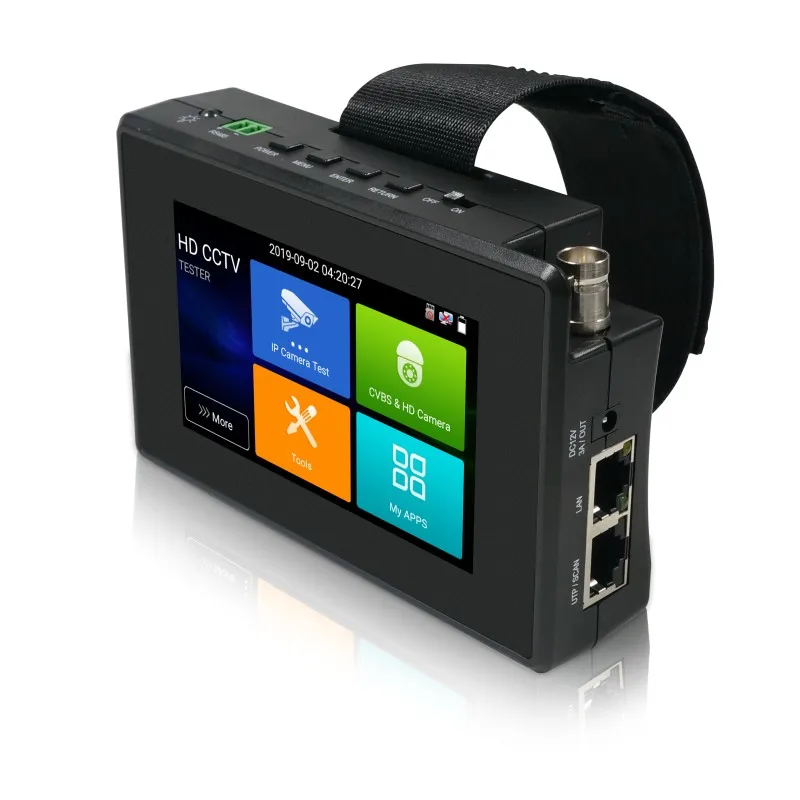

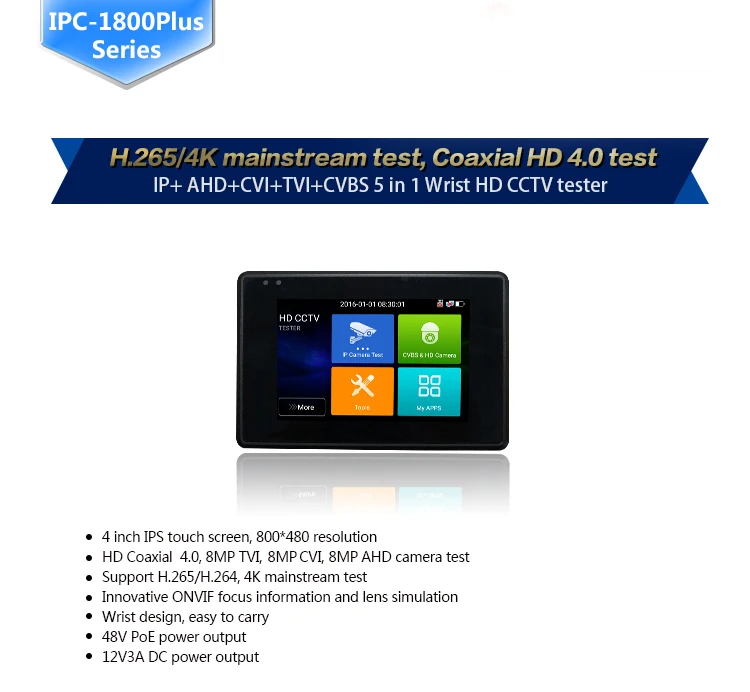

4" wrist 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester

Model: IPC-1800ADH Plus

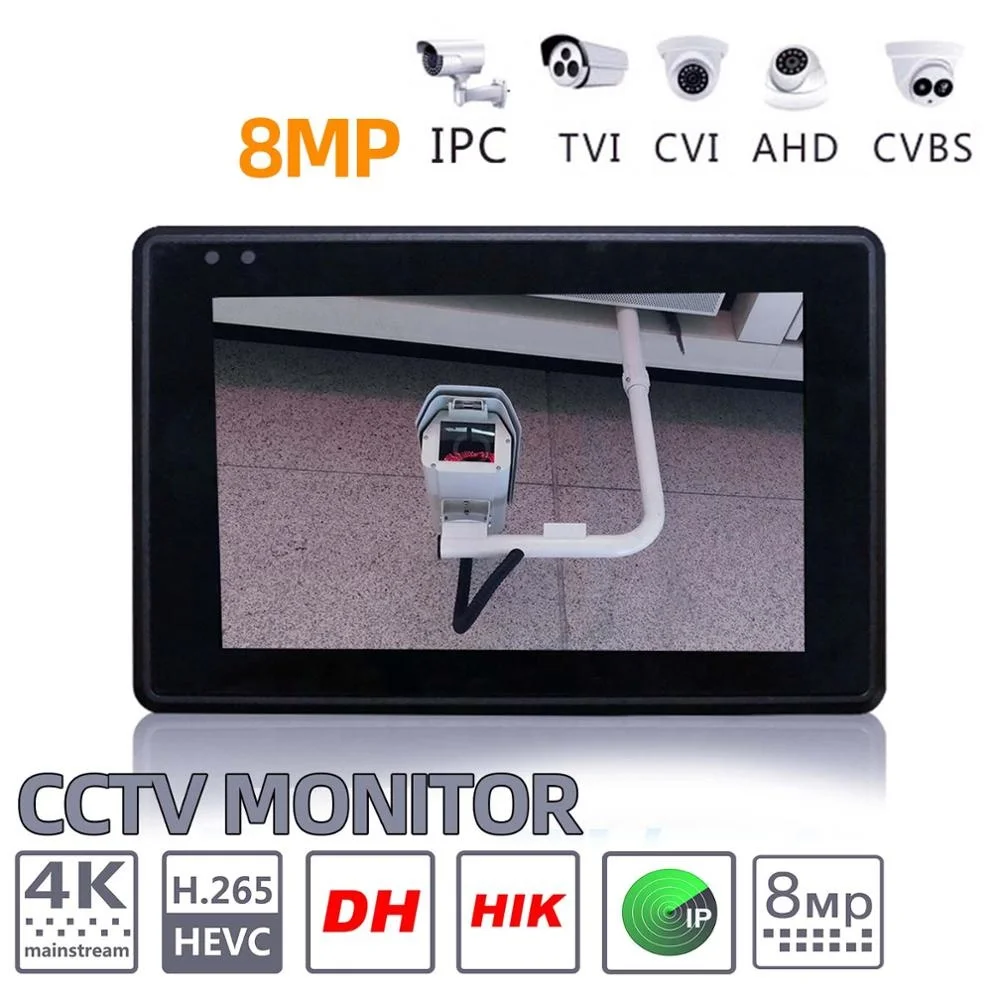

8MP TVI/ CVI/AHD, 4K H.265 IP, CVBScamera test

H.265/H.264, 4K video display via mainstream

Dahua, Hikvision, Axis etc ONVIF camera test

Rapid ONVIF, auto view video and create testing report

DC12V 3A, DC48V PoE power output

Built in WIFI, create WIFI hotspot

RJ45 cable TDR test,cable quality test

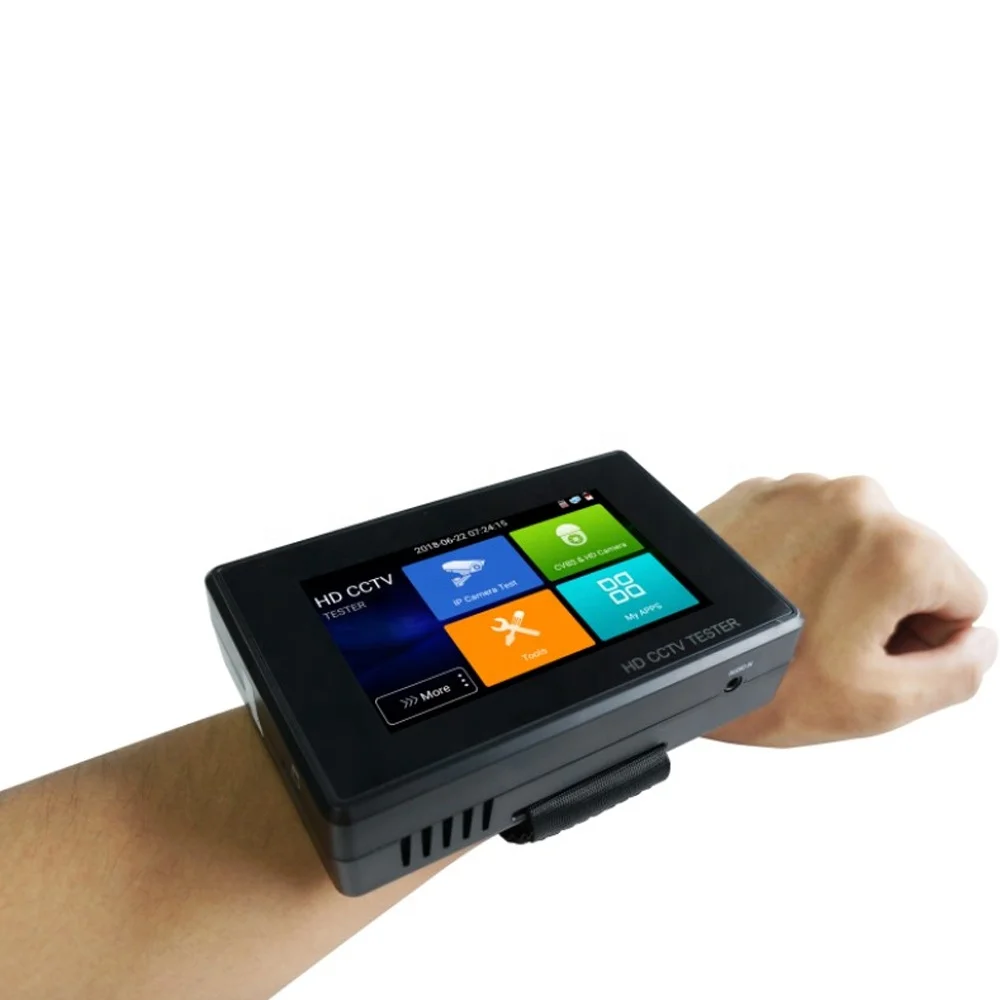

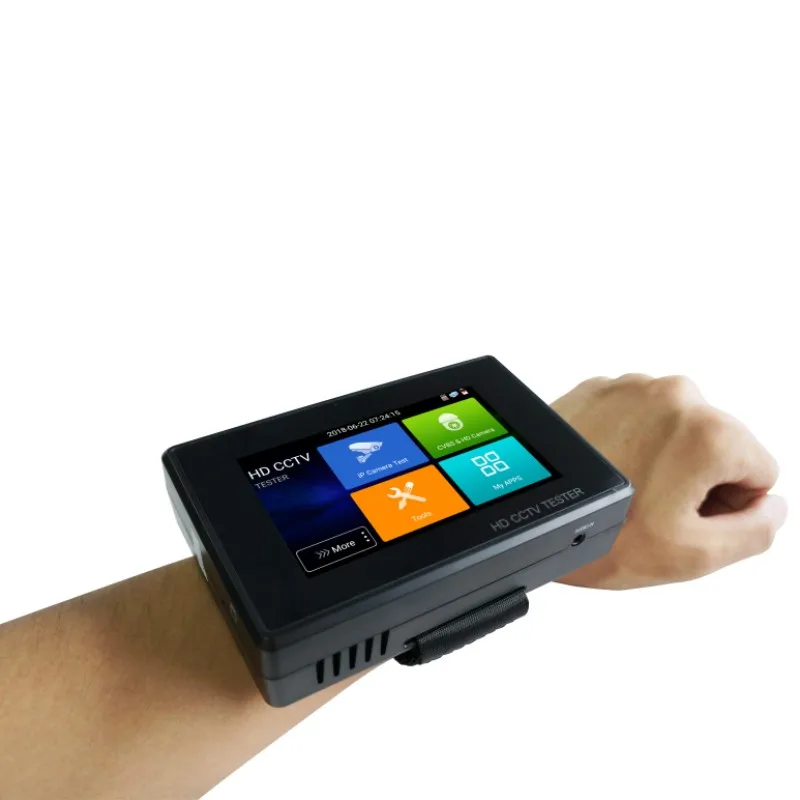

Wrist design, portable and easier to carry

10/100/100M Ethernet,network state and traffic display



Packing list
1*Tester(Built-in battery)
1*Adapter
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable





Detail :

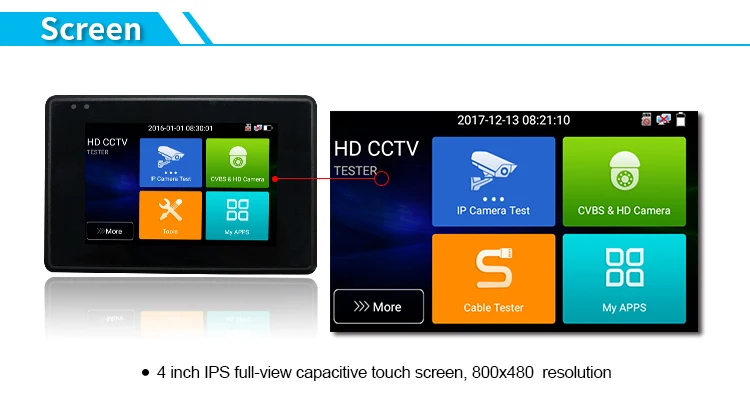

Display:New 4 inch IPS touch screen , 800*480 resolution

CVBS:

1 channel BNC input, NTSC/PAL (Auto adapt)

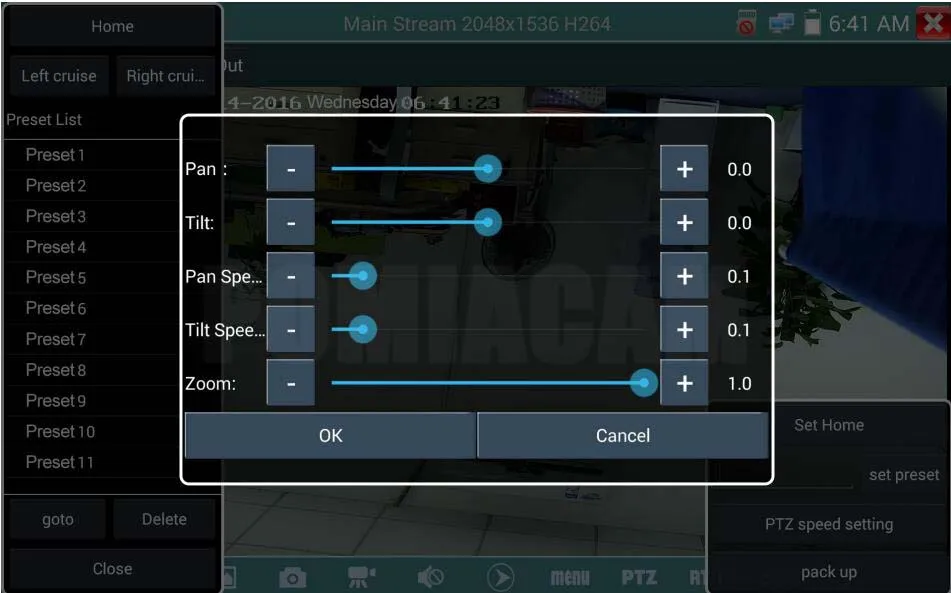

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

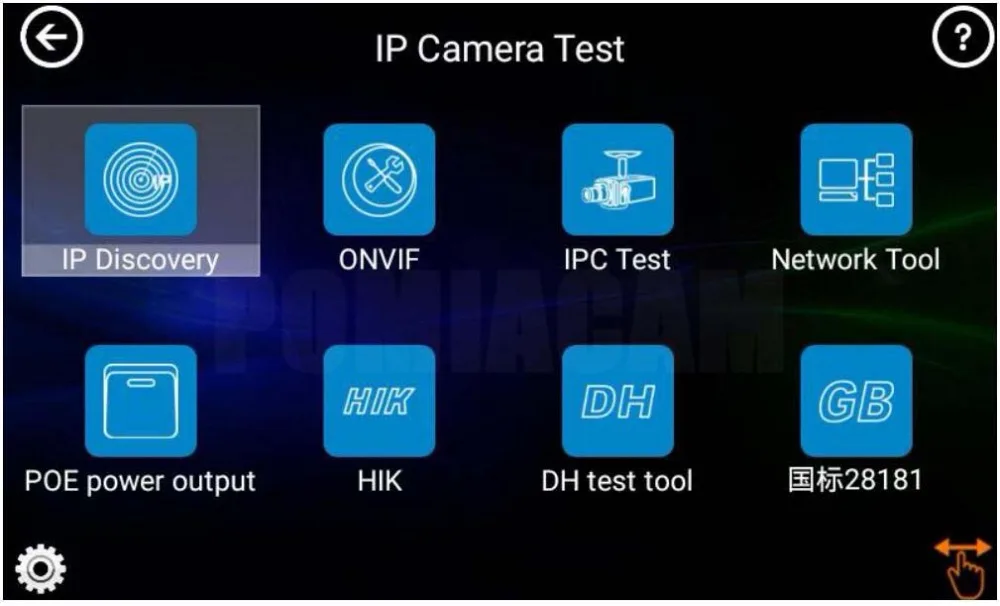

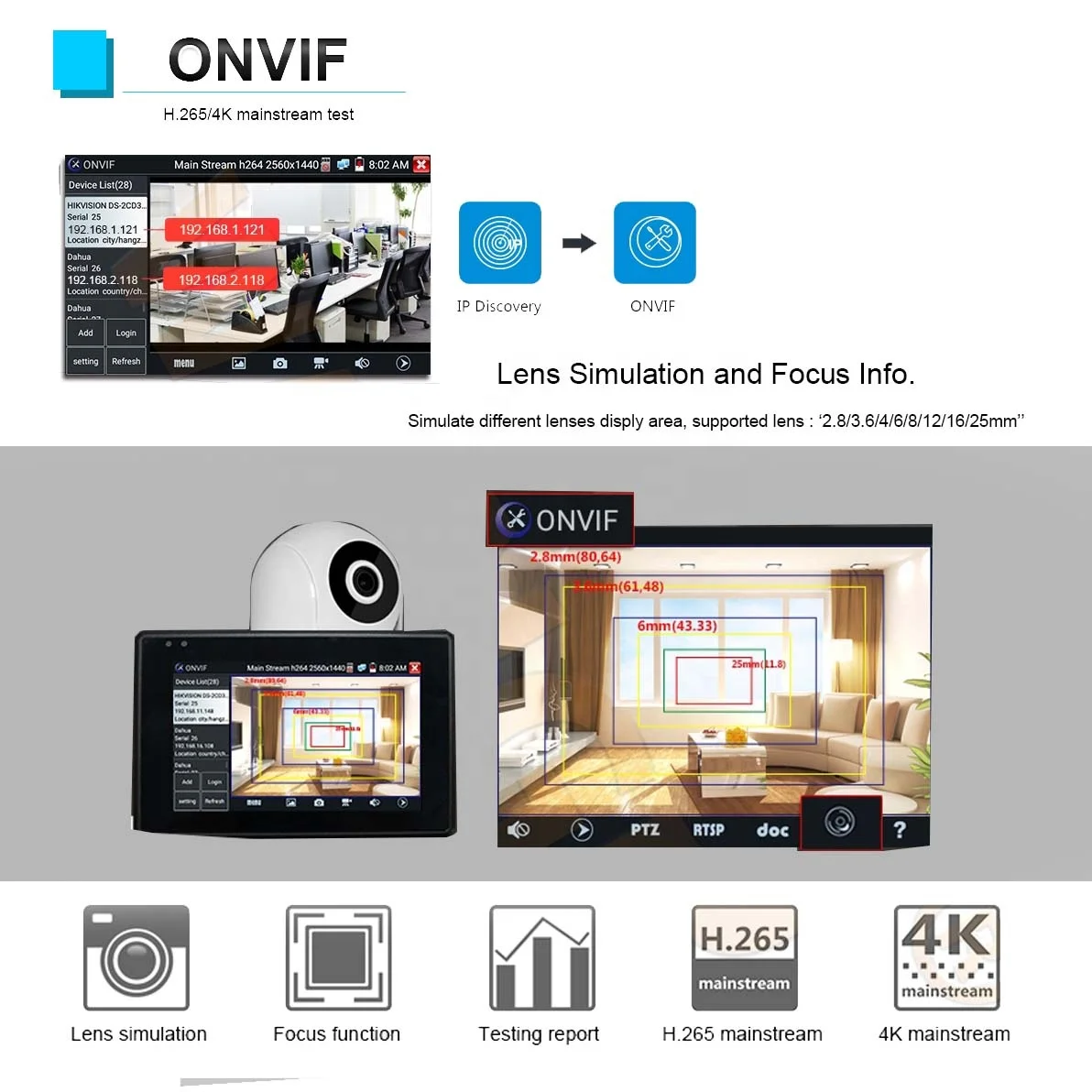

IP camera test4K/H.265/H.264:

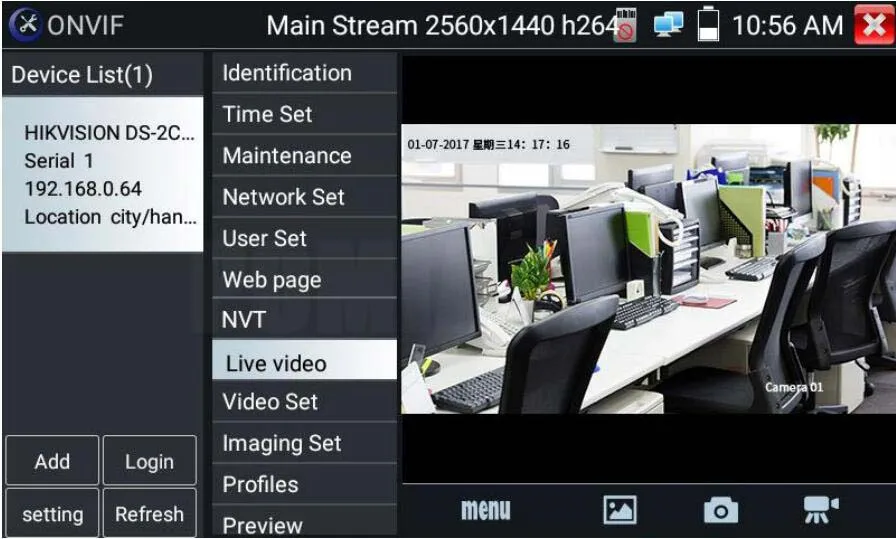

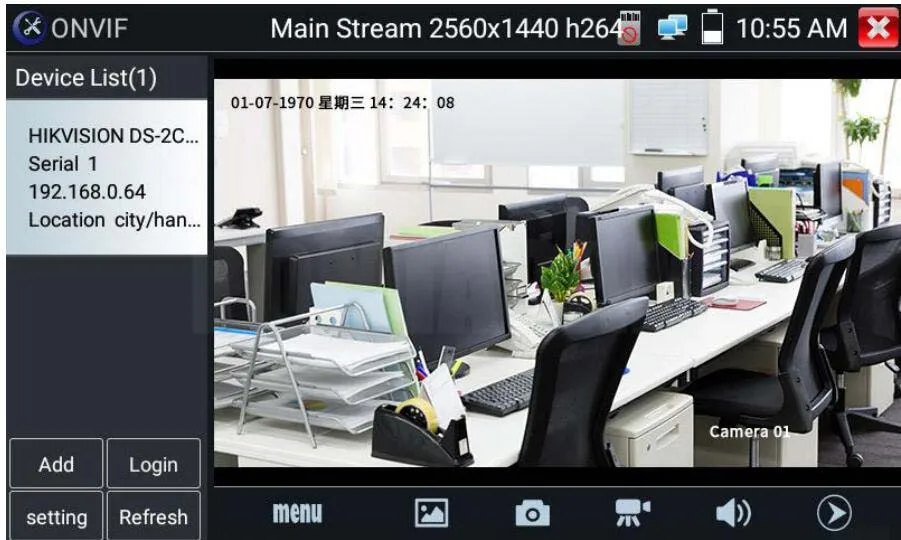

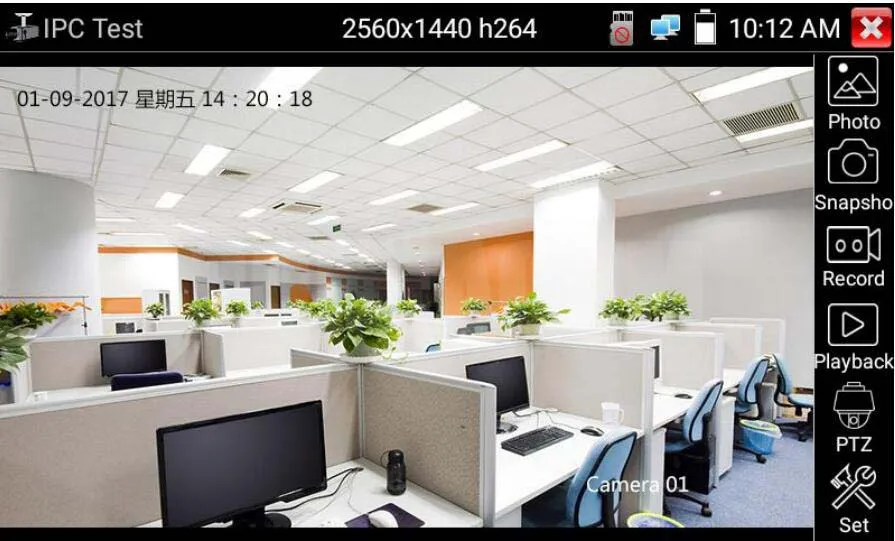

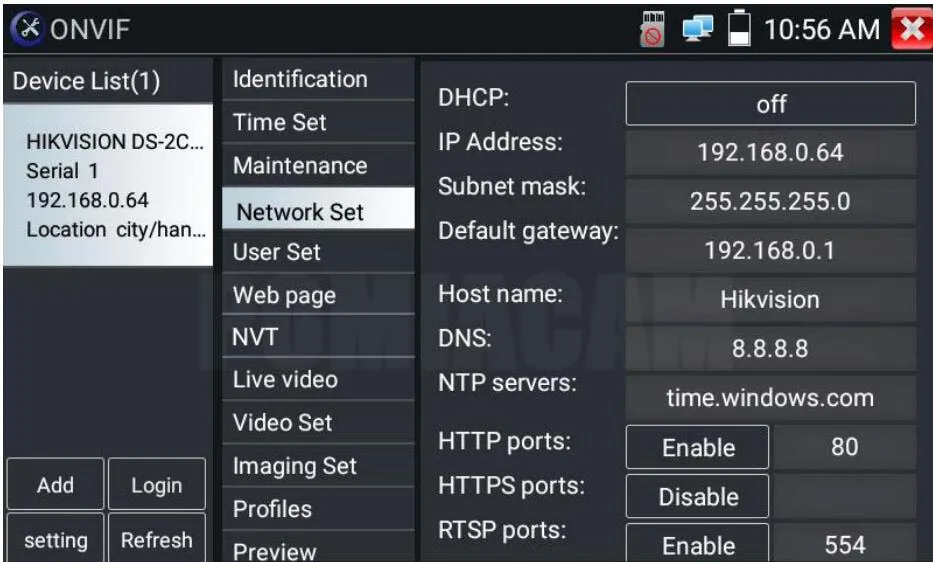

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video:Auto view the video, create testing report

Hik test tool:pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

Dahua test tool :Dahua camera test, modify the username, password and IP parameters

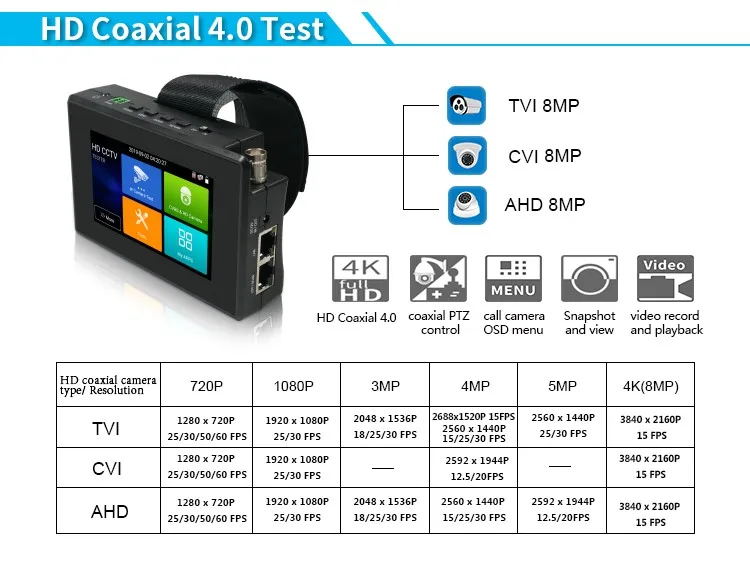

Coaxial HD test :

8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/call OSD menu

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/call OSD menu

8MP AHD test, 3840 x 2160P 15 FPS, UTC control/call OSD menu
Zoom Image
4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back

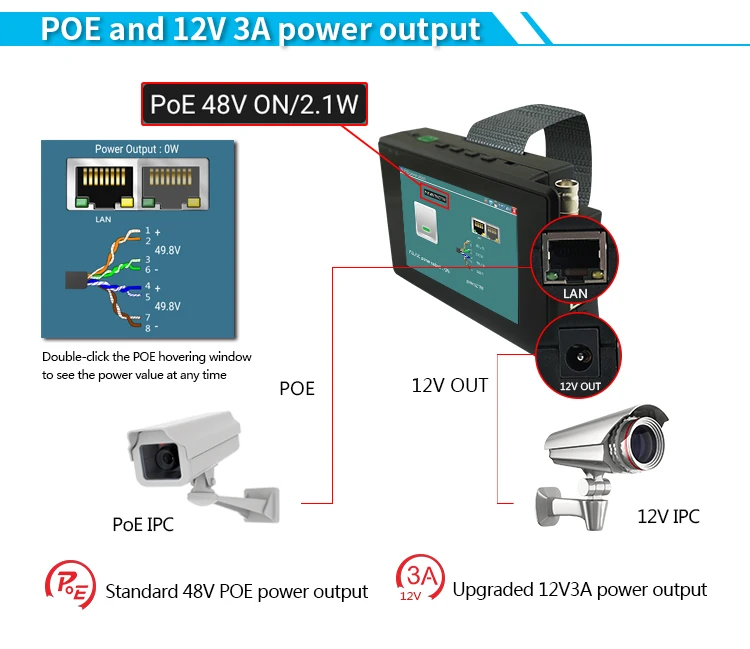

12V/3A power :Output DC12V/3A power out, supply temporarily power for the camera

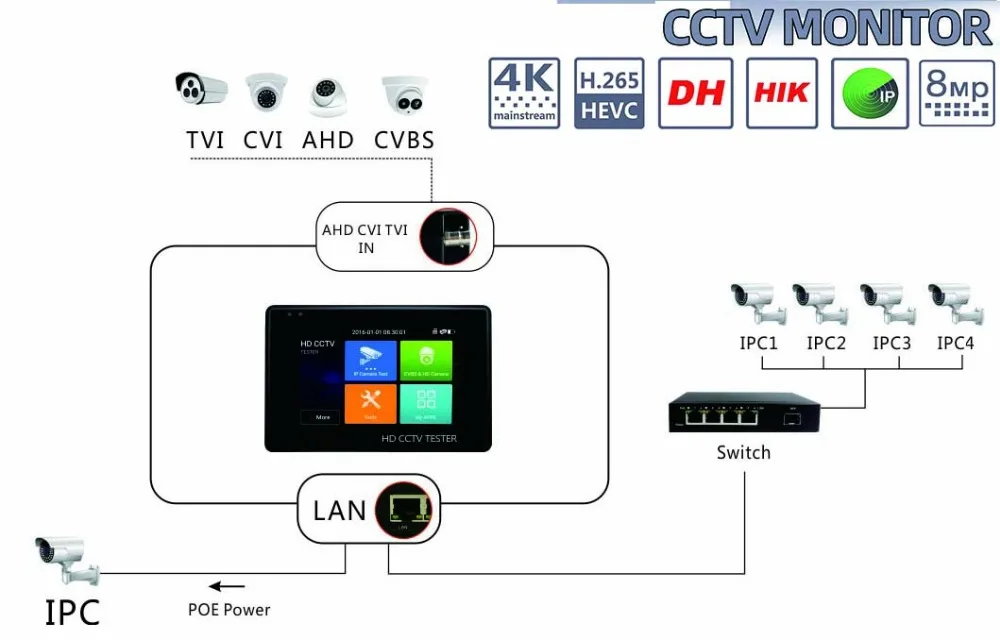

PoE power output :48V PoE power output, max power 25.5W

Network test:Link monitor,port flashing, Ping test

Audio test :1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor:Captures and analyzes the command data from controlling device, also can send hexadecimal

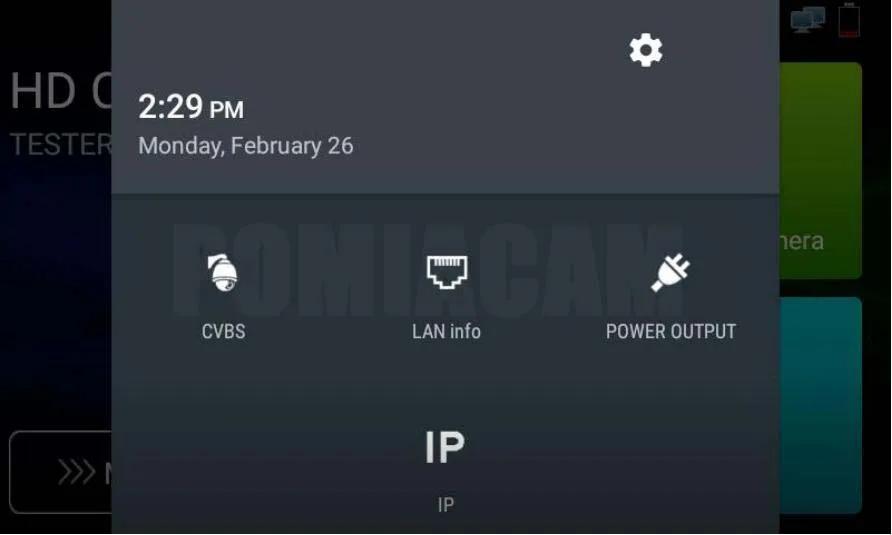

Drop-down menu :You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface

External power supply:DC 12V 1A

Battery:Built-in 7.4V Lithium polymer battery , 2400mAh

Rechargeable:After charging 4~5 hours, normal working time 7 hours

Operation setting:OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off :1-30 (mins)

Working Temperature:-10℃---+50℃

Working Humidity :30%-90%

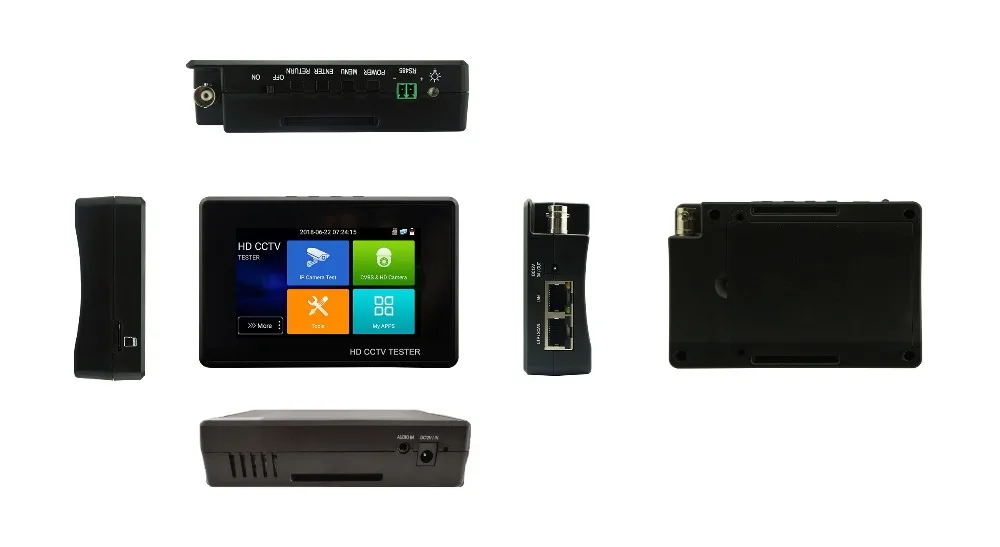

Dimension/Weight:126mm x 83mm x 33mm / 0.32kg

Application:

CCTV system installation and maintenance

Network cabling project installation and maintenance

Dome camera, 4K H.265 IP camera testing

Video transmission channel testing

PTZ controller
