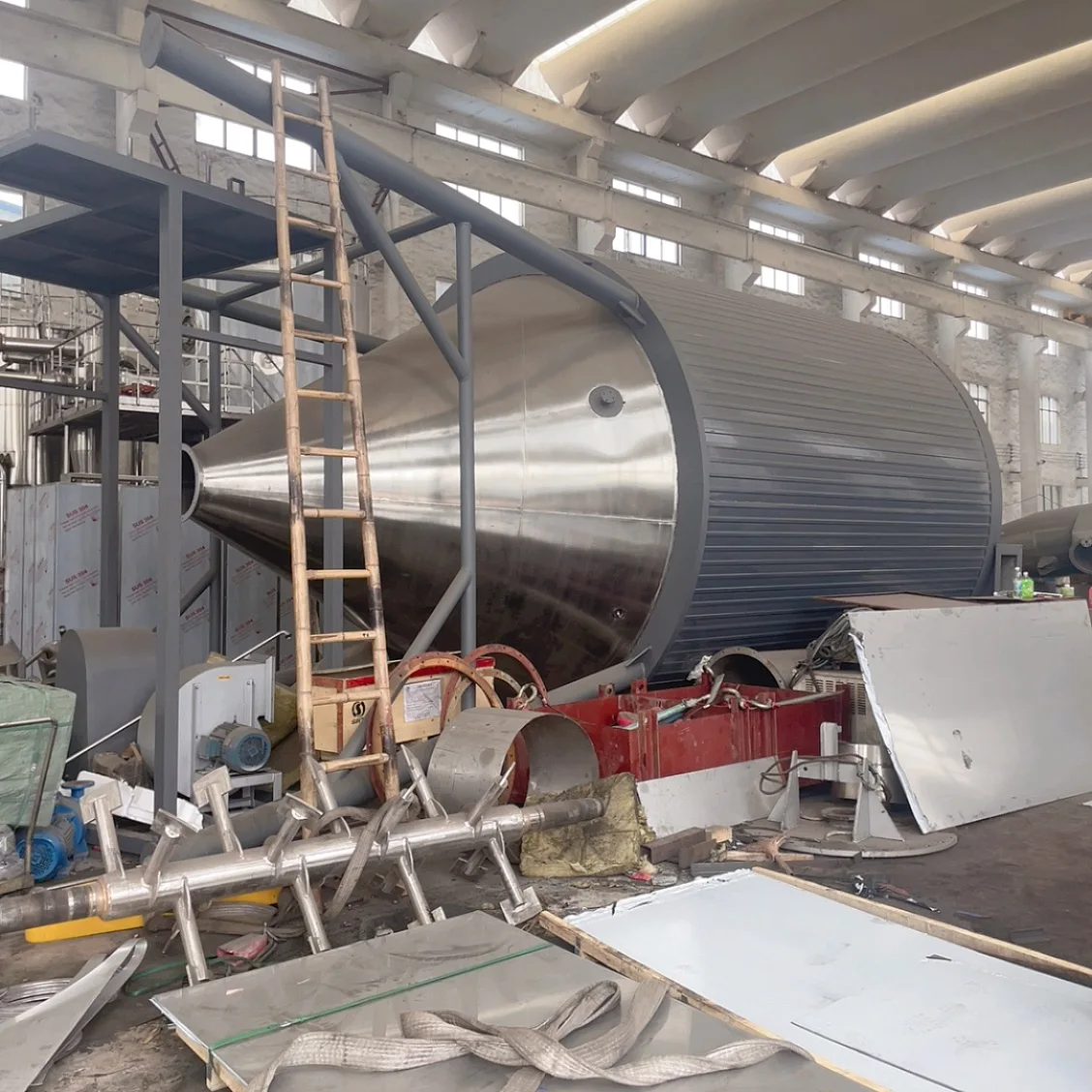

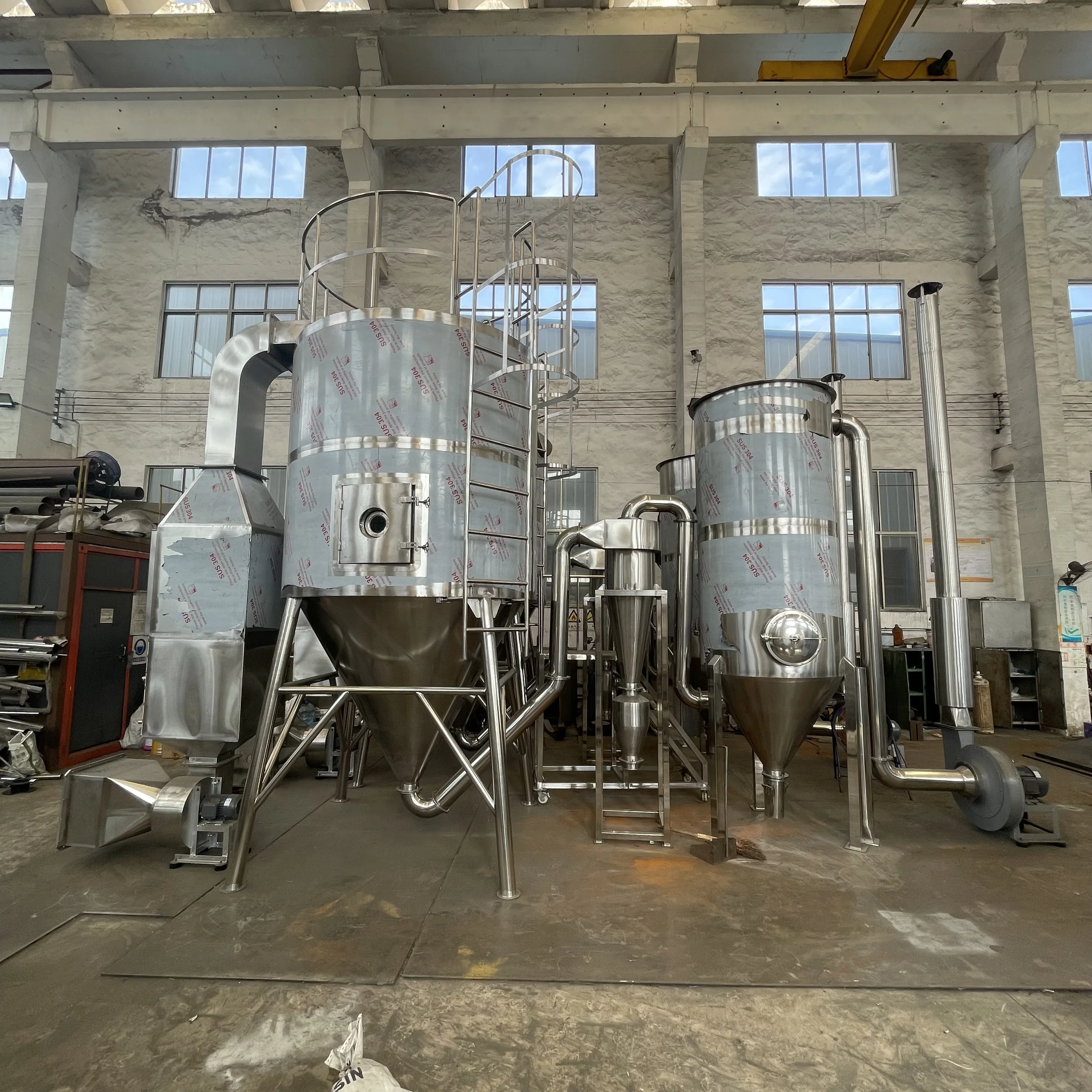

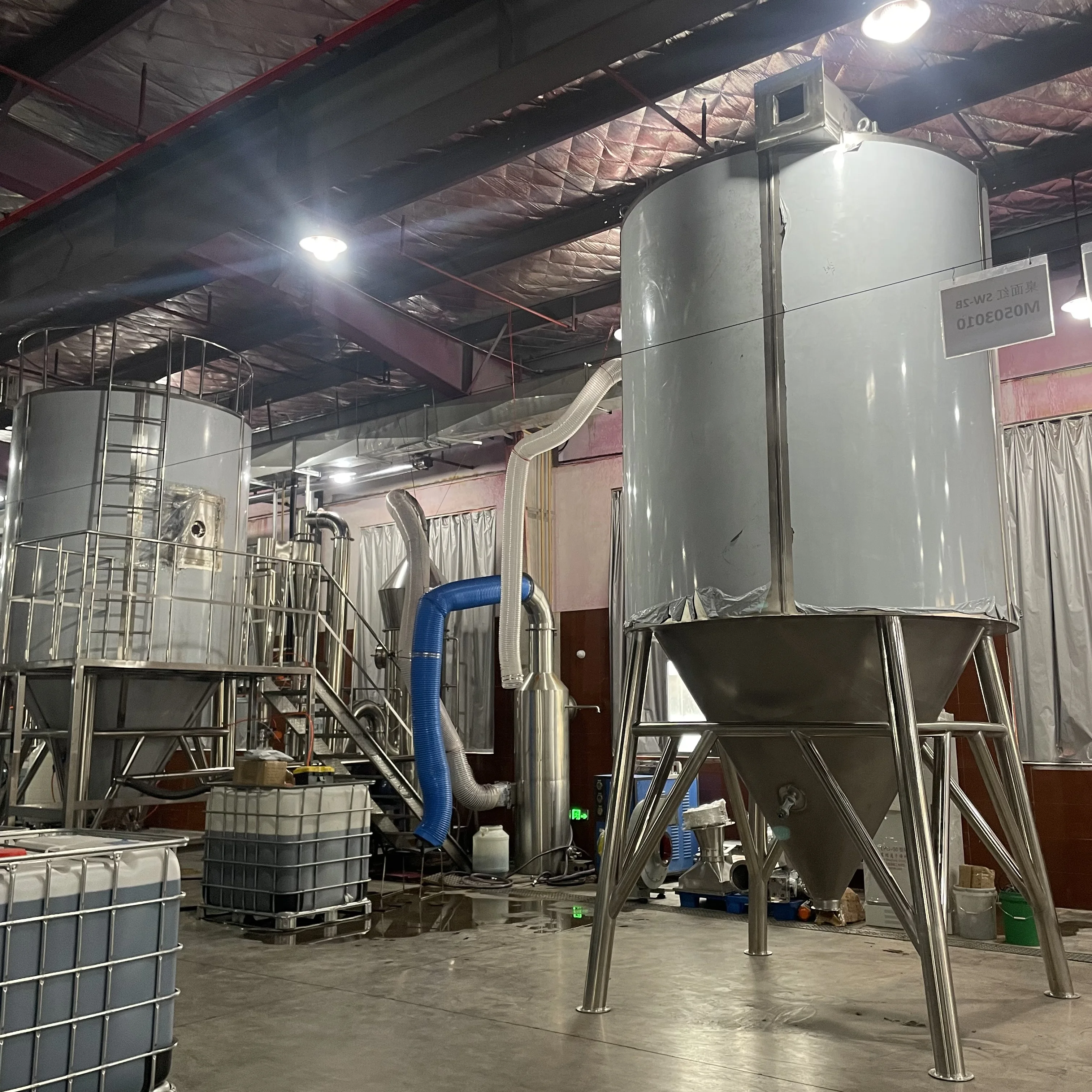

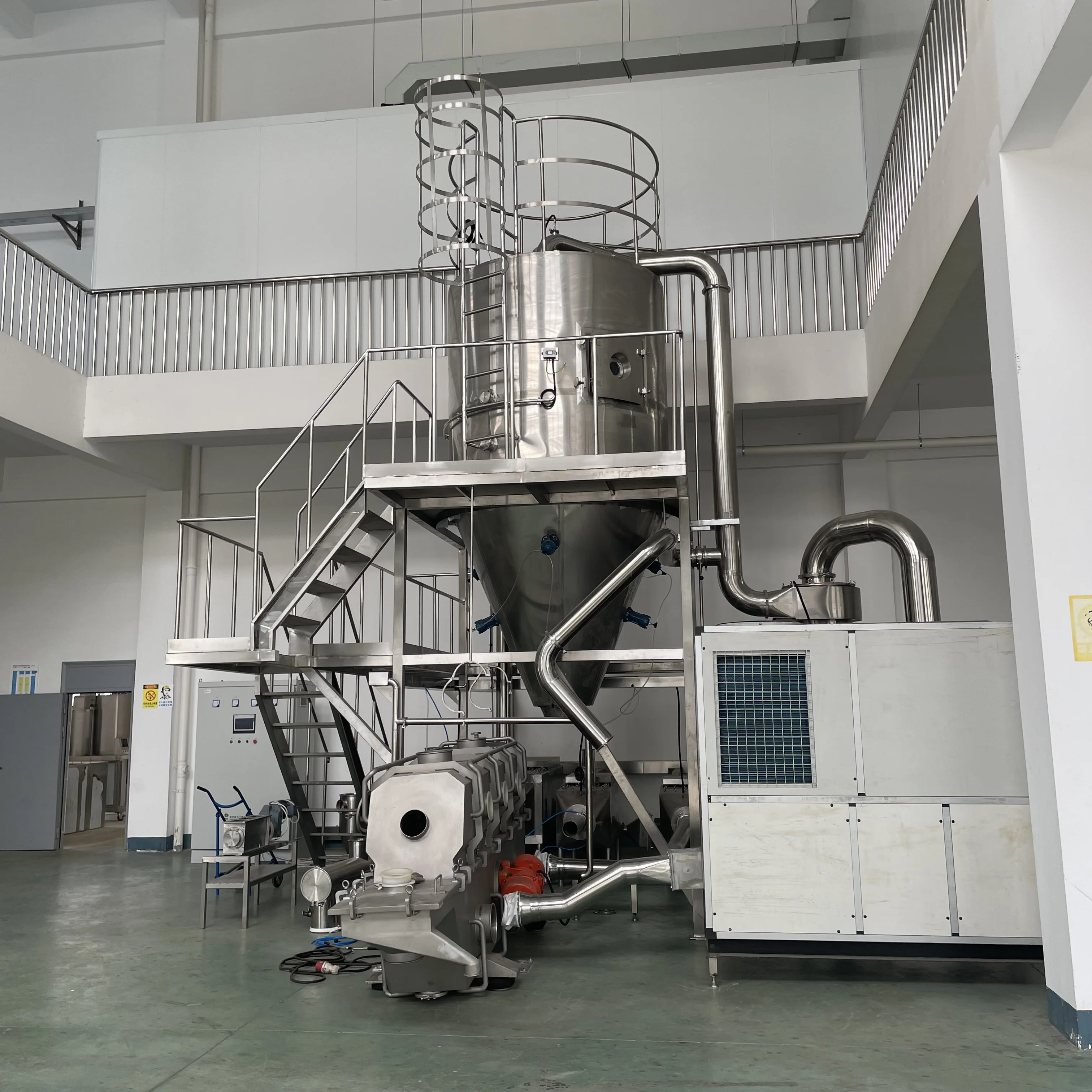

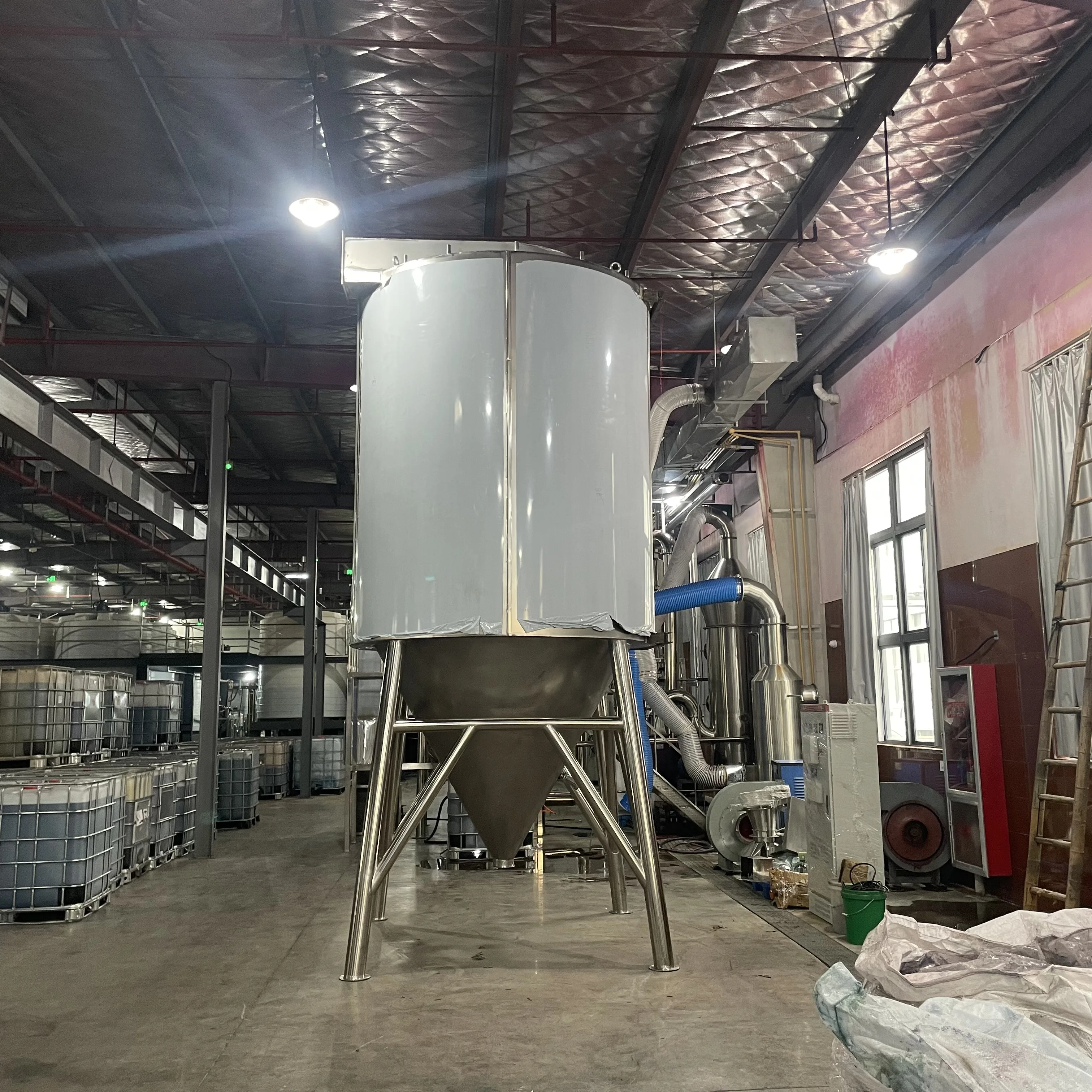

Spray drying equipment for catalyst experiments Egg, milk powder high speed centrifugal spray dryer
- Category: >>>
- Supplier: Jiangsu Shuntong Drying Technology Co. Ltd.
Share on (1600740723893):
Product Overview
Description
Product Overview
LPG series High speed centrifugal spray dryer
LPG series high-speed centrifugal spray dryer is a special drying equipment suitable for drying emulsions, suspensions, pastes, solutions and other liquids. In the drying of polymer and resin dyes, pigments, ceramics, glass, rust removers, insecticides, carbohydrates, dairy products: detergents and surfactants: fertilizers: organic compounds, inorganic compounds is particularly excellent.
FEATURES AT A GLANCE
Fast drying
Easy to operate
Continuous production
Powder directly after drying
Adapt to many types of materials
Dry high-moisture products (40%-90%)
Finished particles are small (200 mesh)
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | LPG-5 | LPG-10 | LPG-25 | LPG-50 | LPG-100 | |||||
Processing capacity (kg/h) | 5 | 10 | 25 | 50 | 100 | |||||
Atomizer spray form | High speed centrifugal atomization | |||||||||
Spinning speed of atomizer (rpm) | 0-25000 | 0-18000 | ||||||||
Atomization disc diameter (mm) | 50 | 120 | 150 | |||||||
Tower body diameter (m) | 0.9 | 1.2 | 2.2 | 2.8 | 3.2 | |||||
Heating power (kw) | 12 | 15 | 12 | 18 | 38 | |||||
Heating using a heat source | Electricity | Steam/heat transfer oil/natural gas/biomass | ||||||||
Overall Dimensions(m) | 1.6*0.9*1.7 | 2.1*1.5*2.2 | 4*2.7*4.5 | 4.5*3.2*5.5 | 5.5*3.8*6.7 | |||||
Weight (T) | 0.9 | 1.5 | 2.8 | 3.5 | 4.5 | |||||
Model | LPG-150 | LPG-200 | LPG-500 | LPG-1000 | LPG-2000 | |||||
Processing capacity (kg/h) | 150 | 200 | 500 | 1000 | 2000 | |||||
Atomizer spray form | High speed centrifugal atomization | |||||||||
Spinning speed of atomizer (rpm) | 0-18000 | 0-15000 | ||||||||
Atomization disc diameter (mm) | 150 | 150-600(Non-standard customization) | ||||||||
Tower body diameter (m) | 3.8 | 4.2 | 5.8 | 7.2 | 8.6 | |||||
Heating power (kw) | 45 | 56 | 138 | 248 | 358 | |||||
Heating using a heat source | Steam/heat transfer oil/natural gas/biomass | |||||||||
Overall Dimensions(m) | 7*5.5*7.2 | 7.5*6.2*8.5 | 12.5*7.5*13.8 | Customized on request | ||||||
Weight (T) | 6 | 7.5 | 12 | 15-20 | ||||||
The equipment belongs to non-standard customization, all parameters are for reference only, please consult the manufacturer for specific data. | ||||||||||
PRODUCT CONFIGURATION
LPG-50
LPG-200
LPG-5
SALES AND SERVICE NETWORK
Successful Project
Project in Kazakhstan
Project in Russia
Project in Brazil
Project in Australia
Project in Canada
Project in Belarus
Project in USA
Project in Vietnam
Project in Philippines
Project in Philippines
Project in Japan
Project in Malaysia
SIMILAR PRODUCTS
FAQ
Q1：Equipment Payment Method
A1：40% advance payment.The remaining 60% is paid upon delivery.
Q2：Equipment production cycle
A2：The production cycle of small equipment is 10-15 working days.
The production cycle of medium-sized equipment is 20-30 working days.
The production cycle of large equipment is 35-50 working days.
The equipment is non-standard equipment, and the specific production time is determined according to the model of the equipment.
Q3：Equipment Quality Warranty Period
A3：Free replacement of equipment accessories within one year after the equipment leaves the factory (except for human reasons), life-long maintenance, and free online guidance in remote areas.
Q4：If the equipment is too large, it will affect the sea transportation, or will it not fit into the container?
A4：Our engineers design splicing equipment according to the size of the container, and complete each part of the equipment before transportation. After all the equipment components are transported to the buyer's factory, our company will send people to the site to guide the installation, or deliver the equipment installation drawings to the buyer for assembly.
Q5：Regarding the transportation of equipment.
A5：Our company does not limit what method the buyer uses (buyer looking for boats/seller looking for boats).
The purpose is to reduce the transportation cost to a minimum.
Q6：Proof of seller strength
A6：Our company has a complete ISO9001 system. CE and AAA certificates, the produced equipment complies with GMP standards.There are also hundreds of sets of processing equipment.The company's overall employees exceed 50 people.
