  • 2 N.m nema23 integrated servo motor closed loop high torque nema 23 stepper motor with encoder and driver
2 N.m nema23 integrated servo motor closed loop high torque nema 23 stepper motor with encoder and driver
2 N.m nema23 integrated servo motor closed loop high torque nema 23 stepper motor with encoder and driver
2 N.m nema23 integrated servo motor closed loop high torque nema 23 stepper motor with encoder and driver
2 N.m nema23 integrated servo motor closed loop high torque nema 23 stepper motor with encoder and driver
2 N.m nema23 integrated servo motor closed loop high torque nema 23 stepper motor with encoder and driver
2 N.m nema23 integrated servo motor closed loop high torque nema 23 stepper motor with encoder and driver
2 N.m nema23 integrated servo motor closed loop high torque nema 23 stepper motor with encoder and driver

2 N.m nema23 integrated servo motor closed loop high torque nema 23 stepper motor with encoder and driver

Share on (1600740738448):


Price:$37.00 - $50.00

Quantity:


Product Overview

Description





2 N.m nema23 integrated servo motor closed loop nema 23 stepper motor and driver


Products Description




Electrical Parameters


Model
Step angle
( ° )
Current
( A )
Resistance
(Ω±10%)
Inductance
(mH±20%)
Holding torque
(N.m)
Motor length
(mm)
Encoder lines
Weight
(kg)
57P2N
1.8
4.2
0.5
1.8
2.0
76
1000
1.3
57P3N
1.8
4
0.7
3.0
3.0
112
1000
2.0

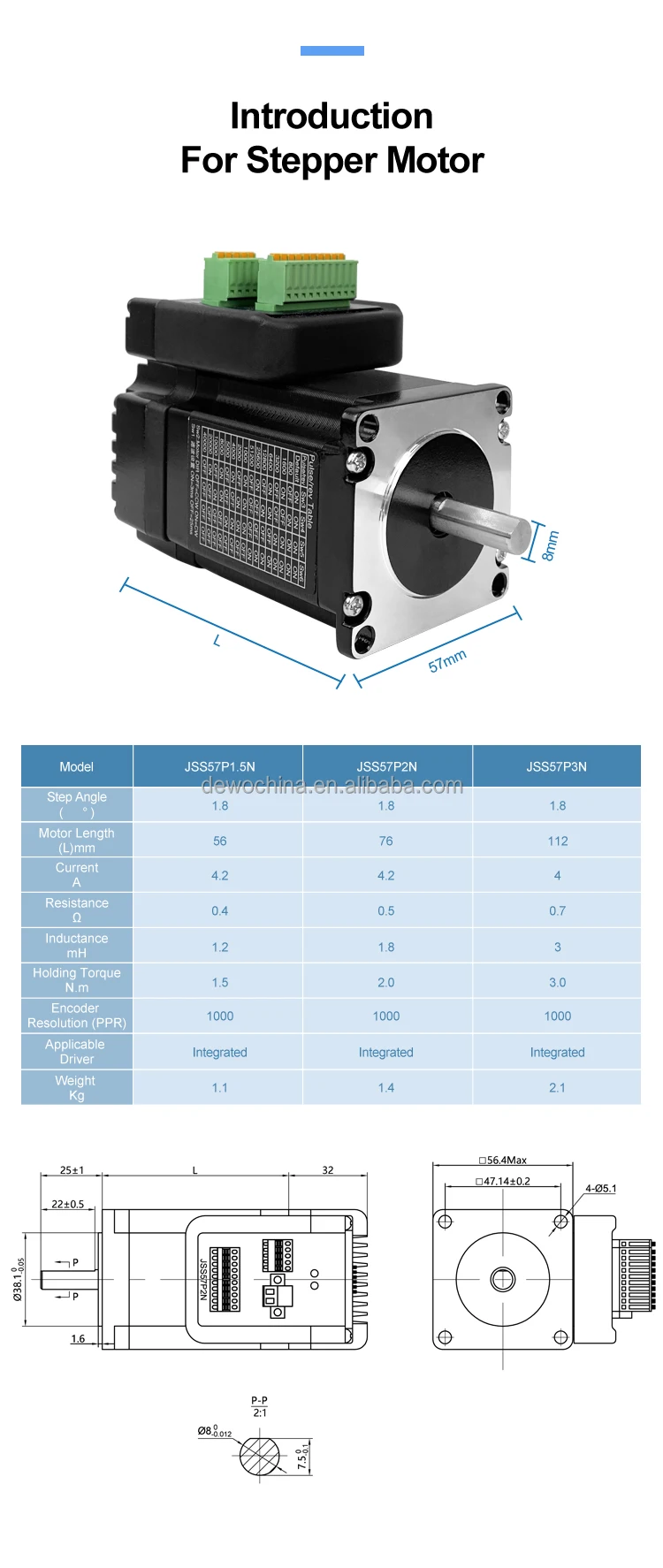

Dimensions (mm)

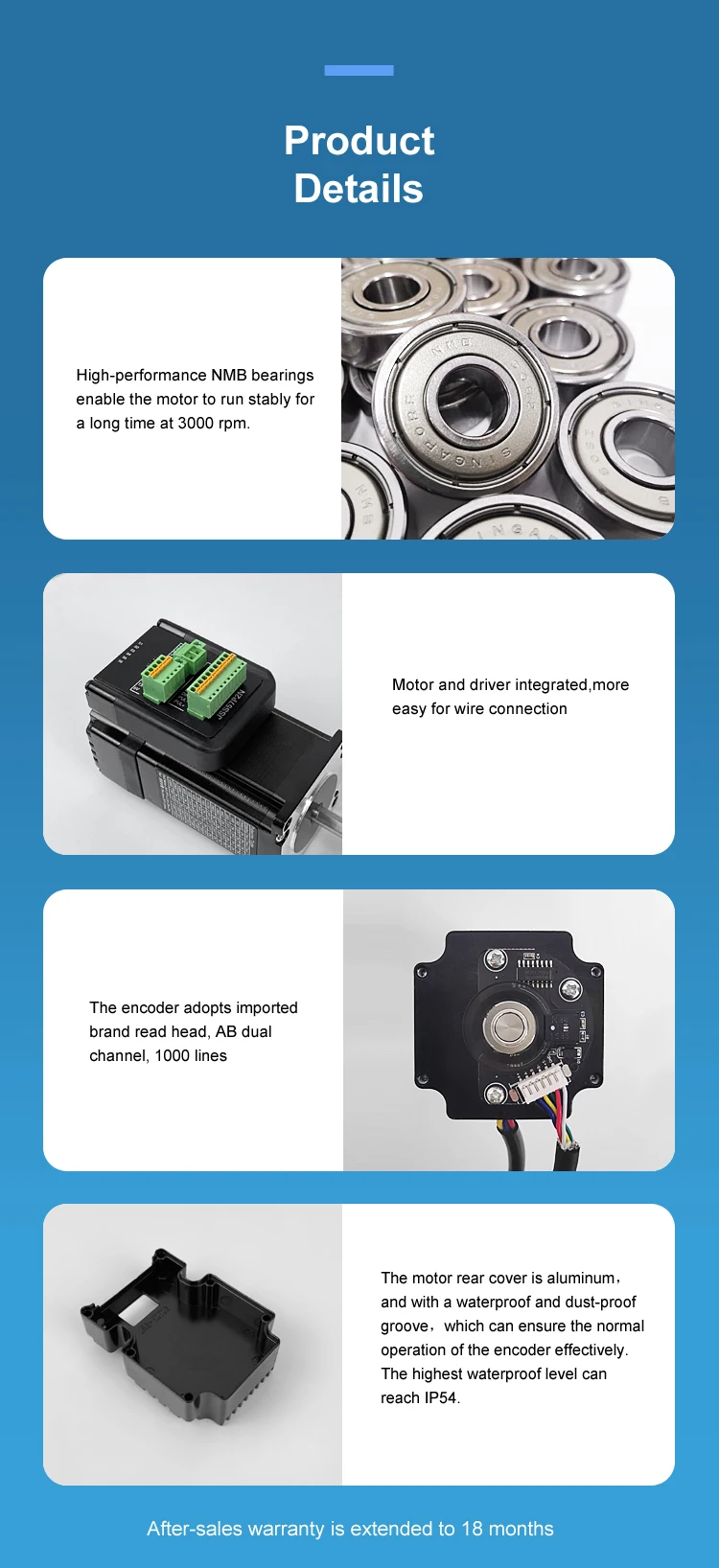

Details




Company Profile




Changzhou Dewo Motor Co.,Ltd. located in Changzhou city close to Shanghai of China, specialized in acting as produce Hybrid Stepper Motors and its drivers, also agent spindle motor,servo motor, brushless dc motor, related drivers, swith power supply and Accessoriesetc. We accept OEM and ODM orders！
Our main products include from size Nema8, Nema11, Nema14, Nema16, Nema17, Nema23, Nema24, Nema34, Nema42, Nema52 series hybrid stepper motor, and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake. And we have products about closed loop systems for nema23, nema24 and nema34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.
Our products are widely applied in printing equipment, engraving machine, textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine and other automatic controlling system.
We have pass ISO9001:2008, and have got the certification of CE. On the way of development, the principle of "efficiency is the life, quality is the fundamental. We take the market as guidance, provide high quality products and good service to customers. We also designs and builds products and provides factory-direct support to Original Equipment Manufacturers (OEMs). We are expecting the cooperation with more friends from home and aboard in the near future.


Factory Photos




Certifications

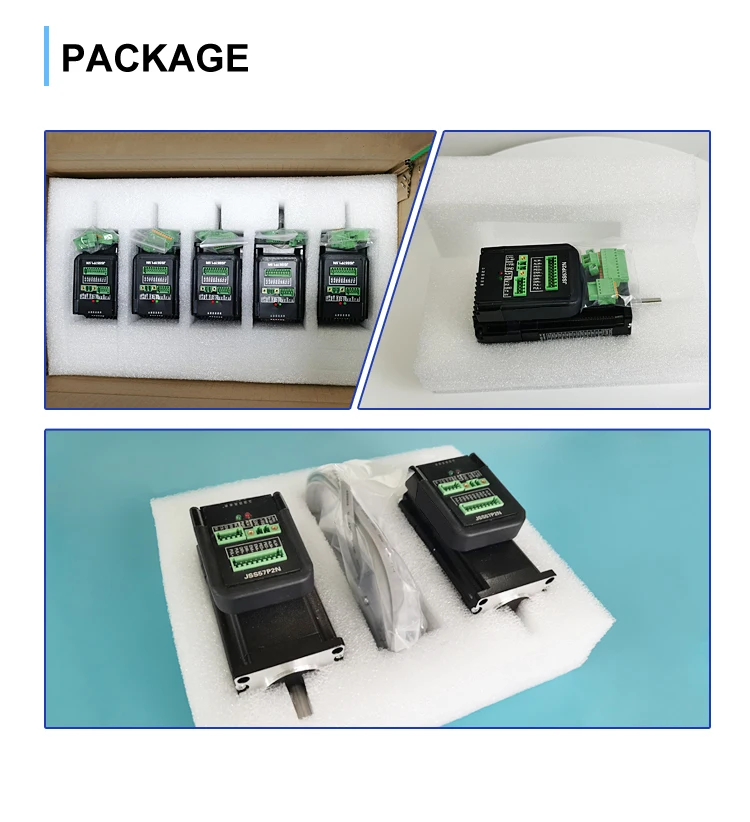

Packaging & Shipping


Packaging
We have standard package for our products. We can also make it as per your special requirements.




Shipping
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.




FAQ


Q1: How to choose the suitable stepper motor?
A: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one.
Q2: Any other methods to finalize the model?
A: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3: When can I get the drawing of stepper motor?
A: We will provide drawings of stepper motor after you place the order.
