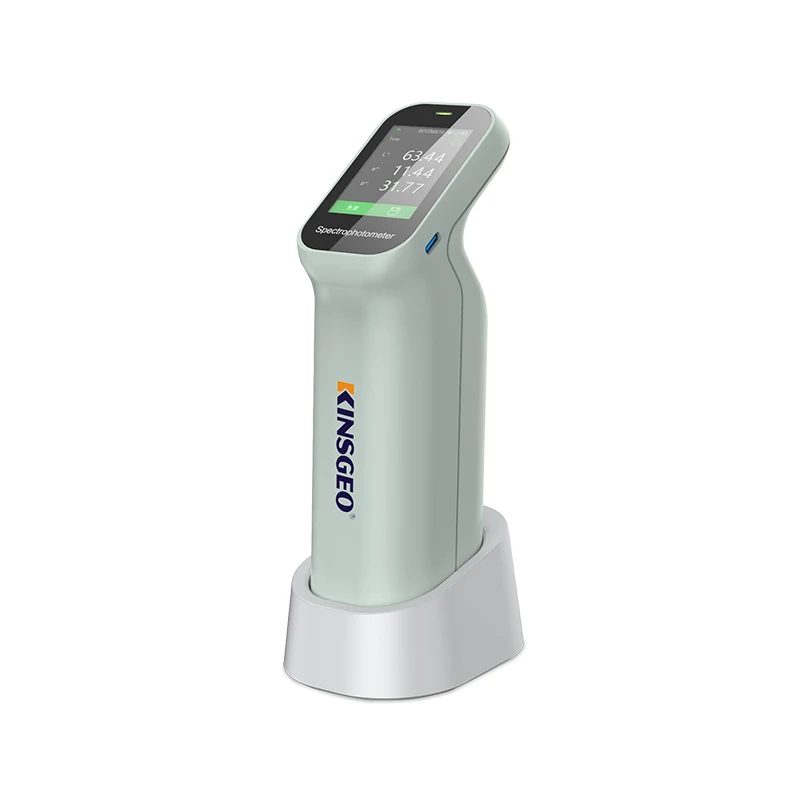

Portable spectrophotometer, color detection optical device
- Category: >>>
- Supplier: Guangdong Kejian Instrument Co. Ltd.
Share on (1600740740231):
Product Overview
Description

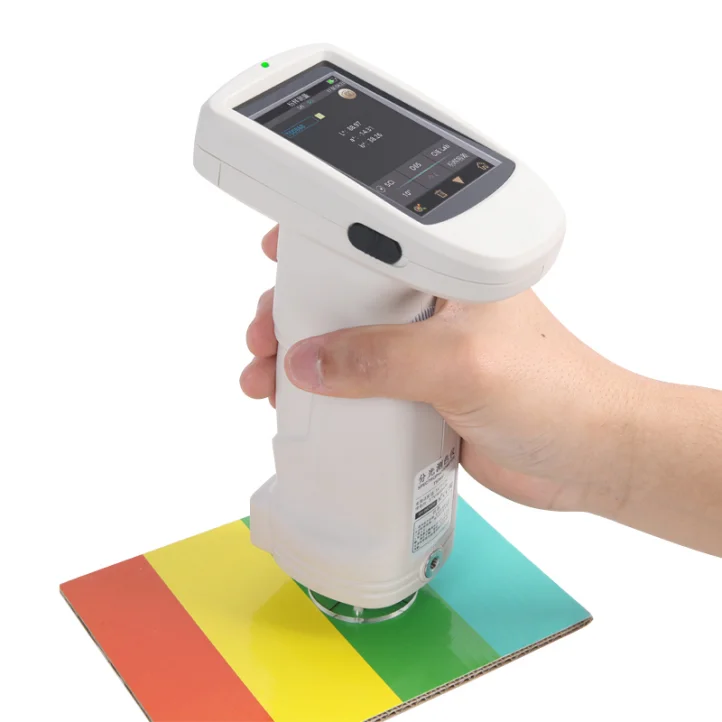

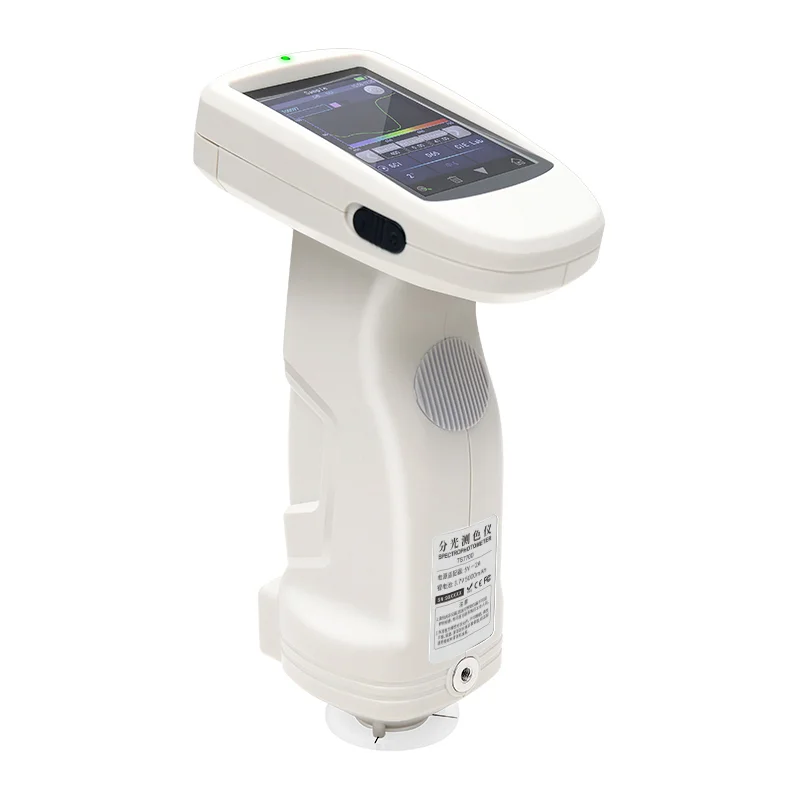

Handheld Spectrophotometer
Product Description
Instructions
S series grating spectrophotometer is a kind of grating spectrophotometer which has been carefully designed by the company for 3 years and has independent intellectual property rights. The instrument adopts 1000-line precision flared grating as the spectroscopic element, silicon photocell array with relatively large photosensitive area as the detector, and full-spectrum LED with high lifetime as the light source. The optical resolution is less than 10nm within the visible light range.
Under the CIE recommended D8 geometrical optical lighting conditions, the spectrochromator 623S can accurately measure the SCI and SCE reflectivity data of the sample/fluorescent sample, and accurately measure and express various color difference formulas and color indices in a variety of color Spaces. With the help of spectrophotometer 623S can easily achieve the precise transmission of color, but also can be used as a precise color matching system detection equipment.
The instrument features
1.D/8 geometrical optical structure, in accordance with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 TEIL7;
2. Full spectrum combined LED light source with high life and low power consumption;
3. Customized single Φ8/4mm caliber, platform/tip measurement caliber switch is convenient, adapt to more samples to be tested;
4. Dual optical path system, the optical resolution in visible light range is less than 10nm, can simultaneously measure the sample SCI, SCE spectrum;
5. Spectrum measurement of samples, accurate Lab data, can be used for color matching and accurate color transmission;
6. High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, 1000-wire flared grating, large photosensitive area of silicon photocell array detector, etc.
7.USB communication mode, convenient for various function expansion;
8. Super dirty resistance, stable standard whiteboard;
9. Large capacity storage space, can store more than 20000 test data
10.2/10 standard observer Angle, a variety of light source modes, a variety of color table, in line with a variety of standard chromaticity indicators, to meet the needs of various customers for color measurement;
11. Camera framing and positioning, stable film platform measurement and positioning;
12. The PC software has powerful function expansion;
Company Information
Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
Our Services
KeJian Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
FAQ
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city, the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
