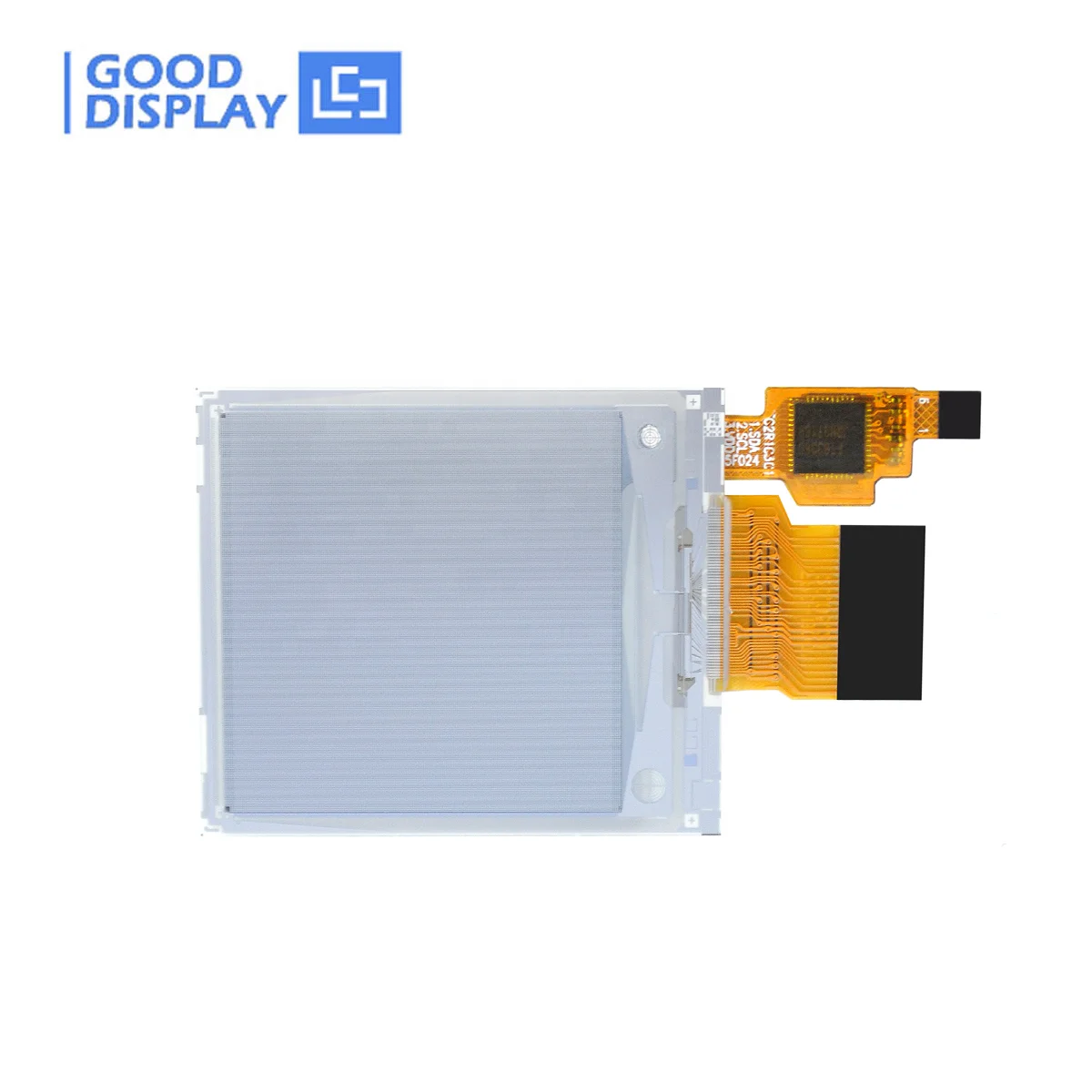

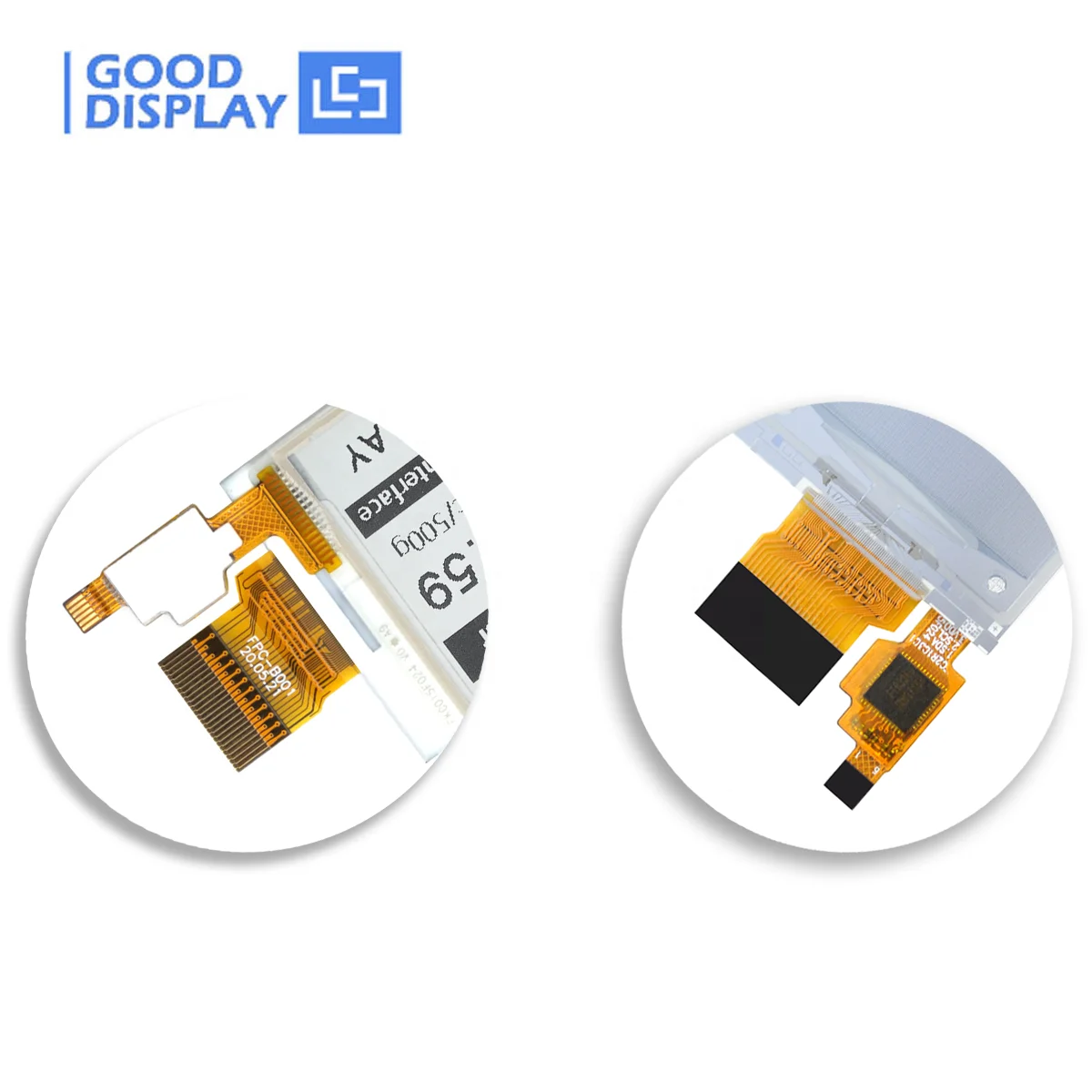

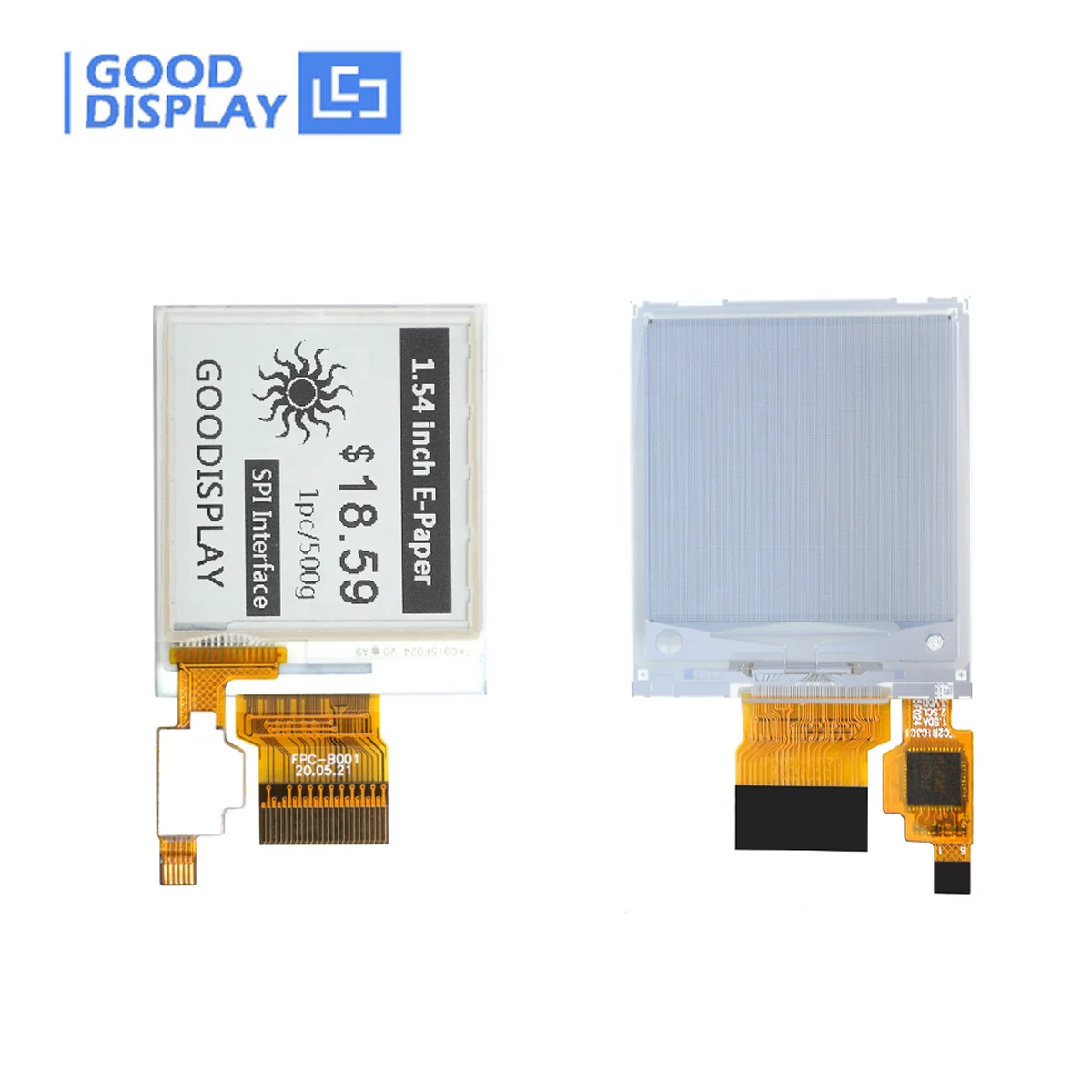

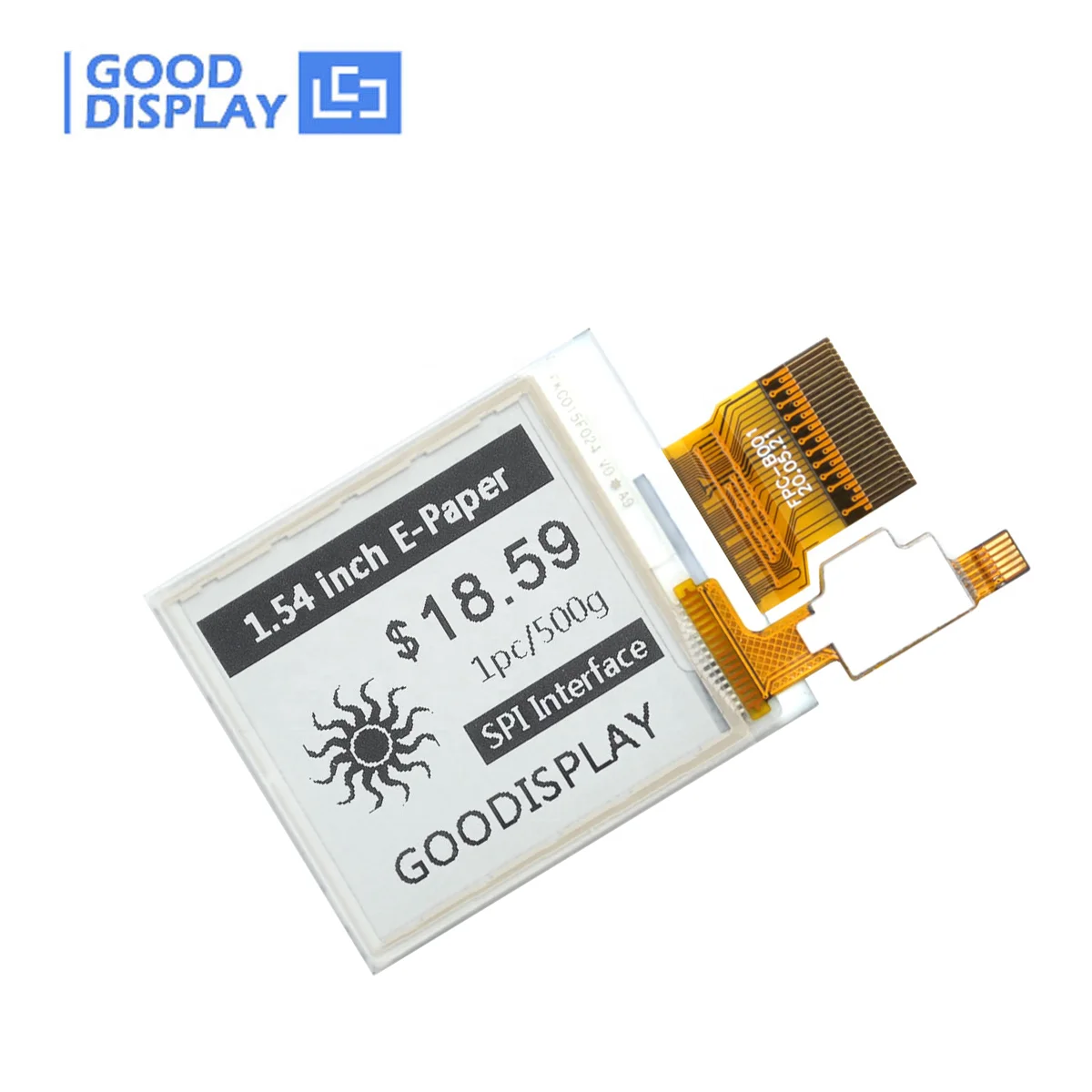

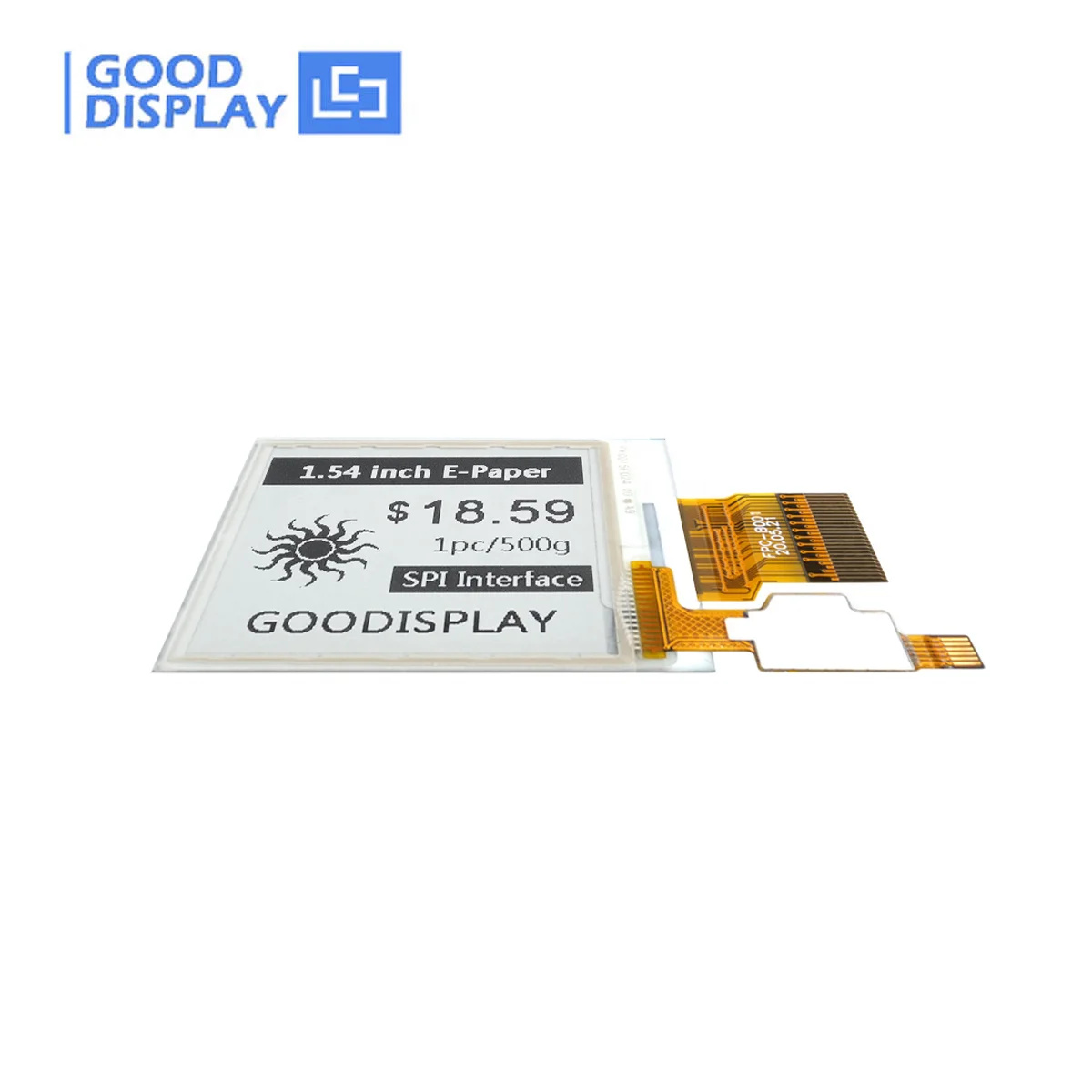

Touch Eink Display 1.54 inch E paper Display 200x200 Resolution Support Partial Screen Update
- Category: >>>
- Supplier: Dalian Good Display Co. Ltd.
Share on (1600740745514):
Product Overview
Description
Touch Eink Display 1.54 inch E-paper Display 200x200 Resolution Support Partial Screen Update
General Description
This is a 1.54 inch e-ink display with capacitive touch screen, 200x200 resolution, SPI interface, and the display is capable to display images with black and white content. It supports 2s full screen update, 0.26s partial screen update. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This electronic paper display GDEY0154D67-T03 is perfect for low power devices powered by solar or batteries.
Use our free e-paper software to prepare your bitmap image for this display.
Use our free e-paper software to prepare your bitmap image for this display.
PART NUMBER | GDEY0154D67-T03 |
TYPE | Dot Matrix |
SIZE | 1.54 inch |
IC OF EPD | SSD1681 |
IC OF TOUCH PANEL | FT6336U |
RESOLUTION | 200x200 |
OUTLINE SIZE(mm) | 37.32x31.8x1.525 |
ACTIVE SIZE(mm) | 27x27 |
OPERATING ENVIRONMENT | 0℃~50℃, ≤90%RH |
STORAGE ENVIRONMENT | -20℃~70℃, ≤90%RH |
CONNECTOR OF EPD | 24 Pin FPC |
CONNECTOR OF TOUCH PANEL | 6 Pin FPC |
MAX GRAYSCALE | 4 |
COLOR | Black, White |
FULL REFRESH(s) | 2 |
PARTIAL REFRESH TIME(s) | 0.26 |
FULL REFRESH(s) | 15 |
WORKING VOLTAGE(V) | 2.8V~3.3V |
How does E-paper Display Work?
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
● With capacitive touch screen
● Customizable 1.5s Fast Refresh
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● It supports partial refresh, the refresh rate is 0.26s/frame.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
Other Products
E-Paper Display Q&A
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
Q: Any solution to achieve lower power consumption of E-paper display?
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
