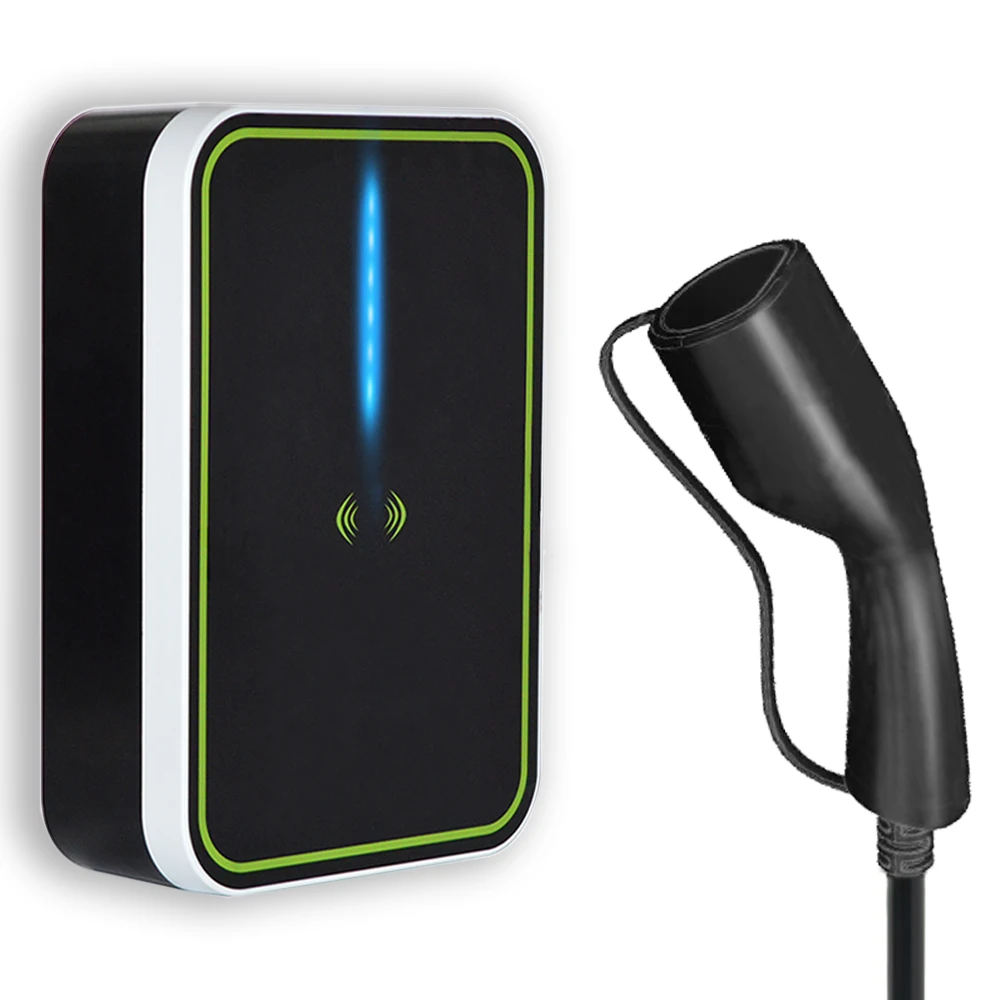

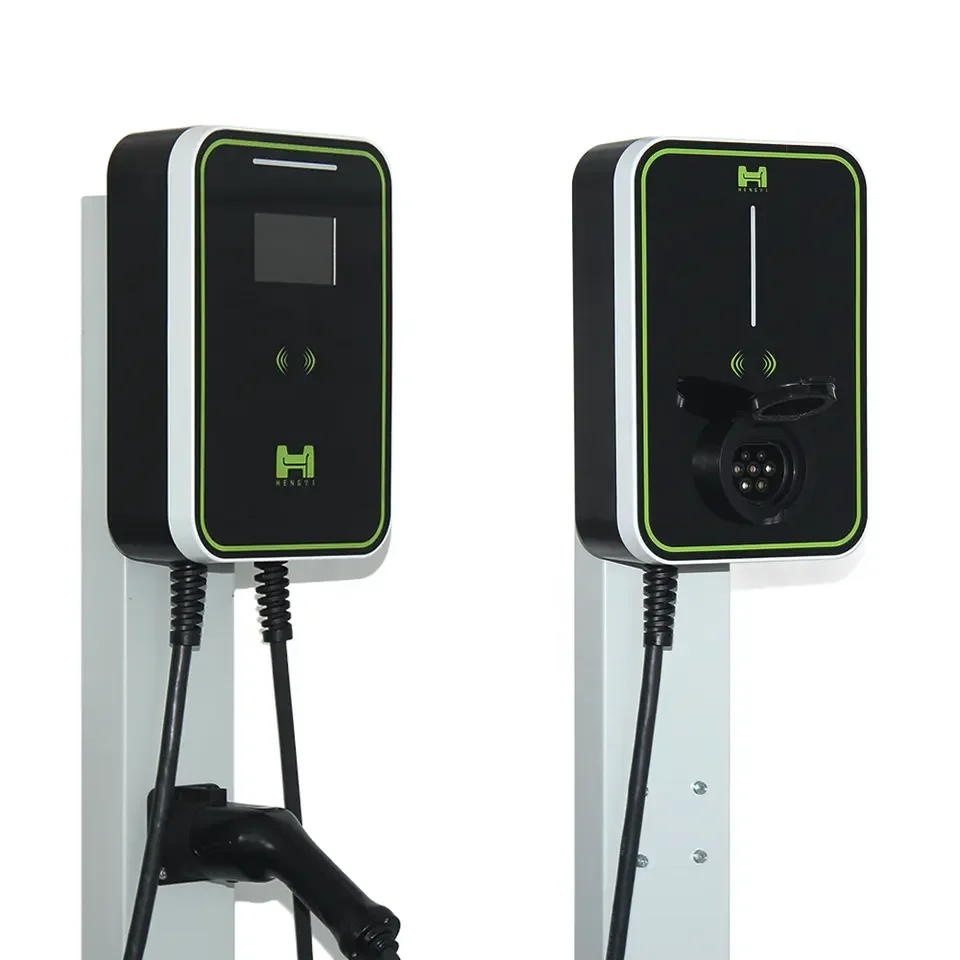

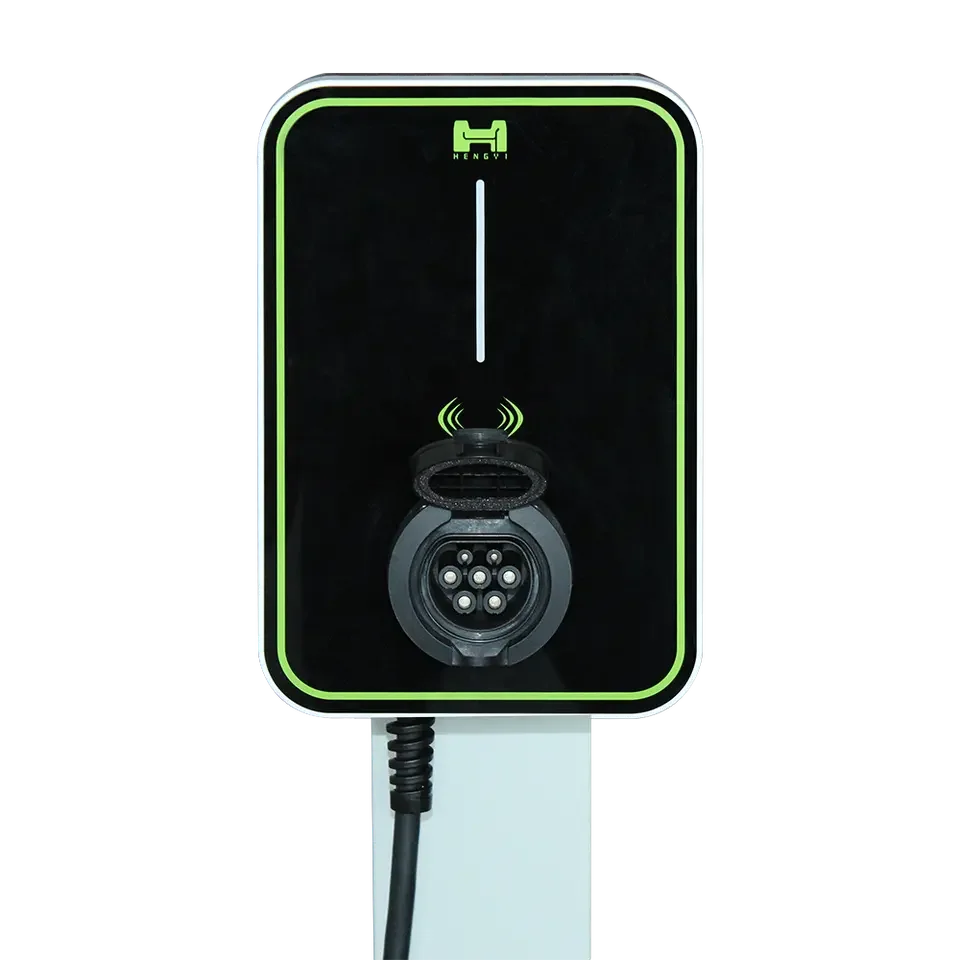

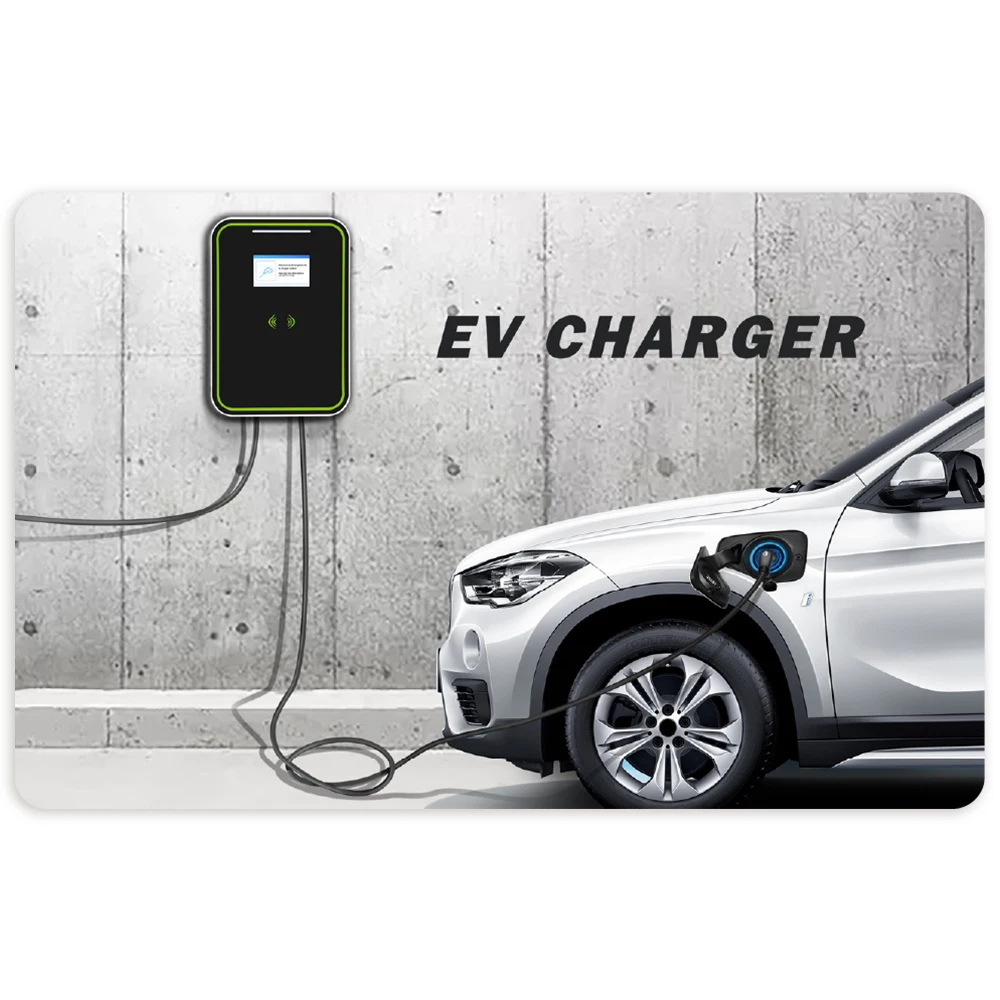

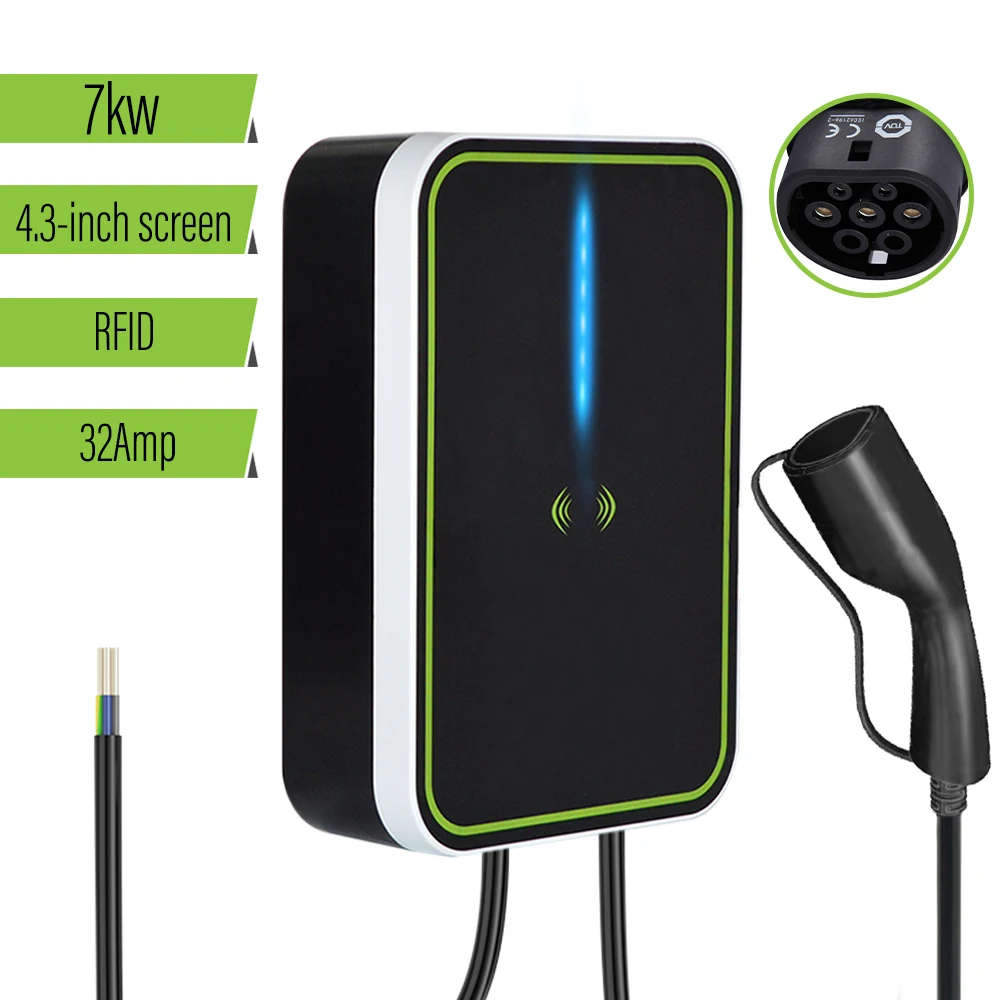

7KW RFID 32Amp Single Phase AC EV Charger IP65 Design Portable Wallbox EV Charger For Indoor Or Outdoor Use Home EV Charger
- Category: >>>
- Supplier: Hefei Renbang Electronic Technology Co. Ltd.
Share on (1600740747798):
Product Overview
Description
Product Description
KEY FEATURES |
★3 functions optional such as plug and plays/ RFID card authorization/APP make it very suitable for home charging. |
★Elegant design |
★Multiple Protections Ensure Safe Use |

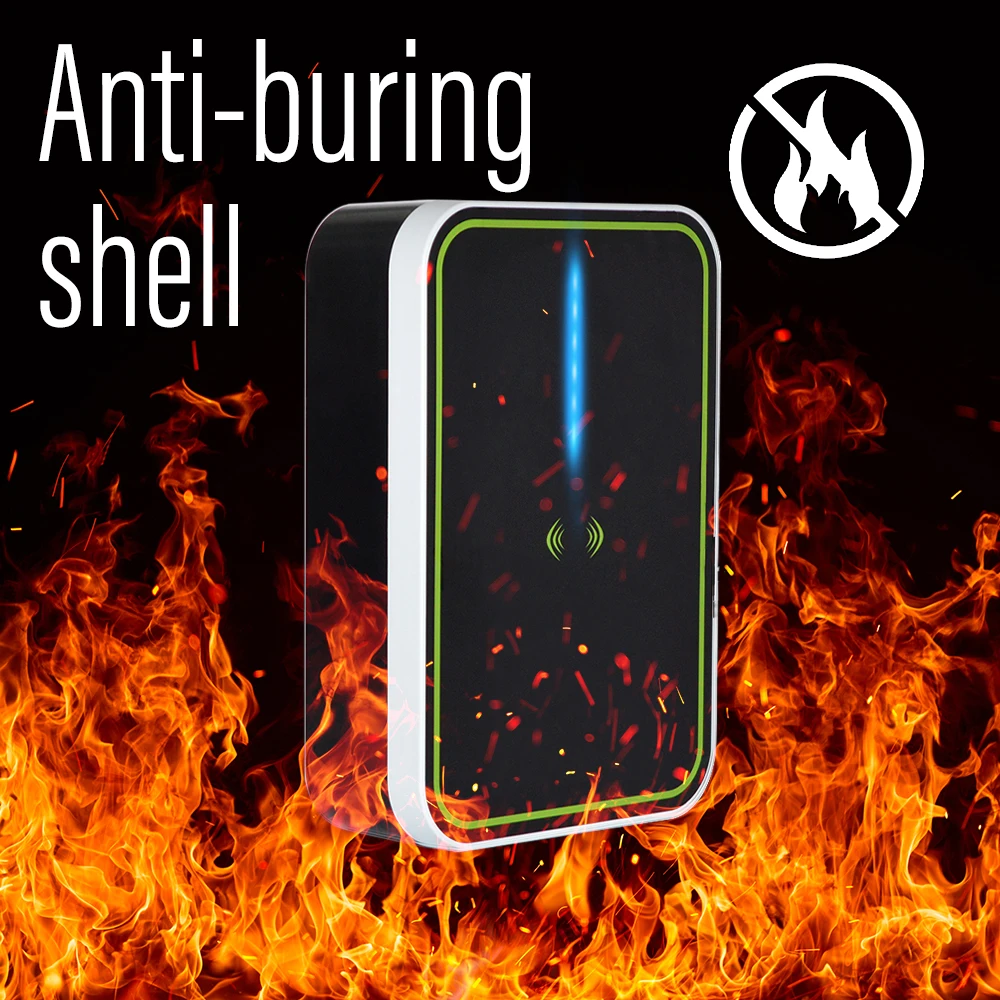

★Flame retardant material |
★HIGH QUALITY - CE certified |
★UNIVERSAL - The charger is IEC 61851 compliant and capable of charging hybrid/plug-in electric vehicles. |
★Weatherproof for Outdoor or Indoor Use |
★Safe & Secure -over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection. |
★Professional customer service -service team provides technical support and a 12-month warranty. |
Datasheet
Structure Appearance | Dimension | 350(H) × 240(W) × 95(D)mm |
User Interface | Indicator light | |
Installation method | Wall-mounted Type/Floor-standing Type Installation | |
Wiring method | Bottom enter&out | |

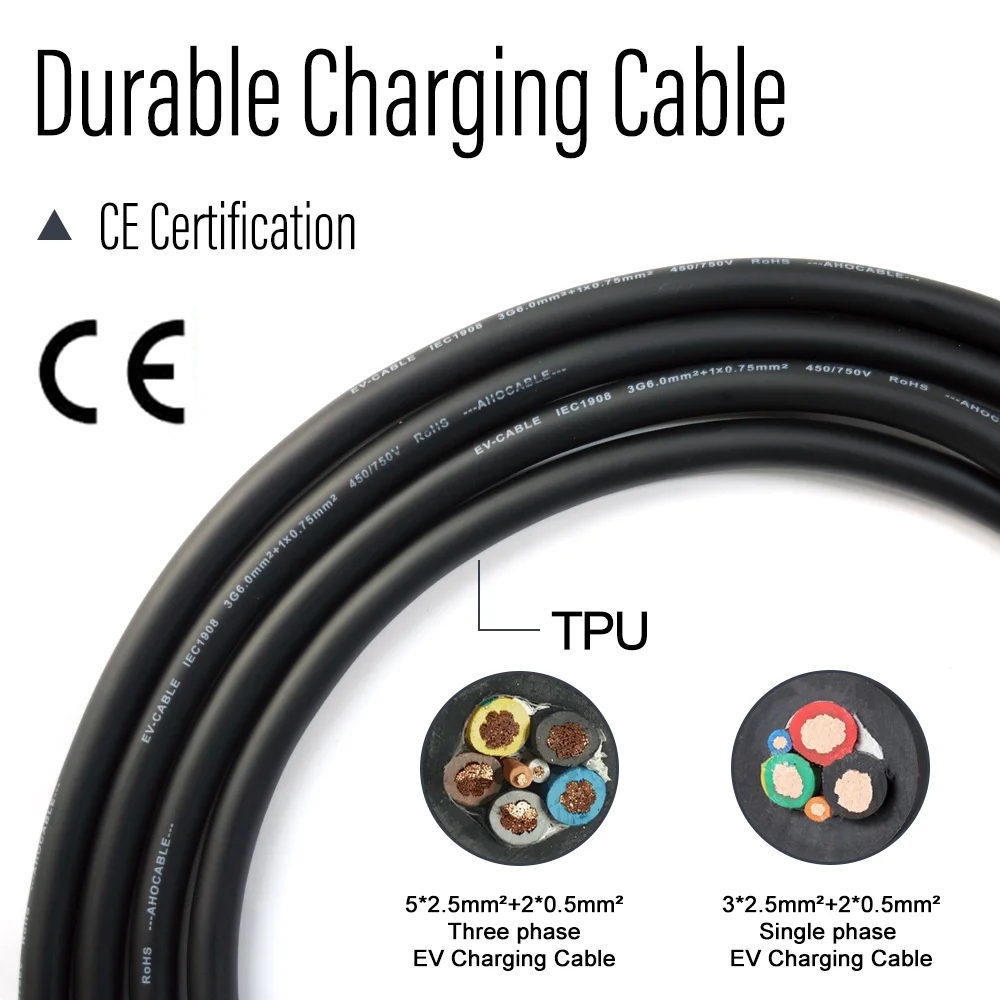

Cable length | 5M(16.4FT) standard,7.5m / 10m or other size customizable | |
Weight | 8.0kg (Including charging gun) | |
Electrical Specification | Input voltage | 220V |
Frequency | 45-65Hz | |
Power rating | 7KW | |
Measurement accuracy | OBM 1.0 | |
Output voltage | AC220±20% | |
Output current | 32A | |
Standby power | 3KW | |
FunctionFunction | Indicator light | YES |
Display | NO | |
Protection | Design standard | IEC 61851 |
Protection | Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA leakage protection | |
Operating Environment | Working temperature | -40-+65℃ |
Working Humidity | 5%-95% no condensation | |
Working altitude | ≤3000m | |
IP grade | ≥IP65 | |
Cooling mode | Natural cooling | |
Applicable | Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration | |
Special protection | UV resistance | |
MTBF | ≥100000H | |
Optional | Installation components | Stand pillar (customize) |
Communication interface | WIFI/4G/OCPP1.6/LAN (customize) | |
RFID | 2 user cards | |
Leakage protection | Upgrade to Type A 30mA AC (single phase) | |
Home load balancing | DLB(customize) | |
Socket outlet | Change charging cable to socket(not support SAE standard) |

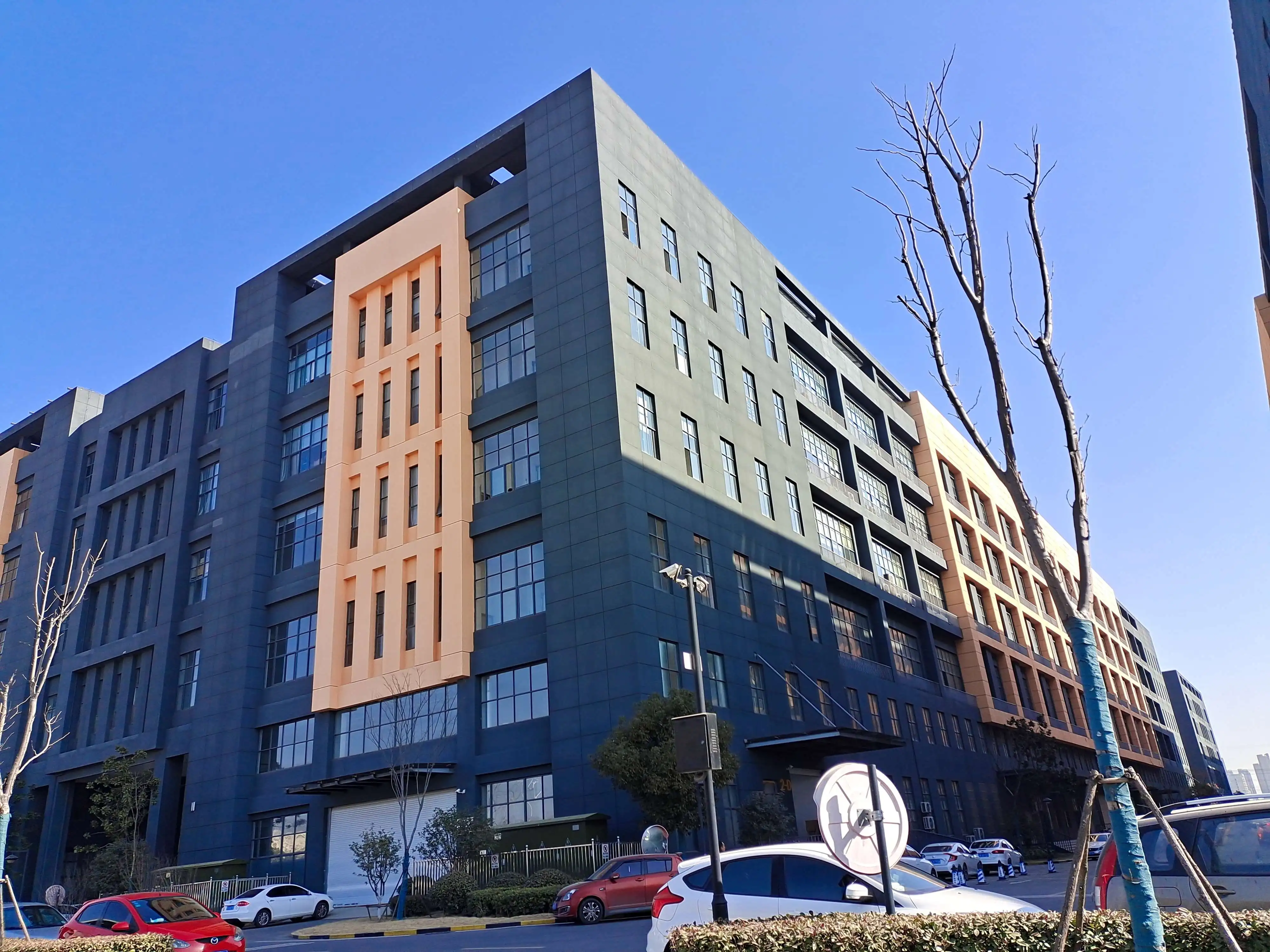

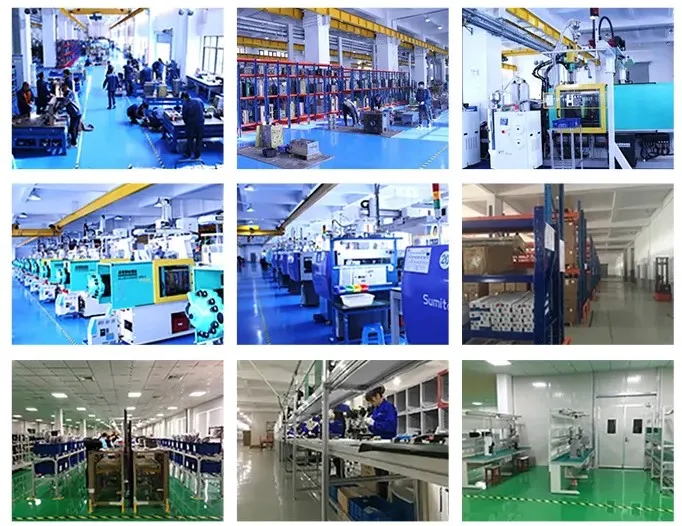

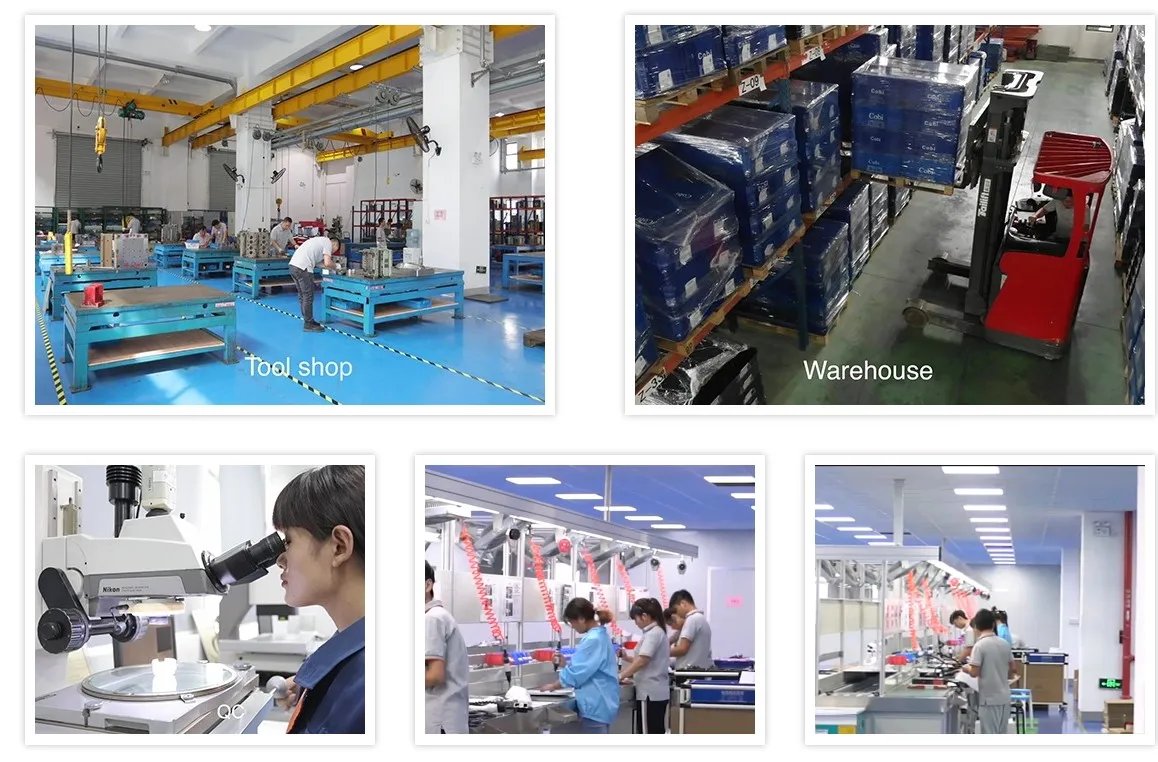

Company Information
Transport&Packaging
By sea | Delivery from Shanghai or Shenzhen seaport | ||||
By air | Departure from Shanghai Pudong Airport | ||||
By express | By FEDEX/UPS/DHL | ||||

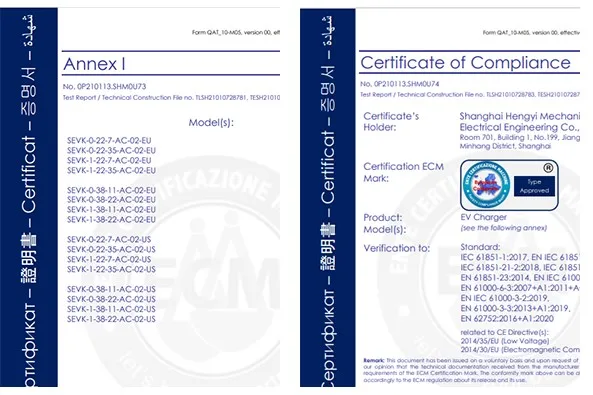

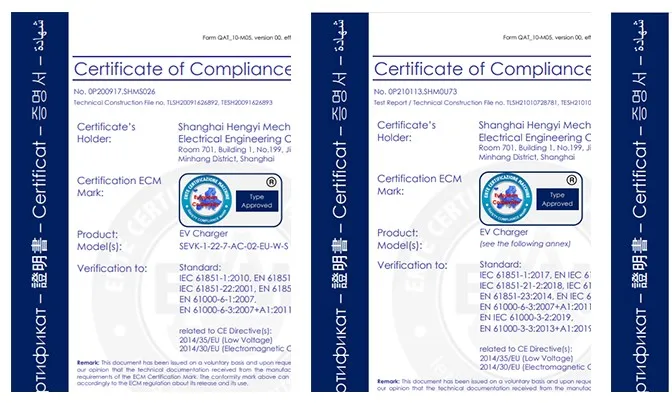

Certificate
