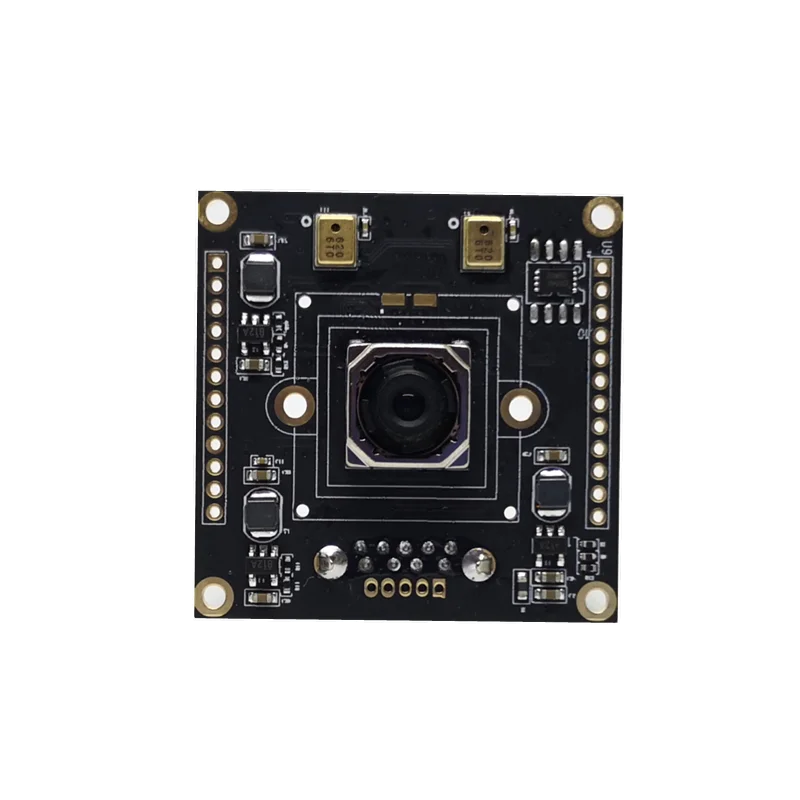

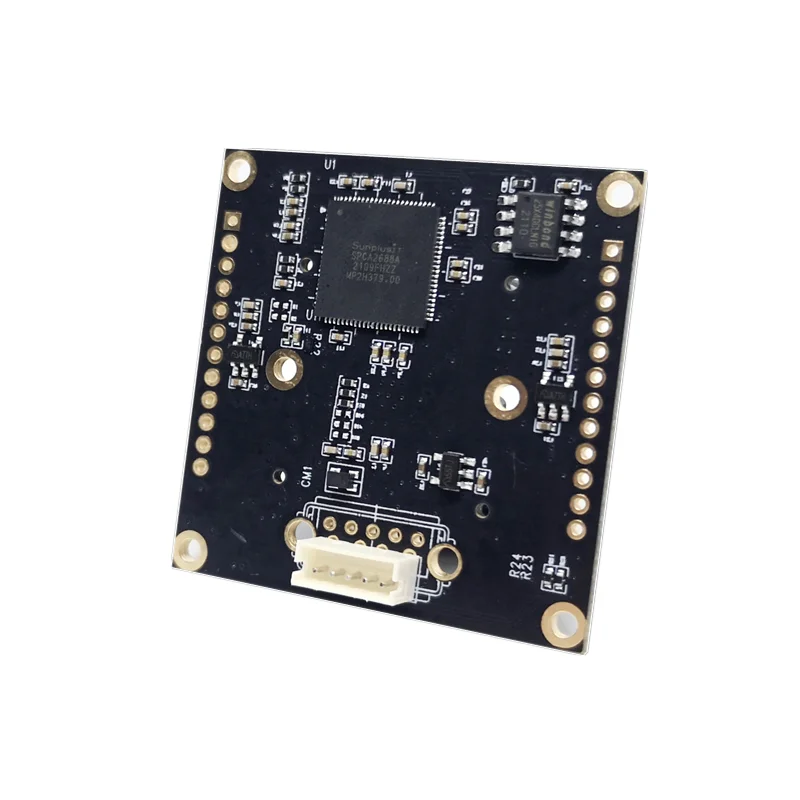

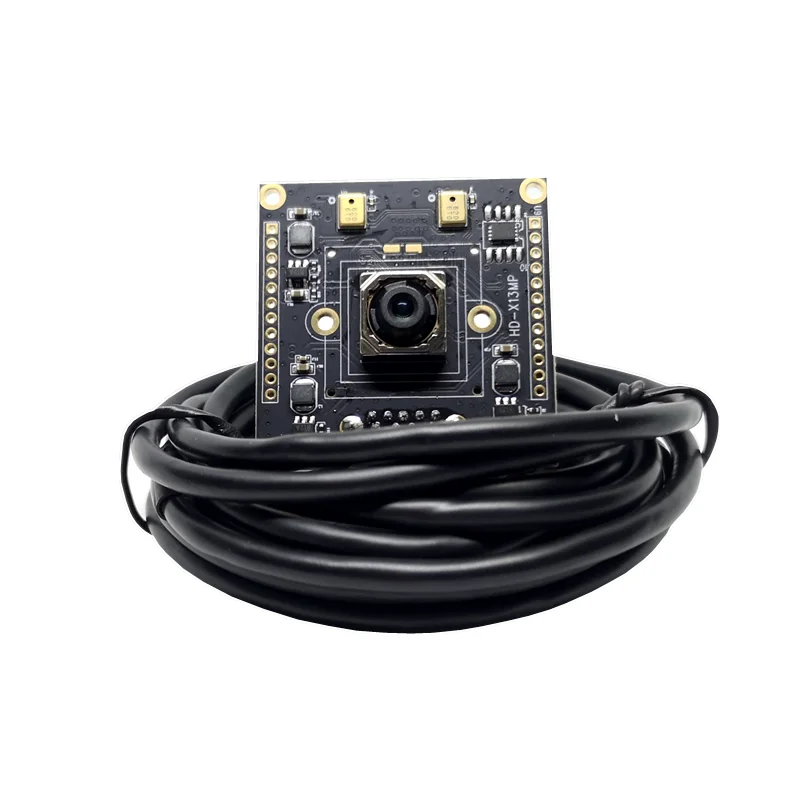

Support OEM Imx378 13MP 4K Autofocus Night Vision Security Monitoring USB2.0 Mini Camera Module For Industrial Machine Camera
- Category: >>>
- Supplier: Shenzhen Haoxin Kechuang Electronics Co. Ltd.
Share on (1600740774512):
Product Overview
Description
if you are interested in the camera model as below ,please click to the picture.
Product Parameters | value | |
Cmos Sensor | IMX378 | |
Lens Size | 1/2.3 inch | |
Warranty | 1 Years | |
USB Cable | 1 m (2/3m optional) | |
Pixel Size | 1.55um*1.55um | |
Photosensitive | TBD | |
USB Type | USB 2.0 | |
MJPG YUV | ||
3840*2880/30fps.MJPG 1920*1080/5 fps/YUV | ||
3840*2448/20fps.MJPG 1600*1200 /5 fps/YUV | ||
3840*2160/30fps.MJPG 1280*720 /10 fps/YUV | ||
1600*1200/30fps.MJPG 800*600/20 fps/YUV | ||
1920*1080/30fps;MJPG 640*480/30fps/YUV | ||
1280*720/30fps;MJPG | ||
800*600/30fps;MJPG | ||
640*480/30fps;MJPG | ||
Viewing Angle | Autofocus 72 Degree | |
Working Voltage&Current | 5V*110mA-290mA | |
Working temperature | 0～60℃ | |
Storage temperature | -30℃～80℃ | |
Microsoft windows 2000 sp2 | ||
XP/Vista/Windows7/Windows8/Windows10 | ||
MAC-OS X 10.4.8 or later | ||
Linux with UVC（above linux-2.6.26） | ||
Android 4.0 or above with UVC | ||
Support Drive Free | USB Video Class(UVC) | |
Express post station face recognition, Code scanner, High-speed camera, cell phone OTG, access control attendance, advertising machine,face recognition, conference video, industrial vision, visual inspection, USB microscope, USB telescope, intelligent selling camera, electronic scale item recognition, food recognition, USB raspberry pi, etc. | ||
Support OTG | USB 2.0 OTG | |

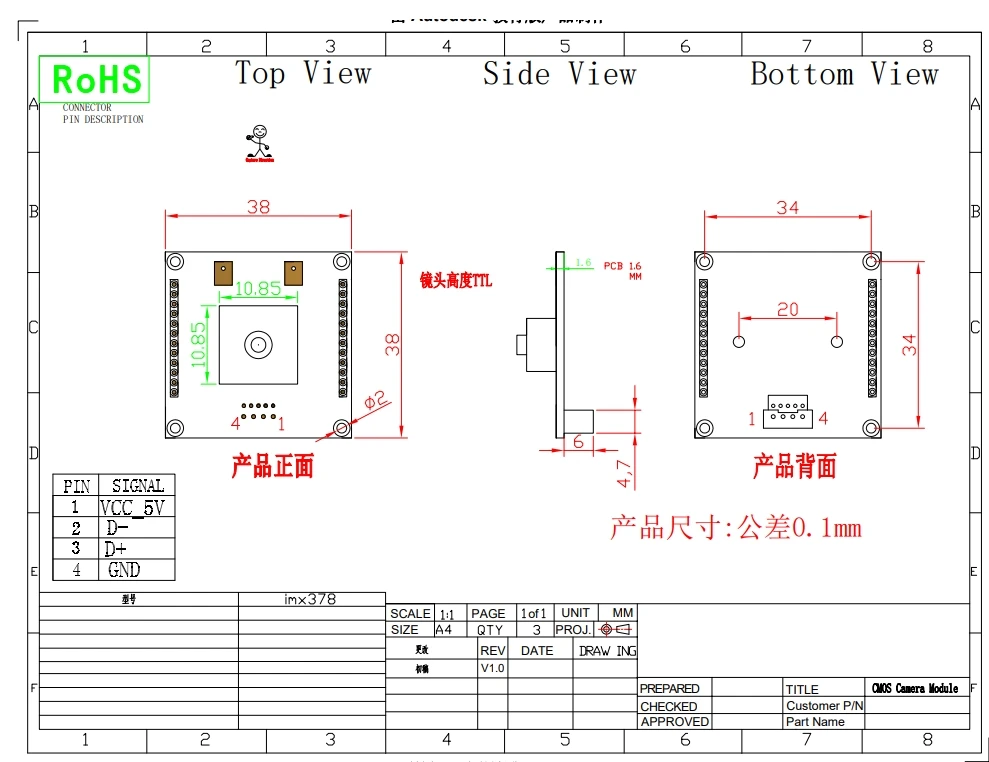

PCB Size | 38*38MM | |
The power supply model | USB BUS POWER 4P-2.0mm | |
Lens angle | As buyer requirment of 30~220° | |
Support Customaization
Pixel Optional : 0.3MP，1MP，2MP，5MP，8MP and 13MP
Wide-angle Optional: 68°，80°，90°，100°, 120°, 150°, 170° or other requirment
FPC Length:According to requirmentSupport with lights and night vision
Support with Microphone
Wide-angle Optional: 68°，80°，90°，100°, 120°, 150°, 170° or other requirment
FPC Length:According to requirmentSupport with lights and night vision
Support with Microphone
We professional produce 0.3 million,1.3 million,2 million,3 million,5 million,8 million,13 million,16 million pixel camera
module.The main application areas:MP4,mobile phone,the board,visual doorbell,industrial imagage recognition system,fingerprint indentification system...we could do according to customers'specific requirment/Custom products are delivered fast,quality assurance,responable price now super-low supply:GC0308 camera,OV7670 camera,OV7725 camera,OV7740 camera,OV9712 camera,OV9650 camera,OV9655 camera,OV9660 camera,OV2710/2715 camera,OV2640 camera,OV2643 camera,OV3640 camera,AR0330 camera,OV5640 camera,OV5648 camera,OV8865 camera,OV13850 camera,IMX214 camera and so on.
module.The main application areas:MP4,mobile phone,the board,visual doorbell,industrial imagage recognition system,fingerprint indentification system...we could do according to customers'specific requirment/Custom products are delivered fast,quality assurance,responable price now super-low supply:GC0308 camera,OV7670 camera,OV7725 camera,OV7740 camera,OV9712 camera,OV9650 camera,OV9655 camera,OV9660 camera,OV2710/2715 camera,OV2640 camera,OV2643 camera,OV3640 camera,AR0330 camera,OV5640 camera,OV5648 camera,OV8865 camera,OV13850 camera,IMX214 camera and so on.
About US

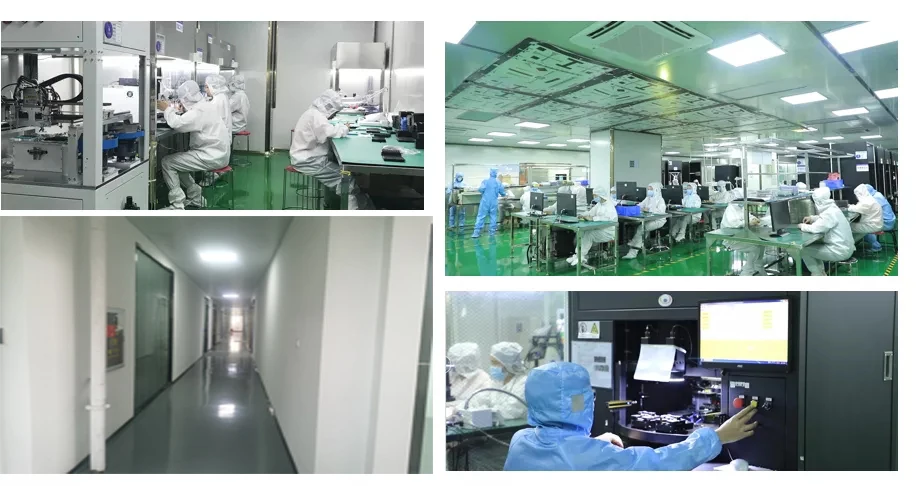

Shenzhen Haoxin KeChuang Technology Co., LTD. is one R&D ,production and sales enterprise, founded in 2016 and headquartered in Shenzhen of China.
We focus on the field of cameras, CMOS camera module, USB camera,automatically zoom camera，wi-fi camera, SENSOR IC, and and other related electronic components,the products are widely used in face recognition, biometrics, biological detection, AI,machinevision, vehicles, drones, kiosks, image transmission, bar code scanning, infrared detection, intelligent household,securitymonitoring, camera motion, industrial and other fields.
At the same time, we have more than 10 years of experience in supporting electronic components, we can provide all kinds of components, Hall sensors, resistors, capacitors, integrated circuits, sensors, diodes, TVS tubes, etc. Provide BOM matching order service.
We regard our customers as friends and look forward to cooperating with you.
We focus on the field of cameras, CMOS camera module, USB camera,automatically zoom camera，wi-fi camera, SENSOR IC, and and other related electronic components,the products are widely used in face recognition, biometrics, biological detection, AI,machinevision, vehicles, drones, kiosks, image transmission, bar code scanning, infrared detection, intelligent household,securitymonitoring, camera motion, industrial and other fields.
At the same time, we have more than 10 years of experience in supporting electronic components, we can provide all kinds of components, Hall sensors, resistors, capacitors, integrated circuits, sensors, diodes, TVS tubes, etc. Provide BOM matching order service.
We regard our customers as friends and look forward to cooperating with you.
