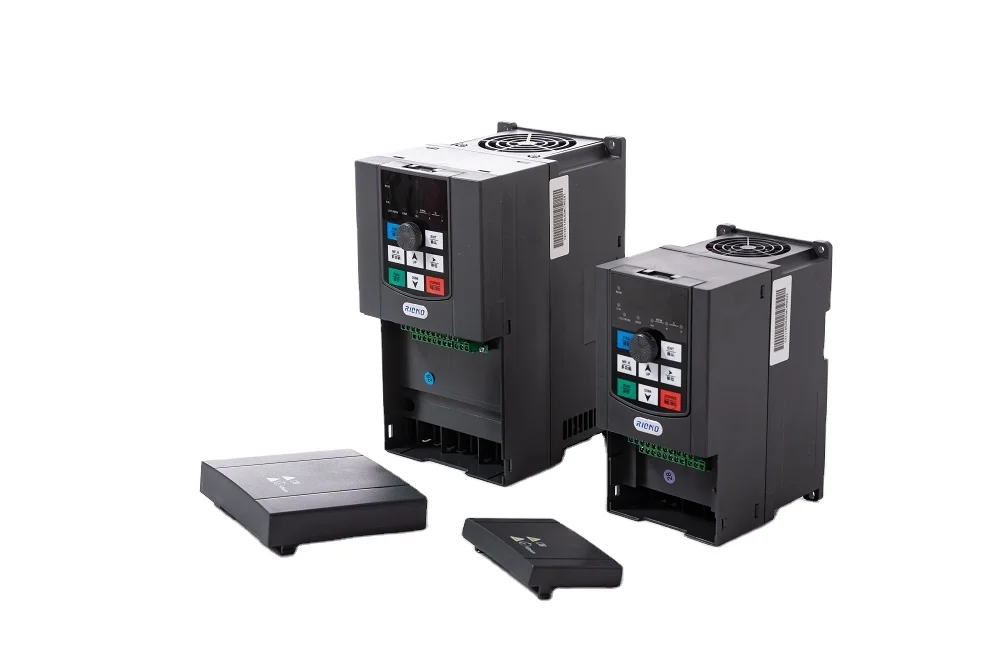

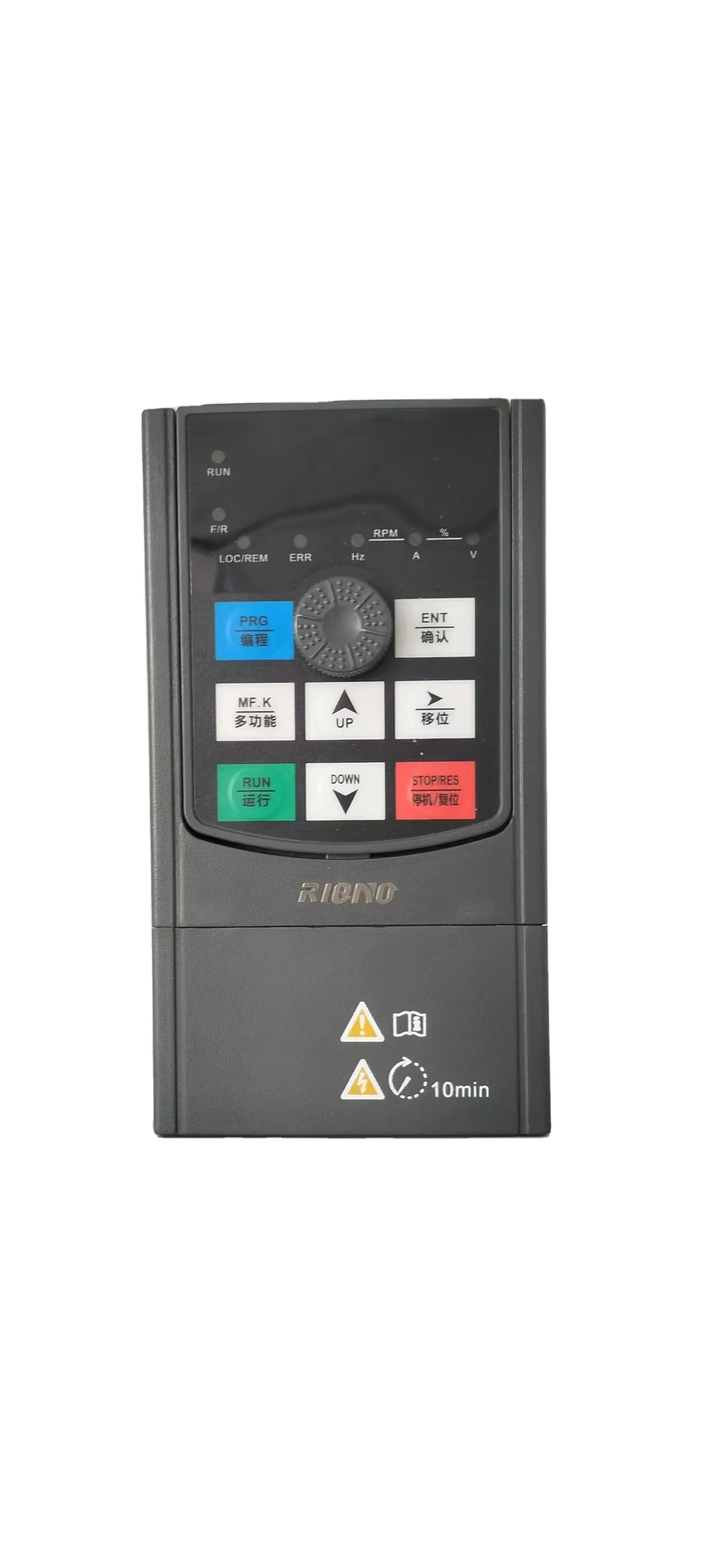

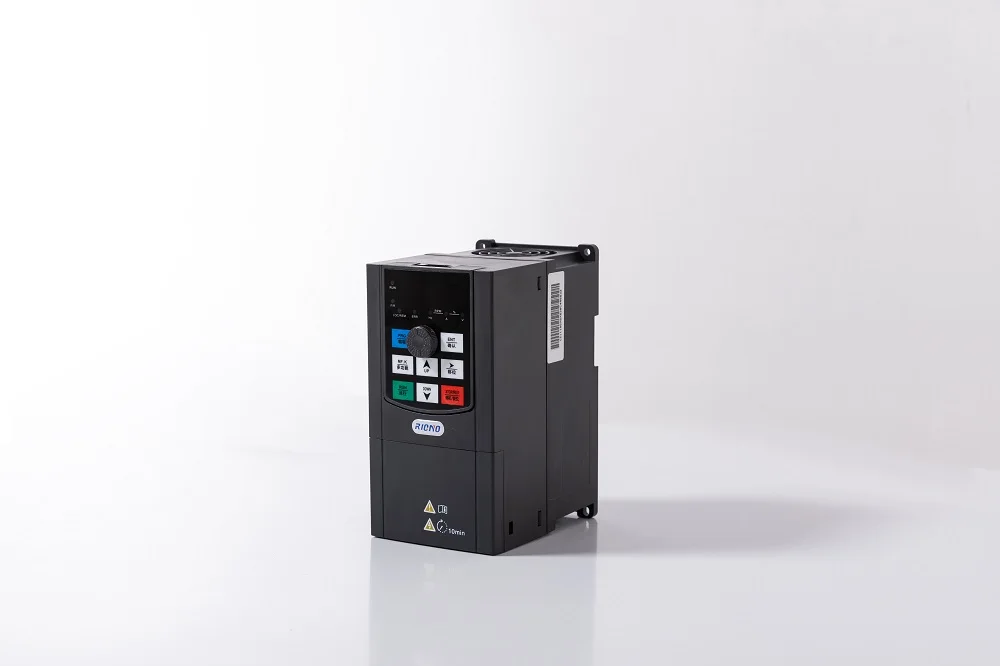

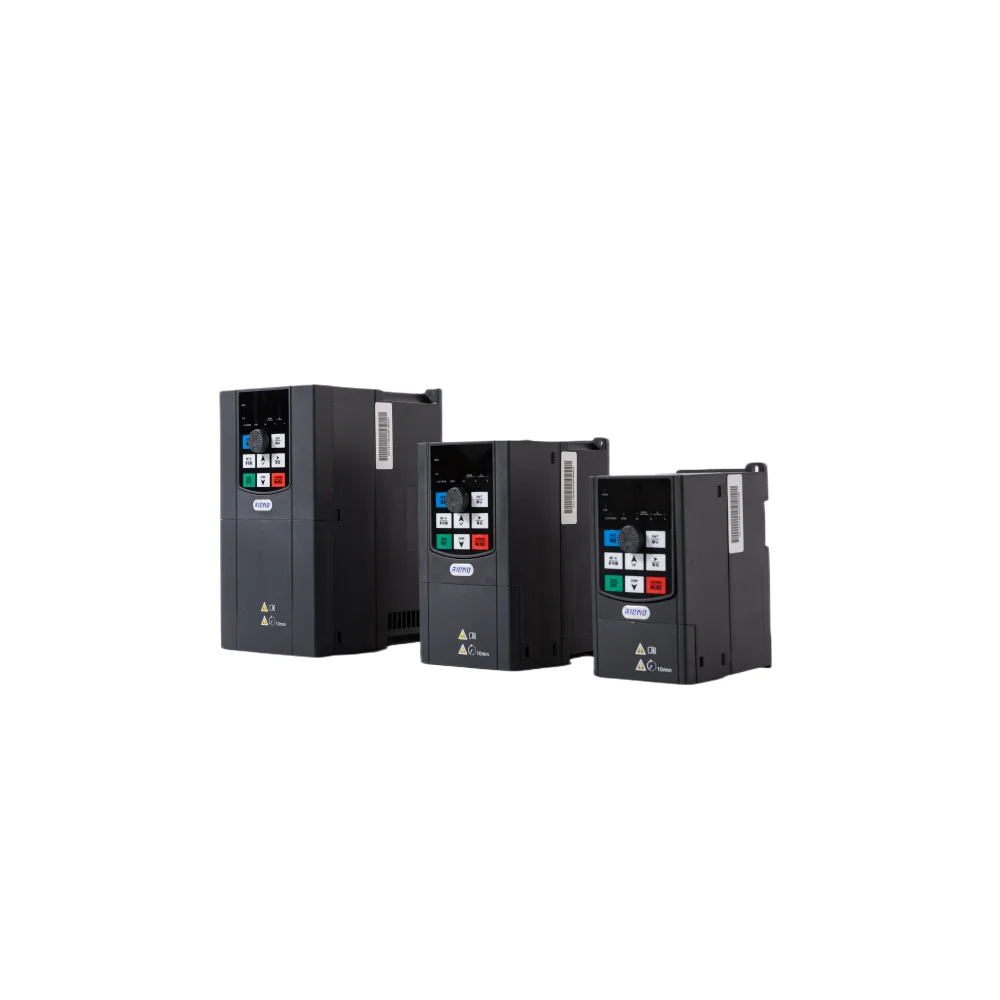

Ac variable frequency drive 380V 3phase solar vfd pump drive vfd for single phase motor
- Category: >>>
- Supplier: Jiangsu Riqno Electric Co. Ltd.
Share on (1600740777002):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | RIQNO |
Model Number | A100-0R7G -T4 |
Warranty | 18 months |
Type | AC/DC/AC or DC/AC |
Certification | OEM/ODM |
Size | 142*83*110 mm |
Customized | Yes |
Control Mode | V/F or Vector Control |
Rated Power | 0.75KW |
Nominal Voltage | 380V |
power phase number | Three phase |
Product name | Frequency Inverter VFD AC Drive |
Power | 0.75kw |
Input voltage | 1PH220v |
Frequency | 50/60 HZ |
Quality | Excellent |
MOQ | 1pcs |
OEM | Support |
Protection | IP 20 |
Package | Carton Package |
Warranty | 18 Months |
Product Paramenters

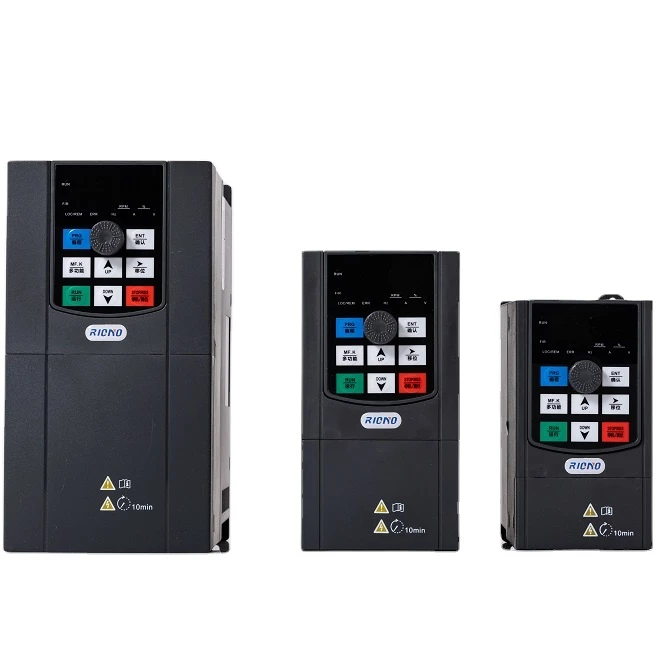

A100 Series High Performance AC Inverter VFD | ||||||||||||
No | Model No. | Motor Power | Rated Current | Outline Dimensions | Package Dimensions | Gross Weight | ||||||
(kw) | (A) | （H*W*D） （mm) | （H*W*D） （mm) | (KG) | ||||||||
220V 1-phase input & 3-phase output （Voltage Range: -15% 220V~220+15%） | ||||||||||||
1 | A100-0R75G-S2 | 0.75 | 5.0A | 142*83*110 | 210*130*180 | 1.2 | ||||||
2 | A100-1R5G-S2 | 1.5 | 7.5A | 1.3 | ||||||||
3 | A100-2R2G-S2 | 2.2 | 10A | 1.5 | ||||||||
4 | A100-4R0G-S2 | 4.0 | 18A | 230*122*171 | 280*200*235 | 2.8 | ||||||
5 | A100-5R5G-S2 | 5.5 | 25A | 3.0 | ||||||||
380V 3-phase input & 3-phase output （Voltage Range: -15% 380V~380+15%） | ||||||||||||
1 | A100-0R7G -T4 | 0.75 | 2.1A | 142*83*110 | 210*130*180 | 1.2 | ||||||
2 | A100-1R5G -T4 | 1.5 | 3.8A | 1.3 | ||||||||
3 | A100-2R2G -T4 | 2.2 | 5.1A | 1.5 | ||||||||
4 | A100-4R0G/5R5P-T4 | 4.0 | 9.0A | 181*95*120 | 230*148*200 | 1.8 | ||||||
5 | A100-5R5G/7R5P-T4 | 5.5 | 13A | 2.0 | ||||||||
6 | A100-7R5G/11RP-T4 | 7.5 | 17A | 230*122*171 | 280*200*235 | 2.8 | ||||||

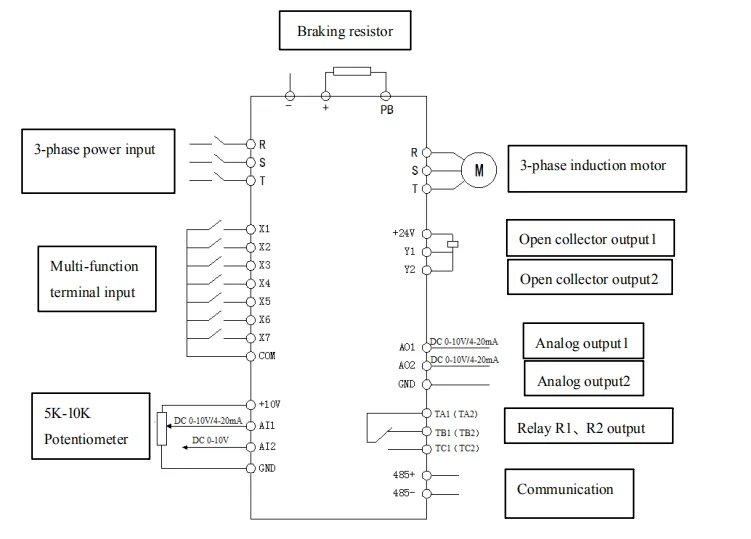

Wiring Diagram

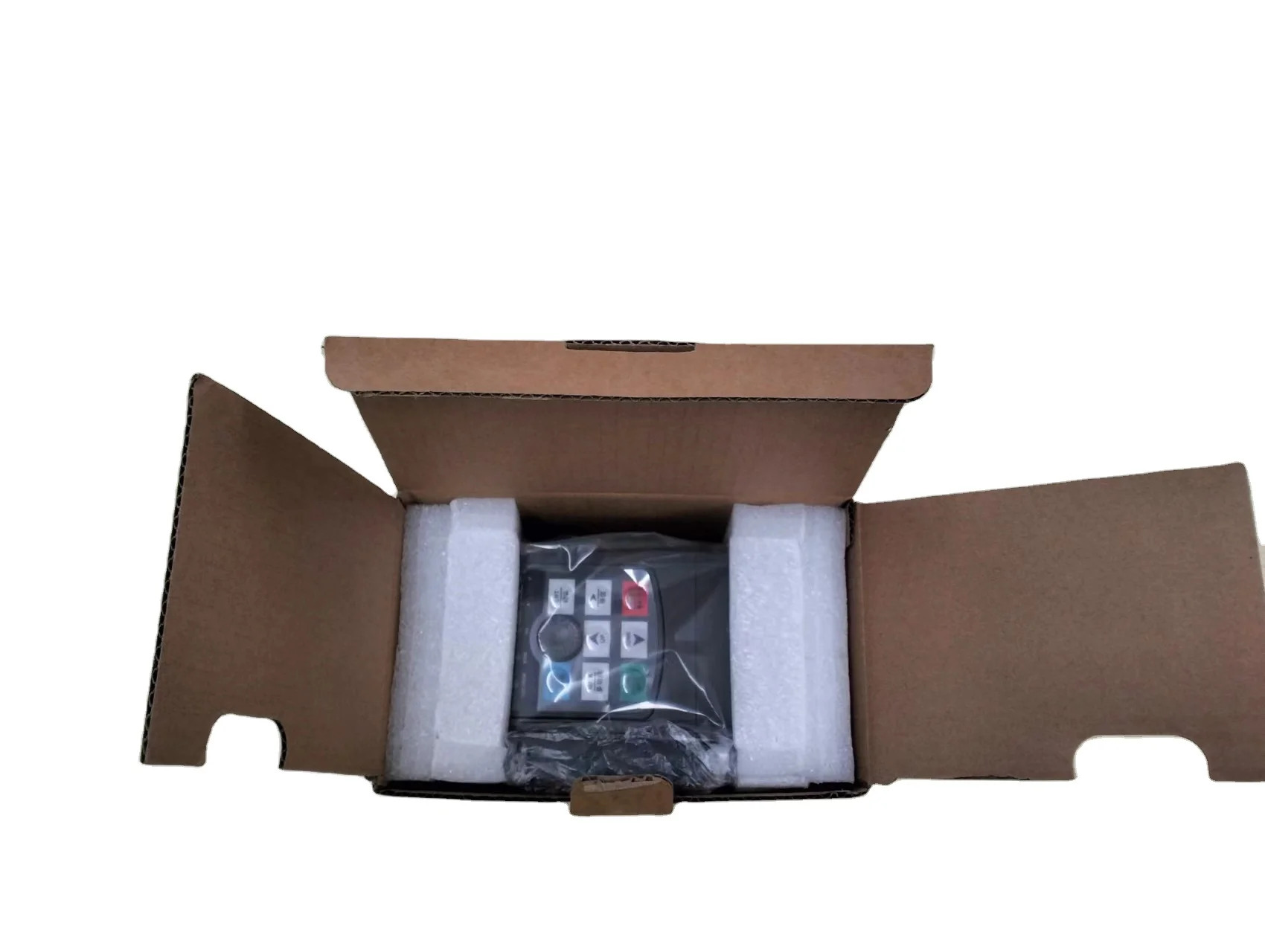

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Why Choose Us
Company Profile
Jiangsu RIQNO Electric Co., Ltd. is an enterprise integrating automation control, motor drive, system solution integration and technical services. For many years, the company has been focusing on the research and development, production, sales and service of electric drive products.
At present, the company has strong technical strength and excellent production quality system which are the guarantee for providing customers with high-quality services. The company has mastered key technologies such as high-performance vector frequency conversion technology, servo drive technology and automation control technology, and has a high-quality, high-level R&D team to maintain continuous upgrading and improvement of core technology.
Since its establishment, the company has always been adhering to the business philosophy of "seeking truth, being pragmatic,pioneering, and innovating", and is committed to providing customers with "all-round, full-cycle, and sustainable operation" industrial automation solutions to achieve the common value of corporate and customer values To grow and be committed to becoming the most trustworthy partner of customers.
At present, the company has strong technical strength and excellent production quality system which are the guarantee for providing customers with high-quality services. The company has mastered key technologies such as high-performance vector frequency conversion technology, servo drive technology and automation control technology, and has a high-quality, high-level R&D team to maintain continuous upgrading and improvement of core technology.
Since its establishment, the company has always been adhering to the business philosophy of "seeking truth, being pragmatic,pioneering, and innovating", and is committed to providing customers with "all-round, full-cycle, and sustainable operation" industrial automation solutions to achieve the common value of corporate and customer values To grow and be committed to becoming the most trustworthy partner of customers.
FAQ
1.Can I get some samples?
Yes,Sample order is available for quality check and market test.
2.What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order.
3.What's your payment terms?
We usually accept all kinds of payment terms.Such as T/T,L/C, Western Union.PayPal,Cash.
4.What's your warranty terms?
We offer 18 months warranty time.
5.Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order quantity.
Yes,Sample order is available for quality check and market test.
2.What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order.
3.What's your payment terms?
We usually accept all kinds of payment terms.Such as T/T,L/C, Western Union.PayPal,Cash.
4.What's your warranty terms?
We offer 18 months warranty time.
5.Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order quantity.
