Product Overview
Description
Product Overview
Aluminum wire rolling mill 9.5mm bar 12mm rod winding and winding rewinder production line rewinding machine price China

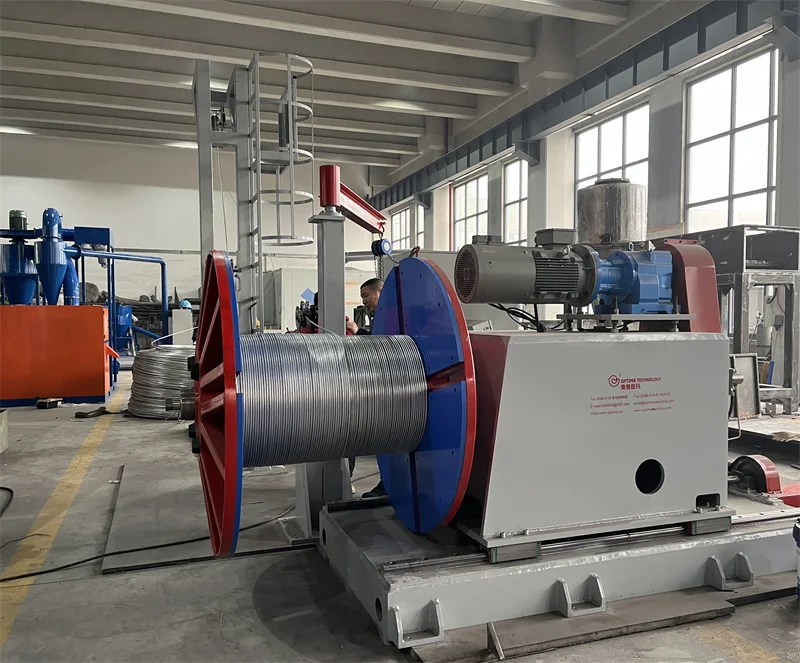

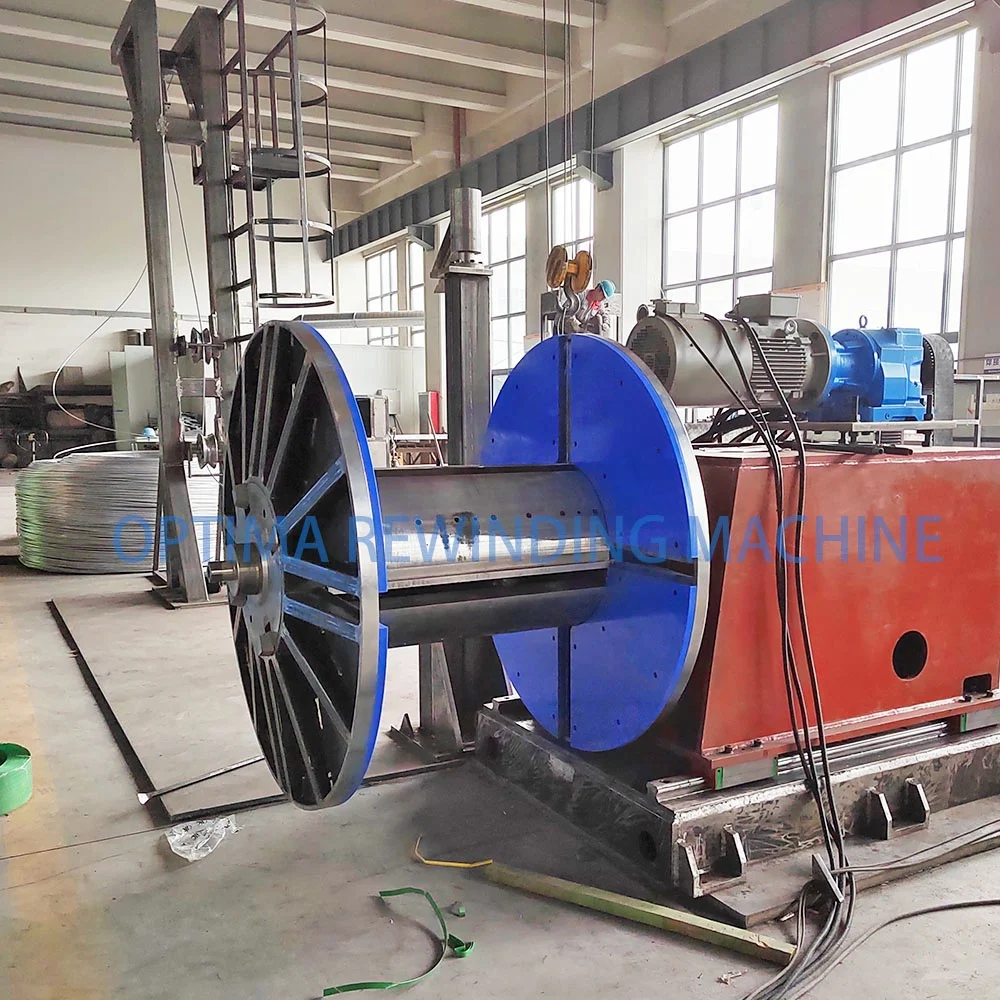

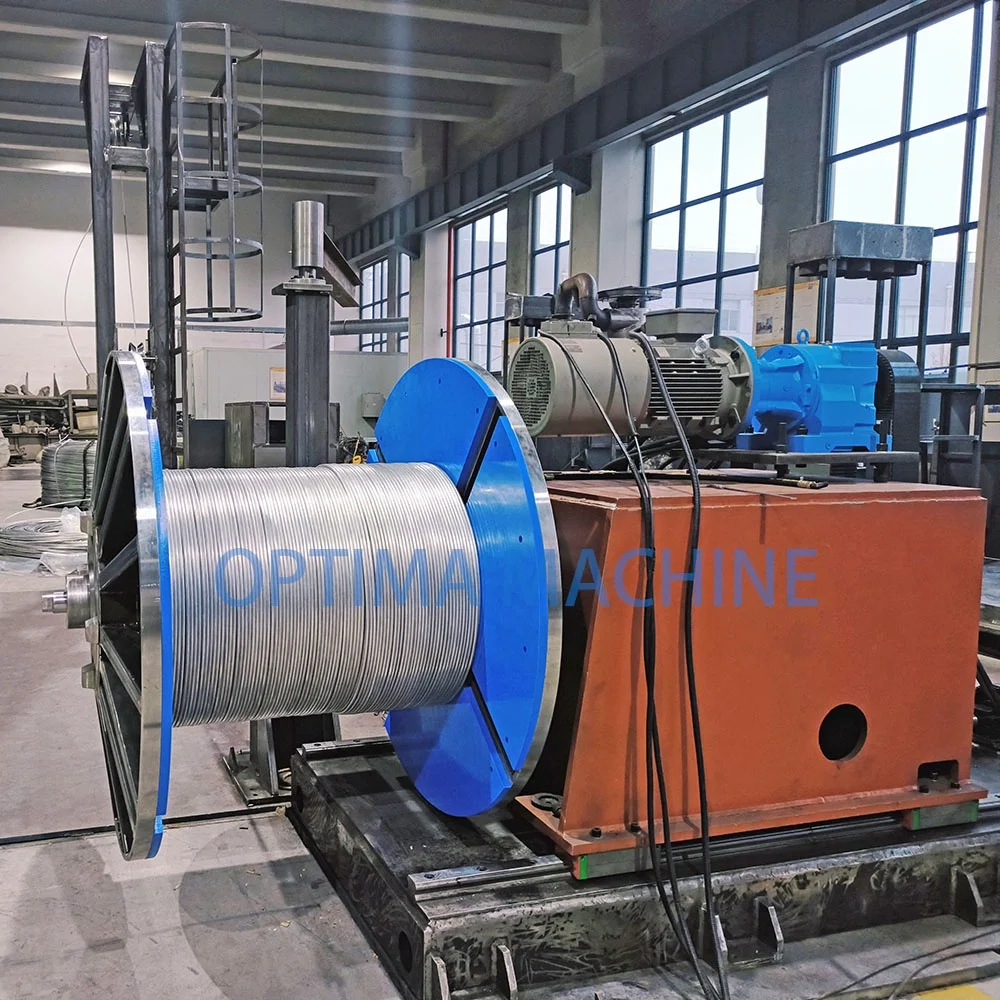

The equipment is used for rewinding aluminum rods with a diameter of 9.5mm 12mm and 15mm. Winding, traversing, finished coil flip and other actions are intelligently controlled by PLC. The laying-out is driven by overall movement of the servo take-up machine, ensure the aluminum rods after the coiling are arranged orderly, reduce the volume so that easy to transport and store.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
BASEMENT OVERALL MOVEMENT
SAFETY FRAME
PLC CONTROL
EASY MAINTENANCE
200M/min
2000KG PER ROLL
WITHOUT REEL
With Pay-off Supporter
With Straightening Machine

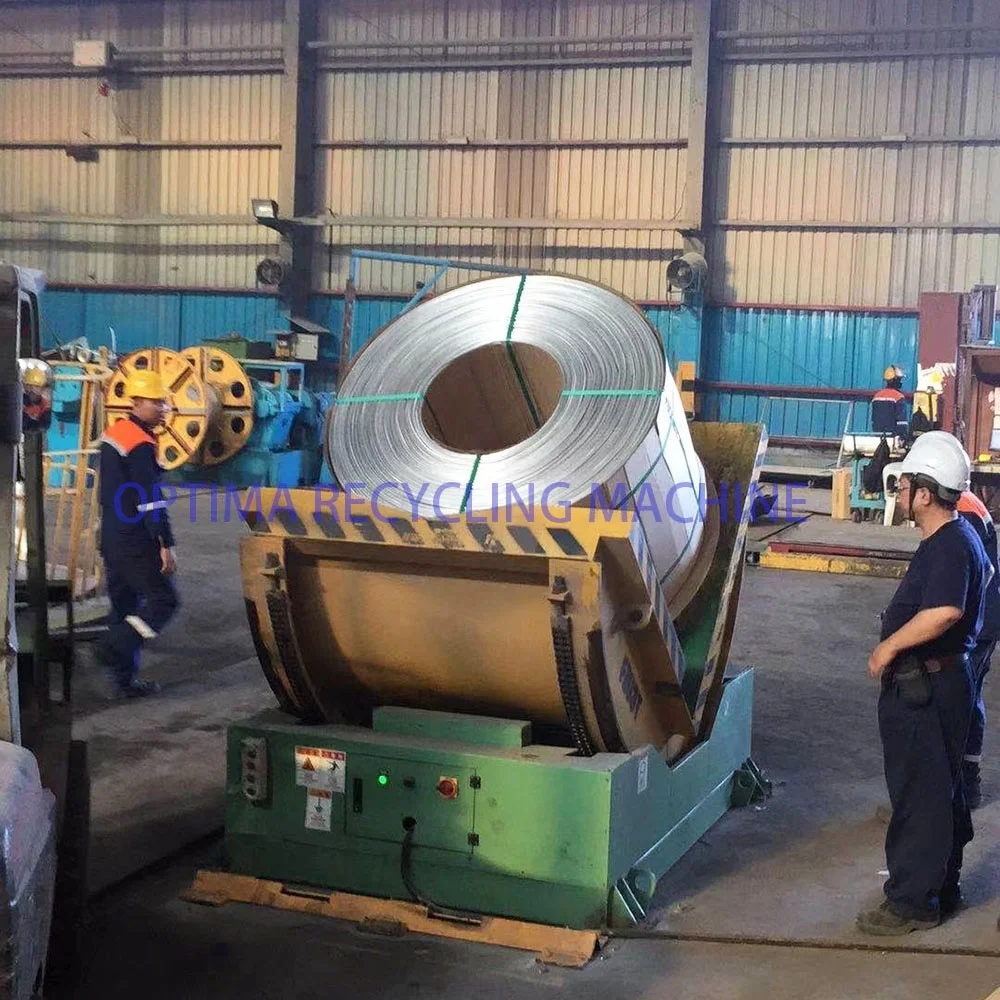

With Coil Flip
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Power | 30KW | ||
2 | Speed | 200m/min | ||
3 | Bearing weight | 2000kgs | ||
4 | Diameter of Aluminum Rod | 9.5mm 12mm 15mm | ||
5 | Size of take up reel | 1400*560*900mm | ||
6 | Traversing method | Overall movement | ||
7 | Control system | PLC | ||
8 | Feature | 100% new design |
PRODUCT CONFIGURATION
Schneider Electrical Element
NSK Bearing
Schneider
SALES AND SERVICE NETWORK
Successful Project
Project in S.A.
Project in India
Project in Korea
FAQ
2.Equipment list
2.1 Pay off : 1set
2.2 Horizontal straightening machine: 1 set
2.3 Vertical straightening machine: 1 set
2.4 Take-up: 1set
2.5 Coil flip: 1set
2.6 Electrical control cabinet: 1set
3.Main technical parameters
3.1 Expansion and contraction core (outer diameter * inner diameter * width): Φ 1400*560*900mm
3.2 Take-up speed: 200m/min
3.3 Take-up rod diameter: 9.5mm, 12mm, 15mm
3.4 Traversing method: overall movement of the servo take-up machine
3.5 Bearing weight: 3000kg
3.6 Max. Dia. of expansion and contraction：Φ560mm
3.7 Min. Dia. of expansion and contraction：Φ530mm
3.8 Take-up power：30kW Frequency Motor
3.9 Traversing power：3kw Servo Motor
3.10 Hydraulic station power：2.2kw
3.11 Equipped with fixed length line stop device
2.1 Pay off : 1set
2.2 Horizontal straightening machine: 1 set
2.3 Vertical straightening machine: 1 set
2.4 Take-up: 1set
2.5 Coil flip: 1set
2.6 Electrical control cabinet: 1set
3.Main technical parameters
3.1 Expansion and contraction core (outer diameter * inner diameter * width): Φ 1400*560*900mm
3.2 Take-up speed: 200m/min
3.3 Take-up rod diameter: 9.5mm, 12mm, 15mm
3.4 Traversing method: overall movement of the servo take-up machine
3.5 Bearing weight: 3000kg
3.6 Max. Dia. of expansion and contraction：Φ560mm
3.7 Min. Dia. of expansion and contraction：Φ530mm
3.8 Take-up power：30kW Frequency Motor
3.9 Traversing power：3kw Servo Motor
3.10 Hydraulic station power：2.2kw
3.11 Equipped with fixed length line stop device
