Product Overview

Description

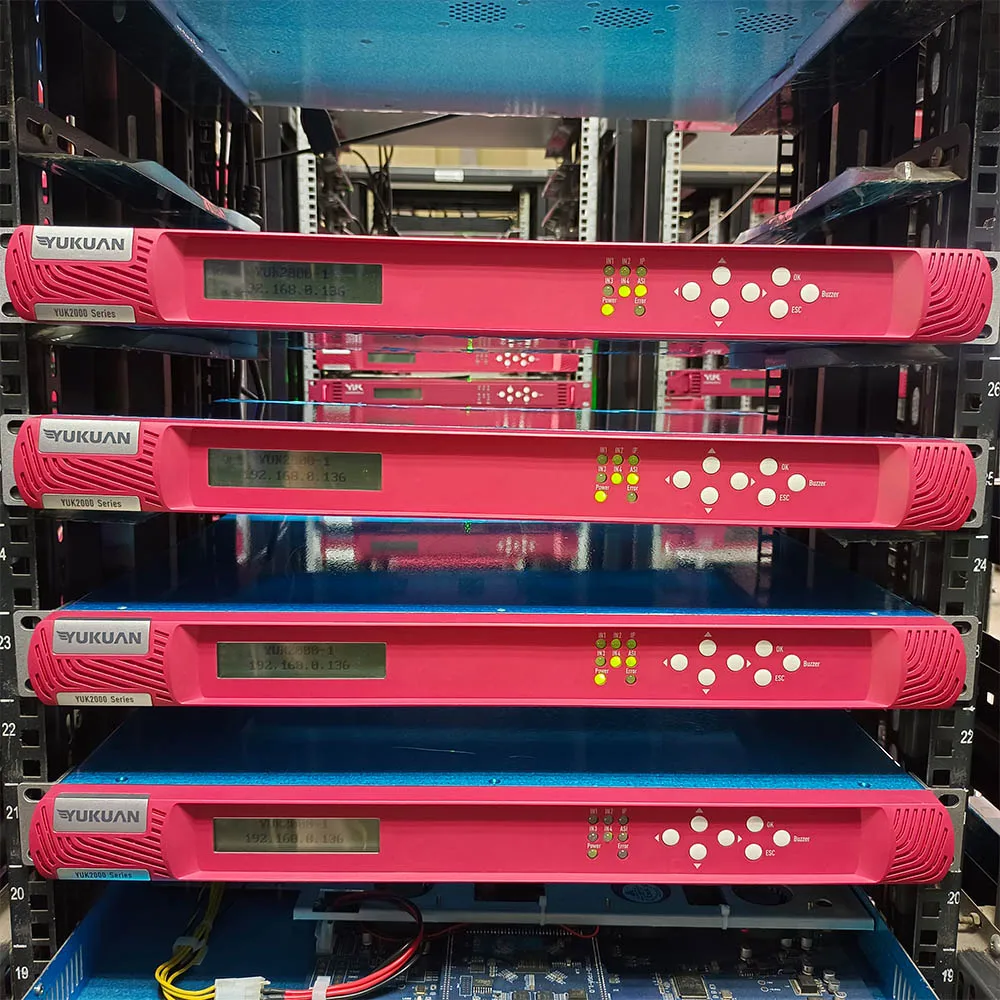

YUK2000-1
Digital TV Single Channel MPEG4 H264 MPEG2 Encoding HD Video to IP Encoder HD MI SDI






Product Overview


YUK2000-1 HD/SD encoder is a single channel broadcast level professional H.264 MPEG-2 encoder. It supports one channel HD SD-SDI HDMI CVBS audio signal input, 2 channel ASI input, 2 channel ASI output and 1 channel Gigabit IP input output. It’s widely used for High Definition and Standard Definition simultaneous broadcasting for TV channel.


Product Feature


* Support 1 channel videoinput, optional HD/SD-SDI HDMI CVBS input

* Support 1 channel audioinput: HD/SD-SDI embedded audio, HDMI embedded audio, 1 ch analog stereo, 1 ch AES/EBU

* Support encoding format H.264 MPEG-2

* Support VBR and CBR encoding mode

* Output multicastunicast IP stream after multiplexing, IP transport protocol UDP RTP

* 2 ASI input, 2 ASI independent output

* Support mux re-mux and demux function

* Support HDprogram input and SD program output (support down conversion function)

* Support multiple resolutions of 1080I/720P/576I/480I

* Support PID remapping, PCR correction

* Support low latency encoding

* Support LCD display/key operation

* Plug-intwo power supplies, support buzzer alarm



Specification


Parameter
Typical Value
Basic Information

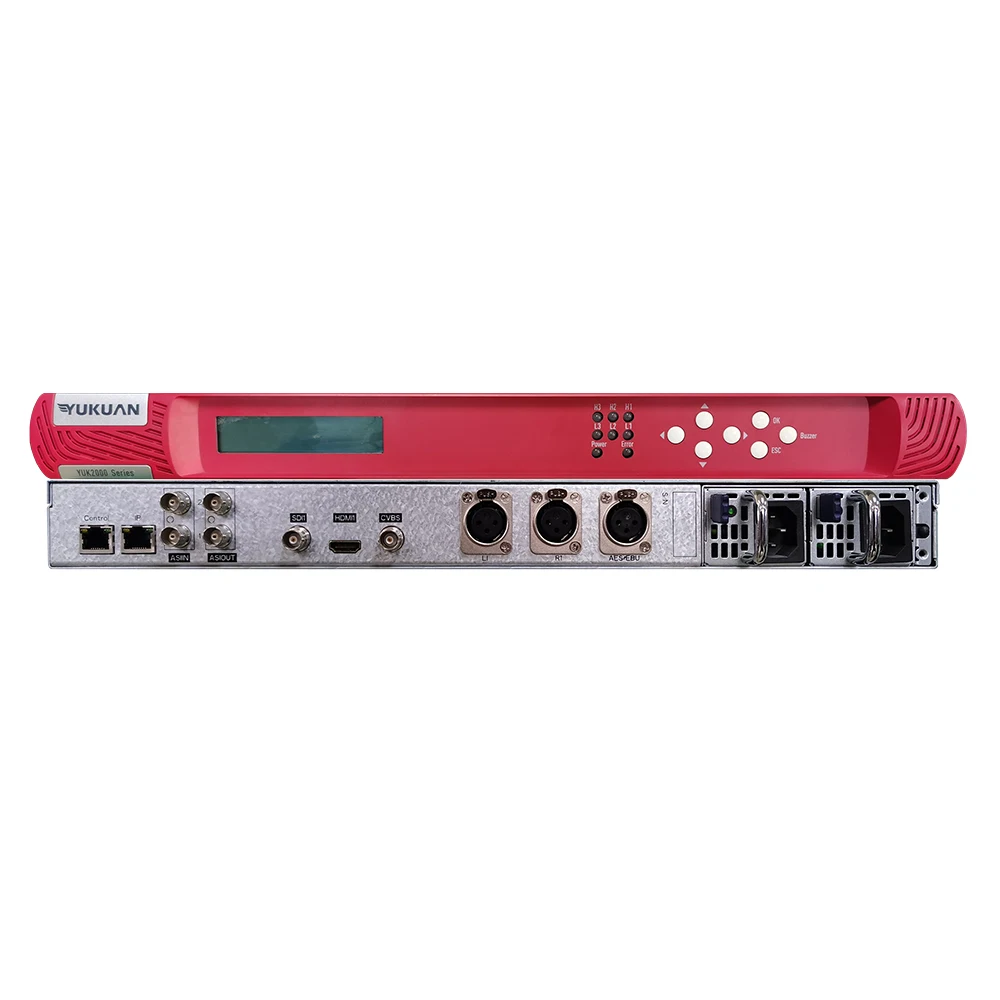

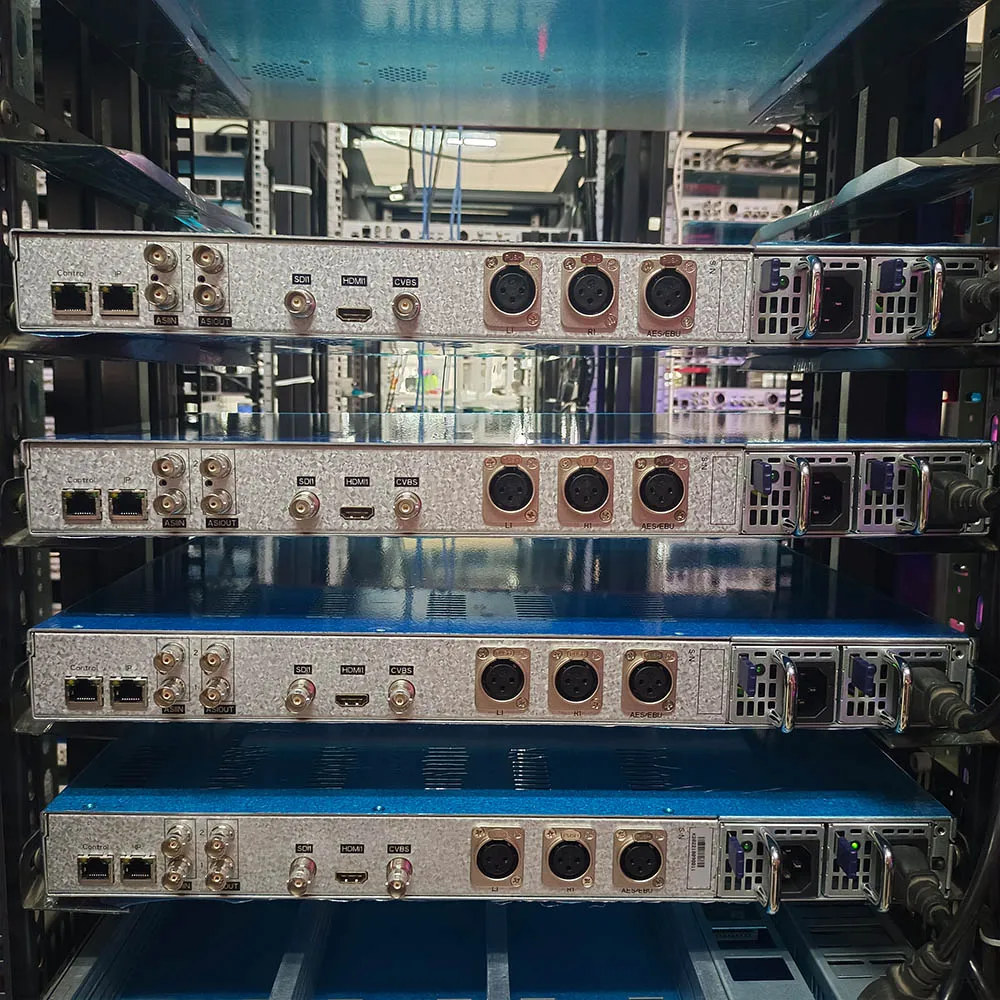

Input
1×HD/SD-SDI(BNC), 1×HDMI, 1×CVBS, 1xAES/EBU
1×analog Left Channel(XLR), 1×analog Right Channel(XLR),
2×ASI(BNC)
Output
2×ASI(BNC), 1×Gigabit IP (RJ45) (also can be used as IP input)
Video Encoding
Encoding Format
H.264 MPEG-2
Bitrate
512Kbps-20Mbps, 4:2:0 8bit
Bitrate Control
VBR CBR optional
Resolution
576i/ 576p/ 720p/ 1080 50i/ 1080 60i
GOP Structure
IBBP/IBP optional
Audio Encoding
Encoding Format
MPEG1 LayerII AAC
Bitrate
64/128/256/384Kbps
Sampling Frequency
48/44.1/32KHz
Support volume adjustment
Support SDI/HDMI embedded audio
TS Over IP
Protocol
UDP RTP
TS over IP output can be turned on and off
Support unicast, multicast
The number of TS packets contained in UDP packets can be adjusted from 1 to 7
The IP output protocol is implemented by FPGA hardware. After the transmission link is restored, the signal is restored instantly.
Stream Output
Support ASI and IP simultaneous output
SDT parameters can be modified
Stream fluctuation can be controlled by turn on or turn off empty packets
Support UDP, RTP protocol
DVB-ASI Serial Data Input
Connector
BNC, 75Ω
Data Pattern
Byte, Burst adaptive
Package Length
188, 204 adaptive
DVB-ASI Serial Data Output
Connector
BNC, 75Ω
Data Transfer Rate
270Mb/s
Data Pattern
Byte
Package Length
188, 204 optional
Signal Level
800mV±80mV
Physical Specifications
Temperature Range
0~+40℃(operation), -20℃~+70℃(storage)
Power
AC 90~260V, 50Hz/60Hz, redundant twp power supplies
Humidity
＜85%
Dimension(L×W×H)
485mm×350mm×44mm(19 inches 1U chassis)
Net Weight
6.2KG

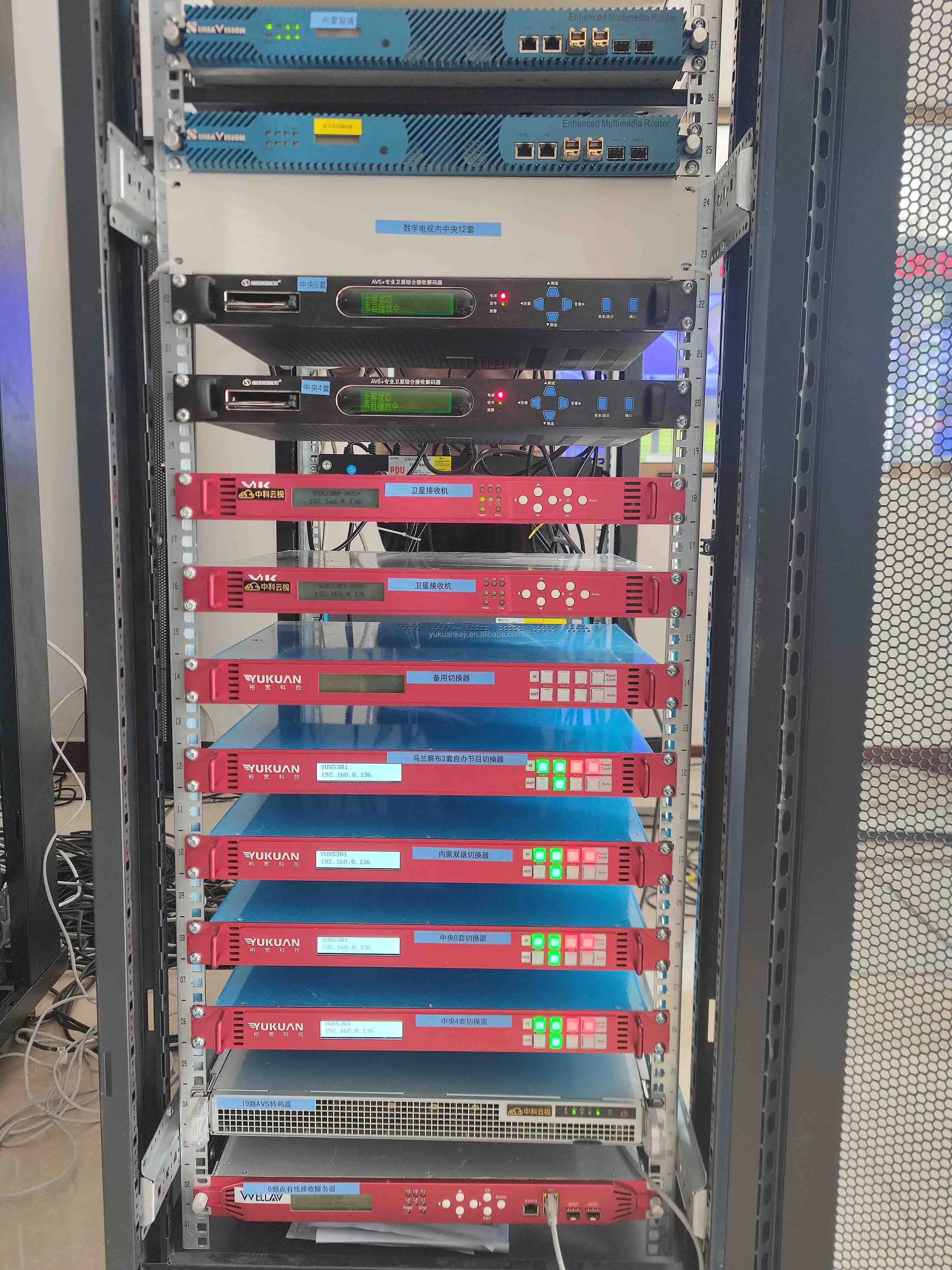

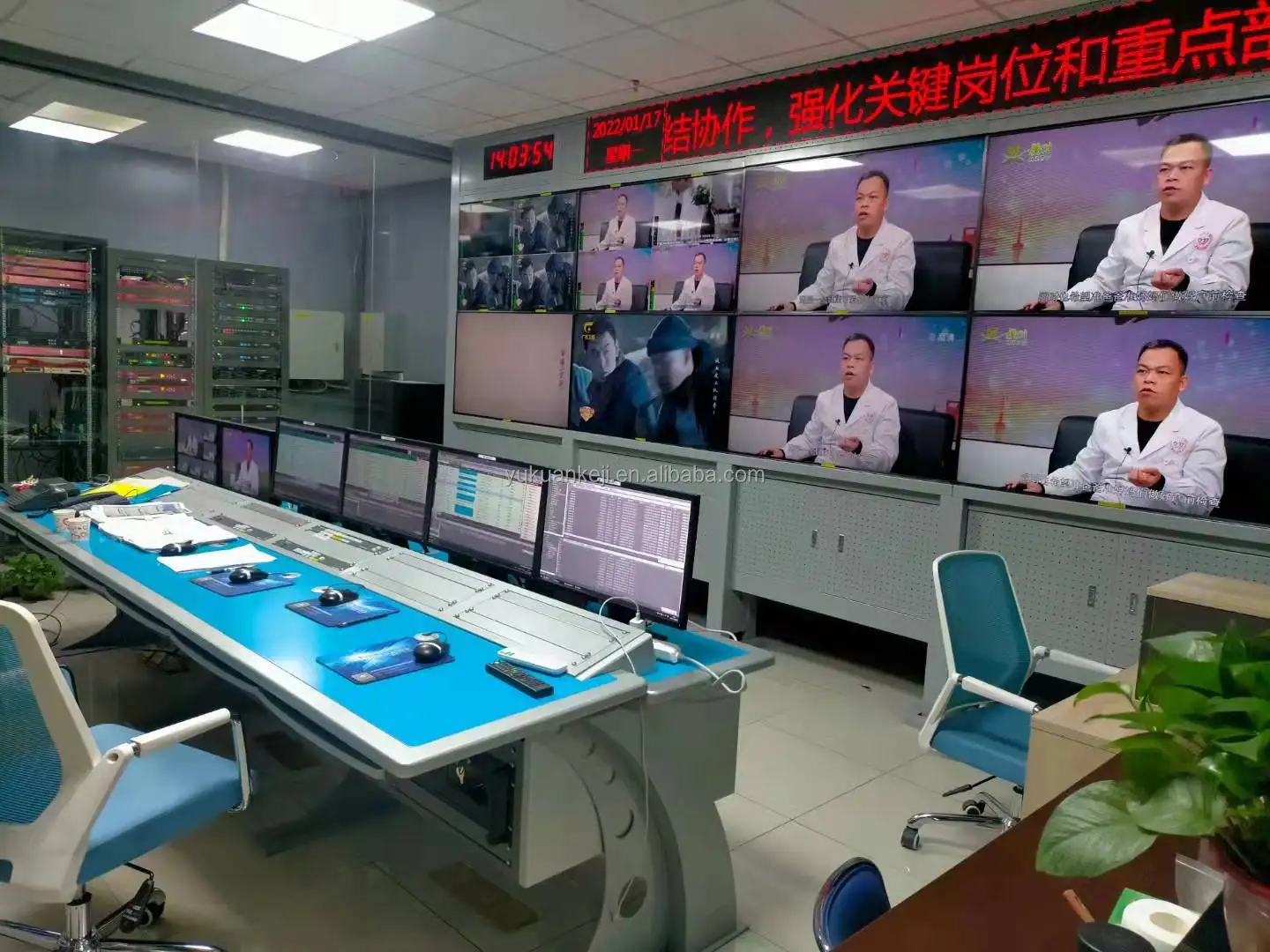

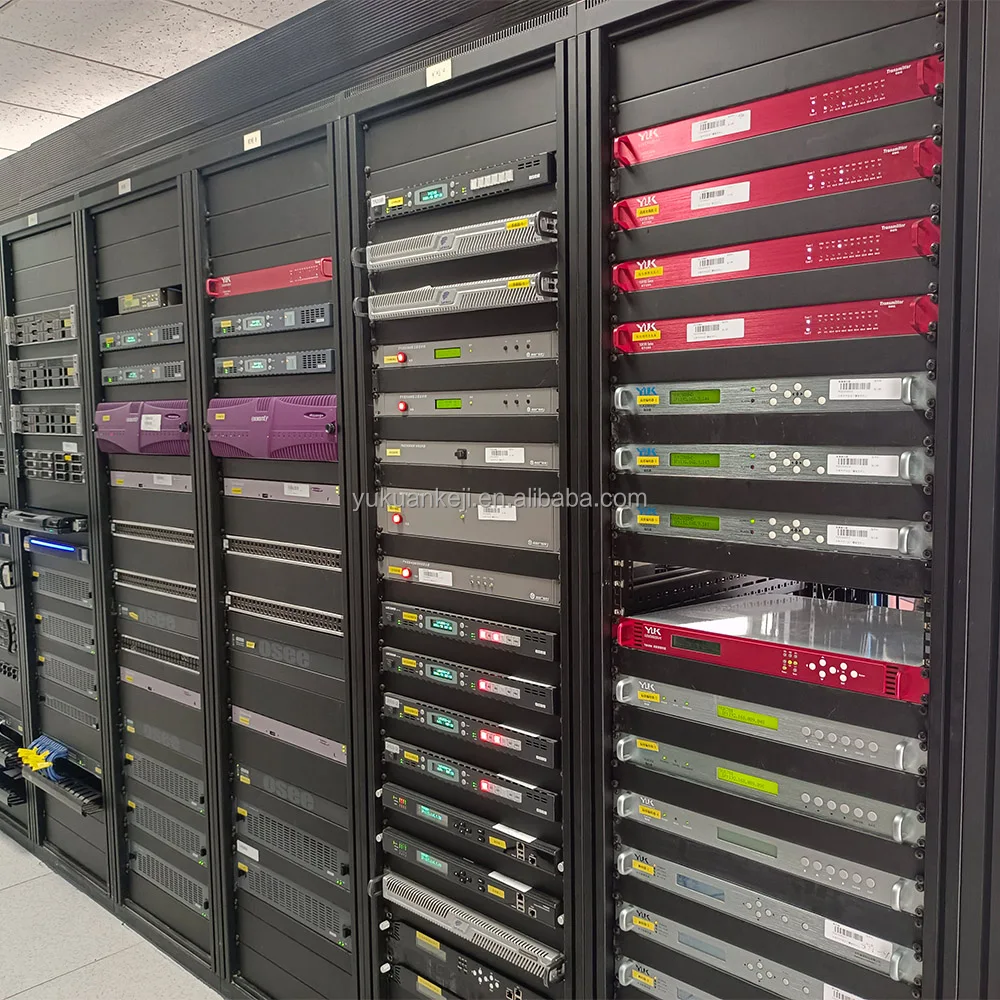

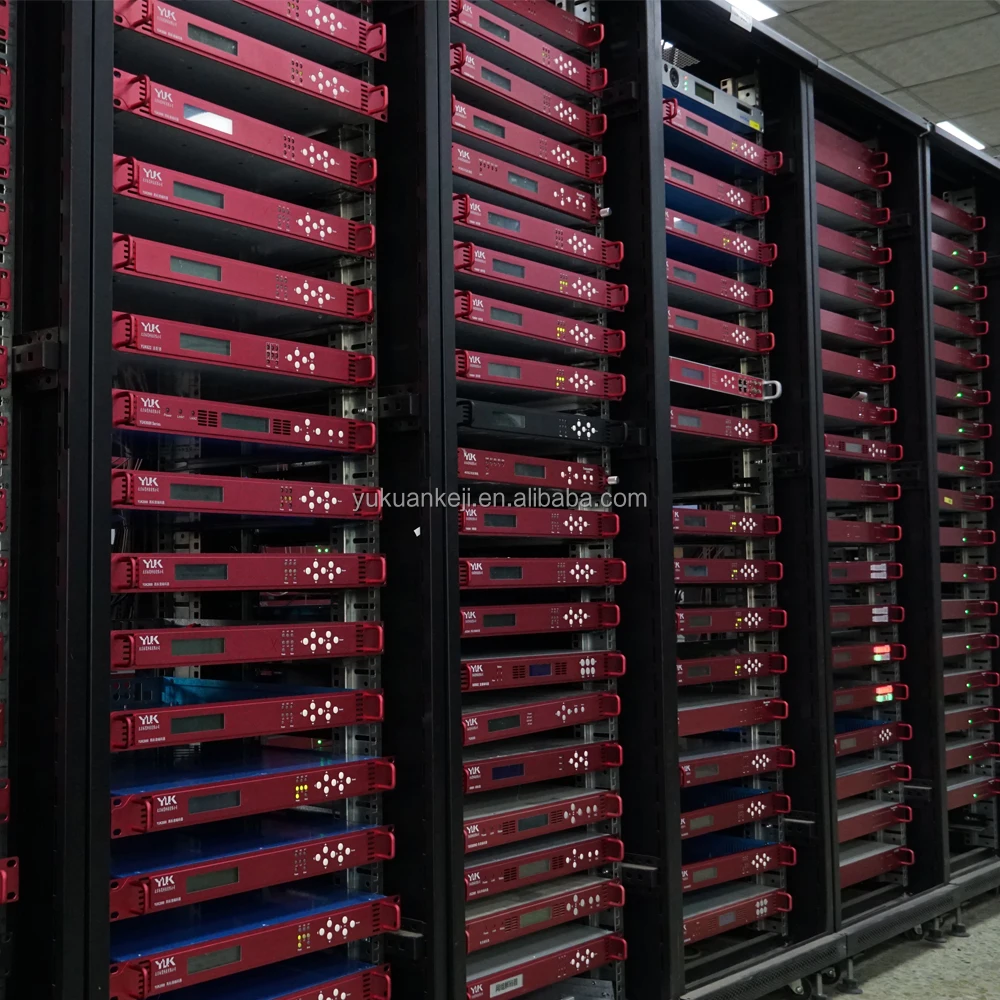

Project Case


























To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
