High precision Disc stainless steel Titanium Bronze Metal 1 5 10 20 50 100 micron Powder Sintered Porous Filter
High precision Disc stainless steel Titanium Bronze Metal 1 5 10 20 50 100 micron Powder Sintered Porous Filter
High precision Disc stainless steel Titanium Bronze Metal 1 5 10 20 50 100 micron Powder Sintered Porous Filter
High precision Disc stainless steel Titanium Bronze Metal 1 5 10 20 50 100 micron Powder Sintered Porous Filter
High precision Disc stainless steel Titanium Bronze Metal 1 5 10 20 50 100 micron Powder Sintered Porous Filter
High precision Disc stainless steel Titanium Bronze Metal 1 5 10 20 50 100 micron Powder Sintered Porous Filter
High precision Disc stainless steel Titanium Bronze Metal 1 5 10 20 50 100 micron Powder Sintered Porous Filter

High precision Disc stainless steel Titanium Bronze Metal 1 5 10 20 50 100 micron Powder Sintered Porous Filter

Share on (1600740842298):


Price:$1.70 - $2.32

Quantity:


Product Overview

Description



Product Description


Product Name

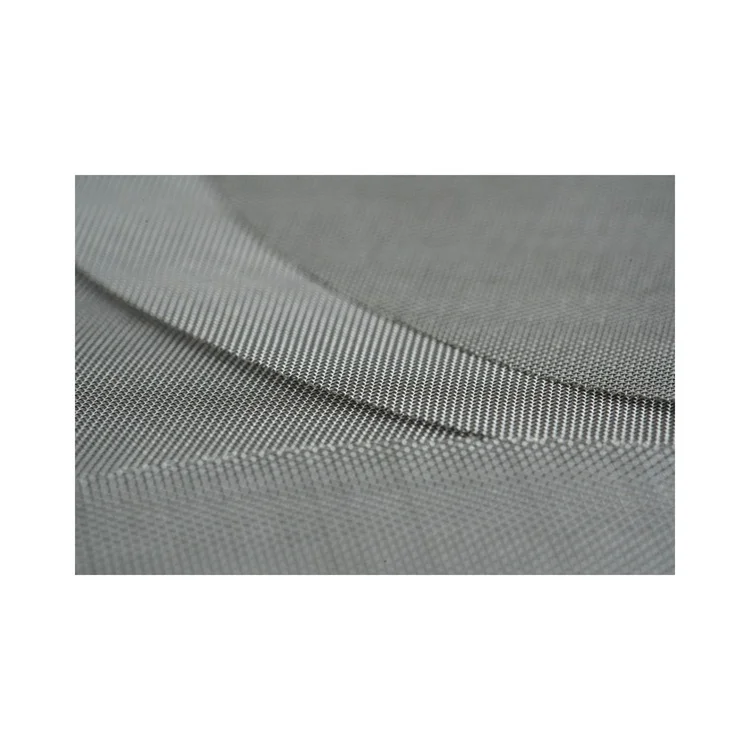

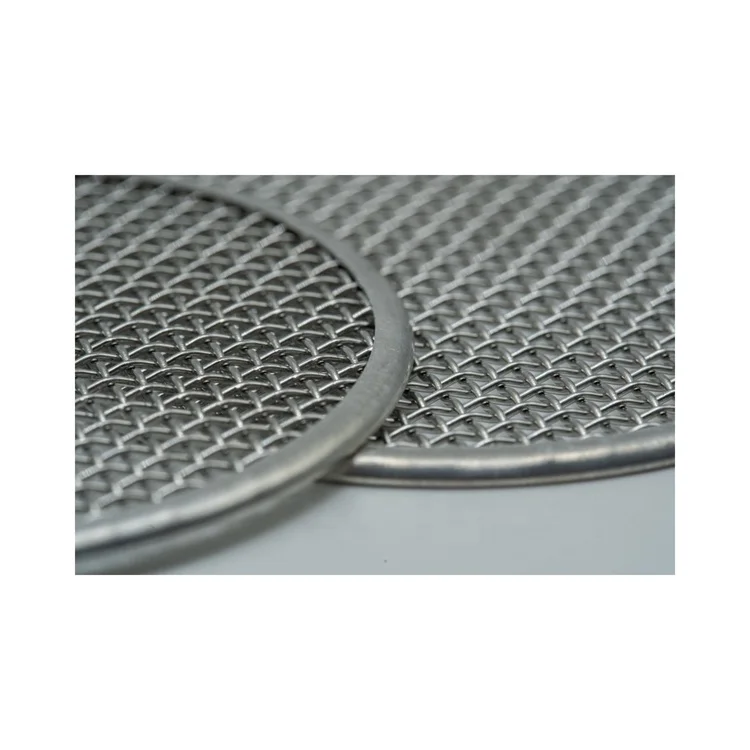

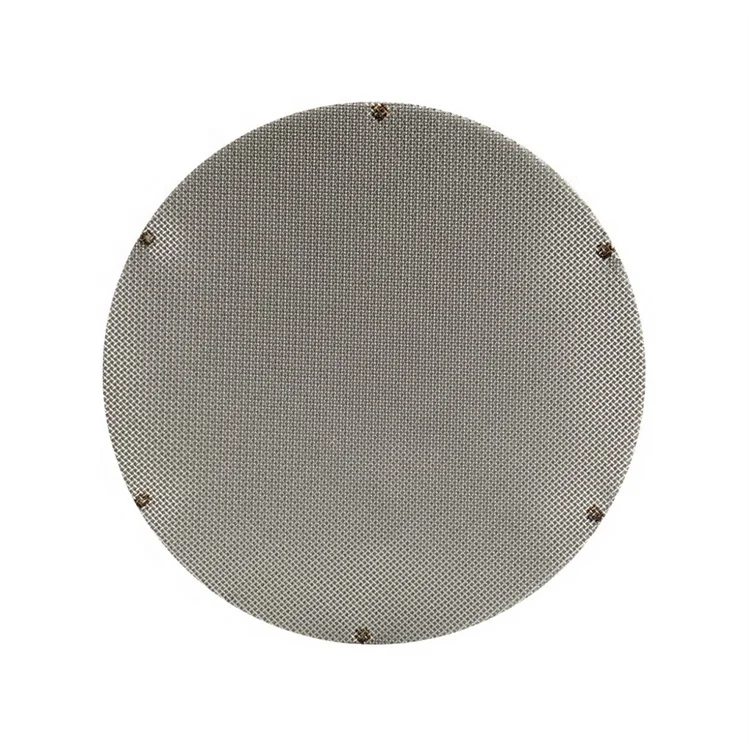

MESH DISCS
Selling Point
Highest level of cleanliness
Material:
Stainless Steel：304 304L 316 316L
Type:
Mesh discs/Leaf disc filters/Filter discs/Formed filters
Filter media：
5-heddle atlas weave, Sintered wire mesh, Plain dutch weave, Reversed dutch twilled weave, Dutch twilled weave, Reversed optimized dutch weave, Optimized dutch weave, Reversed plain dutch weave, Porometric weave, Square Weave, Volumetric weave
Application:
Exhaust gas filtration，Beverage filtration,Coolant filtration ，Vegetable oil filtration ，Process water filtration，Sugar filtration，Stirling technology，Polymer filtration
Opening/Aperture
Filter Finess：＞5μm
Quality
High-grade, DIN 9044 Germany
Filter Diameter
2 mm to 5,000 mm




Product Introduction
Mesh discs are ready-for-installation flat discs made of metal mesh. Mesh discs serve as spare parts for rescreening filter plates in horizontal centrifugal filters or as fitted components in filters for polymer filtration. In large sizes, they are used as fittings in air separation systems and chemical equipment. They are manufactured to specified dimensions using plasma/laser cutting or punching technology. Besides dimensional accuracy, the cleanliness of the mesh discs is a particularly important quality criterion. Depending on customer requirements, the meshes are cleaned with ultrasound and degreased prior to processing.
The flatness of the mesh discs is guaranteed by special pretreatment of the mesh prior to cutting. Clean and safe edges are ensured by adapting the cutting system settings and tools accordingly. Leaf disc filters are used as filter or screen elements in the most diverse of applications. Typical areas of application include the filtration of extruded polymers and use as elements in solid-liquid or air filtration applications. Filter discs are generally used as filter elements in static filters or in centrifugal filters. Formed filters are used as semi-finished products in the production of complete filter inserts or filter
elements.


Services

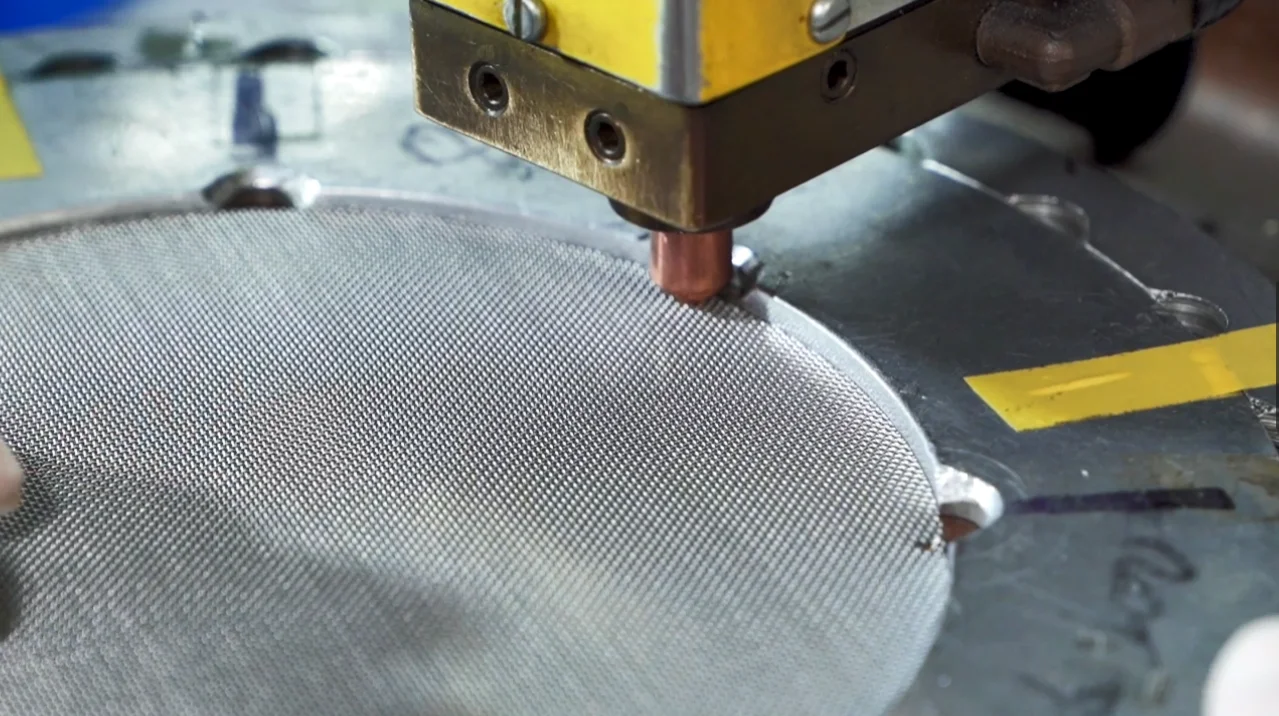

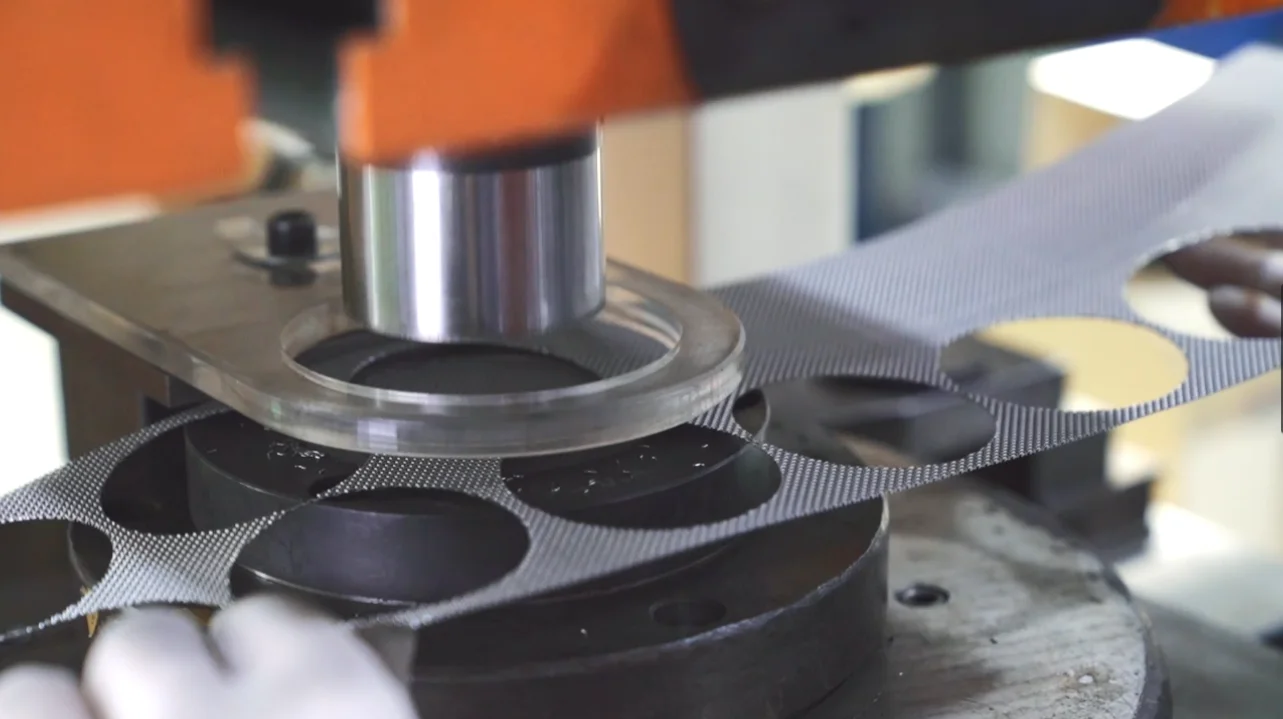

Production through laser/plasma cutting, punching or cutting to size Safe edges Processing of all available fabrics Framed, spot-welded and sintered multi-ply leaf disc filters Highest level of cleanliness thanks to pre-cleaning and post-cleaning Single-direction and bi-directional filtration Frame and plate designs Punching, forming, embossing and welding technology


Square Wire Mesh
Mesh type：Plan Weave ，Twill Weave
Mesh
opening（mm）
wire（mm）

Mesh
opening（mm）
wire（mm）
500
0.025
0.025

36
0.50
0.20
400
0.0335
0.030

31
0.50
0.32
400
0.039
0.025

25
0.63
0.40
325
0.042
0.036

24
0.71
0.355
318
0.05
0.03

23
0.80
0.32
280
0.05
0.040

20
0.80
0.50
250
0.063
0.040

19
1.00
0.30
200
0.074
0.053

17
1.00
0.50
174
0.090
0.056

16
1.00
0.63
156
0.10
0.063

15
1.25
0.4
124
0.125
0.080

12
1.6
0.5
101
0.14
0.112

10
2
0.56
98
0.16
0.10

8
2.48
0.7
78
0.20
0.125

6
3
1
62
0.25
0.16

4
5
1
49
0.315
0.20

3
8
1.6
39
0.40
0.25

2
10
2

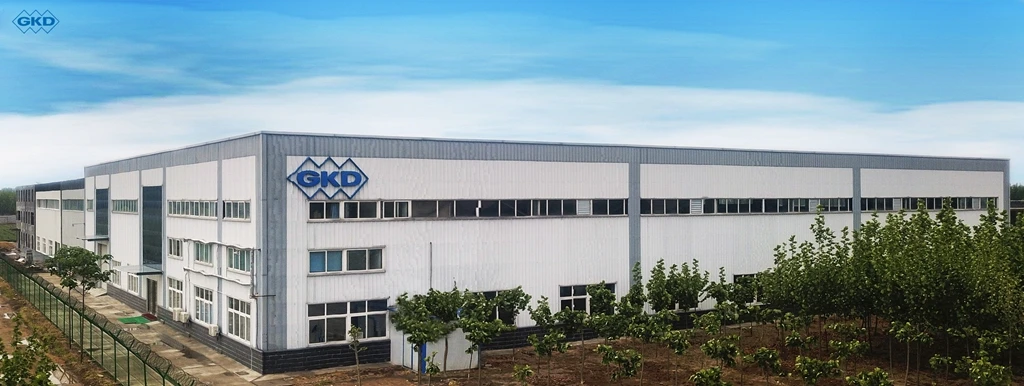

Company Profile




As a Chinese subsidiary of GKD-Gebr. Kufferath AG, GKD (Qufu) Ind. Technologies Co., Ltd was established in 2016. Mainly engaged in the production and sales of filtration-related filter elements, filter process belts, and other rubber belts and filter equipment. The industry covers automobiles, petrochemicals, food, medicine, mining, and environmental protection. The products are mainly used in petrochemical, polymer, plastic, juice pressing, flue gas desulfurization of thermal power plant , gas filtration, dust removal, mineral screening, dewatering, water treatment and sludge treatment. Relying on the technical advantages of the GKD headquarters, the integrated global quality standards and the cost advantages of Chinese manufacturing, we are providing high-quality products and services to customers at home and abroad.

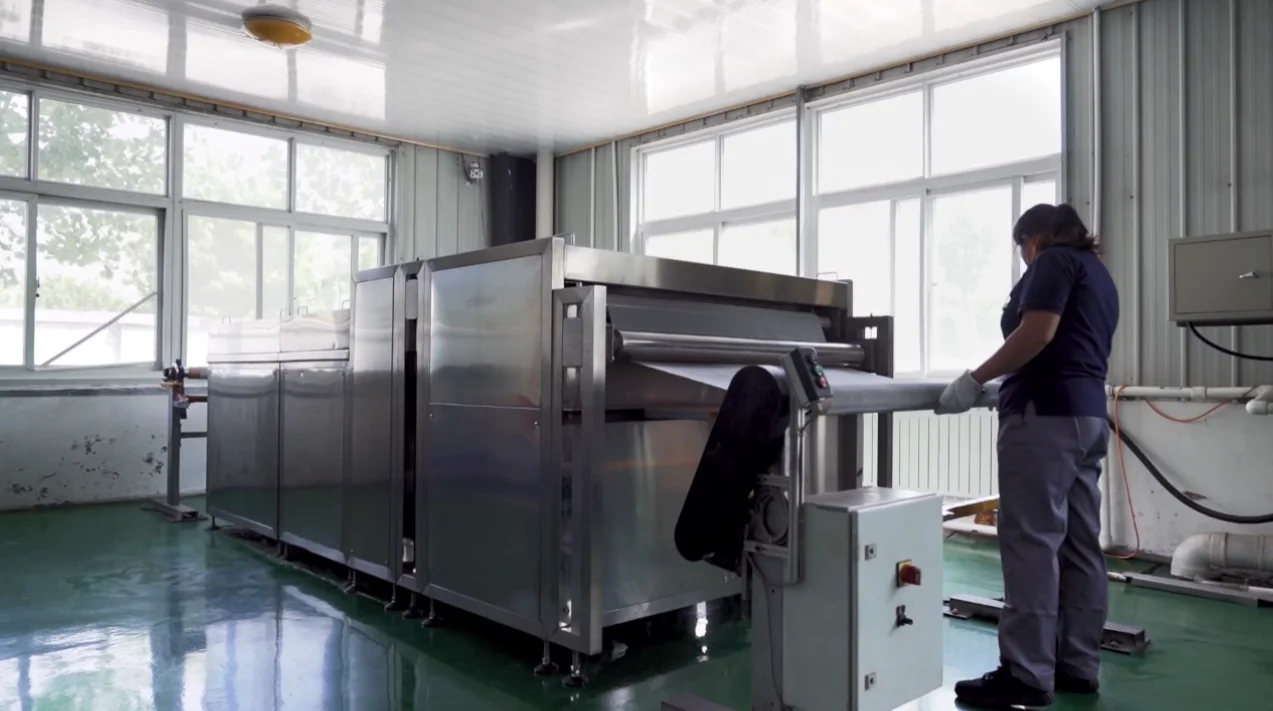

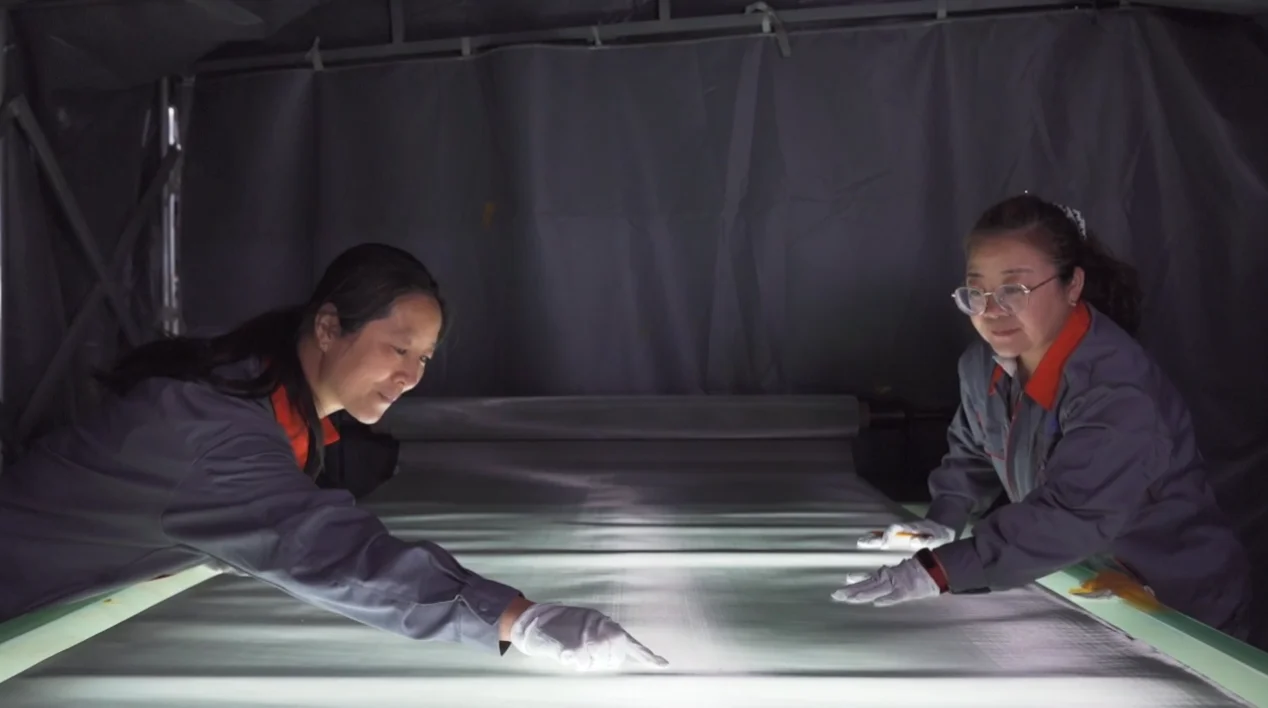

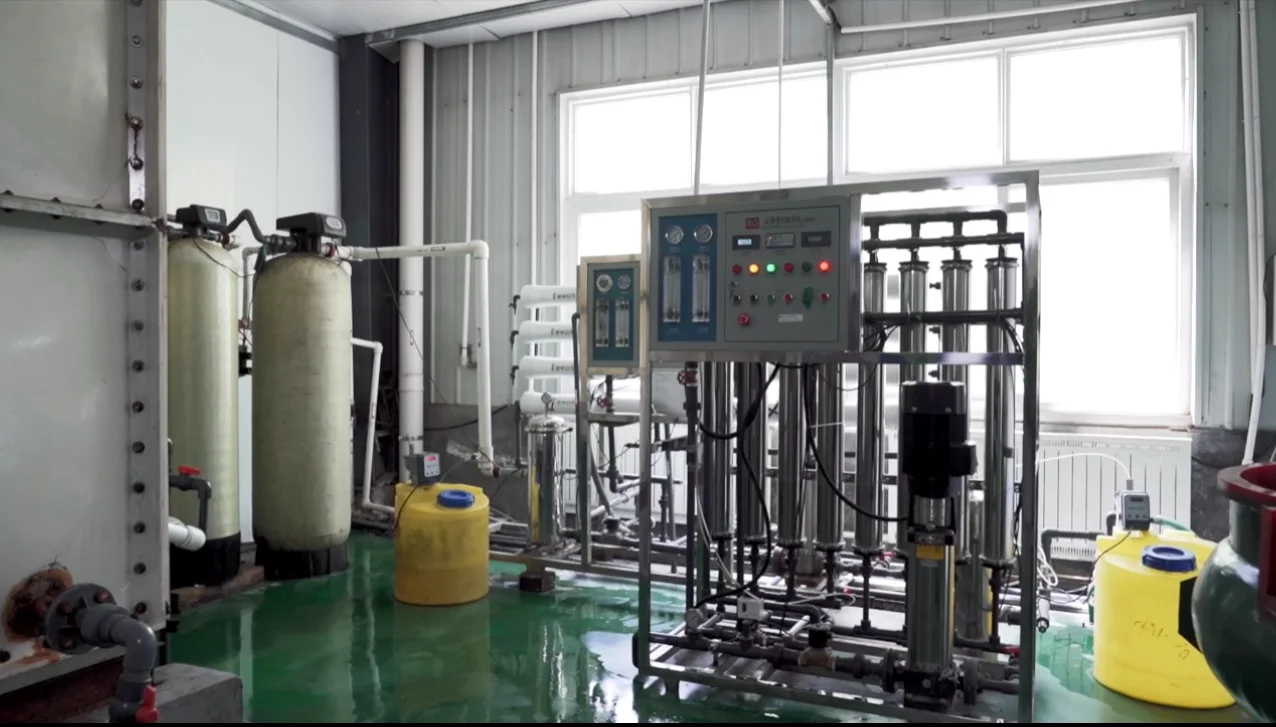

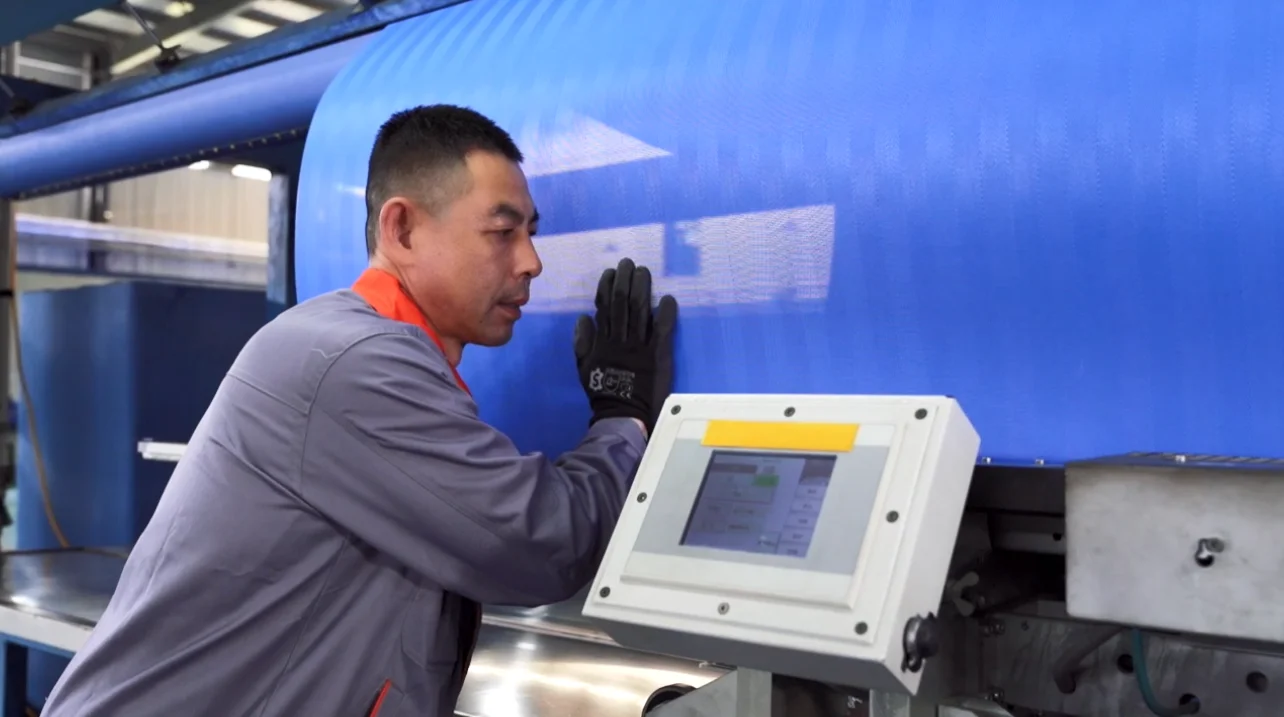

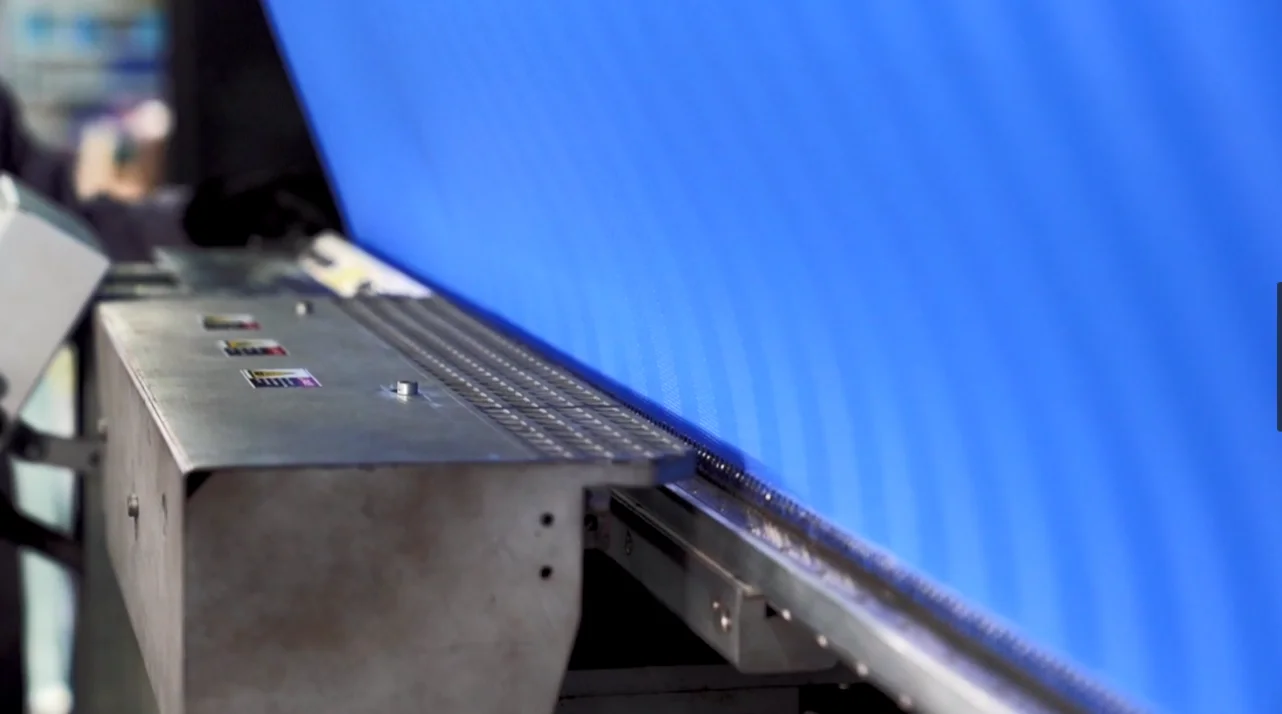

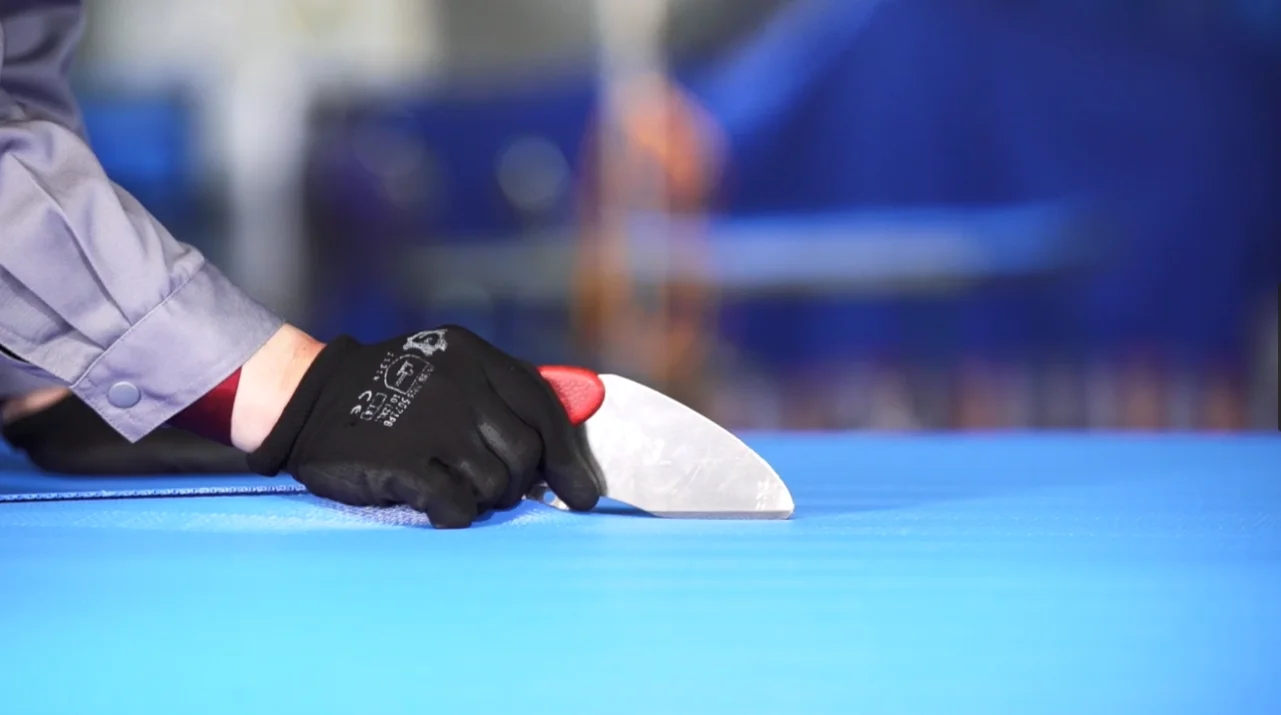

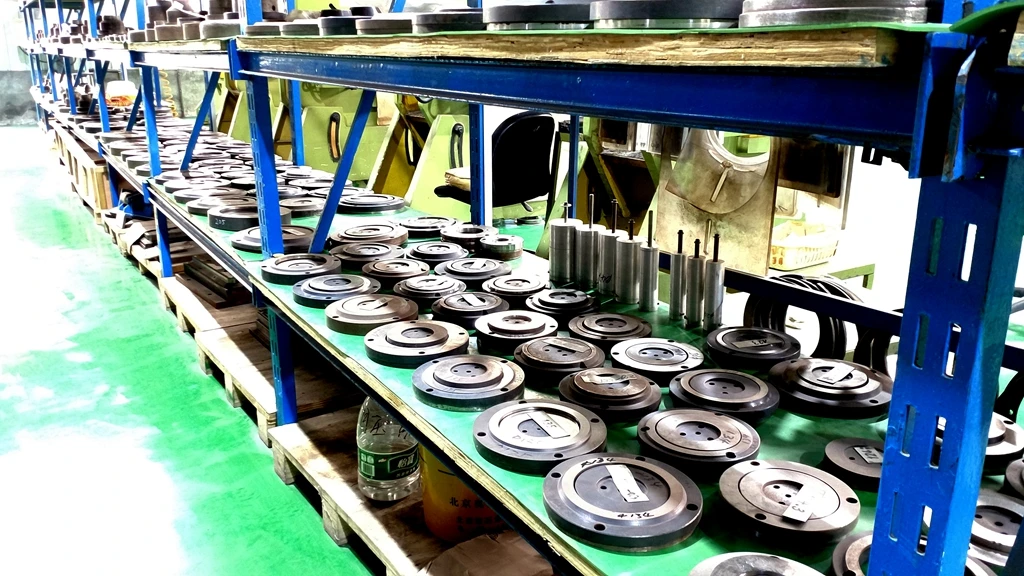

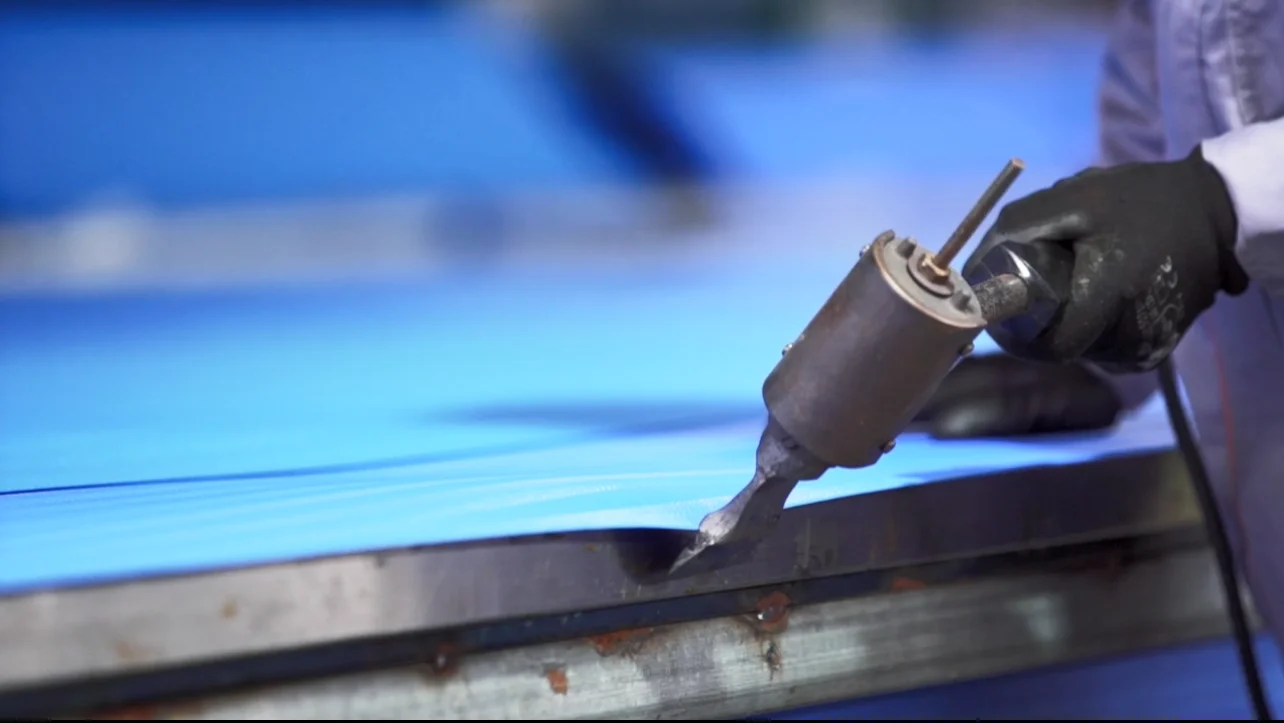

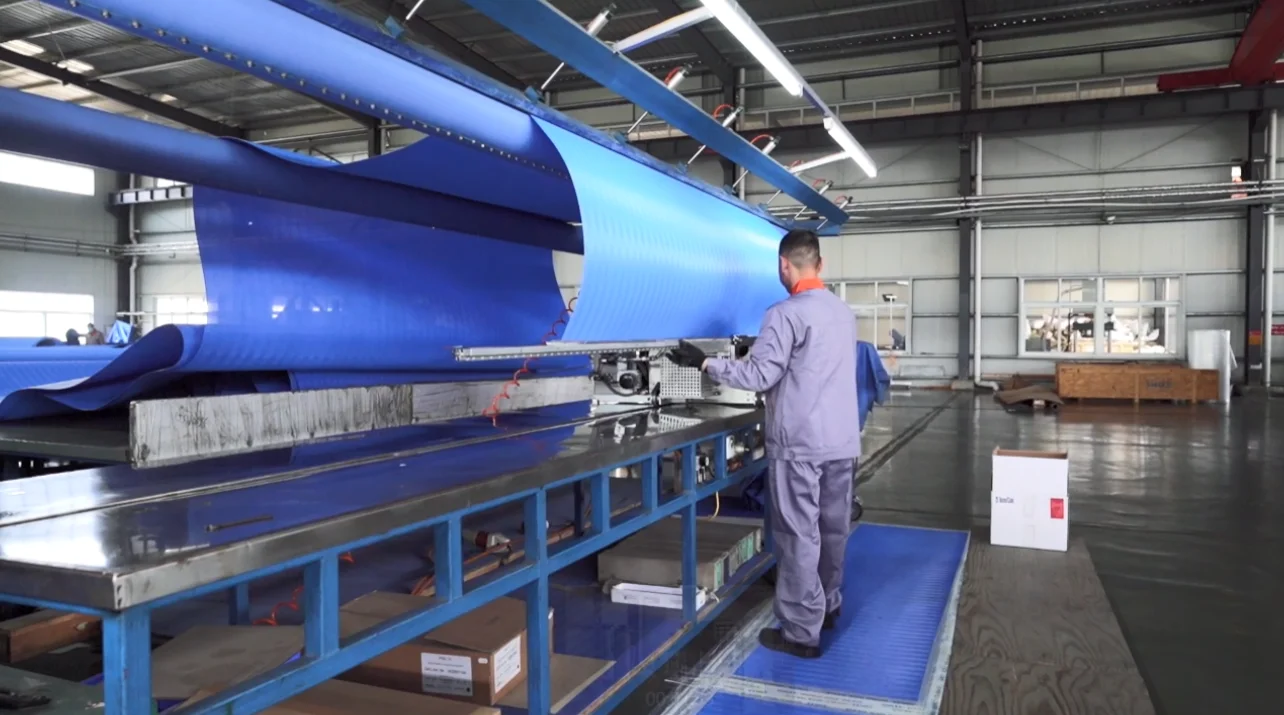

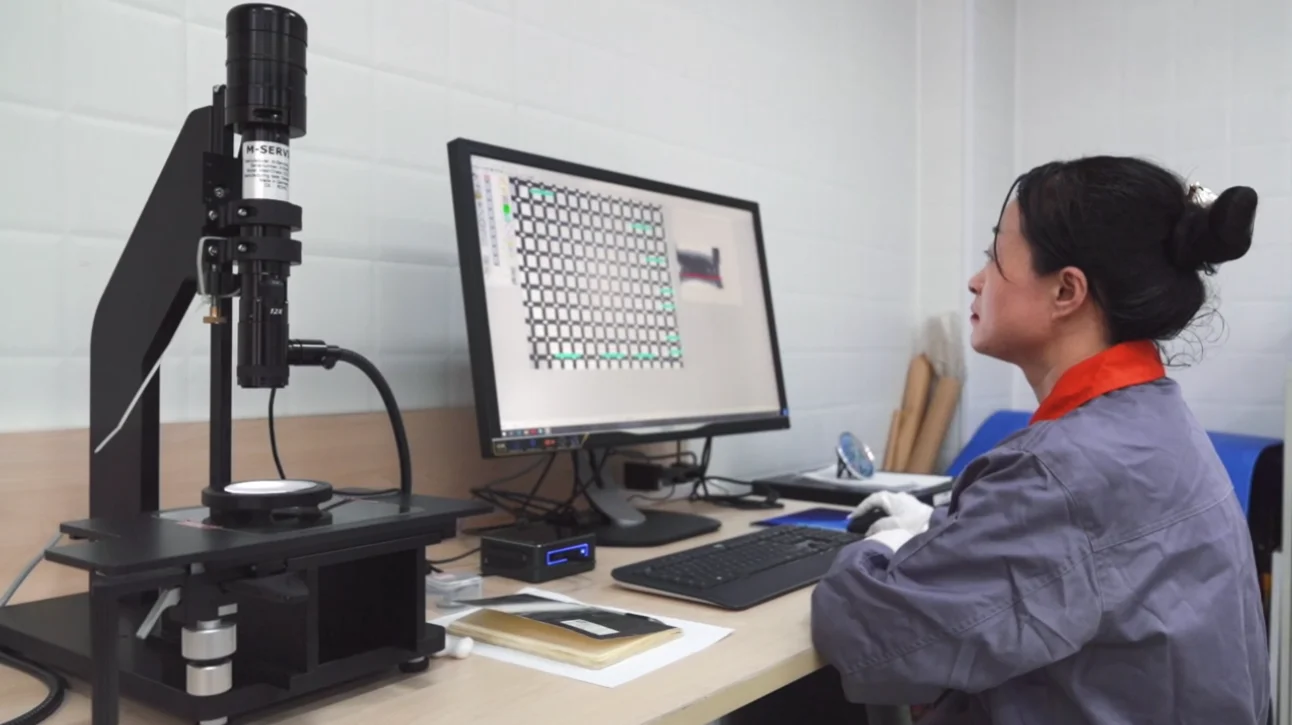

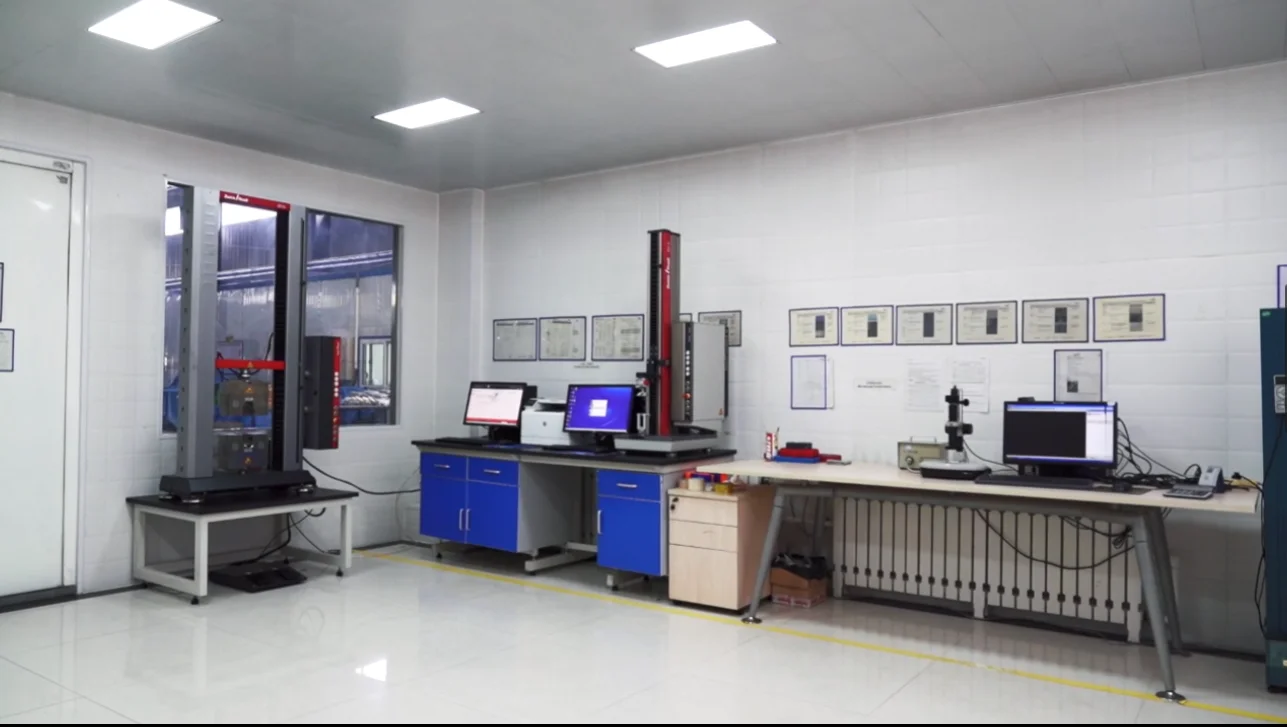

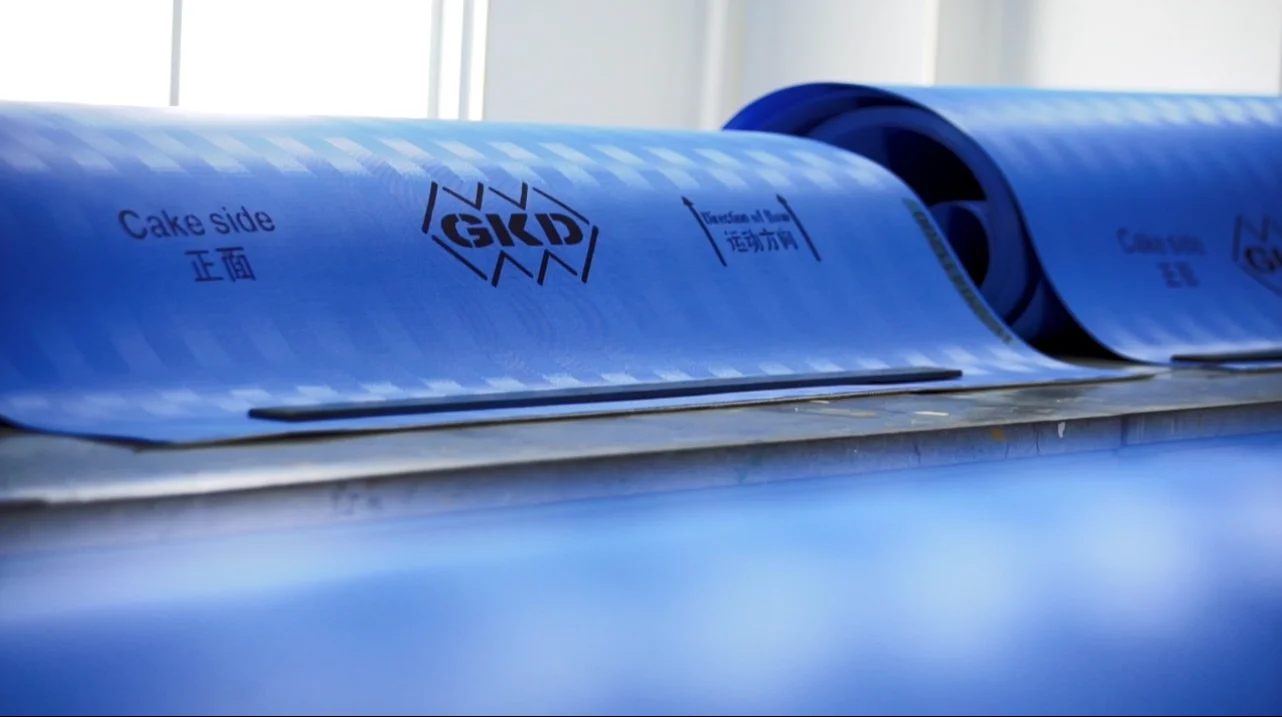

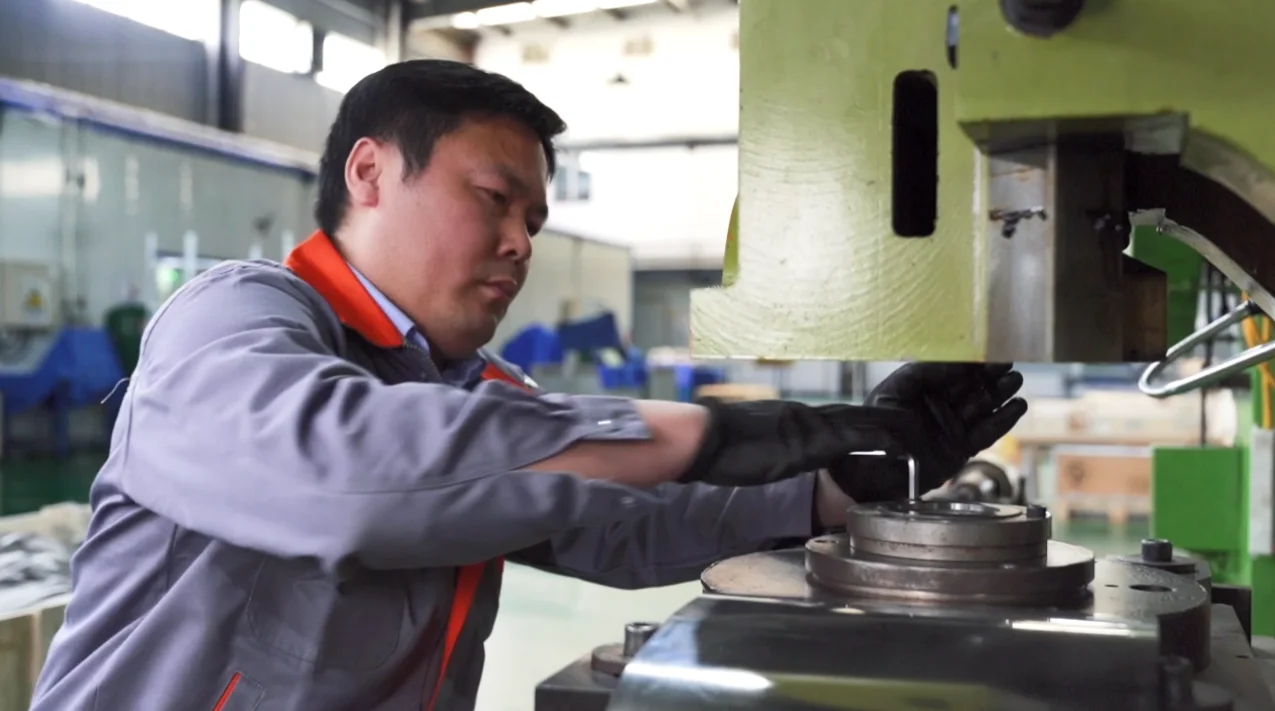

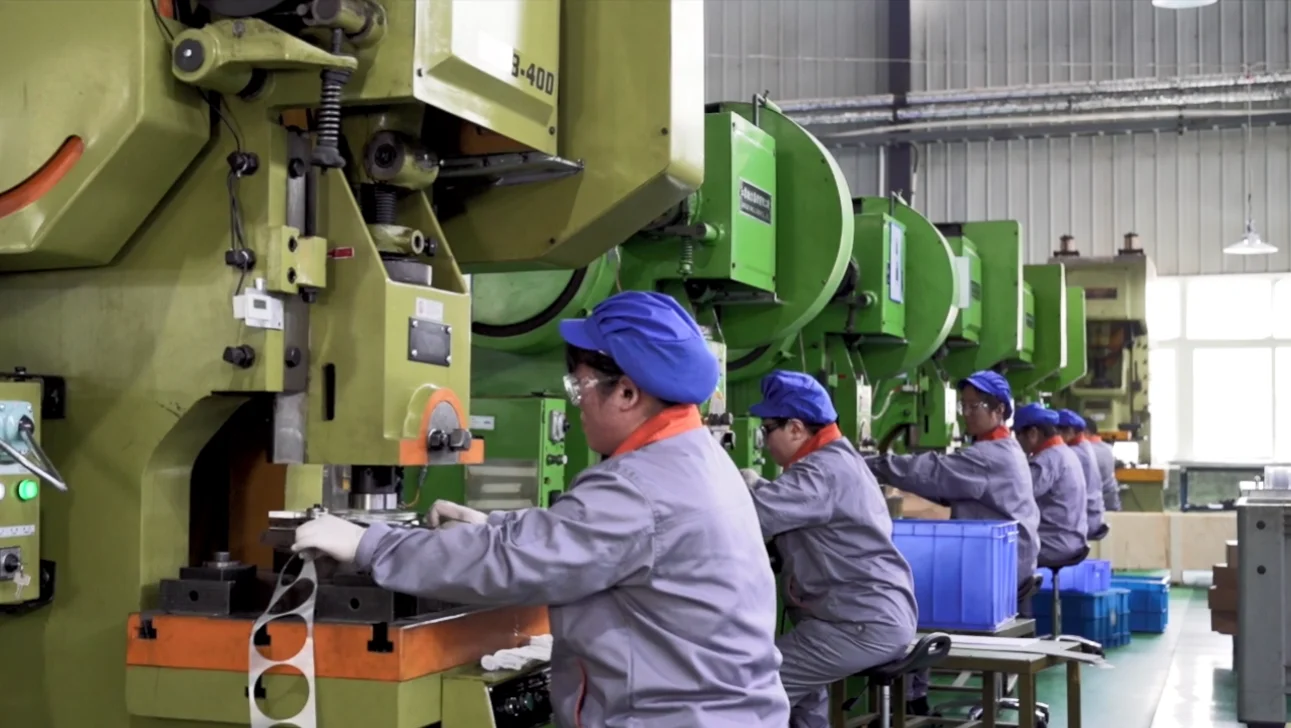

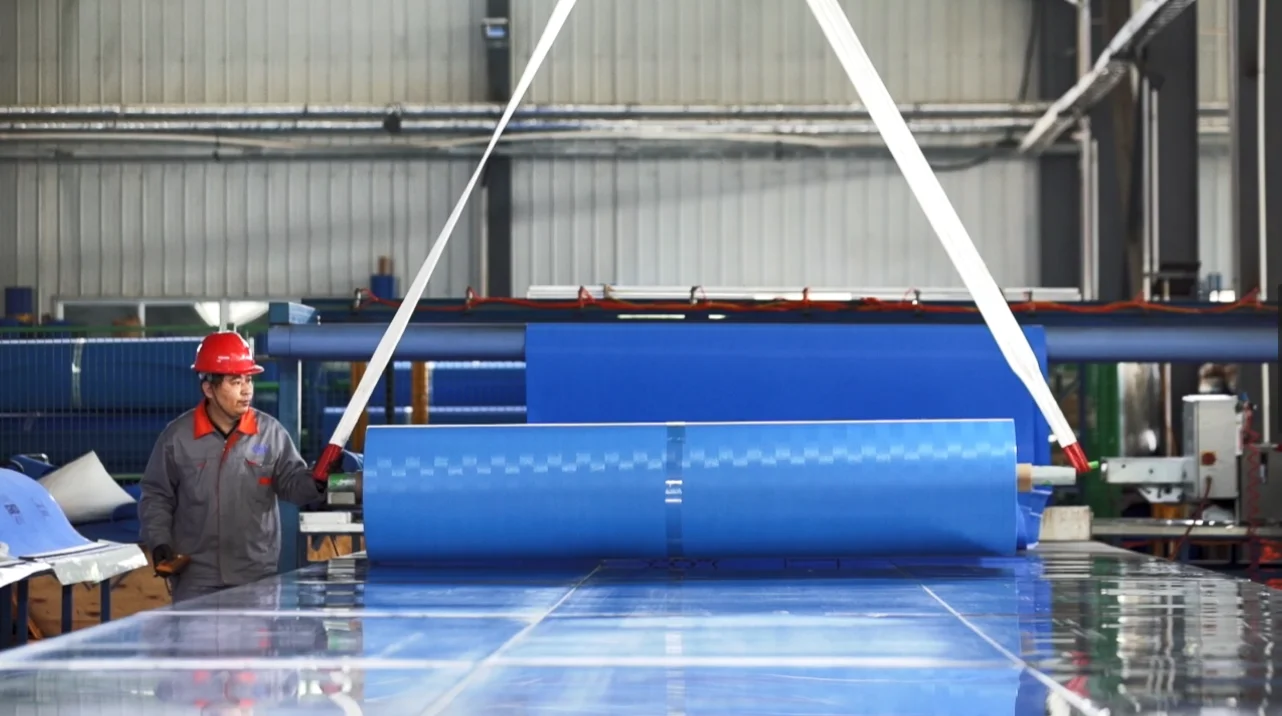

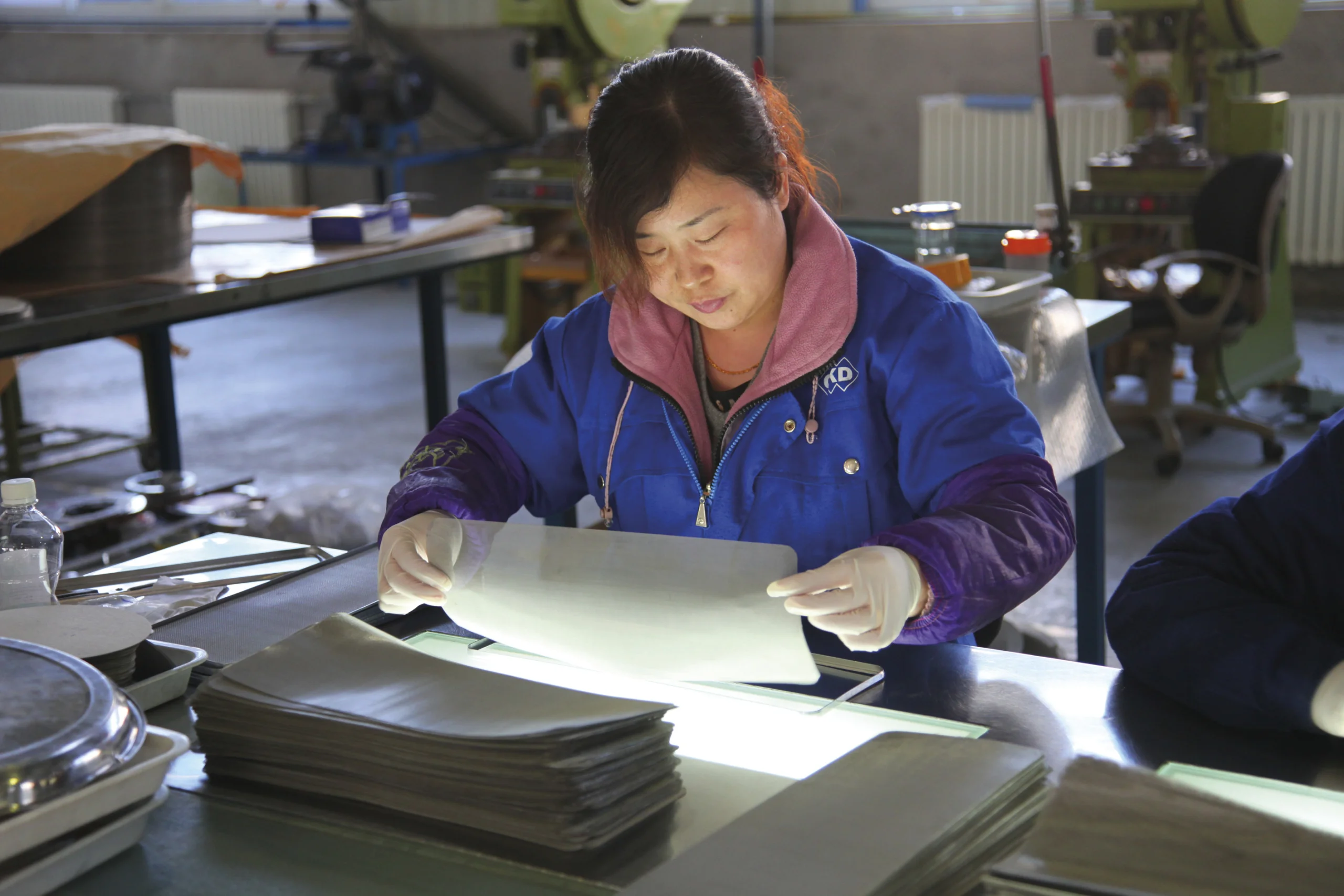

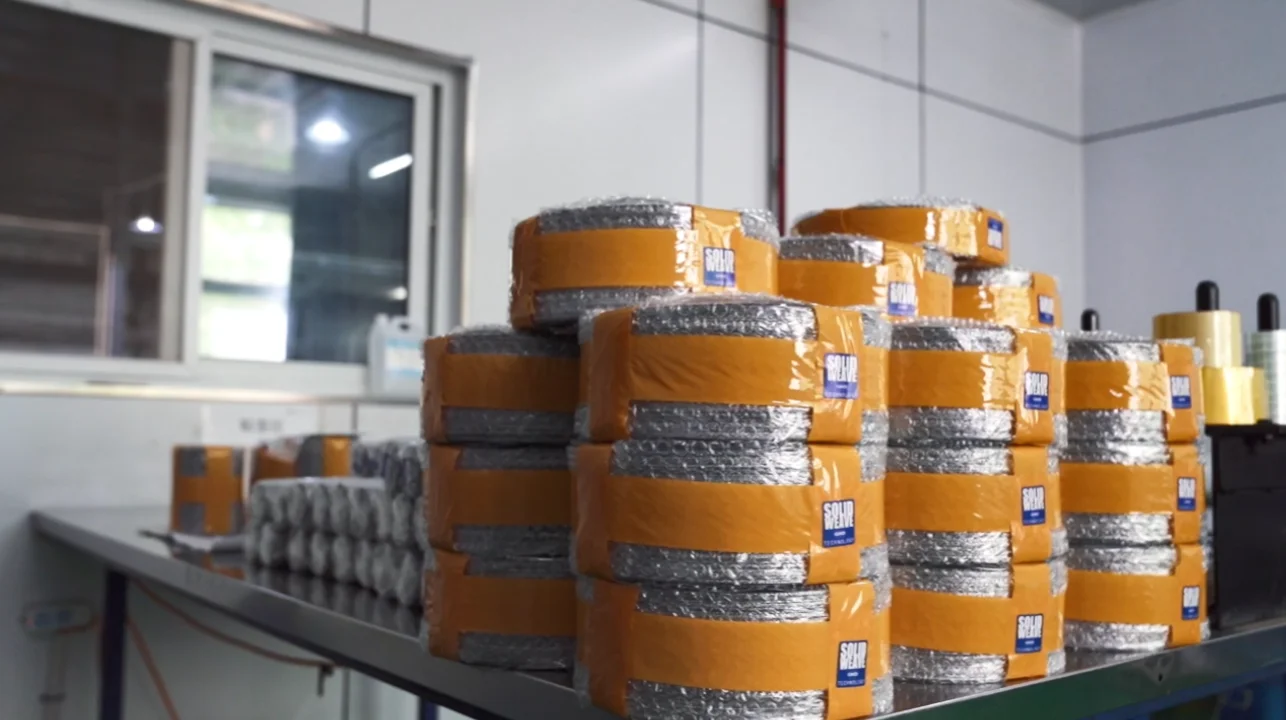

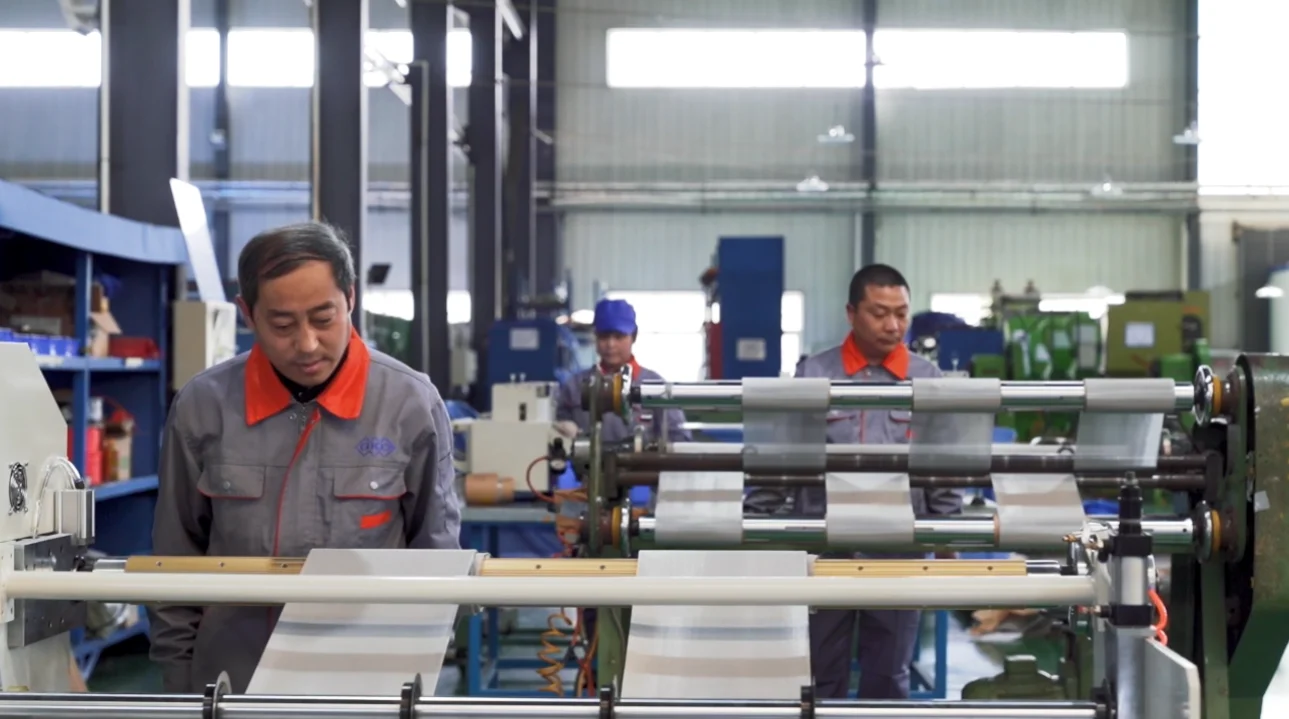

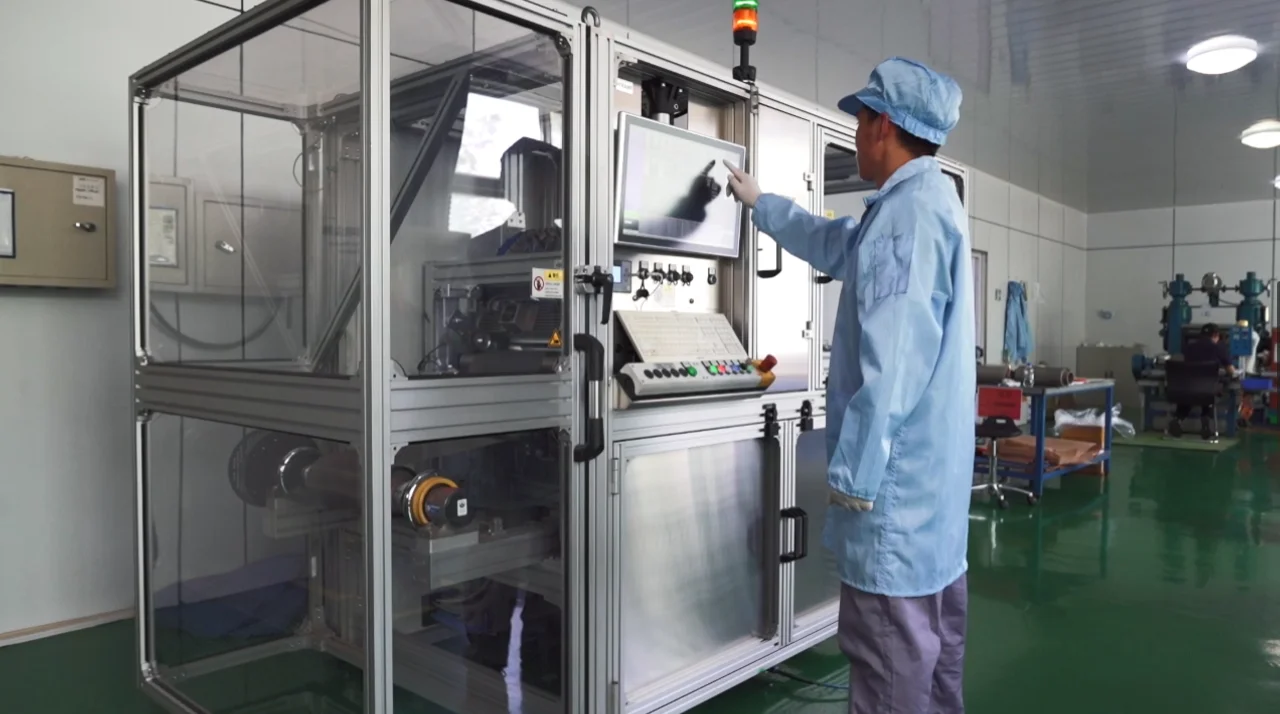

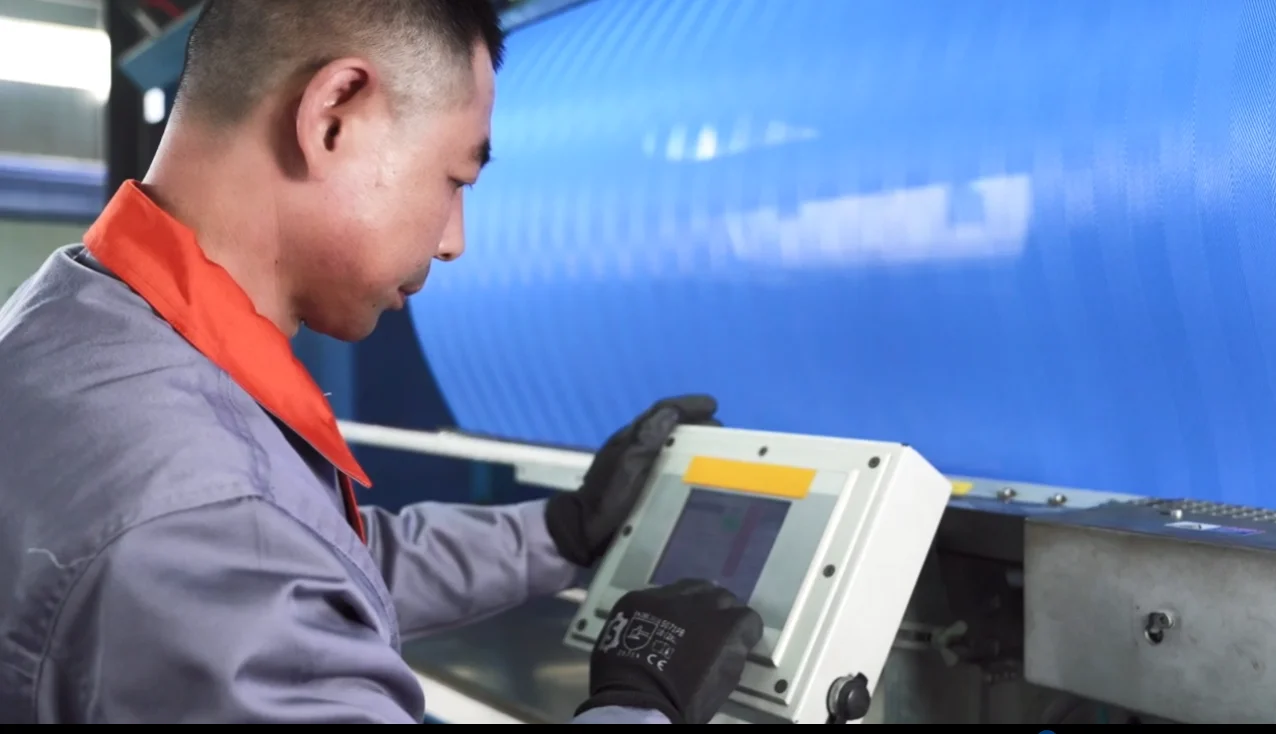

Workshop
























Exhibition

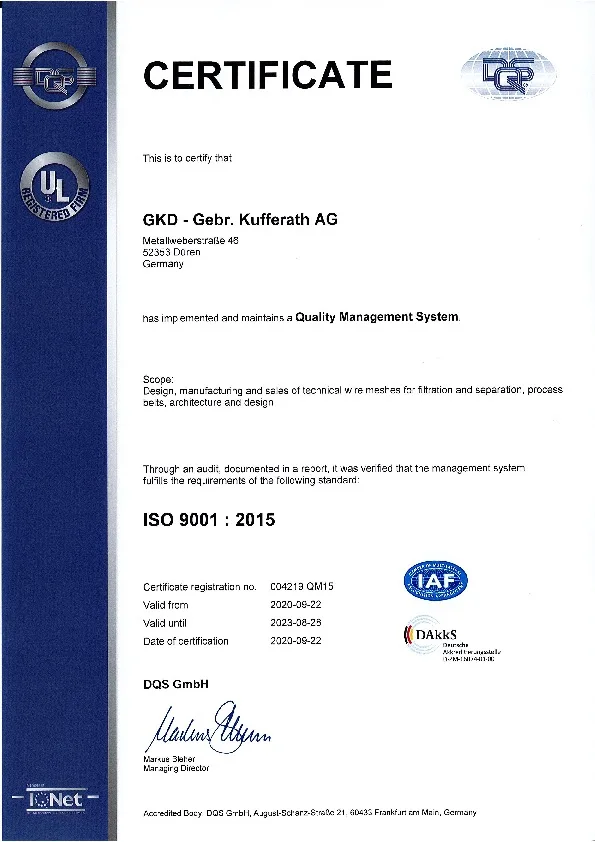

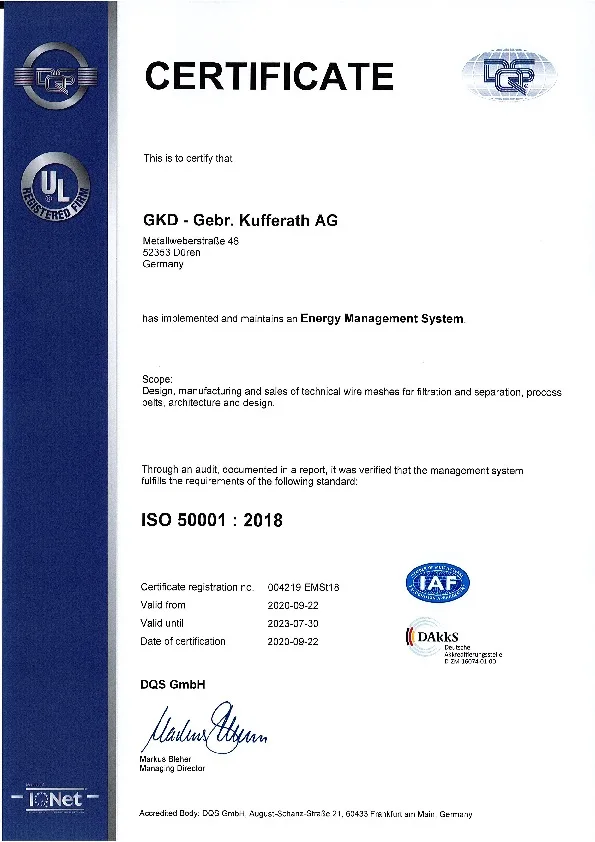

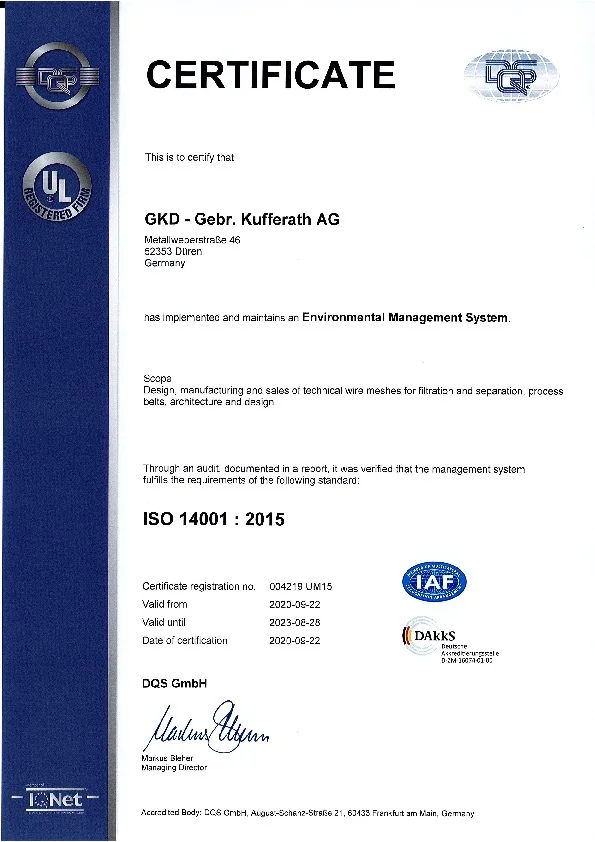

Certifications




Cooperation customers

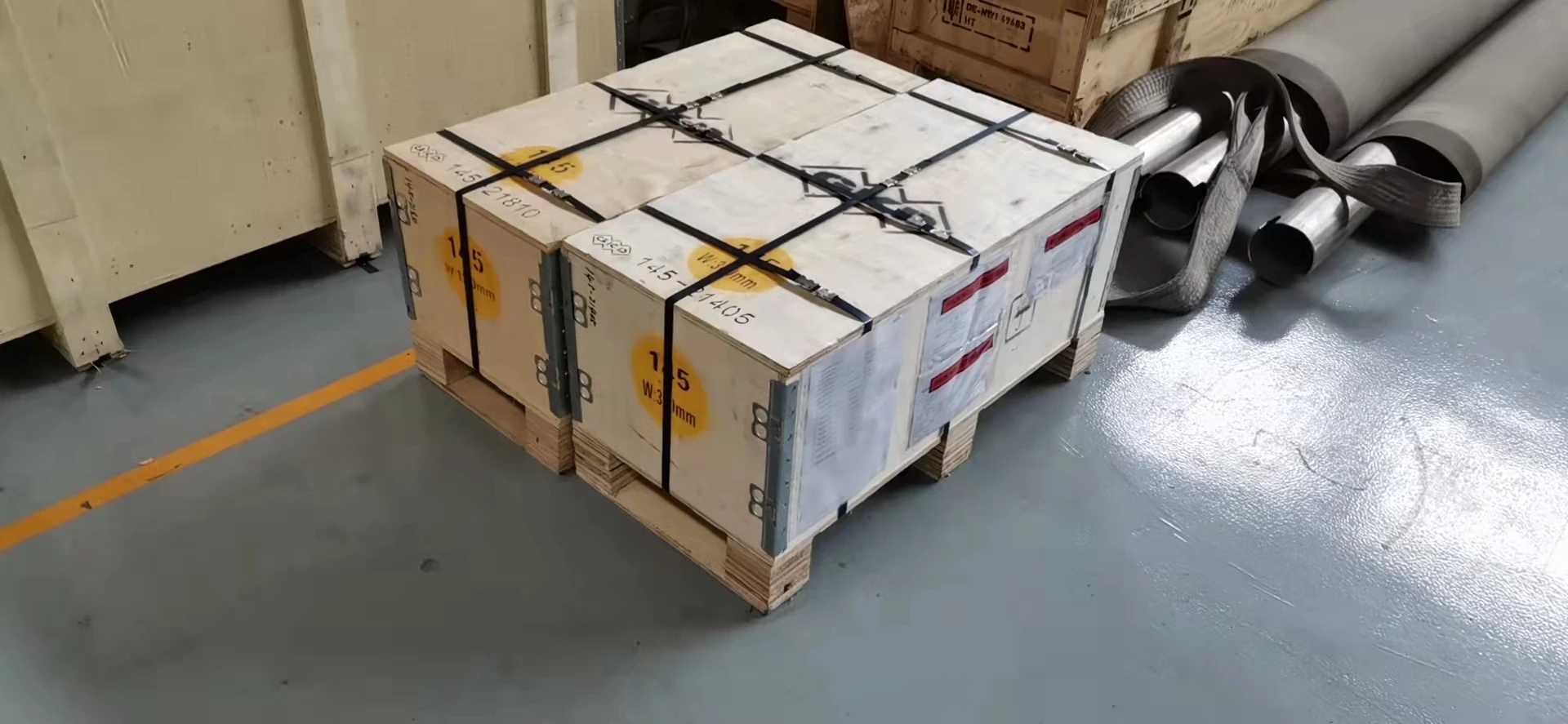

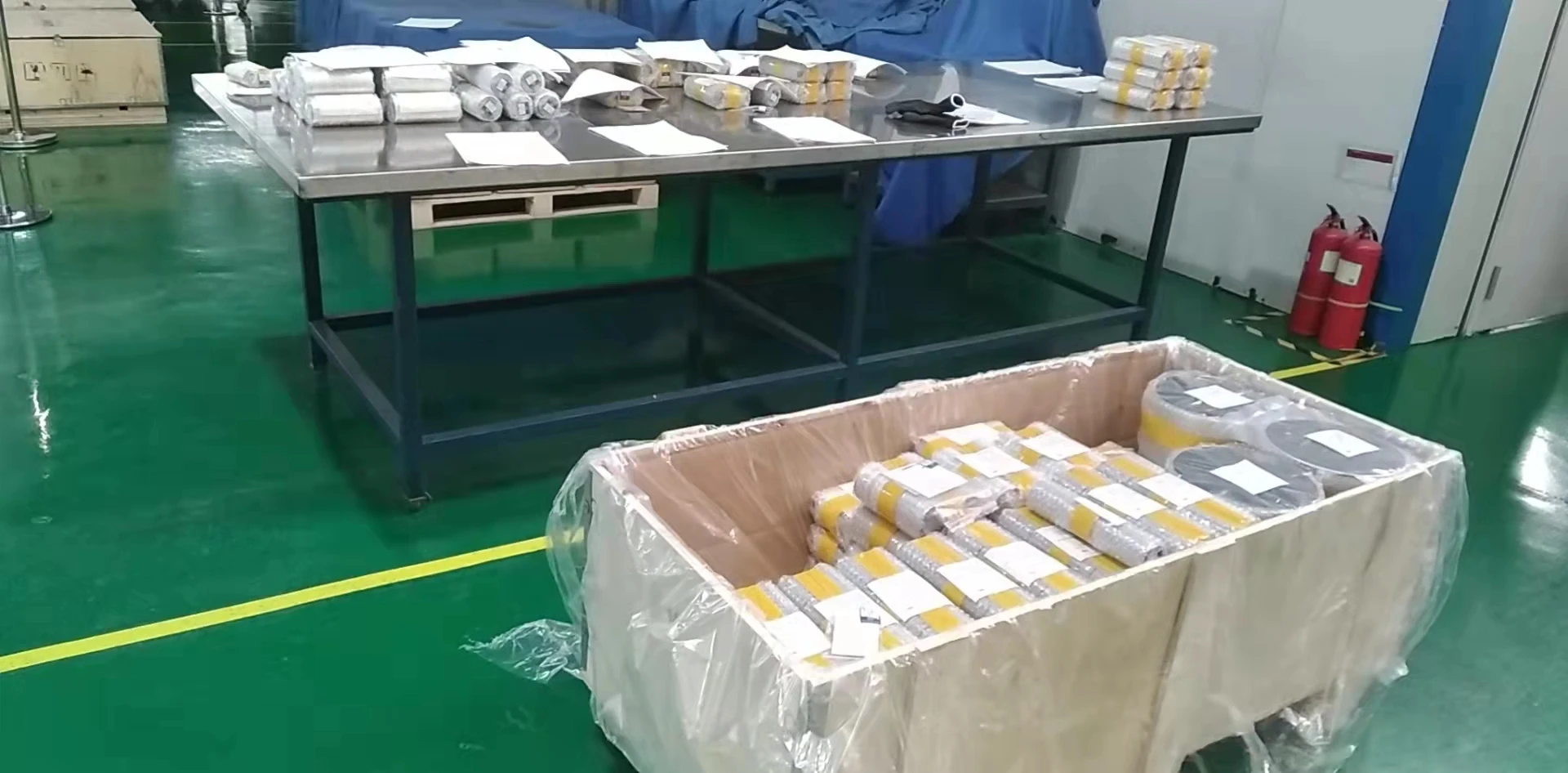

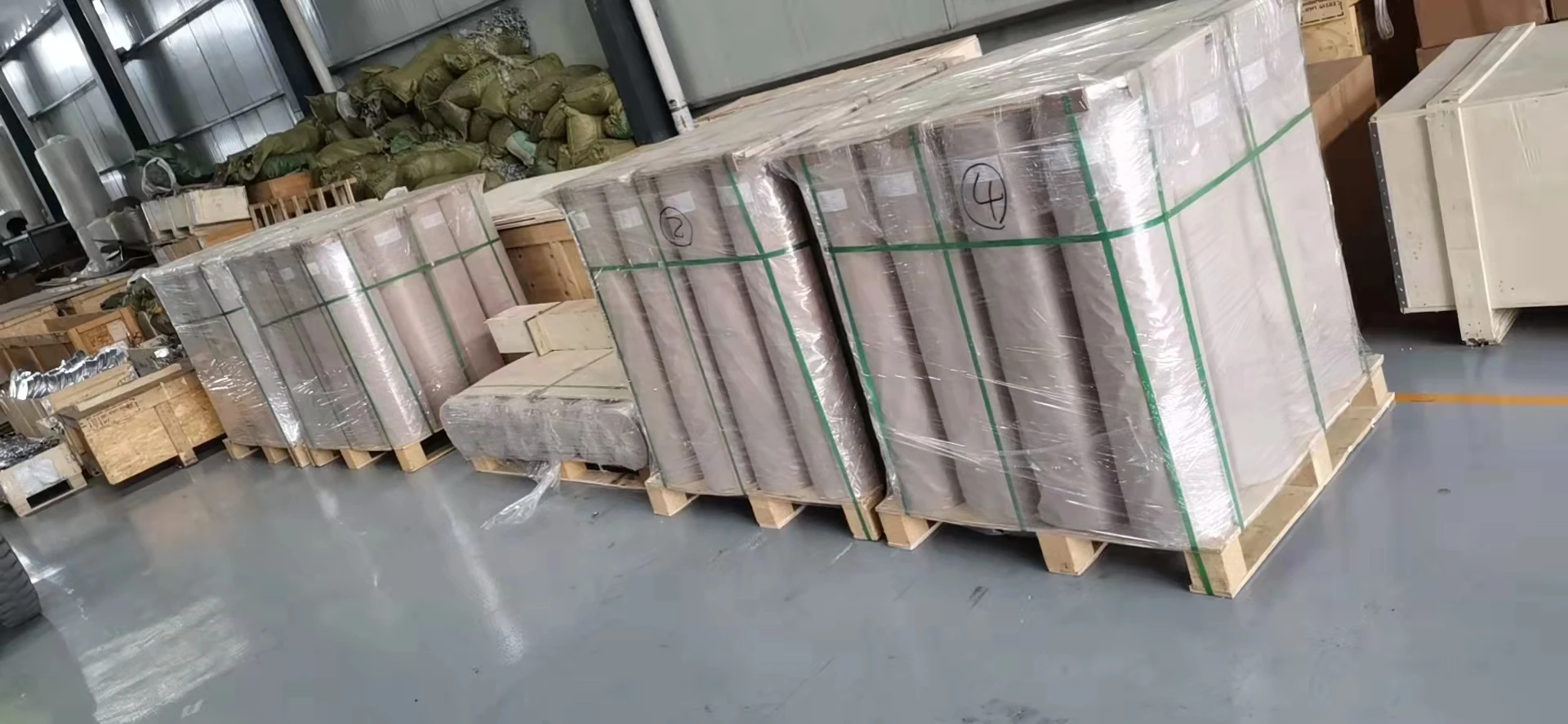

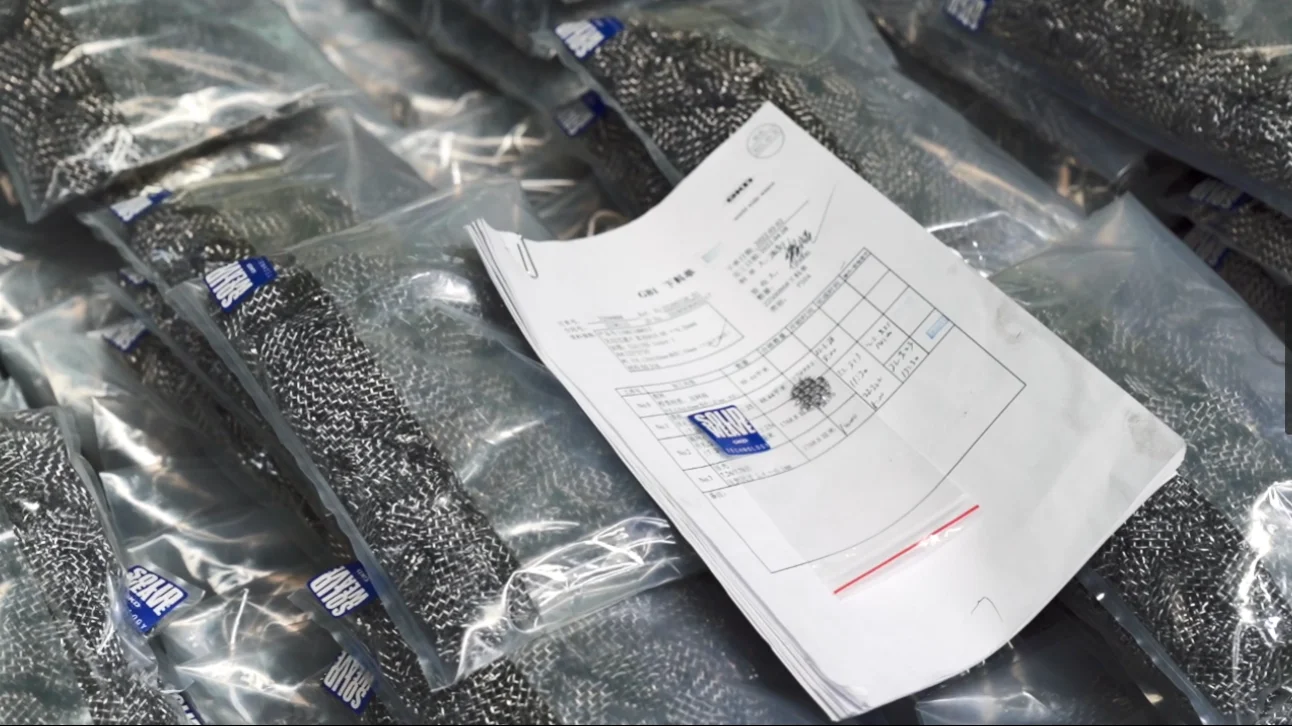

Packaging & Shipping






FAQ


Q1: Are you trading company or manufacturer?
We are both manufacturer and trading company. We are the branch of GKD Germany in China.

Q2: How long is your delivery time?
Generally, it is 10 days if the goods are in stock.
If the goods are not in stock, it is according to quantity.

Q3: Do you provide free samples?
Yes, we can provide free samples, but the freight needs to be borne by the customer.

Q4: How to guarantee the quality of your products?
Following the strict inspection process required by ISO 9001:2015, including FAA, process inspection, final quality inspection and production records.


Q5: Can we be your distributor?
Yes，please. We are looking for distributor and agent all over the world.

Q6: How's the delivery time?
It depends on the quantity of order.
