Cheapest 1ge 1fe CATV Wifi GPON ONT FTTH XPON Mini ONU Wireless Router CATV XPON
- Category: >>>
- Supplier: Zhuhai Gotech Intelligent Technology Co. Ltd.
Share on (1600740843567):
Product Overview
Description
Single band WiFi for
FTTX solutions

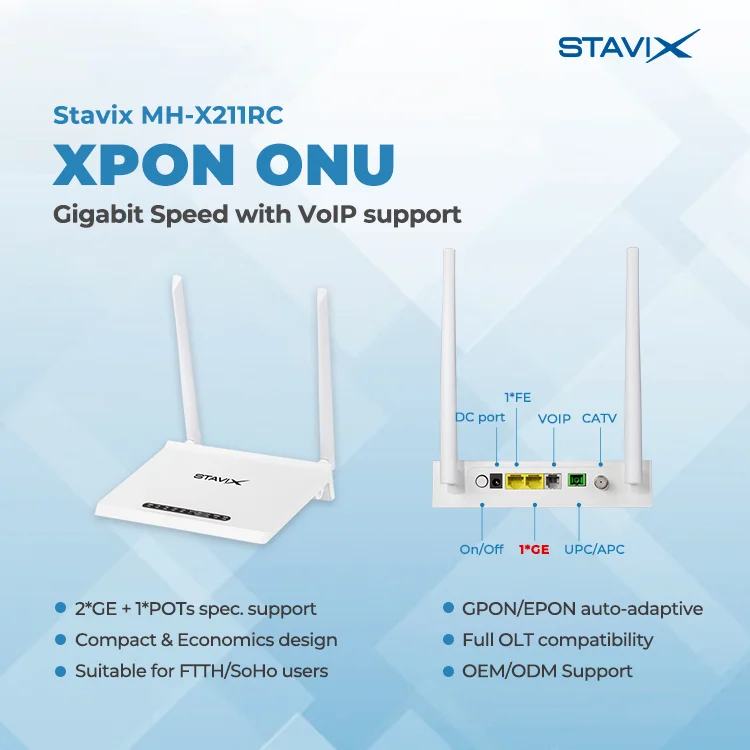

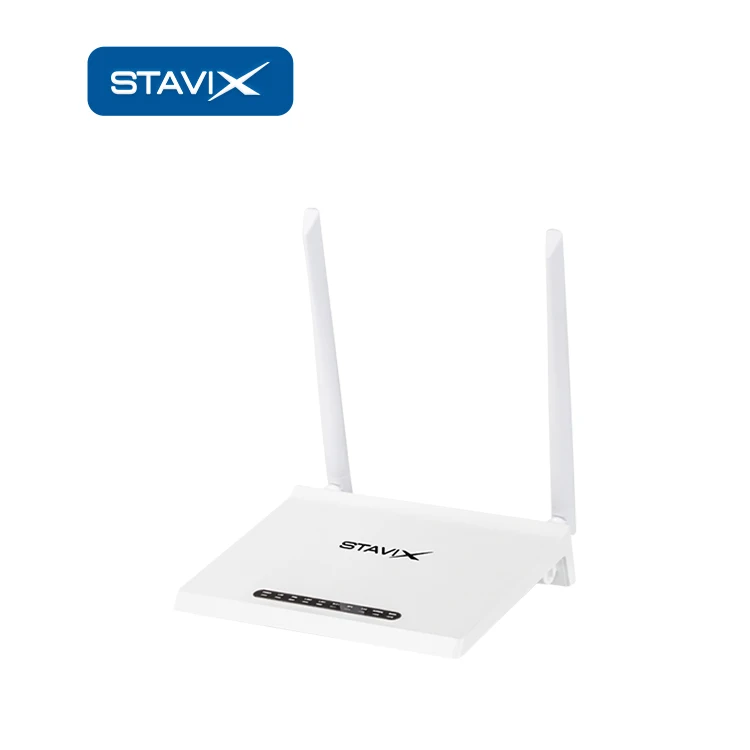

Cheapest 1ge 1fe CATV Wifi GPON ONT FTTH XPON Mini ONU Wireless Router CATV XPON

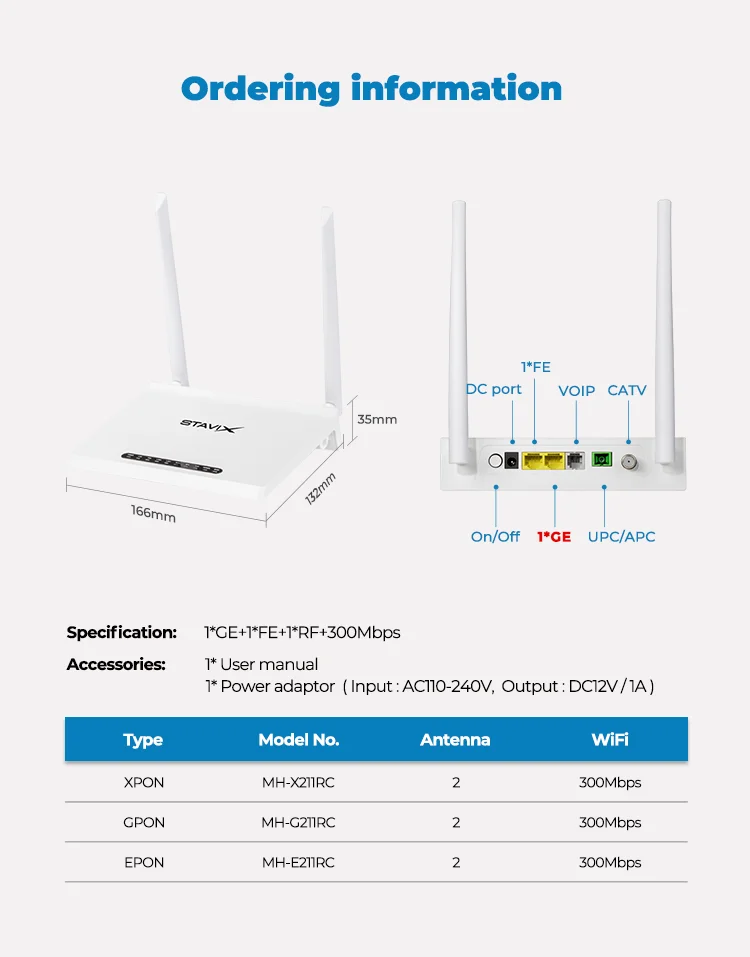

Specifications
Interfaces
Optic Fiber port | SC/UPC or SC/APC |
LAN port | 1* 1000 Mbps + 1* 100Mbps |
VoIP port | 1 |
Power On/Off | 1 |
CATV | 1 |
DC port | 1 |
Wi-Fi
Standard | IEEE802.11b/g/n |
Speed | Support MIMO, rate up to 300Mbps |
Antenna | 2 * External |
Gain | 5 dBi |
Modulation type | DSSS、CCK and OFDM |
PON
Standard | GPON: ITU-T G.984./G.988 EPON: IEEE802.3AH |
Wavelength | 1310nm/1490nm |
Speed | GPON: Upstream rate@1.244Gbit/s; Downstream rate @ 2.488Gbit/s EPON: Upstream rate@1.25Gbit/s; Downstream rate @1.25Gbit/s |
Sensitivity | ≤ - 27 dBm |
Emission Power | 0dBm ~ 4dBm |
Distance | 20km |
CATV
Wavelength | 1550±10nm |
Frequency range | 47MHz～1000MHZ, RF output impedance: 75Ω |
RF output level | ≥82dBuv（-7dBm optical input） |
AGC(Optional) | AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
Optical reflection loss | ≥45dB |
RF, optical power | +2~-18dBm |
Firmware
Management | TR069 Remote Configuration and WEB Management |
Access mode | Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode |
Reliability | Port Forwarding、Flow & Storm Control |
Networking | IPv4 & IPv6 Dual stack |
Parameter
Power Input | AC110~240V |
Power Output | DC12V / 1A |
Power Consumption | ＜ 6W |
Operating Temp. | 0 ℃ ~ 50 ℃ |
Storage Temp. | -40 ℃ ~ 60 ℃ |
Products Description
Our services
Company Profile
Our Advantages
FAQ
1. Why GOTECH ?
- Owns over 18 years industry experience in network communications.
- Outstanding manufacturing ability supported by Smart plant 4.0
- 50+ patents per year
- 500+ R&D engineers for new product development
- Outstanding manufacturing ability supported by Smart plant 4.0
- 50+ patents per year
- 500+ R&D engineers for new product development
2. What Do We Supply?
- Wireless Router device ( 4G|5G CPE / Mesh Router / WiFi 5/6 Router... )
- Surveillance device ( Smart Video Doorbell / IP Camera / NVR... )
- Set Top Box / Android TV box ( Set top box /Digital Signal Meter... )
- Smart Home device ( Smart sensor/ switch / Smart lock... )
3. International Standard Production
- ISO14001: 2015
- OHSAS45001: 2018
4. Where Are Our Markets?
- Asia
- Latin America
- Middle East and Africa
- Southeast Asia and Australia
