High/Low Speed Powerful Automatic Vacuum Double Planetary Mixer For Pouch Cell Electrode Making
- Category: Chemical Machinery & Equipment >>>
- Supplier: Qinhuangdao,Yushun,Intelligent,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
YOU SHOULD KNOW
Combining the advantage of the traditional double planetary mixer and high-speed dispersion mixer,double planetary dispersing power mixer is an efficient new model and have widely use in the new energy currently.
Based on the original planetary power mixer and the features of lithium batteries and capacitance slurry,we develop the enhanced planetary power mixer with high speed and greater torque.It is apply to dry power process of the production of lithium-ion cathode slurry,lithium-ion anode slurry.Burning the design process,we fully considered the reasonable speed,mixing power,dispersing line speed and reasonable shape of twisted stirrer.Our design has reduced the resistance of high viscous material,the distribution of turbulence intensity in the vessel and so son.In this way,we get the more efficient and stable double planetary power mixer to process the high viscosity slurry.
Based on the original planetary power mixer and the features of lithium batteries and capacitance slurry,we develop the enhanced planetary power mixer with high speed and greater torque.It is apply to dry power process of the production of lithium-ion cathode slurry,lithium-ion anode slurry.Burning the design process,we fully considered the reasonable speed,mixing power,dispersing line speed and reasonable shape of twisted stirrer.Our design has reduced the resistance of high viscous material,the distribution of turbulence intensity in the vessel and so son.In this way,we get the more efficient and stable double planetary power mixer to process the high viscosity slurry.
FEATURES AT A GLANCE
* 1.High line speed
*2.Imported SKF Sweden angular contact ball bearing.
*3.High precision assembly.
*4.High Tightness.
*5*High precision gap between tank and paddles.
6*Large torsion output.
*2.Imported SKF Sweden angular contact ball bearing.
*3.High precision assembly.
*4.High Tightness.
*5*High precision gap between tank and paddles.
6*Large torsion output.
PRODUCT SPECIFICATIONS
Model Item | 300L | 500L | 650L | 1000L | 1500L | 2000L | 3000L |
Tank working Capacity(L) | 300L | 500L | 650L | 1000L | 1500L | 2000L | 3000L |
Tank Design Size(L) | 368L | 670L | 807L | 1327L | 1846L | 2300L | 3400L |
Tank Size(mm) | 850x650 | 1000x850 | 1100x850 | 1300x1000 | 1400x1200 | 1500x1300 | 1700x1500 |
Revolution Motor(KW) | 22 | 37 | 45 | 55 | 75 | 90 | 110 |
Revolution Speed(rpm) | 0-26 | 0-22 | 0-22 | 0-20 | 0-15 | 0-13 | 0-9 |
Mix Speed(rpm) | 0-39 | 0-35 | 0-35 | 0-36 | 0-35 | 0-35 | 0-24 |
Disperse Motor(KW) | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
Disperse Speed(rpm) | 0-2200 | 0-2000 | 0-2000 | 0-1800 | 0-1500 | 0-1500 | 0-1000 |
Disperse plate linear Velocity(m/s) | 0-23 | 0-23 | 0-23 | 0-23 | 0-23 | 0-23 | 0-23 |
Suttle(KG) | 7700 | 10300 | 11000 | 13500 | 16800 | 19500 | 23500 |
Measurement (L*W*H mm) | 3200x1600x3200 | 3600x1950x3900 | 3800x1700x4200 | 4300x1950x5000 | 4320x2100x4530 | 4430x2050x4950 | 4660x2280x5200 |
PRODUCT CONFIGURATION
Electricity Control Box

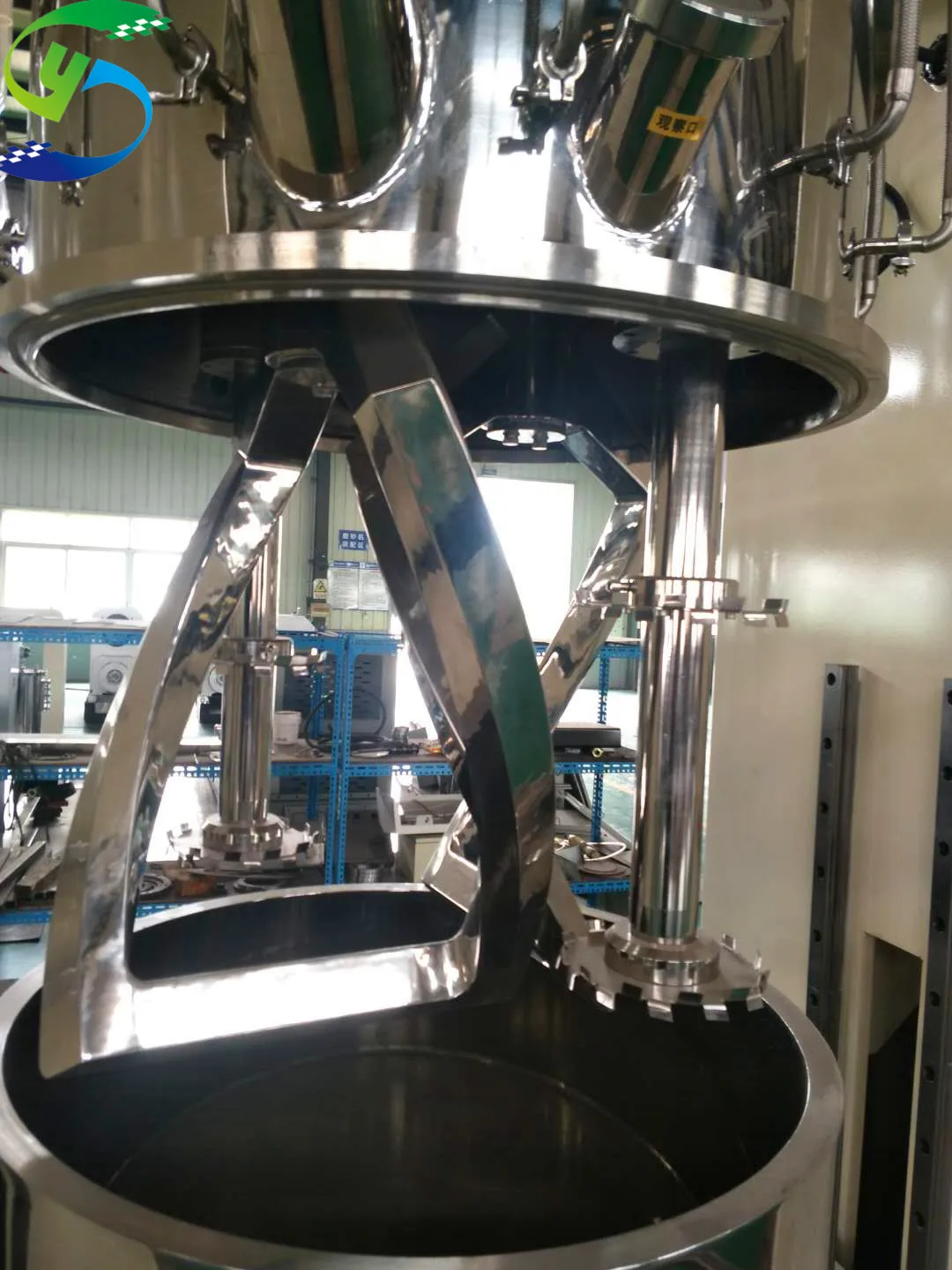

Stainless Steel Blender
Stainless Steel Tank
SIMILAR PRODUCTS
Package&Shipping
1. Packing with wooden box, inner with Anti-collision material to protect the machine or as customers' requirement.
2. Shipping by express, by air, by sea according to customers' requirement.
3. One year free warranty.
2. Shipping by express, by air, by sea according to customers' requirement.
3. One year free warranty.
Certifications
FAQ
Q1:Payment terms?
Q2: Trade terms?
Q4: Modes of shipment?
A: T/T,Cash,L/C.
Q2: Trade terms?
A: In according with Incoterms 2010, normally with EXW, FOB Tianjin, CFR, CIF ;
Q3: Validity of quotation?
A: Within 15 days;
Q4: Modes of shipment?
A: By sea, by railway, by air and by express;
Q5: Warranty?
A: One year and lifelong service provided at cost;
Q6: Installation and training?
A: Tel or online guidance for installation, for production line, paid overseas engineering service provided.
