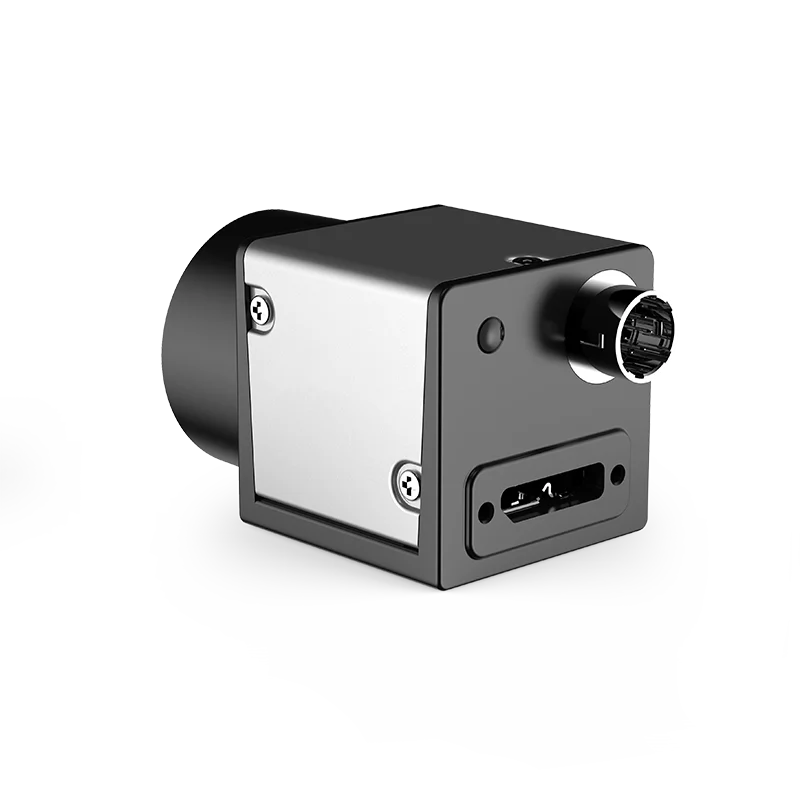

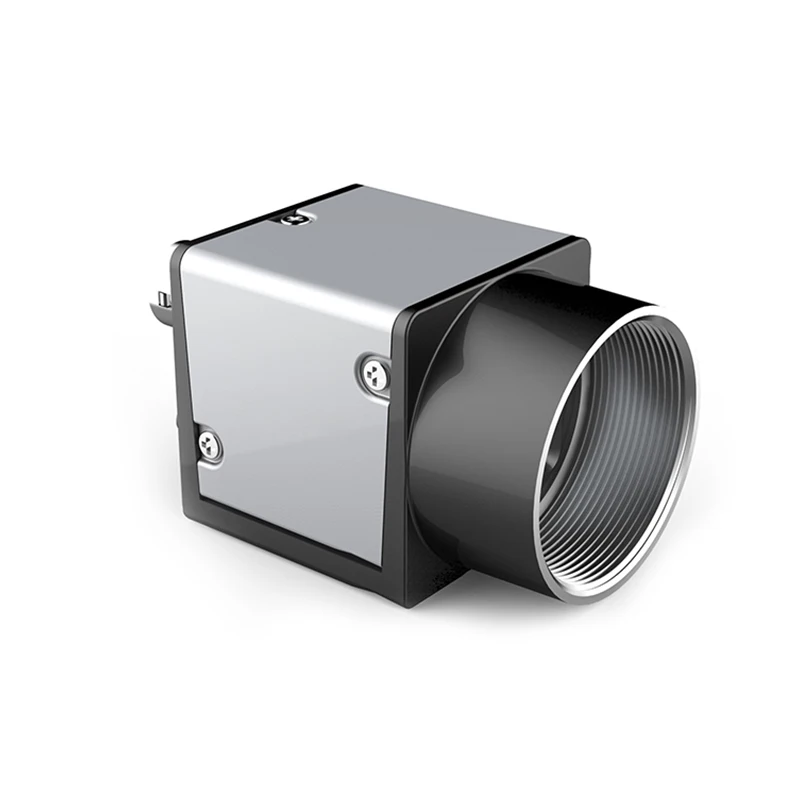

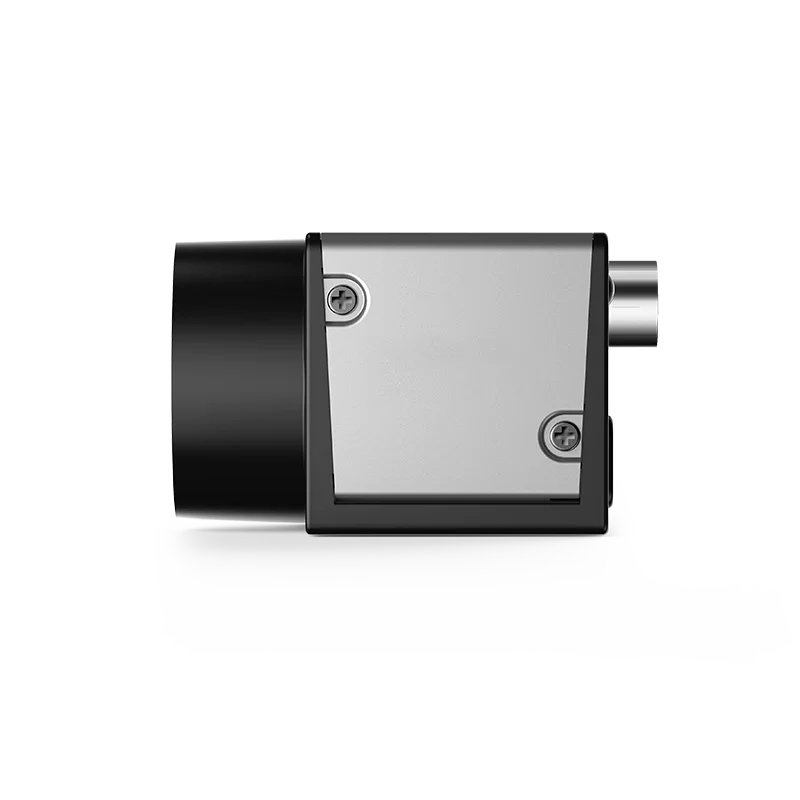

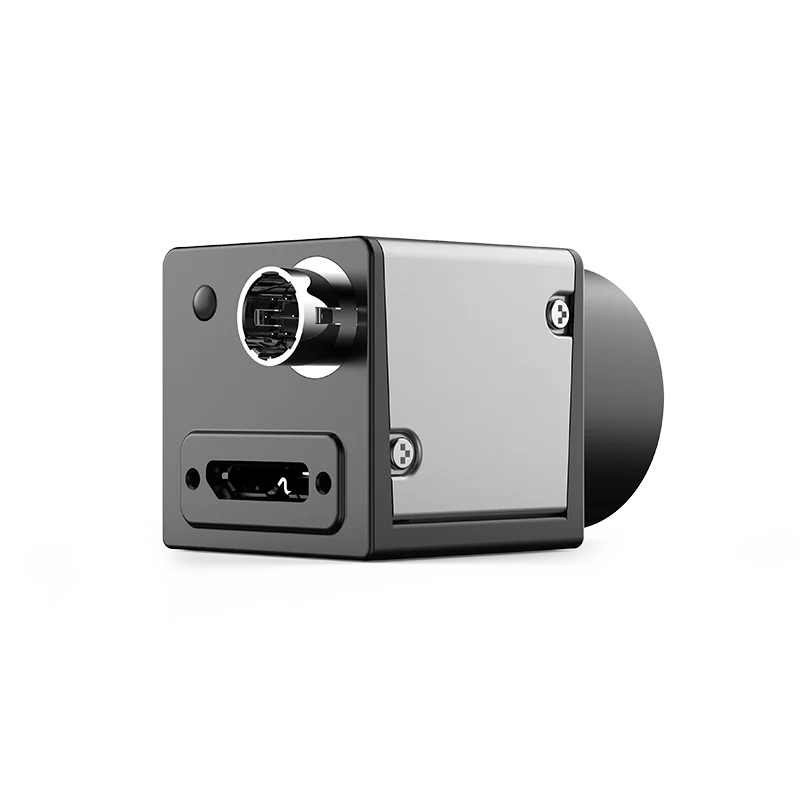

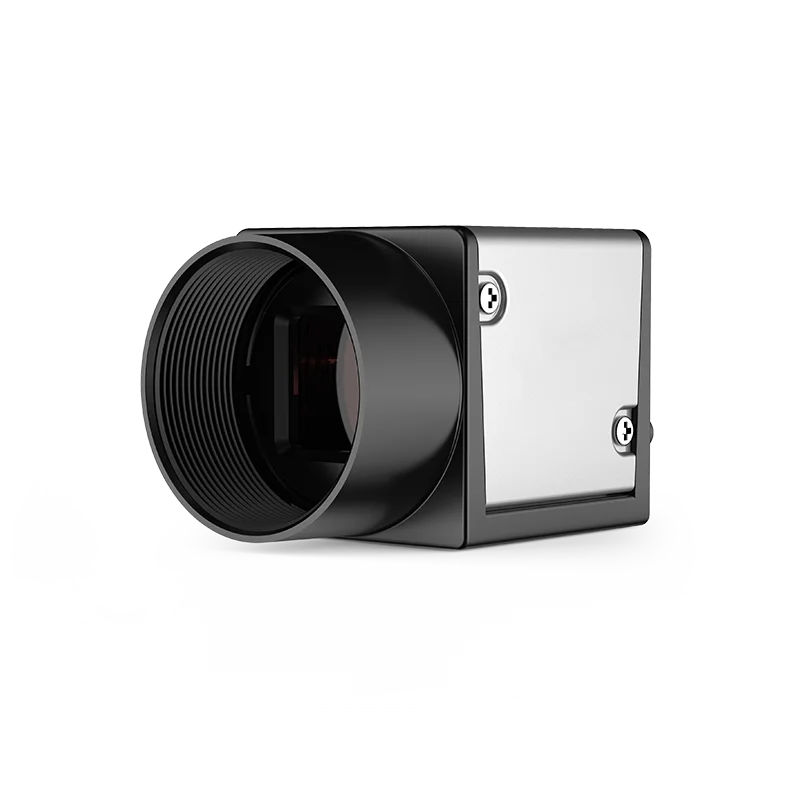

A7200CU130 High Speed IMX174 Pregius Sensor Color CMOS USB 3.0 Industrial Camera
A7200CU130 High Speed IMX174 Pregius Sensor Color CMOS USB 3.0 Industrial Camera
A7200CU130 High Speed IMX174 Pregius Sensor Color CMOS USB 3.0 Industrial Camera
A7200CU130 High Speed IMX174 Pregius Sensor Color CMOS USB 3.0 Industrial Camera
A7200CU130 High Speed IMX174 Pregius Sensor Color CMOS USB 3.0 Industrial Camera
A7200CU130 High Speed IMX174 Pregius Sensor Color CMOS USB 3.0 Industrial Camera
A7200CU130 High Speed IMX174 Pregius Sensor Color CMOS USB 3.0 Industrial Camera

A7200CU130 High Speed IMX174 Pregius Sensor Color CMOS USB 3.0 Industrial Camera

Share on (1600740862013):


Price:

Quantity:


Product Overview

Description



Product Description




MACHINE VISION CAMERAS
Machine vision cameras are used to inspect and analyse objects automatically in an industrial or production environment. The data collected can then be used to control a process or manufacturing activity. Machine vision cameras can be used in many applications to check the position of something, colour, size, shape or whether an object is there or not. As well as look at and decipher a standard 2D barcode and even printed characters.

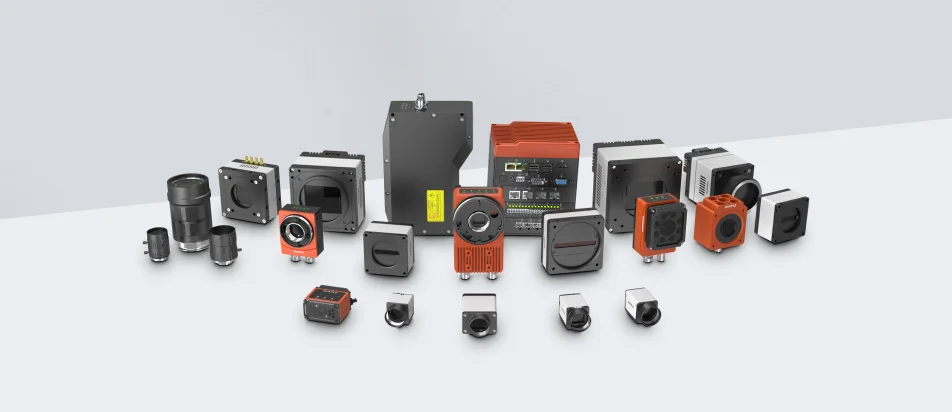

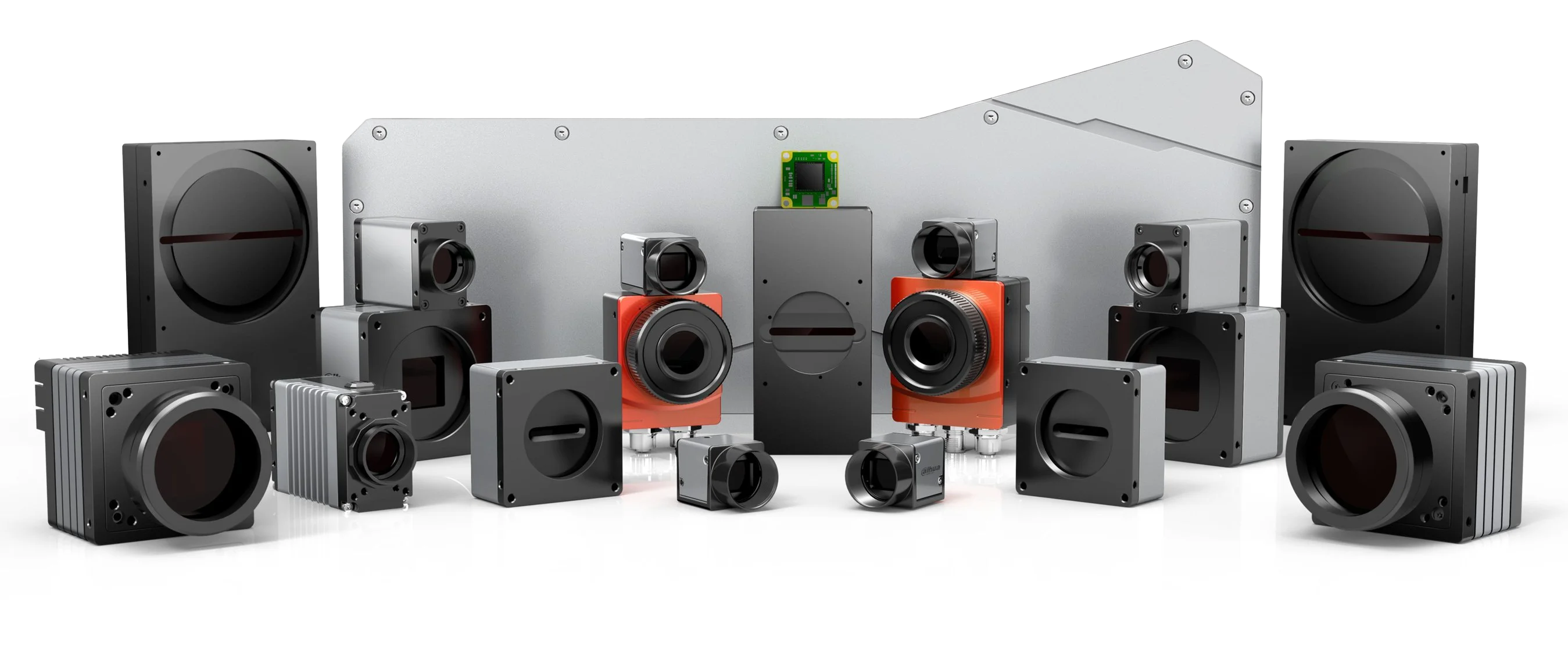

We offer a wide range of machine vision cameras, includes GigE, USB, CoaXpress, CameraLink interfaces, resolutions from VGA to 65MP, rolling and global shutters and monochrome or colour options.


A7200CU130
7000 Series GigE GenICam® Area Scan Cameras


Technical features：
USB3 Vision® protocol & GenICam® standard
Standard vision SDK platform for easy integration in existing software.

Full GenICam® compliant: easy to integrate
GenICam® compliant SDK package provides more flexibility to Vision Systems®.

High Cost-Performance Ratio




Specification


Model
A7200CU130
Sensor
IMX174
Sensor Type
1/1.2" CMOS
Shutter
Global
Resolution
1920x1200
Frame rate （ fps ）
164
Bit depth
10
Interface
USB 3.0
Mono/ Color
Color
Pixel size (μm )
5.86 × 5.86
Sensor size
1/1.2''
Effective Pixels
2.3MP
SNR
>38dB
Dynamic Range
>70dB
GPIO
6 pin Hirose: 1 Opto-isolated input, 1 Opto-isolated output, 1 configurable input/output without opto isolation
Image Format
BayerRG8/10/10Packed，BayerGB8/10/10Packed
Reverse Image
Support
ROI
Support
Gain
X1~X32
Gamma
Range from 0 to 4, support LUT
Exposure Time
20μS~1S
Trigger Mode
Software trigger/Hardware trigger/Free run mode
Image Buffer
64MB
SPC
Support
User Setting
Support two sets of user-defined configurations
Dimensions
29mm*29mm*29mm( not including lens mount and rear case connector)
Weight
68g
Power Supply
USB 3.0 /DC power supply by Hirose connector, with voltage range from 9V~24V
Power Consumption
≈3.91W
Lens Mount
C-mount
Temperature
Storage temperature: -30° C~ + 80° C;
Operation temperature: -30° C~+50° C

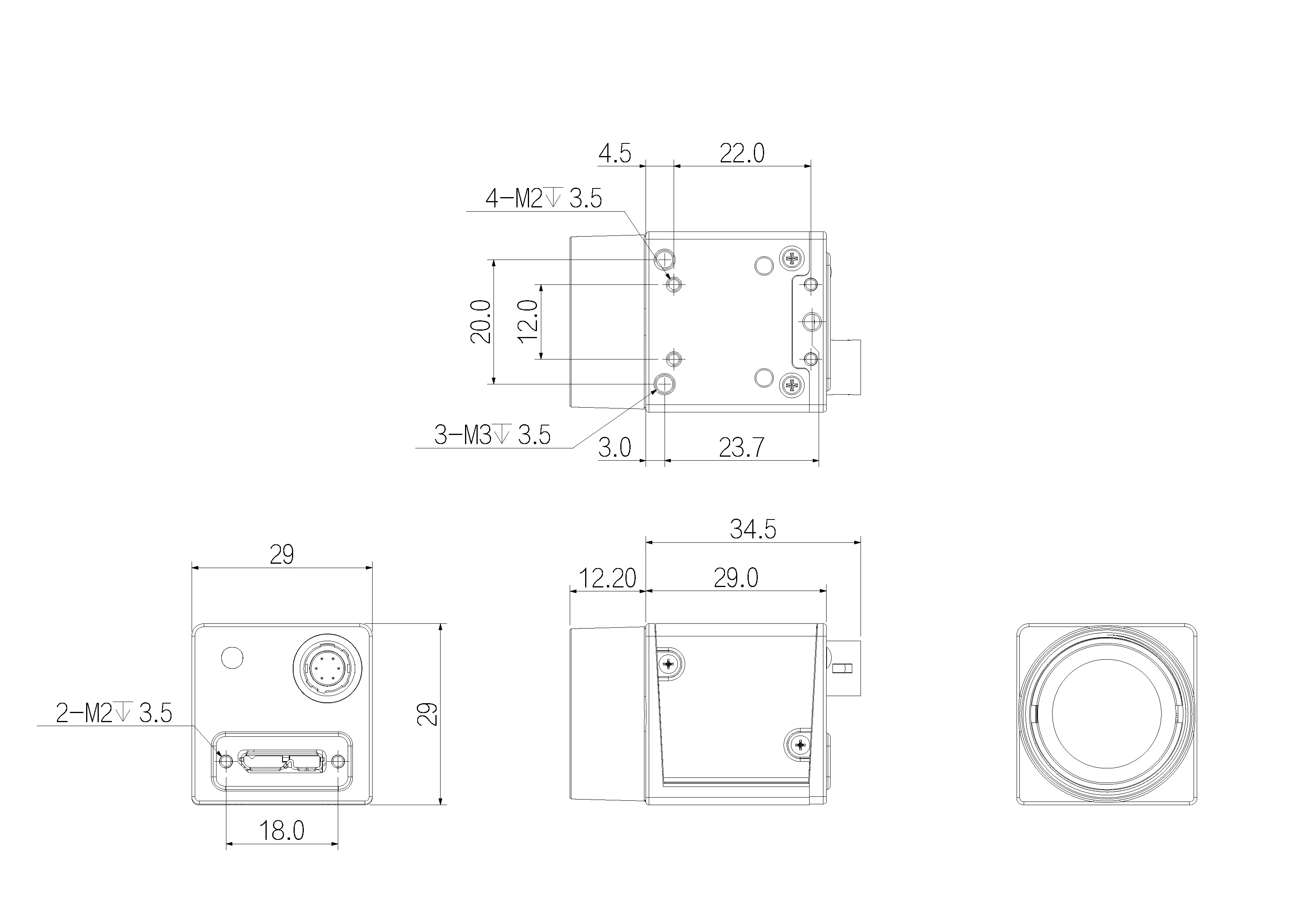

Diemension






Application Industry


Application Industry

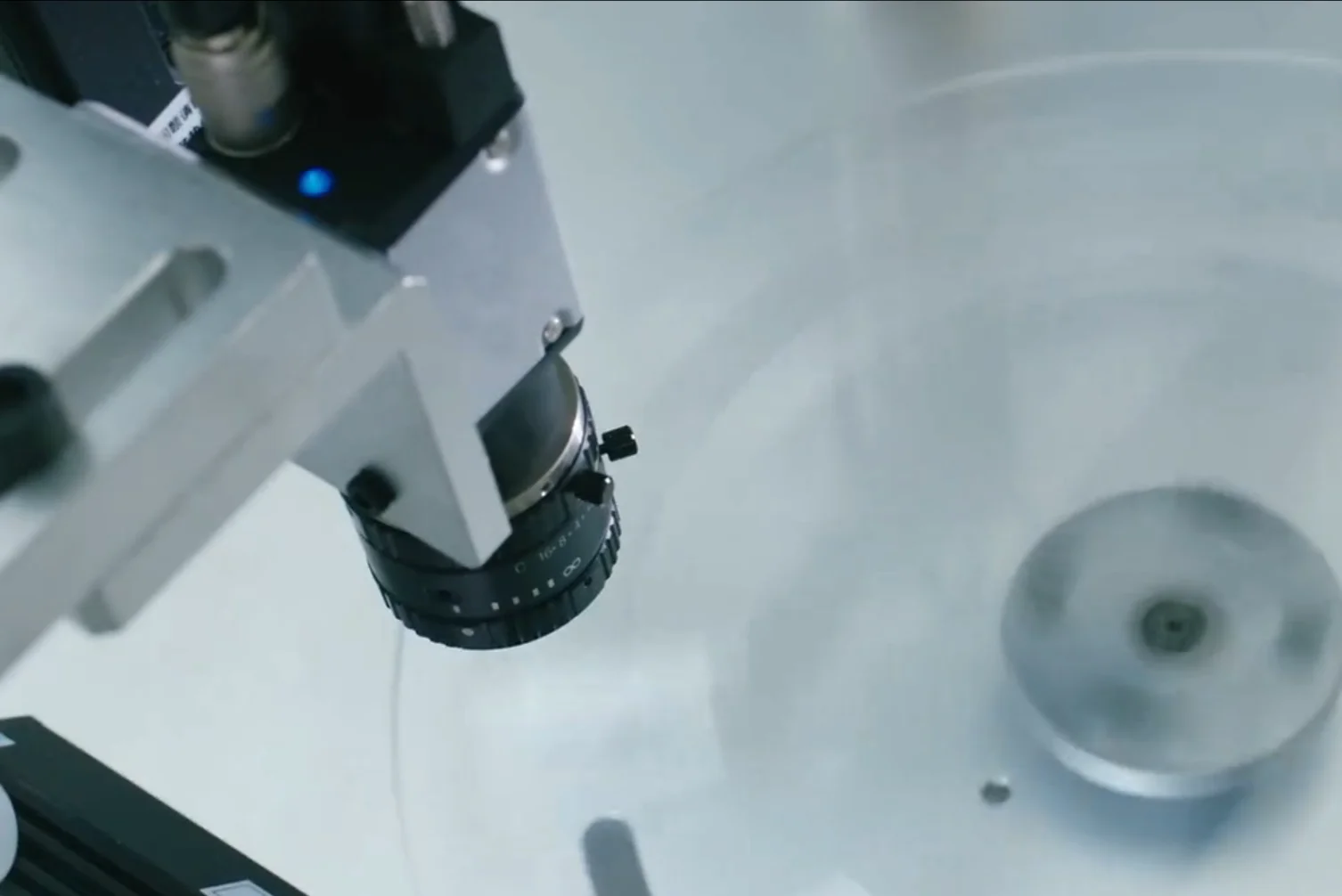

Mstar provides excellent machine vision products and platforms, and professional machine vision solutions for electronics, electrical, home appliances, medical device, packaging, semiconductors, automobile manufacturing, etc. We help users to automative production quickly and accurately, and improve the level of intelligence.


Electronics
Electrical
Home Appliances


Packaging
Automobile Manufacturing


Company Profile


Located in Hangzhou, Mstar Technologies, Inc is a professional manufacturer of machine vision products. We have over 6 years of experience in machine vision and have a good reputation in this field.

Quality and Safety: We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.

Your Success, Our Glory: Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.






Recommend Products




FAQ


1. When will you ship my order?
Generally, once we get confirmation for payment, we will ship the order within 7-10 days. The specific delivery time depends on the items and the quantity of your order.
2. Does OEM/ODM available?
Yes, just let us know your details, then we can help you to design and put it into production.
3. The sample request is ok? if so, for free?
Re: MOQ is needed for a factory but one sample for testing is acceptable. We'd like to see our customer having a try on our
products. But sorry, it's not for free, you need to pay for it.
4. Driver and SDK problems?
Re: We will provide the SDK with the camera for free. And if you meet any problems when using it, just feel free to let us know.
5. How to pay?
RE: Payment Term Credit card, VISA card, e-checking, PayPal, Western Union, T/T.
6. Could I print our logo or company name on our products?
Re: Of course, we could print your logo or company name as your requirements, but you need to send us your logo certification and the certificate of authorization.
7. Shipping
We have strong cooperation with ARAMEX and UPS.
You also can choose your own shipping forwarder.
8. If you have any questions, please contact us at any time.
