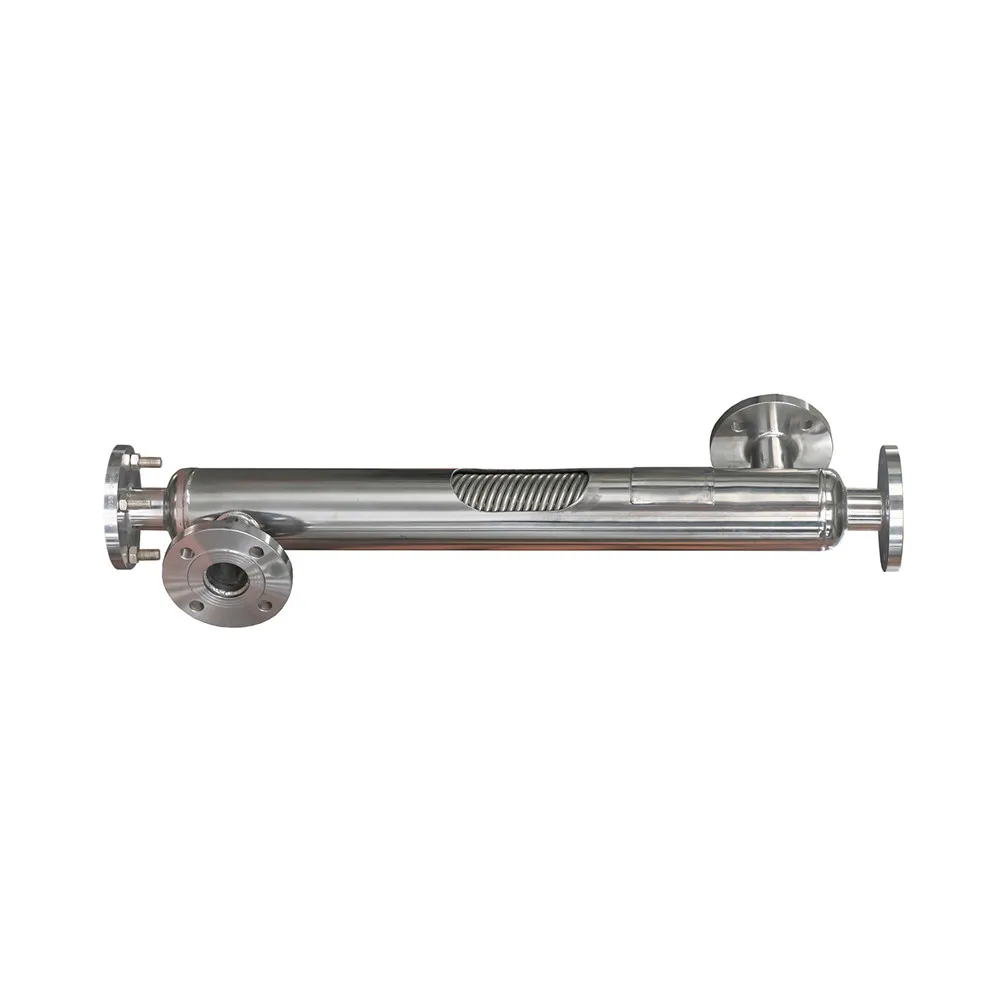

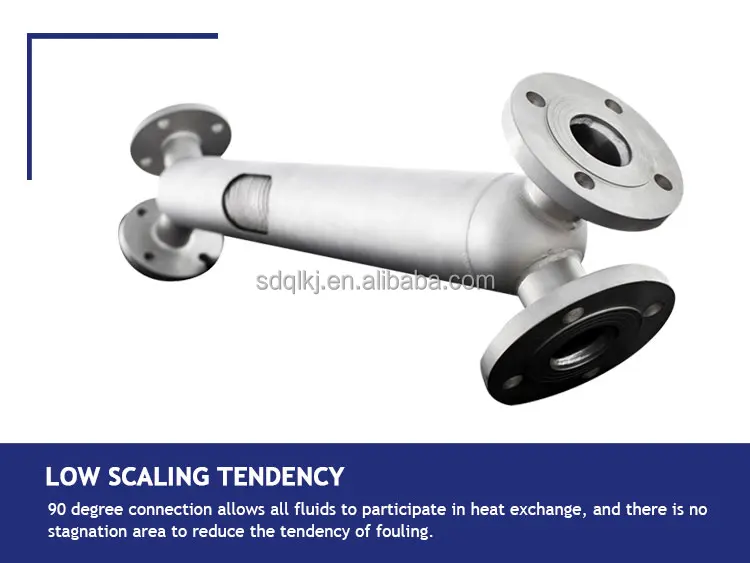

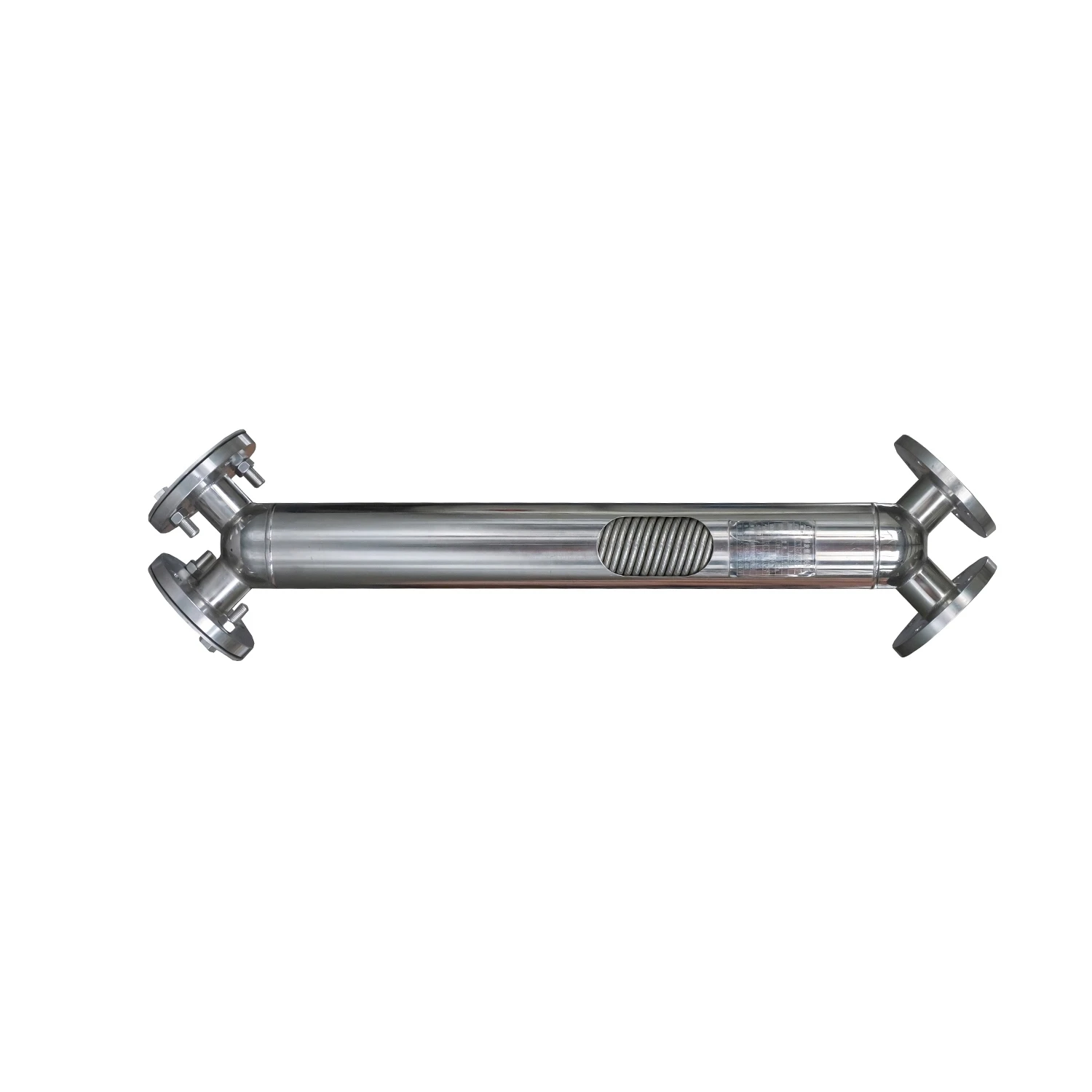

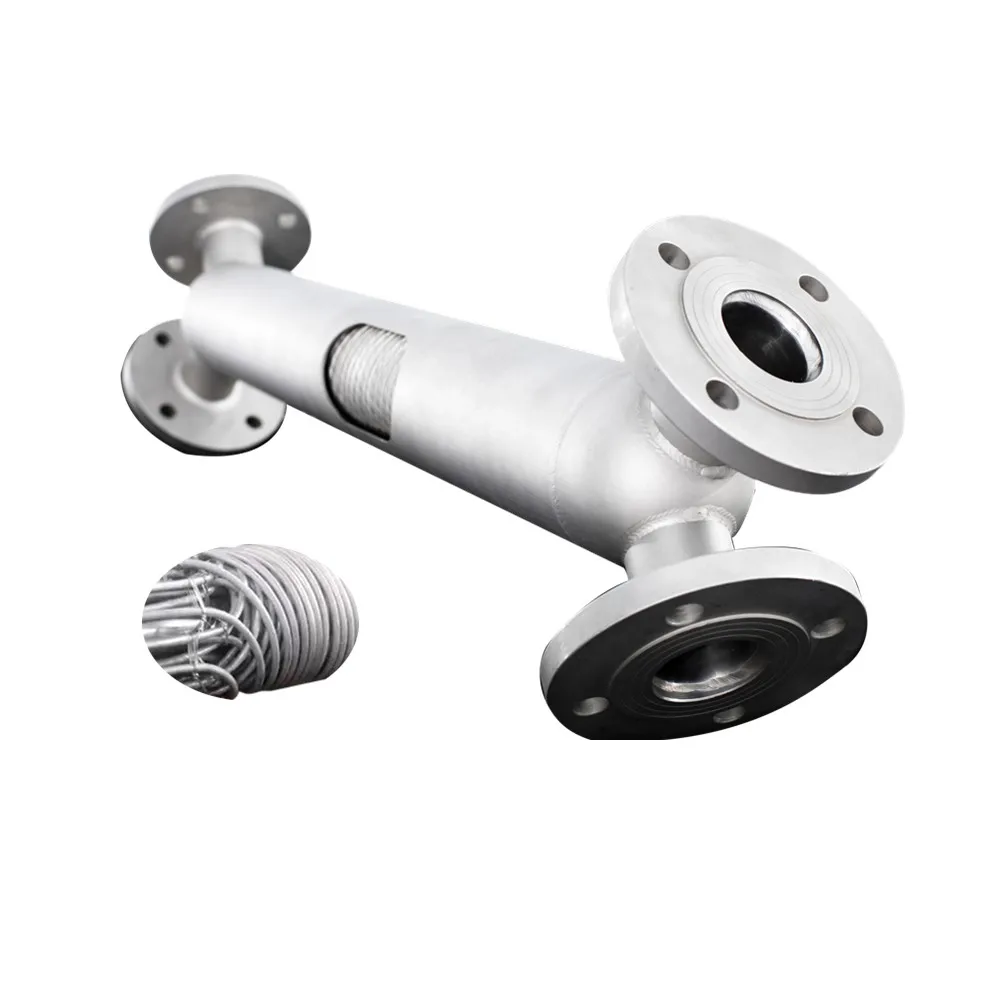

High Efficient Stainless Steel Spiral Wound Steam To Water Tube Type Exchanger
- Category: >>>
- Supplier: Shandong Qinglei Environmental Science And Technology Co. Ltd.
Share on (1600740909417):
Product Overview
Description
Products Description

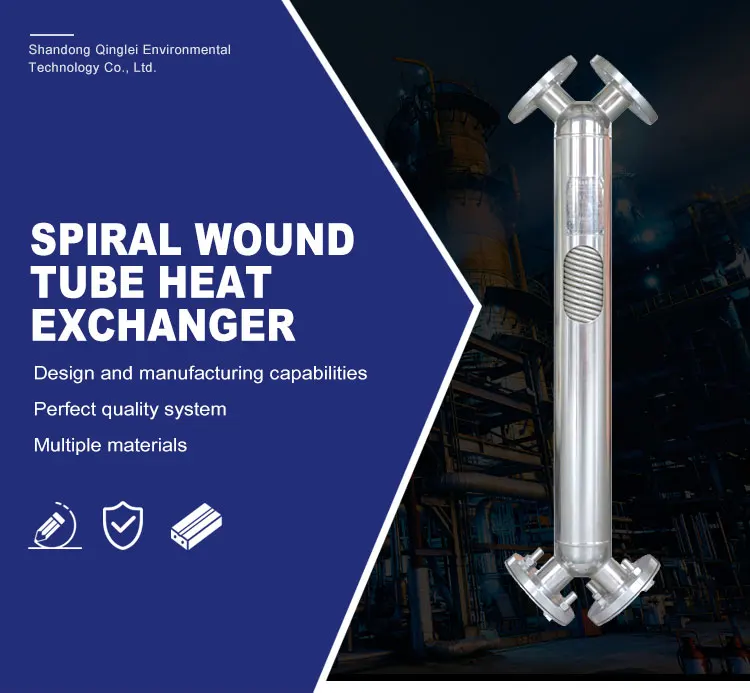

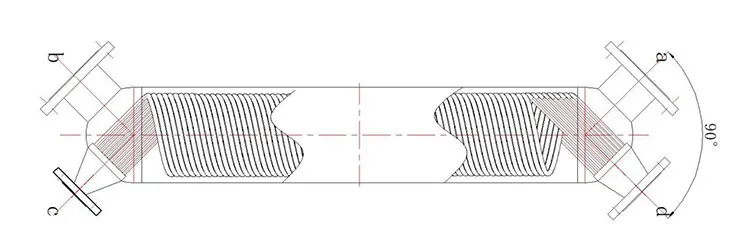

Compared with the ordinary tube heat exchanger, the spiral wound tube heat exchanger has incomparable advantages, such as wide temperature range, adaptability to thermal shock, self-elimination of thermal stress and high compactness. Due to its own special structure, the flow field is fully developed.There is no flow dead zone, especially by setting multi-strand tube side (shell side single strand), it can satisfy multi-strand fluid heat transfer at the same time in one equipment.

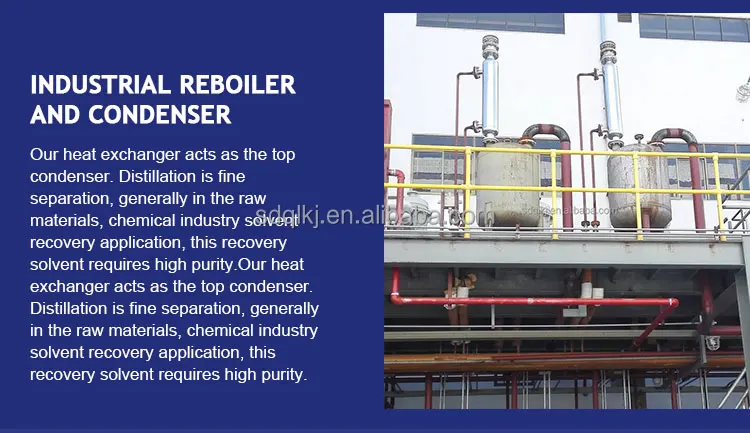

Spiral wound tube heat exchanger plays an important role in chemical, petroleum, power, food and many other industrial production. In chemical production, it can be used as heater, cooler, condenser, evaporator and reboiler.
Shell material | SS 304,316L,duplex steel 2205,2507,carbon steel,pure titanium, zirconium, Hastelloy, etc. |
Tube material | 316L |
Tube specification | φ8, φ10, φ12, φ14 etc |
Tube thickness | 0.8mm |
Heat exchanger area | 0.1-1000(customized) |
Max. working pressure | 4Mpa(customized) |
Max. temperature | 300 degree Celsius(customized) |
Installation type | Horizontal/Vertical |
Carried standard | Our national standard,GBT151-2014 |

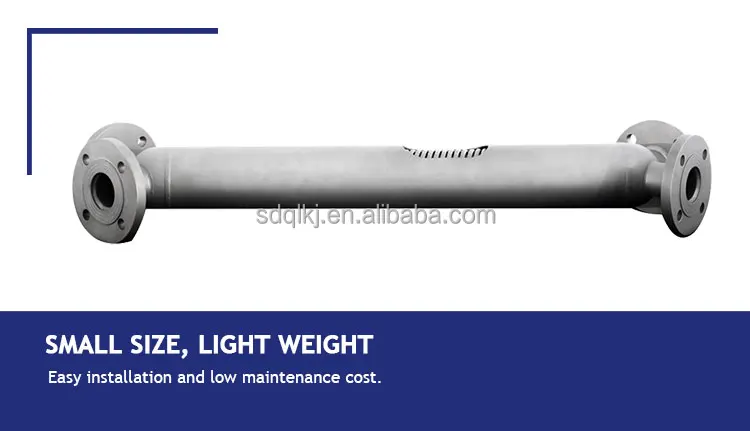

Details Images

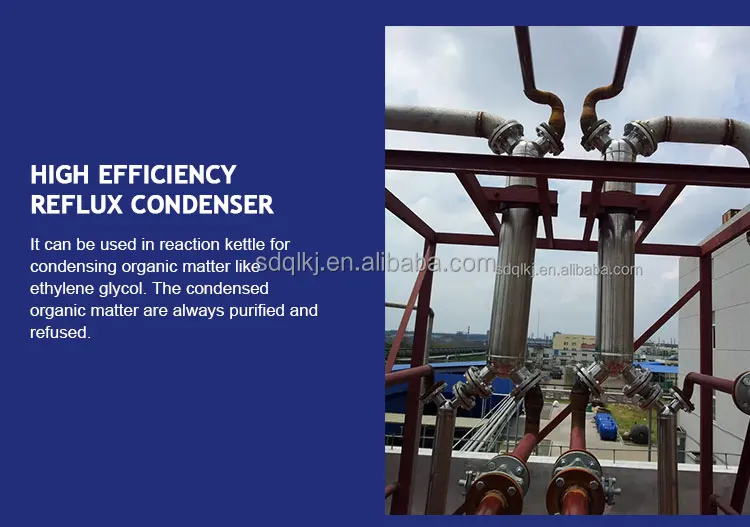

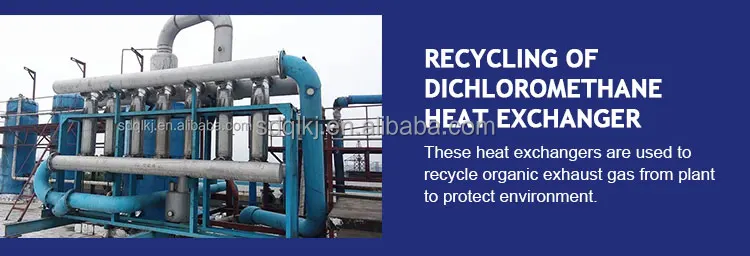

Application
Product packaging
Company Profile

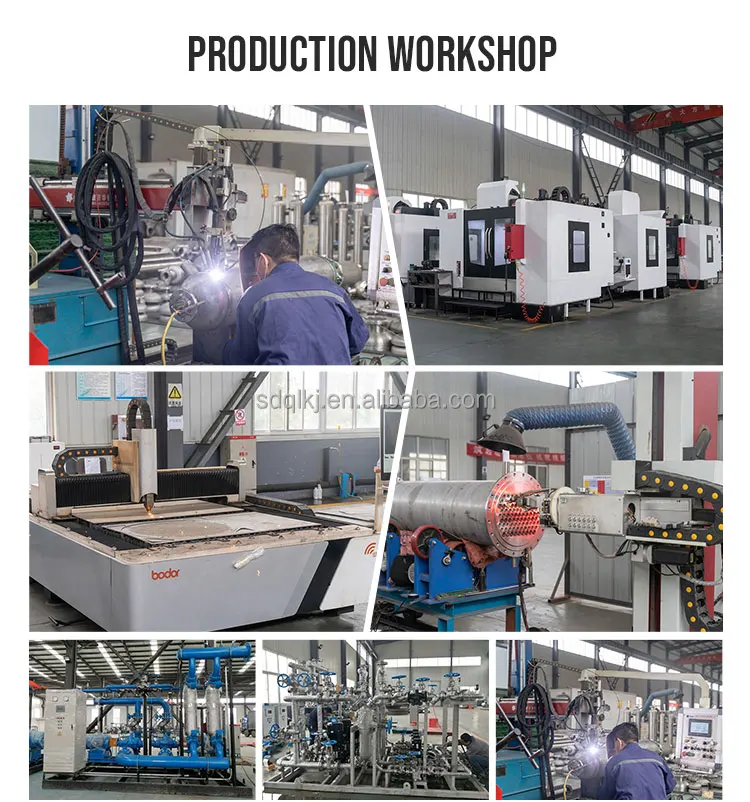

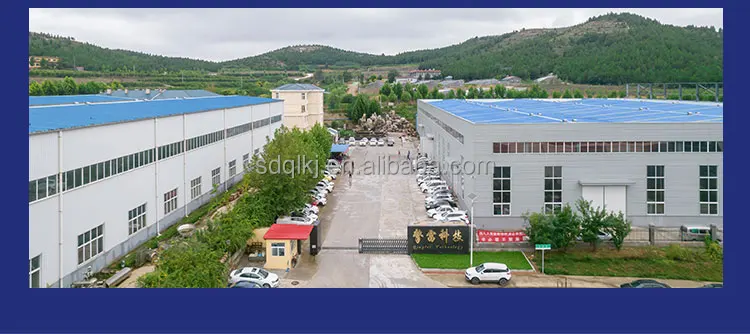

Shandong Qinglei Environmental Technology Co., Ltd., located in Jinan, Shandong province, is a manufacturer and trader specializing in research, development and production of heat exchange equipment ,storage and non-standard equipment.It was listed on the New Third Board in February 2019, stock code: 873193.Our company covers an area of 40,000 square meters, with more than 200 workers.
Our main products are spiral wound tube heat exchanger, tubular heat exchager, plate heat exchanger, storage tank, reactor ,non-standard pressure vessel and vacuum frying machine.
Our main products are spiral wound tube heat exchanger, tubular heat exchager, plate heat exchanger, storage tank, reactor ,non-standard pressure vessel and vacuum frying machine.
FAQ
Q1.Are you manufacturer or trading company?
A1: We are the professional heat exchanger manufacturer in China.
Q2.How could we confirm the details of the products?
A2: Qinglei will provide the detailed drawings for you to confirm.
Q3. How long the warranty will be?
A3: 1 Year warranty.
Q4.What information needed if I want a quotation?
A4:Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity or any requirements in size.
A1: We are the professional heat exchanger manufacturer in China.
Q2.How could we confirm the details of the products?
A2: Qinglei will provide the detailed drawings for you to confirm.
Q3. How long the warranty will be?
A3: 1 Year warranty.
Q4.What information needed if I want a quotation?
A4:Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity or any requirements in size.
