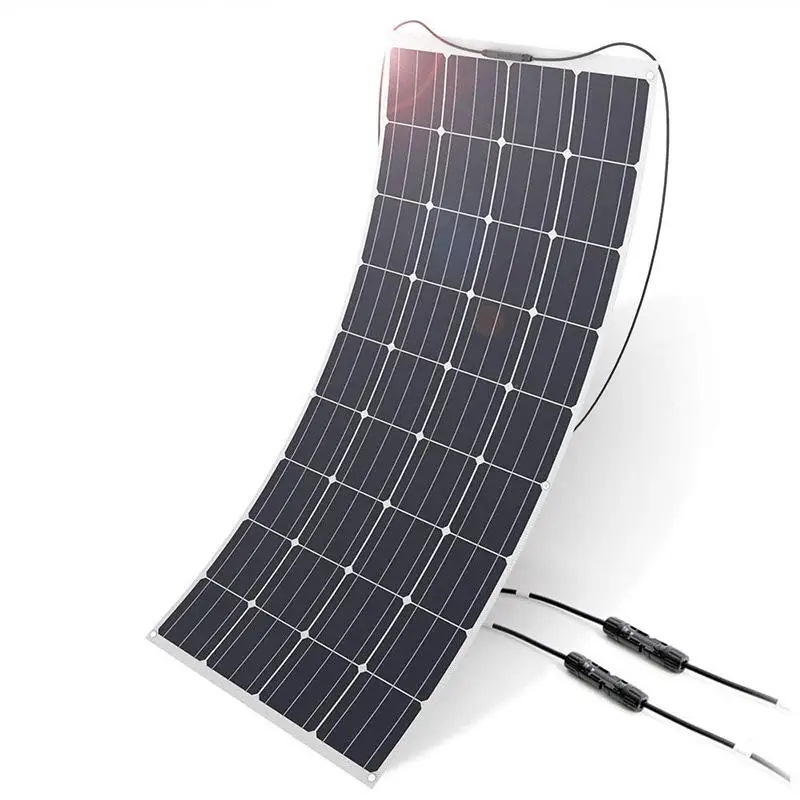

Qibi buy monocrystalline solar cells bulk 2.5kgs 30w flexible solar panel
- Category: >>>
- Supplier: Hangzhou Qibu Industry And Trade Co. Ltd.
Share on (1600740913426):
Product Overview
Description
Model Number | QB04 |
Maximum Power ( W) | 30.00W |
Maximum Power Voltage ( Vmp ) | 18.67 |
Maximum Power Current ( Imp ) | 1.61 |
Open-circuit Voltage ( Voc ) | 22.87 |
Short-circuit Current ( Isc ) | 1.76 |
Cells Efficiency(﹪) | 17.96 |
Module Efficiency (%) | 12.65 |
Operating Temperature | -40℃ to 85℃ |
Maximum System Voltage | 1000V DC(IEC) |
Maximum Series Fuse Rating | 10A |
Application Class | Class A |
Power Tolerance | 0/+3W |
NOCT Nominal Operating Cell Temperature(℃) | 45±2 |
Front Glass | 3.2mm high transmission,low iron,tempered glass |
Frame | Anodized Aluminium Alloy |
Junction box | IP65 Rated |
Output cables | Without cables and connector |
Company Profile
FAQ
Q: How is the solar panel packing?
A: Every product packed in individual box.
Q: What is the regular lead time?
A: 7 days for samples, 15-20 days for mass order according to quantity.
A: 7 days for samples, 15-20 days for mass order according to quantity.
Q: What certification the solar panel have?
A: CE, Rohs. If you need other certification, please contact us for discussion.
Q: What is the solar panel warranty?
A: 1 year workmanship warranty. During 1 year if any quality issue verified, we will send new solar panels for replacement.
Q: Accept OEM/ODM orders?
A: We accept OEM/ODM orders. Please contact us if you have demand for this service.
Q: I am from USA. Can you provide DDP shipping option?
A: Yes we provide DDP shipping option, please contact me for more details.
