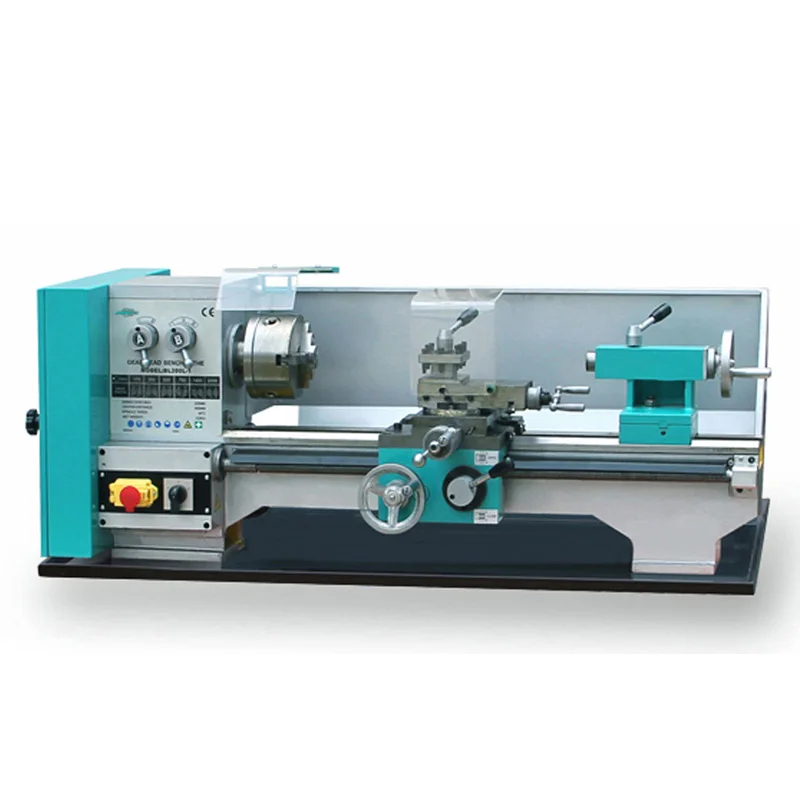

BL200G high precision metal small bench manual lathe
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (1600740967743):
Product Overview
Description
Product Description

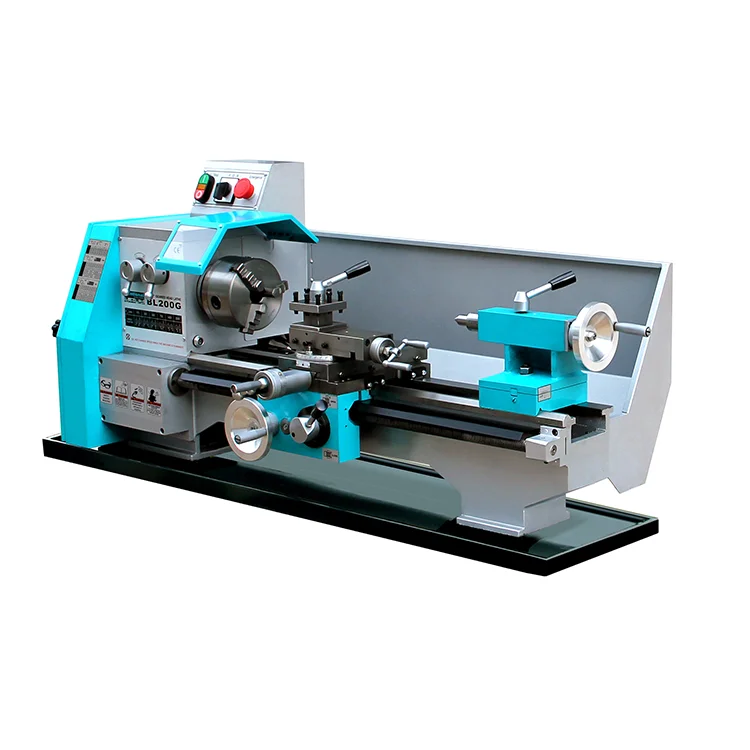

BL200G metal bench lathe machine
Swing over bed | 220mm |
Swing over carriage | 120mm |
Distance between centers | 520mm |
Spindle bore | 20mm |
Spindle taper | MT3 |
Number of spindle RPM gearss | 6 steps |
Range of spindle speed | 170;300;500;750;1400;2000rpm |
Tool post travel | 60mm |
Cross travel | 115mm |
Longitudinal travel | 495mm |
Range of longitudinal feeds | 0.05-0.20mm |
Metric threads | 17/0.05-3.0mm |
Inch threads | 17/8-48tpi |

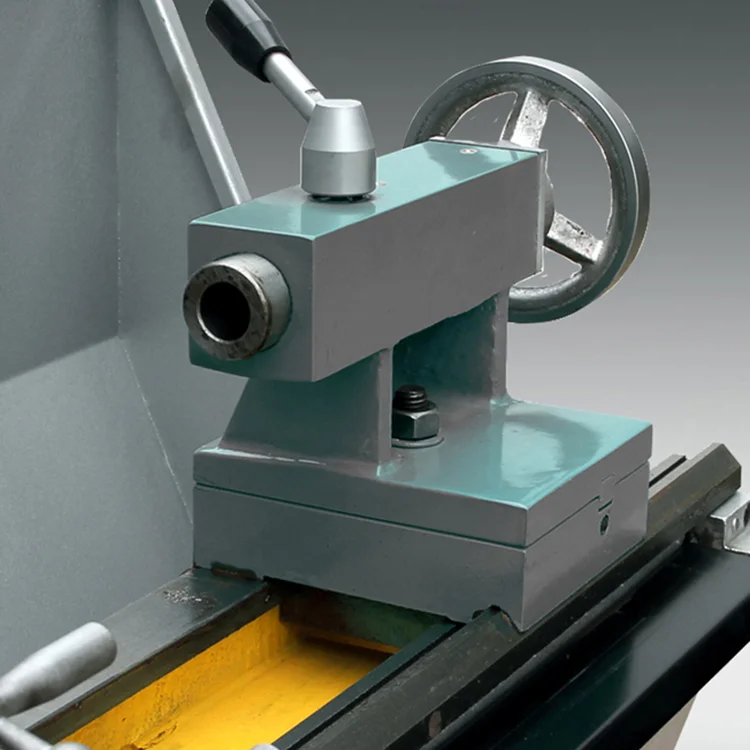

Max. travel of tailstock sleeve | 50mm |
Taper of tailstock sleeve | MT2 |
Motor power | 750W |
Net weight | 125kg |
Packing size | 1220*560*540mm |
Features

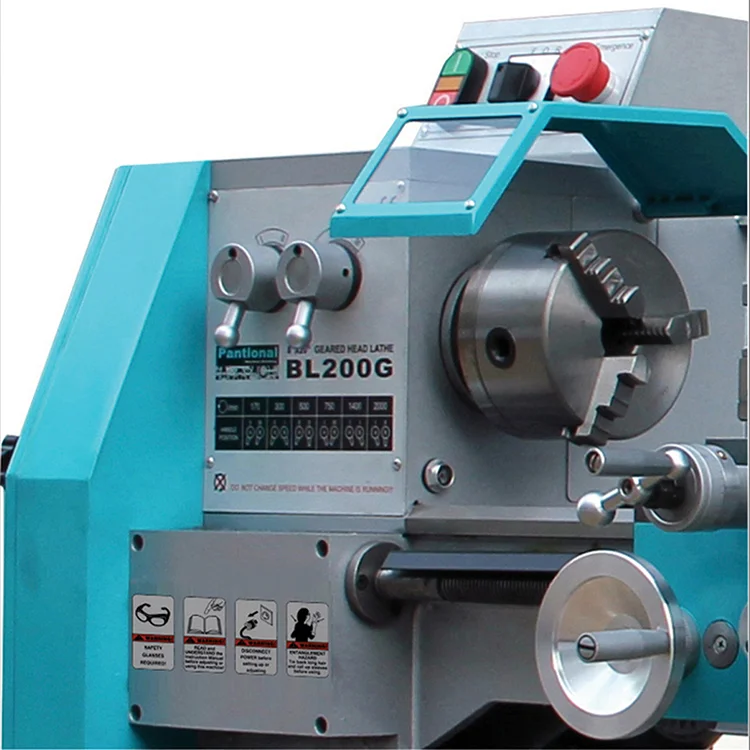

Gear drive headstock for quick change of spindle speeds
Precision’V’ beds are hardened and ground
Encompassed on stong cast-iron rib webbing

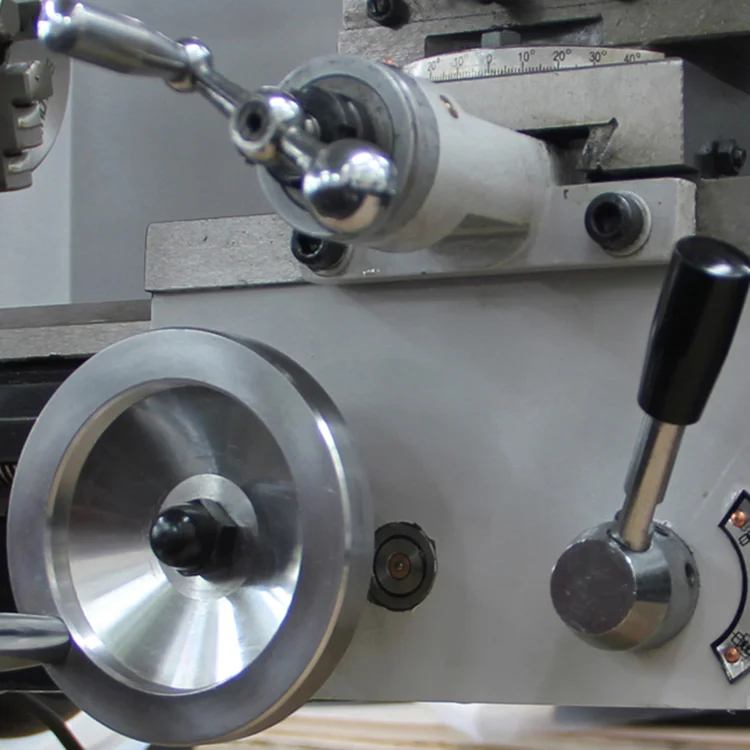

Dovetailed cross and compound sliders

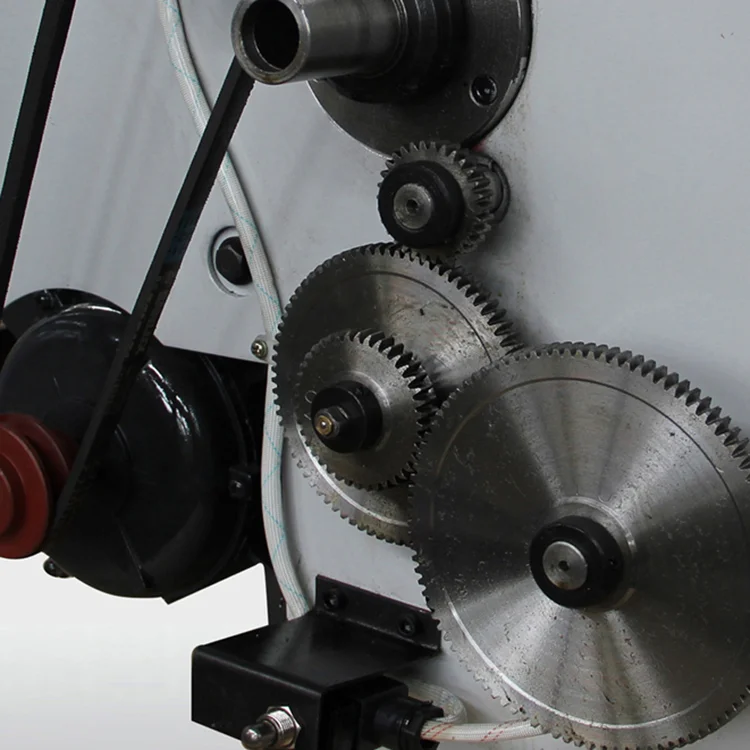

Included a full set of change gears for metric or imperial threads cutting
6 spindle speeds from 170 to 2000rpm
Metric calibration
Automatic longitudinal feeds
Precision’V’ beds are hardened and ground
Encompassed on stong cast-iron rib webbing
Dovetailed cross and compound sliders
Included a full set of change gears for metric or imperial threads cutting
6 spindle speeds from 170 to 2000rpm
Metric calibration
Automatic longitudinal feeds
A lot of metric and inch threads ranges, a wider bed and a large self-centering three jaw chuck.
You will be able to turn some surprisingly projects and thinking of making parts for models, engines or even repairs around
the home and workshops.
the home and workshops.
Metal gears drive headstock for quick change of spindle speeds and 6 spindle speeds from 160 - 2000 rpm. 130 mm diameter three-jaw chuck deploied and with protective metal cover.

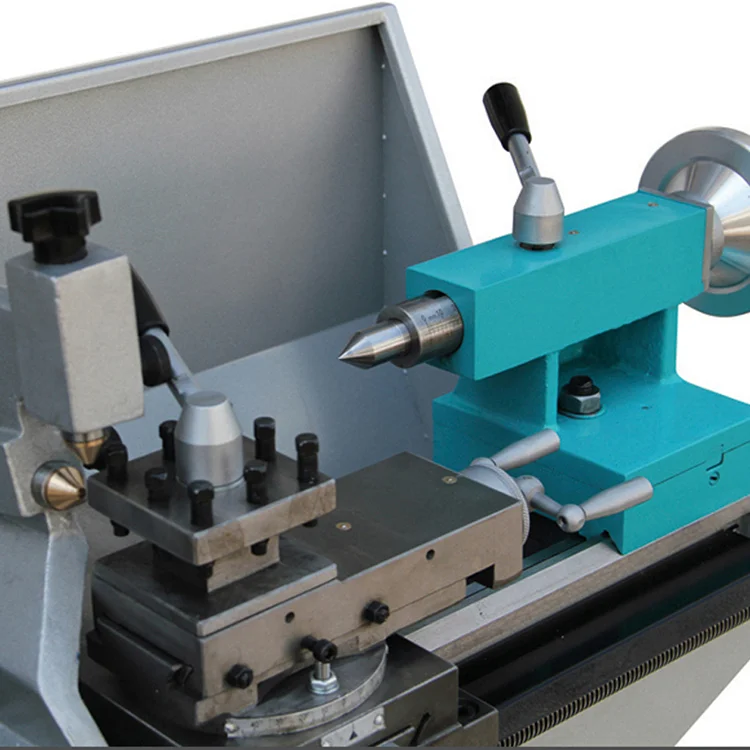

Carriage assembly, 130 mm diameter self-centering three jaw chuck and 4-way rocker style tool post are included

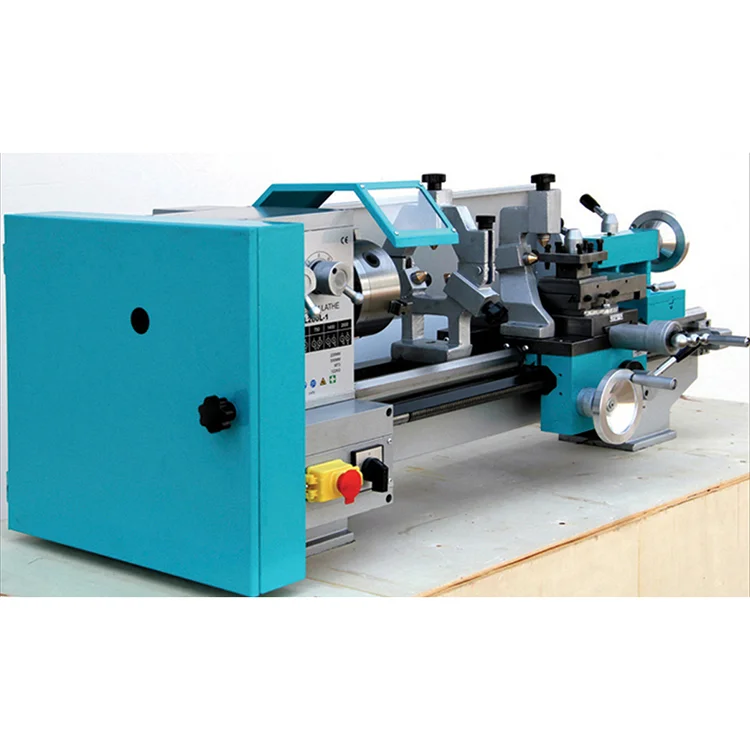

Detailed Images
BL200G is very suitable for training, DIY, and light manufacturing.
